2nd Gen Tacoma 4.6 V8 1UR-FE and GX powertrain Swap

Discussion in '2nd Gen. Tacomas (2005-2015)' started by dpanibratets, May 22, 2022.

  1. May 25, 2022 at 8:33 AM
    #81
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    One side is scrap and there is a chance that the other side is not. If the other side and the diff check out okay then the cheapest option will be just to buy a low mileage axle shaft from a wrecker. A whole rear axle would run me in the neighborhood of $1500 bucks. It would be nice to just install existing parts into my tacoma housing.


  2. May 25, 2022 at 3:53 PM
    #82
    nudavinci64

    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    10,138
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    gotcha makes sense. curious if it would or not. Diff is is 8" vs 8.2" splines may line up but not 100% I know the t4r/fj the lines in the CVS are different but where it hooks up to the knuckle and diff they are the same.

  3. May 25, 2022 at 4:37 PM
    #83
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    49,685
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    saf023 and replica9000[QUOTED] like this.
  4. May 25, 2022 at 7:05 PM
    #84
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    Little Tacundra

    fatfurious2[QUOTED] likes this.
  5. May 25, 2022 at 7:08 PM
    #85
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    49,685
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    Whipbash was insane at wiring. I would have cried 9 times, then probably lit it on fire, and given it away. I hate wiring, but if you know how to do it, many many props to you! I look forward to seeing your build come out. Definitely check out his videos. If theres one thing I learned, is remember the immobilizer in the ignition

    saf023, Biscuits, SR-71A and 4 others like this.
  6. May 25, 2022 at 7:20 PM
    #86
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    I have seen his videos and partially was inspired by his swap to do my own. I have enough experience to take on a wiring project like this. I plan on downloading both factory service manuals from TIS. I can't wait to tear into it.

  7. Jul 23, 2022 at 8:11 AM
    #87
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    Okay everyone, I am starting to swap out the diffs. I got 4.56 gears, I am going to be running 275/70R17 10 plys. In order to retain AWD from the Lexus I have to swap the front diff housing extension and shaft to delete the 4WD A.D.D. Additionally, I found that the gx460 transmission support cross member appears to be about 3 inches more towards the rear. I suspect I will have to plasma cut and weld the cross member in the correct spot. I will bolt the tranny to the engine prior to cutting anything to verify location. The good news is that there is enough box frame to move it back 3 inches before the frame becomes a C channel. 20220720_113824.jpg

    PistonHead81, dborrer, Maxx and 13 others like this.
  8. Jul 23, 2022 at 8:42 AM
    #88
    henryp

    henryp Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70080
    Messages:
    2,425
    Gender:
    Male
    First Name:
    Henry
    Montana
    Vehicle:
    '17 GX 460 and '09 Boosted Taco
    Form follows function
  9. Jul 23, 2022 at 4:18 PM
    #89
    robson1015

    robson1015 Well-Known Member

    Joined:
    Mar 24, 2022
    Member:
    #393383
    Messages:
    169
    Gender:
    Male
    First Name:
    Bob
    New Concord, Ohio
    Vehicle:
    2009 base tacoma- regular cab- 5 speed
  10. Jul 26, 2022 at 8:08 PM
    #90
    libagui

    libagui Well-Known Member

    Joined:
    Feb 16, 2009
    Member:
    #13689
    Messages:
    594
    Gender:
    Male
    Dominican Republic
    Vehicle:
    05 tacoma prerunner
    Bilsteins 5100 set at .085 Rear custom 1" add a leaf 265/70 R17 tires. Custom made aluminum tonneau cover with bike rack. 4x4 conversion with 4Runner transfer case.
    Subscribed

  11. Jul 26, 2022 at 8:34 PM
    #91
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE

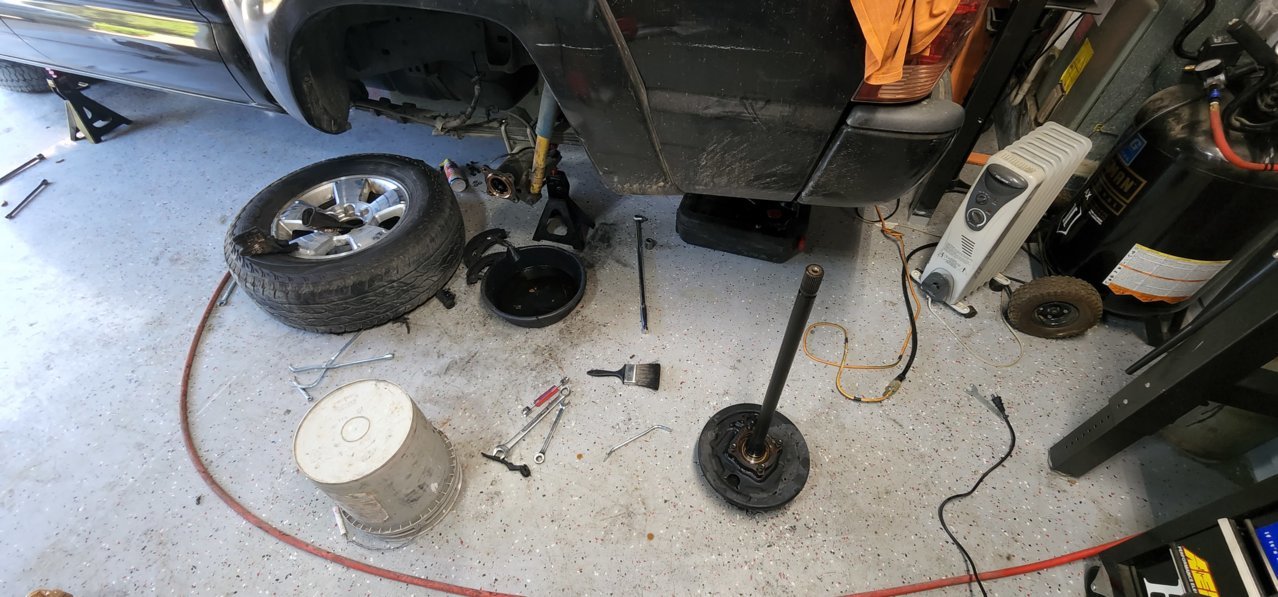

    I took the axles out today, working on taking the diffs off because I have to get the cores sent back to east coast gear supply with 30 days to get my deposit back. 4.56 gears, new hubs and new brakes going in. 20220726_124008.jpg

  12. Jul 27, 2022 at 8:02 AM
    #92
    Rmtomasin

    Rmtomasin Well-Known Member

    Joined:
    Nov 27, 2019
    Member:
    #311859
    Messages:
    73
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    2011 Super White Tacoma Access Cab V6 6SPD
  13. Aug 15, 2022 at 8:29 PM
    #93
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    Hey Everyone,

    I got a key programmed to the Lexus, engine runs great and transmission is shifting fine. Good news.

    See video here:
    https://youtu.be/mdo61lrP9SM

    It is going to sound great with a magnaflow muffler.

    Over the weekend I pulled the driveshafts, CVs, LCAs, spindles and I plan on using all of those parts on the Tacoma. Interesting fact, the spindles appear to have holes in them for a sway bar link even though the all gx460s have KDSS which has a sway bar that bolts on to the LCA. The LCAs appear to be similar with the exception of a bracket that holds the sway bar that is welded on to the original LCA. There may be a difference in a mounting bolt diameter, cross that bridge when we get there. Tomorrow, I am pressing on new rear hubs, hopefully later this week the rear axle will be fully rebuild with 4.56 gears. This Saturday, I would like to pull the tranny out of the GX. Like I said before, the transmission support cross member will need to be relocated. I will likely cut it off when the transmission is out. So far everything is looking good.

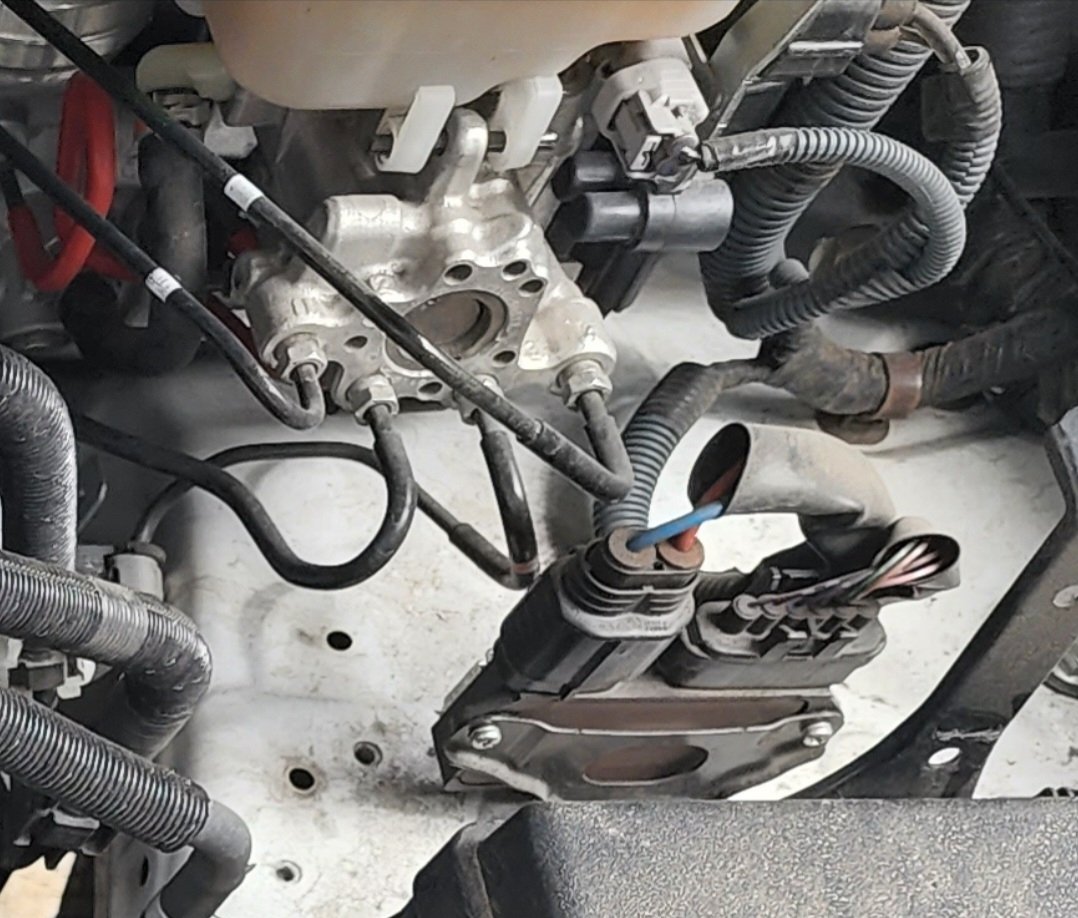

    Lastly I got to thinking about brake lines for the brake booster today. I am pretty confident that I can make the front GX brake lines work in the tacoma engine bay. As for the rear lines the GX lines will not work due to the wheelbase differences in the two vehicles. I found out I can purchase lines that are pre-bent from a 2015 Tacoma that has a similar booster. I think I am going to go that route to keep things clean and simple.


    Last edited: Aug 16, 2022
  14. Aug 24, 2022 at 9:13 AM
    #94
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    Hey Everyone,

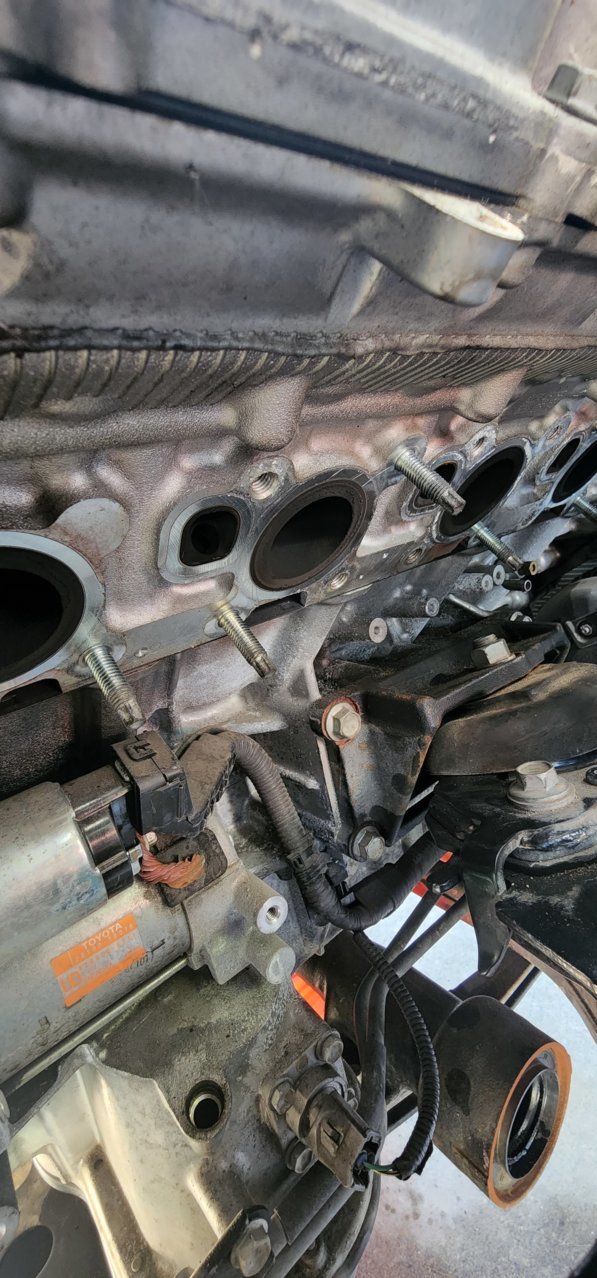

    To my surprise, I discovered that the exhaust headers interfere with the transmission removal. Basically the bell housing is trapped by the headers. The manual says to remove the headers and starter. To remove the right side header you have to remove the intake and oil dip stick. Everything is much tighter in this engine bay and harder to reach.

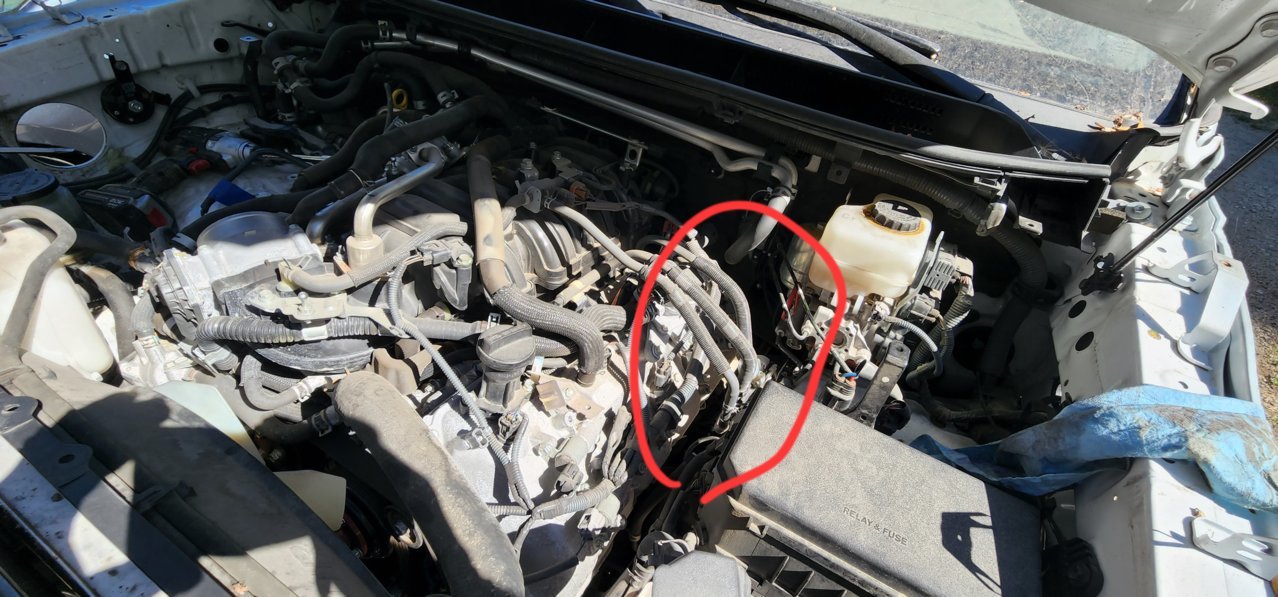

    On the bright side, I noticed the gas feed, return and evap lines come out in the same exact location in both engine bays! You can see it in the picture. The connectors look the same also. It's looking like they might just plug in. I will however install the gx fuel pump and it is my understanding that there might be a ECU for the fuel pump. Will keep you updated on that.

  15. Aug 24, 2022 at 9:16 AM
    #95
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,919
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    You’ve done more than 90% of the “engine swap guys”.
    Definitely following this one.

    Good job on the progress:thumbsup:

    Anton338, FloridaFree, saf023 and 5 others like this.
  16. Aug 24, 2022 at 9:49 AM
    #96
    Tacobot14

    Tacobot14 Heep Recovery Vehicle

    Joined:
    Sep 6, 2016
    Member:
    #196540
    Messages:
    248
    Gender:
    Male
    First Name:
    Ty
    North Carolina
    Vehicle:
    2015 TRD OR White Tacoma 6MT
    OME BP-51, JBA UCA, SOS Streamline Bumper, SOS Sliders, Toyo AT2 tires, many more.
    Subbed.

  17. Aug 25, 2022 at 5:21 PM
    #97
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE

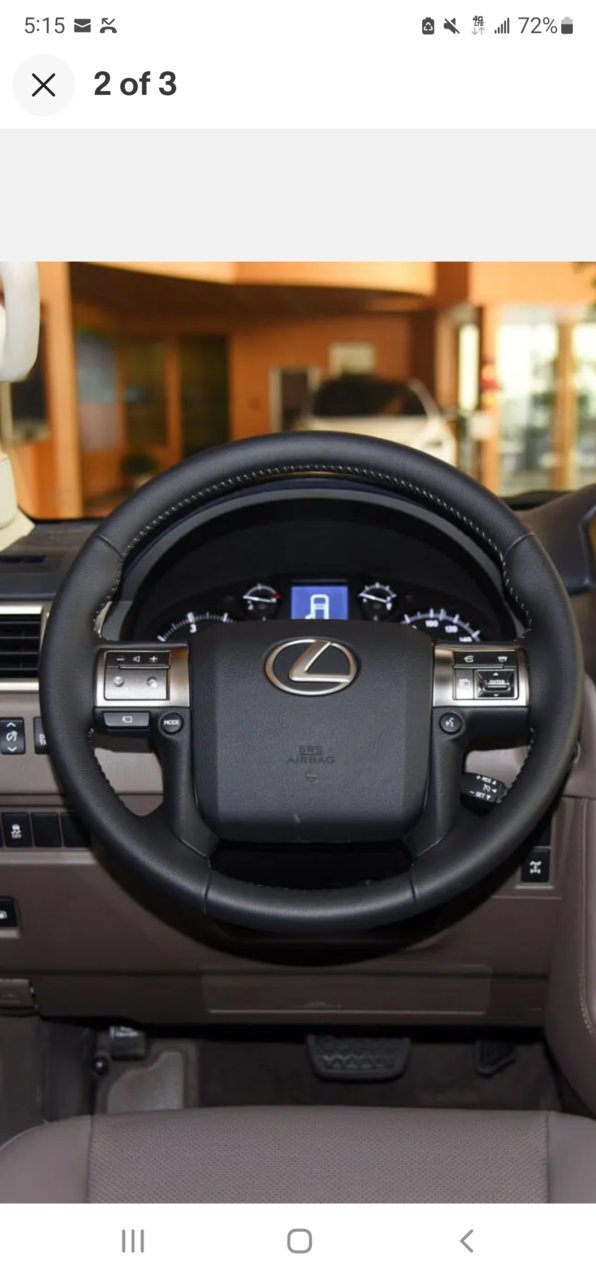

    I will have to use the GX steering wheel because it interacts with the LCD screen in the gauge cluster. There is a GX steering wheel that is leather and without wood. It is on the base model and I managed to find one on ebay yesterday. My existing steering wheel is Sepia (biege) color with a wood grain. Also I found a seller on ebay that sells black airbag cover so I will use my existing airbag.


    This site contains affiliate links for which the site may be compensated.
    #97
  18. Aug 25, 2022 at 5:24 PM
    #98
    dpanibratets

    dpanibratets [OP] Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112778
    Messages:
    565
    Gender:
    Male
    First Name:
    Denis
    Vancouver, WA
    Vehicle:
    2005 DCSB soon to be with V8 1UR-FE
    I got both exhaust manifolds off, hopefully the tranny will be out this Saturday. There is no way the engine would come out with the exhaust manifolds on. If you're going to do a swap like this, buy a late model and low miles. I am really impressed that the hardware is like new when this car is 6 years old and 70k miles

  19. Aug 25, 2022 at 8:59 PM
    #99
    Ricardo13x

    Ricardo13x YT: @UrbanOpsOffRoad IG: @urban.ops.offroad

    Joined:
    Feb 9, 2020
    Member:
    #318785
    Messages:
    2,864
    Gender:
    Male
    Upland, CA.
    Vehicle:
    05 OR DCSB ProRunner(4x4 conv.), Chevy 63”s, NWF EcoCrawler, 35”s
    Random stuff. Oh! and converted to non ADD 4x4.
    I couldn’t believe how clean the engine and hardware was when I did the 4x4 conversion. Dude your build is awesome!

  20. Aug 26, 2022 at 2:32 PM
    #100
    TireFire

    TireFire Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    7,667
    Olympic Peninsula
    Are there aftermarket headers for the GX460? What a nuisance the headers need to be pulled first to pull the motor OR trans!
