2nd Gen Tacoma shock info compilation

Discussion in 'Suspension' started by DevL, Aug 2, 2012.

  1. Aug 2, 2012 at 10:59 AM
    #1
    DevL

    DevL [OP] Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,920
    Gender:
    Male
    Id like to make a compilation of shock info for 2nd gens.

    To start I'd like to by confirming this is the factory installed TRD shock.

    Can anyone confirm? If anyone finds any incorrect info or typos let me know.

    FRONT TRD FACTORY SHOCK

    [​IMG]
    46mm Monotube Shock Absorber
    Internal Design: Monotube
    Collapsed Length: 17.1 in / 434.3 mm
    Extended Length: 22.17 in / 563 mm
    Boot Included: Blue straight
    Mounting Kit: B4-KT1-Z237A01
    Spring Seat: Replaceable (E4-FT1-Z011A03)
    Finish: Yellow paint
    Supercedes: F4-BE5-C513-H1
    Part #: 24-188401




    REAR TRD FACTORY SHOCK

    [​IMG]

    Monotube Shock Absorber
    Series: 4600 Series; 6 Lug Wheel; Rear; 46mm Monotube Shock Absorber
    Internal Design: Monotube
    Collapsed Length: 13.98 in / 355 mm
    Extended Length: 22.94 in / 582.7 mm
    Boot Included: Blue straight
    Mounting Kit: B4-KT1-Z008A00
    Spring Seat: No
    Finish: Yellow paint
    Supercedes: F4-BE5-C515-H0
    Part #: 24-186056



    FRONT 5100 BILSTEIN

    [​IMG]

    Monotube Shock Absorber
    Series: 5100 Series (Ride Height Adjustable); Front Lifted Height: 0-2.5"; Front; 46mm Monotube Shock Absorber
    Internal Design: Monotube
    Collapsed Length: 17.03 in / 432.5 mm
    Extended Length: 22.56 in / 573 mm
    Boot Included: Black straight
    Mounting Kit: B4-KT1-Z237A01
    Spring Seat: Replaceable (E4-FT1-Z011A03)
    Reservoir: No
    Finish: Zinc plated
    Supercedes: F4-BE5-C475-H1
    Part #: 24-186711



    REAR 5100 BILSTEIN

    [​IMG]

    Series: 5100 Series; Rear Lifted Height: 0-1"; Rear; 46mm Monotube Shock Absorber
    Internal Design: Monotube
    Collapsed Length: 14.02 in / 356 mm
    Extended Length: 22.94 in / 582.7 mm
    Boot Included: Black bellows
    Mounting Kit: B4-KT1-Z008A00
    Spring Seat: No
    Reservoir: No
    Finish: Zinc plated
    Supercedes: F4-BE5-C476-H0
    Part #: 24-186728

    REAR 5160 BILSTEIN

    [​IMG]

    Series: 5160 Series; Rear Lifted Height: 0-1"; Rear; 46mm Monotube Shock Absorber
    Internal Design: Monotube
    Collapsed Length: 13.84 in / 351.5 mm
    Extended Length: 23.23 in / 590 mm
    Boot Included: No
    Mounting Kit: B4-KT1-Z008A00
    Spring Seat: No
    Reservoir: Yes
    Finish: Zinc plated
    Supercedes: F4-BR5-H734-H0
    Part #: 25-177343


    FRONT OME NITROCHARGER

    [​IMG]

    OME N140S Nitrocharger
    Internal Design: Twintube
    Collapsed Length: 15.95 in / 405 mm
    Extended Length: 21.38 in / 543 mm
    Boot Included: Black
    Spring Seat: No
    Reservoir: No

    REAR OME NITROCHARGER

    [​IMG]

    OME N182 Nitrocharger
    Internal Design: Twintube
    Collapsed Length: 13.86 in / 352 mm
    Extended Length: 23.94 in / 608 mm
    Boot Included: No
    Spring Seat: No
    Reservoir: No

    FRONT OME NITROCHARGER SPORT

    [​IMG]

    OME N90000
    Internal Design: Twintube/Montube Hybrid
    Collapsed Length: 16.26 in / 413 mm
    Extended Length: 21.38 in / 543 mm
    Boot Included: Black
    Spring Seat: No
    Reservoir: No

  2. Aug 3, 2012 at 8:44 PM
    #2
    DevL

    DevL [OP] Well-Known Member

    Joined:
    Feb 23, 2010
    Member:
    #31952
    Messages:
    1,920
    Gender:
    Male
    Links pointing to data would be a big help guys...

    Still needed

    Need Icon 2" rear and 2.5" front and rear.
    Need Fox 2.5" front 2" rear.
    Need King 2.5" front and rear.
    Need anyone elses coilovers or shocks you think should be added.

  3. Aug 8, 2012 at 3:13 PM
    #3
    GP3

    GP3 Well-Known Member

    Joined:
    Apr 11, 2011
    Member:
    #54719
    Messages:
    1,203
    Gender:
    Male
    California
    Vehicle:
    4X4 TRD Off Road
    Front: stock suspension, 12" wide fiberglass fenders Rear: stock suspension, 10" wide fiberglass fenders
    FOX Shox:

    OE Length 2.5 w/ Remote Resevoir
    Fox Part# 880-02-376-B
    Extended Length: 22.21"
    Collapsed Length: 17.58"
    Shock shaft Travel: 4.63"
    Height Adjustment: 0"-2"

    OE Length 2.0
    Fox Part# 985-02-002
    Extended Length: 22.23"
    Collapsed Length: 17.55"
    Shock shaft Travel: 4.7"
    Height Adjustment: 0"-2"

  4. Aug 22, 2012 at 7:23 PM
    #4
    wolftree

    wolftree Well-Known Member

    Joined:
    Oct 9, 2011
    Member:
    #64877
    Messages:
    685
    Gender:
    Male
    First Name:
    Rick
    Ohio
    Vehicle:
    2011 Tacoma 4x4 Regular cab automatic trans,
    Rear Leaf TSB, Bilstein 5100s, extra leaf added
    Toyota TRD Bilstein shocks are NOT Bilstein 4600s. The TRD shocks are built by Bilstein to Toyota specs, but they are not 4600s.

  5. Nov 16, 2012 at 7:13 PM
    #5
    Milowilli

    Milowilli Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    312
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    [​IMG]

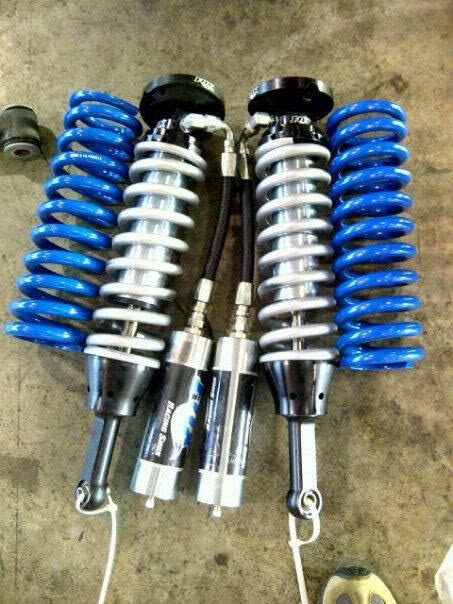

    Fox Part# 880-02-418-A
    Extended Length: 22.54"
    Collapsed Length: 17.58"
    Shock shaft Travel: 4.96"
    Height Adjustment: 0"-3"
    Kit comes with reservoir mounting brackets. Extended travel shock to be used with UCAs. Recovers lost droop due to lift if wound up.

  6. Nov 18, 2012 at 8:37 PM
    #6
    hanrock

    hanrock Well-Known Member

    Joined:
    Oct 27, 2011
    Member:
    #65972
    Messages:
    127
    Gender:
    Male
    First Name:
    craig
    sask
    Vehicle:
    2012 nauticle blue dc lb
    2 1/4 front, 1 1/4 rear, fog light mod, KC daylighters
    so billstien 5100 0-1 inch lift and factory yellows have same extended length???

  7. Nov 19, 2012 at 4:52 AM
    #7
    Milowilli

    Milowilli Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    312
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Very close but both are crap shocks.

  8. Nov 19, 2012 at 5:25 AM
    #8
    TeamLombardo

    TeamLombardo WE'VE LANDED ON THE MOON!

    Joined:
    May 20, 2012
    Member:
    #79227
    Messages:
    644
    Gender:
    Male
    First Name:
    Tony
    El Paso
    Vehicle:
    '12 DCSB TRD Off-Road 4x4
    OME 886x, OME Trim Packer, OME Shocks, Dakars, Toytec Shims, LR UCAs, CB Drop, Demello Sliders, Pelfreybilt Plate Bumper, Warn VR8000-s, RI 20" LED, RI Duallys, TRD Exhaust, Weathertech Liners, SS Brake Lines Front/Back, BHLM, Anytime Fogs, CV Boot Mod, 20% Tint, Stubby Antenna, Salex Console Organizer, Derped Grill/Badges
    [/QUOTE]REAR OME NITROCHARGER

    [​IMG]

    OME N182 Nitrocharger
    Internal Design: Twintube
    Collapsed Length: 13.86 in / 352 mm
    Extended Length: 23.94 in / 608 mm
    Boot Included: No
    Spring Seat: No
    Reservoir: No[/QUOTE]

    Correct me if I am wrong, but isn't the boot the aluminum sleeve that sits around the shaft?

  9. Nov 19, 2012 at 5:32 AM
    #9
    hanrock

    hanrock Well-Known Member

    Joined:
    Oct 27, 2011
    Member:
    #65972
    Messages:
    127
    Gender:
    Male
    First Name:
    craig
    sask
    Vehicle:
    2012 nauticle blue dc lb
    2 1/4 front, 1 1/4 rear, fog light mod, KC daylighters
    i think the newer sport version has a black plastic one..

  10. Nov 19, 2012 at 6:38 AM
    #10
    TeamLombardo

    TeamLombardo WE'VE LANDED ON THE MOON!

    Joined:
    May 20, 2012
    Member:
    #79227
    Messages:
    644
    Gender:
    Male
    First Name:
    Tony
    El Paso
    Vehicle:
    '12 DCSB TRD Off-Road 4x4
    OME 886x, OME Trim Packer, OME Shocks, Dakars, Toytec Shims, LR UCAs, CB Drop, Demello Sliders, Pelfreybilt Plate Bumper, Warn VR8000-s, RI 20" LED, RI Duallys, TRD Exhaust, Weathertech Liners, SS Brake Lines Front/Back, BHLM, Anytime Fogs, CV Boot Mod, 20% Tint, Stubby Antenna, Salex Console Organizer, Derped Grill/Badges
    The fronts have the black plastic one. My rear N182s came with the yellow aluminum boot like pictured in the OP

  11. Dec 2, 2012 at 10:58 PM
    #11
    DoorDing

    DoorDing Thank you, Nancy Roman

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    23,676
    Gender:
    Male
    Vehicle:
    2012 DCSB Off-Road 4WD
    DevL, I appreciate the idea behind this thread, but you'll need to update your opening post to keep it organized and useful, like the Sliders and Bumpers threads. I've been planning & shopping, so I'll try to find some other specs for you along the way.

  12. Dec 2, 2012 at 10:59 PM
    #12
    95 taco

    95 taco Cornfed

    Joined:
    May 3, 2012
    Member:
    #78175
    Messages:
    10,366
    Gender:
    Male
    South Miss.
    Vehicle:
    2003 4x4 TRD SR5
    Bilsteins front and rear, front set to 1'' and rear are 9'' 5125's, OMD springs in the rear, CSJumper LED's inside, hard wired inverter.
    sticky?

  13. Dec 24, 2012 at 4:10 PM
    #13
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,827
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Opinions from those who run them: FOX vs. BILSTEIN for front end upgrade from factory Bilstein (or other options) for desert running... not racing, but to improve the bounce or stop the rocking horse affect.

  14. Dec 25, 2012 at 6:20 AM
    #14
    Milowilli

    Milowilli Milowilli

    Joined:
    Jan 17, 2012
    Member:
    #70857
    Messages:
    312
    Gender:
    Male
    First Name:
    Miles
    Naples FL
    Vehicle:
    05/ 07,09/11Tacoma access cab 4x4
    Night and day difference..bigger shock, more damping, adjustability, remote reservoir.

  15. Aug 30, 2013 at 6:10 AM
    #15
    Longo118

    Longo118 Well-Known Member

    Joined:
    Nov 7, 2012
    Member:
    #90692
    Messages:
    122
    Gender:
    Male
    New York
    Vehicle:
    2006 4x4
    -OME Lift w/ Dakar leafs -Wheels + Tires -All Pro IFS skid -4xInnovations Sliders -Tool box, hi-lift, shovel mount and a few others
    I just have to Sub to this thread because this helped me answer SO many questions haha.

  16. Aug 30, 2013 at 8:41 PM
    #16
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,244
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    You can get a black plastic cover for the rears too that go over the aluminum. Toytec charges you extra for them, calls them rock guards. When I ordered mine from wheeler's they came with them.

  17. Jul 19, 2014 at 9:21 AM
    #17
    urban

    urban Reg. Prime Minister of the Dep. Doubious Deeds

    Joined:
    Feb 21, 2013
    Member:
    #98124
    Messages:
    49
    Gender:
    Male
    Norther Illinois / Southeast Michigan
    Vehicle:
    12 DCLB sport OME lift
    Paint matched Undercover SE tonneau cover, debadged, trimmed mudflaps, weathertech visors and mats
    The OME rear shocks have an impressive range of travel for their size but they really limit rear droop it seems. In the back with the stock bumpstops you should be able to run a shock with a compressed length of 15-16". Does anyone know if there is an OME shock with the same valving but a longer compressed length? OME doesn't really list valving and lengths as clearly as bilstein or some other manufactures... their catalog is more application based ):

  18. Jul 19, 2014 at 9:25 AM
    #18
    hetkind

    hetkind Well-Known Member

    Joined:
    Feb 7, 2011
    Member:
    #50679
    Messages:
    1,513
    Gender:
    Male
    First Name:
    Howard
    Johnson City
    Vehicle:
    2011 SR5 Access Cab, white with Leer Cap
    bilstein set at 1.75, Racho 5000 rear with 4 leaf kit, floor mats, high lift jack, pull hook in hitch, bed rail corner braces, severe duty brake pads and devil horns on the grill....
    very handy list, I am going to sub since new shocks are on my to do list...

  19. Dec 4, 2014 at 6:39 AM
    #19
    yzmxer608

    yzmxer608 Member

    Joined:
    Jul 11, 2014
    Member:
    #133763
    Messages:
    20
    Gender:
    Male
    I'm kind of confused here, are the two shocks measured the same way? If the OME's can provide 2.5" of lift how are they shorter than the stock TRD's? Does it have something to do with the collapsed length? Aren't they non-adjustable as well?

    Also for shocks that have extended length (i.e. Icon extended length version) the extra inch of wheel travel (.5" shock travels) applies to down travel correct? How long of a shock could you theoretically use to get more down travel, eventually it'd limit up travel right? Just as an example if you took that Icon shock and made it 1" longer to give 2" down travel, what would happen over the whole stroke?

    Edit: Disregard the last part, I figured it out after thinking about it a while.

    Last edited: Dec 4, 2014
  20. Mar 6, 2015 at 8:46 AM
    #20
    CowboyTaco

    CowboyTaco Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    1,247
    Gender:
    Male
    North Texas
    Vehicle:
    11 TRD Sport
    Ironman Lift w/ Dakar Leaf Pack, Relentless Rock Sliders, AllPro IFS Skid Plate, WeatherTech Floor Liners and LampGards.
    Ironman4x4

    http://www.ironman4x4.com/catalogues

    http://www.ironman4x4.com/system/resources/W1siZiIsIjIwMTUvMDIvMTkvMmt6aTN6dGUwcV9Wb2xfMTVfV0VCX0lyb25tYW5fNHg0X1N1c3BlbnNpb24ucGRmIl1d/Vol%2015%20WEB%20Ironman%204x4%20Suspension.pdf

    Front - 12710GR
    [​IMG]
    Extended Length: 540 mm / 21.26"
    Collapsed Length: 408 mm / 16.06"

    Rear - 12744GR
    [​IMG]
    Extended Length: 609 mm / 23.98"
    Collapsed Length: 361 mm / 14.21"

    --------------------------------------------------------------------------------
    Old Man Emu

    http://www.arbusa.com/Uploads/PDF/onlineManualsGuides/OME_Guide_current.pdf

    Front - 90000 and 90021
    [​IMG]
    Extended Length: 543 mm / 21.38"
    Collapsed Length: 413 mm / 16.26"

    Rear - 60091
    [​IMG]
    Extended Length: 599 mm / 23.59"
    Collapsed Length: 360 mm / 14.17"


    I used Google to convert the mm to in. It wasn't exact, so the inches have been rounded to the hundredth either up or down.

To Top
