2RZ clutch orientation 2004 taco

Discussion in '1st Gen. Tacomas (1995-2004)' started by choopes, Aug 5, 2022 at 9:26 AM.

  1. Aug 5, 2022 at 9:26 AM
    #1
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    To my horror, it seems to mount either way. How can you tell what side goes to the pressure plate?
    thanks

  2. Aug 5, 2022 at 9:32 AM
    #2
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    There should be a sticker saying "flywheel side". But if not, usually the side where the springs protrude the most goes to the flywheel.

  3. Aug 5, 2022 at 9:44 AM
    #3
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    I went back over both the new one and the old one. I don't see any indication, or "flywheel side"


  4. Aug 5, 2022 at 9:47 AM
    #4
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles

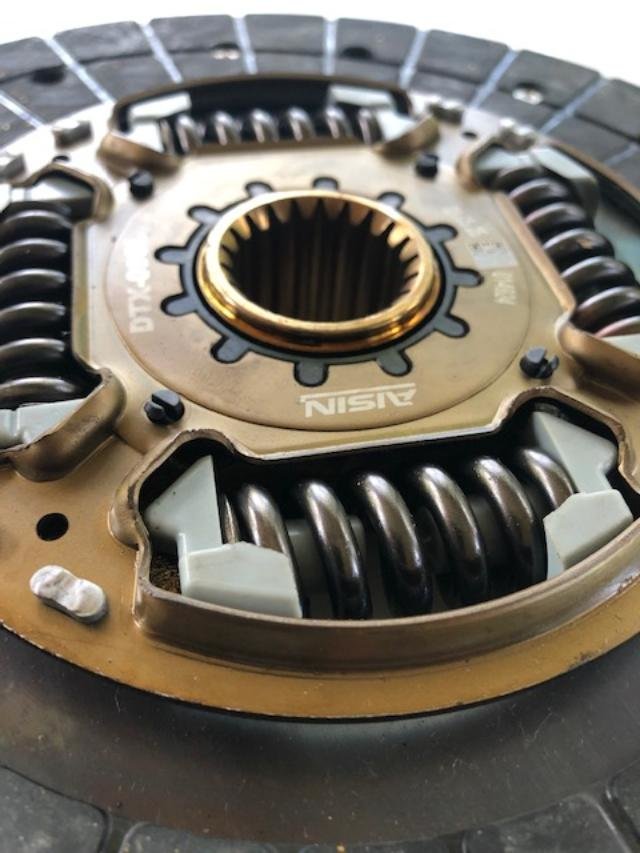

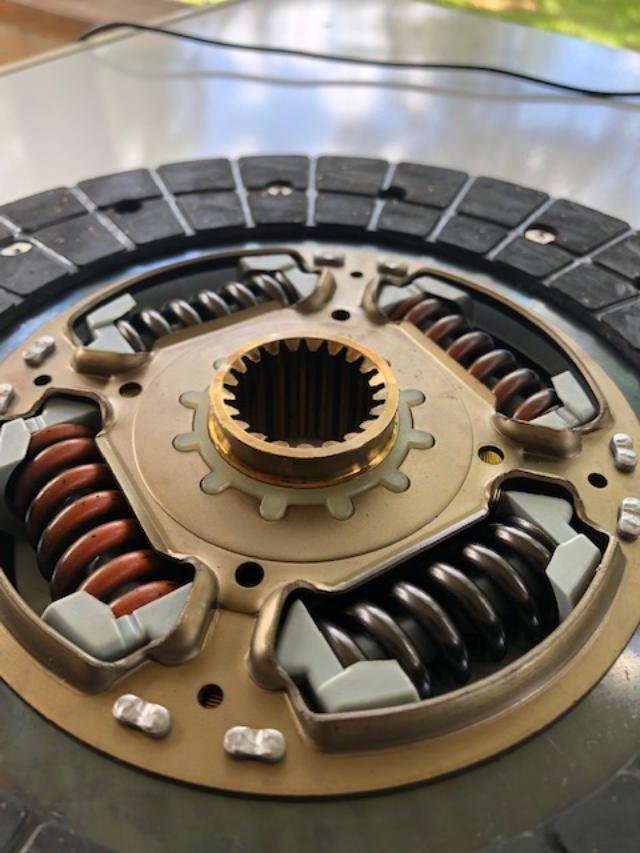

    I think the top image would go to the flywheel.

    EDIT: I'm wrong, the bottom one! ITS THE BOTTOM ONE. QUICK BACK IT UP TERRY!

    Last edited: Aug 5, 2022 at 10:41 AM
    Speedytech7, Key-Rei and tirediron like this.
  5. Aug 5, 2022 at 9:49 AM
    #5
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    Thanks friend. i may dig around for more info

  6. Aug 5, 2022 at 9:58 AM
    #6
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    No prob. Hopefully someone else comes in to confirm or deny or give better advice.

  7. Aug 5, 2022 at 9:59 AM
    #7
    tirediron

    tirediron Well-Known Member

    Joined:
    Jan 19, 2019
    Member:
    #279864
    Messages:
    3,172
    Gender:
    Male
    First Name:
    John
    Victoria, BC< Canada
    Vehicle:
    2022 4x4 Sport, Auto, BCM
    Agree.

  8. Aug 5, 2022 at 10:02 AM
    #8
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    40,976
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two
  9. Aug 5, 2022 at 10:33 AM
    #9
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    4,982
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Ha Ha Ha I learned this lesson well Changing my first Clutch .

    With the car parked across a low spot in the yard .64 Chevy Nova
    3 speed.

    I think we pulled the Transmission out 4 times till we got it correct.

    In this case the disc would work facing in either direction installed wrong it was just made noise but worked.

    Speedytech7 likes this.
  10. Aug 5, 2022 at 10:36 AM
    #10
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    Would the 3rz and 2rz orientation be the same then? If I recall, the sticker on the clutch I just installed matches the image above so I would like to recant my original statement to OP.

  11. Aug 5, 2022 at 10:39 AM
    #11
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    40,976
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two

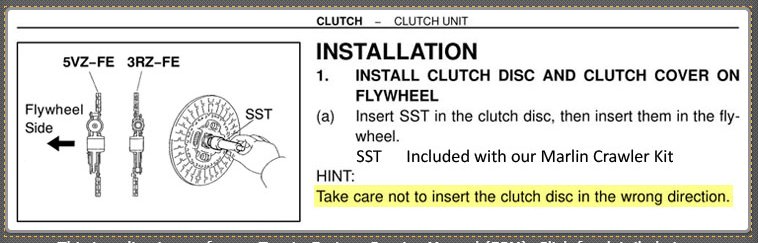

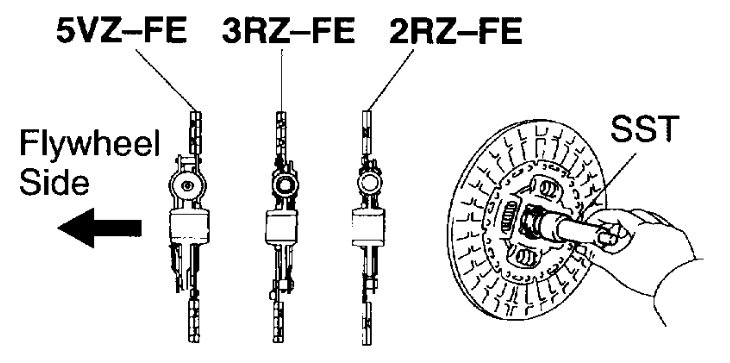

    Yessir according to the 04 FSM


    Jakuku Pahwheenis and Bivouac like this.
  12. Aug 5, 2022 at 10:43 AM
    #12
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    4,982
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    All Clutch discs face the same direction in all the ones I have installed

  13. Aug 5, 2022 at 10:45 AM
    #13
    Speedytech7

    Speedytech7 Toyota Cult Ombudsman

    Joined:
    Feb 20, 2014
    Member:
    #123587
    Messages:
    40,976
    Gender:
    Male
    First Name:
    Zane
    Spokane, WA
    Vehicle:
    93 Land Cruiser & 96 Tacoma V6 4WD
    I've done a mod or two
    The toyota clutches are weird I've had them come from Exedy and Seco with the flywheel side labeled wrong which tells me its used on other vehicles that aren't as weird as toyota

  14. Aug 5, 2022 at 10:49 AM
    #14
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    4,982
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Anymore good help is hard to find 2 clutch kits for the same application each kit had the the clutch disc label on a different side.

    I just go by how the disc coming out was installed. Though 5 speed swaps make me dig out the FSM to double Check.

    Speedytech7 likes this.
  15. Aug 5, 2022 at 10:52 AM
    #15
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    To add to the confusion, the Haynes manual says to default to the spring side if not labeled. (I know I know don't trust haynes)

  16. Aug 5, 2022 at 11:38 AM
    #16
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    I went ahead and put it in with the top picture I posted facing the pressure plate. Everything went fine. Torqued to 19f lbs. Looks like the 2RZ pic.
    I messaged Asian, where my clutch kit came from, but haven't heard back yet.
    If you find anything more definitive, please post here. i may be trying to put the tranny back in as early as in the morning. I don't know. Could be later. Thanks for the input.

    Jakuku Pahwheenis and Bivouac like this.
  17. Aug 5, 2022 at 1:07 PM
    #17
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    Im trying to install my transmission tomorrow too. We’ll see how it goes.

    choopes [OP] likes this.
  18. Aug 5, 2022 at 1:36 PM
    #18
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    You're putting one in too! Awesome!
    It seems petty heavy to handle by ones self. I am going to try to get a helper.

  19. Aug 5, 2022 at 1:42 PM
    #19
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    604
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    I’m trying too in the regional forum, haven’t caught a bite yet.

  20. Aug 6, 2022 at 4:10 AM
    #20
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    No word back from Asian yet. Likely won't until Monday. I am going to try to put the tranny in. i guess there is a 50-50 chance of getting it right. I hate gambling.
