2RZ clutch orientation 2004 taco

Discussion in '1st Gen. Tacomas (1995-2004)' started by choopes, Aug 5, 2022 at 9:26 AM.

  1. Aug 6, 2022 at 4:51 AM
    #21
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    571
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    Good luck

  2. Aug 6, 2022 at 6:00 AM
    #22
    O'Silver_Taco

    O'Silver_Taco Well-Known Member

    Joined:
    Aug 26, 2021
    Member:
    #375390
    Messages:
    877
    Gender:
    Male
    First Name:
    MD
    Vehicle:
    98 Dlx Sr5 ext AT Rwd
    3rz to 2Rz bebuilt block and new heads
    Last edited: Aug 6, 2022 at 6:20 AM
    Jakuku Pahwheenis likes this.
  3. Aug 6, 2022 at 6:02 AM
    #23
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    5,851
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Curious now. Most springs face the clutch cover, little late now but I wonder if you tried it the other way around inside the clutch cover before installing it? Maybe it wouldn't physically fit.

  4. Aug 6, 2022 at 8:12 AM
    #24
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    571
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    @choopes how’s your install going? This seems to be helping me at the moment.


    choopes [OP] likes this.
  5. Aug 6, 2022 at 2:39 PM
    #25
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    5,851
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    It should be an easy fit.

  6. Aug 6, 2022 at 5:31 PM
    #26
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    Just be sure the shaft is in correctly. Not uncommon to break. It is aluminum.

    My friend came over this morning and helped me. He is strong and can balance the tranny on his ankle/shin. But he couldn't get the bolts to line up. What we found was the dust plate had slipped down. I should have known that. After the tranny was removed to tighten the bolt holding the plate, he tried for a bit but was too give out. So we will go back at it again next Saturday. Next week i hope to hear back from Asian. Watch some videos, talk to some of you here to be sure my orientation is correct. It will go either way.
    Good luck with yours. Keep me posted.

  7. Aug 6, 2022 at 6:05 PM
    #27
    Dirty Dude

    Dirty Dude Active Member

    Joined:
    Aug 18, 2021
    Member:
    #374544
    Messages:
    41
    Vehicle:
    2004 Tacoma SR5 Xtra cab 5-lug
    Dirt, miles, and wear.
    Every clutch I have dealt with (Ford Windsor/Lima/Cologne, Toyota 22R-E/2RZ-FE) or seen has had the flattest side of the disc face the flywheel. Being opposite of that, the 5VZ-FE is an anomaly.

    I just buttoned-up a clutch job on my 2RZ about an hour ago. Seriously not fun. The trans has to roll over onto the fork side and get shoved back in the tunnel. Then the clutch has to come off before there's enough room to pull it out because the crossmember isn't removable. :mad:

  8. Aug 6, 2022 at 7:13 PM
    #28
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    571
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles

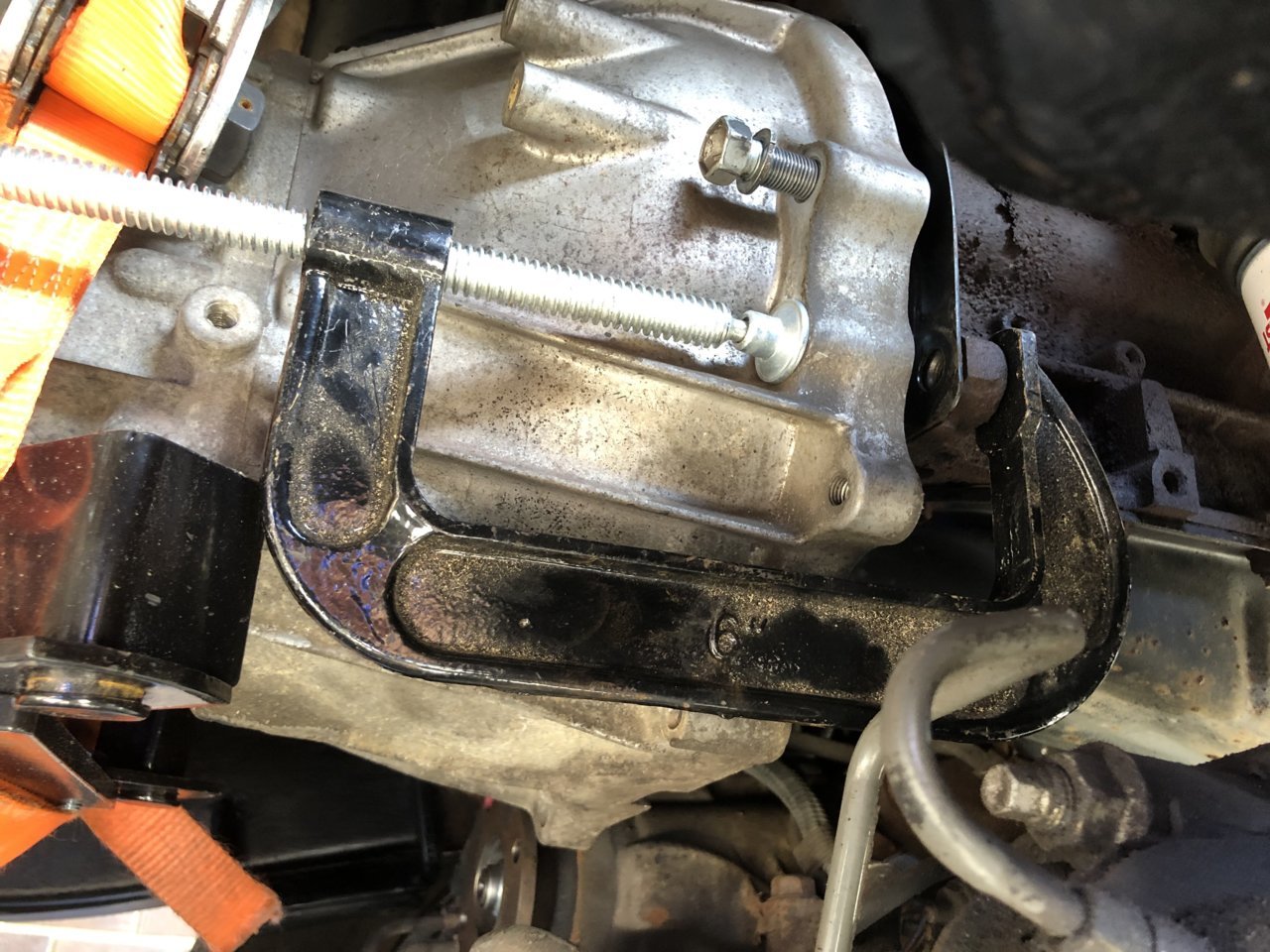

    I finished mine up today, but I had a transmission jack to help me. I couldn’t have done without that.

    choopes [OP] likes this.
  9. Aug 7, 2022 at 6:51 AM
    #29
    choopes

    choopes [OP] Well-Known Member

    Joined:
    Oct 7, 2020
    Member:
    #343135
    Messages:
    217
    Gender:
    Male
    First Name:
    Chris
    Troy, Al.
    Vehicle:
    2004 reg cab
    Stock
    The 2 pictures I posted early in this post. Which one is right? That is to say, which is the side that goes next to the clutchplate? It will go either way.
    Happy to hear you got yours in okay.

  10. Aug 7, 2022 at 10:53 AM
    #30
    Dirty Dude

    Dirty Dude Active Member

    Joined:
    Aug 18, 2021
    Member:
    #374544
    Messages:
    41
    Vehicle:
    2004 Tacoma SR5 Xtra cab 5-lug
    Dirt, miles, and wear.
    I can't really tell from your pics. Look at it from the side; the side that sticks out more would go toward the pressure plate. I think that may be your first photo.
