3.4l TRD Supercharger rebuild

Discussion in '1st Gen. Tacomas (1995-2004)' started by SupraT, Mar 10, 2013.

  1. Mar 10, 2013 at 8:20 PM
    #1
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI
    I have done a lot of research on this subject and there is not a whole lot out there, so I figured I would share my experience. First off this whole procedure would be a lot easier with a big press but I didn't have one so this is what I used.

    I ordered new nose seal, couplier, bearings, gasket maker and super charger oil from:
    http://rollingperformance.com/index.htm

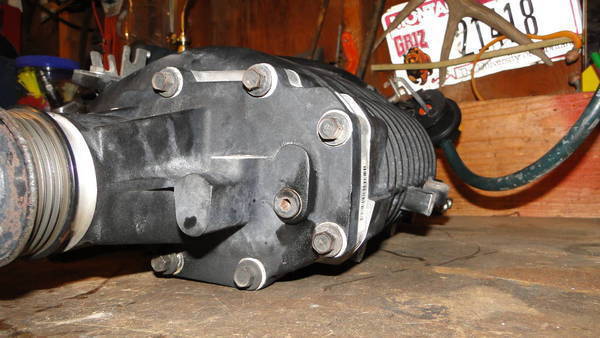

    First off I removed the SC from the truck and set it on the work bench.

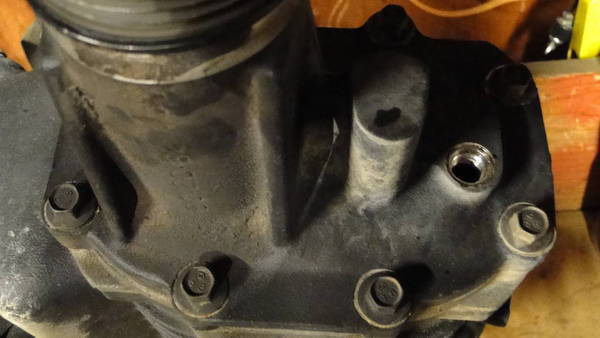

    Remove the drain plug on the front of the unit next to the pulley, with an allen wrench.
    [​IMG]

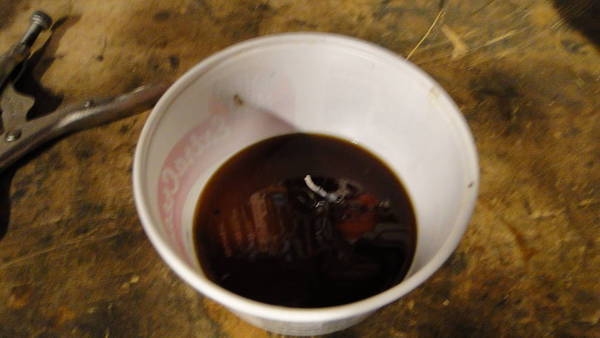

    Tip forward and drain oil out, as you can see mine is dark in color and smelled terrible. Guessing it really needed changed:D
    [​IMG]

    Next loosen the bolts around the housing.
    [​IMG]

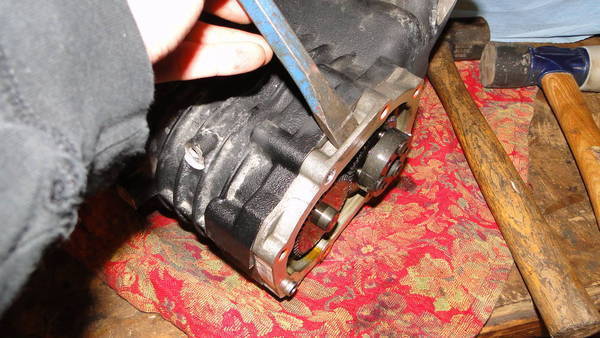

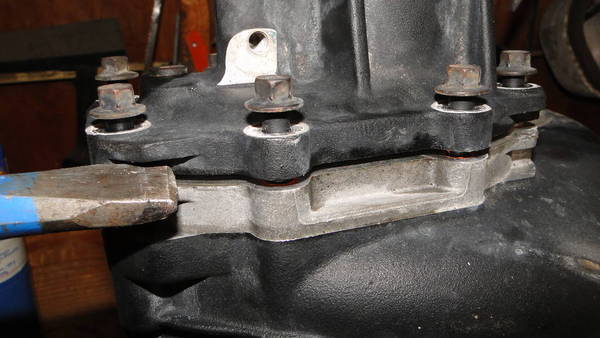

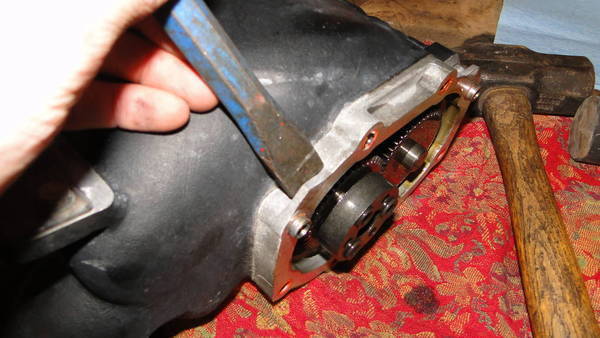

    I loosened all the bolts about an inch, then I pried the nose drive from the housing and tipped it over onto a rag to remove the last of the oil.
    [​IMG]

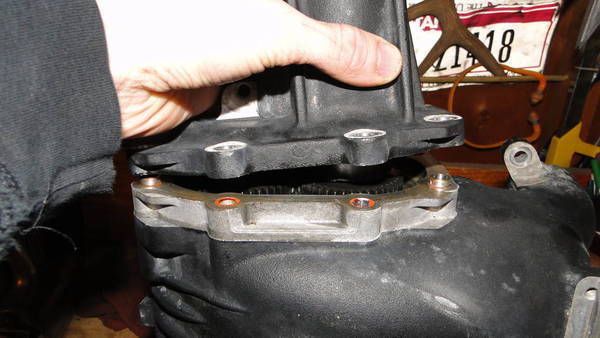

    Then remove the rest of the bolts and remove the nose drive.
    [​IMG]
    [​IMG]

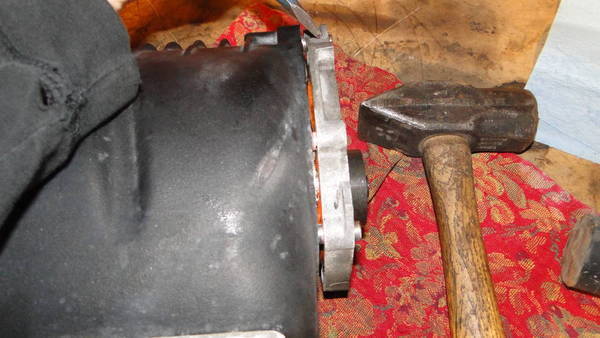

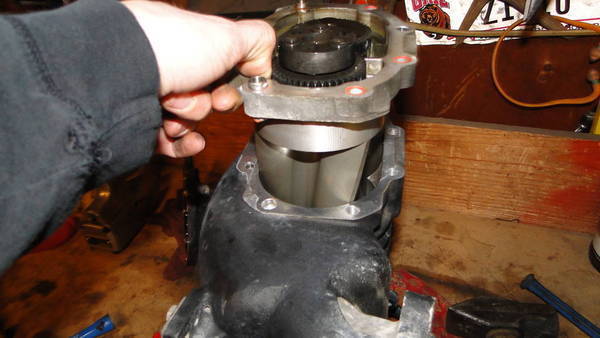

    Now on to removing the rotor assy from the housing by prying on the three different notches.
    [​IMG]
    [​IMG]
    [​IMG]

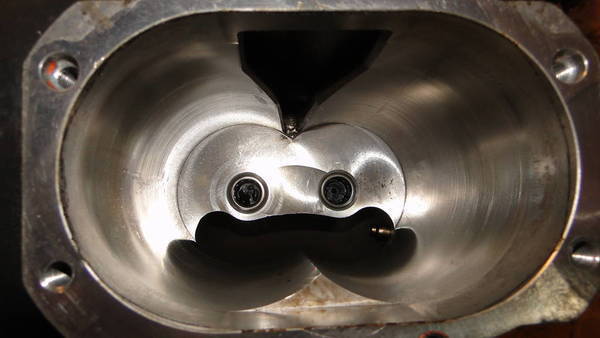

    Once the rotor assy is removed you can see the two rear bearings.
    [​IMG]
    [​IMG]

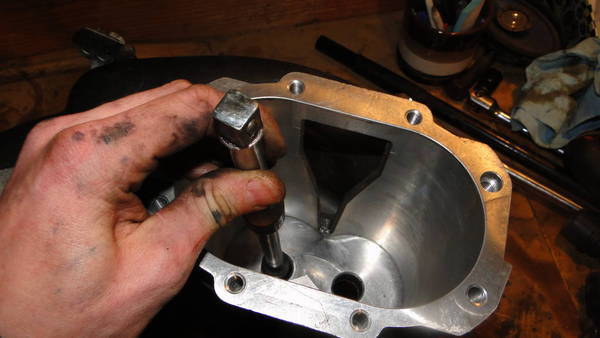

    This next process would be a lot easier with a press. I improvised and found the end of my 1/2 inch extension was the same OD than the bearing. So I then beat them out of the rear.
    [​IMG]

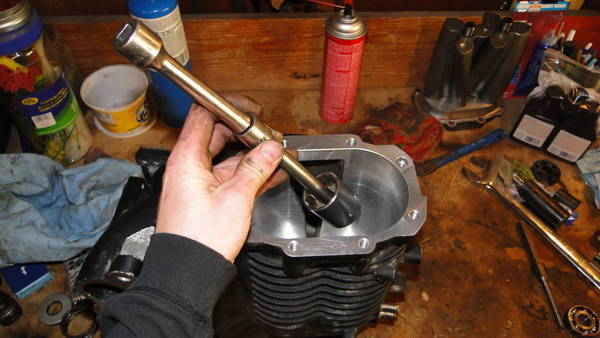

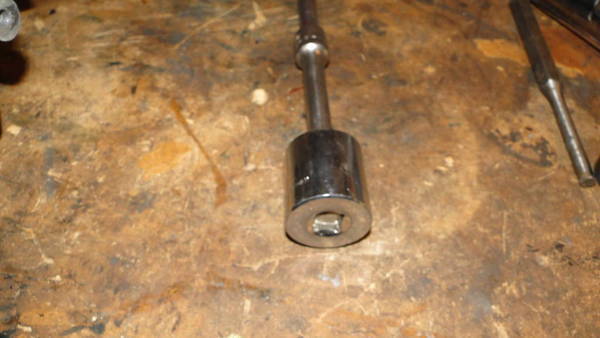

    I froze the rear bearings and used the back of a socket to beat the bearings back in. If you have never done anything like this before make sure that you are going in straight.
    [​IMG]
    [​IMG]

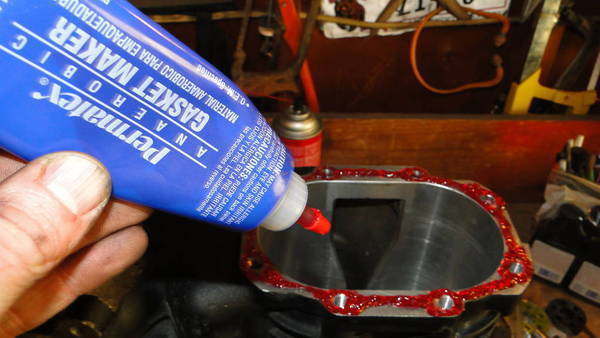

    Apply gasket maker, do not use this much it was overkill and it got all over the place. All you need is a small bead around the inner lip. Then put the rotor assy back in. And install the new coupler.
    [​IMG]
    [​IMG]
    [​IMG]

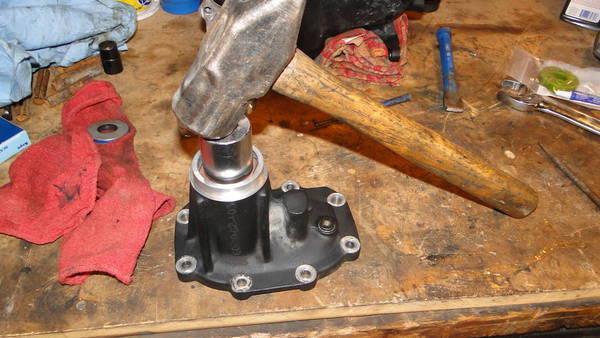

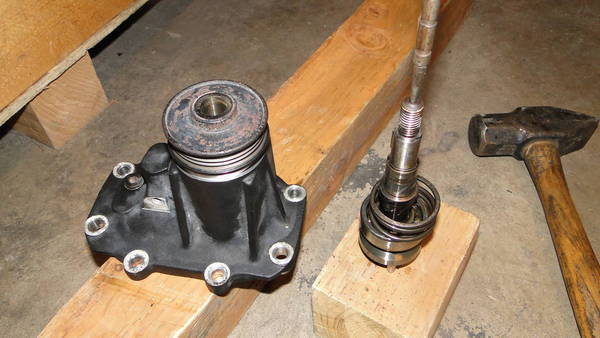

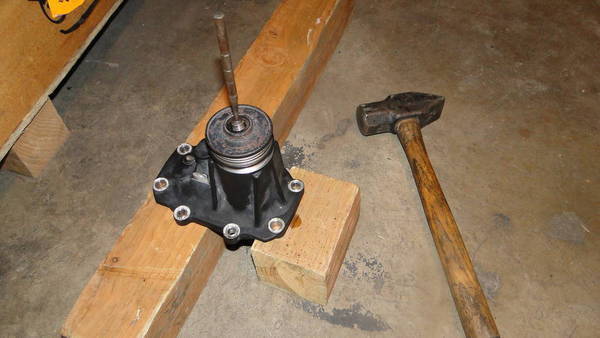

    Now the nose assy. I used a punch, hammer, and a couple pieces of wood to remove the nose shaft.
    [​IMG]
    [​IMG]

    Remove the clip holding the seal in and then flip the housing over and I used a 1/2 inch ext and a socket to remove the outer bearing and seal.
    [​IMG]
    [​IMG]

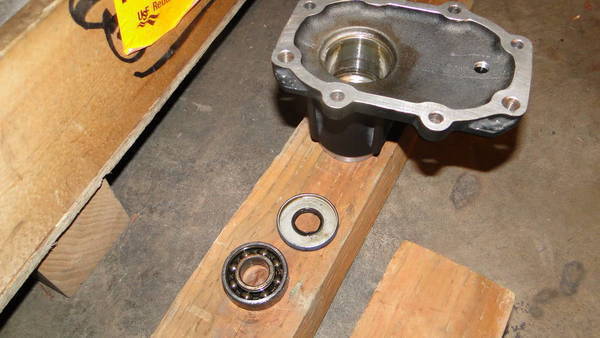

    After bearing and seal are removed, remove spring from the shaft assy and put the shaft back in the housing place on wood again and with punch beat the shaft thru the bearing and couplier piece ( Did not take a picture of this process) Would be a lot easier to take it to a shop and get it pressed off and new one pressed on.

    Install new front bearing. And reinstall the nose shaft and bearings.
    [​IMG]

    Apply gasket maker and put nose assy back on. Loc-tight bolts and tighten, then fill with 4 oz super charger oil and put drain plug back in and reinstall on the truck.

    Hope this helps anyone looking to do a full rebuild, and feel free to contact me with questions.

    P.S. Sorry about the spelling:rolleyes:

    Last edited: Mar 10, 2013
  2. Mar 10, 2013 at 8:24 PM
    #2
    TacoSkeet

    TacoSkeet 'MERICA

    Joined:
    Oct 16, 2012
    Member:
    #89164
    Messages:
    669
    Gender:
    Male
    First Name:
    Steven
    Memphis, TN
    Vehicle:
    03 DC Tacoma
    sweet write up man!

  3. Mar 10, 2013 at 8:42 PM
    #3
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI
    Thanks, hopefully it helps someone

  4. Mar 10, 2013 at 8:52 PM
    #4
    Norton

    Norton Senior TW Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    2,024
    Gender:
    Male
    First Name:
    Steve
    Monument, CO
    Vehicle:
    04 V6 5-Spd SR5 TRD 4x4
    TRD Supercharger; URD 7th Injector; Injen CAI w/Airaid SynthaMax Filter; Magnaflow Cat-back; Light Racing UCAs, Wheelers 5-Leafs; OME 881s; Bilstein 5100s; Goodridge SS Brake Lines; Goodyear Wrangler Duratracs on 4Runner Ltd 5-Spokes; MetalMiller TRD Skid; B.A.M.F BPV Bracket; Grey Wire, Fog Light, Power Outlet, Door Chime & DRL Mods; FUBAR Moto Bits LED Headlights; Interior, Under-hood, & Reverse LEDs; Kenwood KDC-X895 HU & KFC-C6893PS Spkrs, Sound Ordnance B-8PT Sub & Dynamat; Husky Floor Liners; UltraGauge EM; External Thermometer; Redline Tuning QuickLIFT Elite; Rhino Bed Liner; Toyota Bed Extender; SnugTop Super Sport; SolarGard Tint; CravenSpeed Stubby Antenna; Alarm w/Keyless Entry; Amsoil Lubricants; Adam's Detailing Supplies
    Excellent write-up. Thank you!

  5. Mar 10, 2013 at 9:17 PM
    #5
    Q Source

    Q Source Well-Known Member

    Joined:
    Jul 13, 2012
    Member:
    #82567
    Messages:
    175
    Gender:
    Male
    California
    Vehicle:
    04 PreRunner
    Supercharged, TRD Headers, URD 7th/SHORTIE 800cc injector, Snow Performance Water/Meth Kit, Deaver FJ59, Icon UCA, Fox Extended Travel Remote Resi, TG Front and Rear Bumpers, Deckplate Mod
    EDIT:

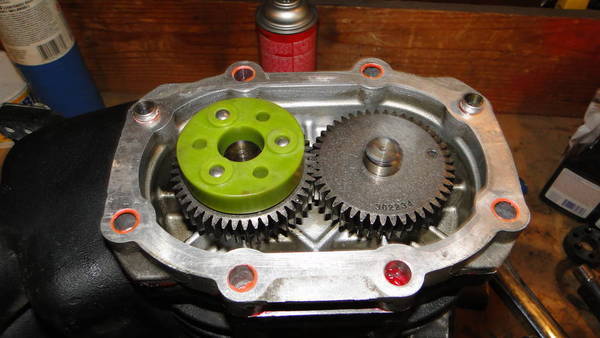

    IT APPEARS THE PHENOLIC DRIVE ADAPTER IS INSTALLED BACKWARDS.

    This is the best write up I have ever seen...

    I replaced my nosecone on my SC with a brand new one before I installed it. Had this post been around I would of saved myself 200 bucks.

    Any chance you could tell us what size bearings were in the impeller housing?

    Thank You!

    It might also help to use locktite green 603 bearing retaining compound on the outer race of the bearings and locktite 242 blue on the nose cone bolts

    Last edited: Jan 25, 2014
  6. Mar 10, 2013 at 9:22 PM
    #6
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI
    I will post up the part numbers that were on the box. I just ordered this part #
    #STDSNOUTKIT03-V . . . $75.00 from Rolling Performance

  7. Mar 10, 2013 at 9:25 PM
    #7
    Xer0 SiN

    Xer0 SiN Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33334
    Messages:
    793
    Gender:
    Male
    Hilo, HI
    Vehicle:
    13 TRD OR 4wd, 6spd
    this and that...
    nice writeup. supercharger must feel refreshed after that lol.

  8. Mar 10, 2013 at 9:37 PM
    #8
    NW4RUNNER

    NW4RUNNER Well-Known Member

    Joined:
    Oct 23, 2012
    Member:
    #89657
    Messages:
    1,457
    Gender:
    Male
    Vehicle:
    4 runner trail
  9. Mar 10, 2013 at 9:44 PM
    #9
    Q Source

    Q Source Well-Known Member

    Joined:
    Jul 13, 2012
    Member:
    #82567
    Messages:
    175
    Gender:
    Male
    California
    Vehicle:
    04 PreRunner
    Supercharged, TRD Headers, URD 7th/SHORTIE 800cc injector, Snow Performance Water/Meth Kit, Deaver FJ59, Icon UCA, Fox Extended Travel Remote Resi, TG Front and Rear Bumpers, Deckplate Mod

    Here is my conversation with Magnusun about rebuilding...


    Hey xxxxxx, our inspection fee is $85.00 to inspect the supercharger, the repair depends on what it might need… it can range from $475.00 to $1200.00 for the internals.
    *

    David Gonzalez,* Customer Service Rep* (Se Habla Espanol)
    Magnuson Products LLC. International Headquarters, Ventura CA.
    Ph. +1 805 642-8833 **************************www.magnusonproducts.com



    I think if you can work on it yourself it's worth it.
    *

  10. Mar 10, 2013 at 10:36 PM
    #10
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI
    I can feel and hear the difference:D And it only costed me 120.00. In most cases you can prolly just change the oil and be fine if your seal is good.

  11. Mar 11, 2013 at 11:30 AM
    #11
    DAMOS

    DAMOS Well-Known Member

    Joined:
    Aug 27, 2012
    Member:
    #85667
    Messages:
    129
    Gender:
    Male
    Eugene, Oregon
    Vehicle:
    04 Dub Cab TRD 4x4
    TRD sc Magna flow cat back
    About time someone did this... Good info. Mine will need rebuilt some day.
    Just curious why you rebuilt your sc. Was it making noise or was it just time?

  12. Mar 11, 2013 at 12:55 PM
    #12
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI
    It just didn't have the whine that it should and i thought it was making a noise from the rear but now that I have rebuilt it I still have the noise:( Thinking it might be an exhaust leak now...

  13. Mar 11, 2013 at 2:14 PM
    #13
    DAMOS

    DAMOS Well-Known Member

    Joined:
    Aug 27, 2012
    Member:
    #85667
    Messages:
    129
    Gender:
    Male
    Eugene, Oregon
    Vehicle:
    04 Dub Cab TRD 4x4
    TRD sc Magna flow cat back
    Hmm ... what kind of noise? Put the stock crap back on and see if it goes away?

  14. Mar 11, 2013 at 5:21 PM
    #14
    BlackSportD

    BlackSportD Well-Known Member

    Joined:
    Aug 4, 2007
    Member:
    #2299
    Messages:
    376
    Gender:
    Male
    Los Angeles
    TRD S/C, TS PNP AEM FIC, TS 625cc injectors, TS 2.2 pulley, Hayden tranny cooler, AEM wideband, TRD boost gauge.
    Sick write-up. I was lazy and took mine to Magnuson- I would like to do the next rebuild myself, and have the blower ported as well.

  15. Mar 12, 2013 at 7:53 AM
    #15
    Hambone155

    Hambone155 Well-Known Member

    Joined:
    Jul 9, 2008
    Member:
    #7844
    Messages:
    709
    Gender:
    Male
    omaha
    Vehicle:
    Causing Butthurt is my job
    port and polish intake manifold, supercharger, pulley for charger, lifted, tires, deckplate, (doing full engine build)
    thank you! great write up.

  16. Mar 12, 2013 at 3:20 PM
    #16
    mmcmahan2206

    mmcmahan2206 Well-Known Member

    Joined:
    Jun 7, 2012
    Member:
    #80256
    Messages:
    766
    Gender:
    Male
    First Name:
    Matt
    McCall, Idaho
    Vehicle:
    00 Tacoma SR5 TRD 3.4L
    6" FabTech suspension 3" body lift, 35x12.50R15 BFG AT T/A KO tires, Mickey Thompson Sidebiter wheels, 4:88 front and rear gears, e-locker, "grey wire mod," Hella driving lights retroed to 55w 8000K HIDs, custom grill, Downey chrome air intake w/ AEM filter, AirAid throttle body spacer, Flowmaster exhaust, Alpine audio w/ 12" RF sub, racing bucket seats, black powdercoated toolbox, smoked out black taillights, black headlamps and corners, red LED interior lights, sway bar removed, rear shock relocation, u-bolt flip mod, 01 center console, Relentless Fab front plate bumper, LED fog lights.
    Sub'd

    Awesome write-up, man! Hopefully I'll be able to use it when I someday have a supercharger! :p

  17. Mar 12, 2013 at 4:05 PM
    #17
    cbassd

    cbassd Member

    Joined:
    Apr 21, 2012
    Member:
    #77328
    Messages:
    838
    Gender:
    Male
    First Name:
    sebastian
    Socal
    Vehicle:
    02 tacoma
    tc uca, 2.5 icon coilovers with resis, trd supercharger,flow master,u-bolt flip kit,,, all-pro standard pack leaf springs,10 inch travel 2.0 fox shocks with remote resis,21inch led bar,ham and cb radio,4xinnovation sliders, custom from bumper, prp bucket seats and deist 5-point harness
    Can you post pics of where you put in the new sc oil after you drain out the old oil for the sc

  18. Mar 12, 2013 at 5:04 PM
    #18
    MTgirl

    MTgirl too many frogs, not enough princes...

    Joined:
    Sep 29, 2009
    Member:
    #23531
    Messages:
    47,679
    Gender:
    Female
    First Name:
    Weesa
    in the forest
    Vehicle:
    99 - 3.4L V6 4WD
    Wheeler's/Alcan 5-pack leaf springs, Bilstein 5100's front and rear, OME 881's, de-badged, Jungle Fender Flares, Herculined bed, HomerTaco grille, Anzo headlights, clear corners, CVT Mt. Bachelor RTT, custom bed rack & CBI sliders
    You forgot that step where you (accidentally) dented the rotor :popcorn:

    Just kidding Tony, nice work. I have requested "sticky" status for this thread...

  19. Mar 12, 2013 at 5:13 PM
    #19
    atvlifestyle

    atvlifestyle Well-Known Member

    Joined:
    Nov 3, 2010
    Member:
    #45647
    Messages:
    1,482
    Gender:
    Male
    First Name:
    Chris
    Michigan
    Vehicle:
    01 trd tacoma
    supercharged with lots of midtravel bling.
    nice writeup man. This is something I will probably have to do in the next few years. Thanks for the info.

  20. Mar 12, 2013 at 8:47 PM
    #20
    SupraT

    SupraT [OP] Tacoma Lover

    Joined:
    Feb 26, 2010
    Member:
    #32148
    Messages:
    2,473
    Gender:
    Male
    First Name:
    Tony
    Columbia Falls
    Vehicle:
    98 TRD SR5 4x4
    3" Lift Three leaf add and Bilstin 5100"s in back and Donahoe coilovers in front, Tinted Windows, Blackened parking light, tinted brake lights, clear bumper lights, Blacked out turn signals, AVS vent visors, Electric Fan mod, K&N CAI

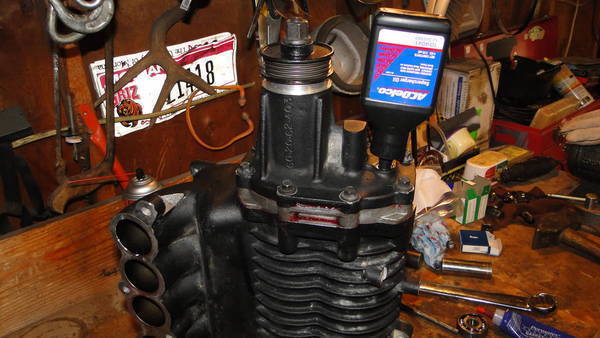

    Thought I posted this pic
    [​IMG]

    Thank you Lisa:D

    From what I found, if you change your oil every 30,000 or so you might never have to rebuild:)
