3.4l TRD Supercharger rebuild

Discussion in '1st Gen. Tacomas (1995-2004)' started by SupraT, Mar 10, 2013.

  1. Jan 27, 2019 at 7:56 PM
    #761
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    3,338
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 585,000 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Hella H4 German Rated Headlights HID 55 watt bulbs (MUST DO) 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Mmmm there should not be any resistance I don’t believe. Hopefully they are not hitting each other.

    How was the thermal coating? Any peeling or wear?
    Sometimes with new thermal coating depending on one or two layers the rotors kiss the coating and form a better seal.

  2. Feb 1, 2019 at 12:22 PM
    #762
    DangerTaco

    DangerTaco The older the bear, the sweeter the juice

    Joined:
    May 9, 2012
    Member:
    #78491
    Messages:
    1,179
    Gender:
    Male
    First Name:
    Max
    Brentwood and Sac, NorCal
    Vehicle:
    '03 Tacoma TRD
    Orange/black emblem, Black Ice, seat cover, more Black Ice, thicker front sway bar, Brembo Blanks, Hawk LTS pads

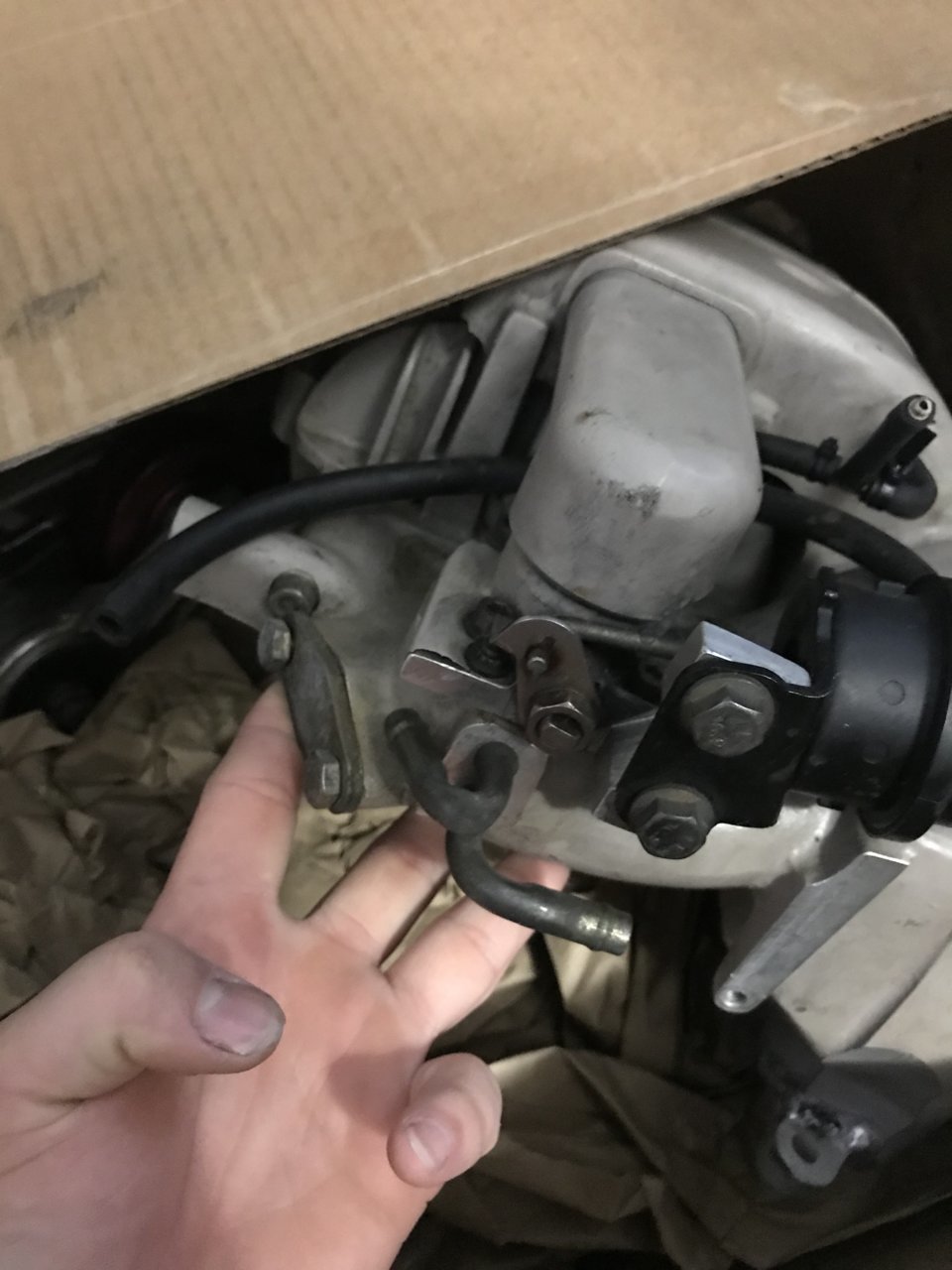

    So i took apart the used 1st gen s/c i got and man did the oil stink.
    Anyways im not sure if these rotors are borked or not.

    Some guys tell me to remove the coating and itll be fine while other guys tell me to get it recoated.


  3. Feb 1, 2019 at 2:38 PM
    #763
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    3,338
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 585,000 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Hella H4 German Rated Headlights HID 55 watt bulbs (MUST DO) 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    The coating is definitely shot and worn.

    The coating is to protect the supercharger from heat,
    The coating is a heat barrier and creates a tighter fit for rotors and cylinder walls
    for better boost

    Just do it right and recoat.

  4. Feb 1, 2019 at 4:22 PM
    #764
    DangerTaco

    DangerTaco The older the bear, the sweeter the juice

    Joined:
    May 9, 2012
    Member:
    #78491
    Messages:
    1,179
    Gender:
    Male
    First Name:
    Max
    Brentwood and Sac, NorCal
    Vehicle:
    '03 Tacoma TRD
    Orange/black emblem, Black Ice, seat cover, more Black Ice, thicker front sway bar, Brembo Blanks, Hawk LTS pads
    How would i go about finding a shop that specializes in recoats?
    Is it just finding the right performance shop that offers it?

  5. Feb 1, 2019 at 4:30 PM
    #765
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    3,338
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 585,000 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Hella H4 German Rated Headlights HID 55 watt bulbs (MUST DO) 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Both these companies do the recoated services.

    I think they might have an exchange type program too


    Personally I use the high speed lab for my work and he did my rebuild and coating

    https://jonbondperformance.com/


    http://thehighspeedlab.com/index.html


    Last edited: Feb 1, 2019
  6. Feb 2, 2019 at 7:21 AM
    #766
    DangerTaco

    DangerTaco The older the bear, the sweeter the juice

    Joined:
    May 9, 2012
    Member:
    #78491
    Messages:
    1,179
    Gender:
    Male
    First Name:
    Max
    Brentwood and Sac, NorCal
    Vehicle:
    '03 Tacoma TRD
    Orange/black emblem, Black Ice, seat cover, more Black Ice, thicker front sway bar, Brembo Blanks, Hawk LTS pads
    Sweet thanks man, ill check out highspeedlabs. i didnt know if there was going to be a core charge but i see you can trade in your old one.
    Any idea what the shipping time would be on that?

    Curious, how would the s/c handle without the coating?
    Im assuming it would run hot as fuck without it and flatter powerband

  7. Feb 2, 2019 at 8:57 AM
    #767
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    3,338
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 585,000 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Hella H4 German Rated Headlights HID 55 watt bulbs (MUST DO) 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Don’t really know, but because there is no inner cooler the supercharger needs all the help
    it can get from getting heat soaked.

    Shipping and work all depends on how busy he is. Once he rebuilt my supercharger in a weeks time another time it was 2 weeks.

  8. Feb 3, 2019 at 10:26 AM
    #768
    otis24

    otis24 Hard Shell Taco

    Joined:
    Dec 3, 2012
    Member:
    #92402
    Messages:
    3,802
    Gender:
    Male
    First Name:
    Mark
    West Coast
    Vehicle:
    03 Access Cab TRD 4X4 V6
    Things
    What’s the coating in the bore look like?

    1997tacomav6 likes this.
  9. Feb 11, 2019 at 9:51 AM
    #769
    TheMTBtacoGuy

    TheMTBtacoGuy Well-Known Member

    Joined:
    May 18, 2018
    Member:
    #253847
    Messages:
    675
    Gender:
    Male
    First Name:
    carsen
    Sandy, UT
    Vehicle:
    01 black X-tra cab TRD off-road Supercharged
    • 3in lift • 16in steel wheels • 2nd gen TRD supercharger • ARB front bumper • Custom black metalic flake paint job • KC lights • bed liner • Tow package • Borla exhaust
    Was your sc a 2nd gen

  10. Mar 13, 2019 at 2:03 PM
    #770
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    Does anyone know why a butt screw is used for the oil filler mod? It seems like there should be a screw with a shoulder or head at the top so that someone can't "accidentally" spin it into the cone. Wouldn't a short cap screw work? I know there is not a good seat for the head but that could also be part of the mod since you already have the cone in the drill press.

    TIA

  11. Mar 13, 2019 at 3:46 PM
    #771
    SCRunner12

    SCRunner12 Tundra Troll

    Joined:
    Aug 8, 2011
    Member:
    #61363
    Messages:
    8,570
    Gender:
    Male
    First Name:
    Robert
    Santa Cruz, CA
    Vehicle:
    2006 Tundra DC, TRD, 4wd
    Don’t think there was a particular reason why it was used and definitely could be done with any screw. Clearance on the top isn’t an issue.

  12. Mar 15, 2019 at 10:15 AM
    #772
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    Rebuild kit from HighSpeedLabs came this week (for the nose drive). Also got the tap and plug for the filler mod.

    2019-03-14 11.23.00.jpg

    Should I be able to do all the bearing work with a 20T press and sockets and stuff or will I need a special tool?

  13. Mar 15, 2019 at 10:19 AM
    #773
    eon_blue

    eon_blue got boost?

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    18,804
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    What did that kit set you back from HSL? Thinking I might order one to keep on hand...the older these superchargers get the more afraid I am of companies not offering parts for them anymore. Although I guess since Magnuson still sells the superchargers the parts should stay around for awhile.

  14. Mar 15, 2019 at 10:21 AM
    #774
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    I can't remember, it was around $100, plus or minus a couple of options.

    Edit: It was $127 before the conversion to Canadian peso :D

    eon_blue likes this.
  15. Mar 15, 2019 at 10:30 AM
    #775
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    I don't think any of these parts are Magnuson or Toyota. The bearings are pretty standard and are made by various manufactures with varying quality. I'm not sure about the seals. They may be harder to find.

  16. Mar 15, 2019 at 12:37 PM
    #776
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    3,338
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 585,000 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Hella H4 German Rated Headlights HID 55 watt bulbs (MUST DO) 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    These parts are readily available from a number of different companies.

  17. Mar 16, 2019 at 3:49 PM
    #777
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels

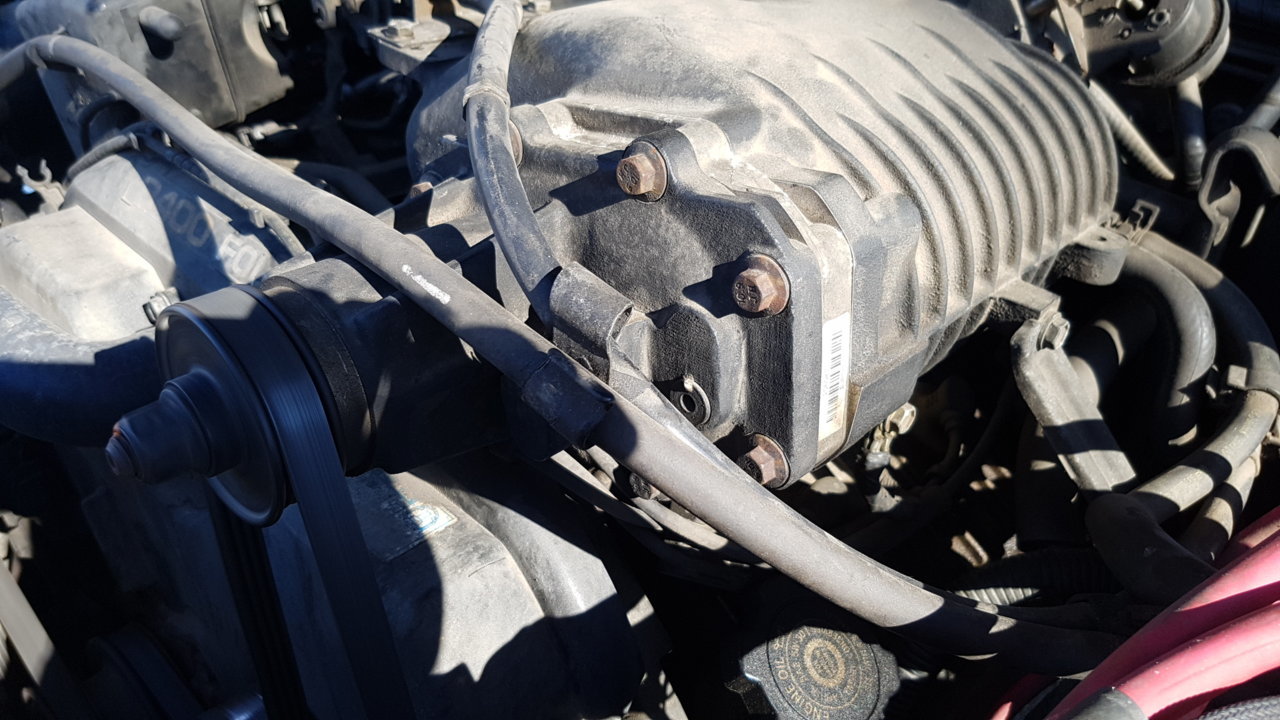

    Your rebuild kit looks the same as mine (as you can see a couple of posts above) but I only payed for the nose drive rebuild kit. I wonder if they sent me parts for the full rebuild anyway. I have two roller bearings which I think go in the back.

    Also I'm not sure where the oil change plug mod should go. There is no flat place to drill through on my version. I only see a cold plug (I think) with a dab of something to seal it (pic below) and no obvious way to remove it or fill it once I do the nose drive rebuild.


  18. Mar 18, 2019 at 3:29 PM
    #778
    eon_blue

    eon_blue got boost?

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    18,804
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed

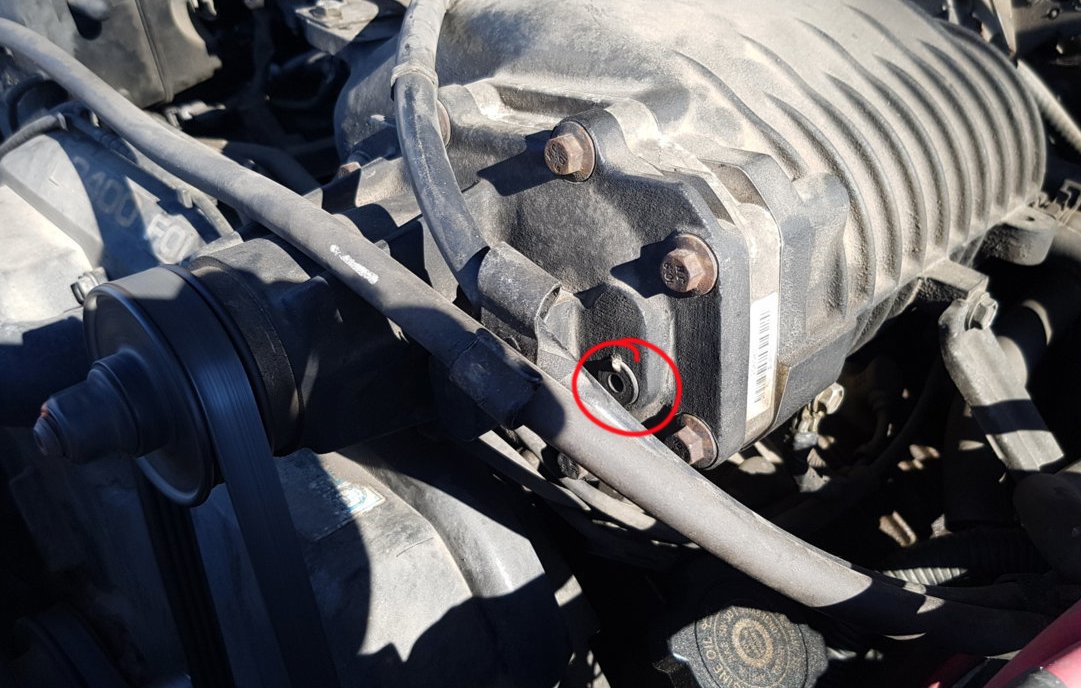

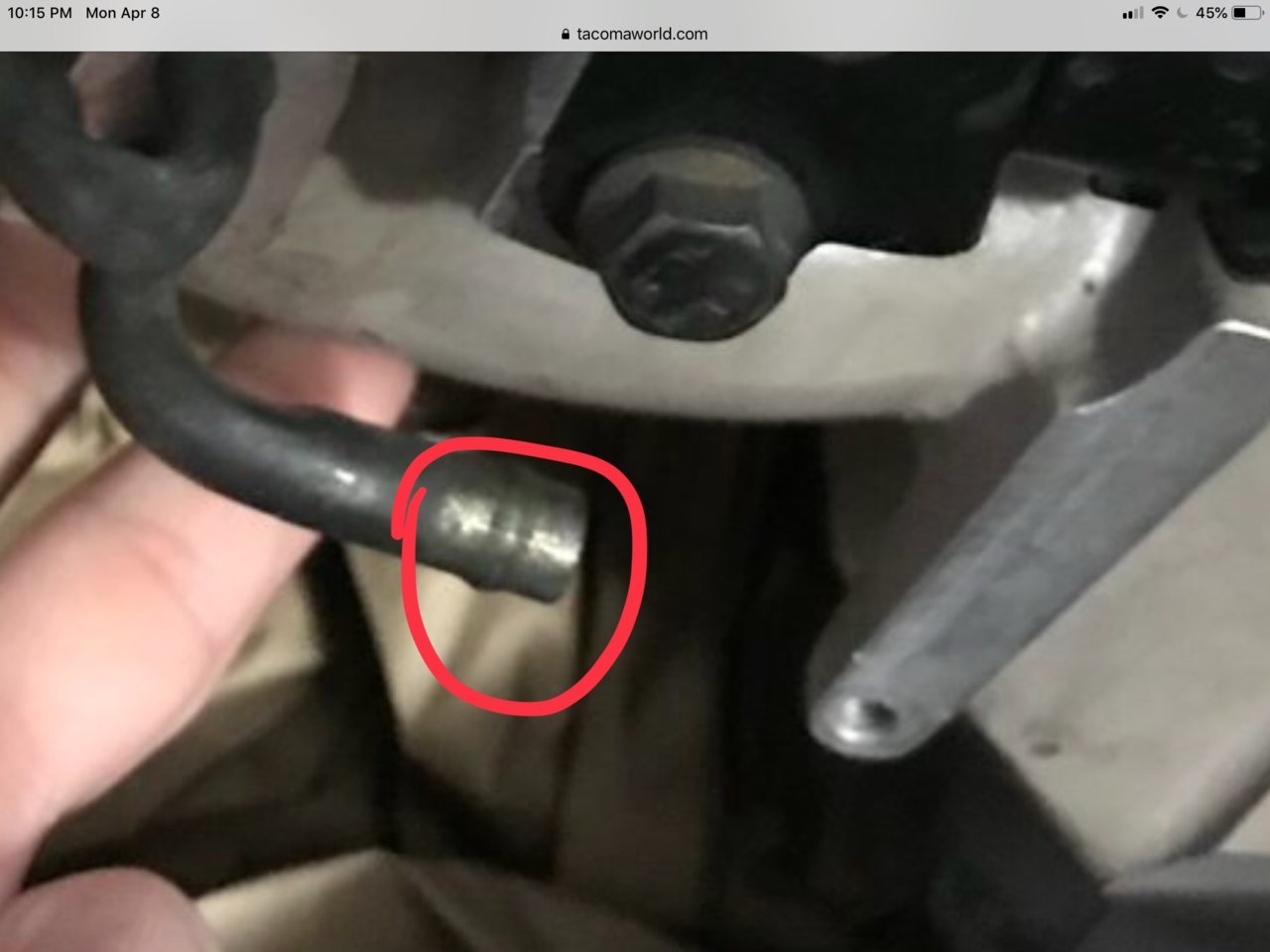

    You have the black TRD supercharger which already has a drain plug, it's the one you are referring to (circled red)....you need a Allen wrench/key to open it, then draw the fluid out with a syringe (and refill it the same way)

    Screen Shot 2019-03-18 at 3.29.02 PM.jpg

  19. Mar 19, 2019 at 1:54 PM
    #779
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,704
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    Ahhh thanks @eon_blue. Good to know.

    I rented a ball joint press Saturday to do the job and then chickened out to do some more reading.
    But what am I scared of? OP did it with a sledge and a 1/2" socket set

    It looks like HighSpeedLab included the roller bearings for the full rebuild but they said it was a blind install to set them properly and that some have difficulty timing the rotors so I may just do the nose drive.
