3.4l TRD Supercharger rebuild

Discussion in '1st Gen. Tacomas (1995-2004)' started by SupraT, Mar 10, 2013.

  1. Apr 8, 2019 at 8:58 PM
    #781
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,623
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Those two lines are vacuum I believe, the tubes are probably pressure fit in there.
    The exposed end is probably the same as the end going into the supercharger.
    So you probably can match something up without to much trouble. I seriously doubt this part is available anymore for the 1st gen.
    1) So you might be able to back it out and find something similar.
    2) Or cut it off, then drill out the old part if it doesn’t come out, and install a new one,
    Jb weld it in place if needed.
    3) heat up the tube and bend it very slowly to the correct position


    Last edited: Apr 8, 2019
  2. Apr 10, 2019 at 9:04 PM
    #782
    dbcorvairracer

    dbcorvairracer Active Member

    Joined:
    Sep 15, 2016
    Member:
    #197370
    Messages:
    41
    Gender:
    Male
    Vehicle:
    1999 Supercharged Taco
    TRD Supercharger, 7th Injector, Light bar, Recaro heated seats
    I got the O-Rings but I don't see the gasket on their site or anywhere else I've looked. In your experience what kind of performance impact is it with the leak at the bypass? Both HP and Mileage? Mine is leaking bad enough it won't idle below 1500 RPM when warm and when I coast to a stop and put the clutch in the RPM's drop to around 800, then revs back up for about 2-3 cycles before resuming it's 1500 RPM idle.

  3. Apr 11, 2019 at 5:24 AM
    #783
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,623
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    There are two O ring gaskets different size only, you will loose boost and have idle issues,
    No gasket for the lower bypass part. Just get a tube of high temp gasket maker.
    If you have ANY VACUUM leaks, superchargers will not run correctly and engine too. You can use this gasket maker alone with both the O rings together for a better fit.
    Remember if you install the top ring in particular and you decide to pull the
    bypass tube out you probably will destroy the ring, it fits in a grove and will probably rip or get gouged if you pull it apart again. The gasket maker will
    help make sure these sections are tight and not loose and sealed tight.


    Last edited: Apr 11, 2019
  4. Apr 11, 2019 at 11:06 AM
    #784
    dbcorvairracer

    dbcorvairracer Active Member

    Joined:
    Sep 15, 2016
    Member:
    #197370
    Messages:
    41
    Gender:
    Male
    Vehicle:
    1999 Supercharged Taco
    TRD Supercharger, 7th Injector, Light bar, Recaro heated seats
    Great, I thought about doing this but figured if there was a gasket I should do it right and didn't want to tear it apart to look unless I had what I need. Good info on adding some to the O-Ring area too.

    Thanks!

    1997tacomav6 likes this.
  5. May 22, 2019 at 2:58 PM
    #785
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more

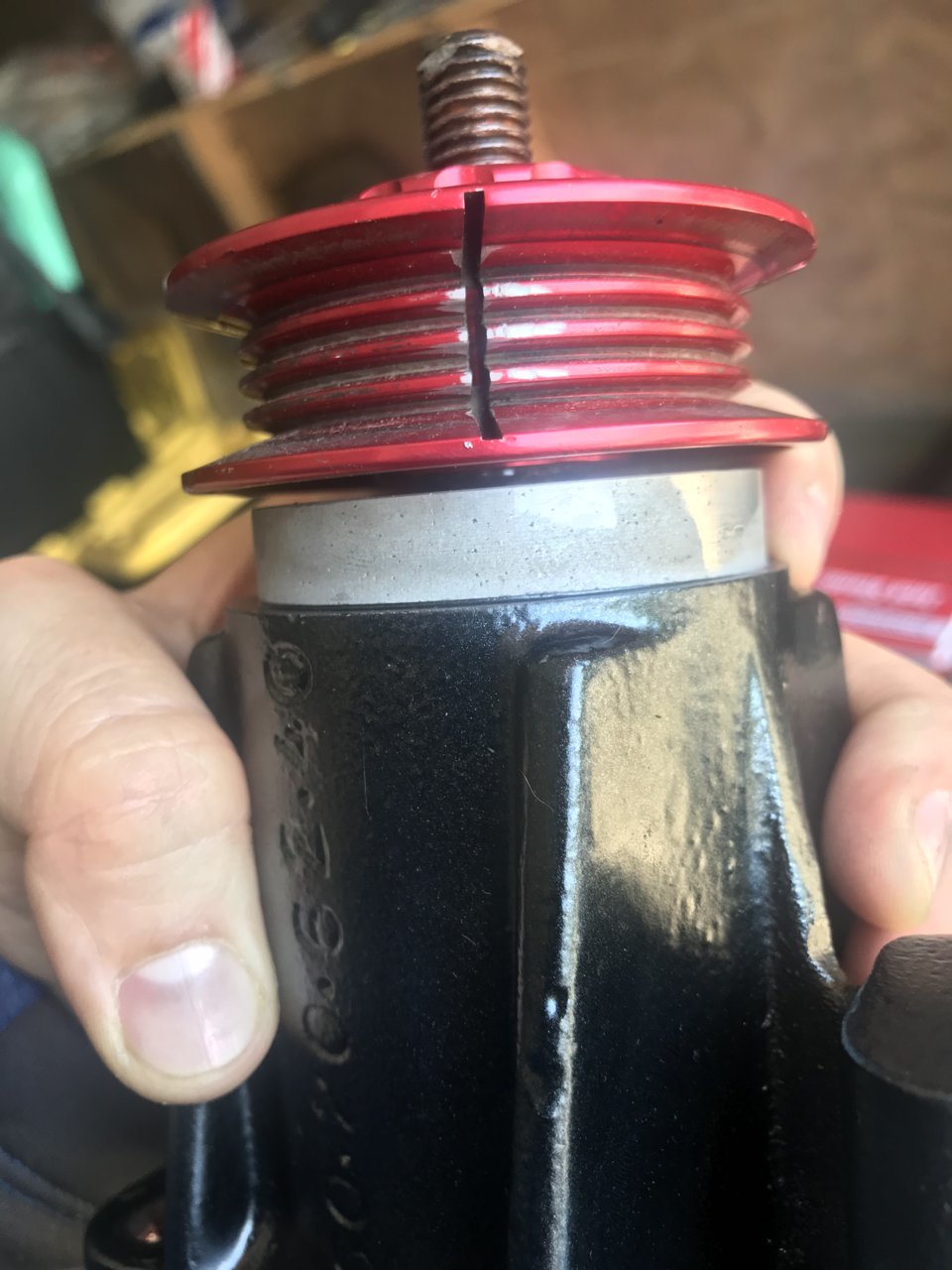

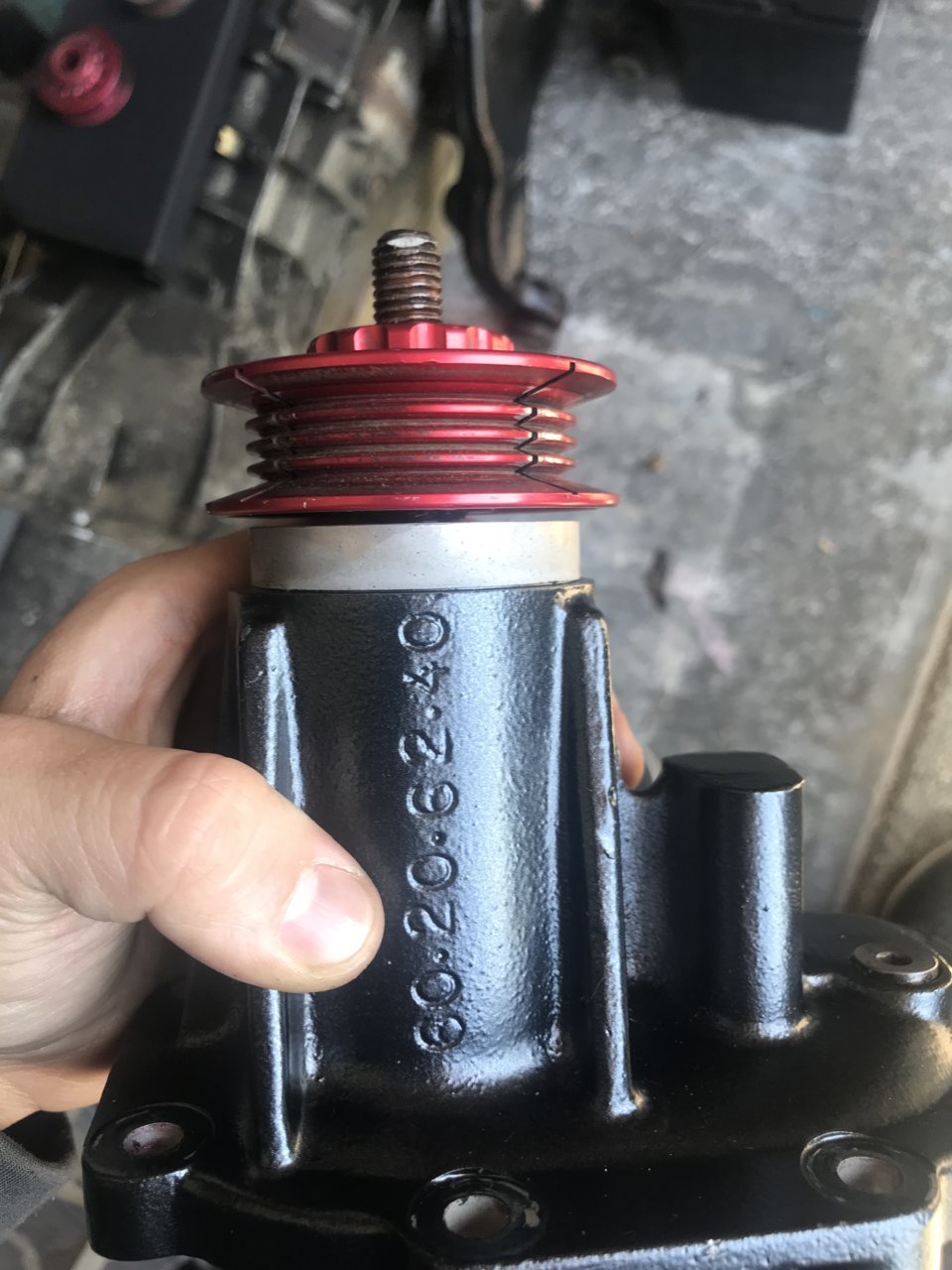

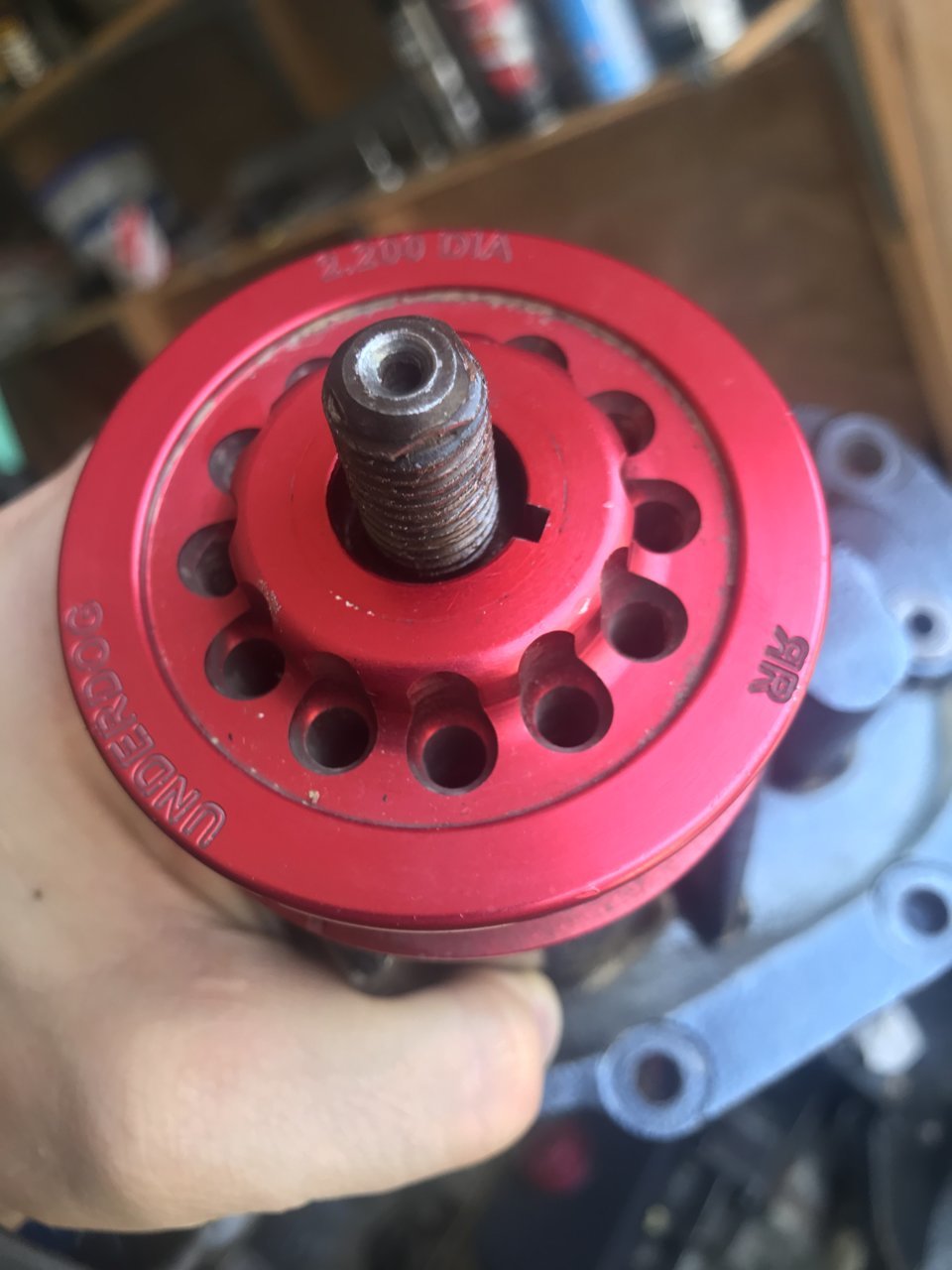

    Just finishing up my supercharger rebuild and can’t remember what it was like when I took it apart. Is the nose cone shaft pushed in far enough? When pressing it, felt like it bottomed out. But now installing the pulley any it seems like I need to push it in another 1/2”. Is the little cut/grove supposed to line up? And how much of a gap is needed between pulley and s/c housing?
    Here are a few pictures:


  6. May 22, 2019 at 3:22 PM
    #786
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,623
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    My gap between the housing and pulley is about the same or less. The only way the pulley lines up
    is with the key in the shaft. The lines in the pulley are for air only and better grip

    If you torque down the nut the pulley should not hit the housing

    Last edited: May 22, 2019
    BlackPearl likes this.
  7. Jun 22, 2019 at 6:59 AM
    #787
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,623
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner

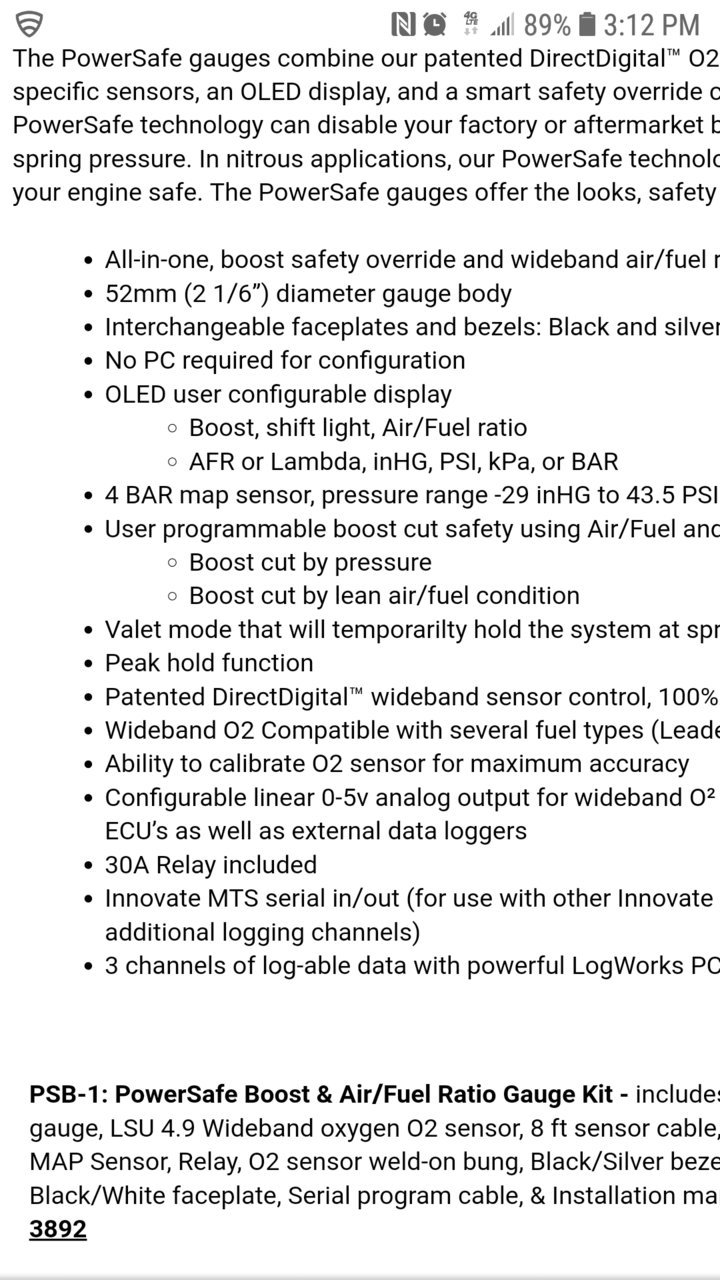

    Thought I would add this here for all the supercharger guys as you should have an AFR and Boost guage if your running a supercharger.

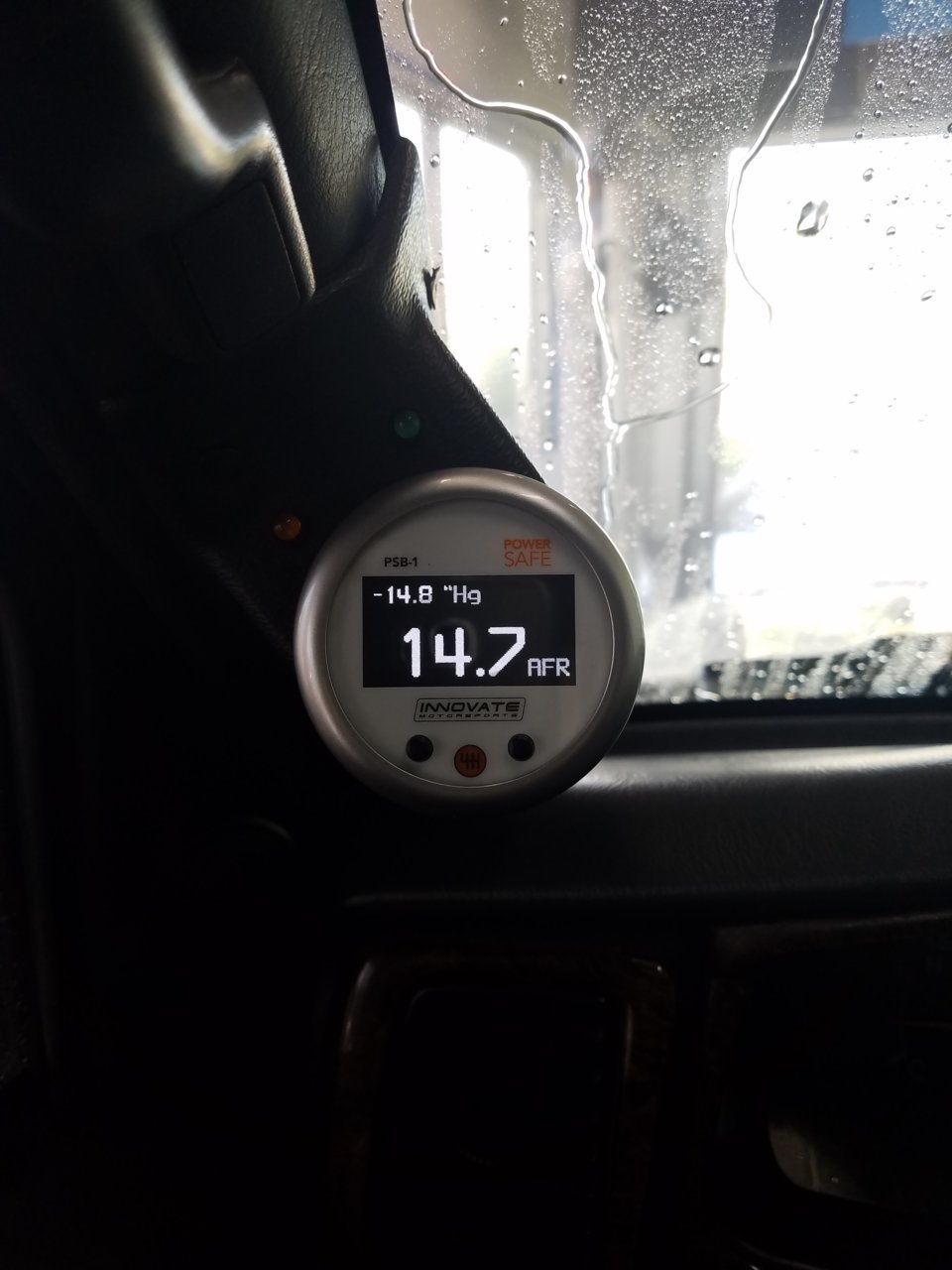

    This is the coolest gauge!!!! I just upgraded to this Gauge.

    https://www.innovatemotorsports.com/products/psb1.php

    First of all it’s actually a boost gauge and an AFR Gauge in one, so one pillar pod is all you need.

    This gauge has the option to set as a boost gauge only or an AFR Gauge only.

    You also have the option of have both gauges showing at the same time with the larger display as your choice of being the AFR or the boost.

    You can toggle either gauge at any time to have either boost or AFR as your leading gauge.

    It also shows the vacuum as part of the boost gauge.


    It also has a button setting that shows the top boost pressure you have run. This clears each time
    you turn the motor off.

    It also has a warning display that says “02 CUT”

    This display pops up on the top right corner whenever the AFR is out of its safe zone running lean.

    The gauge also let’s you set the AFR warnings limits.

    So let’s say you set the warning “02 cut” at 13.4 and the AFR UNDER BOOST goes over the lean number of 13.5 or higher it will give you the warning “02 CUT” display so you know something is wrong with your setup, (running lean).

    The gauge works fantastic!

    The failsafe will not actually cut the boost because our trucks are an older design, for a newer truck
    the gauge when it goes into the “02 CUT” (lean area) it would actually stop the boost from going higher.

    It also has a light is the guage that tells you when to shift, but that part doesn’t work on our older trucks.


    So now I will always know what’s going on with my AFR and boost at all times.

    The AFR should be in the 12 range under full boost and 14-15 at idle.



    Last edited: Jun 22, 2019
  8. Jul 29, 2019 at 8:55 PM
    #788
    InfamousRNR

    InfamousRNR Member

    Joined:
    Jan 14, 2014
    Member:
    #120667
    Messages:
    10
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2002 Toyota 4runner limited 4x4
    BlackPearl likes this.
  9. Jul 29, 2019 at 10:17 PM
    #789
    SCRunner12

    SCRunner12 Tundra Troll

    Joined:
    Aug 8, 2011
    Member:
    #61363
    Messages:
    9,010
    Gender:
    Male
    First Name:
    Robert
    Santa Cruz, CA
    Vehicle:
    2006 Tundra DC, TRD, 4wd
    That’s how I’ve done mine Sean, one will fall out into the manifold tube and the other will come out through the back of the SC. There are some black SC that have the back sealed and unfortunately you have to pull the bearing out, but press it.


    Just make sure you are careful with the barb in the back when pressing. I forgot about protecting it one time and snapped it off. Had to get it removed and a new one installed. Not the end of the world, but delayed my rebuild a day or so.

    Last edited: Jul 29, 2019
    eon_blue likes this.
  10. Jul 29, 2019 at 11:10 PM
    #790
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more

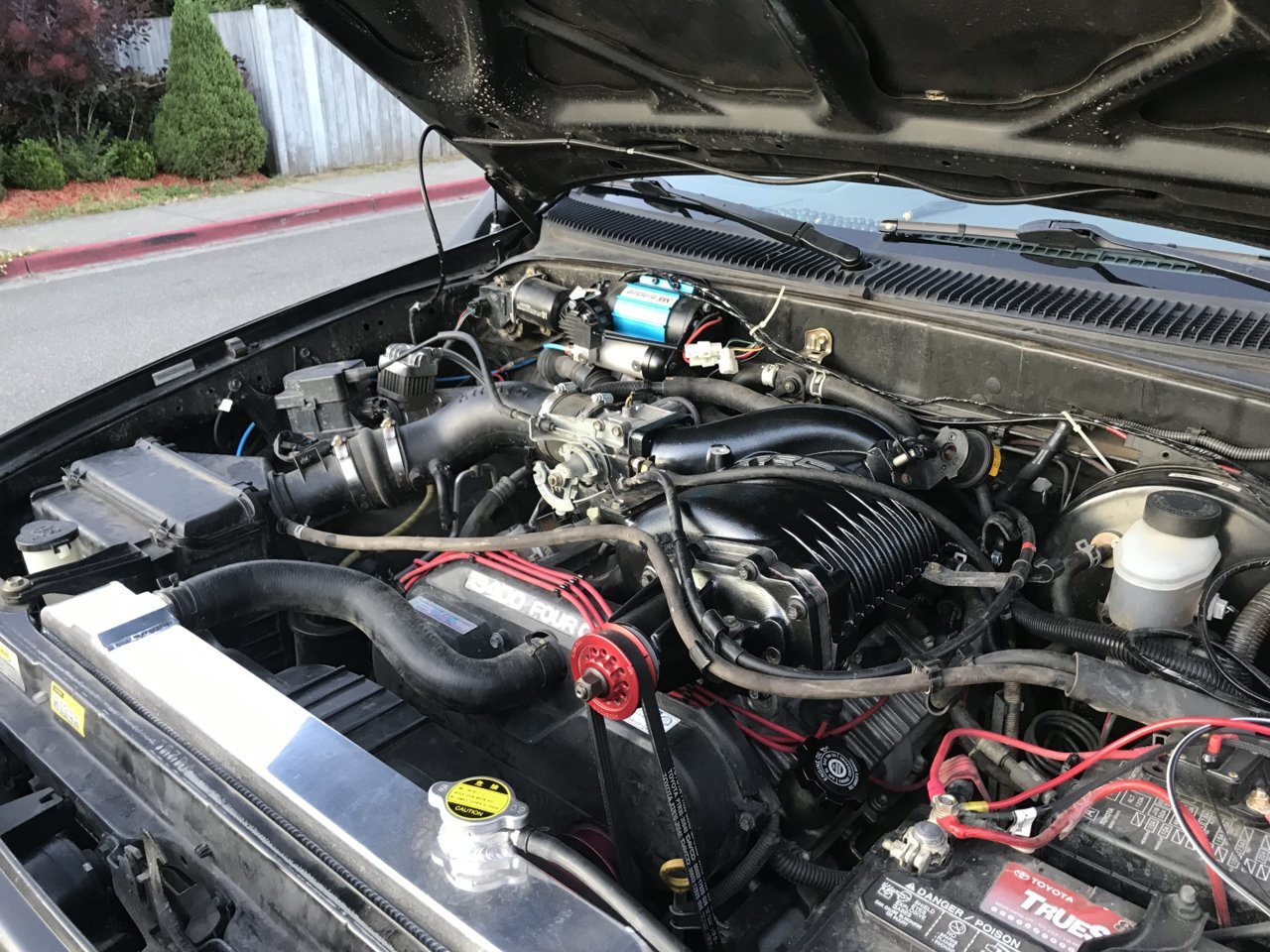

    Installed my supercharger today and it’s running really lean. Coming up with a po306 code. I’m hoping the new urd fuel pump will fix this issue. Anyone else have this happen?


  11. Jul 29, 2019 at 11:50 PM
    #791
    eon_blue

    eon_blue 8" third member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    38,114
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    Mine ran way lean but didn't throw a code, the supercharger itself shouldn't trigger any codes unless there was an issue with the install (vacuum leak for example). Should not need a stronger fuel pump unless you are adding another 7th injector or smaller pulley, the stock pump can handle the supercharger normally.

    A PO306 code is a misfire code I think? I don't have any experience with it myself. Did you install the 2 step cooler spark plugs with the supercharger?

  12. Jul 30, 2019 at 8:04 AM
    #792
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more
    I’m running a 2.2 pulley with bigger injectors. And at this point I need to also have a bigger fuel pump to keep up with the boost and the injectors.
    The po306 is a misfire code. I looked over my vacuum lines and it all looks correct.

  13. Jul 30, 2019 at 9:31 AM
    #793
    btu44

    btu44 Well-Known Member

    Joined:
    Sep 7, 2016
    Member:
    #196732
    Messages:
    274
    Gender:
    Male
    Long Beach area, Ca
    Vehicle:
    04 Tacoma Double Cab, 4WD, TRD Off-Road
    SC with 7th injector. ICON 2.5 shocks and coil overs, SPC UCA, EMU Dakar rear springs. FrontRunner bed rack. ICOM IC7100 amateur transceiver

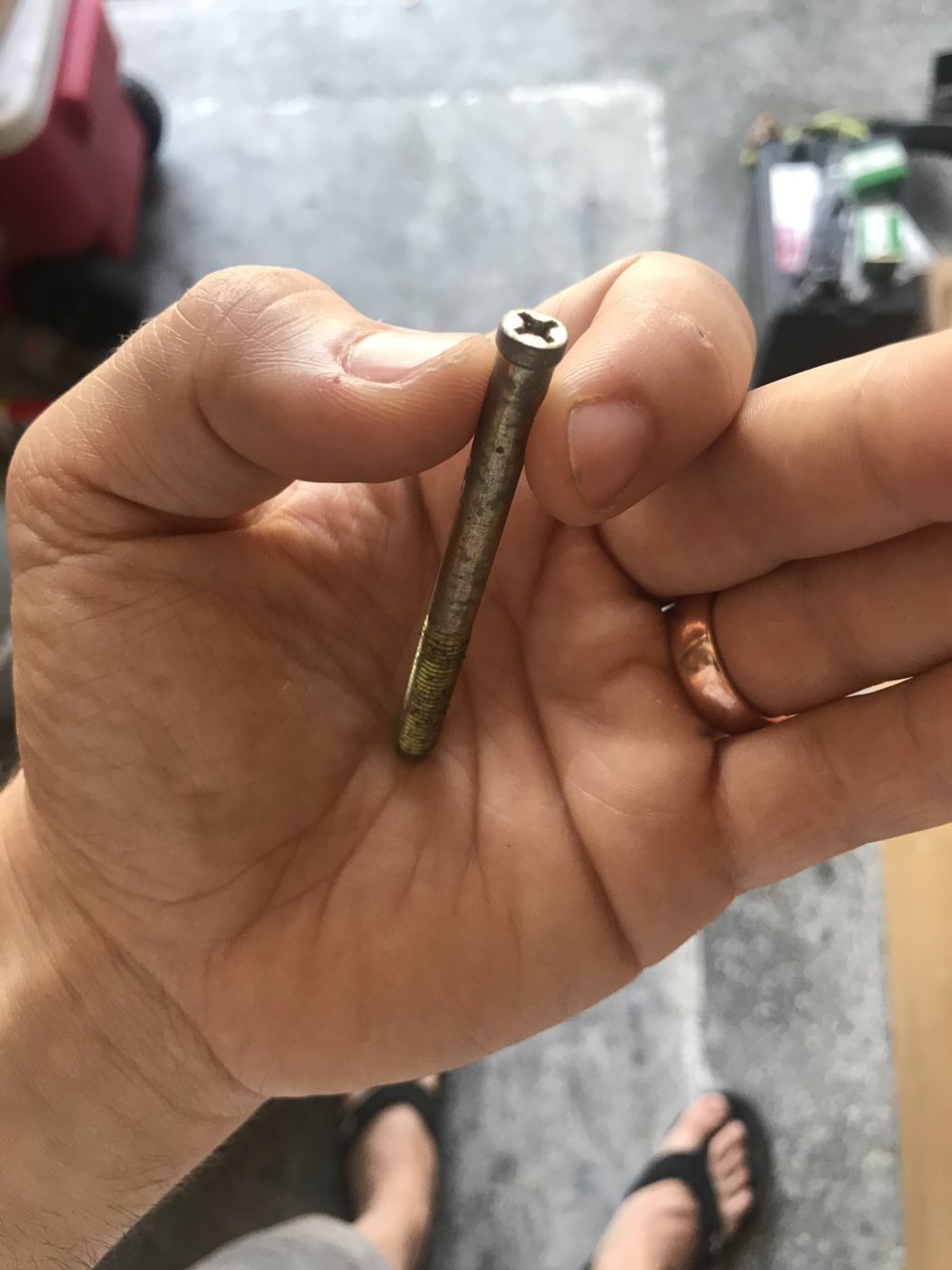

    Looks to me you are missing the extra long bolt that holds the S/C to the manifold. That can't be helping.
    Also there is a port for an EGR vacuum right behind the T.B flange on the S/C back side. I neglected to plug this port during my S/C install and was getting a lean error code.

    BlackPearl likes this.
  14. Jul 30, 2019 at 9:32 AM
    #794
    eon_blue

    eon_blue 8" third member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    38,114
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    That's exactly how I got my lean code when I bought the truck (supercharger installed by PO). Found the EGR port unplugged on the back. But the lean code I was getting was a P0171, weird that the OP is getting a misfire code. Makes me wonder if something went awry with the spark plug install or wires? Not really sure

    BlackPearl likes this.
  15. Jul 30, 2019 at 9:53 AM
    #795
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more
    Yes there is a bolt missing. I ordered on online and it should be here in a few days. Also that vacuum line is plugged in. I triple checked to make sure.
    My code reader doesn't give a lean code, it only comes up with the miss fire.

  16. Jul 30, 2019 at 10:23 AM
    #796
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more
    I did install new sparkplugs, gapped them all at .032. not sure if it makes a difference but the ones I used have 3 prongs.
    But I'm thinking if I have a 2.2 pulley, 305cc injectors and haven't yet installed the urd fuel pump. wouldn't that technically make sense that not enough fuel is getting pushed threw?

    otis24 likes this.
  17. Jul 30, 2019 at 10:35 AM
    #797
    eon_blue

    eon_blue 8" third member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    38,114
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    From what I gather, a P0306 code is specific only to a cylinder 6 misfire and is most commonly caused by either faulty spark plug, faulty spark plug wire, distributor failure or faulty fuel injector. I have read that low fuel pressure can cause it as well but I would think if the fuel pump were causing low fuel pressure, wouldn't it trigger a misfire code across all the cylinders or more than one at least? I honestly can't say for sure, just speculating.

    If you didn't have this code prior to installing the supercharger then it's fair to say that its related to that or the install itself...so would be hard to believe it's a bad injector. That's why I personally lean toward the spark plug or wire since those had to be changed out when installing the blower.

    This is just my novice interpretation of it but hopefully someone with some actual experience with this code can chime in for you

    BlackPearl and otis24 like this.
  18. Jul 30, 2019 at 7:21 PM
    #798
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more
    Just got another code p0300, multiple cylinder misfire. Not sure what the best way to go about this. If it was just 1 I could go threw and swap out the spark plugs or the injectors to find the problematic ones but with the multiple it will be hard to figure out

  19. Jul 30, 2019 at 7:22 PM
    #799
    eon_blue

    eon_blue 8" third member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    38,114
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    You're sure the wires didn't get mixed up when putting the new spark plugs in? I was gonna say if you haven't yet, maybe make a specific thread about the issue you're having and you'll probably get more replies/advice from people that aren't seeing it in this thread

  20. Jul 30, 2019 at 7:27 PM
    #800
    BlackPearl

    BlackPearl new·bie ˈn(y)o͞obē/

    Joined:
    Apr 17, 2017
    Member:
    #216527
    Messages:
    1,124
    Gender:
    Male
    First Name:
    Alex
    Seattle
    Vehicle:
    Toyota Tacoma TRD
    3” lift. Sway a ways 2.5 on 285 75 16 and much more
    That may be a good idea. I’ll probably start one after I install the fuel pump to see if anything changes.

    eon_blue likes this.
