3.4l TRD Supercharger rebuild

Discussion in '1st Gen. Tacomas (1995-2004)' started by SupraT, Mar 10, 2013.

  1. Oct 28, 2019 at 9:16 AM
    #821
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,591
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    I’m pretty sure this is what your looking for

    The EARLIER GREY supercharger takes a different amount I believe then the black supercharger.
    This info would be for the black TRD supercharger

    First thing to do is locate needed supplies
    You will need:
    1.**medium sized syringe without needle (an eye dropper used to medicate infants can be substituted if syringe is not available (found at any drug store)
    2. 2 (two)-8 oz. bottles of supercharger oil (easiest found at Chevrolet dealership parts department)
    3.Allen wrench to remove oil plug on nose cone of supercharger
    4.ample supply of rags/shop towels
    5.measuring cup with ounce measurement markings (can steal wife's mearsuring cup from kitchen, but do you really want to eat out of a food prep tool you recently put automotive grade oil in? )
    6.clear rubber tubing to fit over syringe/eye dropper approximately 6-8" long (aquarium air tubing is about the correct diameter and is easily found sold by the foot

    ** you will need to approach a pharmacist to request a syringe. with todays rampant use of illegal drugs you may have a hard time convincing them of your intended use
    Step 1:
    prepare or build your tools needed for project by placing/affixing the rubber tubing to your extraction syringe or eye dropper. If the diameter of the tubing is not exact, you will need to figure out a way to make the connection air tight.
    Step 2: with rags draped beneath the nose cone plug remove the plug with the allen wrench (my plug was already marked to illustrate the plug's exact location when fully closed and sealed. If yours is not, I suggest marking it before starting with either white out or a colored sharpie.

    *It should be noted that the proper size allen wrench is needed, as the plug on the supercharger is extremely tight from the factor and if the wrench is not the exact size, the head of the plug is easily stripped.
    depending on if you are working on a level surface or not, you may or may not have some oil drip upon opening drain plug.
    Step 3: With syringe plunger fully DEPRESSED stick the hose into the supercharger drain hole as far as you can. Once you have the hose fully inserted, begin drawing the oil into the syringe by pulling the syringe plunger out.
    Once you have the syringe full of oil release the oil into your measuring cup.
    If you are having trouble sucking fluid into the syringe, probable cause is that you do not have an air tight seal between your tubing and syringe/eye dropper

    Step 4: re-insert "syphoning" tool into supercharger and repeat step 3 until you are confident all residual oil is evacuated.
    The measuring cup is used to notate how much oil you remove. The supercharger has a capacity of 8 fluid ounces. If you do not remove a full 8 ounces make note of how much is removed. If you begin to replace the oil and are not able to replace a full 8 oz. it means that you did not evacuate all of the oil. If you are able to replace a full 8 oz. without any overflow although you did not remove a total of 8 oz, you may want to monitor your oil level to make sure there are no leaks for a time.
    *it may be necessary to move the syphon hose around inside the supercharger to get back into "hidden" cavities. (hopefully you cut the hose long enough that if it does detach from the syringe you do not loose the entire hose inside the nose cone. you want to avoid having this happen as it will be a major pain to get out. (I normally make it a practice to leave a least 1/2" of hose outside the nose cone in case it does drop off. that way I can at least grab the hose and not have to fish it out)
    Step 5: once you are certain that all old oil is removed from supercharger, reverse the process. You may remove the hose from the syringe to evacuate the new oil from the bottle, but it is easier to leave tube on and submerge only the tip of the hose in the fresh oil to extract.
    Once the syringe is again full with new oil, squirt new oil into supercharger nose cone via drain hole.
    repeat this process until you have replaced 8 full ounces back into supercharger. see note above if you are unable to replace 8 ounces.
    Step 6: replace drain plug, making sure that you line up your marks you made on the drain plug with the line on the supercharger in the fully sealed position.
    Step 7: wipe away any excess oil that might have dripped. and store "tool" away for future oil changes.
    I have been told directly from TRD that you should never need to replace the supercharger oil in the blower, but I replace the oil in mine at least once a year as part of my routine maintenance (typically done with one of my summer oil changes).
    Please note that I have also been told by Toyota that you should never need to replace your fuel filter~that it is intended to remain in place for the life of your vehicle…but I have already replaced my fuel filter three times and my truck is a 1997. Each time I have noticed improvements in both performance and MPG. Thus illustrating/proving not everything the OEM manufacture tells you should be taken as "gospel"
    More importantly pertaining to the supercharger and misinformation given by TRD: I purchased my supercharger second hand, Luckily I was curious about the "mechanics" of the unit and decided to crack open the drain plug. I discovered the nose cone completely dry of oil. I do not know if it seeped out during transport from the previous owner or if he had actually ran the supercharger without oil, but it is a good idea to check oil level before running supercharger for the initial time, especially if purchased used.
    But if the supercharger was never intended to have it's oil never replaced why was mine dry upon delivery? But I digress. (point is check your oil level but do not be alarmed if it is dry initially my blower has never given my any trouble due to the lack of oil present)

  2. Oct 28, 2019 at 9:21 AM
    #822
    eon_blue

    eon_blue 8" third member

    Joined:
    Mar 4, 2016
    Member:
    #180213
    Messages:
    37,995
    Gender:
    Male
    First Name:
    Ryan
    Monrovia, CA
    Vehicle:
    Supercharged 2004 3.4l TRD 4x4 Tacoma XtraCab w/5 speed
    My black TRD supercharger only takes one 4oz bottle of gear oil when I change it out. I had read two 8 oz bottles online but it barely took one. I think there might be a difference between the grey version and the black version. Or maybe it's just not possible to remove all 8oz via the syringe when changing it

    1997tacomav6 likes this.
  3. Oct 29, 2019 at 9:20 AM
    #823
    TMFF

    TMFF Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68368
    Messages:
    1,959
    Gender:
    Male
    First Name:
    Tim
    Thornton, CO
    Vehicle:
    01/02 DCLB
    Stuff and junk and things...

    The Grey Supercharger takes 146ML (4.94 oz) per Toyota so that's were you get 2 - 4 oz bottles need to fill.

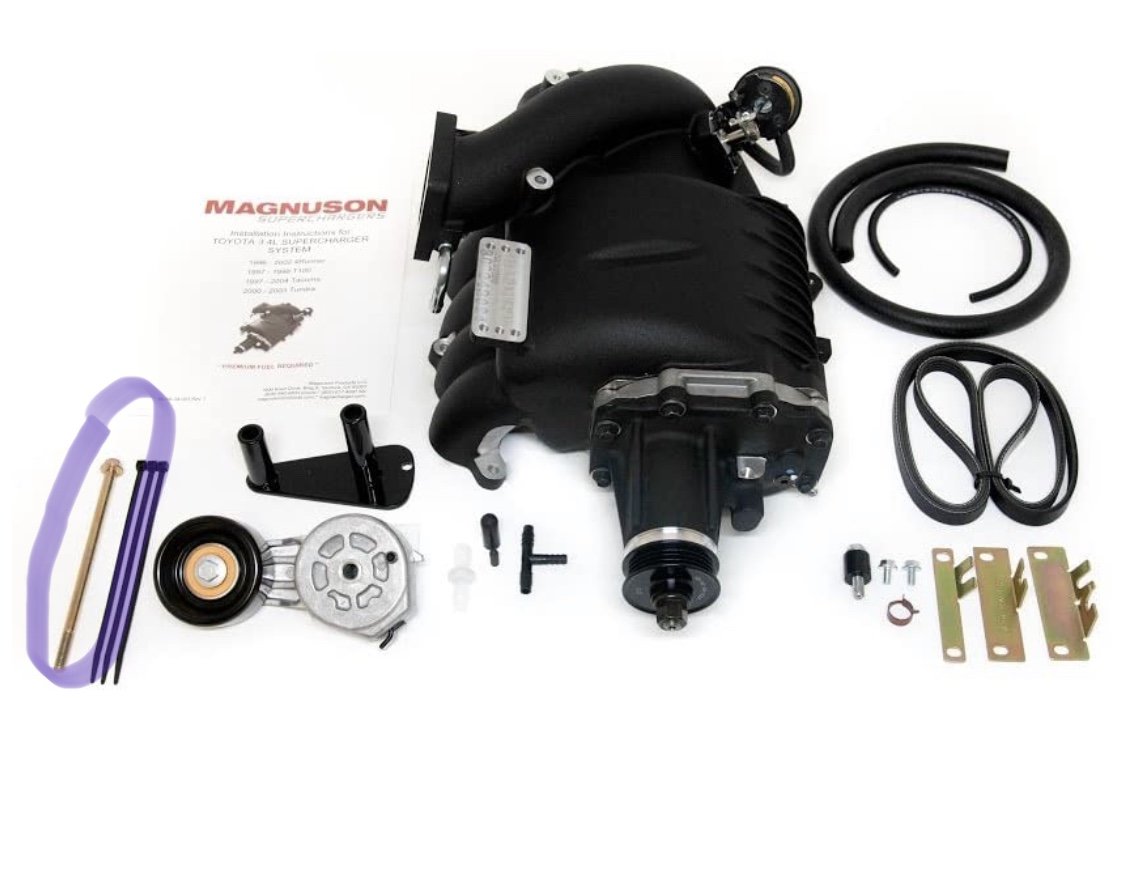

    And I attached all the supercharger documentation I have accumulated over the years. It's mostly install PDF's.


    Attached Files:

  4. Oct 30, 2019 at 3:14 PM
    #824
    Shortman5

    Shortman5 Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100952
    Messages:
    1,890
    Gender:
    Male
    ..
    Vehicle:
    Supercharged TRD
    TRD S/C, ADS coilovers.
    Okay. So my 2nd gen 40k mile supercharger suddenly making noise unlike anything I’ve read about.

    It’s not knocking or rattling any more than is considered normal

    It’s not making noise at idle, under vacuum, or boost. There is no play in the pulley with the belt off, by hand everything feels solid and smooth.

    It’s only making a high pitched whine/squeal when I let off the gas ONLY after boost. It seems to be intermittent. And seems to be worse the more boost it takes.

    if I could describe it I’d say it sounds like it’s a partially seized bearing spinning on a shaft that changes pitch with speed but works properly some of the time.

    It seems to be coming from the rear so it’s probably the needle bearings if anything. Super odd.

    I drove it home under vacuum and bought a stock belt. I suppose I’ll pull it off this weekend for a look inside.

    Any advice would be appreciated.

    Last edited: Oct 30, 2019
  5. Oct 30, 2019 at 4:15 PM
    #825
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,591
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Any chance it’s coming from the dynamic tensioner bearing?
    I know u said it sounds like it’s coming from the back but.
    .

  6. Oct 30, 2019 at 4:26 PM
    #826
    Shortman5

    Shortman5 Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100952
    Messages:
    1,890
    Gender:
    Male
    ..
    Vehicle:
    Supercharged TRD
    TRD S/C, ADS coilovers.
    dont think so. I spun it by hand. Seemed to roll just fine. I’m wondering if it something to do with the bypass valve or the restrictor jet in the hose.

    It’s odd that it will only make a noise coming off of boost intermittently.

    Last edited: Oct 30, 2019
  7. Oct 30, 2019 at 4:47 PM
    #827
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,591
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Remove the restrictor jet and see what happens then.

    Bypass valve have a leak that’s making noise in the diaphragm ?

    EGR backing plate leaking and causing a sound there?
    Definitely sounds odd

  8. Oct 31, 2019 at 4:07 PM
    #828
    Shortman5

    Shortman5 Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100952
    Messages:
    1,890
    Gender:
    Male
    ..
    Vehicle:
    Supercharged TRD
    TRD S/C, ADS coilovers.

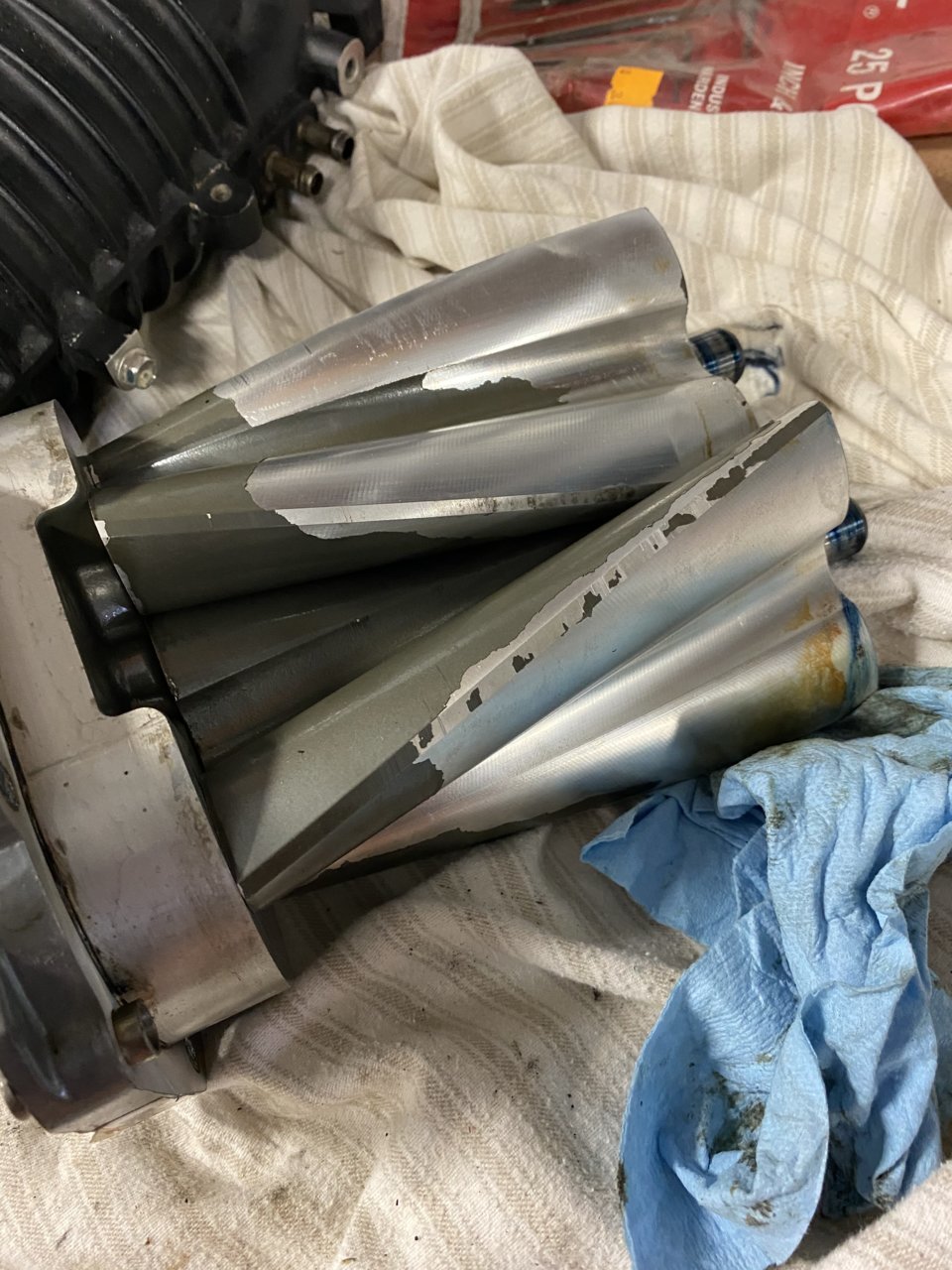

    Well. It’s a strong possibility it’s the rotor pack. I was under the hood and gave it a good rev and it made the noise pretty loud. But only once. Any rev after that sounded like it has since installing new. maybe the rotors are slipping out of spec sometimes and contacting.

    Pulling the rotor pack out this weekend to inspect.

    1997tacomav6 likes this.
  9. Nov 1, 2019 at 2:09 PM
    #829
    waikoloataco

    waikoloataco Well-Known Member

    Joined:
    Mar 7, 2015
    Member:
    #150336
    Messages:
    54
    Gender:
    Male
    $$$$$ANYBODY GOT A 2GEN BLACK 3.4 TRD SUPERCHARGER THEY MIGHT BE SELLING??
    GAUGES, URD COMPONENTS IS A PLUS
    NEED ONE ASAP. LET ME KNOW IM IN SOCAL $$$$

  10. Nov 9, 2019 at 8:04 AM
    #830
    jruiz555

    jruiz555 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279080
    Messages:
    321
    Gender:
    Male

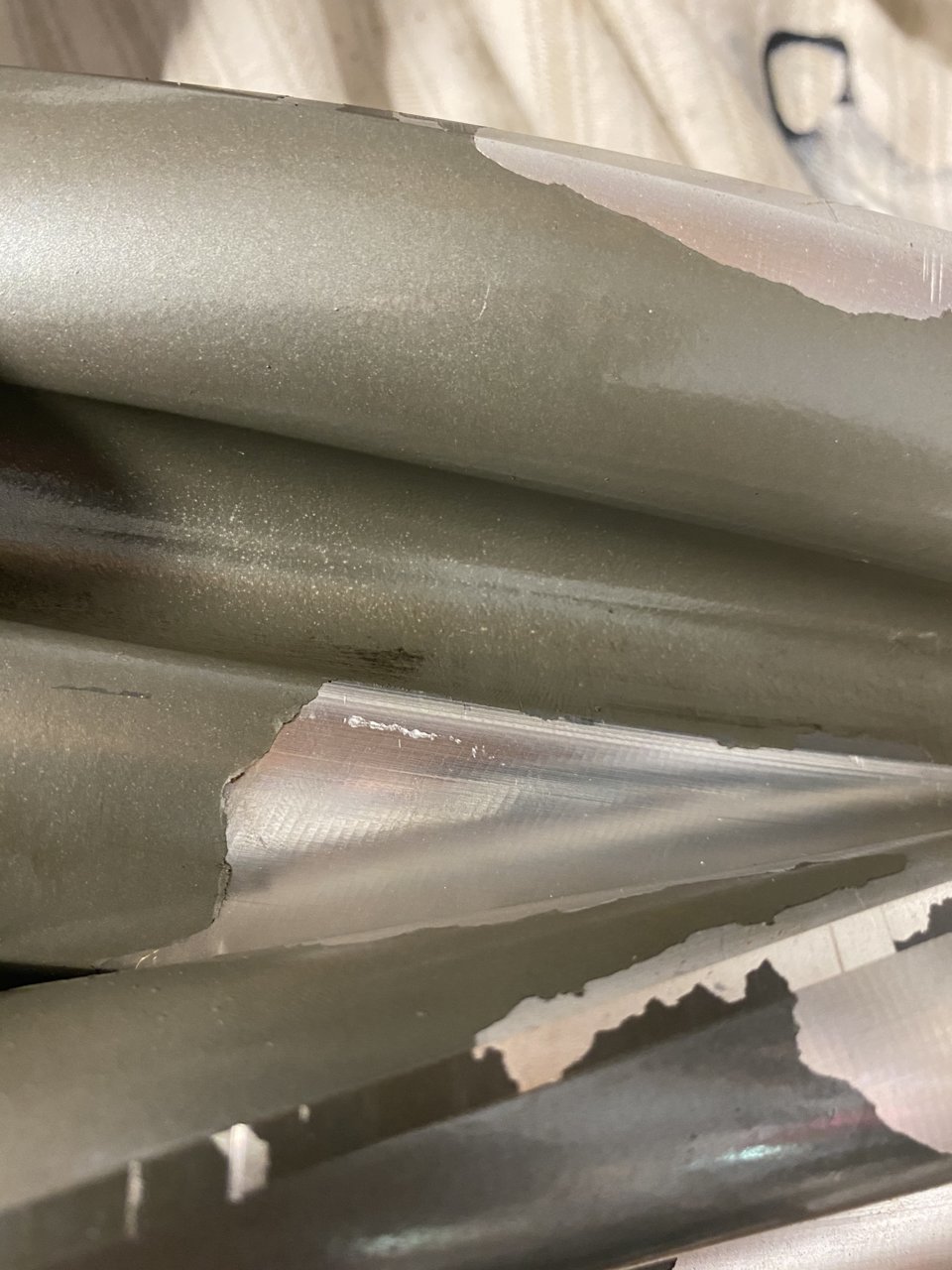

    what do you do about the flaking coating on the rotors them self? do you remove it all together or send it out to get re coated?

  11. Nov 9, 2019 at 8:49 AM
    #831
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,591
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Send them out to be recoated, the coating creates a better seal and heat protection.

    Last edited: Nov 13, 2019
  12. Nov 12, 2019 at 7:20 PM
    #832
    Shortman5

    Shortman5 Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100952
    Messages:
    1,890
    Gender:
    Male
    ..
    Vehicle:
    Supercharged TRD
    TRD S/C, ADS coilovers.
    Anybody that had used a hammer and socket how much force does it take to tap the bearings out?

    I’m wondering how stupid it would be to tap them out with the housing installed.

    If anyone has used a bearing puller how much grief did they give you?

    Also, speaking with HighSpeedLab they mentioned that the needle bearings are recessed a bit to a spec. Did anyone follow this?

    EDIT: Sorry Wrong SupraT(TT)

    Last edited: Nov 12, 2019
  13. Nov 13, 2019 at 6:44 AM
    #833
    Supra TT

    Supra TT Supercharged Lifter

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    7,158
    Gender:
    Male
    First Name:
    Eric
    Indiana
    Vehicle:
    2000 SAS D60 F/R Supercharged
    Supercharged on One Tons
    No worries, not the first time that has happened :) lol.

    My PoS is supercharged too, but it's a 2.7 - I can't help much there regarding the 3.4

  14. May 9, 2020 at 7:21 AM
    #834
    Timmah!

    Timmah! Well-Known Member

    Joined:
    Feb 25, 2016
    Member:
    #179385
    Messages:
    979
    Gender:
    Male
    First Name:
    TIM
  15. May 13, 2020 at 9:52 AM
    #835
    TacoBike

    TacoBike The Researcher

    Joined:
    Jul 27, 2018
    Member:
    #260787
    Messages:
    324
    Gender:
    Male
    First Name:
    Mason
    Shingle Springs, California
    Vehicle:
    1998 2.7 Ext Cab 4x4 >>2000 3.4 Ext Cab 4x4
    Painted grill, bumper, and flares. Supercharged.
    When reinstalling the rotors, do you have to time them and shim them to spec? If so, how does one do that? (this is for a 2nd gen sc that was pulled apart when it was perfectly fine and bearings were untouched)

  16. Jun 24, 2020 at 8:27 AM
    #836
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 625k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    6,591
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 625,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    I have the grey unit too,
    How did you end up removing the needle bearings?
    Press or blind puller?

    How did you install the needle bearings?

    Do you press the needle bearings until flush in the back or?
    Or freeze method?

  17. Jun 28, 2020 at 10:36 AM
    #837
    TashcomerTexas

    TashcomerTexas Bwaaahh Stutututu vs Weeeeeeee

    Joined:
    Apr 16, 2014
    Member:
    #127853
    Messages:
    10,099
    Vehicle:
    2003 TRD DC King Ranch Edition
    I pressed them out with my shop press and pressed the new ones in flush

    1997tacomav6 likes this.
