3378jakesr5 expedition trailer build

Discussion in 'Other Builds' started by 3378jakesr5, Dec 15, 2014.

  1. Dec 15, 2014 at 5:16 PM
    #1
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Hey guys just starting a build thread for my expedition trailer we are building.

    What's going on it.

    Max coupler 6000lbs model

    26 gallon water tank

    Sure flow 190gph water pump

    Hot water heater

    1500 lbs winch

    Battery setup with blue sea fuse block

    Custom 3500lbs trailer axle with 6 on 5.5 and 12inch electronic breaks
    Chevy half ton leaf springs.

    And other things I will add as time goes on. But here are some pictures of the progress so far.

  2. Dec 16, 2014 at 8:40 AM
    #2
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

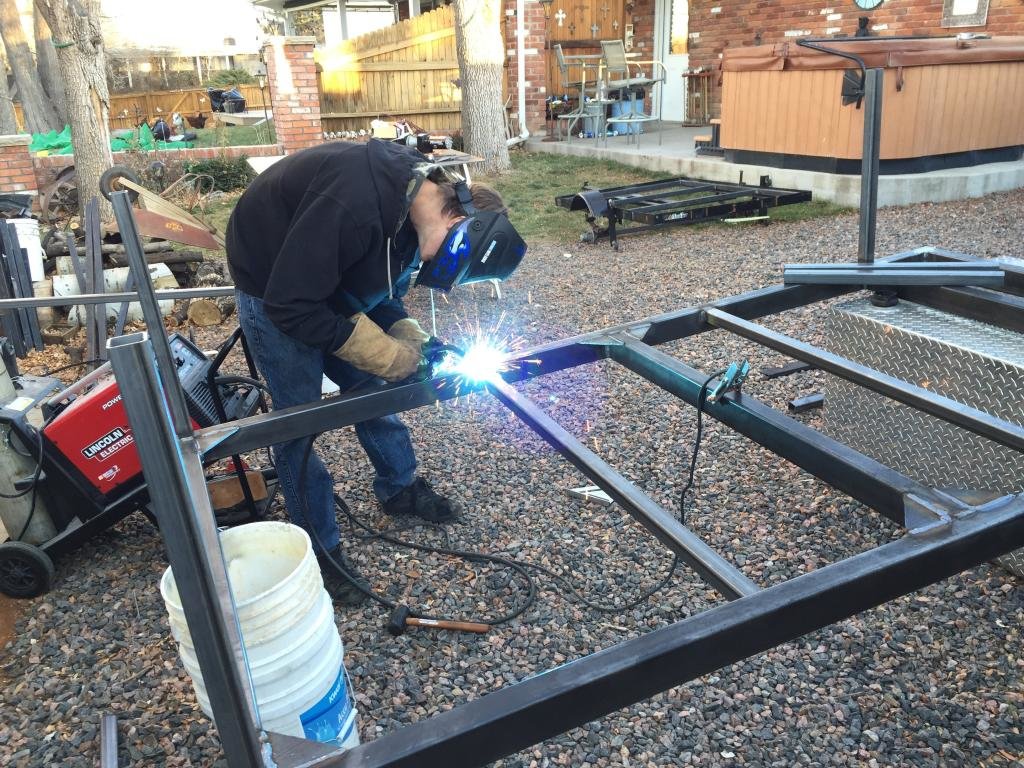

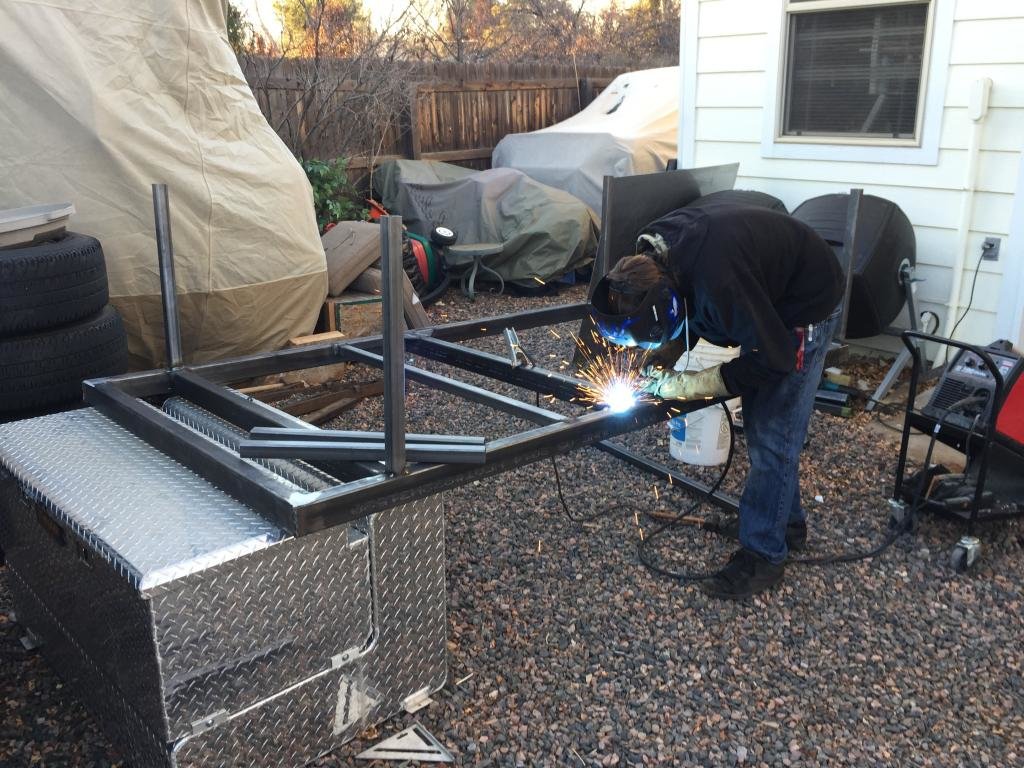

    96E81EB0-C2FF-4902-B153-42FEDEAC00E0_zps_ce34b254e2d0cca042611740e7e6119be7bfdae5.jpg

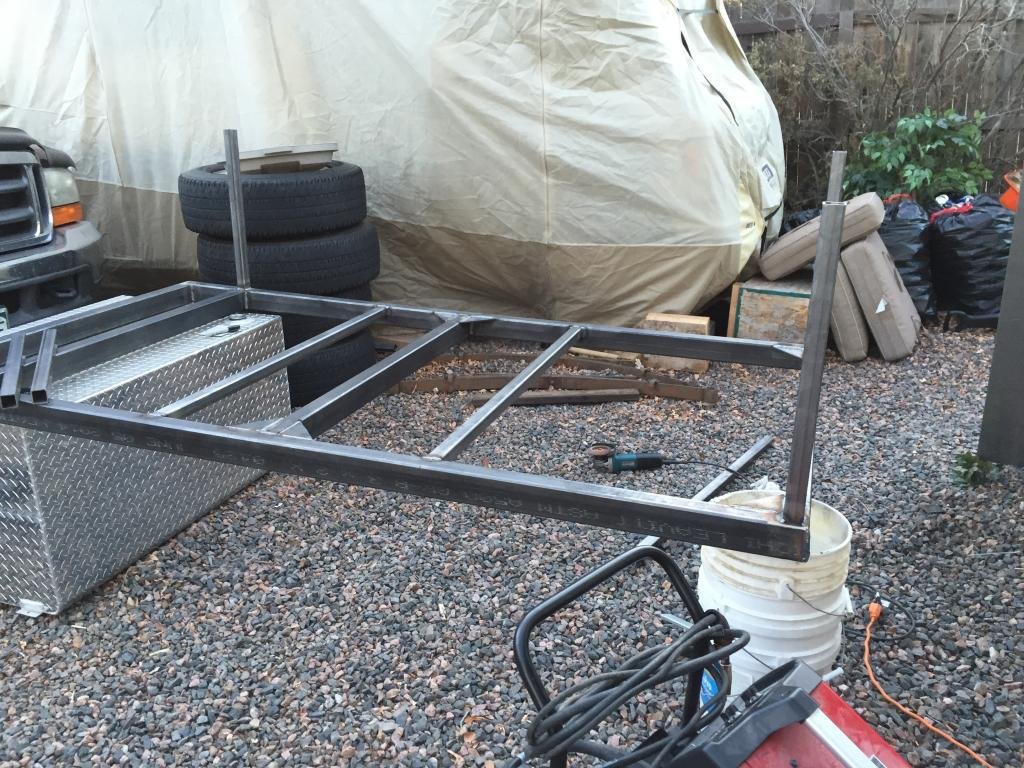

    8EBE7E11-C4AC-41D5-B74E-6105E3EF6C41_zps_72e3217d807aba910e586d1e20a5c20ba60991c1.jpg
    848A9DC2-3A76-4507-AD85-E0DD30379981_zps_6bc4ea20023aaab689ed129e55fbbf6ce072345e.jpg
    Winch mounting plate
    5E8054DF-3DFE-4B57-9EC0-6149547E9916_zps_478c4076dec3f86713678daf119321f4cd3e9408.jpg

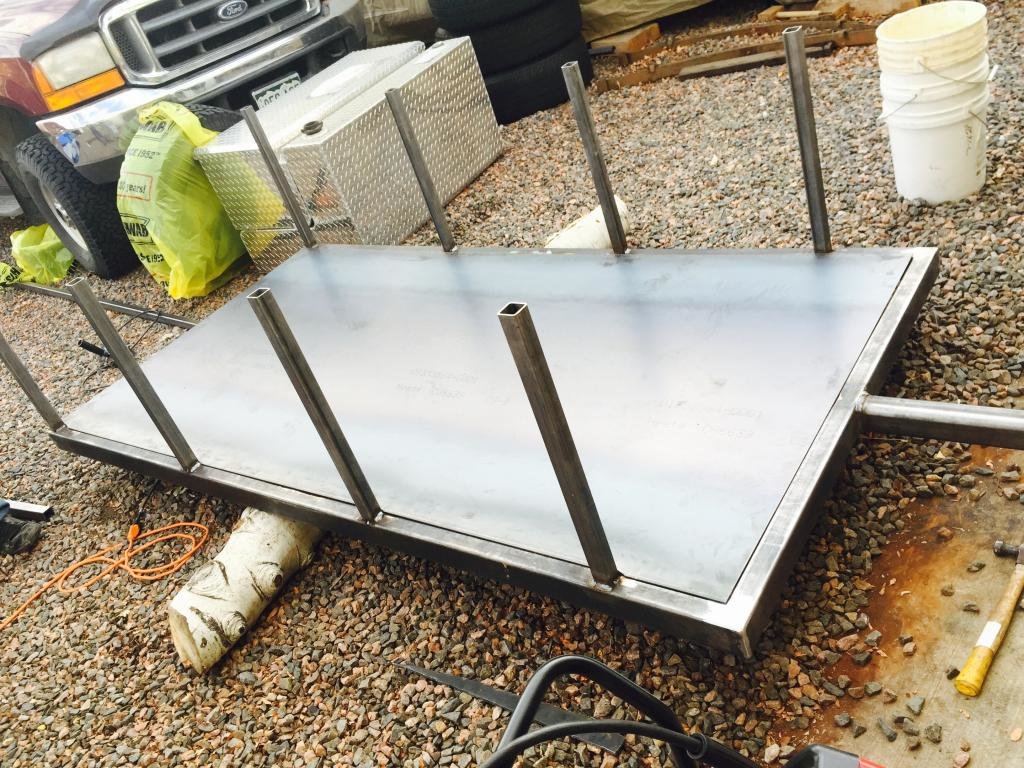

    How it sits now
    8D30157F-D01F-47F1-B292-3FDD5885BDBF_zps_63a5e562baeee3078abdb74eb0e601469d9f6781.jpg

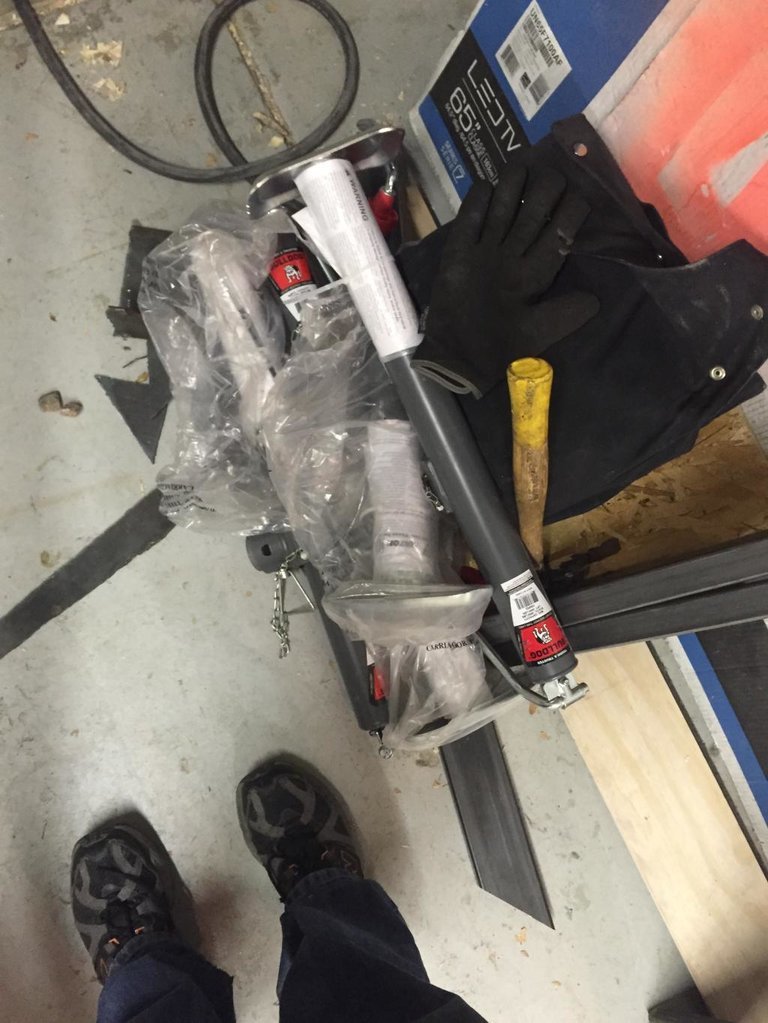

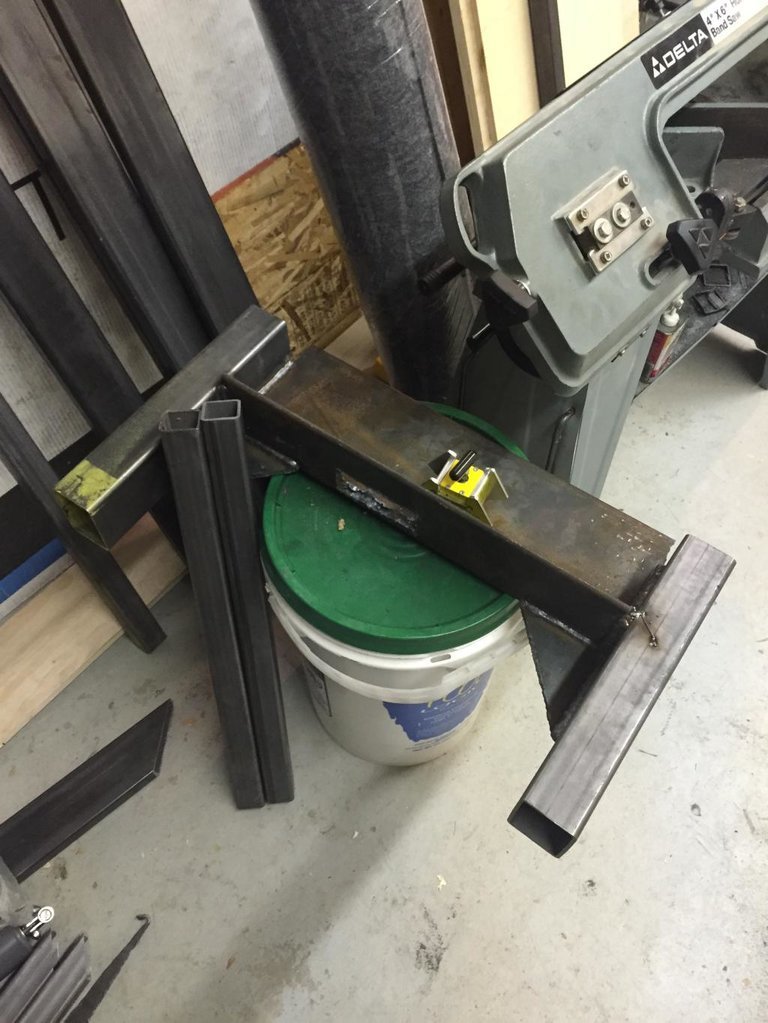

    Jacks and parts.
    ECE35AB6-B227-4554-8030-E5116E11E12C_zps_c4e9ca230456c2fabd5c011221844cb26b182b65.jpg

  3. Dec 16, 2014 at 8:54 AM
    #3
    The End

    The End Support our troops!

    Joined:
    Jul 22, 2009
    Member:
    #20026
    Messages:
    5,002
    Gender:
    Male
    First Name:
    Tim
    Lakeland, Fl
    Vehicle:
    09 A/C 4wd M6
    HP60/14 bolt, Atlas 5.0.
    Subbed, looks good so far. I'm building one very similar.

  4. Dec 16, 2014 at 9:12 AM
    #4
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Thanks, got a build thread for yours yet?

    Any specs on size yet? I'm still thinking the extra foot on mine is going to be a lot but we will see and I am building it for four+ people. this one is going to be a 7'8" as you see it without the tongue. The water tank will be up front then the seven foot box will be devided 2 feet up front and 5 out the back.

    Last edited: Dec 17, 2014
  5. Dec 16, 2014 at 4:29 PM
    #5
    The End

    The End Support our troops!

    Joined:
    Jul 22, 2009
    Member:
    #20026
    Messages:
    5,002
    Gender:
    Male
    First Name:
    Tim
    Lakeland, Fl
    Vehicle:
    09 A/C 4wd M6
    HP60/14 bolt, Atlas 5.0.
    Haven't made a build thread, don't even have one for my trucks.

    Dimesions will be 54" length, 48" width and box height will be determined later. Doing drawers out the back with toolboxes inside and a water tank. Toolbox up front for battery and air. Adjustable rack with a RTT on top.

  6. Dec 16, 2014 at 4:30 PM
    #6
    The End

    The End Support our troops!

    Joined:
    Jul 22, 2009
    Member:
    #20026
    Messages:
    5,002
    Gender:
    Male
    First Name:
    Tim
    Lakeland, Fl
    Vehicle:
    09 A/C 4wd M6
    HP60/14 bolt, Atlas 5.0.
    Haven't figured out tongue length yet.

  7. Dec 16, 2014 at 9:49 PM
    #7
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Sounds good. It will be nice to have something you can just leave at camp and go and explore the night. I'm planing around a five foot long tong length putting me right at a 13'6 tip to tail light length.

    Also got the max coupler on its way and ordered gas struts. And arriving tomorrow should be a tank and pump along with some electrical!!!

    Now I just need to find some time to work on it because working 7pm to 10 is not making my neighbors happy. :D

  8. Dec 17, 2014 at 5:30 AM
    #8
    The End

    The End Support our troops!

    Joined:
    Jul 22, 2009
    Member:
    #20026
    Messages:
    5,002
    Gender:
    Male
    First Name:
    Tim
    Lakeland, Fl
    Vehicle:
    09 A/C 4wd M6
    HP60/14 bolt, Atlas 5.0.
    Where did you order your water tank from? And what are you doing for a lid?

  9. Dec 17, 2014 at 8:34 PM
    #9
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    The water tank is from Amazon http://www.amazon.com/gp/aw/d/B0006MRSPC and is the 48 inch length Roughly 26galons. what lid are you referring to? The two front side doors are going to be 1.5 sq tube frame skinned in 14 gauge and so is the back side ways swing out door and top door that swings up.

    Got latches and hinges ordered today and that about complete the parts needed for the trailer to be built.

    Also any ideas where I can find a trailer tong tool box that is 48inches wide in the back?? I'm looking to spend sub 200 and looking for a metal/aluminum one.

    Jake,

  10. Dec 22, 2014 at 3:23 PM
    #10
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

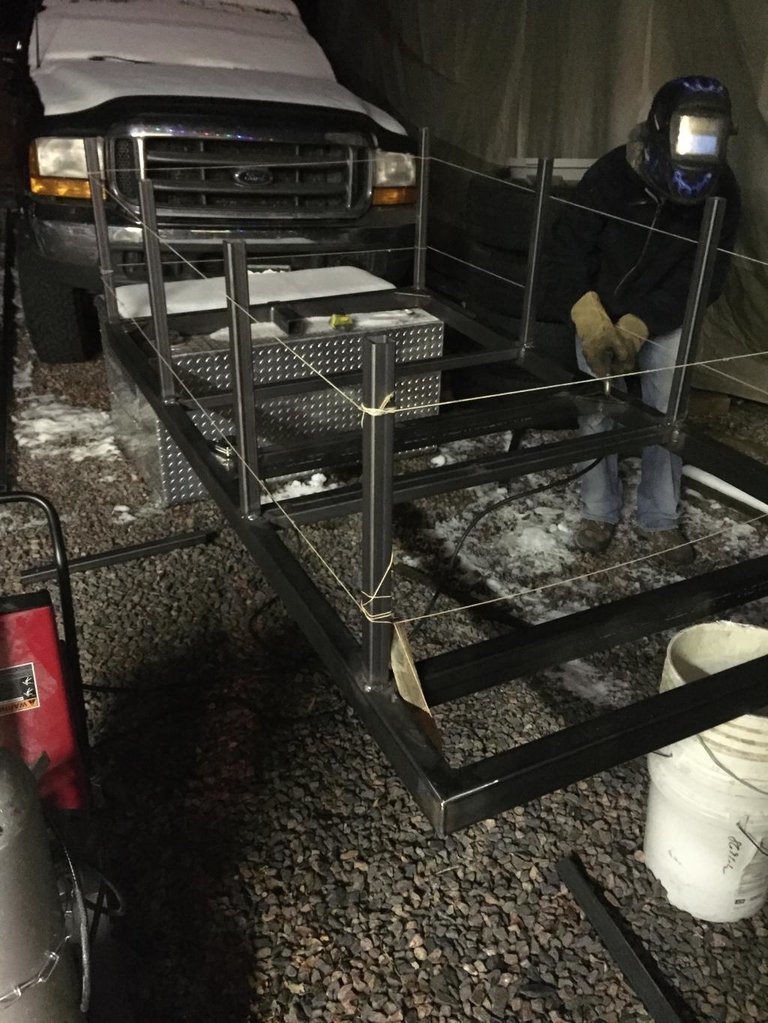

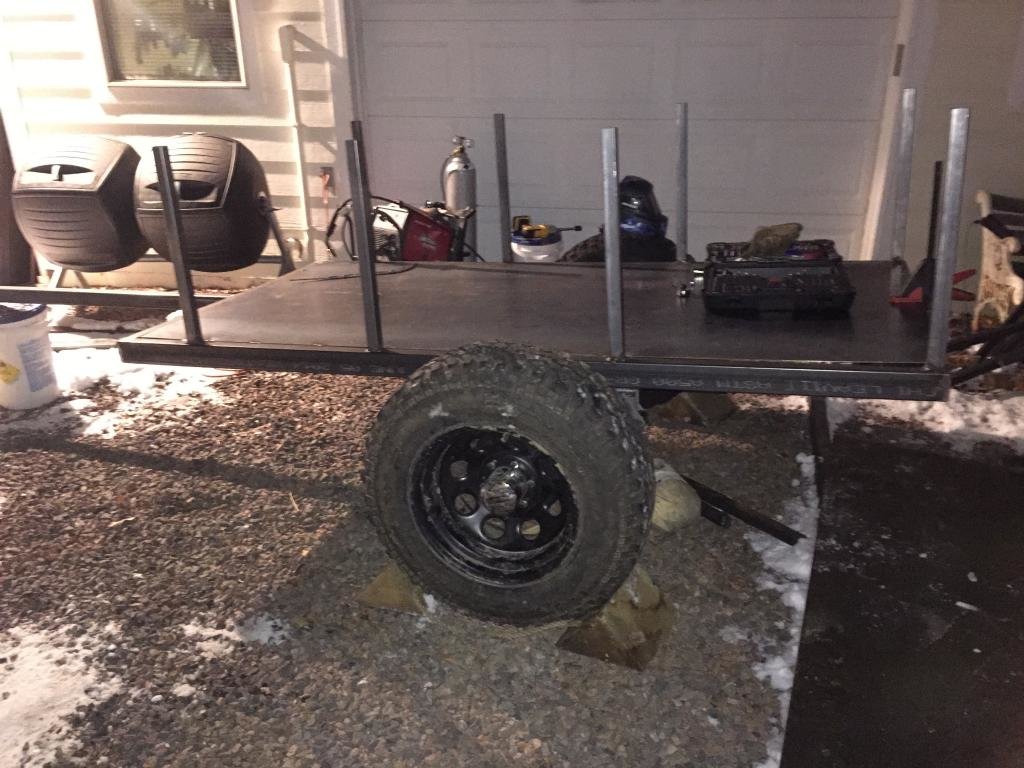

    Well just an update on what has been going on with the trailer. We have been getting snow the past two days so not a whole lot. We got the tongue welded in and the winch mount in the back welded in as well and are starting on the floor.

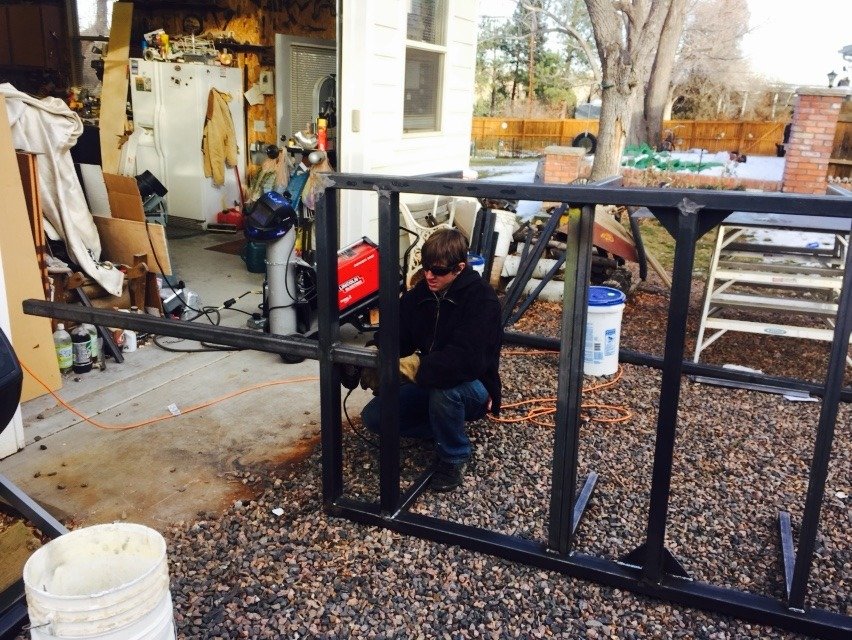

    FCE7C63D-0FF7-4650-A220-C7876C8FFC23_zps_1d38e8dae035ddc18237ae767a8690899a21317b.jpg
    1E80CD80-BAEB-41B4-B42E-07482BAA556F_zps_58c10c0162697799a70d75b8f318f1ed3bf6a214.jpg
    The. We also got some things in. We received the pump and water tank along with the max coupler and second yoke. Will be getting latches and lights this week and will be picking up the axle on Tuesday next week.

    So while it's snowing I am playing on the truck and working on the bhlm mod and ordering plate for a Sochi grill:D so not to snowed out. But rather be playing in it:cool:

  11. Dec 27, 2014 at 10:55 PM
    #11
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Hope every one had a great holiday!! We had a early Christmas here and got a lot of things for the trailer. I had got the axle in on Tuesday along with the water pump, water tank, hinges, pop pins, t handle latches, and other things I probably forgot about (stupid concussions:mad:) any way we decided to go with the trailer springs instead of the 63s :rolleyes: but it allowed me to get some things rolling on the trailer. We also got some flush mount LED break/tail and reverse lights along with a trailer breakaway box for Christmas!!!
    C1E666FA-B0E7-4FC9-8C83-25241B910C4A_zps_b305dbd9483a4c7e65c6ef1c275e3004ac0d0639.jpg

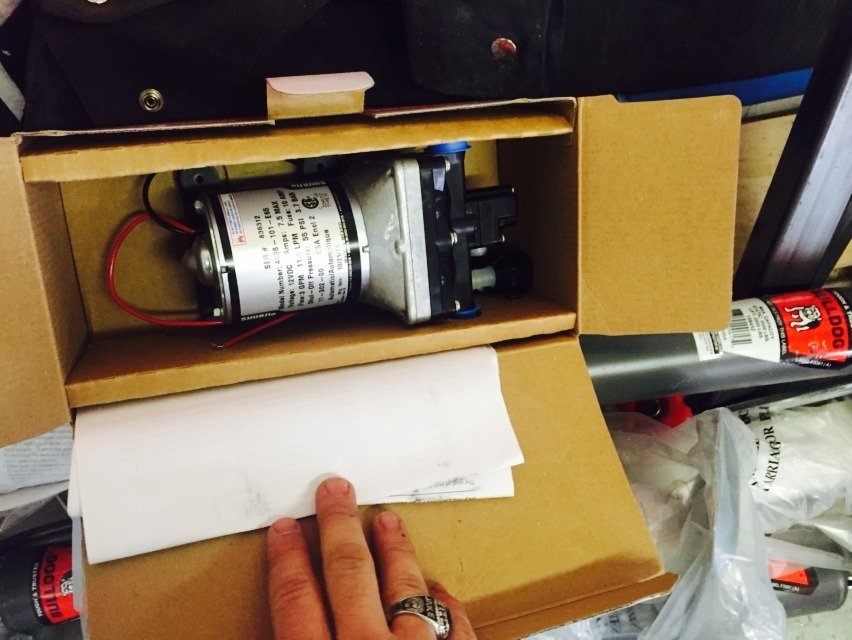

    Water pump
    4BC0C4BB-8EE9-4583-91BE-CB4D312A8F14_zps_c031afc3918de1fb1ff04b256709af187c9d0b0a.jpg

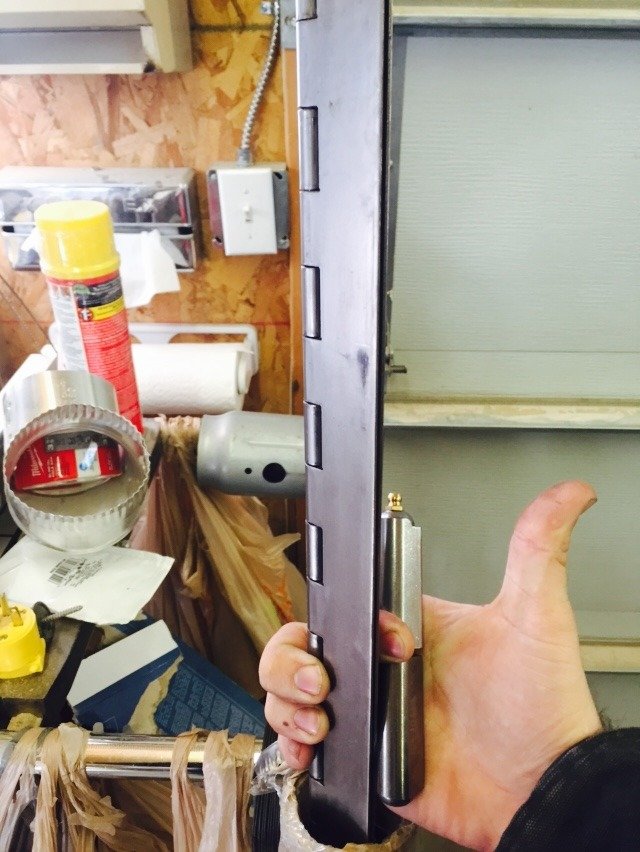

    Piano and bullet hinges.
    90C798E8-30AE-4783-8992-9B519475B883_zps_e555e4e932862f1ef4c6ed2d0dbcd565efd2901d.jpg

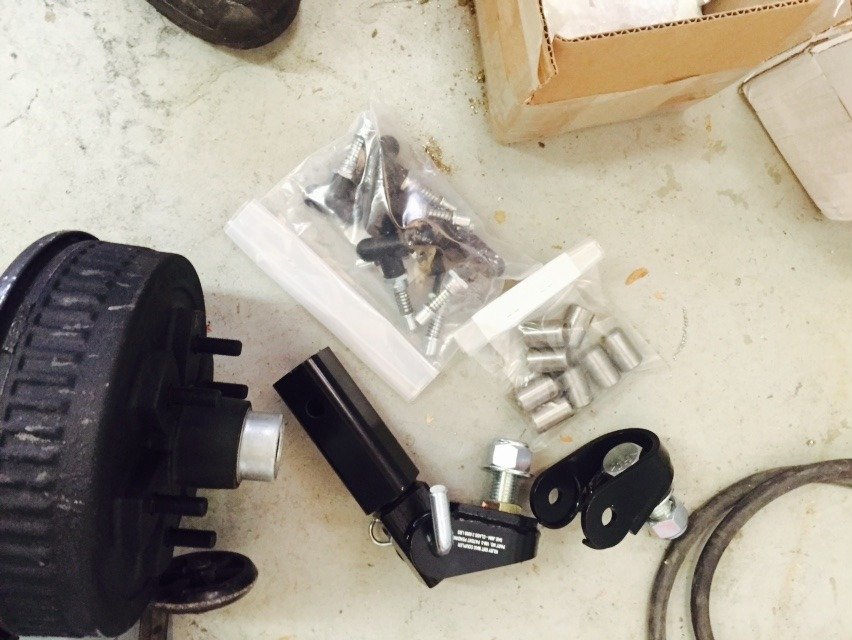

    T pop pins and the max coupled with two yokes.
    CB43E08E-B2A6-45AA-855D-EC60085B3445_zps_0fc86d731325a1e303f2a52dc4b6e6461bcbdc8c.jpgAnd an axle!!!

    Here is how the trailer sits as of tonight.
    A36FE980-DB49-4573-9ABC-BE342ADB9D0C_zps_0d3b5a8d174520eed983b723fd0e4ceeab23d66e.jpg
    We got the axle and springs on. And there is quite a bit of tongue weight so far and I was aware of that wheni did the axle to clear the Side doors. But now I'm worried about how much weight there will be up front with the water tank and batteries and such. Being that far forward. The tank full will weight around 240lbs and then a tool box with batteries and all the electrical. So close to 400lbs on the front with only a tire carrier on the back to counter balance that. What is your opinion on the weight :confused: any one that has built one have you had a problem off-road with that weight on the tongue and not being as balanced as possible?

    Hope every one had a great holiday!!
    Jake,

  12. Dec 30, 2014 at 11:13 AM
    #12
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Well the trailer is starting to look like a trailer. We have 90% of the skeleton done and the floor on. I will be hooking up the coupler some time this week and see how well it drifts :) still trying to find a good seam sealer to seal the sides. Any ideas?

    Jake,

  13. Dec 30, 2014 at 2:23 PM
    #13
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,961
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
  14. Dec 30, 2014 at 9:48 PM
    #14
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    yah i was looking at the first one and think that would work but don't know on the constancy. is it like rubber cement or is it like a past like bondo? if its like bondo it would work but if its going to be hard to make it look nice then probably not :mad:. speaking of would bondo work? speaking as using it to fill and make nice edges then the paint would be protecting it.... i dont know

  15. Jan 12, 2015 at 4:28 PM
    #15
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

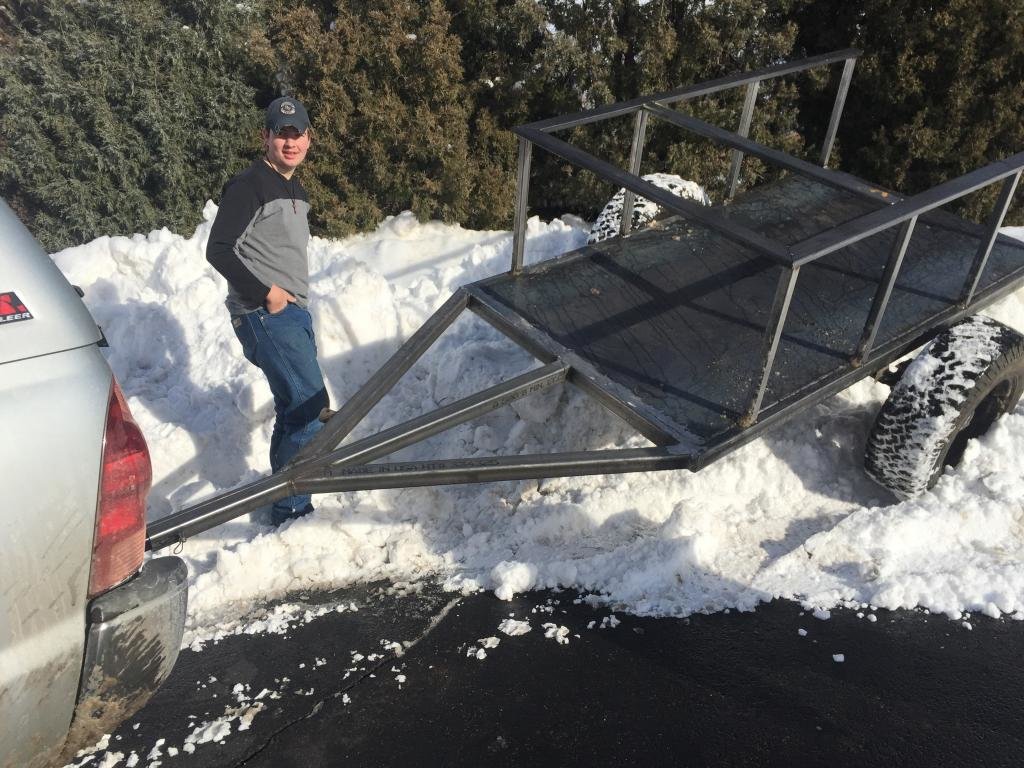

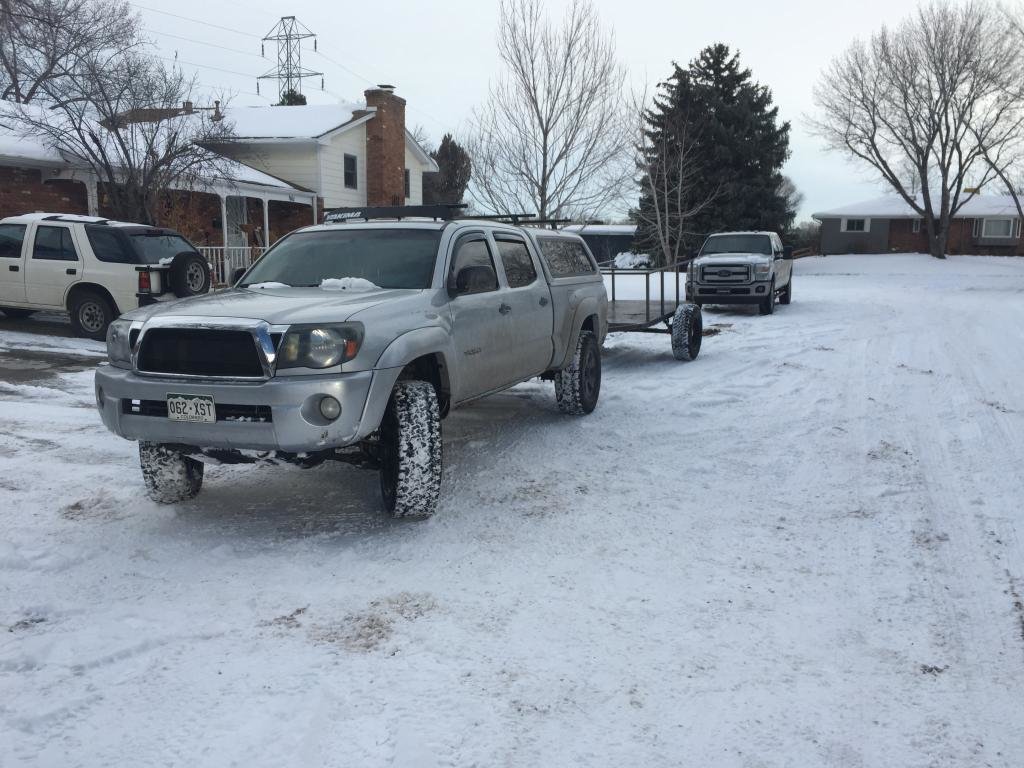

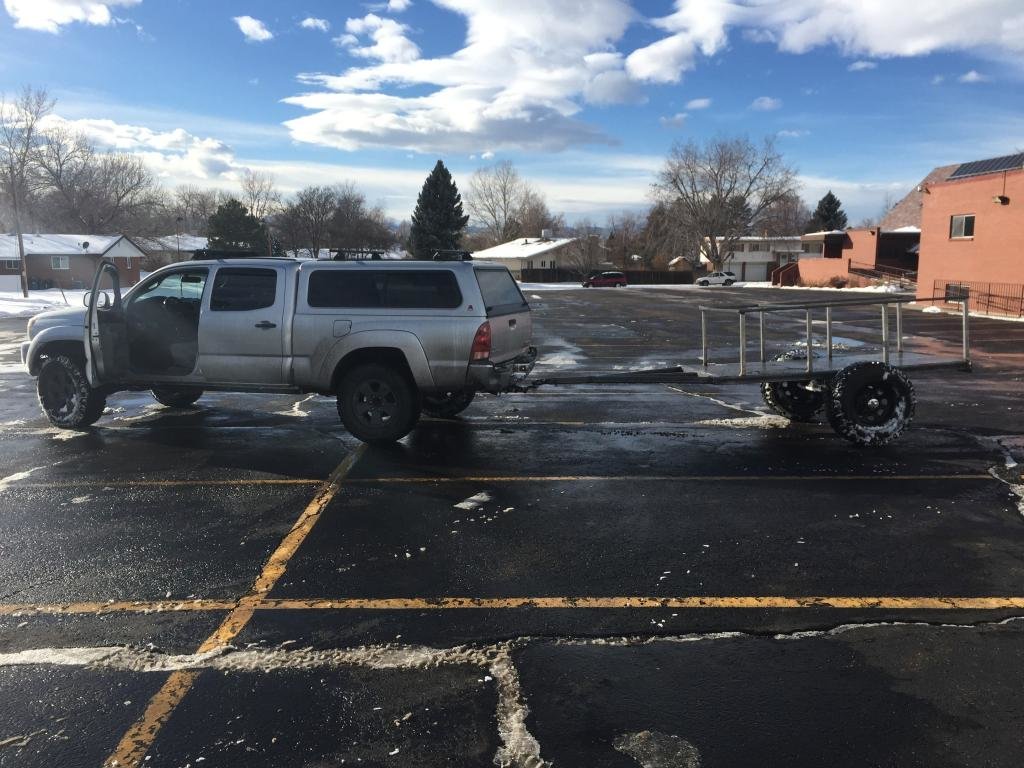

    Well we have not had that much time to play on the trailer but we did get to play with the trailer :D
    3DF9776E-9CB4-4F5B-A32A-3F0CB8206A13_zps_95591756ef99987ad3caf6146f194aa8ad379c2e.jpg
    AE8117AE-8770-4EAE-9A68-4B63D485DC2C_zps_65048d5b2becf15d257713cc25fc35c8db0ba34c.jpg
    E3AD5B85-12FB-4361-A067-8192C337FA30_zps_850459327f3ee0c76311e13656c192e9b32ed8fe.jpg

  16. Jan 13, 2015 at 9:30 PM
    #16
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

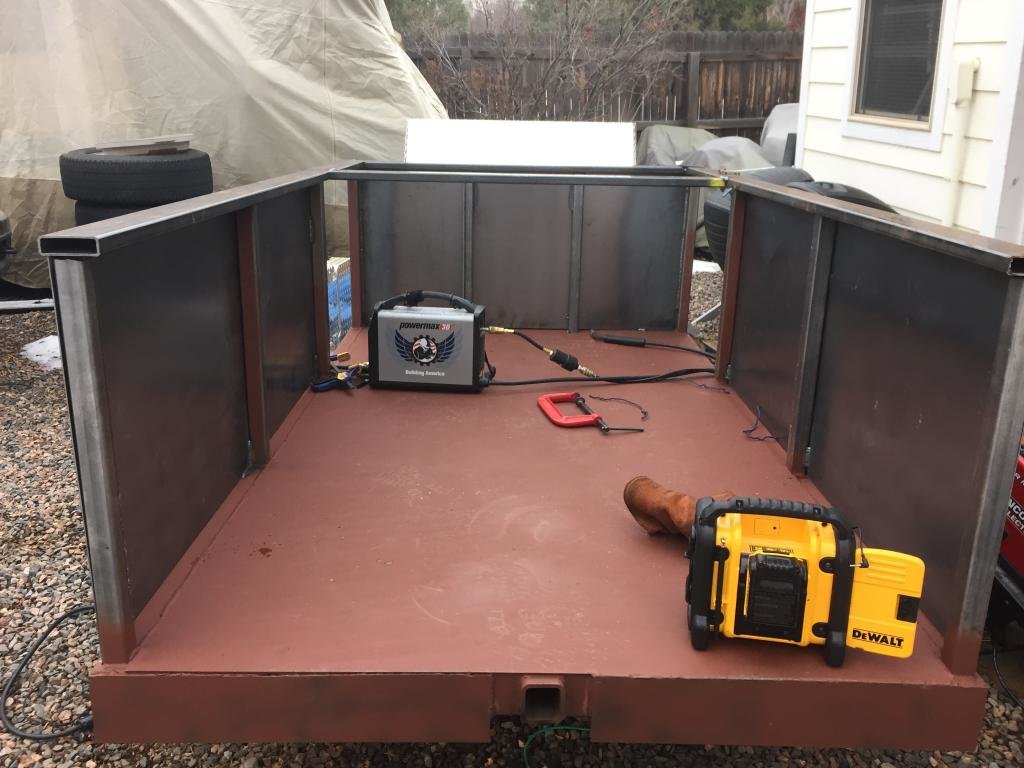

    Well it was not snowing today nor was I working so I got to get some things done on the trailer today.

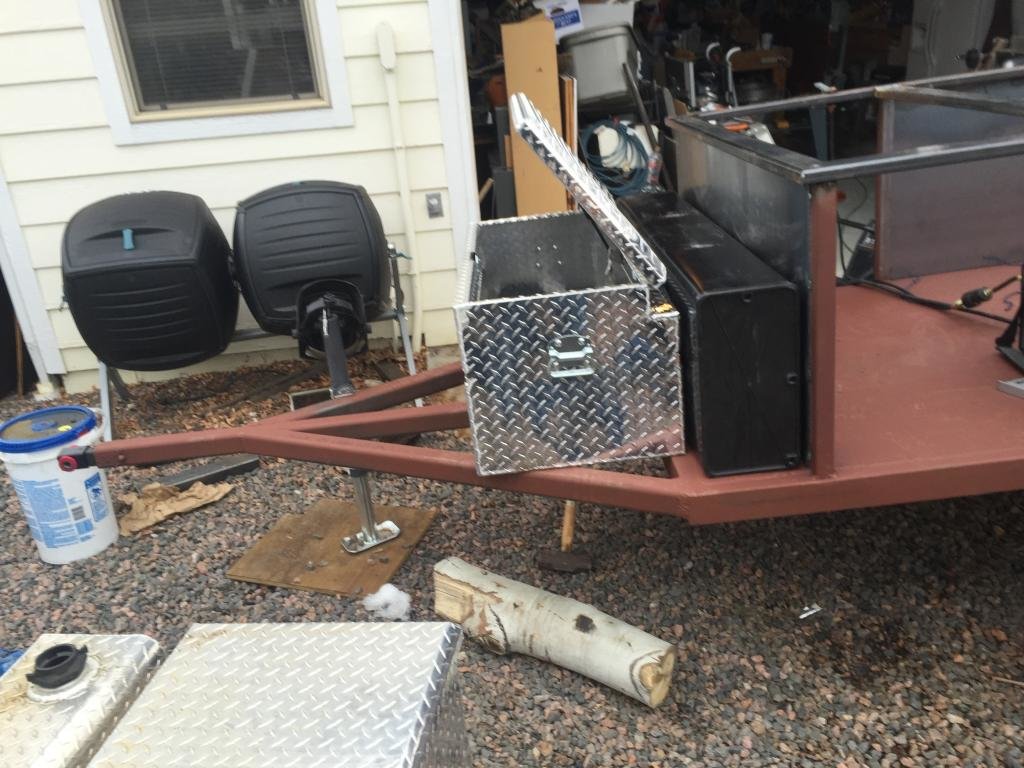

    B9192140-2BEE-4D19-B5AB-B553DAAF23B5_zps_b5a8f7907ecac00fc0b609ccae53e3c5337aa05d.jpg
    The red is primer because spots where starting to rust so I put a coat on a couple nights ago.

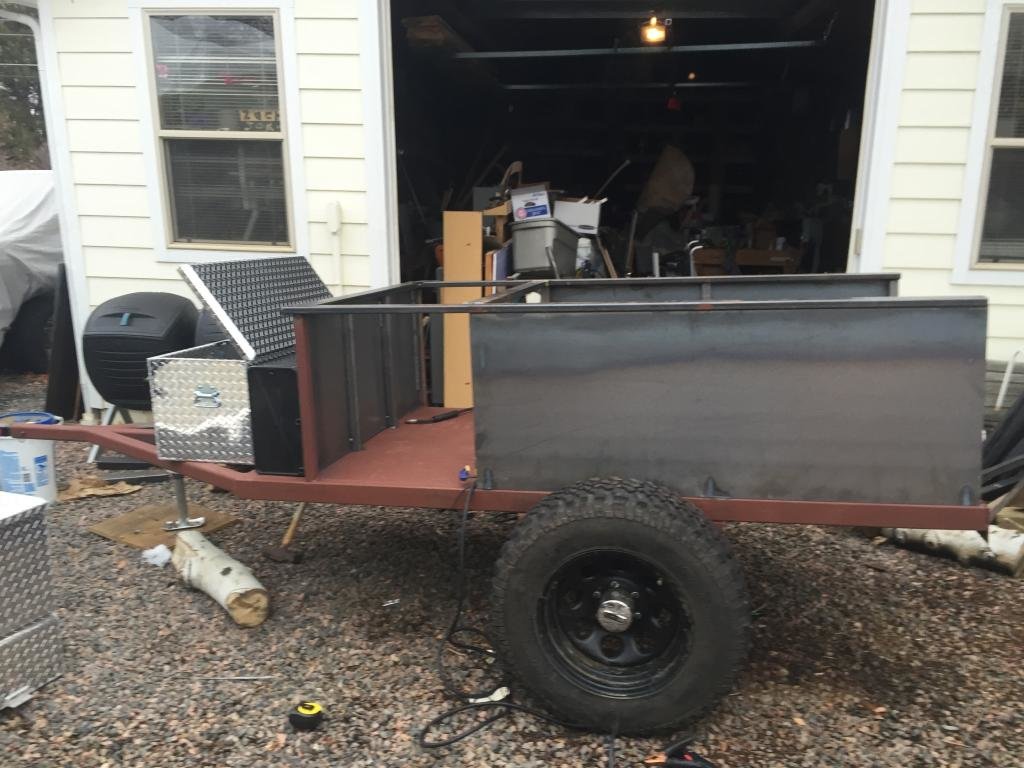

    0863997E-50F7-4FB5-9560-5B8B0AB8089F_zps_75421ec95634998b1ee45cd9cf68eb5e3088acdd.jpg

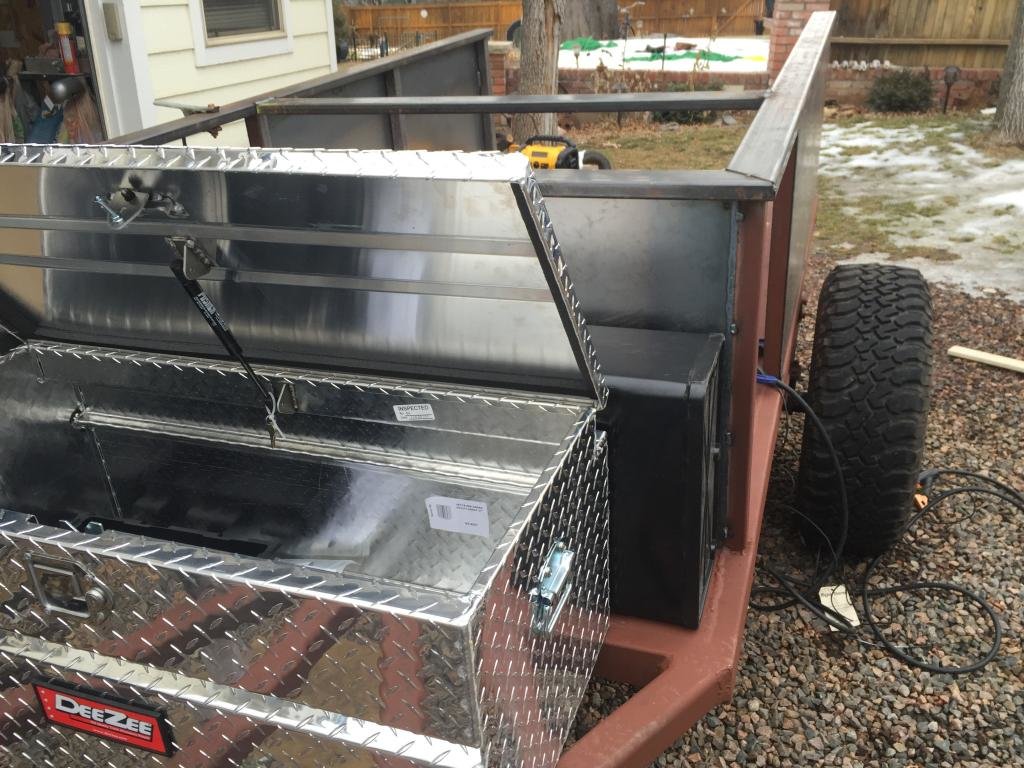

    BA9717A3-5CC8-41E2-AE94-298400F888E3_zps_97dee22c3fa9f8bf0e00a9837b88c957863544b7.jpg

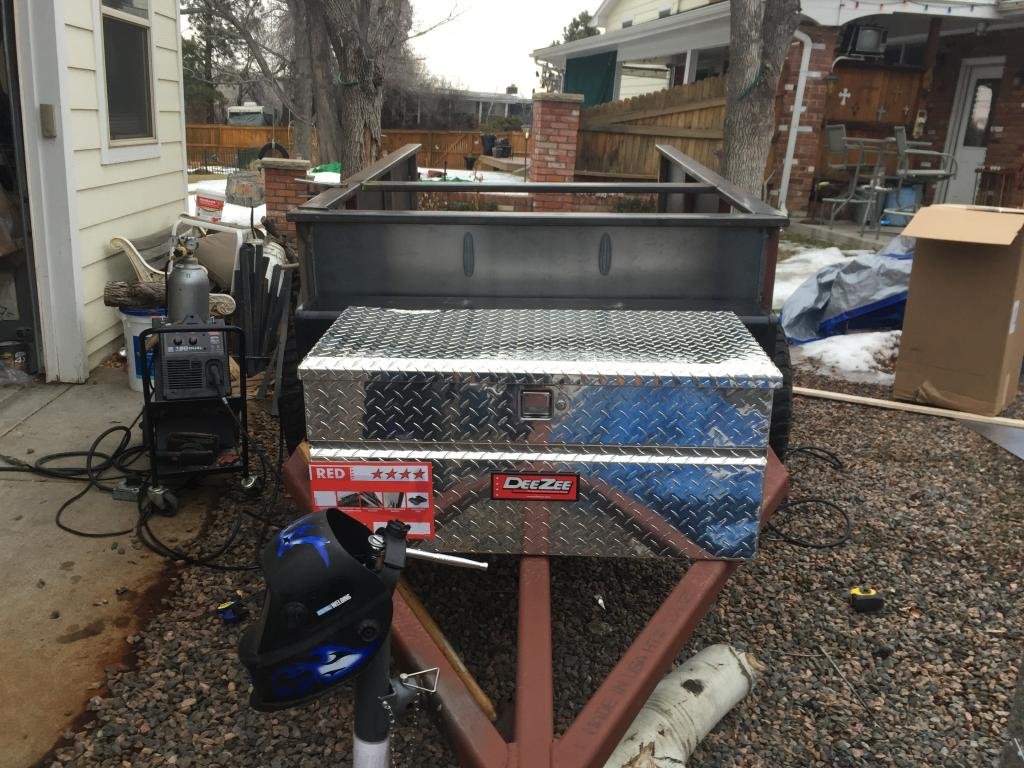

    CC2E2131-0260-404A-98B0-AABA9E744E13_zps_3e8dea82390e06ccc367c91dc352f86c266da531.jpg
    F68E0657-15FE-44EF-9EE4-72A15C40644E_zps_7aaa16666fc3362b3ab814f0dcc22a56611e3925.jpg
    D9FC45EA-3FD4-46CA-8B2A-FBBA3BAEB8DF_zps_c068917940792262c430dea65b40d1545a4fb023.jpg
    and the rust primer I used (rustoleum) has I iron mixed base to it so it welded really easy compared to other primers we have used in the past to cover projects.
    7C000E45-B197-421B-BBC1-5B7E083DB11E_zps_b923adcb83d1f2ecc216b1f65130421799cdc7c0.jpg
    B8C6FD0C-0061-4B7D-8B45-94BC8EA92EA9_zps_c8d3928bcfd94ef118d116e67854084c6299873d.jpg

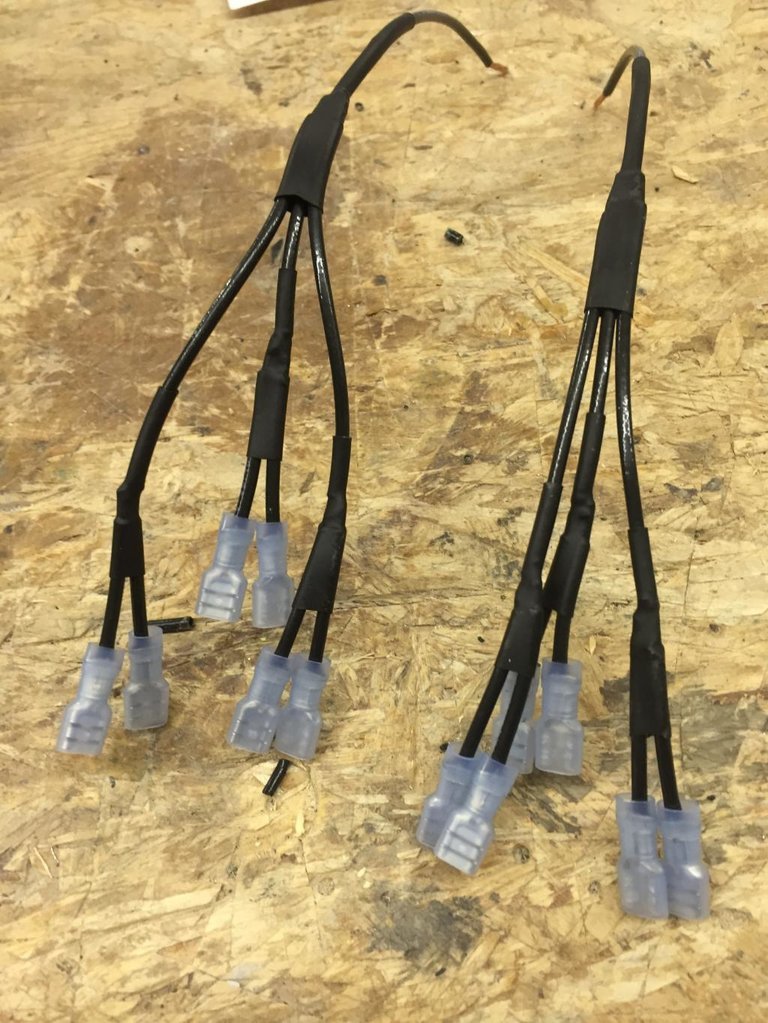

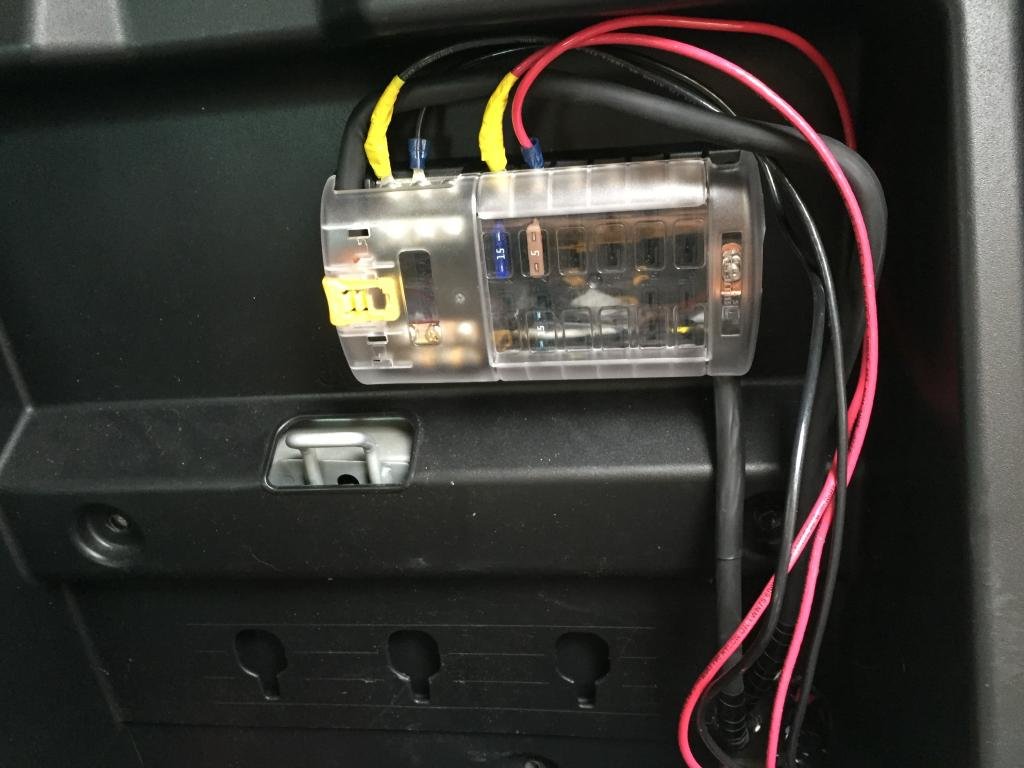

    And here is some of my buddy's handy work doing the wiring lume with me in my truck so I can get some lights on this truck and getting it to stop looking stock:D doing the electrical is getting me excited for the trailer and the funny thing is I hate electrical. :p

  17. Jul 28, 2015 at 4:41 PM
    #17
    TheBlackTaco

    TheBlackTaco Well-Known Member

    Joined:
    Mar 3, 2015
    Member:
    #150046
    Messages:
    119
    Gender:
    Male
    Forsyth, Georgia
    Vehicle:
    2008 tacoma SR5
    baja rack, ironman suspension, 33" bf goodrich
    Any updates?

  18. Jul 29, 2015 at 8:57 PM
    #18
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Haha yah lots of updates sorry. Got a little (a lot) lost in life. The trailer is on its feet and served us with a trip to moab in early June for a Jeep Grand Cherokee event. Where I must have hit a black cat, broke seven mirrors and walked under a million ladders because of all the bad luck we had. First my buddy's grand Cherokee blew the radiator 20 miles out side of moab so spent that night and fallowing morning repairing that causing us to miss that day's wheeling trip and then got the jeep fixed and decided to go do an easy shake down run to make sure the trucks where doing good and stuff. Well we got stuck in a flash flood and the taco bit it and sucked water in the intake from a cut inner fender from the previous owner. And of corse it could not be as easy as removing the plugs and shooting the water out. No I had hydro locked the engine and threw a connecting rod threw the back of the engine. :(

    But the trailer was the pride of the trip. Not a thing went wrong with it. Which I will add was a miracle because of the two week rush to get it finished. Last seen by you guys it had no doors or dividing panel. Well this is where it sits now. I do have the aluminum fenders on now.
    I do have full aluminum fenders built and installed now. On the trailer.

    Last edited: Dec 31, 2015
    TheBlackTaco likes this.
  19. Jul 29, 2015 at 9:10 PM
    #19
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    image.jpgGot doors on and skinned along with fender skeletons built without the first week. image.jpg Tent rack and tent on and test fitted. image.jpg What ride hight looks like. image.jpg Got rear lights in.

    What else happened with out the ideas of stopping and taking pictures....

    Axle moved 2 inches forword to remedy tounge weight (wish I had kept it where it was because having an empty water tank make a very even load.)

    Ran all the wiring for the lights. Spent way to long wireing in that because the truck to trailer connection all the wires where the wrong color so had to multi meter them all repeatedly to figure out what was what on a seven pin connector

    Got trailer electric breaks wire up and break away box wired

    Got truck wired for trailer breaking.

    Got aluminum fenders cut out and installed

    Got linear actuators installed and wired ony to raise and lower the tent.

    Tire carrier built and tire mounted.

    Painted half the thing silver in hopes of matching the truck... Way to shiny so panted desert tan instead.

    Cut trailer tounge ten inches shorter after finding out the night before leaving for moab the wireing was to short for the trucks location and figured that this was the best and fastest way.

    Installed water tank for looks right now.

    Installed tool chest for batteries and electrical.

    That's about it for the two week dash to make it street able.

    TheBlackTaco likes this.
  20. Jul 29, 2015 at 9:21 PM
    #20
    3378jakesr5

    3378jakesr5 [OP] AOF, trucks, guns, repeat....

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,860
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    What needs to be done yet.

    Have to Finnish the finish work on the fenders.

    Run wiring for lights to the tent, trailer compartments, awning, and exterior lights.

    Wire trailer for rock lights.. You why not? The truck has them and I have some laying around. XP

    figure out if I'm going to keep the water tank I got or put my TIG welding to the test and weld up an aluminum tank to better last in the sun.

    Wire in pump for water and such

    Probably should plumb the trailer for said water for sink in fender and shower.

    Cut out hole in fender for a drop in sink. With quick disconnection fittings.

    Send some CAD drawing to the CNC shop again for slotted mounts for linear actuators to stop binding problems.

    Set up wiring dash bird for trailer and make a wiring nightmare look nice.

    Wire in the 3000 watt inverter and find a place to hide that sucker.

    Run wiring for ac power in the trailer

    Plywood the inside of the compartments for sound defining and mounting points

    Build a drawer slide for large compartment to get to things in the back.

    Build fold down tables for back door and tire carrier.

    If I find time. Build trailing arms for replacement of the Leafs and run air bags.

    Build awning for back of trailer for the kitchen to stay dry.

    Wire tent lights.

    I'm sure ther will be much more but can't remember now.

    TheBlackTaco likes this.

Products Discussed in

To Top
