360 Birdview DVR System AutoSee

Discussion in '3rd Gen. Tacomas (2016-2023)' started by delonix, Oct 21, 2019.

  1. Oct 21, 2019 at 7:08 PM
    #1
    delonix

    delonix [OP] Well-Known Member

    Joined:
    Sep 11, 2018
    Member:
    #265983
    Messages:
    183
    Gender:
    Male
    First Name:
    Delonix
    PR
    Vehicle:
    Tacoma TRD Sport 2018
    Everything is working now, even the touchscreen!! Check this post.

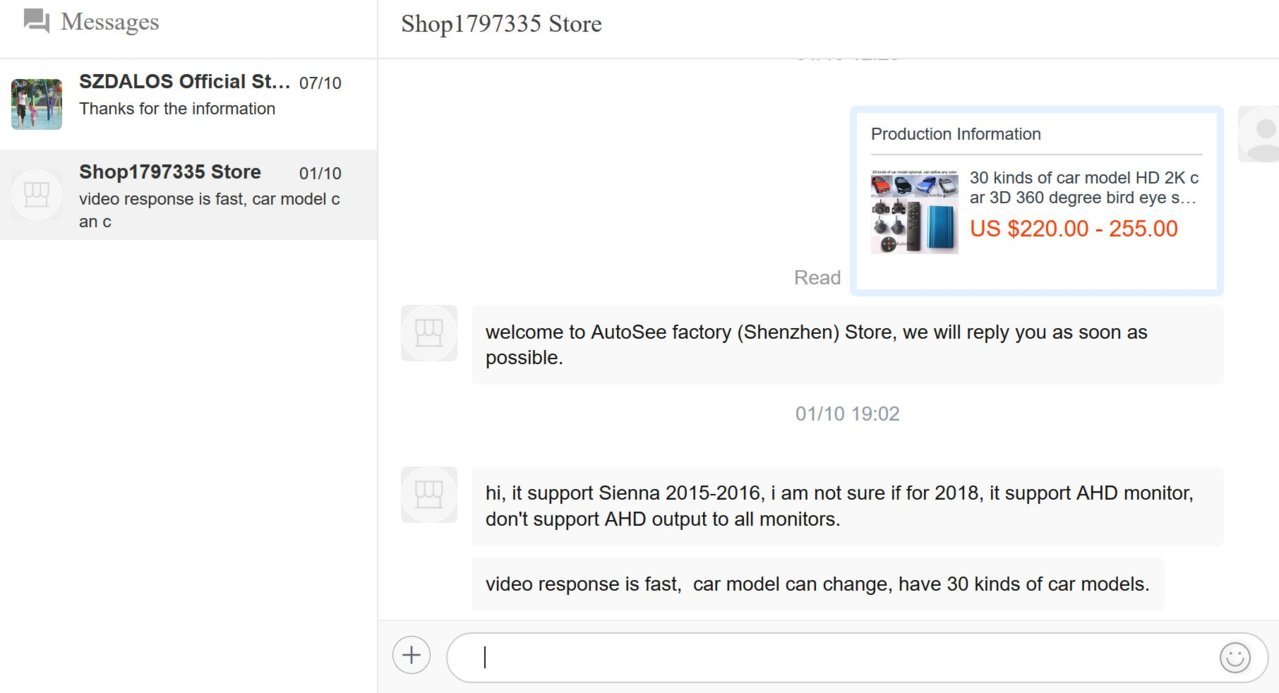

    --Title edited to reflect the new system brand (AutoSee). Installation process is exactly the same. Old ebay system wiring not compatible with new system. I had to rewire everything again, although a lot easier this time . --Latest info here.--

    After buying an Acura MDX with 360 cameras, which I loved. Started looking into what options were available for my truck. I already upgraded my head unit to an Android one, so the reverse input was already an RCA plug. My guess is, it might work also with the stock head unit.

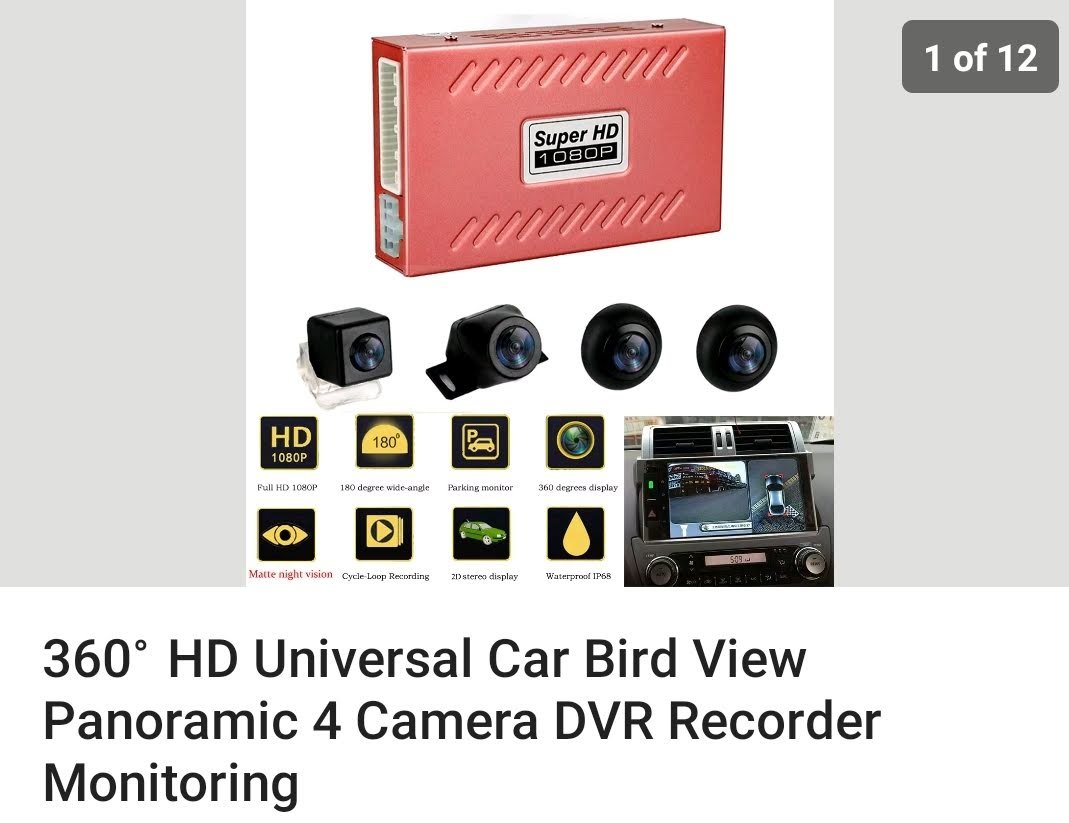

    Anyways, bought a bird view system from Ebay(cheap one). First one was defective. After some troubleshooting the seller agreed to send a new one. The installation process takes a lot of time. You have to remove the doors panels, side mirrors and fish the cables thru the door conduit into the cab. Bottom line not for the faint of heart. I also replaced the stock tailgate camera with the one that came with the system.

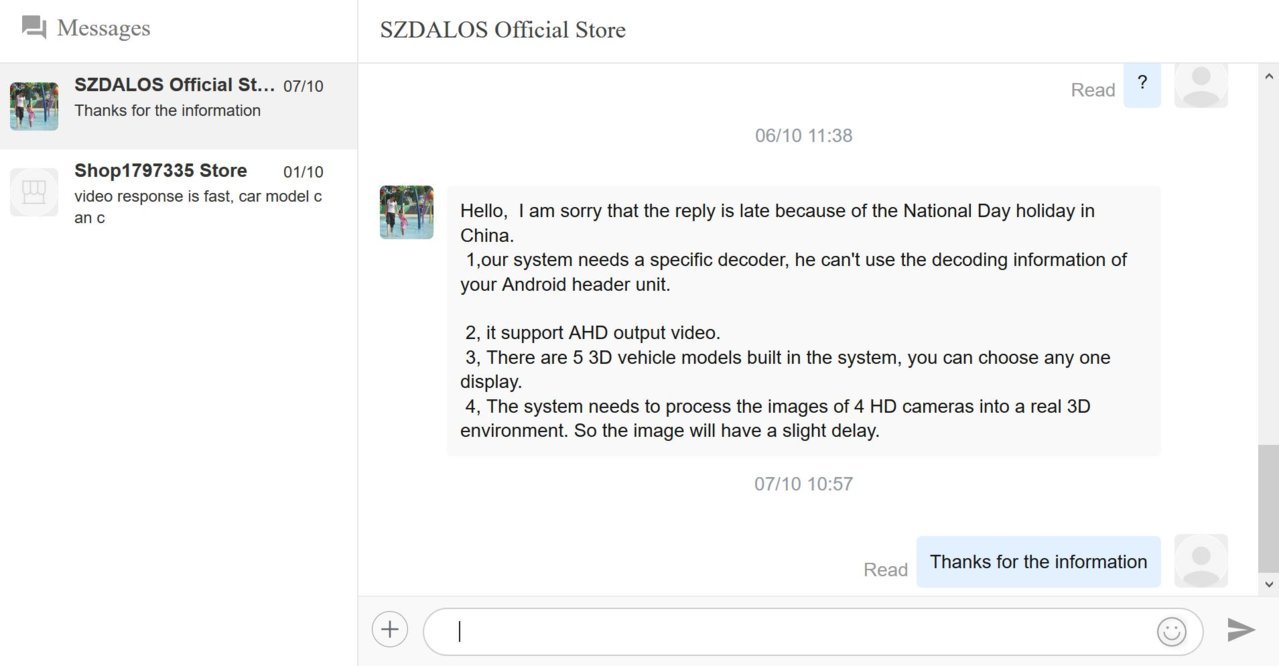

    Lessons learned: I should've bought a better/expensive system from szdalos or other manufacturer. Mine is laggy and the image quality could've been better. Also I should've look for a system with Analog High Definition(AHD) output. I tested a AHD camera and the quality is outstanding.
    Make sure that the system also comes with the impact/vibration sensor. Also the systems require a calibration cloth or tape, make sure it is included.

    Current System: It does the work all the cameras have a field view of 170 degrees. Also the DVR feature is really useful. As soon you start the truck all the cameras start recording. The system brings a remote to choose the camera you want to display.

    Installation:

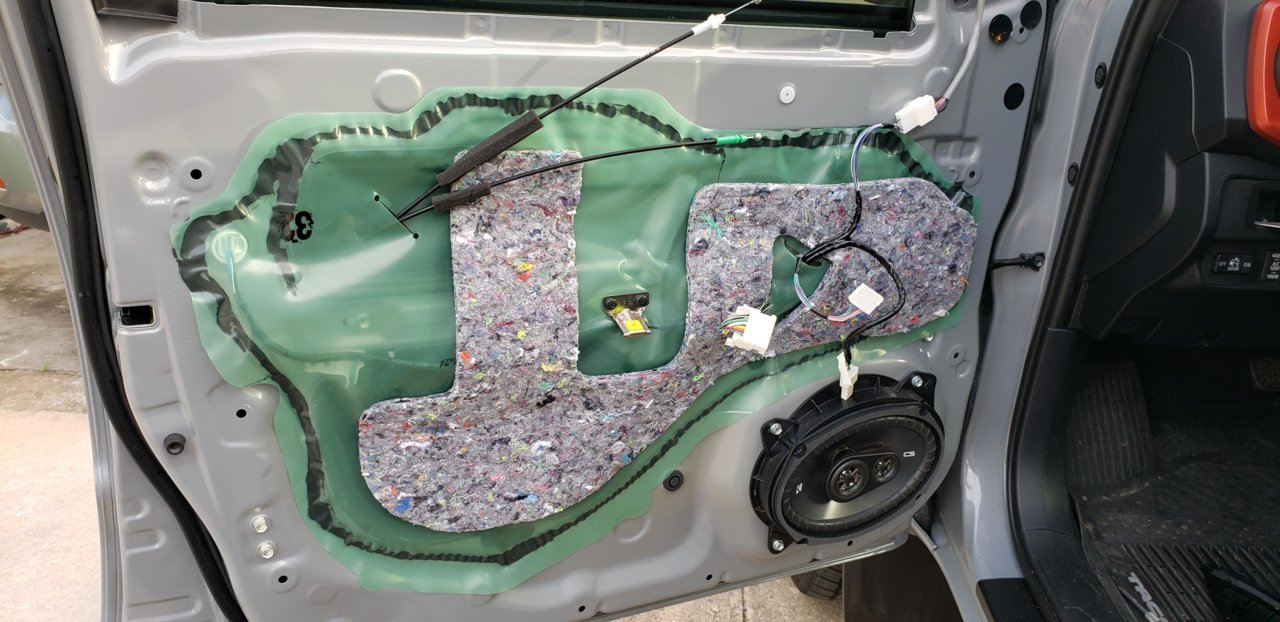

    The hardest part are the doors, some drilling required.
    20190815_175809.jpg 20190815_175812.jpg 20190815_175912.jpg 20190815_180056.jpg 20190815_180243.jpg 20190815_180808.jpg 20190815_180951.jpg 20190815_180956.jpg

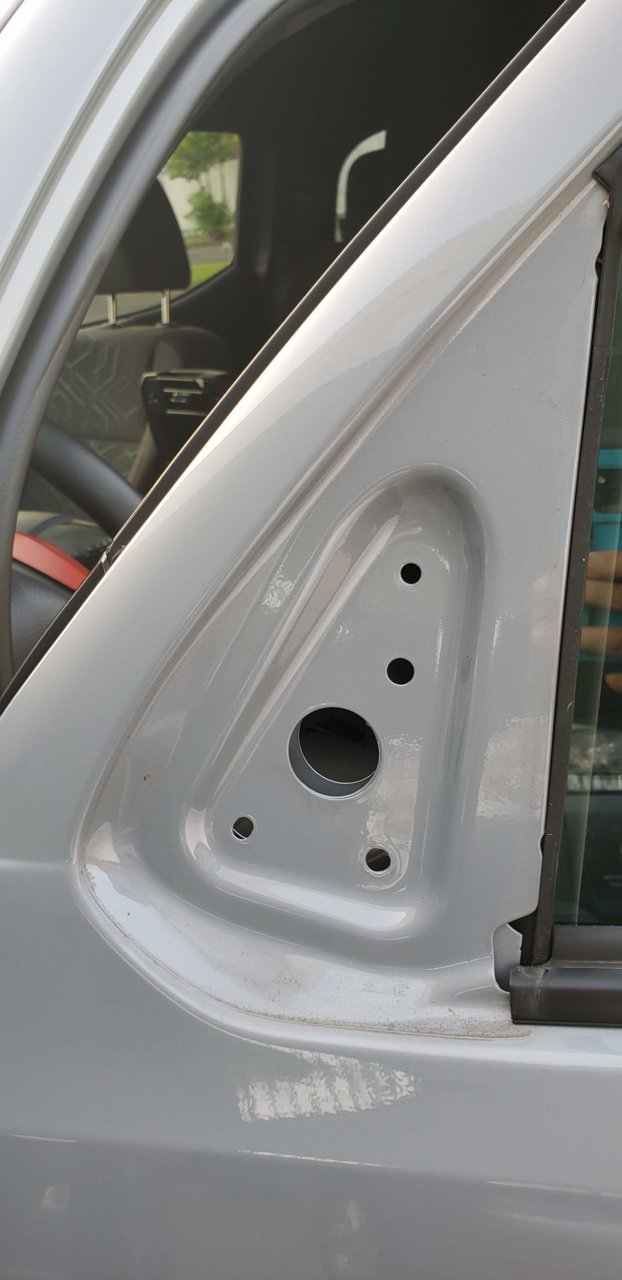

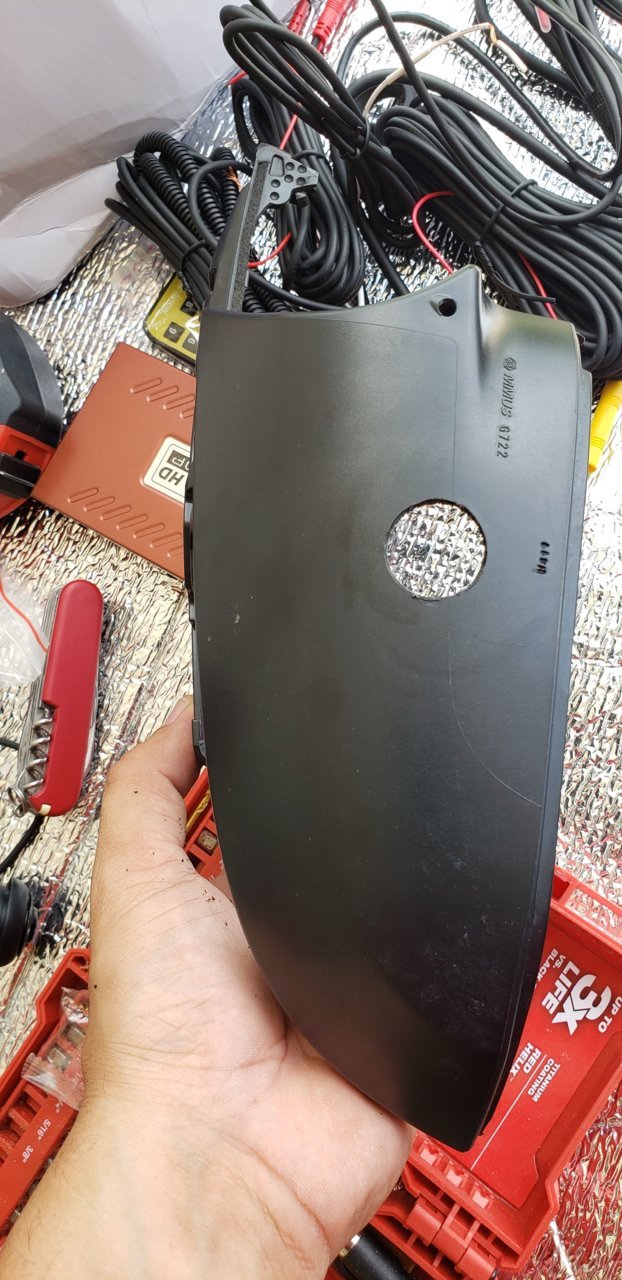

    Now, measure twice X 10 and drill once.

    This is it!
    Now, I re-installed the base to drill the frame.
    20190815_183637.jpg 20190815_183937.jpg
    Passing the wire. 20190815_184427.jpg 20190815_184433.jpg

    Fishing the cable. DO NOT REMOVE THE 10mm SCREW THAT LIMIT THE DOOR!
    20190818_164205.jpg 20190818_163755.jpg

    This is how it looks.

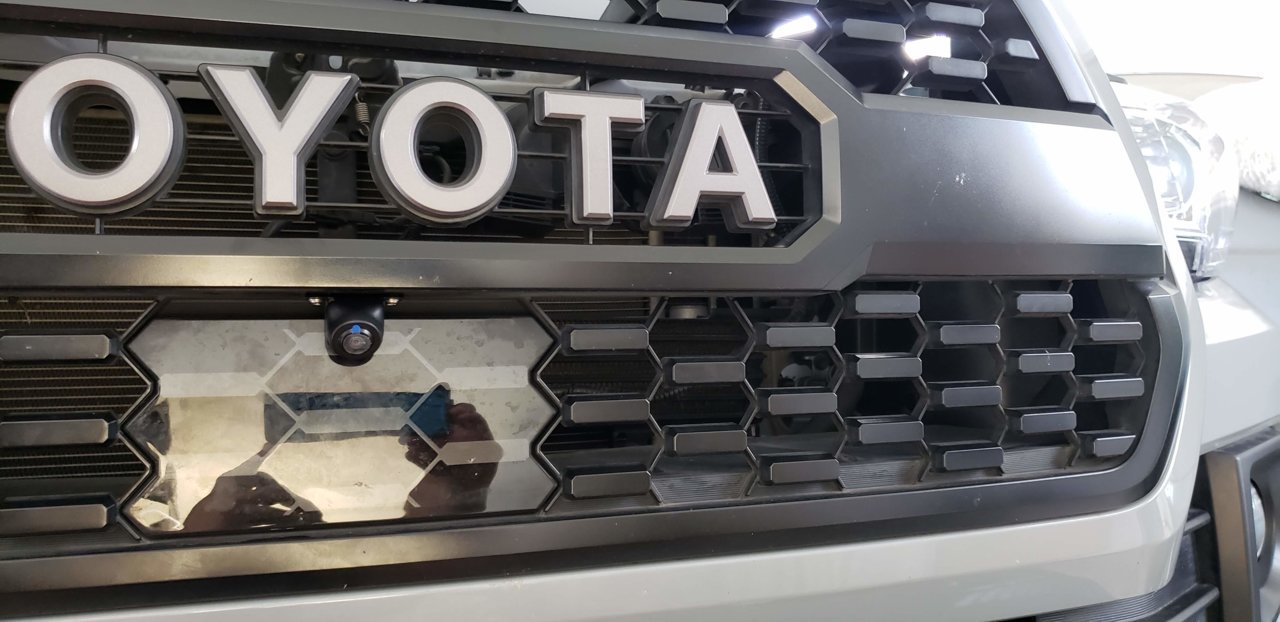

    Installation of the front camera. It's been months like this, so far no issue with the TSS sensor.
    Camera Installed.

    Aftermarket camera on oem location.


    To be continued..

    The finished product... The music is the actual radio. :rockband:


    DVR Demo.


    Parking.

    Last edited: Dec 11, 2020
