3D Printed Raptor Style Lights For 2020 Stock Grill

Discussion in '3rd Gen. Tacomas (2016+)' started by StapleNut, Apr 28, 2020.

  1. Apr 28, 2020 at 6:49 PM
    #1
    StapleNut

    StapleNut [OP] Member

    Joined:
    Dec 7, 2019
    Member:
    #312738
    Messages:
    11
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    Future 2020 Tacoma TRD OR Owner
    I actually like the new 2020 grill that came with my truck but kinda like the amber lights available for the pro grill. So I picked up some smoked out amber LED'd off Amazon and sat down to make some basic mounts. I found the grill is tapered in a way that if I made the mount flared to match it almost squeezes in place without any sort of clips molded into it. I first made it so it took up the whole cavity but then decided to add air bypass to each side. I ended up just chopping off the sides all together. I printed on white PLA just to get the basic fit and plan to print on dark grey ABS if it all works out. I plan on driving some miles on them to see how they stay in place before anything else. Think of it as a rough draft.

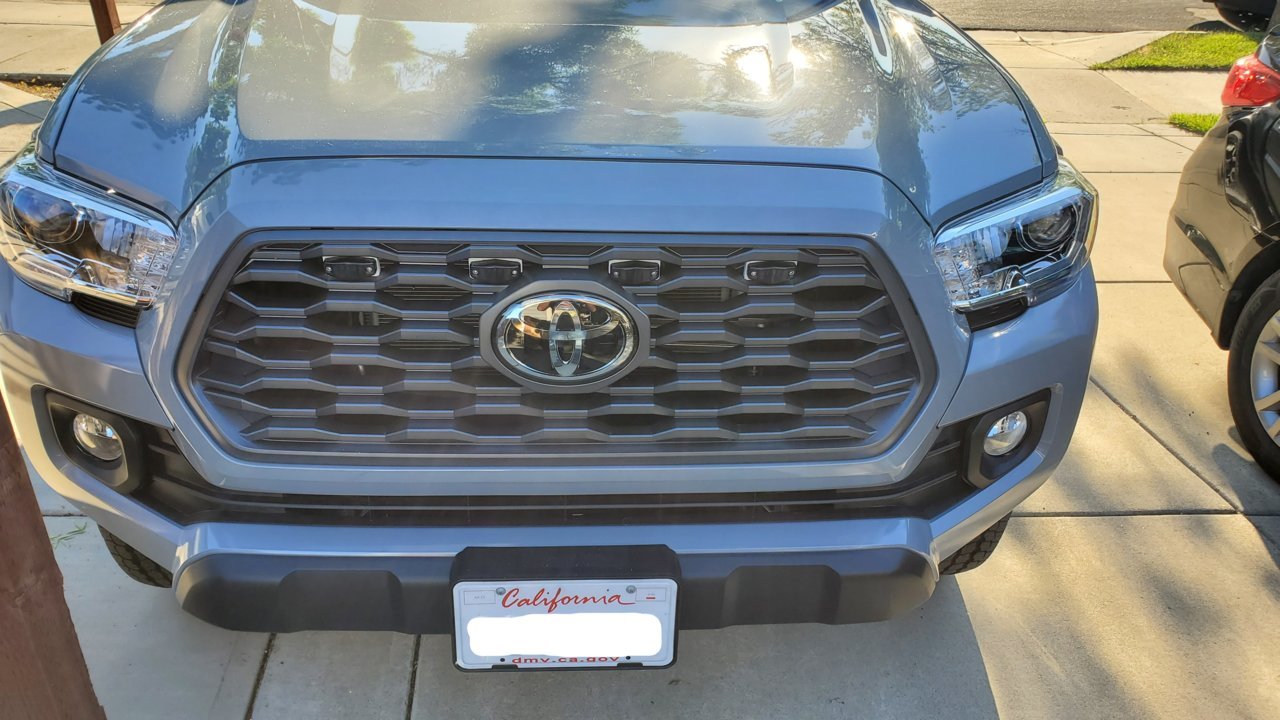

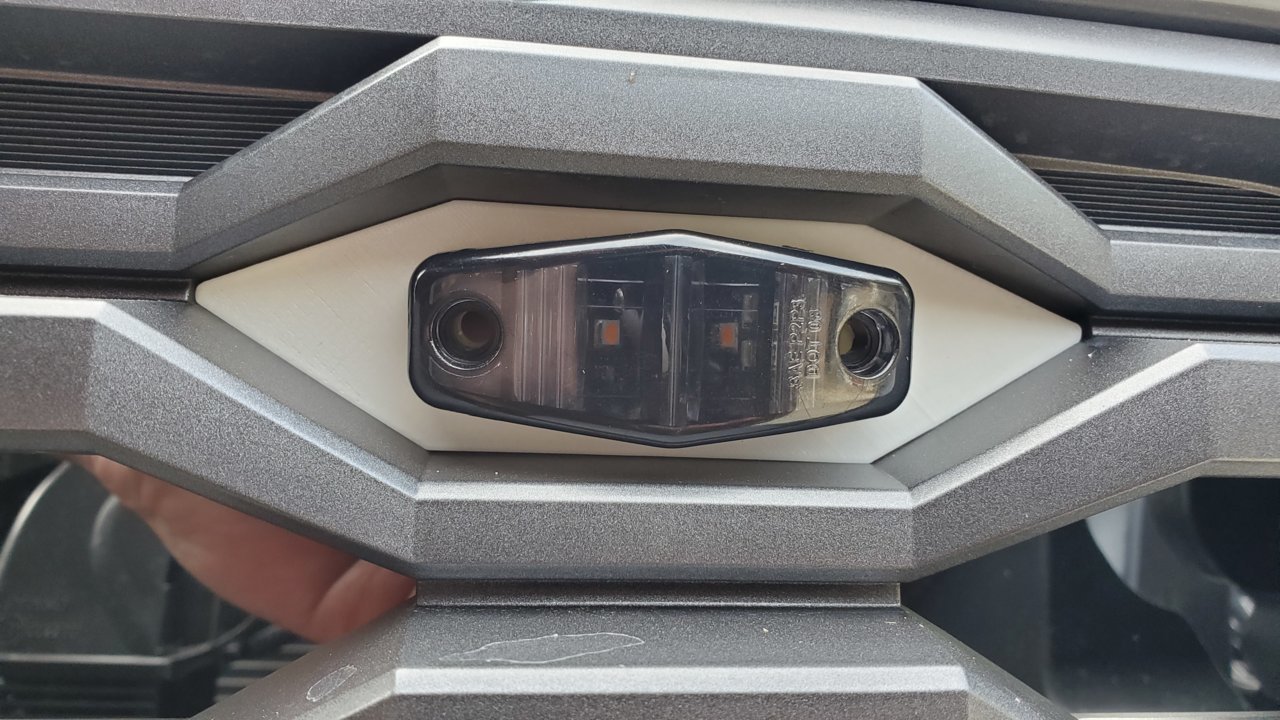

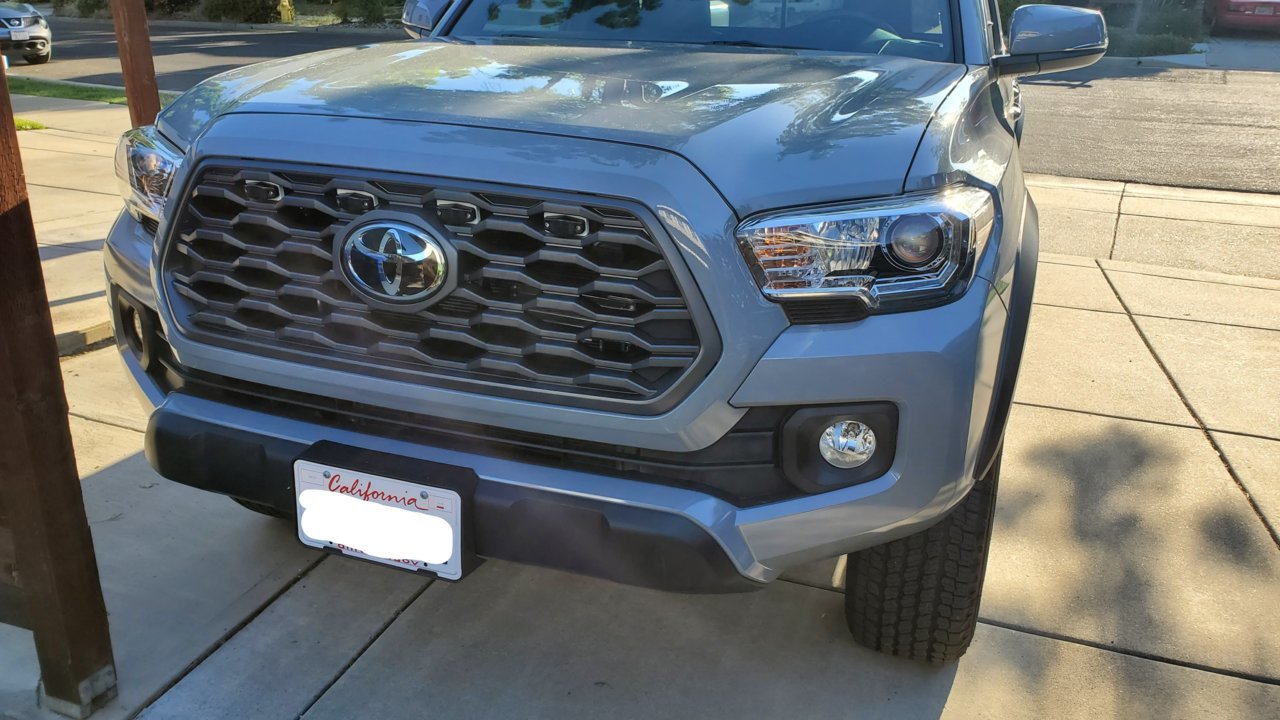

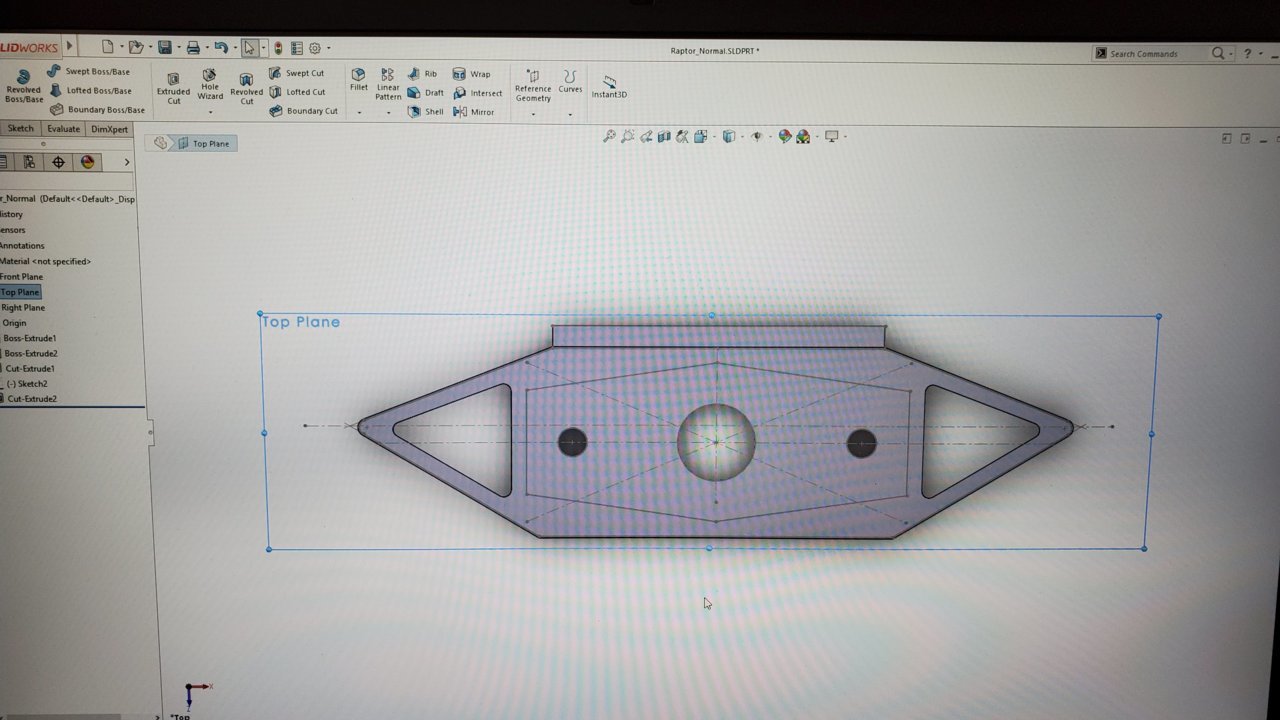

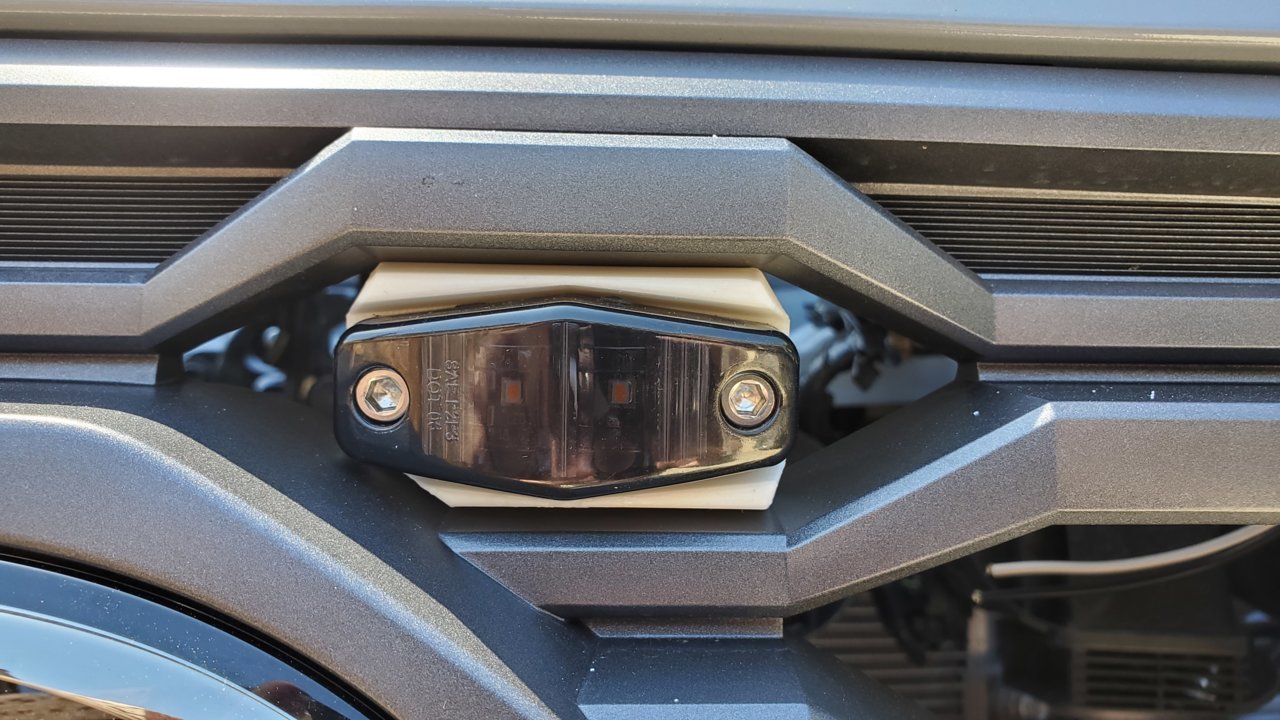

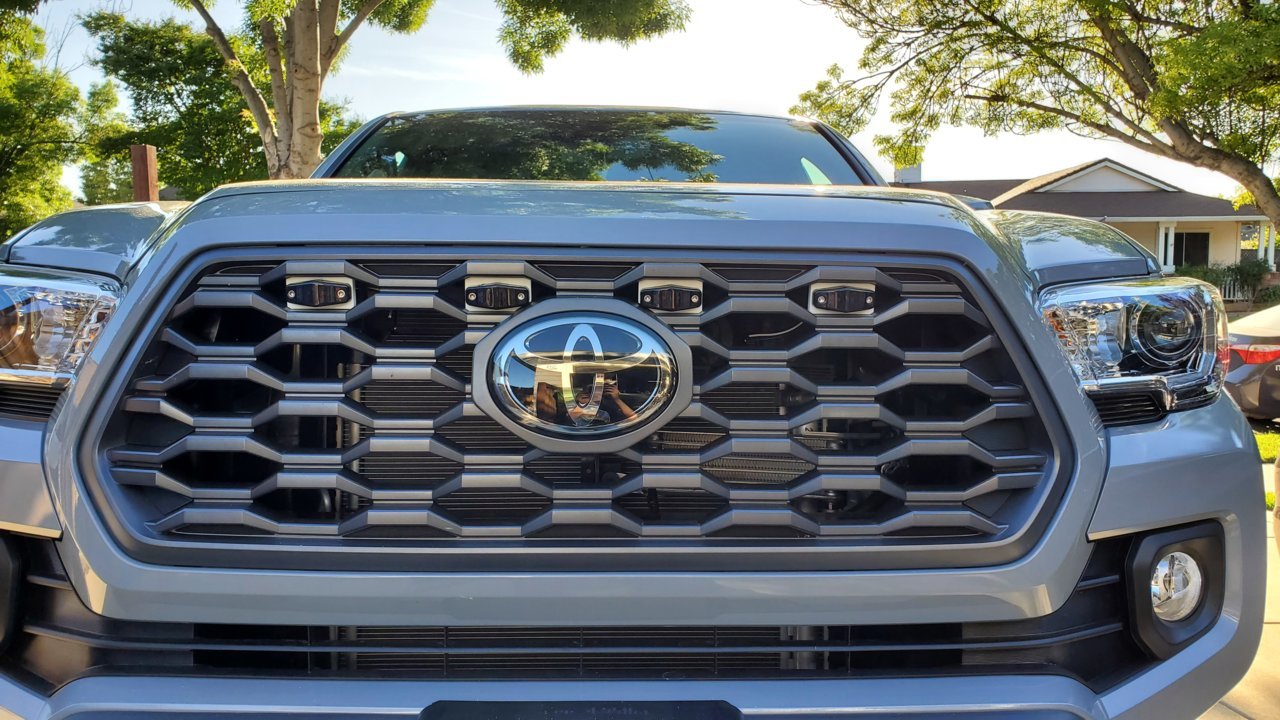

    20200417_162517.jpg 20200417_160241.jpg 20200428_181541.jpg 20200428_181547 (Censored).jpg 20200428_181717(Censored).jpg

    Last edited: Apr 29, 2020
  2. Apr 28, 2020 at 6:58 PM
    #2
    mullett757

    mullett757 Well-Known Member

    Joined:
    Mar 3, 2020
    Member:
    #321188
    Messages:
    172
    Gender:
    Male
    First Name:
    Joe
    Virginia Beach
    Vehicle:
    2020 White TRD Sport DCLB
    :spending:Subbed for sure this is what I’ve been waiting for lol!

  3. Apr 28, 2020 at 7:02 PM
    #3
    Harperspop

    Harperspop Well-Known Member

    Joined:
    Feb 21, 2017
    Member:
    #211289
    Messages:
    200
    Gender:
    Male
    Vehicle:
    2020 Cement ORSB
    Pretty cool man. I like the 2020 grille better than the Pro grille so, it's nice to see some fab for it.

  4. Apr 28, 2020 at 9:01 PM
    #4
    mjanmohammad

    mjanmohammad Well-Known Member

    Joined:
    Apr 20, 2018
    Member:
    #251138
    Messages:
    84
    Gender:
    Male
    First Name:
    Moe
    any chance you'd be willing to share the design file for this? I have a 3D printer and would love to make some for my stock grill

    TacomaZach23 likes this.
  5. Apr 28, 2020 at 9:05 PM
    #5
    RobertusvT

    RobertusvT Well-Known Member

    Joined:
    Jan 28, 2020
    Member:
    #317520
    Messages:
    68
    DFW, TX
    Definitely interested to see how this goes. Would love to have raptor lights without having to shell out a few hundred for a new grille.

    JKU3000 likes this.
  6. Apr 28, 2020 at 9:51 PM
    #6
    MESO

    MESO Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    14,866
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
  7. Apr 29, 2020 at 5:31 AM
    #7
    STrooper

    STrooper Well-Known Member

    Joined:
    Jan 27, 2019
    Member:
    #280870
    Messages:
    1,155
    Gender:
    Male
    First Name:
    DeJuan
    NC
    Vehicle:
    2018 TRD Sport QS
    Great job OP! You should do a front camera mount as well!:thumbsup:

  8. Apr 29, 2020 at 5:36 AM
    #8
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    5,586
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    Sweet op! Post a pic of the lights on too

  9. Apr 29, 2020 at 5:41 AM
    #9
    perchalot

    perchalot Member

    Joined:
    May 2, 2017
    Member:
    #217945
    Messages:
    17
    Gender:
    Male
    San Diego
    Vehicle:
    2020 MGM 4X4 OR DCSB
    Same!! I always planned on replacing the grille and adding lights but ended up liking the 2020 grille a lot.

  10. Apr 29, 2020 at 6:17 AM
    #10
    Stigman

    Stigman Well-Known Member

    Joined:
    Dec 24, 2019
    Member:
    #314113
    Messages:
    132
    Gender:
    Male
    Vehicle:
    2020 Cement TRD OffRoad
    Cool I’ll take some in black. :)

  11. Apr 29, 2020 at 6:23 AM
    #11
    Norsk

    Norsk Well-Known Member

    Joined:
    Jan 13, 2017
    Member:
    #207431
    Messages:
    184
    Gender:
    Male
    Vehicle:
    '20 Cement Gray Tacoma DCSB 6MT TRD Sport
    definitely interested! I have no need to change to Pro but i really love my '20 grill, it looks so much better.

  12. Apr 29, 2020 at 11:37 AM
    #12
    rmreid20

    rmreid20 Active Member

    Joined:
    Apr 8, 2020
    Member:
    #324151
    Messages:
    27
    Gender:
    Male
    First Name:
    Bob
    Western TN
    Vehicle:
    2020 TRD
    Looks good, but IMO it should go corner to corner to fit the shape of the diamond like grill opening and mimic what an OEM grill light might look like?

  13. Apr 29, 2020 at 11:49 AM
    #13
    FourWD

    FourWD Well-Known Member

    Joined:
    Oct 15, 2019
    Member:
    #308047
    Messages:
    120
    Gender:
    Male
    Vehicle:
    19 Tacoma DCSB OR TRD
    That actually look sick. Hope someone like you would make one for 19 OR oem grill

    woodshampoo likes this.
  14. Apr 29, 2020 at 9:57 PM
    #14
    TacomaZach23

    TacomaZach23 Well-Known Member

    Joined:
    Apr 23, 2020
    Member:
    #325647
    Messages:
    72
    Gender:
    Male
    First Name:
    Zach
    Central Valley, CA
    Vehicle:
    2020 Magnetic Gray DCLB TRD OR
    Ditto on if you are up for providing the file if you're up for sharing. If not, totally understand! Nice design!

  15. Apr 30, 2020 at 6:21 AM
    #15
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    1,984
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 SSM Access Cab
    It's nice to see options available. Here's another:

    https://www.tacomaworld.com/threads/grille-light-kits.660952/#post-23123185

  16. Apr 30, 2020 at 4:25 PM
    #16
    StapleNut

    StapleNut [OP] Member

    Joined:
    Dec 7, 2019
    Member:
    #312738
    Messages:
    11
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    Future 2020 Tacoma TRD OR Owner
    Still Making changes and tweaking things but if guys want to give it a go I have uploaded the working files to Dropbox. Let me know if you are unable to download them. I have never used Dropbox so not sure if I set it up correct to share the file. (I didn't realize you could upload .Zip files so I uploaded it below).I used Solidworks to make the model but I saved it in .STEP and .STL in case people are using other software(Autodesk Fusion). Looks like Amazon is out of the exact lights I designed it for. Smoked lens with amber LED's. They do have other versions of the light in stock. Clear or amber lens with either a white LED or amber LED.

    FILES

    https://www.dropbox.com/s/bbu9y4lm37mapek/2020_Tacoma_Raptor_V2.zip?dl=0




    MATERIALS


    Amazon search for lights
    https://www.amazon.com/s?k=partsam+oval+2.5+inch+led&i=automotive&ref=nb_sb_noss

    Fuse Taps
    https://www.amazon.com/Nilight-5003...&sr=1-17-dd5817a1-1ba7-46c2-8996-f96e7b0f409c

    T-Connectors
    https://www.ebay.com/itm/15pcs-2-Pin-2-Way-T-Shape-Wire-Connector-Lock-Flap-Style-for-Flexible-Line/264410295657?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2648

    1/4in Wire Loom
    https://www.amazon.com/gp/product/B074GM1PK1/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1

    From your local hardware store
    Qty.8 10-24 5/8" long stainless socket cap screws
    Qty.8 10-24 stainless aircraft or nylock nuts




    Attached Files:

    Last edited: Apr 30, 2020
