Quick Links: Climate Control Lights How do I wire the light bar button? 06 original headlights - restoration/ maintenance Adding the ability to turn on LEDs with Hi-Beam toggle? Cheap Switch Panels and Perfecting my Light Game Rocker switch help

3rd & 2nd Gen Re-purposing Towing Break circuit and "Towed" Battery Charger circuit

Discussion in 'Lighting' started by caribe makaira, Feb 2, 2020.

Post Reply

Feb 2, 2020 at 10:20 PM

#1

#1
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

For those without a need for a towing break module and battery "charging" the towed Camper.

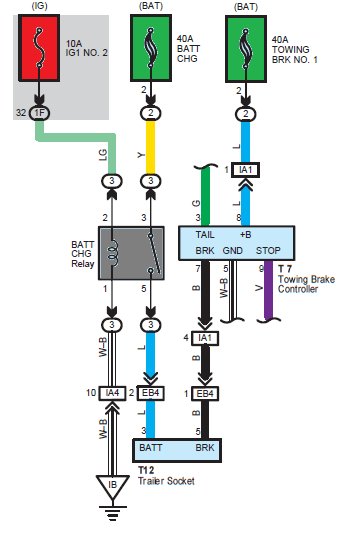

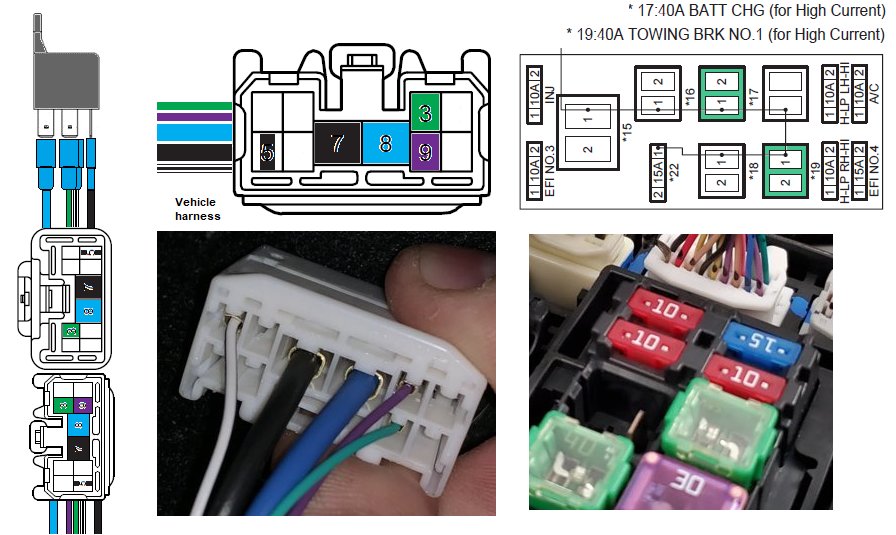

OEM circuits:

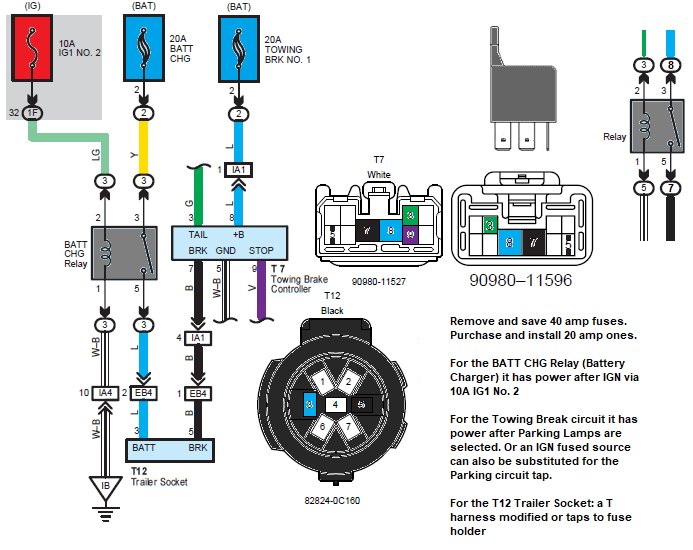

Modified:

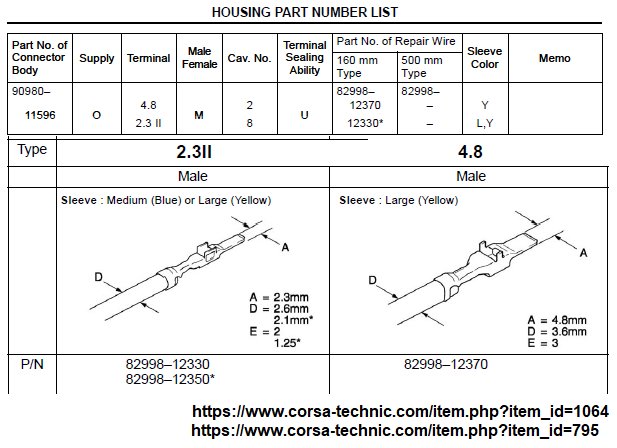

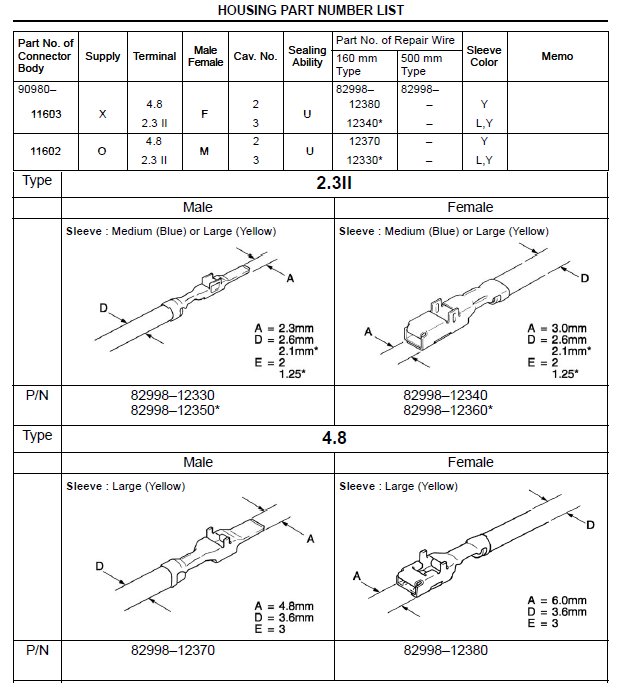

Terminals needed:

The rest is up for grabs, there are so many ways to tap the T12.

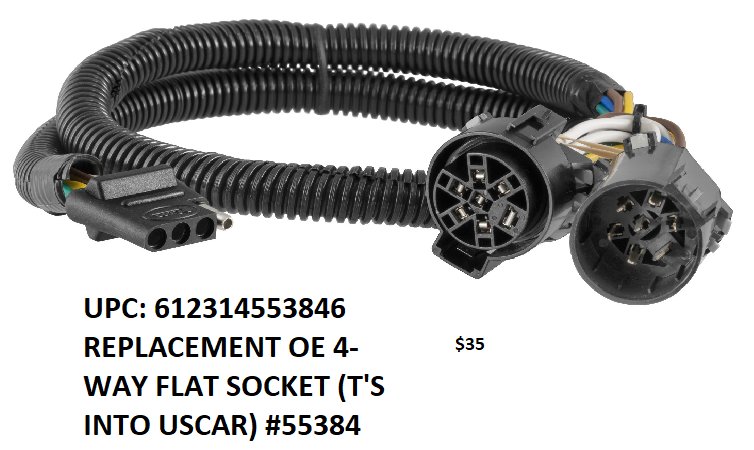

I suggest a $35.00 T-harness, purchase, de-pin and use the modified towing break and battery charger circuits.

Or

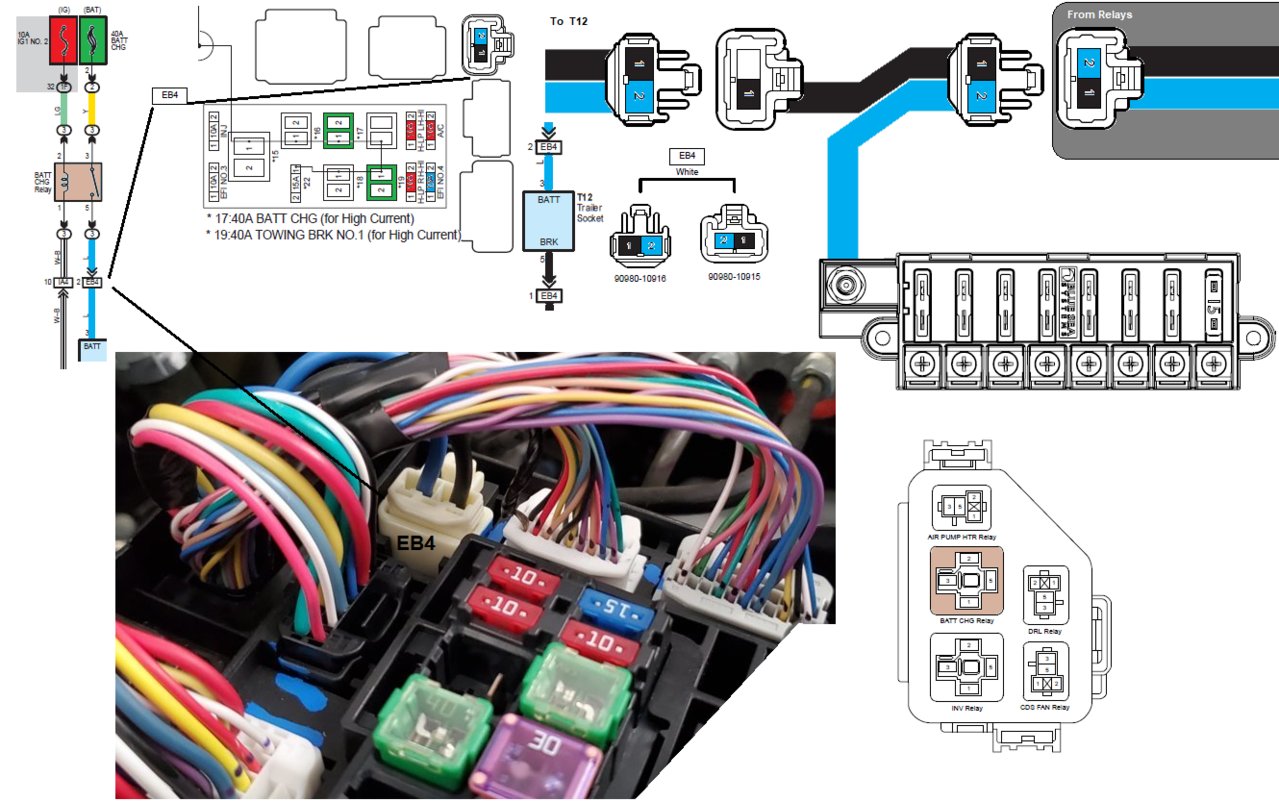

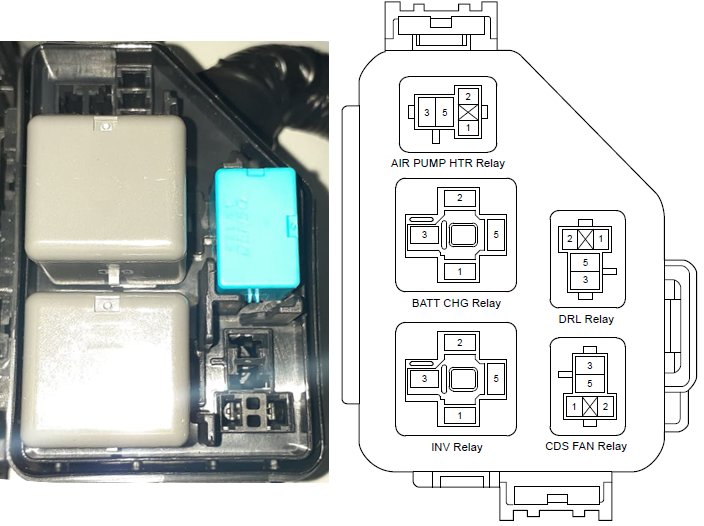

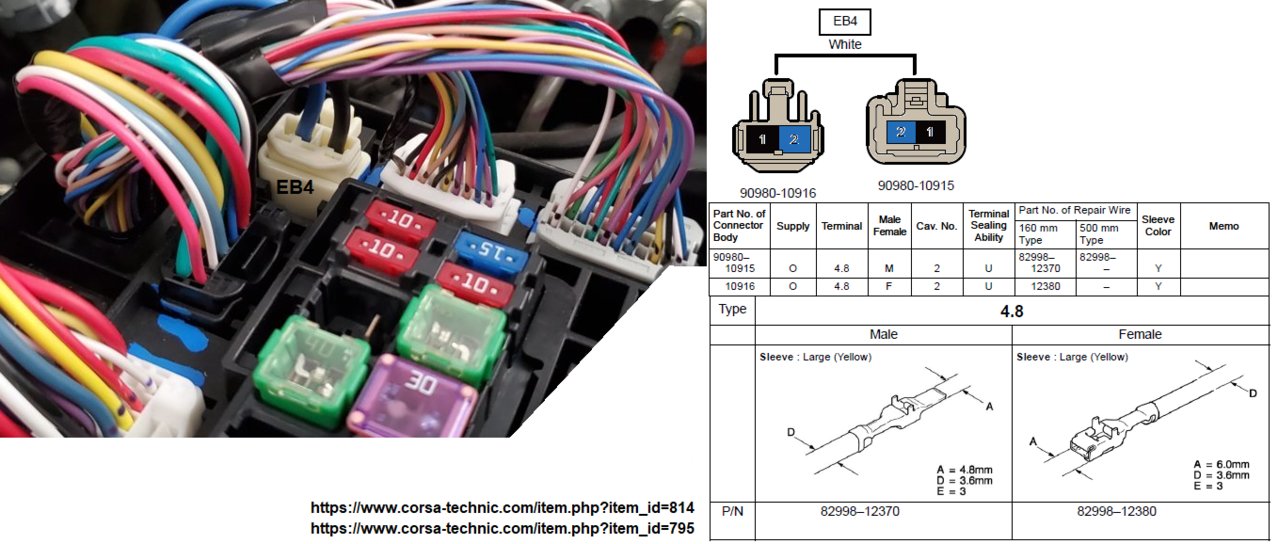

EB4 is the connector with wires of the Battery Charger and the Towing Break Output (power) from the relays to the rear Towing Connector (T12)
For those that do not need a towing brake module, a Y harness can be assembled to provide power to a fuse block & relay module in the engine bay area.

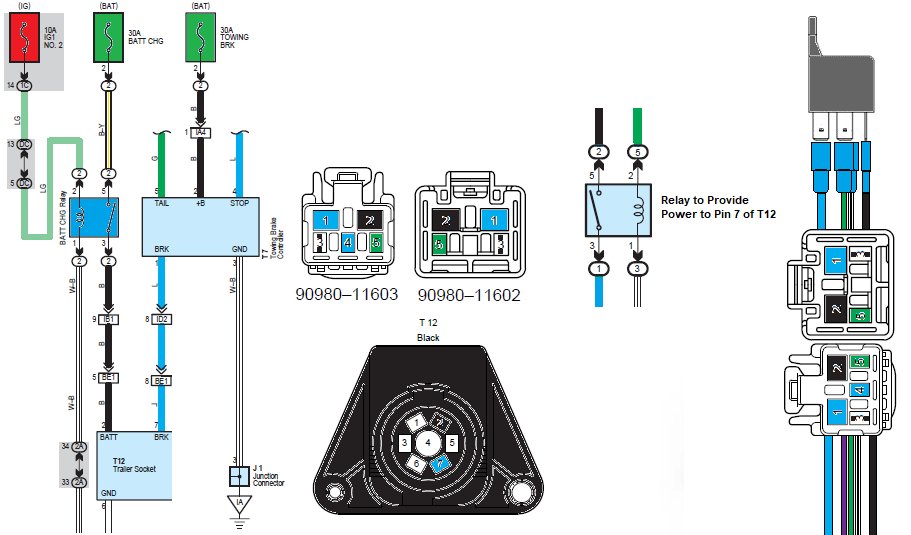

FOR 2nd Gen's:

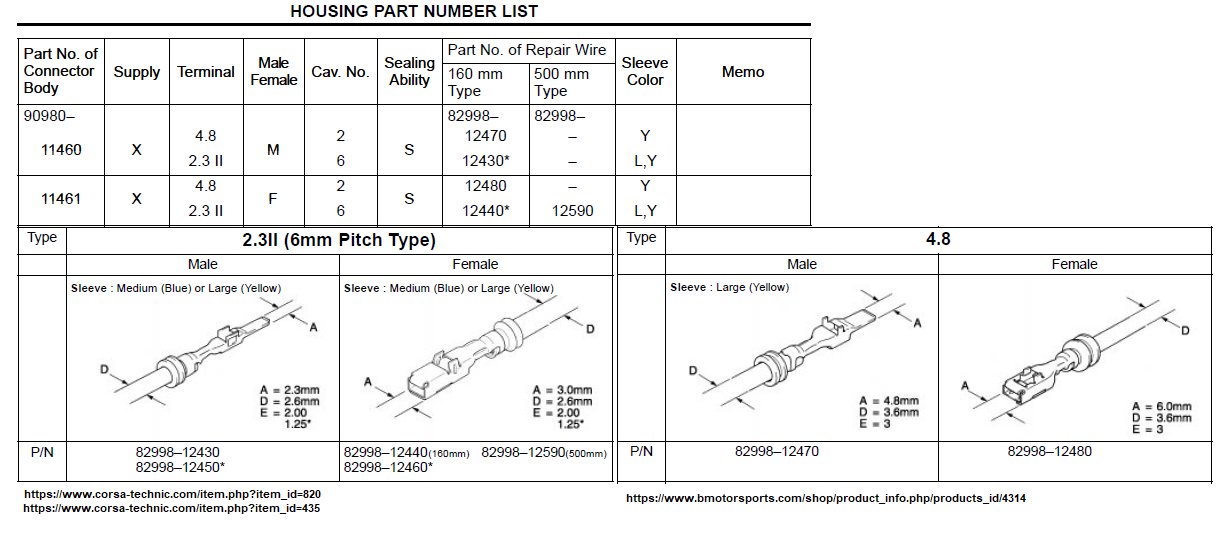

Terminals are same:

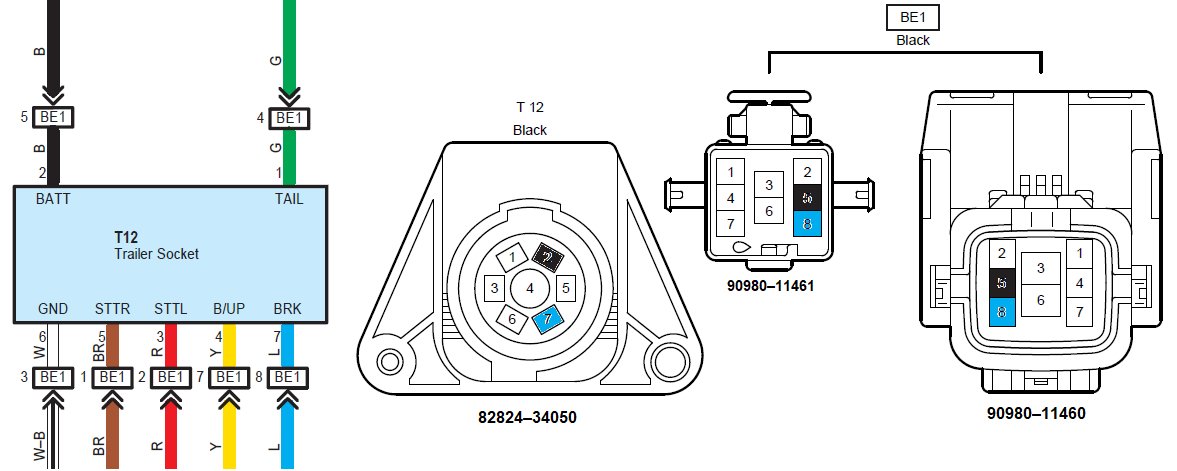

Bumper connector info:

Keep the fuses same. You'll have 2 sources of 30 Amps each for 60 amps. One hot (jumper on connector T7's mate pins #1 & #2 (10 awg) and the other IGN. (Battery Charger Circuit) or both IGN on/off.

Last edited: Feb 7, 2020

caribe makaira, Feb 2, 2020

#1

hirod likes this.

Feb 3, 2020 at 7:52 AM

#2

#2
paranoid56 Well-Known Member

Joined:

Jul 25, 2012

Member:

#83443

Messages:

3,438

Gender:

Male

San Diego

Vehicle:

14 double cab taco

but why? what are you re-purposing it for?

paranoid56, Feb 3, 2020

#2

Feb 3, 2020 at 8:15 AM

#3

#3
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

If you have to ask..then you don't need to.

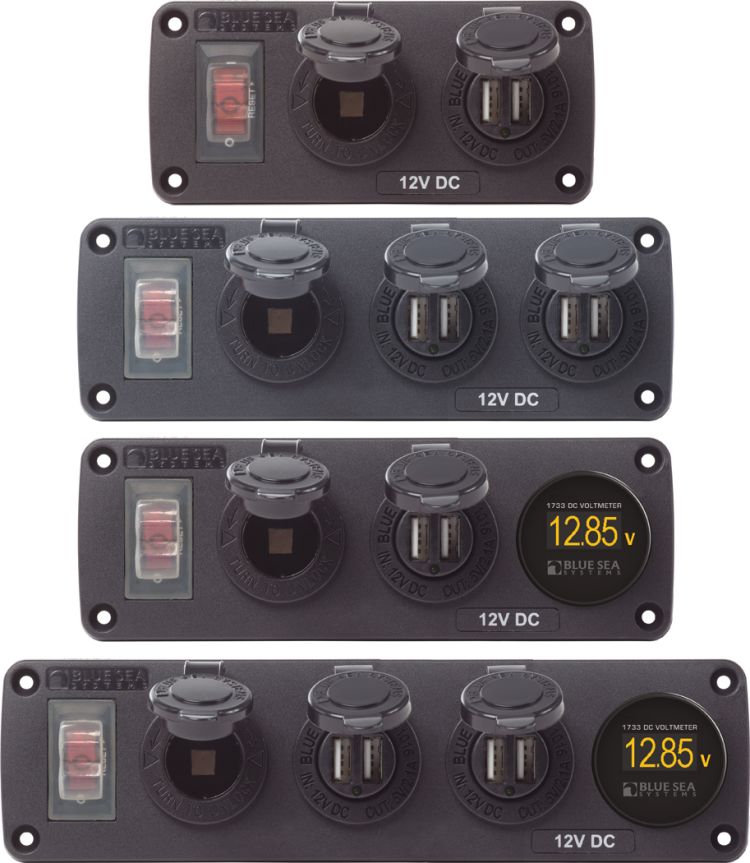

Have you seen electrical panel systems in the bed inside the cubbies? Have you added rear lights running new wire from the battery all the way to rear? Just name a few.
Do you use a towing brake module?
Do you charge a towed mobile home's battery?

Do you have a 3rd Gen?

caribe makaira, Feb 3, 2020

#3

Feb 3, 2020 at 8:48 AM

#4

#4
paranoid56 Well-Known Member

Joined:

Jul 25, 2012

Member:

#83443

Messages:

3,438

Gender:

Male

San Diego

Vehicle:

14 double cab taco

caribe makaira[OP] said: ↑

If you have to ask..then you don't need to.
Have you seen electrical panel systems in the bed inside the cubbies? Have you added rear lights running new wire from the battery all the way to rear? Just name a few.
Do you use a towing brake module?
Do you charge a towed mobile home's battery?

Do you have a 3rd Gen?
Click to expand...

yes,
yes
yes
god not lol

but i also wouldn't use this circuit for much, most times when adding a panel in the rear i would want more power and run at least a 4ga wire (my last truck i ran 00) along with a second battery.

paranoid56, Feb 3, 2020

#4

Feb 3, 2020 at 10:30 AM

#5

#5
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

Well, in your stated situation, if you had a 3rd Gen and needed MORE power, you'd keep the 40 amp fuses on each circuit, thus having 2 sources for 80 amps...more than enough for anything at the rear. Apart from a rear winch...

caribe makaira, Feb 3, 2020

#5

Feb 3, 2020 at 4:34 PM

#6

#6
fake4x4 Well-Known Member

Joined:

Jun 20, 2015

Member:

#157787

Messages:

892

Gender:

Male

Los Angeles, California

Vehicle:

3rd Gen Tacoma TRD Off-Road DCSB

Cool stuff

A nice usb charger in the bed would be great

fake4x4, Feb 3, 2020

#6

Feb 3, 2020 at 8:32 PM

#7

#7
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

fake4x4 said: ↑

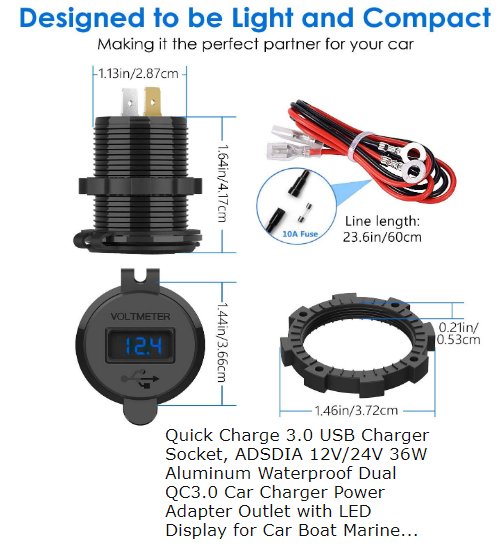

A nice usb charger in the bed would be great
Click to expand...

Last edited: Feb 3, 2020

caribe makaira, Feb 3, 2020

#7

Feb 7, 2020 at 12:10 PM

#8

#8
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

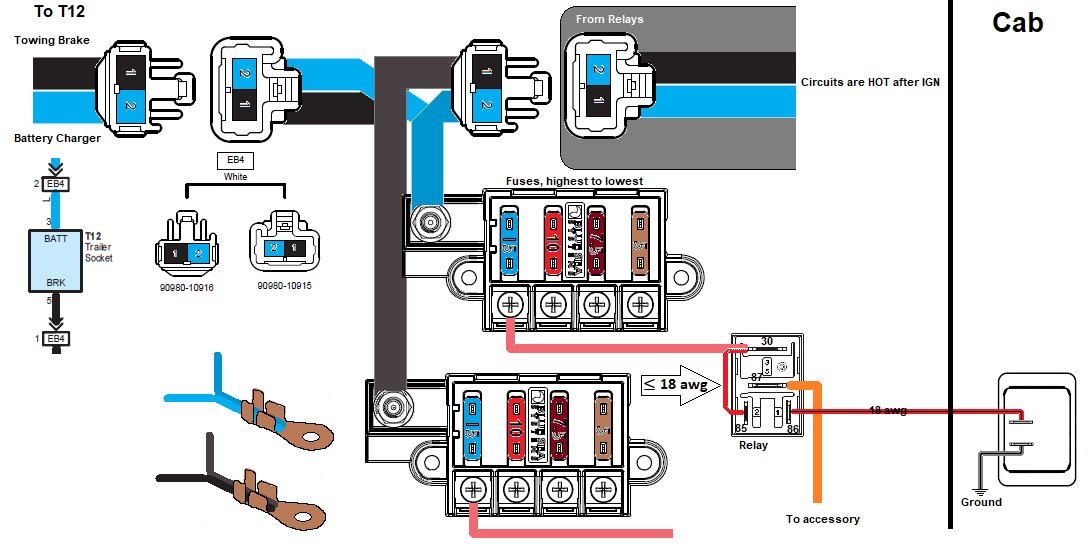

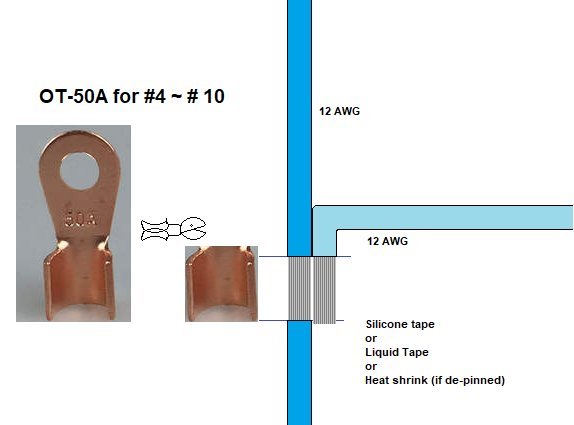

Another harness...

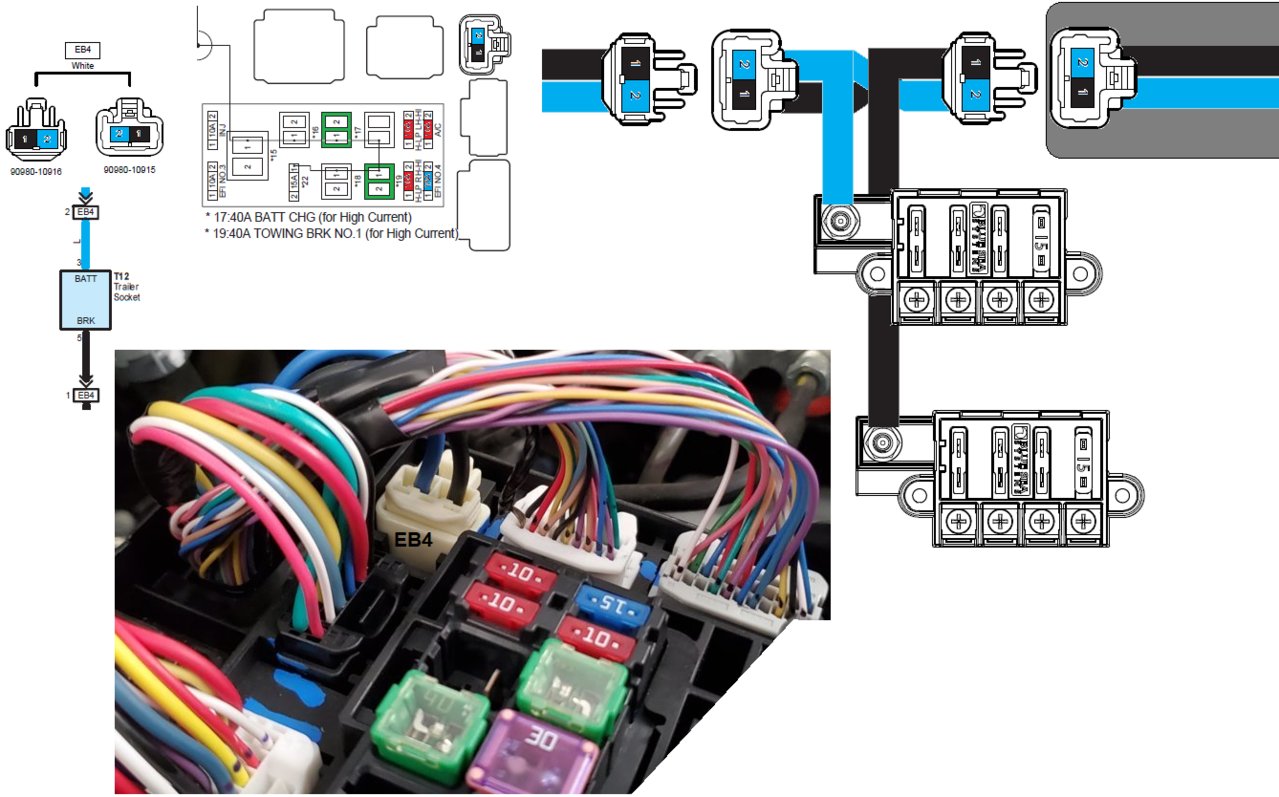

Assembling a T or Y harness for the little to no use Battery Charger Circuit.

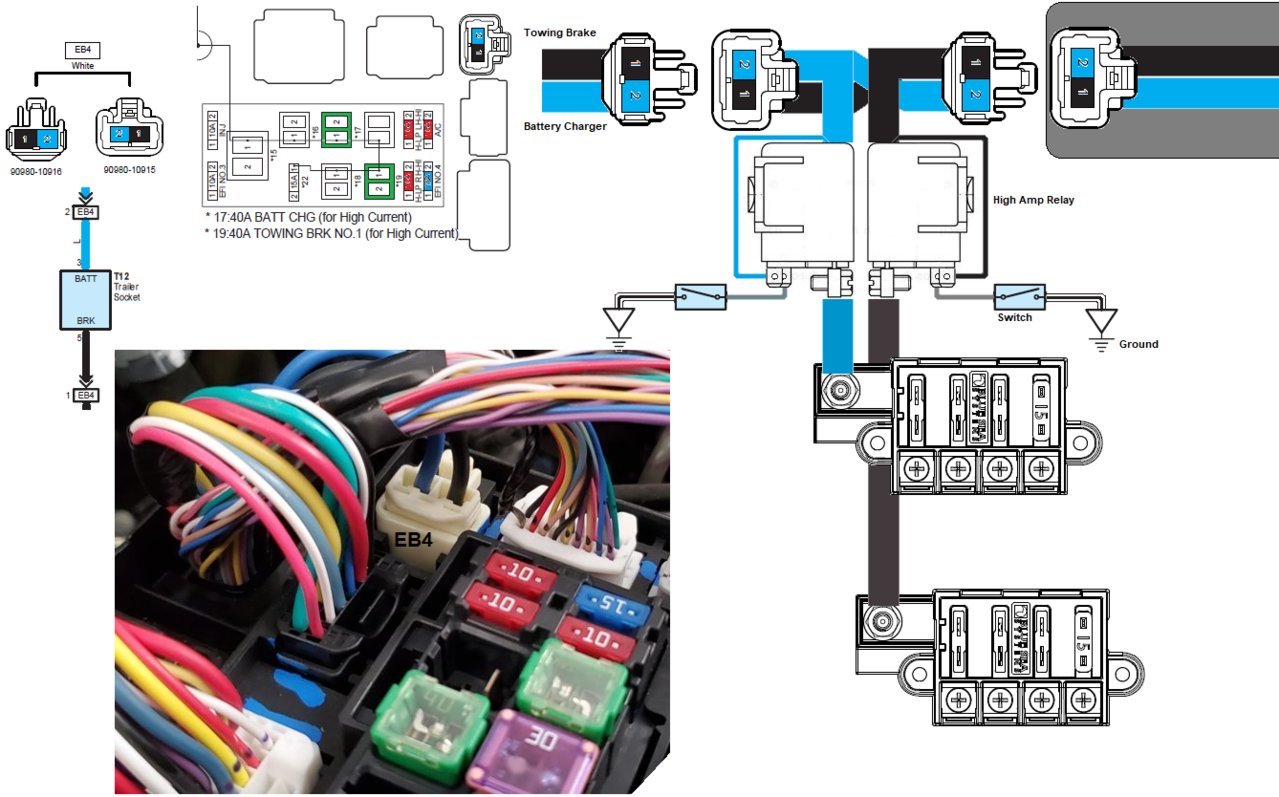

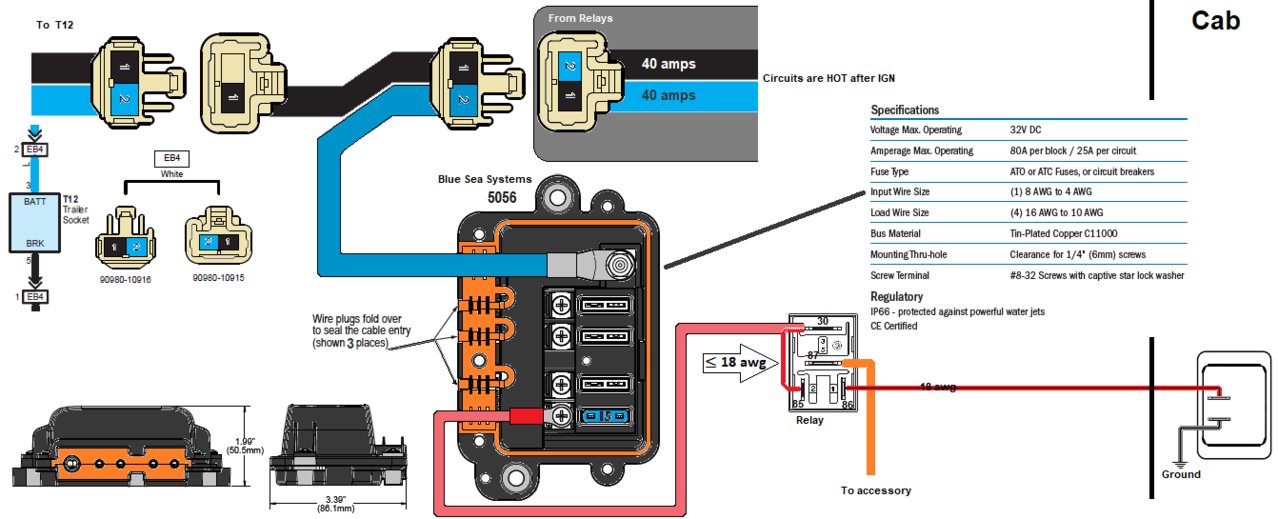

Using the Battery Charger and the Towing Brake circuits. If a high amp relay with a switch, is placed between tap and fuse block, OEM circuit can return to use.

Last edited: Jul 29, 2022

caribe makaira, Feb 7, 2020

#8

Feb 7, 2020 at 2:09 PM

#9

#9
hirod Well-Known Member

Joined:

Jun 3, 2013

Member:

#105540

Messages:

1,245

Gender:

Male

hawaii

Vehicle:

16 double cab short bed OR

thanks. gives me idea for relay for additional reverse lights.

hirod, Feb 7, 2020

#9

Feb 7, 2020 at 2:13 PM

#10

#10
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

hirod said: ↑

thanks. gives me idea for relay for additional reverse lights.
Click to expand...

Cool
Have you read this:
https://www.tacomaworld.com/threads/3rd-gen-adding-back-up-leds-to-rear-bumper.606715/

caribe makaira, Feb 7, 2020

#10

Aug 14, 2020 at 6:33 AM

#11

#11
oostroma (Boomer)

Joined:

Aug 21, 2017

Member:

#227497

Messages:

4,246

Gender:

Male

Ontario

Vehicle:

2017 TRD OR access cab- BBP colour

TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...

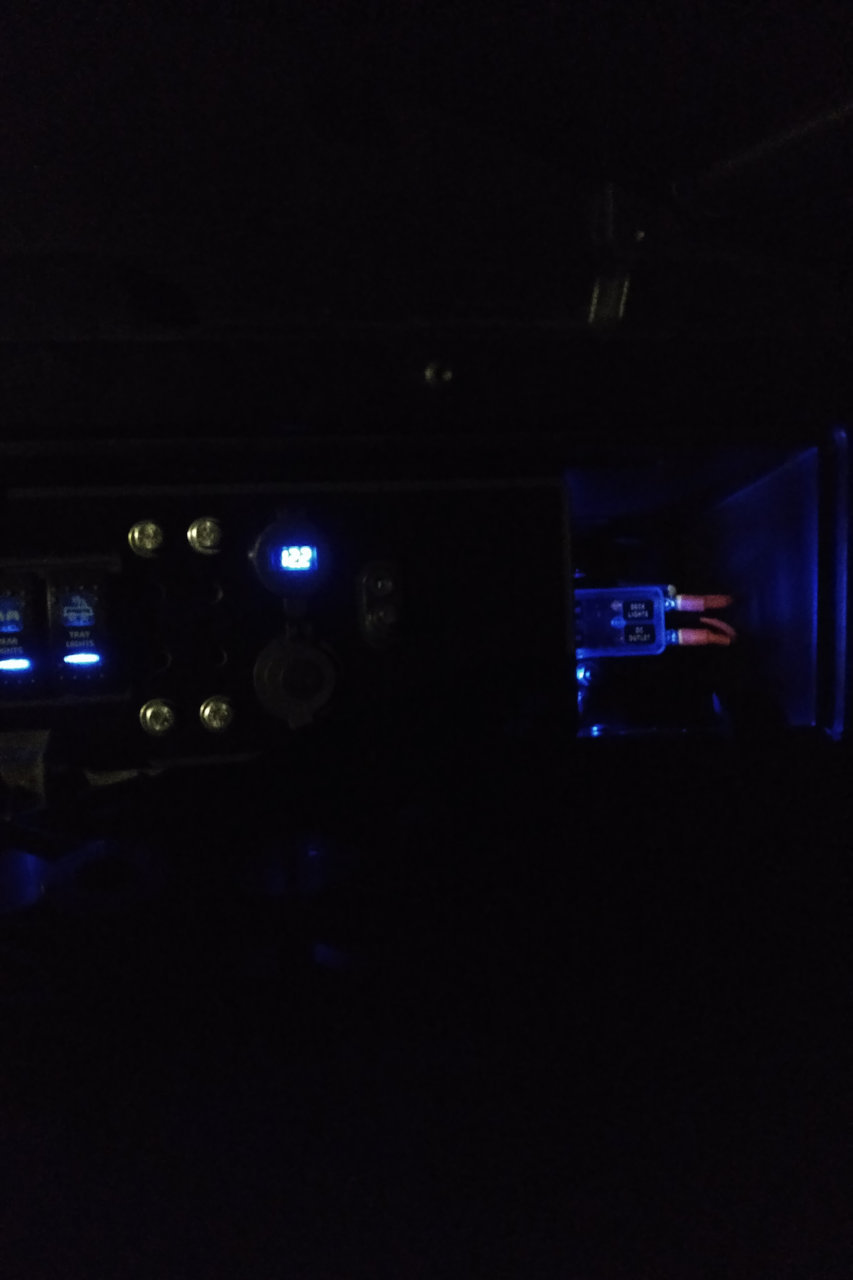

Stumbled across this thread today. This is my add-on power distribution panel in the LS cubby of the Taco.

oostroma, Aug 14, 2020

#11

Aug 27, 2020 at 6:44 PM

#12

#12
caribe makaira [OP] Well-Known Member

Joined:

Feb 13, 2011

Member:

#51121

Messages:

11,714

Gender:

Male

Caribbean, Puerto Rico

Vehicle:

05 PreRunner TRD Offroad AutoTrans

Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

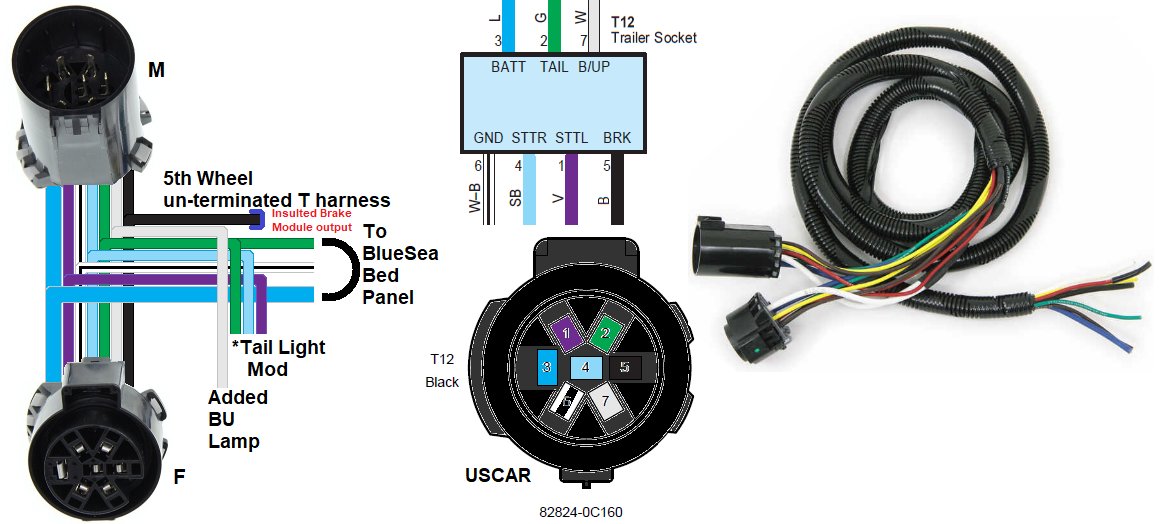

Using an un-terminated 5th Wheel T harness for a no cut to vehicle harness. Adding the panel is a "snap". The Tail Mod is to have the full C illuminated. Adding a Reverse lamp is also simplified...
3rd Gen Full C rear illumination_revisited

Last edited: Aug 27, 2020

caribe makaira, Aug 27, 2020

#12

Feb 10, 2022 at 10:21 PM

#13

#13
baldbeardedtaco Well-Known Member

Joined:

Sep 4, 2018

Member:

#265223

Messages:

3,304

Gender:

Male

FL

Vehicle:

18 TRD Sport DCSB MGM

oostroma said: ↑

Stumbled across this thread today. This is my add-on power distribution panel in the LS cubby of the Taco.

Click to expand...

Have a thread to read on your setup?

baldbeardedtaco, Feb 10, 2022

#13

Feb 10, 2022 at 10:24 PM

#14

#14
oostroma (Boomer)

Joined:

Aug 21, 2017

Member:

#227497

Messages:

4,246

Gender:

Male

Ontario

Vehicle:

2017 TRD OR access cab- BBP colour

TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...

baldbeardedtaco said: ↑

Have a thread to read on your setup?
Click to expand...

No sorry, I dont. If you want to PM me I can give you a list of parts and we can discuss in detail.

oostroma, Feb 10, 2022

#14
