3rd gen Access Cab Bed Lights Using Double Cab Cargo Light Switch?

Discussion in '3rd Gen. Tacomas (2016+)' started by SoFlaTacoTRD, Jun 11, 2016.

  1. Jun 11, 2016 at 8:45 AM
    #1
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    This topic may have been discussed although I searched and found nothing related. I have the Toyota LED bed lights, since I own an access cab I don't have the factory off-door-on cargo light switch which comes standard on the double cab. I'll have to operate my bed lights with either the key fob or door which is somewhat inconvenient. I have the part numbers and located the OE cargo light switch (84267-0C020) and required 3-hole switch plate (55446-04030-C0). When doing some preliminary research I found an unused connector just below my 120v inverter switch and would like to know if this is the connector used for the D-cab's cargo light switch? I'd much prefer to have the functionality of the D-cab's cargo light switch as opposed to key fob and door.


    BigWhiteTRD and sandtaco2016 like this.
  2. Jun 12, 2016 at 2:10 PM
    #2
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
  3. Jun 12, 2016 at 4:36 PM
    #3
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    5,721
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Looks like a 10-pin connector using 6 pins(4 for control + 2 for illumination).
    Might have a problem with your ECU supporting it.


  4. Jun 13, 2016 at 1:16 PM
    #4
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    Thanks spiltbolt, I'll have to check the connector with my multimeter. I'm still waiting to meet up with a bud who bought a '16 DCSB TRD Sport 4x2, I'm hoping the unused connector in my ACLB is the same plugged into to his cargo light switch, that's half the battle right there, my multimeter will confirm if I have ECU support, if so I'll be ordering the parts ASAP! Thanks again!


    sandtaco2016 likes this.
  5. Jun 14, 2016 at 1:23 PM
    #5
    crepr12

    crepr12 Well-Known Member

    Joined:
    Oct 29, 2015
    Member:
    #168062
    Messages:
    672
    Gender:
    Male
    Vehicle:
    2016 TRD Sport AC 4x4 V6 Manual
    An update will be greatly appreciated by us AC folk...

    SoFlaTacoTRD [OP] likes this.
  6. Jun 14, 2016 at 3:16 PM
    #6
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    As soon as time allows I intend to research this matter a bit further. Been playing phone tag with my bud who owns the double cab.

    sandtaco2016 likes this.
  7. Jun 21, 2016 at 2:41 PM
    #7
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    Update:

    Headway has been made, today I finally had the chance to install the lights, run and secure the wiring along the frame rail up into the cab where it now resides behind the driver's side kick panel. I spoke to my buddy and we're going to get together this Sunday so I can determine once and for all if the off-door-on cargo light switch on his DCLB will work on my ACLB. I am now in possession of the complete 2016 wiring diagram but haven't had the time to decipher it. I'm hoping this will work and will report back with my findings.

    I can say I wasn't terribly impressed with the wiring that comes with the LED lights, it's too long and I for one cannot stand "hiding" wire that's not cut to proper length. I had to break out my Weather Pack goodies and make it right, now the connection from each light is made just inside the rear bumper on the driver's side, all nice, serviceable and neat the way it should.


    sandtaco2016 likes this.
  8. Jun 22, 2016 at 9:53 AM
    #8
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    Update:

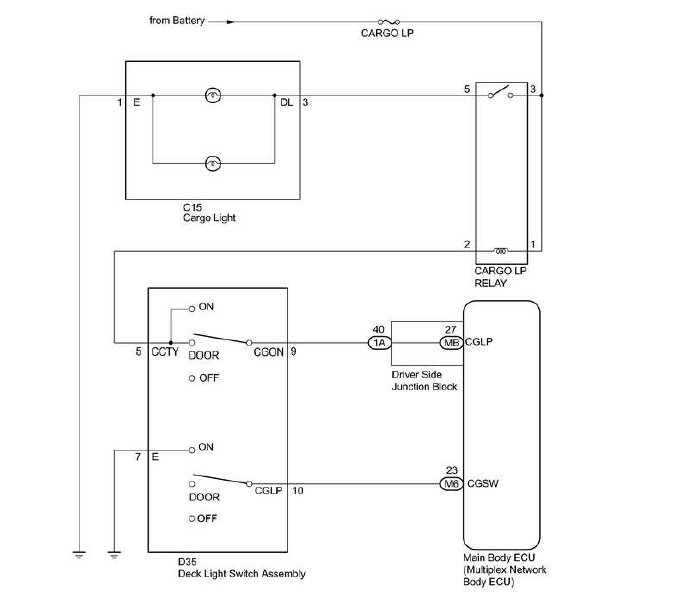

    I made some time to decipher the wiring diagram then dig into my dash panel this morning to confirm some things. Yes, the unused connector (D35) clipped into a dead placeholder is indeed the connector which would connect to the D-cab's Cargo Lamp switch. The connector does have power on the appropriate pins leading me to believe it IS supported by the Body ECU. I also read no dead short on the IE1 (pin 14) conductor which is supposed to run to the cargo light, meaning it's properly terminated just no light/s. In the fuse block located under the LH dash there IS a 7.5a fuse in place for the D-cab's cargo light further digging found the only component missing is the D-cab's cargo light relay which is a simple fix.

    I will be ordering the three (3) components listed below once installed I (hopefully) should have "off-door-on" functionality of my newly installed bed lights. I will update once again when all the parts have arrived, been installed and tested. :thumbsup:

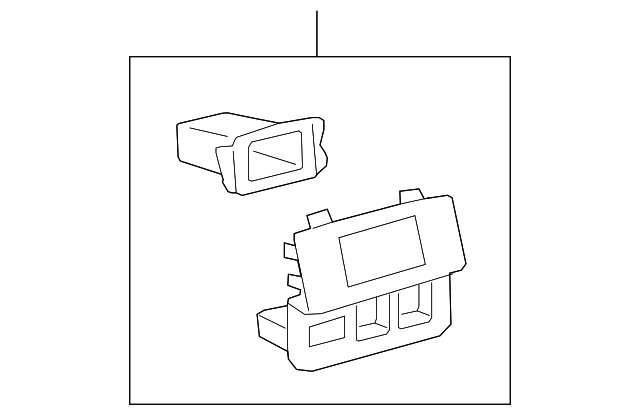

    1) 55446-04030-C0 (OE 3-hole switch panel)
    2) 84267-0C020 (OE Off-Door-On Cargo Lamp Switch - Standard on Double Cab)
    3) 90080-87026/TN156700-2840 (OE/Denso Cargo Lamp Relay)

    Last edited: Jun 22, 2016
  9. Jun 29, 2016 at 3:49 PM
    #9
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    Update:

    YES! If you order the parts I've listed in the above post (#8) and have half a mechanical aptitude clue, you too can have an ACLB and use a factory D-cab cargo light off-door-on switch to control it. You will however have to dig a little further to tap into the switch leg which is NOT in connector IE1 but behind the relay block with the 2 little blue relays but is still a light green wire. When you're done there will be 3 little blue relays, you'll be adding yours in the middle of the 2 that are existing. All else will be wired as per the instructions included with the Toyota LED bed light kit for a Double Cab.

    I have to assume this will work with ANY bed light kit and could also be used to control lighting under the hood so long as your total load does not exceed 7.5 amps. I intend to add under hood lighting off this circuit controlled by this switch in the future. No, there are no issues with the Body ECU and yes it is backlit and dimmable and matches the 2016 blue backlighting.

    Photos or it didn't happen photos and remember that switch isn't supposed to be there according to Toyota and not supposed to work according to some too.


    Last edited: Jun 29, 2016
    killthehippies likes this.
  10. Jun 29, 2016 at 6:52 PM
    #10
    Bob259

    Bob259 Well-Known Member

    Joined:
    Dec 14, 2015
    Member:
    #172266
    Messages:
    421
    Gender:
    Male
    Arizona
    Vehicle:
    2016 Tacoma Limited DCSB 4x4 3.5 V6
    How bright are these lights? I know the under rail one really light up the whole bed area, any chance you can post a picture when its darker out.

    sandtaco2016 likes this.
  11. Jun 30, 2016 at 9:15 AM
    #11
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    I checked that last night and I was pleasantly surprised with how much light they put out. They definitely light up the entire bed but remember I have a tonneau cover so my lighting needs may be different from others. I will take a photo tonight.

  12. Jul 1, 2016 at 7:51 PM
    #12
    SoFlaTacoTRD

    SoFlaTacoTRD [OP] TRD Taco'd

    Joined:
    Jun 10, 2016
    Member:
    #189256
    Messages:
    126
    Gender:
    Male
    SoFla
    Vehicle:
    2016 Tacoma TRD OR 4x4, ACLB, Quicksand
    Update:

    I apologize for not getting photos of the lights on at night last night, I was otherwise engaged. Here are 2 photos taken at 10:45p EST tonight. As I said these actually light up the bed quite nicely and were well worth the investment in time and money. :thumbsup:

    Tailgate down...

    Tailgate up...

    boynoyce likes this.
  13. Jul 17, 2016 at 10:53 PM
    #13
    nilepoc

    nilepoc Active Member

    Joined:
    Jul 15, 2016
    Member:
    #192078
    Messages:
    41
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    16 TRD OR AC
    TRD rims, spacer leveling
    do you have any photos of the wiring you did behind the blue relays?

    Also your photos from earlier are not working for me.

    thanks in advance.

    sandtaco2016 likes this.
  14. Dec 16, 2016 at 2:47 PM
    #14
    sandtaco2016

    sandtaco2016 Member

    Joined:
    Sep 26, 2016
    Member:
    #198273
    Messages:
    12
    Gender:
    Male
    Vehicle:
    2016 Quicksand TRD
    Lift, Grille, Light bars, wheels, tires
    Did the cargo lights work?
    Was the relay needed?

  15. Dec 29, 2016 at 2:06 PM
    #15
    jaredc2306

    jaredc2306 Well-Known Member

    Joined:
    Jun 12, 2015
    Member:
    #157276
    Messages:
    991
    Gender:
    Male
    First Name:
    Jared
    San Antonio, Tx
    Vehicle:
    2016 ACLB TRD OR Quicksand
    This thread is exactly what I was looking for. So glad this can work. The only thing I lack is the electrical knowledge. If I have to mess with the fuse panel, I'm screwed haha. No idea how to do anything electrical. I wish you took pictures of this process!

  16. Jan 30, 2017 at 5:47 PM
    #16
    urbncby

    urbncby Well-Known Member

    Joined:
    May 26, 2014
    Member:
    #130612
    Messages:
    92
    Gender:
    Male
    First Name:
    Scott
    Pittsburgh, pa
    Vehicle:
    '20 TRD Off-Road
    Ironman 4X4 Foam Cell Pro stage 2, 33” MT’s, Victory 4x4 winch bumper.
    I'm looking to trigger a relay for other lights off this switch. Mine IS a DC and I have the switch but can't figure out where to tap in. Where were these blue relays you speak of? Under the hood or inside?

  17. Jan 30, 2017 at 6:44 PM
    #17
    Claudiomartinof

    Claudiomartinof Well-Known Member

    Joined:
    Apr 18, 2016
    Member:
    #184668
    Messages:
    1,079
    Gender:
    Male
    Vehicle:
    2019 TRD OFF ROAD 6MT
    Hi man!! Would you do a write up with photos so people like me ( have little idea of car electronics) can do it?? I installed fog lights on my sr but when you said the word "ecu" that sounded complex for me...

    Thanks in advance!!!!

  18. Mar 7, 2017 at 7:00 AM
    #18
    joestacos

    joestacos Ice cold rice water

    Joined:
    Feb 28, 2017
    Member:
    #211976
    Messages:
    151
    First Name:
    that1tacoguy
    CenCal
    Vehicle:
    17 Tacoma TRD Off Road
    Pro Driver inside
    Some pictures would be greatly appreciated !!

  19. Mar 8, 2017 at 8:54 PM
    #19
    Vixty

    Vixty Member

    Joined:
    Feb 22, 2017
    Member:
    #211330
    Messages:
    19
    Gender:
    Male
    Watching, my 07 D.C. Doesn't have a bed light switch, just a blank plate.

    Ha anyone tried just installing a switch like the attached photo right next to one of the lights. I would assume I could tie into the tail light power. I saw the photo on Amazon.


    Last edited: Mar 8, 2017
    oostroma and Orange Slice like this.
  20. Apr 18, 2017 at 1:28 AM
    #20
    sandtaco2016

    sandtaco2016 Member

    Joined:
    Sep 26, 2016
    Member:
    #198273
    Messages:
    12
    Gender:
    Male
    Vehicle:
    2016 Quicksand TRD
    Lift, Grille, Light bars, wheels, tires
    OK. I have all these;
    1) 55446-04030-C0 (OE 3-hole switch panel)
    2) 84267-0C020 (OE Off-Door-On Cargo Lamp Switch - Standard on Double Cab)
    3) 90080-87026/TN156700-2840 (OE/Denso Cargo Lamp Relay)
    Lights are mounted, switch works perfectly (I can hear the relay click on or off) now I need to know where the power from the relay comes out.
    I can't find "the switch leg which is NOT in connector IE1 but behind the relay block with the 2 little blue relays but is still a light green wire."
    Do you have a pic? or 2 or 10?
    Whats ACLB????

    Last edited: Apr 18, 2017
