3rd gen Access Cab Bed Lights Using Double Cab Cargo Light Switch?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by SoFlaTacoTRD, Jun 11, 2016.

  1. Sep 23, 2019 at 5:34 PM
    #41
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,005
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...

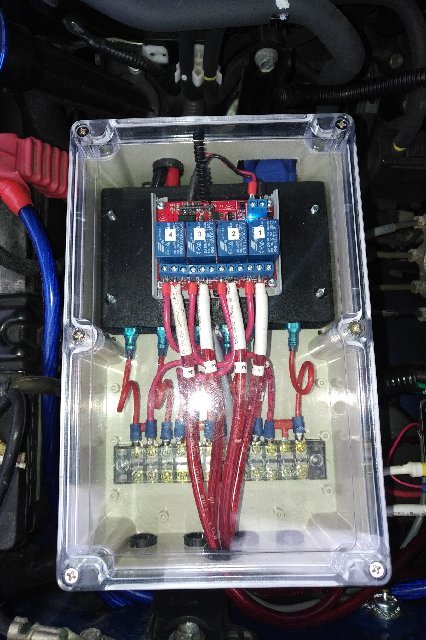

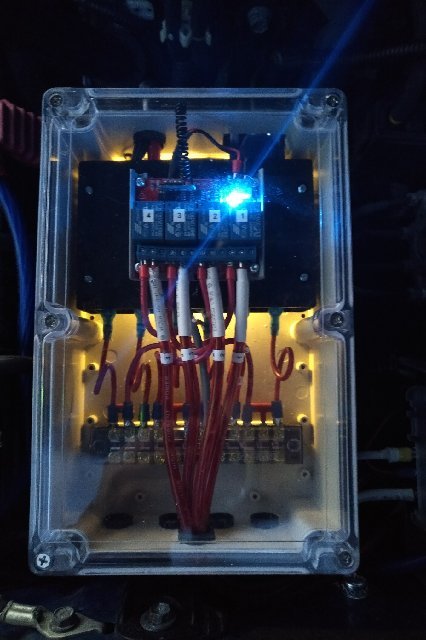

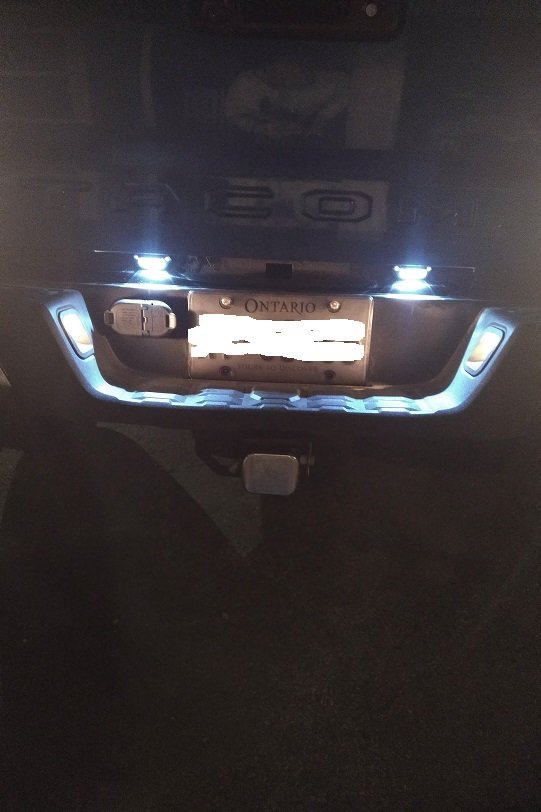

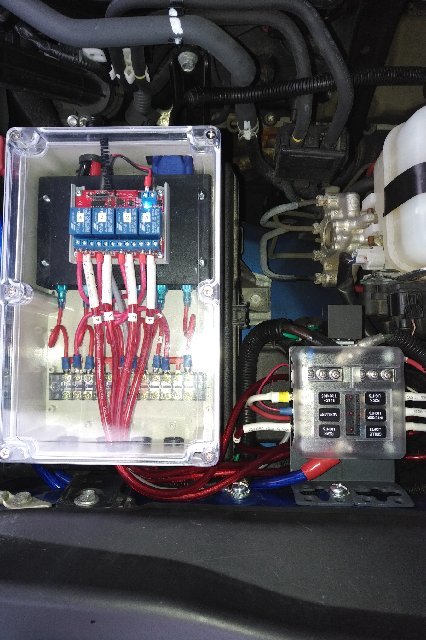

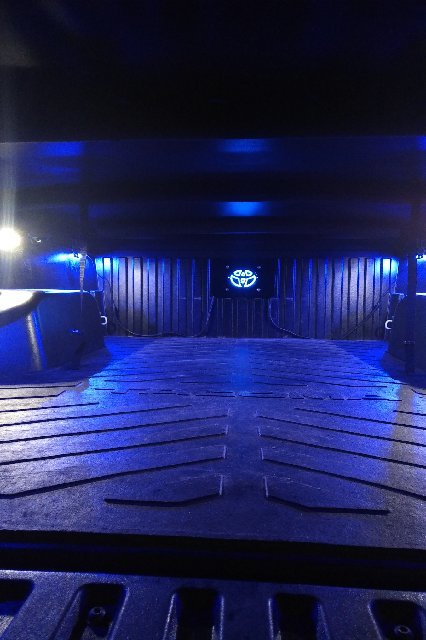

    I built this project box(pic #1, 2, 3) which gives me 6x relays(black box inside) and 4x relays(blue modules on top with remote control). I have 4 of the circuits connected parallel, front driving lights, rear off road lights, bed interior lights and perimeter lighting. I also built a remote switch panel(pic #4) that is housed in the left side cubby which allows me to turn on the bed lights(pic #4) as well as lights under the tailgate(pic #5) in a situation where I don't have my keys on me to turn the lights on from inside the cab. The switch panel also has a dual USB charge connection and 12v connection that I use for my Koolatron when traveling.

    switch panel.jpg
    reverse lights.jpg

    Last edited: Sep 6, 2020
    davidstacoma likes this.
  2. Sep 23, 2019 at 5:36 PM
    #42
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,005
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    See pics further down in posts.
    I built this project box(pic #1, 2, 3) which gives me 6x relays(black box inside) and 4x relays(blue modules on top with remote control). I have 4 of the circuits connected parallel, front driving lights, rear off road lights, bed interior lights and perimeter lighting. I also built a remote switch panel(pic #4) that is housed in the left side cubby which allows me to turn on the bed lights(pic #4) as well as lights under the tailgate(pic #5) in a situation where I don't have my keys on me to turn the lights on from inside the cab. The switch panel also has a dual USB charge connection and 12v connection that I use for my Koolatron when traveling.

    Last edited: Sep 6, 2020
  3. Sep 24, 2019 at 9:07 AM
    #43
    AMOORE_93

    AMOORE_93 Well-Known Member

    Joined:
    Jul 3, 2018
    Member:
    #258195
    Messages:
    135
    Gender:
    Male
    Richmond, va
    Vehicle:
    2016 Tacoma 4x4 Offroad
    Dude, this is insane.

  4. Sep 24, 2019 at 9:55 AM
    #44
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,005
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    There is
    There is more to come. Adding my own version of puddle lights and installing Pop and Lock in tailgate with LED indicator.

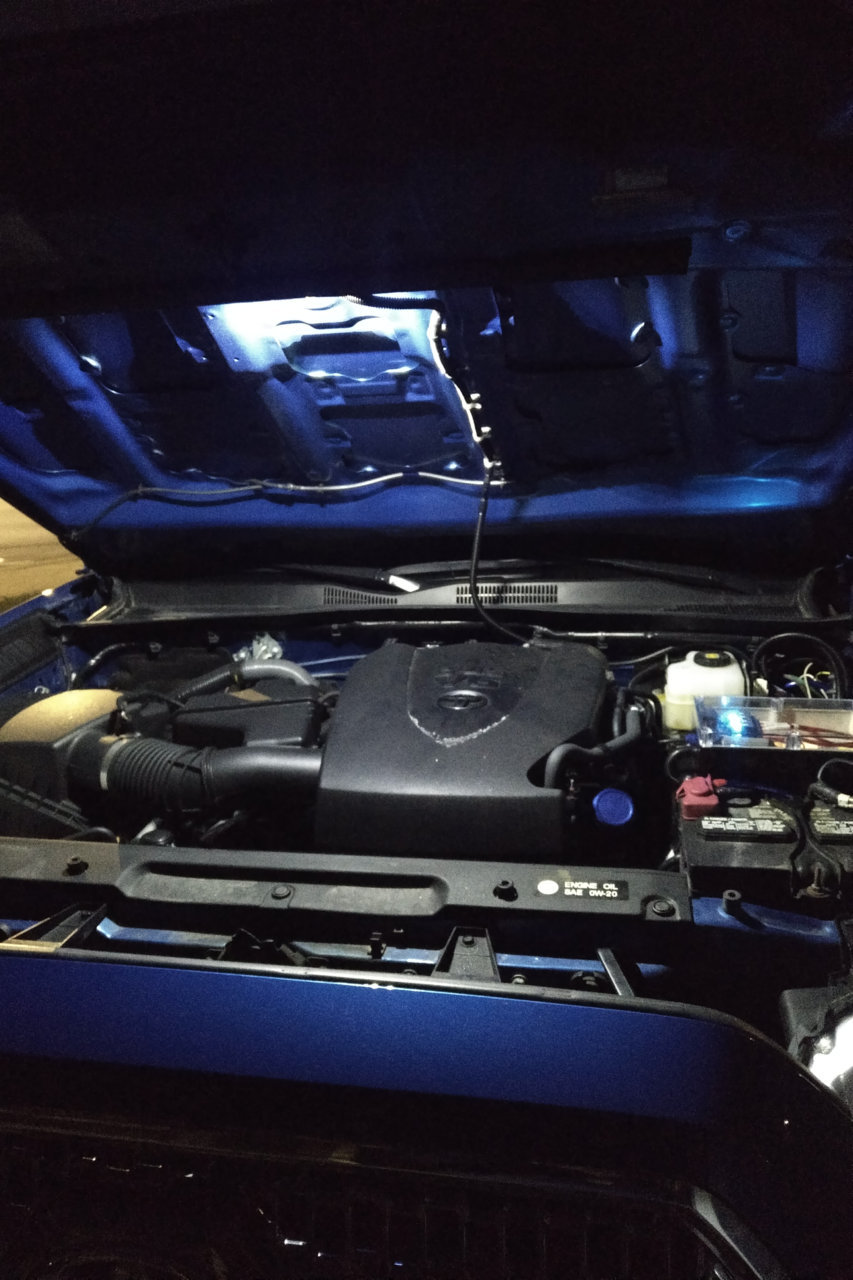

    Forgot to mention the LED pod installed under hood.
    You should see the Pioneer DVD/ AM FM receiver I installed in my pop-up camper.


  5. Sep 6, 2020 at 11:37 PM
    #45
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,005
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
  6. Sep 21, 2020 at 2:51 PM
    #46
    DBTacoma2020

    DBTacoma2020 Member

    Joined:
    Sep 21, 2020
    Member:
    #341450
    Messages:
    19
    Gender:
    Male
    First Name:
    Damon
    Layton, UT
    Vehicle:
    2020 TRD Sport-Access Cab-Manual Transmission
    Stock TRD Offroad Suspension and 16" Rims with 265/70 Tires
    How does the OEM light kit for 2020 turn on if I don't have the switch since my access cab doesn't include it? I'd rather not hassle with the switch and relay install talked about here.

  7. Sep 21, 2020 at 6:09 PM
    #47
    Mac62989

    Mac62989 Well-Known Member

    Joined:
    Aug 16, 2019
    Member:
    #302392
    Messages:
    239
    Vehicle:
    2020 Quicksand Sport AC MT
    It doesn't without a switch. A lot of people are finding the relay is there already once they look back there..

  8. Sep 21, 2020 at 6:29 PM
    #48
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,322
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

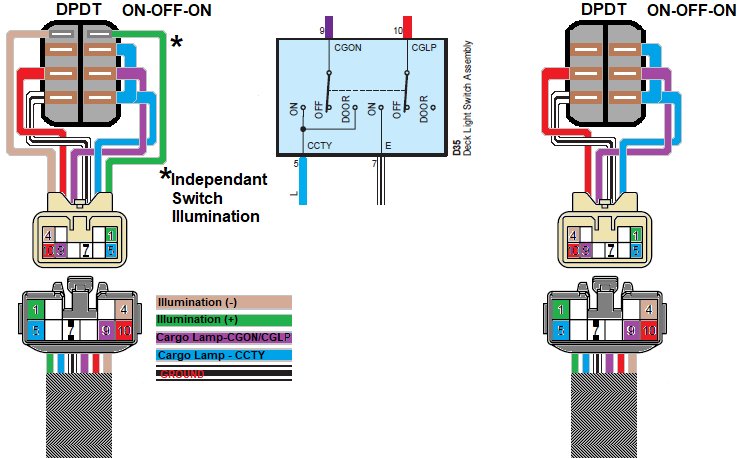

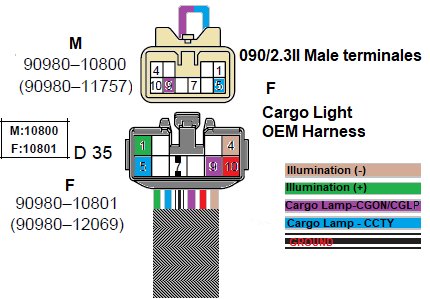

    If the Tacoma has the relay and fuse, you could get a connector and a jumper wire. This would mate with the switch harness in place of the expensive switch. The lights would turn ON every time unlock/lock and door open like the cab illumination.


    davidstacoma likes this.
  9. Sep 22, 2020 at 5:35 PM
    #49
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,322
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Or even a OEM sized aftermarket switch with independent illumination or a very small one with no illumination.


    davidstacoma likes this.
  10. Oct 17, 2020 at 10:01 PM
    #50
    DBTacoma2020

    DBTacoma2020 Member

    Joined:
    Sep 21, 2020
    Member:
    #341450
    Messages:
    19
    Gender:
    Male
    First Name:
    Damon
    Layton, UT
    Vehicle:
    2020 TRD Sport-Access Cab-Manual Transmission
    Stock TRD Offroad Suspension and 16" Rims with 265/70 Tires
    Caribe...thanks for the response. However....I am obviously not as smart as you as I have no idea what your diagram is showing and what to do. I think I understand that if I buy the OEM switch and then the noted relay...I can make it work like the other trucks that have cargo bed lights. But what do I actually connect to what? Where does the relay go? What do I attach to the switch? Until today I thought I was a pretty smart guy...but I guess I was wrong. Any additional guidance you can provide is most appreciated. Thanks....

  11. Oct 18, 2020 at 2:09 AM
    #51
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,322
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Re-read the first pages. There's even a diagram on where the switch goes and a picture of where the relay goes.

  12. Jul 22, 2021 at 3:58 PM
    #52
    savage24x

    savage24x Well-Known Member

    Joined:
    May 9, 2019
    Member:
    #292768
    Messages:
    46
    Vehicle:
    2019 TRD Sport 4x4 V6 Cavalry Blue
    For dummies like me, this is how you do it.

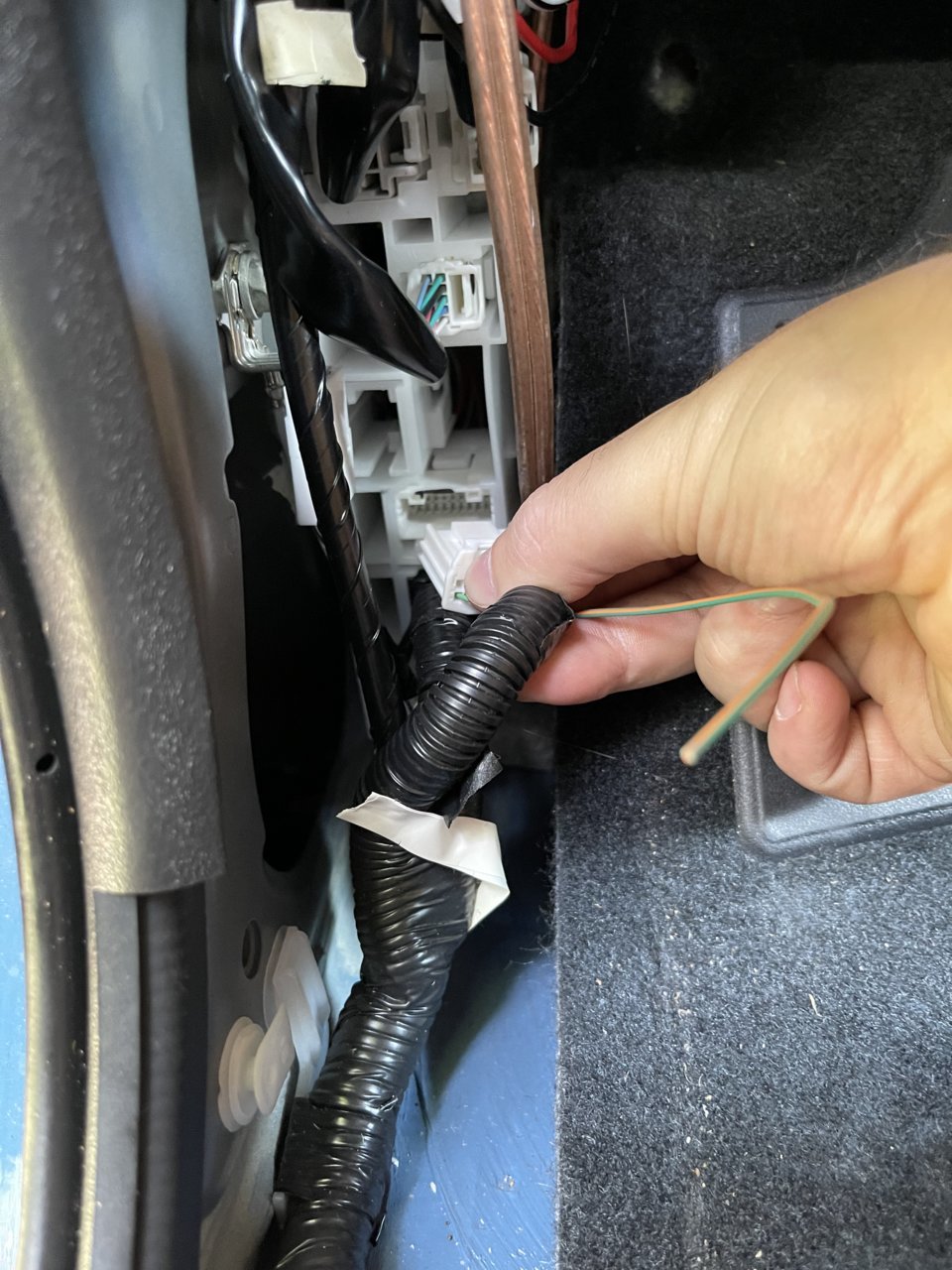

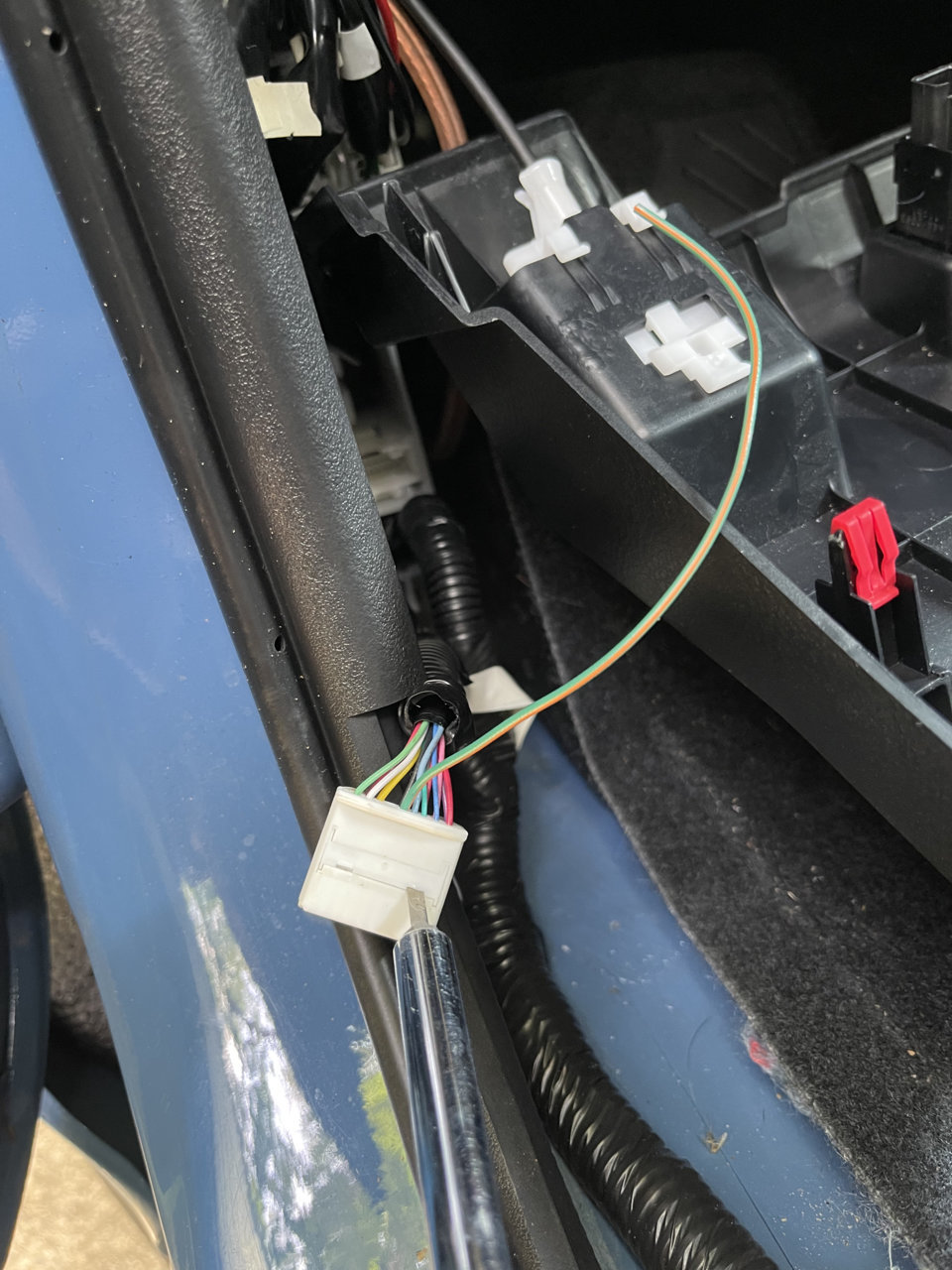

    1. Find the connector under the driver’s side kick panel.

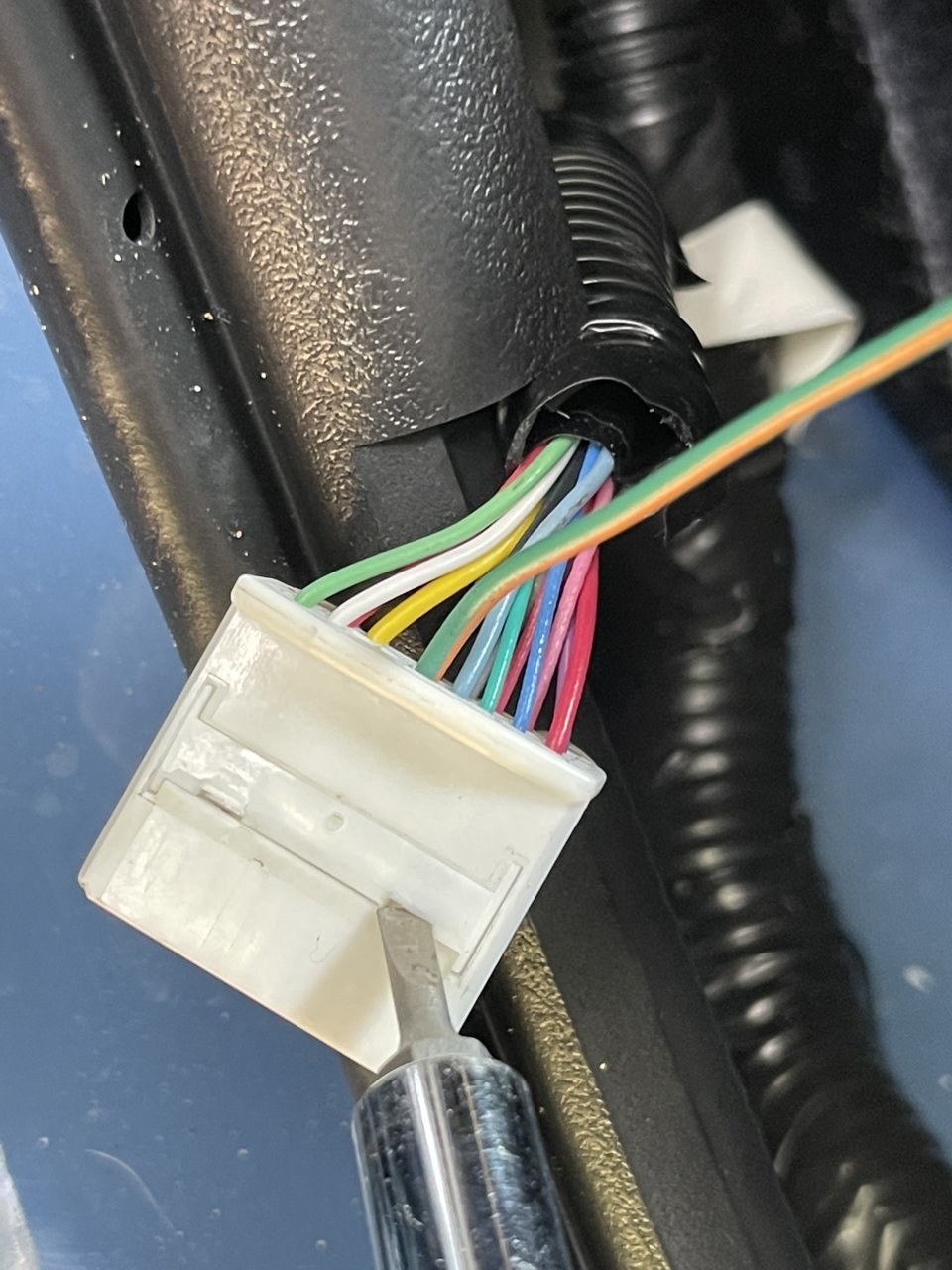

    2. Pop the terminal apart with a screw driver, it only pops up a couple milliliters to allow pins to be added or removed.



    3. Pop the pin in, close the connector, and wire it to the red bed light wiring.
