3rd gen jack points

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Ob1-adobe, Jan 25, 2020.

  1. Jan 25, 2020 at 5:48 PM
    #1
    Ob1-adobe

    Ob1-adobe [OP] Well-Known Member

    Joined:
    Jul 4, 2019
    Member:
    #298287
    Messages:
    665
    Vehicle:
    2019 Tacoma TRD Off-Road DCSB Magnetic Gray
    I’m gonna lose my man card on this one, but oh well. It’s kind of important.

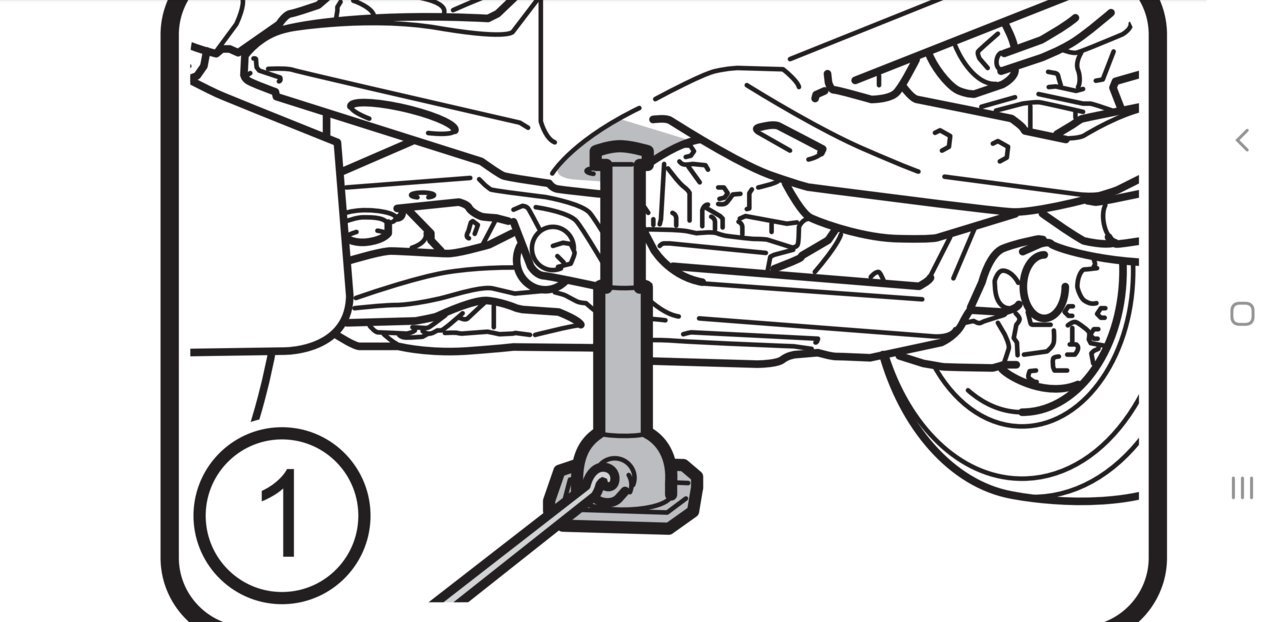

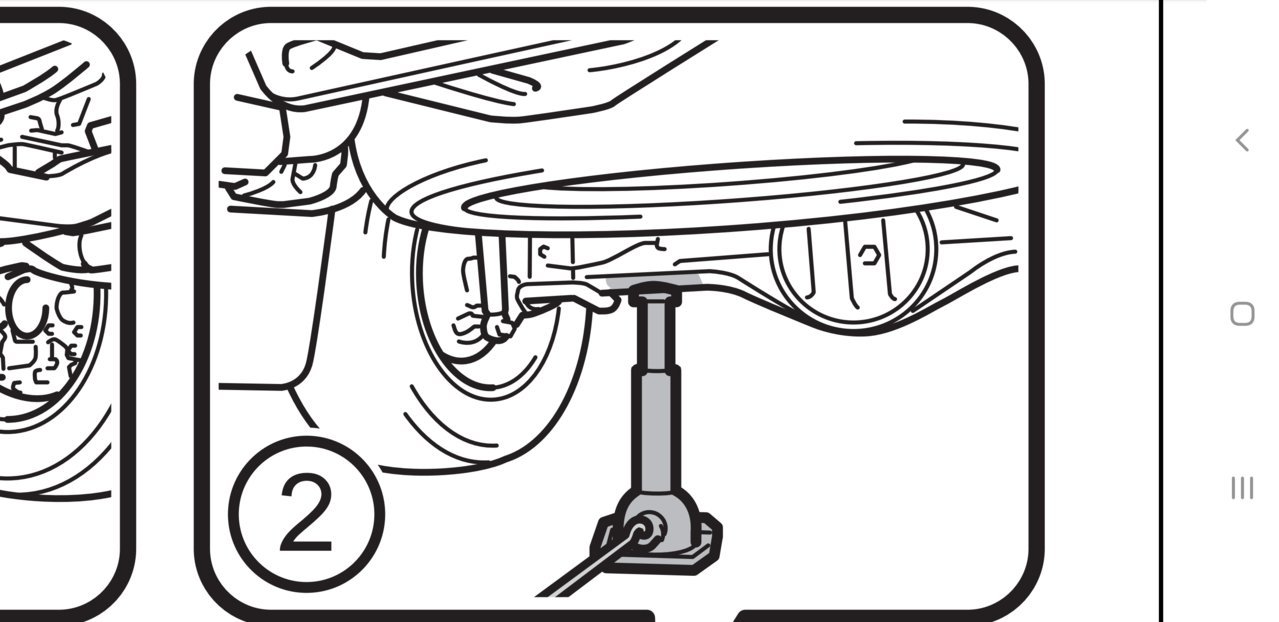

    I was reading my owners manual to see where the jack points are and the jack function and all that on my 19 taco Trd off road.

    kinda confused. The front jack points in the Manuel were a little vague and the rear I thought made sense except I watched this guy and he put them in a different spot

    https://m.youtube.com/watch?v=tPDFtunIxOU

  2. Jan 25, 2020 at 5:58 PM
    #2
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler
    He clearly didn't read the manual, that spot will work too.

    For the rear, they are recommending just inside of the u bolt plate. But before the center pumpkin.


    For the front they are recommending on the side rail of the frame just ahead of the transmission cross member.

    There are other points but if you are not comfortable just use these points. Also choke a wheel front and back on the opposite side and jack it up on a level, firm surface.

  3. Jan 25, 2020 at 6:03 PM
    #3
    ppham444

    ppham444 Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34175
    Messages:
    2,408
    Gender:
    Male
    First Name:
    Phuong
    Portland, OR
    Vehicle:
    2023 White TRD Off-Road doublecab
    Why did they blur out his mouth?

  4. Jan 25, 2020 at 6:04 PM
    #4
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler
    I was wondering the same thing. It wasn't blurry at first then it was. I bet he smacking his lip jacking up the truck!

    Kolohe07 and BC Hunter like this.
  5. Jan 25, 2020 at 6:14 PM
    #5
    Steve Urquell

    Steve Urquell No Pants

    Joined:
    Nov 30, 2016
    Member:
    #203716
    Messages:
    892
    Gender:
    Male
    Vehicle:
    2017 2.7L/5MT AC Utility 4X4
    I jack the rear up with a bottle jack on the ends of the u-bolts. Put it under the end of the control arm on the front. Always use jackstands.

    nat103 likes this.
  6. Jan 25, 2020 at 6:22 PM
    #6
    NorNev

    NorNev Phone? Call someone who gives a shit.

    Joined:
    Jan 1, 2020
    Member:
    #314807
    Messages:
    478
    Gender:
    Male
    First Name:
    Dave
    39° 31′ 6″ N, 119° 59′ 19″ W
    Vehicle:
    KDMAX Tuned 17 2•2X2•2 Hood Scoop
    A Few

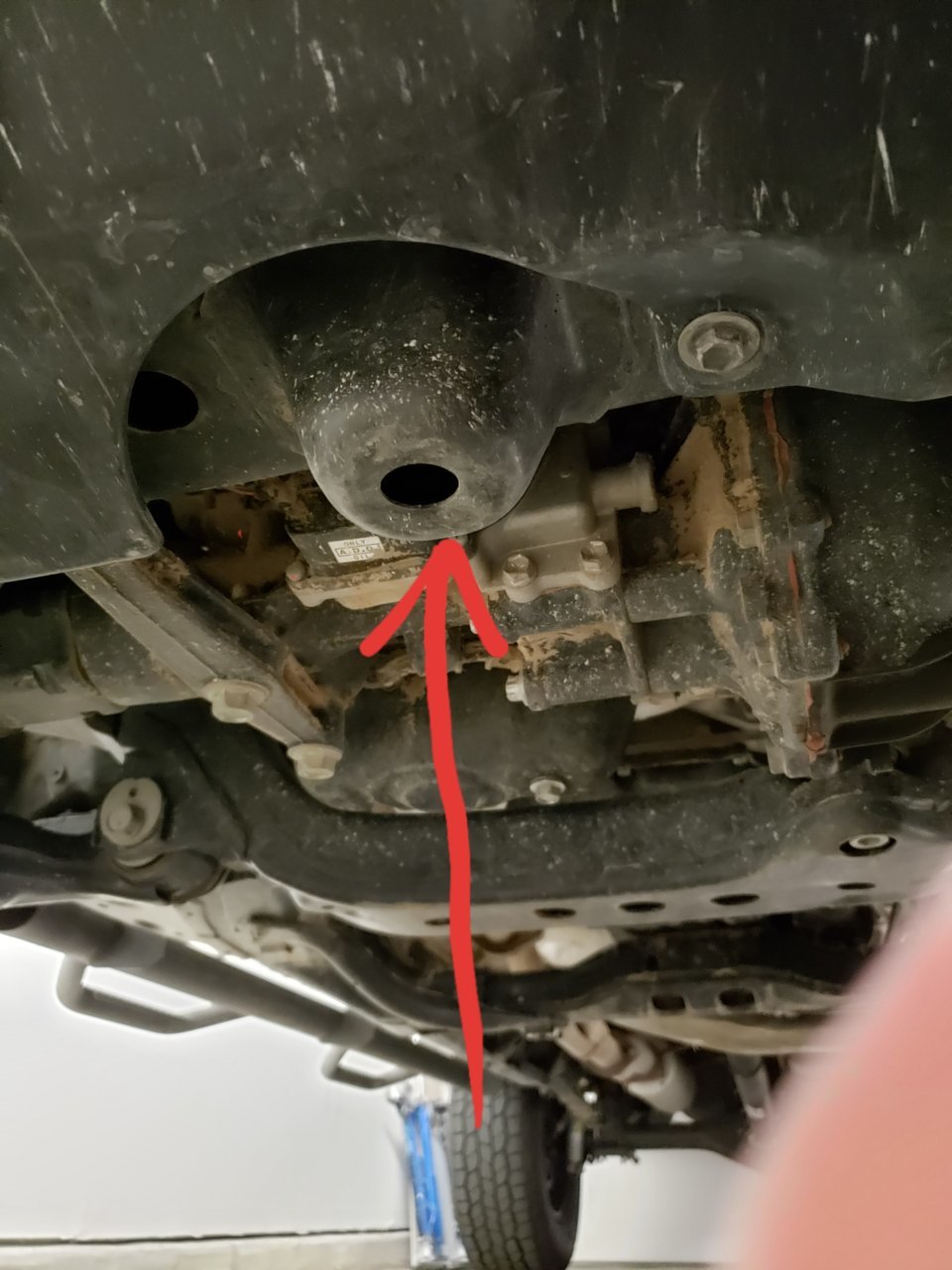

    Pretty much the frame, crossmember, rear axle and this spot in the picture are good points to lift your truck 20200125_182126.jpg

  7. Jan 25, 2020 at 6:26 PM
    #7
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Since it’s related I’m going to small kind hijack

    I didn’t see anything in the manual regarding floor jacks locations for lifting either the front or rear completely. I found a 2nd gen Toyota pdf that says to use the bump out (does this have a name?) in the front center obviously for lifting the front end. And the differential for the rear. I did make sure my floor jack wasn’t resting on the little (drain? Extrusion off center on the bottom) and I put a folded microfiber on the floor jack cup because i don’t have one of those rubber covers. Also obviously use jack stands which I put at the jacking points mentioned already.

    my question, if you know, what’s the best/safest procedure to lift the whole truck completely with just 1 floor jack and 4 jack stands? I need to start rotating my own tires

    davidstacoma and Abominator like this.
  8. Jan 25, 2020 at 6:52 PM
    #8
    NTH

    NTH Active Member

    Joined:
    Nov 21, 2019
    Member:
    #311324
    Messages:
    31
    Gender:
    Male
    Elkridge, Maryland
    Vehicle:
    ‘19 Tacoma TRD Pro Super White AT
    My method:
    1. From front bumper, place floor jack to the front lift point (bulge) as shown in pic above and lift entire front end.
    2. Place 2 stands on either side, on frame rails, directly in front of tranny cross member.
    3. Lower front end onto stands
    4. Take floor jack to the back and place lift pad under the rear diff.
    5. Lift entire rear and place stands under rear axle
    6. Lower rear end onto stands.

  9. Jan 25, 2020 at 6:55 PM
    #9
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I mean that’s what I was thinking that made sense but worried about shifting on the front stands as the rear comes up

  10. Jan 25, 2020 at 6:56 PM
    #10
    RichVT

    RichVT Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146329
    Messages:
    944
    Gender:
    Male
    First Name:
    Rich
    Northern Vermont
    Vehicle:
    2016 Tacoma TRD Off Road 4X4 AC Grey
    That's the way I do it as well.

  11. Jan 25, 2020 at 6:56 PM
    #11
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler
    This point that @NorNev pointed out is the point Iift my truck up from with my floor jack. Once the wheels are off the ground, place the jack stands at the spots for the factory jack point.

    At the rear I lift at the centre of the diff on the bottom of the pumpkin. Then put the jack stands under the axle where you would lift with the factory jack.

    Extra Hard Taco likes this.
  12. Jan 25, 2020 at 6:58 PM
    #12
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Yes I used those same points to lift the front or rear separately but have always been worried about shifting on the stands as a whole

  13. Jan 25, 2020 at 7:00 PM
    #13
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM

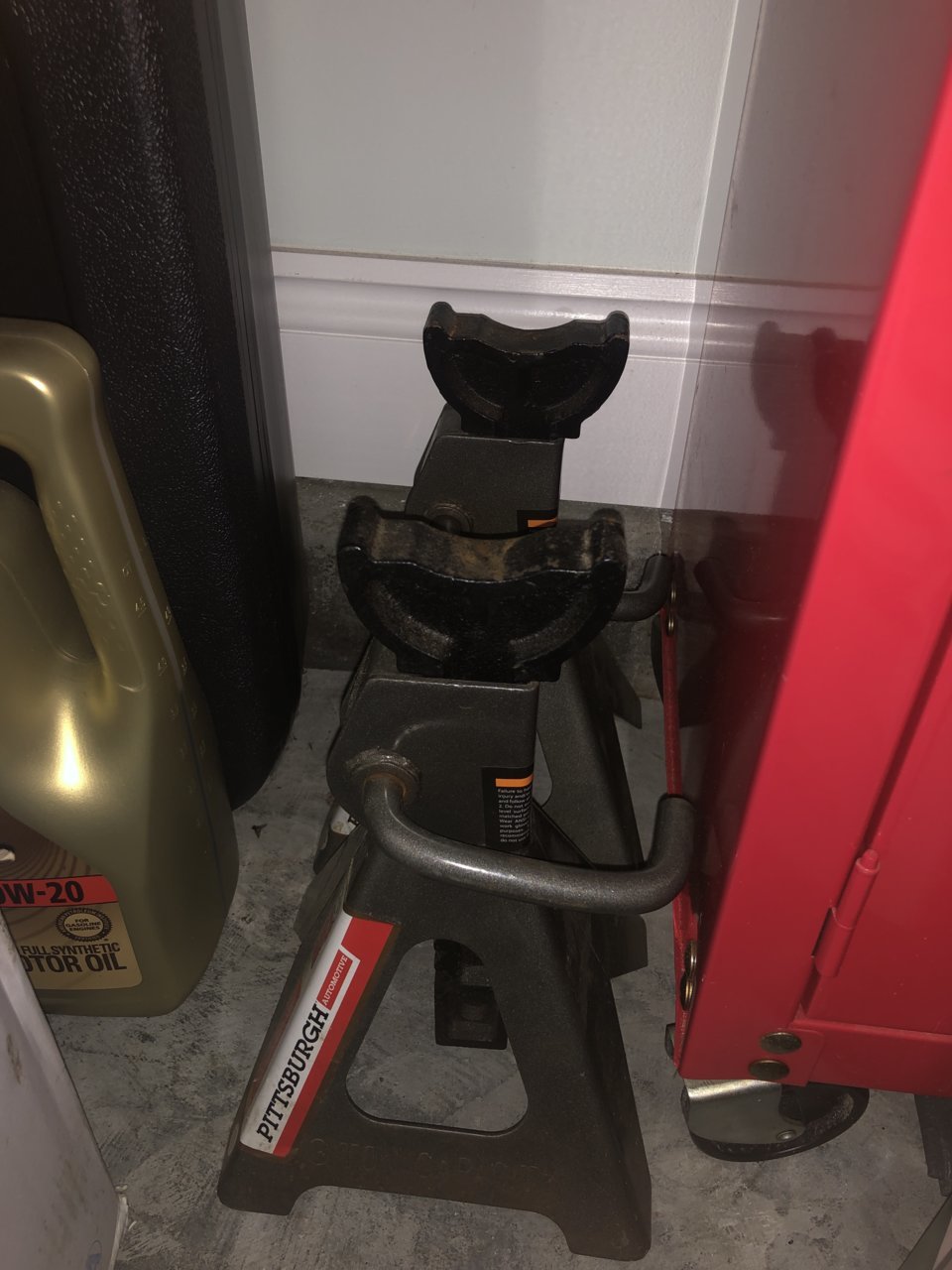

    I have 3 ton harbir freight stands that I currently use. Is there any reason these wouldn’t be sufficient for lifting the whole truck?

  14. Jan 25, 2020 at 7:02 PM
    #14
    nat103

    nat103 Well-Known Member

    Joined:
    Nov 27, 2016
    Member:
    #203450
    Messages:
    494
    Gender:
    Male
    KY
    Vehicle:
    2017 DCSB OR
    I just lift one side at a time. Use two jacks

  15. Jan 25, 2020 at 7:02 PM
    #15
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler
    Your jack stands have a castle top, correct. Most do. When placing the stand make sure the frame sits in the valley, same with the diff. And just be slow when lifting and lowering.

  16. Jan 25, 2020 at 7:04 PM
    #16
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler
    A jack stand rated at 3 tons is capable of supporting 6,000lbs. That means 4 will support 24,000lbs. Your jack stands will support your truck when positioned properly.

  17. Jan 25, 2020 at 7:16 PM
    #17
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Not sure about castle top
    I see how when used in the rear inside of the ubolts on the axle it can cradle the axle but on the front points between the cross member and body mount it’s basically flat so nothing really gets in the valley

  18. Jan 25, 2020 at 7:21 PM
    #18
    Speedfreak

    Speedfreak Member in poor standing

    Joined:
    Sep 22, 2017
    Member:
    #230756
    Messages:
    4,842
    First Name:
    Dave
    Canada Eh!
    Vehicle:
    2017 Tacoma TRD Sport DCSB 6MT, Blazing Blue Pearl
    Manual Mall Crawler

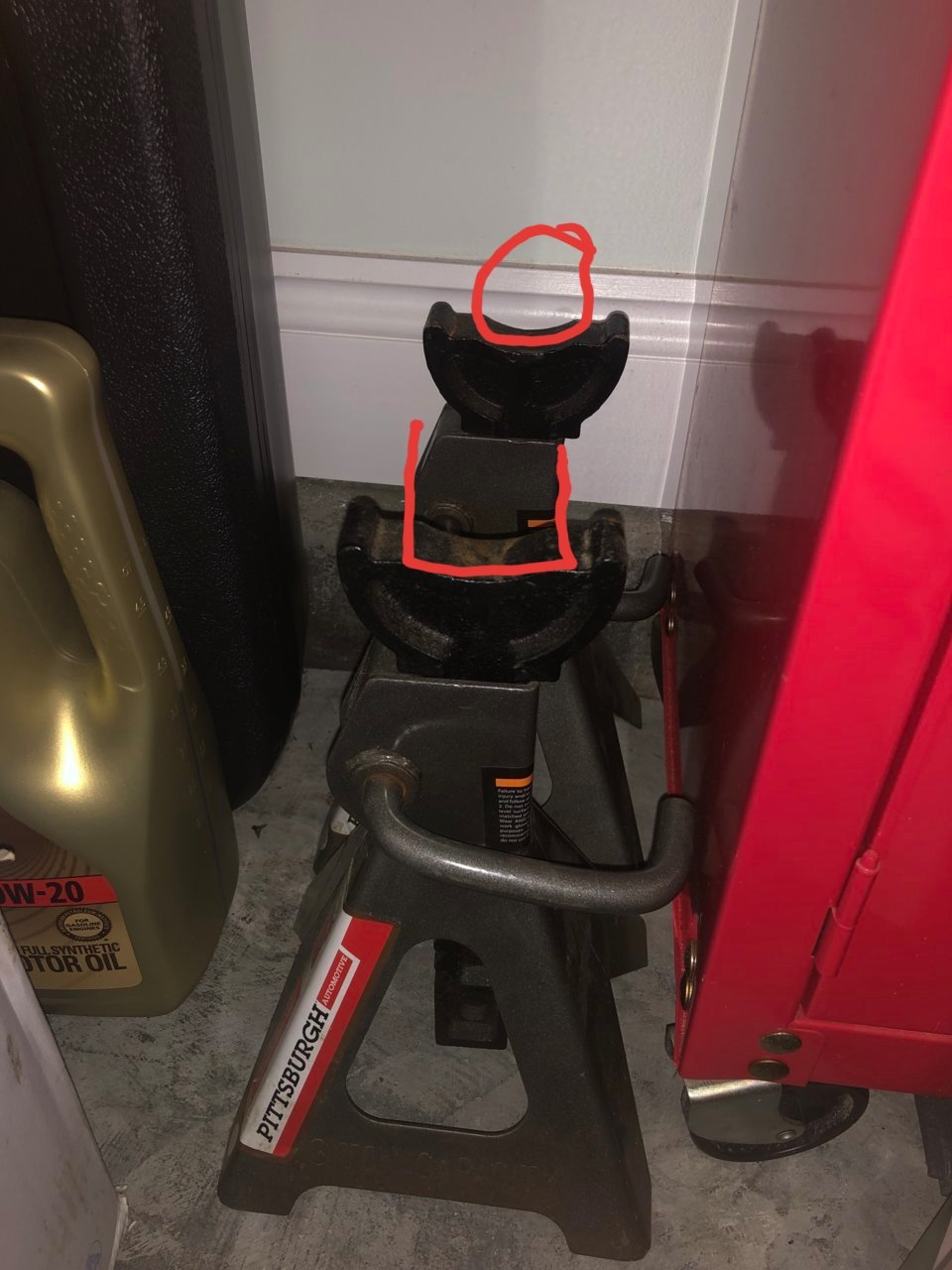

    Yes they are castle tops. So make sure the diff sits in the round valley and the frame sits between the two peaks if they are wide enough. Don't have it sitting on the peaks if possible.


    Sorry for the crayon art work.

    RJ_MacReady and davidstacoma like this.
  19. Jan 25, 2020 at 7:24 PM
    #19
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,262
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Ok I see now. I don’t think they are wide enough to straddle the frame though but I’ll pull it out tomorrow to double check. Thank you!

    Speedfreak[QUOTED] likes this.
  20. Jan 25, 2020 at 7:42 PM
    #20
    NTH

    NTH Active Member

    Joined:
    Nov 21, 2019
    Member:
    #311324
    Messages:
    31
    Gender:
    Male
    Elkridge, Maryland
    Vehicle:
    ‘19 Tacoma TRD Pro Super White AT
    The front stands will not shift when you lift the rear!
    Do yourself a favor, and get yourself 4 Esco stands. 2 flat tops for the front and 2 axle cradles for rear axle.

    davidstacoma likes this.
