3rd Gen Tacoma 3.5L Forced Induction Port Fuel Rail Group Buy

Discussion in 'Automotive Group Buys' started by JamesT, May 21, 2022.

  1. May 22, 2022 at 8:05 PM
    #21
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    6,257
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    So there's no port for a damper?

  2. May 22, 2022 at 8:11 PM
    #22
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT

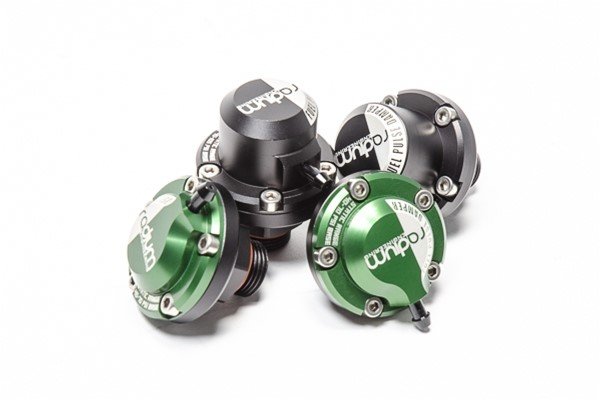

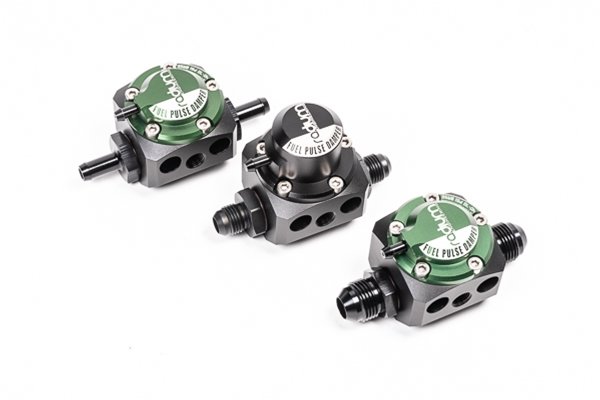

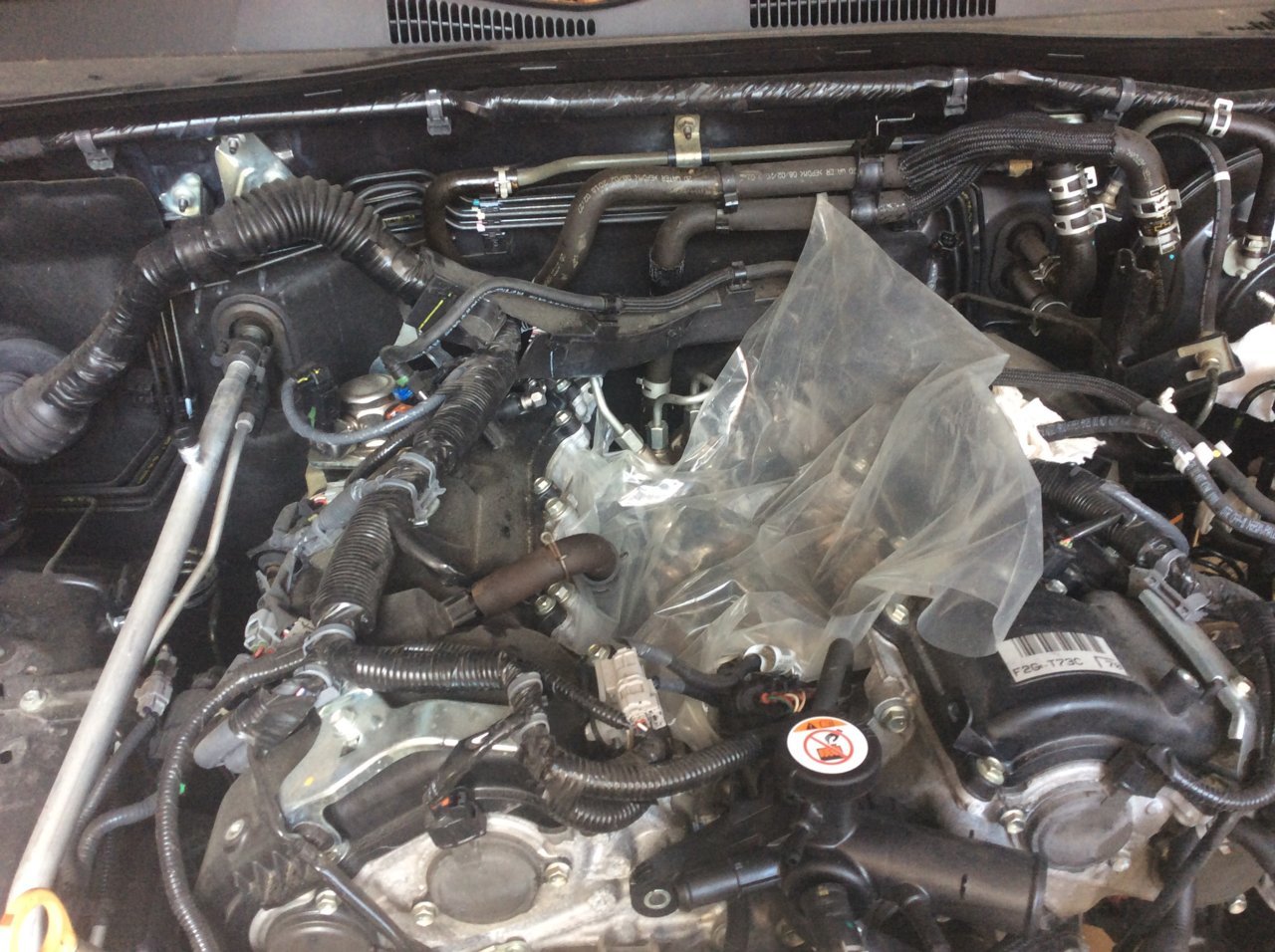

    These rails have 8ORB threads on each end. You just need an 8ORB damper like this.

    ,

    You can also run one inline before the Y split.


    So many options. This is why plumbing is not provided. The dual 8ORB ends provide maximum flexibility for everyone's needs.

    And should that fail, you could just drill and tap whatever port you need right into the rail. Making the body octagonal versus round was both to make the cnc cuts easier and to allow for drilling additional fittings.

    Last edited: May 22, 2022
  3. May 23, 2022 at 7:45 AM
    #23
    05Taco4x4

    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    6,257
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    I didn't realize radium makes in-line dampers, I thought dampers should be installed immediately after fuel inlet on the rail.

  4. May 23, 2022 at 8:03 AM
    #24
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    Dampers are a funny thing. They should be placed as close to the rail as possible, but can actually be just about anywhere in the line, to include the return. Fluctuations are caused not only by the pump but also the opening and closing of the injectors. You want it near the rails because you want the smoothed out fuel to be closest to the injectors. It's just a diaphragm on a spring that absorbs fluctuating fuel waves. You could even put an inline between the end of the two rails with a crossover.

    Radium actually states that you can put a damper on only one of the two rails and have the desired result. Some applications may need one on each rail. For our case, we have to have the pressure sensor on the end of the passenger rail, so the inline FPD might be the preferred route, or you may be able to put an FPD on the end of the other rail and it works fine. We won't know until it's tested.

    The reason that OEMs use fuel dampers is two-fold, fuel performance (when there is a problem), and...Noise. Let's be honest, most OEMs do things for comfort and regulatory compliance. Toyota definitely didn't put 4 catalytic converters on a Tacoma for performance. FPDs are necessary when they are necessary. That doesn't mean you HAVE to have one. Like Jowett said, Toyota doesn't have one on the newer tacoma because they designed the rail to absorb the fluctuations (it's the weird horizontal pockets)

    If we need an FPD for this new rail, well it's completely speculation at this point. We may find that the thickness and design of the rail negate it (probably not). We may find these rails are noisier because I designed it to omit the plastic spacers that in retrospect are probably used to dampen the noise from metal on metal contact. There is no way to know until we mount it up. Plenty of aftermarket fuel systems do not have these FPDs and perform just fine.

    When I get the first production piece I will look into it. I will be honest about anything I find to ensure you guys have the most information. In the end though an FPD is probably going to be a personal preference. With the large bore of these rails, it's unlikely the fuel pulsations will have a detrimental effect on fuel flow. If there is any noticeable noise increase or issues with tuning, the testers and I will let everyone know.

    Jowett likes this.
  5. May 23, 2022 at 8:19 AM
    #25
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    It might be easier to try and picture what is happening and why an FPD works. Think of it like a push/pull of fluid. Every pump cycle or injector opening causes fuel to move. When that fuel moves it abruptly stops and starts over and over again. When it hits the end of the rails, the closed injector valve, or whatever, it causes a reflection of energy. Like waves crashing into a pier. This also increases fuel pressure momentarily.

    The FPD just allows those waves to push and pull a diaphragm on a spring so there is no crash. So the fuel is sort of expanding and contracting into a balloon instead of hitting a wall and causing an increase in pressure. That's it. Ever heard any kind of liquid pump make a pinging noise? That was the sound of those fluid fluctuations against metal.

    So in reality, you can have your FPD anywhere. You could probably put it right beside the pump if you wanted.

  6. May 23, 2022 at 12:21 PM
    #26
    rj_taco

    rj_taco Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211935
    Messages:
    240
    Gender:
    Male
    1 set for me. Thank you for working on this!

    Torspd and JamesT[OP] like this.
  7. May 23, 2022 at 2:29 PM
    #27
    MGMSangTaco

    MGMSangTaco Colorado Toyota Tuning

    Joined:
    Mar 17, 2018
    Member:
    #247581
    Messages:
    1,996
    Gender:
    Male
    Denver, CO
    Vehicle:
    2017 TRD OR MGM DCLB
    I’m in for a set. Nice work

  8. May 24, 2022 at 9:28 AM
    #28
    AnotherUser256

    AnotherUser256 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245351
    Messages:
    167
    Magnuson TVS1900 Supercharger with 87mm pulley, Catted OVTune dumptubes, Doug Thorley 2.5in y-pipe, custom mufflers, 76mm Tundra throttle body, 5.29 Yukon gears, JamesT custom fuel rails, Yotawerx 87mm tune, Eibach Pro Truck Stage 2 suspension. And some other stuff.
    Stupid question: Are there any concerns with the gasoline degrading the polymer these rails are made out of, over time?

  9. May 24, 2022 at 9:41 AM
    #29
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,635
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Production units will be 6061-T6 aluminum. The yellow plastic piece is a prototype used for fit up.

  10. May 24, 2022 at 10:13 AM
    #30
    AnotherUser256

    AnotherUser256 Well-Known Member

    Joined:
    Feb 23, 2018
    Member:
    #245351
    Messages:
    167
    Magnuson TVS1900 Supercharger with 87mm pulley, Catted OVTune dumptubes, Doug Thorley 2.5in y-pipe, custom mufflers, 76mm Tundra throttle body, 5.29 Yukon gears, JamesT custom fuel rails, Yotawerx 87mm tune, Eibach Pro Truck Stage 2 suspension. And some other stuff.
    Thanks for the clarification. See I knew that was a stupid question. LOL

  11. May 26, 2022 at 3:17 PM
    #31
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    Ok, so here is the update on how the order is going.

    Trying to get any of the rails early will cost a lot more money since they would do it in two orders and charge the setup fee twice. I was kind of hoping to just pull them off the line as soon as they are cut, but that doesn't seem to be the case. I could get a few somewhat earlier by asking that they don't anodize those few. It would make those ones cheaper of course, but they would be raw machined aluminum.

    The cost margin between 50 and 70 rails is huge. So I will be doing these in sets of 70 rails.

    As of right now there are not even 20 interested, which is a bit disappointing, but here is what I will do. I'm going to put in an order tomorrow for 35 sets (70 rails). It'll take 35 business days for full finishing. For anyone who is on the list in post #1 and anyone else who jumps on the list prior to completion of the rails (up to 35 sets), I will sell these for $160 shipped to anywhere in the US.

    This cost will cover:
    - 2 Rails, anodized
    - 4 New Mounting Bolts
    - Shipping to anywhere in the US (including Hawaii and Alaska)
    - Misc costs: boxes, packing materials, etc.

    Anyone after 35 sets or completion of the first set of rails will have to pay $190 shipped. Again, this is less than the price of most aftermarket rails of comparative quality. Once the first 35 sets sell, if there is still interest, I will put in put in more orders until I'm just generally tired of doing it, in which I'll hand the design off to someone else. I'll try to keep some on hand in the event someone needs a set in the future.

  12. May 31, 2022 at 10:24 AM
    #32
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    The order has been placed. The 3 tuner sets should arrive in about 28 business days. Fully finished sets in 35 business days. I'll keep you guys updated of any changes or whatever, but at this point we are just waiting. Once I get the Tuner sets I will do a full install and test everything, to include do a test fit of what adapters and lines are required.

    I'll monitor this thread for any additional interest.

    mZiggy, Jowett, rj_taco and 4 others like this.
  13. Jun 6, 2022 at 7:30 AM
    #33
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,635
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    Ready and waiting....

    mZiggy likes this.
  14. Jun 6, 2022 at 7:35 AM
    #34
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    Haha, it's still going to be a while. Like 6 more weeks.

    mZiggy likes this.
  15. Jun 6, 2022 at 7:35 AM
    #35
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,635
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    No worries, just keeping it up top to drum up more interest.

    mZiggy and JamesT[OP] like this.
  16. Jun 6, 2022 at 10:14 AM
    #36
    KanPanic

    KanPanic Rock Stacker

    Joined:
    Apr 7, 2016
    Member:
    #183568
    Messages:
    438
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2018 OR
    Thanks for this I am interested pending some initial results and final cost estimates.

    Has anyone done additional work to insure even distribution in the intake manifold? I think someone @Jowett possibly posted some photos that looked like it could be better.

  17. Jun 6, 2022 at 3:12 PM
    #37
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,635
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA
    You are talking airflow in the lower plenum. I have not done more with that, but it's on the short list.

    KanPanic likes this.
  18. Jun 12, 2022 at 8:58 AM
    #38
    jnprn2003

    jnprn2003 Well-Known Member

    Joined:
    Mar 28, 2019
    Member:
    #288327
    Messages:
    155
    Gender:
    Male
    First Name:
    Joe
    MA
    Vehicle:
    2021 Tacoma Off-Road Premium 4x4
    Please put me in for a set. Going Supercharged in a few months.

    mZiggy likes this.
  19. Jun 16, 2022 at 9:10 AM
    #39
    virginiamarine

    virginiamarine Well-Known Member

    Joined:
    May 20, 2013
    Member:
    #104557
    Messages:
    1,435
    Gender:
    Male
    Northern Virginia
    Vehicle:
    FJCruiser/Double cab Tacoma
    James, you can add me in on the list! Thanks! I've been having some questions about my magnuson lately. I stomp on the gas pedal and it boosts up to 7-8 psi and then it goes dead pedal on me like something is preventing it from going further. It only happens when I mash on the gas pedal. Regardless, I'm in for consistent performance!

    mZiggy and JamesT[OP] like this.
  20. Jun 20, 2022 at 2:25 PM
    #40
    JamesT

    JamesT [OP] Well-Known Member

    Joined:
    May 26, 2020
    Member:
    #329438
    Messages:
    261
    Gender:
    Male
    Vehicle:
    2018 TRD Pro, MT
    Just wanted to give an update. We are still waiting obviously. The test pieces are projected to be complete around the first week of july, so only 2-3 weeks.

    Then the finished run will be done around mid-late July.

    mZiggy, rj_taco and RedLantern like this.
