3rd gen Tacoma 7 pin to trailer colors

Discussion in '3rd Gen. Tacomas (2016+)' started by Black1Tacoma, Aug 12, 2020.

  1. Aug 12, 2020 at 5:18 PM
    #1
    Black1Tacoma

    Black1Tacoma [OP] #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    418
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
    Does anyone know what colors go to what description.

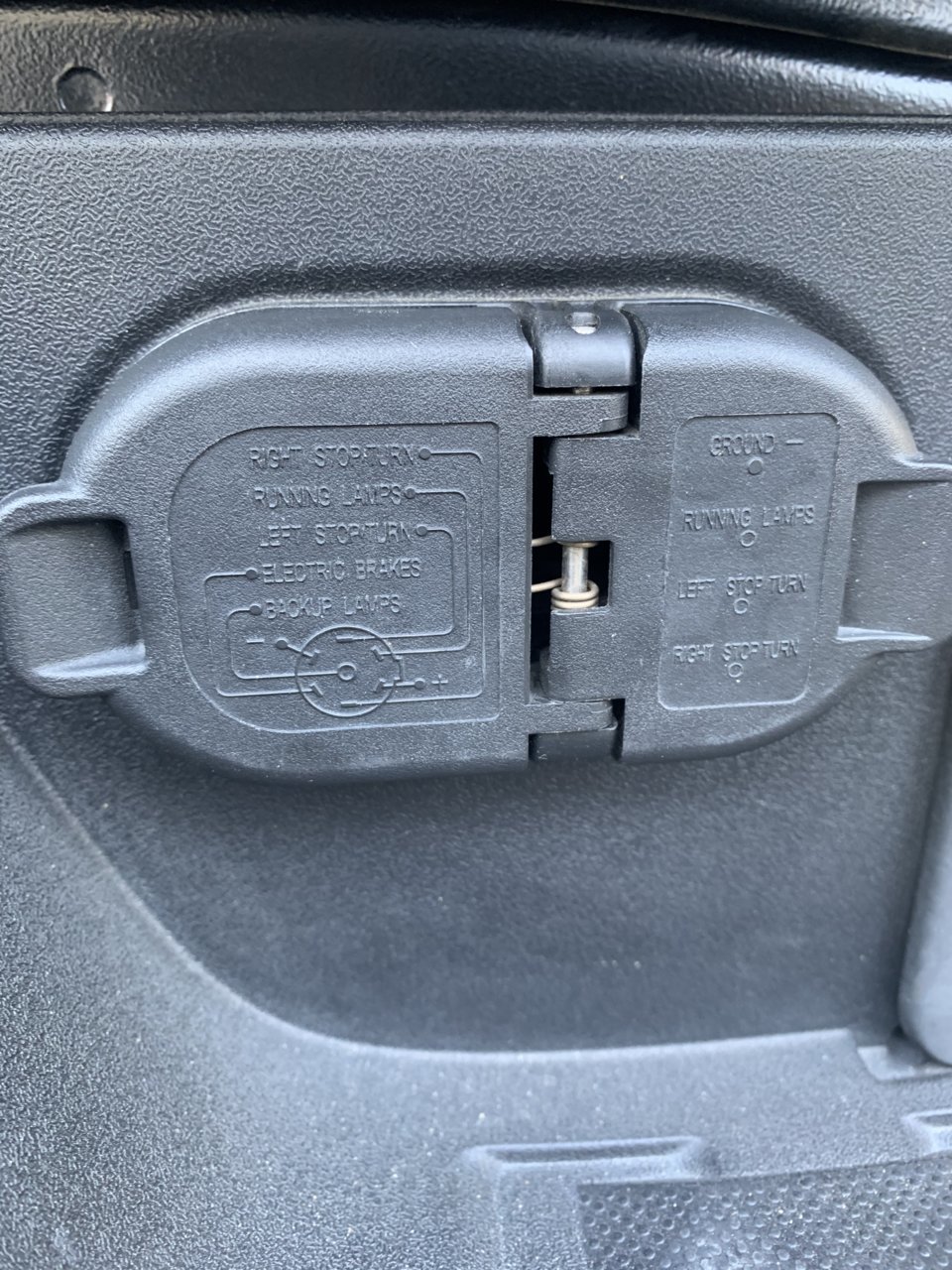

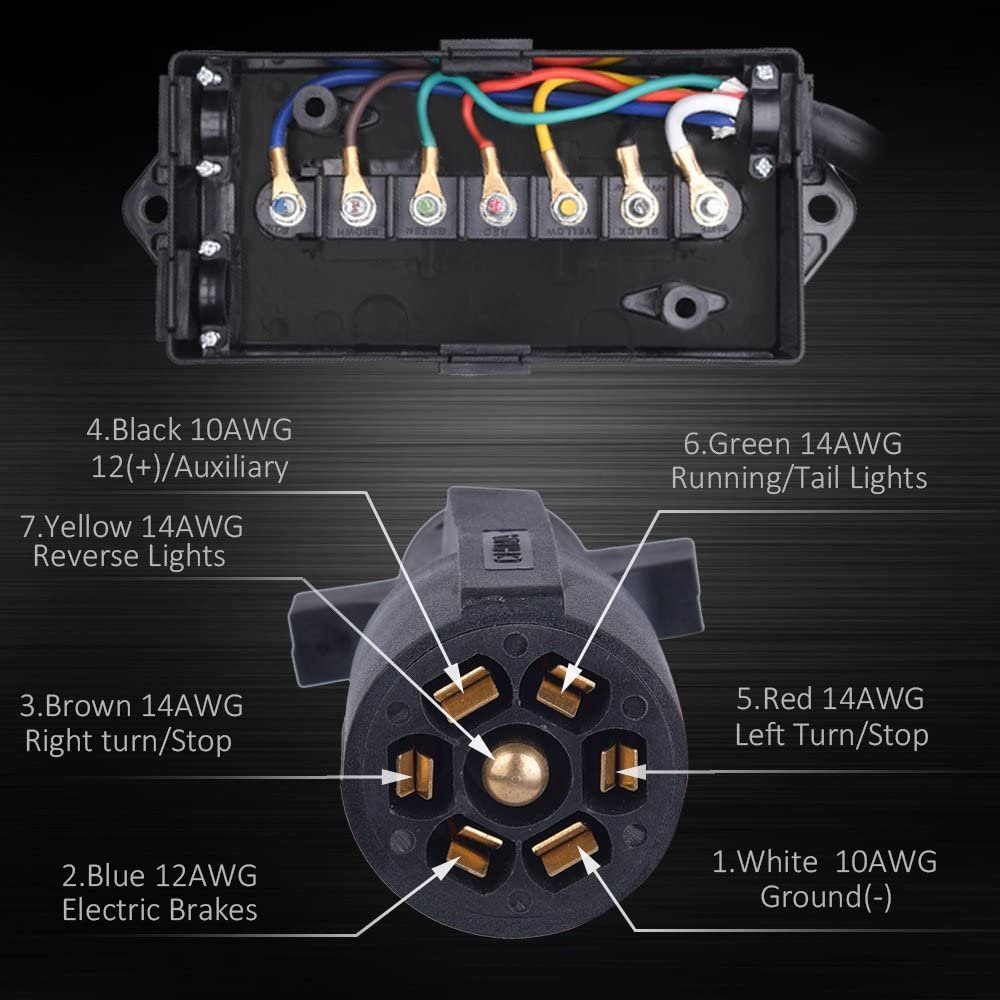

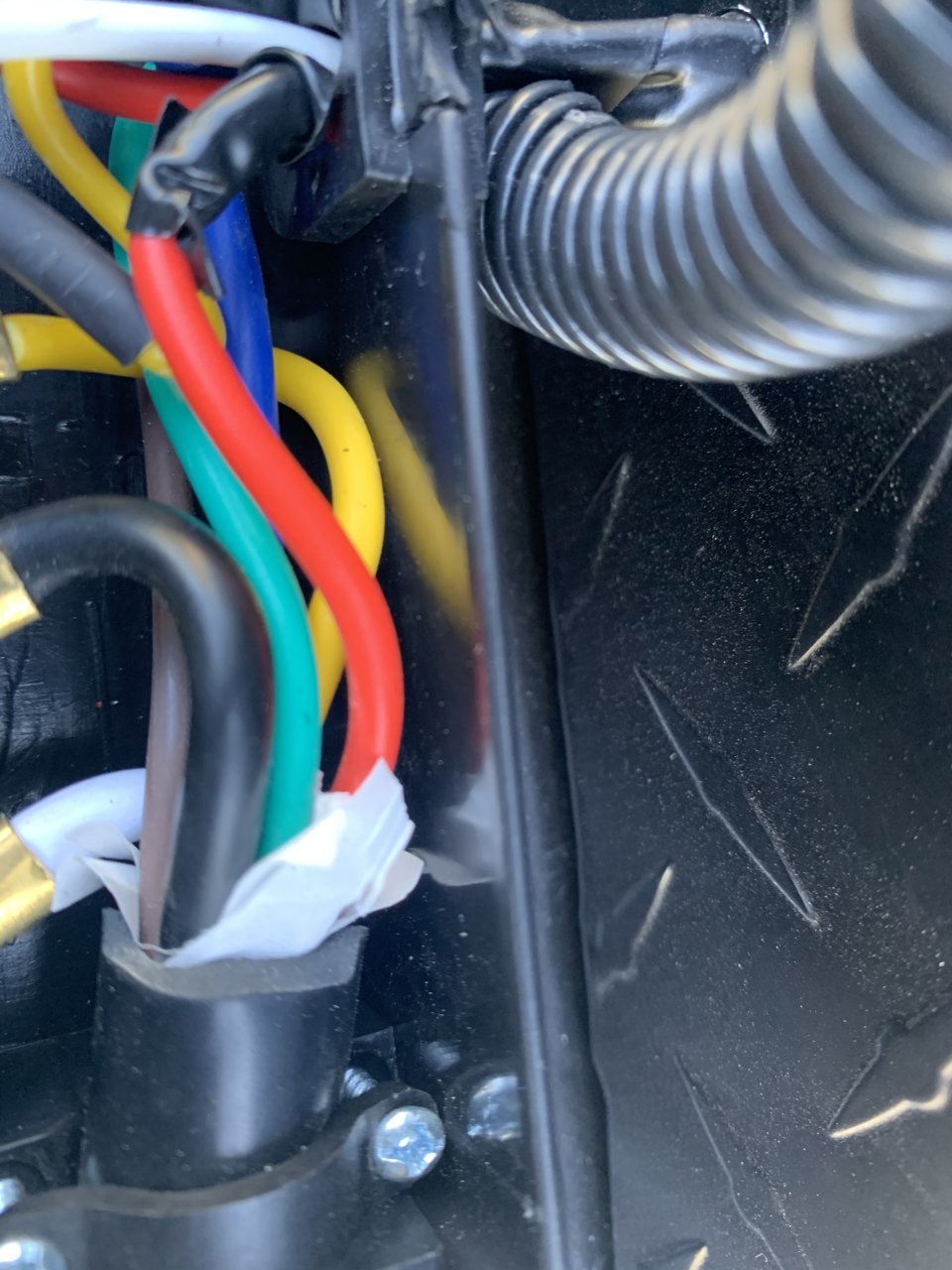

    Attached is the 7 pin descriptions and the end of the cord that needs to be wired to the trailer. I can’t find an image anywhere and I seem to have a short when hooking up the brake controller so I want to recheck all the wiring.
    Thanks


  2. Aug 12, 2020 at 5:33 PM
    #2
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    586
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2021 Audi e-tron SUV
    Morimoto xB LED Headlights & fogs, MESO Total Tail S1, Fortin Evo One Remote Start, OEM Audio Plus System 500Q,, Redarc trailer brake controller, Carplay2Air wireless adapter, Custom shift knob, Electric tailgate lock, Chrome tailgate inserts, Limited fog light bezels, 2018 TRDOR Grill, Chrome door handle covers

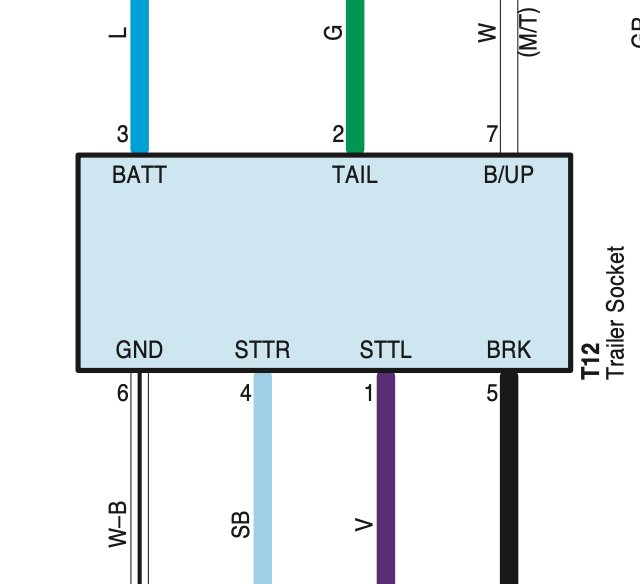

    Truck side:
    Screen Shot 2020-08-12 at 7.27.55 PM.jpg

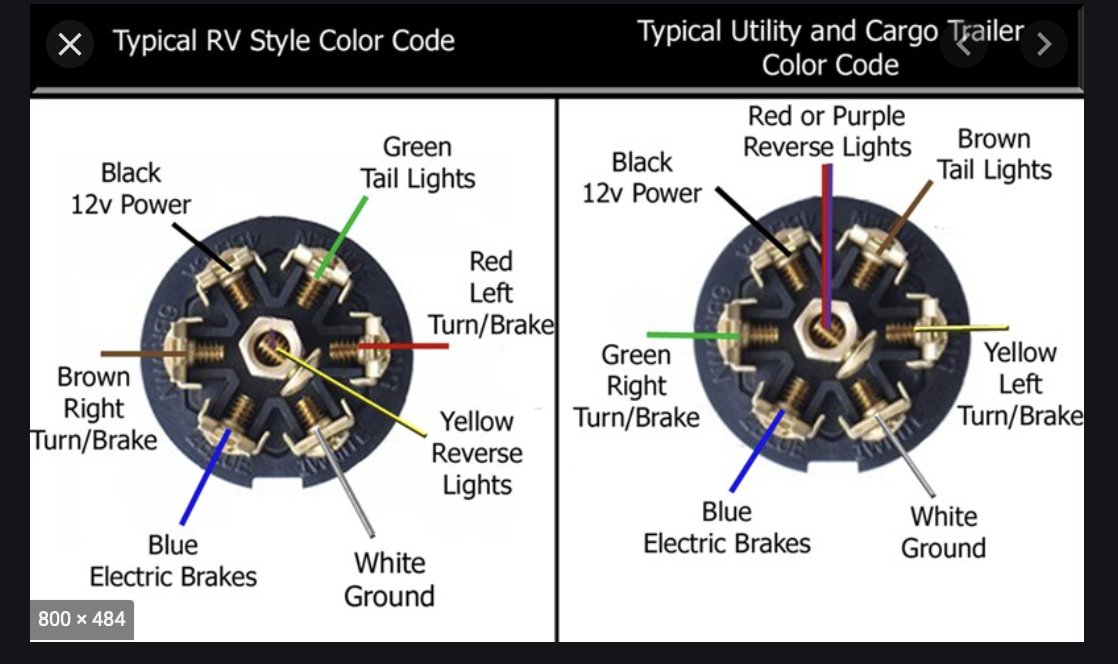

    Trailer Side (Note utility vs. RV cords are color coded differently so you'll have to determine which you have):
    Screen Shot 2020-08-12 at 7.30.17 PM.jpg

  3. Aug 12, 2020 at 5:44 PM
    #3
    gixxerphil

    gixxerphil @concretelander

    Joined:
    Mar 31, 2018
    Member:
    #249012
    Messages:
    10,499
    Gender:
    Male
    First Name:
    Phillip
    Auburn, Alabama
    Vehicle:
    2013 DCLB
  4. Aug 12, 2020 at 6:48 PM
    #4
    Black1Tacoma

    Black1Tacoma [OP] #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    418
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
  5. Aug 12, 2020 at 6:53 PM
    #5
    gixxerphil

    gixxerphil @concretelander

    Joined:
    Mar 31, 2018
    Member:
    #249012
    Messages:
    10,499
    Gender:
    Male
    First Name:
    Phillip
    Auburn, Alabama
    Vehicle:
    2013 DCLB
    Anytime

  6. Aug 12, 2020 at 7:09 PM
    #6
    Black1Tacoma

    Black1Tacoma [OP] #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    418
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
    This is great!! Do you know on a typical RV cord based on your diagram which color should match to what?
    I can’t tell from the square picture which spot those colors are located? I see the numbers but where does it start? Does that make sense?

  7. Aug 12, 2020 at 8:15 PM
    #7
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    586
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2021 Audi e-tron SUV
    Morimoto xB LED Headlights & fogs, MESO Total Tail S1, Fortin Evo One Remote Start, OEM Audio Plus System 500Q,, Redarc trailer brake controller, Carplay2Air wireless adapter, Custom shift knob, Electric tailgate lock, Chrome tailgate inserts, Limited fog light bezels, 2018 TRDOR Grill, Chrome door handle covers

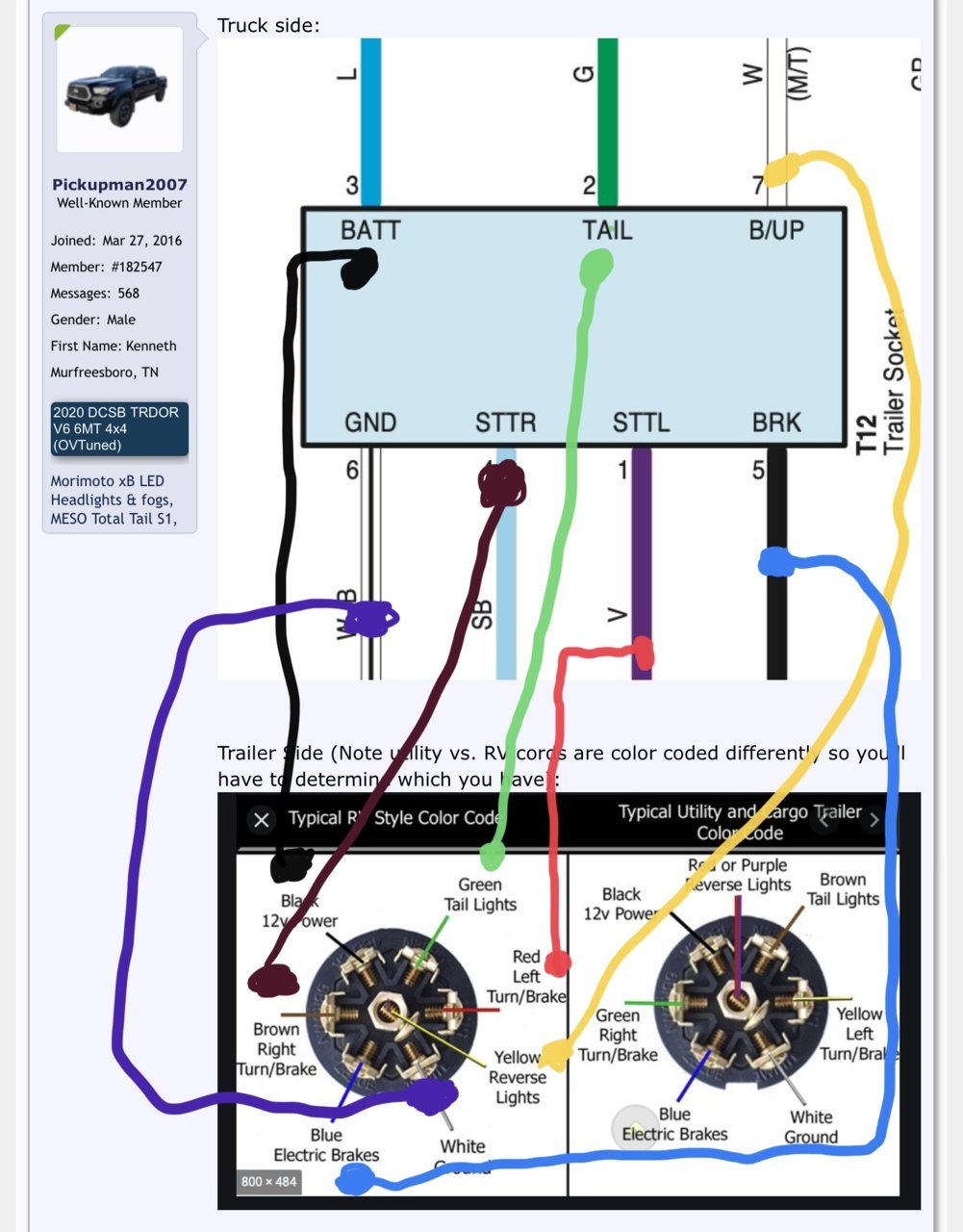

    Does this help?


  8. Aug 12, 2020 at 8:17 PM
    #8
    Black1Tacoma

    Black1Tacoma [OP] #TRUKTOY

    Joined:
    Jun 27, 2017
    Member:
    #222509
    Messages:
    418
    Gender:
    Male
    Carlsbad
    Vehicle:
    2017 Black Tacoma TRD OffRoad 4x4
    Amazing!!! THANK YOU!
