3rd Gen. Tacoma Front, Rear Camera, Navigation Bypass, Homelink, Smartphone Mirroring Mod.

Discussion in '3rd Gen. Tacomas (2016+)' started by Hoangde, Jan 31, 2017.

  1. Jan 31, 2017 at 3:49 PM
    #1
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610
    Lessons learned and information sharing.

    This is my design and mod for:
    1. Install Front Camera.
    2. Use Front or Rear Camera at anytime regardless the vehicle in forward/reverse motion or in park gear.
    Why:
    1. To see what happening in my rear during towing/waiting at traffic light (how close the vehicle park behind me...etc.
    2. To see the gap between my front bumper and the object in front.
    3. To help parking in tight spot.
    4. to show off my mod.

    BOM (bill of materials).
    1. One of relay
    2. One of DPDT toggle switch or OEM style
    3. One of the push switch or this switch (depend on the hole in your dashboard).
    4. CCD Camera that I am currently use. I am looking for a better one with higher tvl such as mirror camera
    5. Mini tap for 12v acc.
    6. If you don't know how to solder then you may use quick splices. (not recommended).

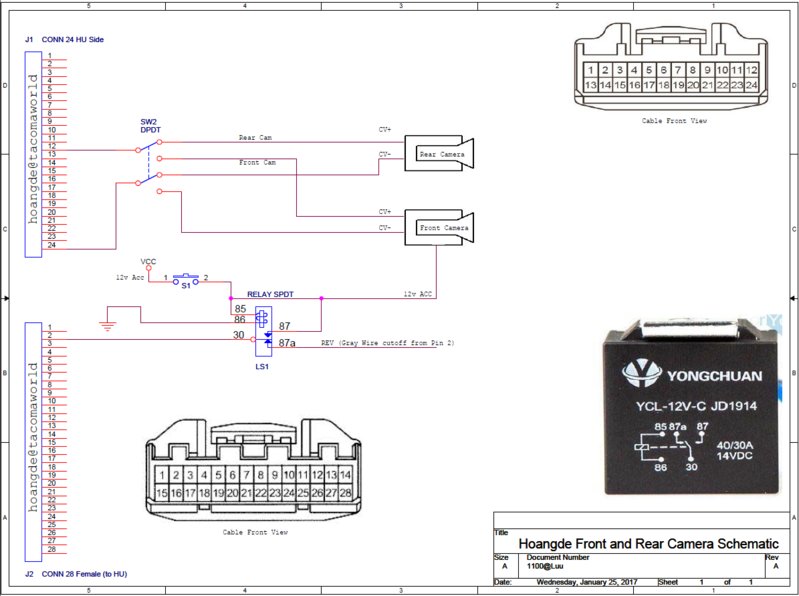

    Schematic:


    Result :

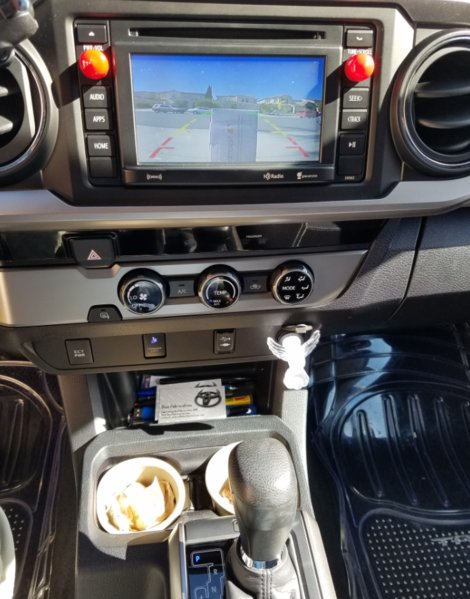

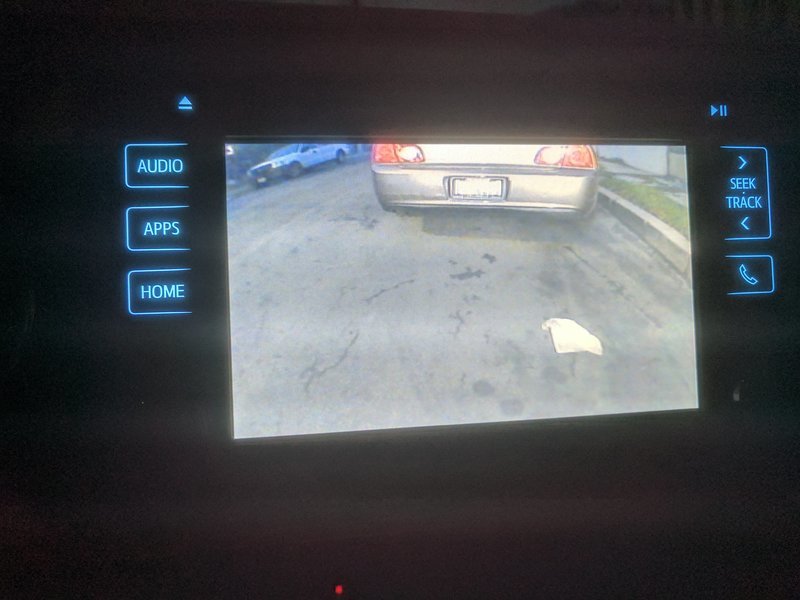

    Front View:

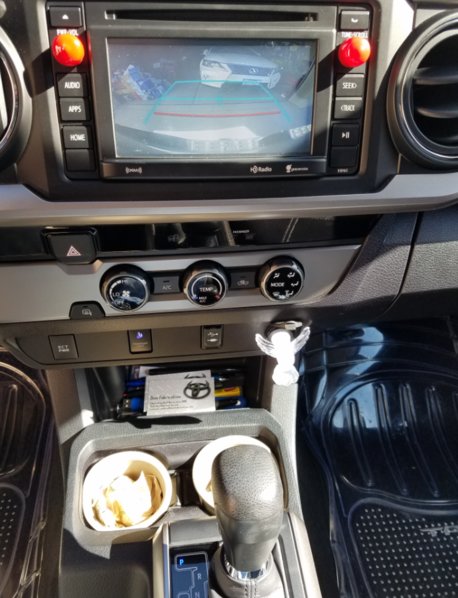

    Rear View:

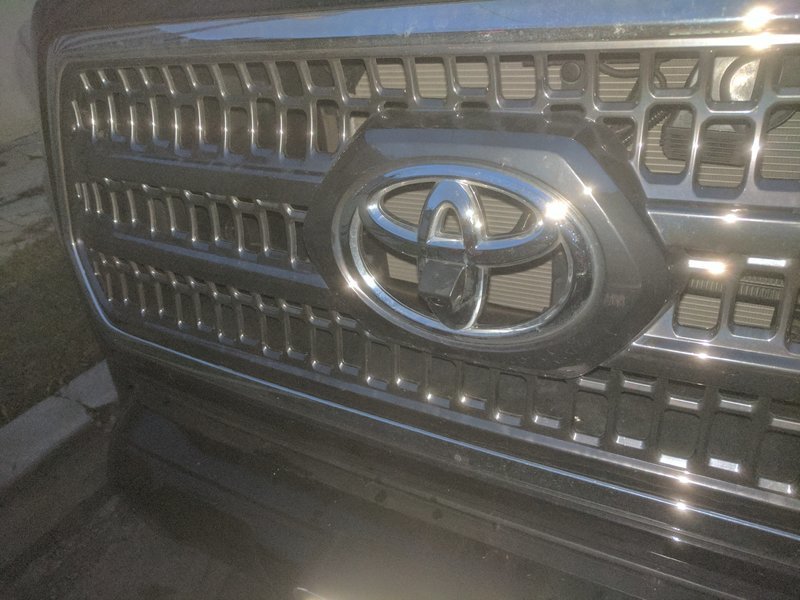

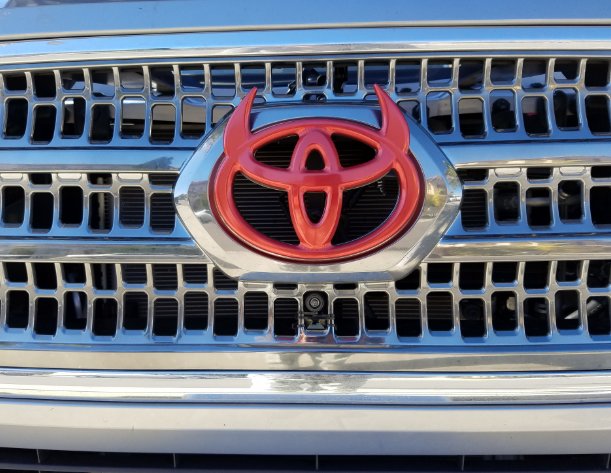

    Front Camera Installed:
    [​IMG]

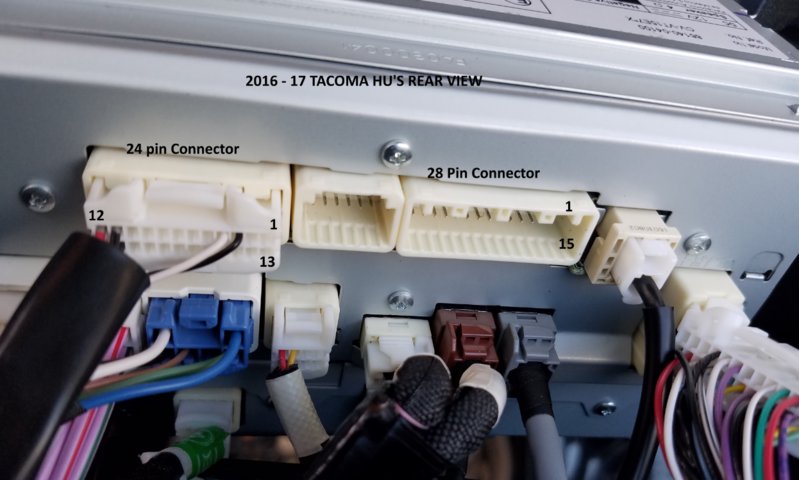

    Head Unit rear view with pin number diagram

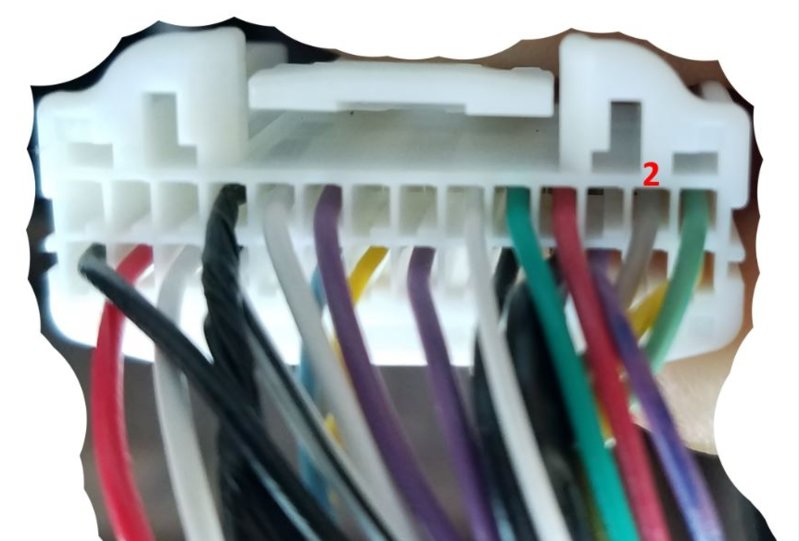

    28 Pin connector with Pin 2 noted.


    12 V acc that I connected.


    Front/Rear Camera Toggle Switch.

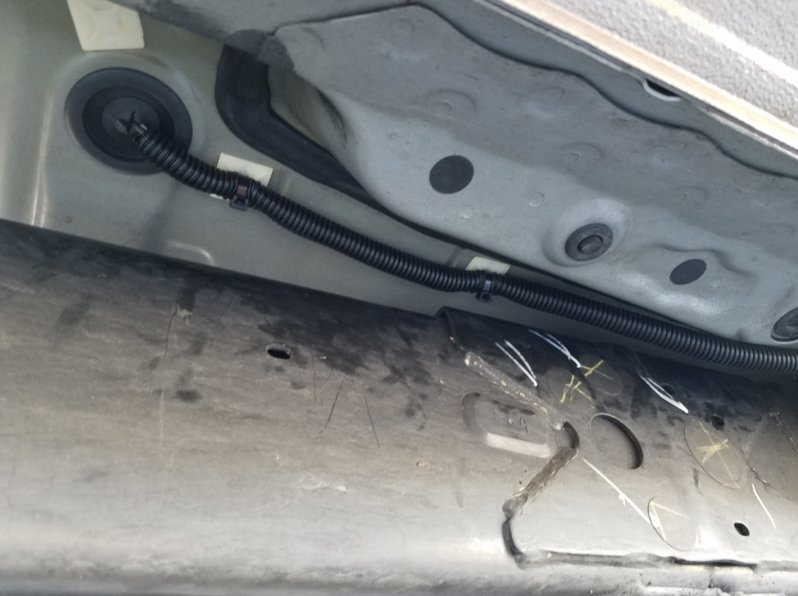

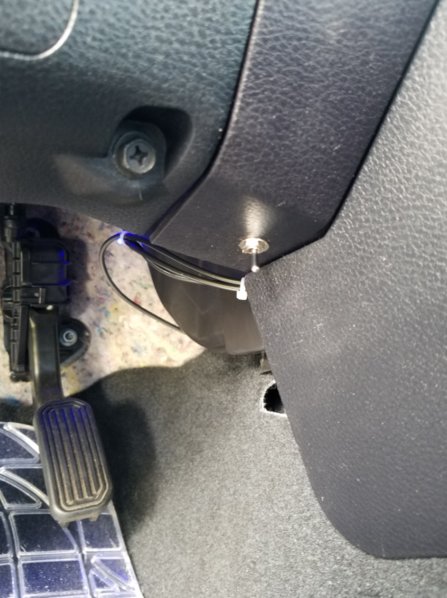

    Under chassis Wiring

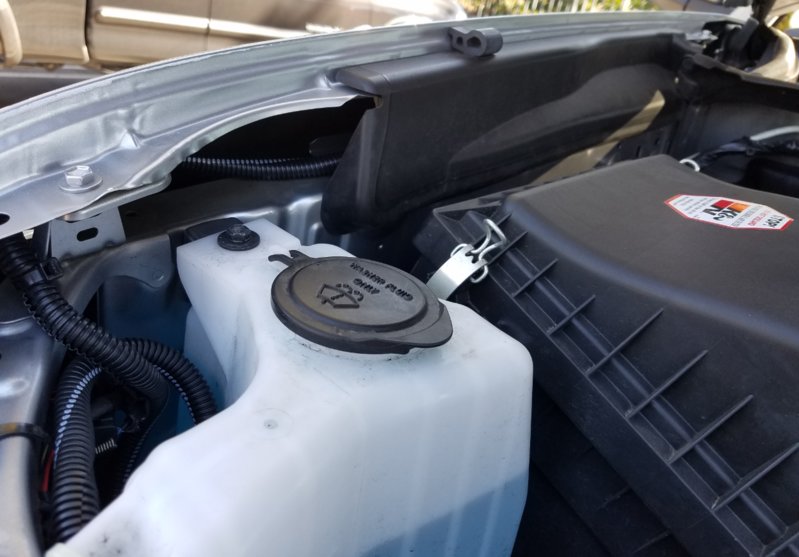

    Engine Component Wiring



    Again, I design and mod the cameras for my needs. Feel free to understand ... I am not responsible for any accidents due to the reader use these information.

    Note:
    If you take this design or similar design that I posted on TW, or modify or whatever with this schematic and build a kit to sell it online or here at TW (INTELLECTUAL THEFT), think again ...you do not have my permission to do so. I post this schematic for our members to build for owner use.
    My Attorney friend will not hesitate to contact you when you use my intellectual property for your profit or sell without my permission.

    Last edited: Jul 14, 2018
  2. Jan 31, 2017 at 4:12 PM
    #2
    Taco 3.14lot

    Taco 3.14lot Active Member

    Joined:
    Feb 27, 2016
    Member:
    #179610
    Messages:
    43
    Gender:
    Male
    First Name:
    J
    Anchorage, AK
    Vehicle:
    2016 Inferno Tacoma TRD OR DCSB
    Great write up, thanks for the info! One question of clarification I had - so pins 12 and 24 on the 24 pin connector are the inputs for the OEM rearview camera?

    KTJO 4x4 and Mikek095 like this.
  3. Jan 31, 2017 at 4:18 PM
    #3
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610

    Correct.


    There is another method that you can feed video signal into the HU beside pin 12 and 24. But I don't want to share right now, it will confuse people.

    In the near future, I will do it.

    KTJO 4x4, ronoc and Taco 3.14lot like this.
  4. Jan 31, 2017 at 4:39 PM
    #4
    gpb

    gpb Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    4,817
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    17pro88 likes this.
  5. Jan 31, 2017 at 4:47 PM
    #5
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610
    Updated BOM link for better choice. Thanks

    gpb likes this.
  6. Feb 1, 2017 at 3:57 AM
    #6
    mthopton

    mthopton Well-Known Member

    Joined:
    Feb 17, 2016
    Member:
    #178440
    Messages:
    348
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    '16 TRD DCSB 4x4
    Good write-up, I think. I have no idea how to read electrical schematics but wish I did. I'd love to be able to put in a front camera and switch between the two as needed.

  7. Feb 1, 2017 at 4:30 AM
    #7
    gpb

    gpb Well-Known Member

    Joined:
    Aug 24, 2016
    Member:
    #195408
    Messages:
    4,817
    Gender:
    Male
    Atlanta
    Vehicle:
    2017 White DCSB TRDOR 4x4
    @mthopton check out briguydiy.com for prebuilt solutions for the harness/switching part. You'd still need to wire and power a front camera.

    Arrampico and tperks like this.
  8. Feb 6, 2017 at 6:07 PM
    #8
    Abec23

    Abec23 Active Member

    Joined:
    Oct 14, 2015
    Member:
    #166639
    Messages:
    44
    Gender:
    Male
    East Los Angeles
    Vehicle:
    2016 black Tacoma TRD Sport 4X4

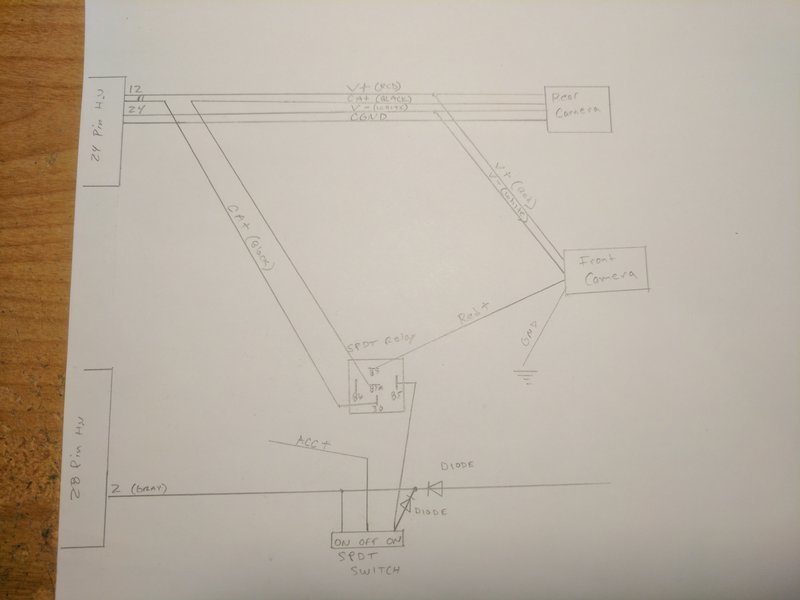

    I did the front camera and rear camera anytime mod.
    1 spdt switch
    1 dpdt relay
    2 diodes
    thanks to this forum a lot of information in here.


    Travis11, Bastek, Arkie-Marty and 2 others like this.
  9. Feb 6, 2017 at 6:36 PM
    #9
    ElGatoLoco

    ElGatoLoco Well-Known Member

    Joined:
    Dec 7, 2016
    Member:
    #204285
    Messages:
    522
    Gender:
    Male
    Vehicle:
    '17 DCSB TRD Sport
    Have you thought about adding front proximity sensors as well?

  10. Feb 6, 2017 at 6:41 PM
    #10
    Abec23

    Abec23 Active Member

    Joined:
    Oct 14, 2015
    Member:
    #166639
    Messages:
    44
    Gender:
    Male
    East Los Angeles
    Vehicle:
    2016 black Tacoma TRD Sport 4X4
    I think with the front camera is enough

  11. Feb 8, 2017 at 11:17 AM
    #11
    MilkTeacoma

    MilkTeacoma Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148023
    Messages:
    372
    Nice Brian! I see you updated your website. Looks good buddy!

    JMW likes this.
  12. Feb 8, 2017 at 12:00 PM
    #12
    opentang

    opentang you're doing a good job

    Joined:
    Apr 18, 2014
    Member:
    #127961
    Messages:
    654
    Gender:
    Male
    First Name:
    Brandon
    Allen, TX
    Vehicle:
    2016 TRD OR 4x4
    When I click Tacoma on the home page nothing loads. Am I missing something?

  13. Feb 10, 2017 at 12:12 PM
    #13
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    988
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    This is awesome... I have a few questions.

    Is the wiring the same for the JBL radio?

    Am I understanding how this operates correctly?
    1. Press OEM style "camera" switch to activate camera anytime mod
    2. Switch DPDT selector switch to toggle between rear and front camera​

    If DPDT camera selector switch is left on front camera input and I shift to reverse, what camera (if any) will show up on the screen? (assuming OEM style "camera" switch is off)

  14. Feb 10, 2017 at 12:16 PM
    #14
    Papa Taco

    Papa Taco HARD CAAAAAAARRRRRRRL

    Joined:
    Feb 20, 2013
    Member:
    #98004
    Messages:
    8,467
    Gender:
    Male
    First Name:
    Jared
    Safety Meeting
    Vehicle:
    2011 Access Cab 4x4 6 Speed
    Follow the yellow brick road
    Need this

  15. Feb 10, 2017 at 2:34 PM
    #15
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610
    1. JBL or not, wiring is identical.
    2. Press S1 to activate Cameras at anytime.
    3. If dpdt is switched to front, S1 is off and shift to reverse then screen is dark (no image/video).

    dilbert likes this.
  16. Feb 10, 2017 at 2:41 PM
    #16
    dilbert

    dilbert Well-Known Member

    Joined:
    Mar 14, 2016
    Member:
    #181276
    Messages:
    988
    Gender:
    Male
    PNW
    Vehicle:
    2019 DCLB TRD Off-Road
    Awesome, thanks! Adding this to my to-do list.

  17. Feb 14, 2017 at 10:09 AM
    #17
    Brian4.2

    Brian4.2 Well-Known Member

    Joined:
    Dec 20, 2015
    Member:
    #172746
    Messages:
    55
    Gender:
    Male
    First Name:
    Brian
    Vehicle:
    2016 white 4x2 offroad
    I went thru pep boys with a crap magnet, got it all
    This is awesome, thank you for the write up.

  18. Feb 14, 2017 at 1:00 PM
    #18
    TditoTRDOR?

    TditoTRDOR? Well-Known Member

    Joined:
    Nov 4, 2016
    Member:
    #201504
    Messages:
    64
    Is there a factory "looking" spdt switch? Literally, if we had this, we would only need the one switch... yes?
    *btw, appreciate your write up... just waiting on some specifics. I want a camera for the TRD Pro grille. :)

  19. Feb 14, 2017 at 1:13 PM
    #19
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    610

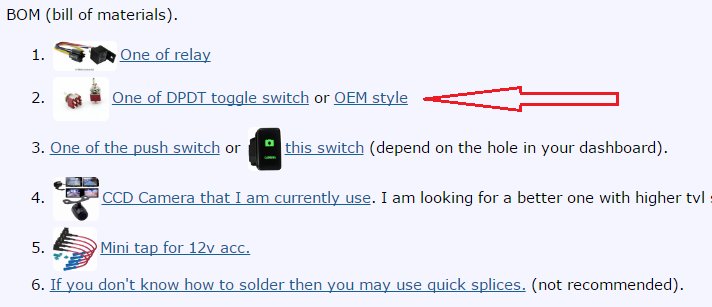

    Yes, there is factory looking spdt switch, just click on top post as red arrow indicated:
