3rd Gen Tacoma Products by C4 Fab (bumpers, sliders, bed bars)

Discussion in 'C4 Fabrication' started by C4 Fabrication, May 25, 2016.

  1. May 25, 2016 at 7:36 AM
    #1
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Hey everyone! I just wanted to get a thread started showing some of the new products we have been working on for the 3rd gen Tacoma. These items are in the final stages of production and will be ready to order very soon. Right now I am just going to post up some pics showing what we have been working on. Let us know what you think!

    Front Lo-Pro winch bumper. Accepts non-integrated winch up to 12K. Made to fit Baja Designs 20" S8 light bar. Tow hooks for D-ring shackles are standard.
    Can be ordered with or without upper hoop.
    Requires cutting out lower "fat lip" center section of bumper below grille.


    Hartman, mattgecko, dub_11 and 5 others like this.
  2. May 25, 2016 at 7:49 AM
    #2
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.

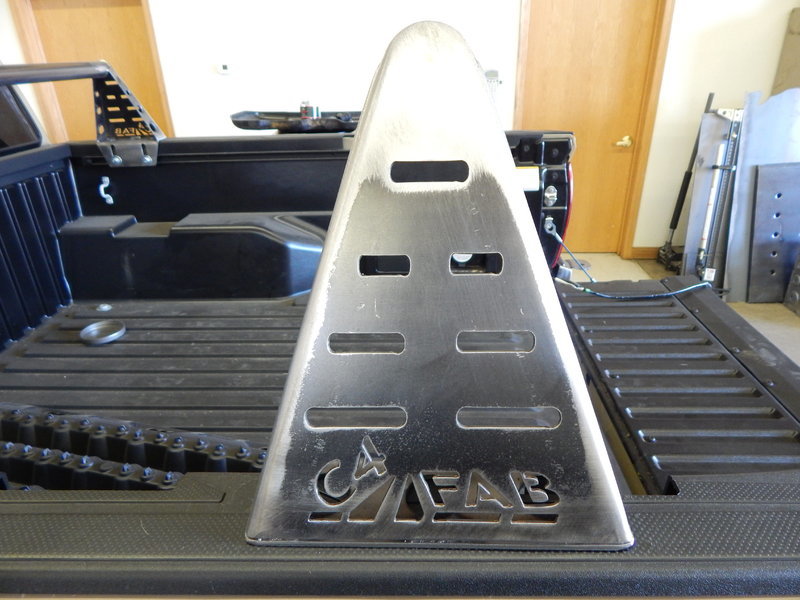

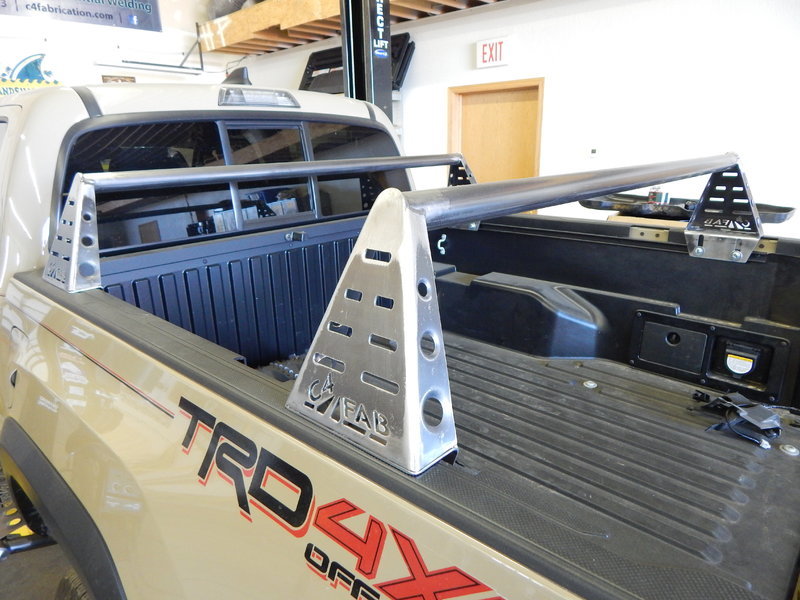

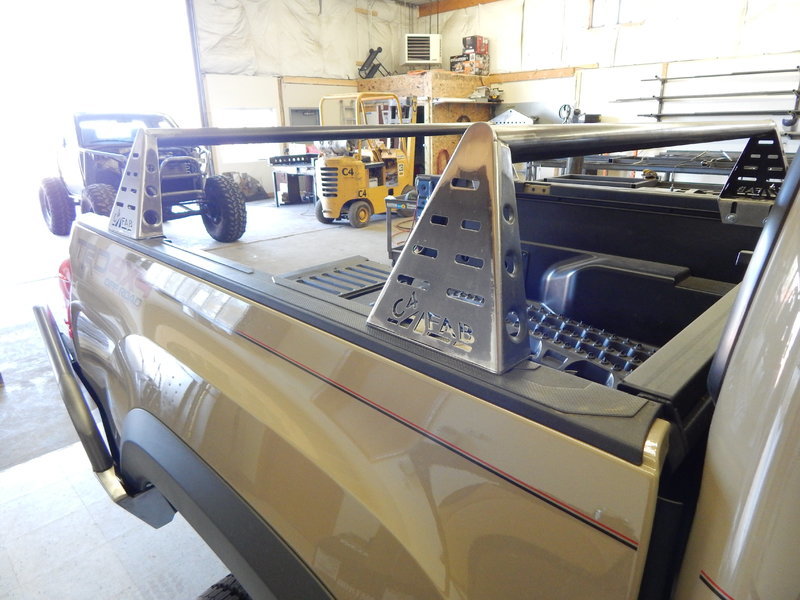

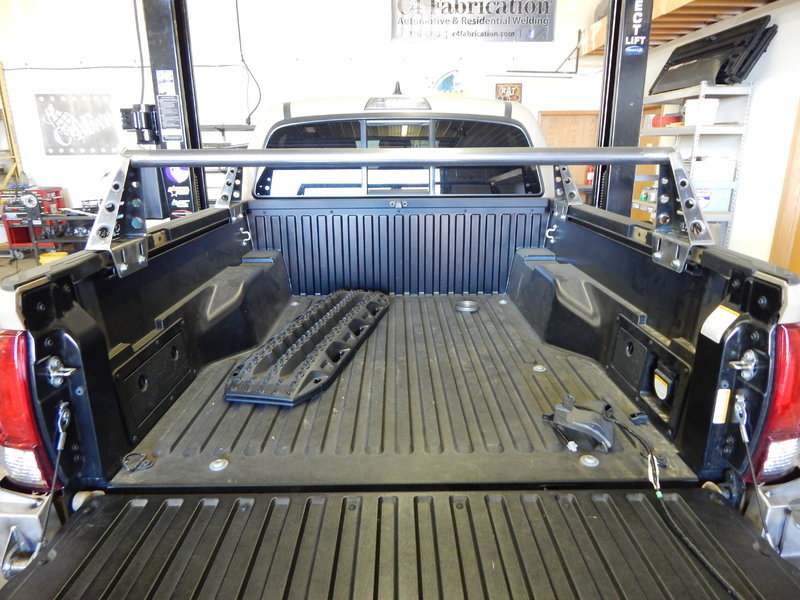

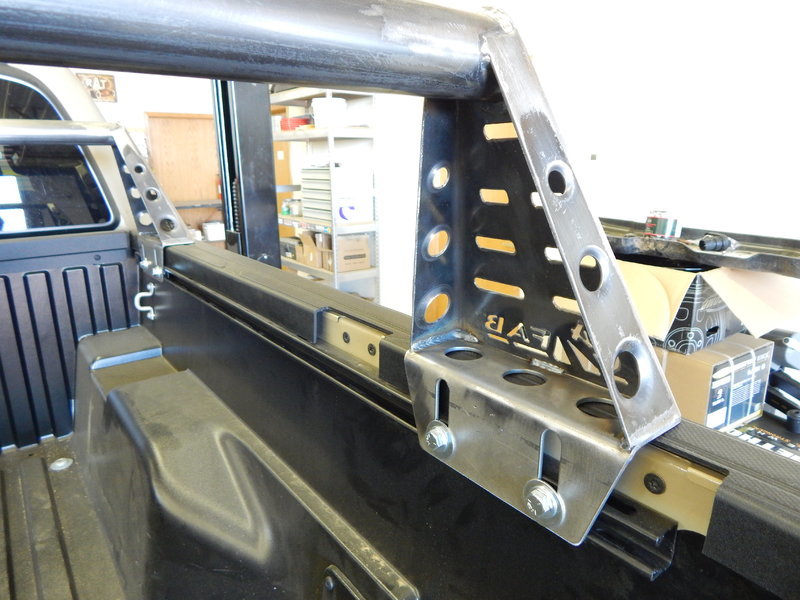

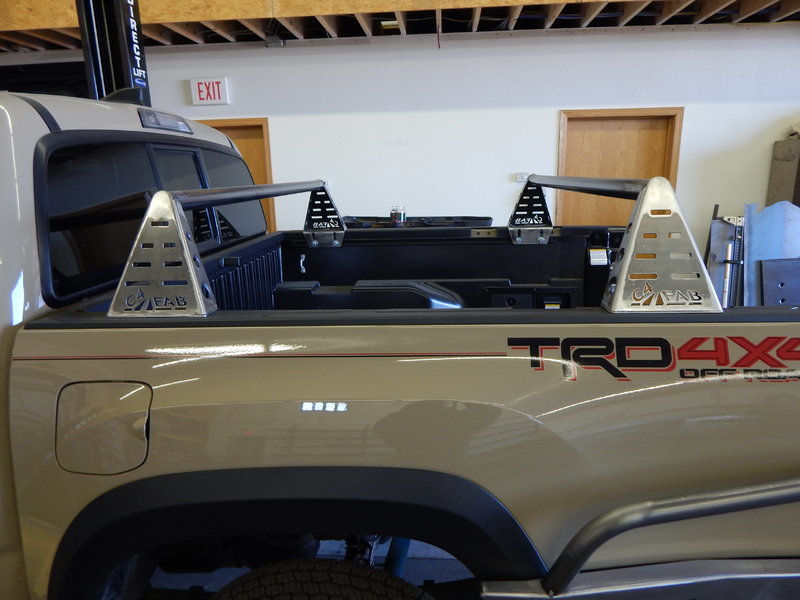

    Bed Bars- These bars use multiple slotted holes for the customer to attach multiple accessories. Each tower uses two bolts on each side to attach into the bed track to make them very stable and heavy duty. Wrap around brackets allow the weight of whatever you are carrying to be supported by the pickup bed itself and not just the bed track. These will also be available in a taller height than pictured. These bed bars will also fit 2nd gen Tacoma's.
    Bolt bracket is 1/8" steel, uprights are 14 gauge steel, cross tube is 1 3/4" OD .120 wall tube.


  3. May 25, 2016 at 8:06 AM
    #3
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.

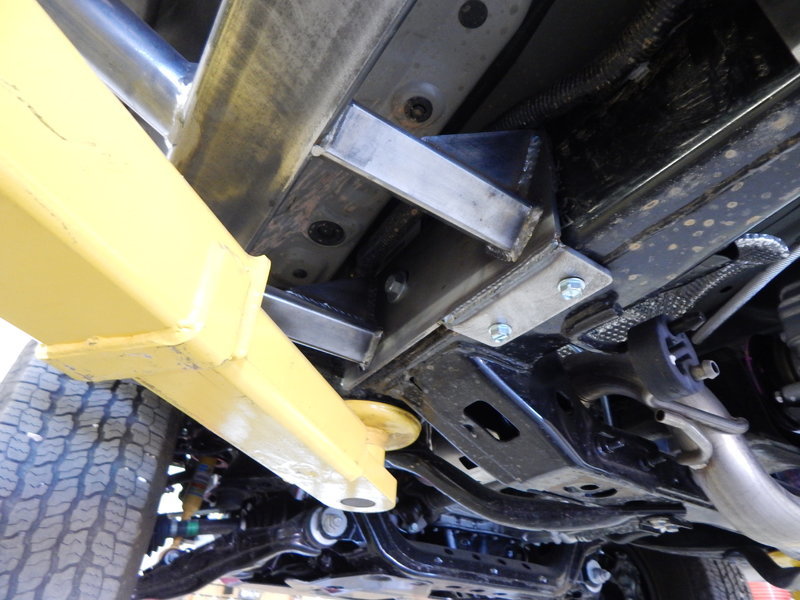

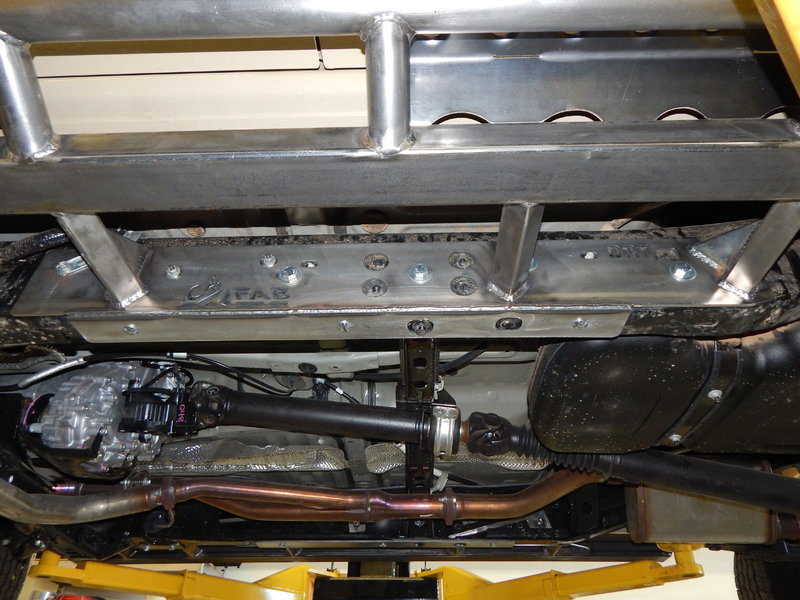

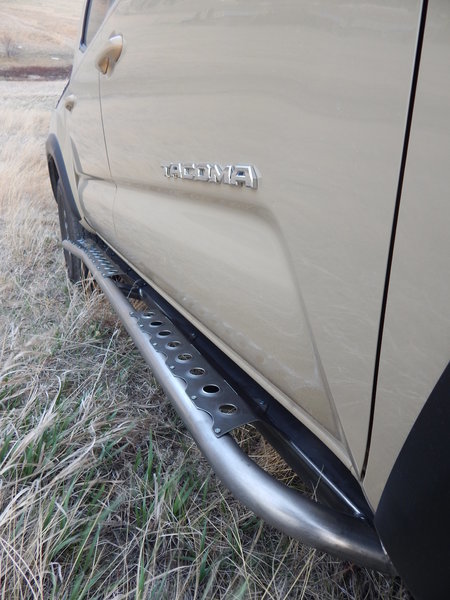

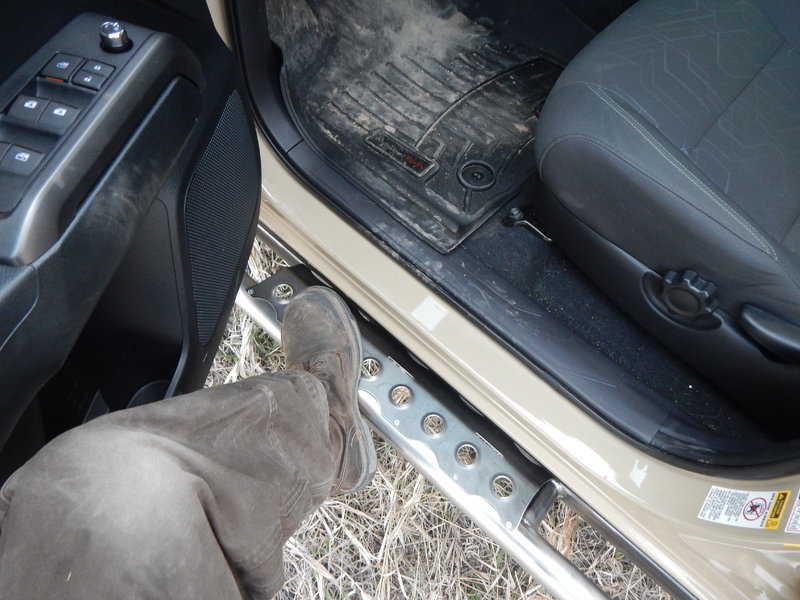

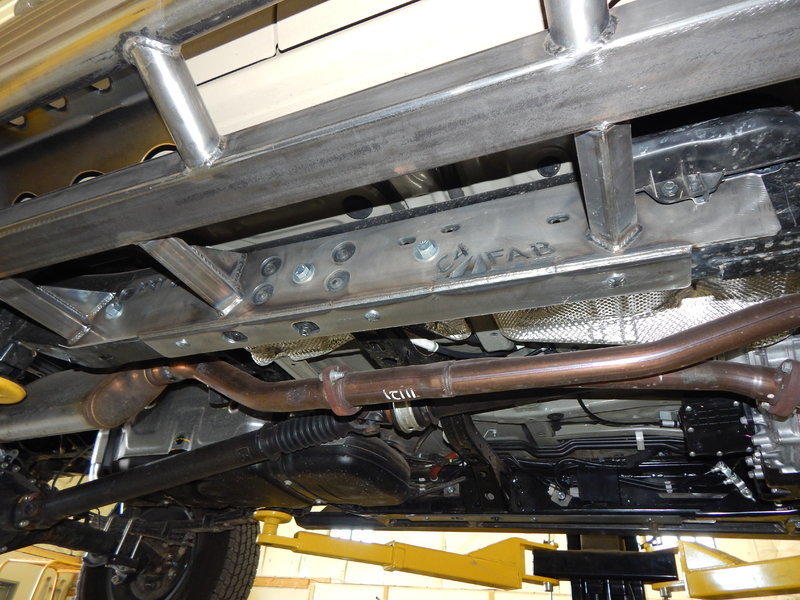

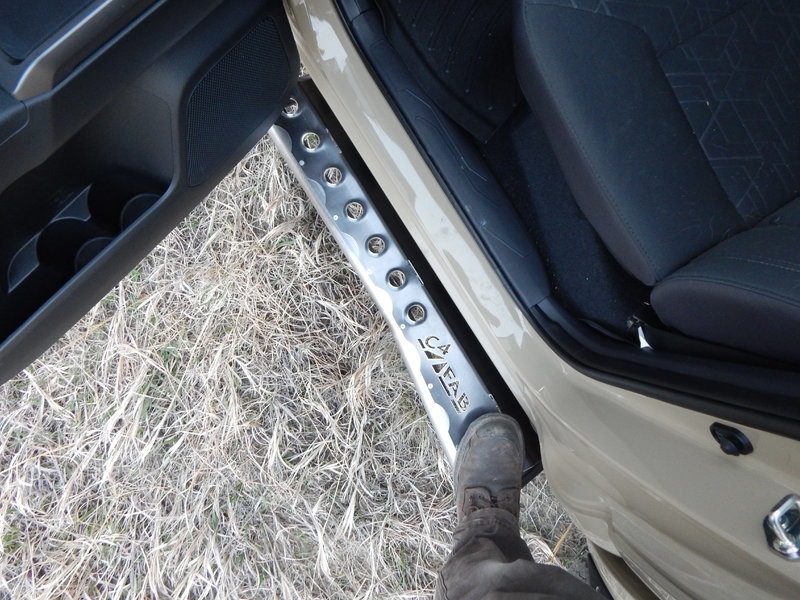

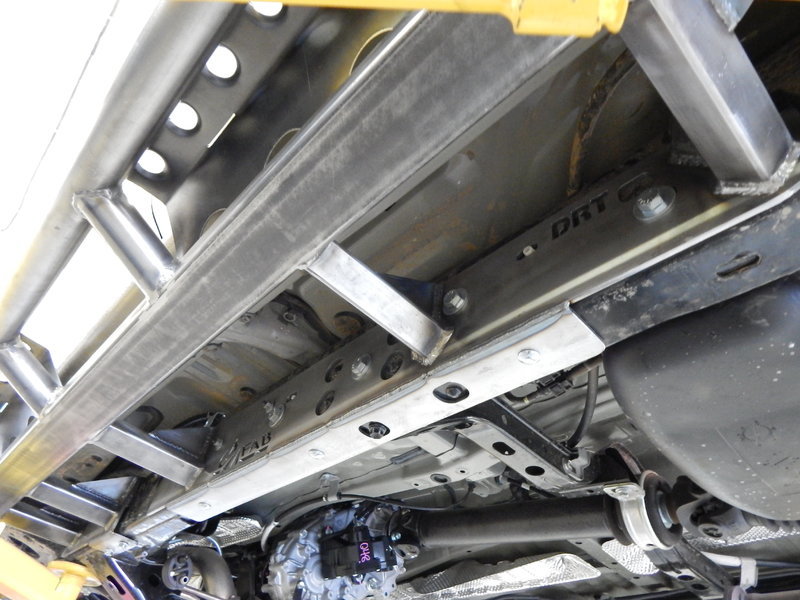

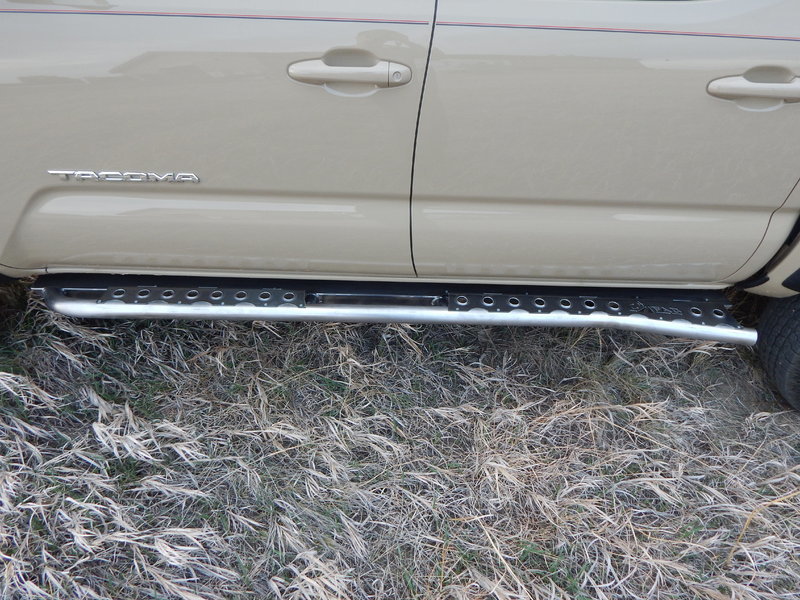

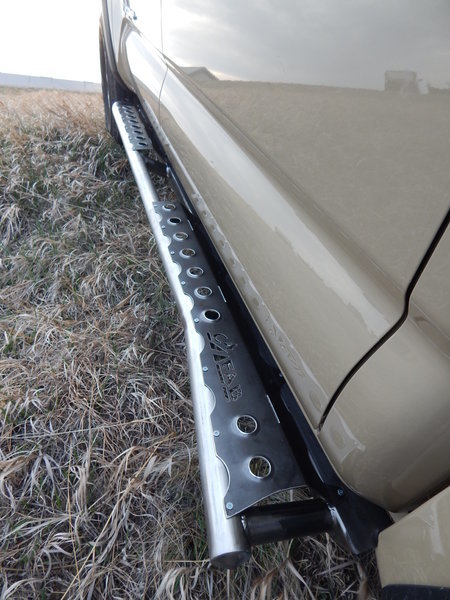

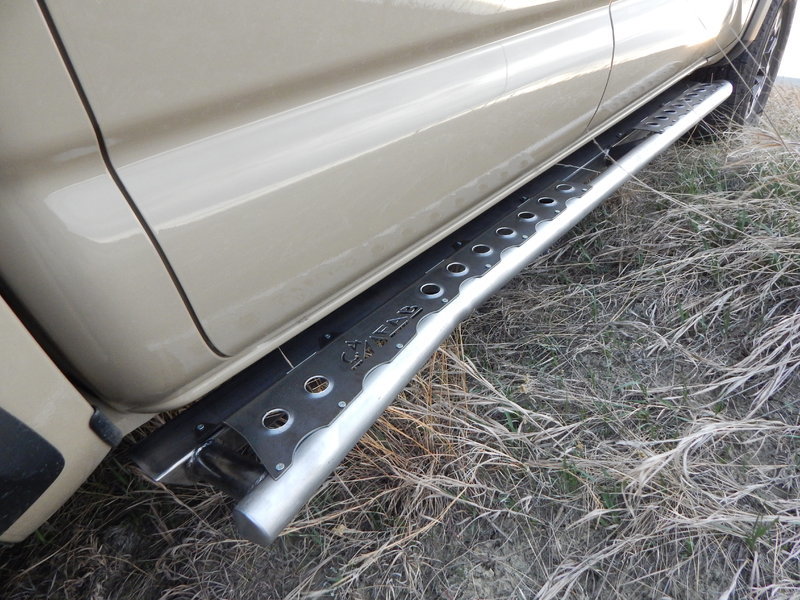

    Rock sliders- Complete bolt-on setup. Some drilling required for ultimate mounting strength, but not necessary for light duty use.

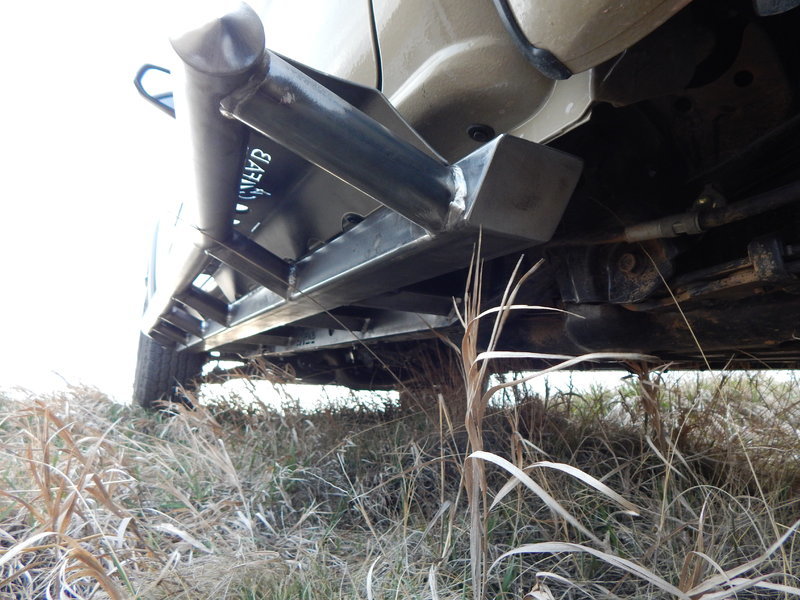

    Our rock sliders utilize a unique design that allows for a high clearance slider with the outer portion sloped up at 25 degrees, but still offers a flat step plate that is easy to use for getting in and out. We have been building sliders with this design for the 5th gen 4runners for about 6 months now and customers love the functionality of the flat step plates! The step plates are also removable. We use 10-24 torx pan head self threading screws to hold the step plates onto the slider. This allows for the ability to get the best paint or powder coat coverage all the way around the step and slider tubes. Customers also like the fact that they can use a two tone paint job if wanted or get the step plates themselves coated in Line-x or similar product for the ultimate grip and durability.

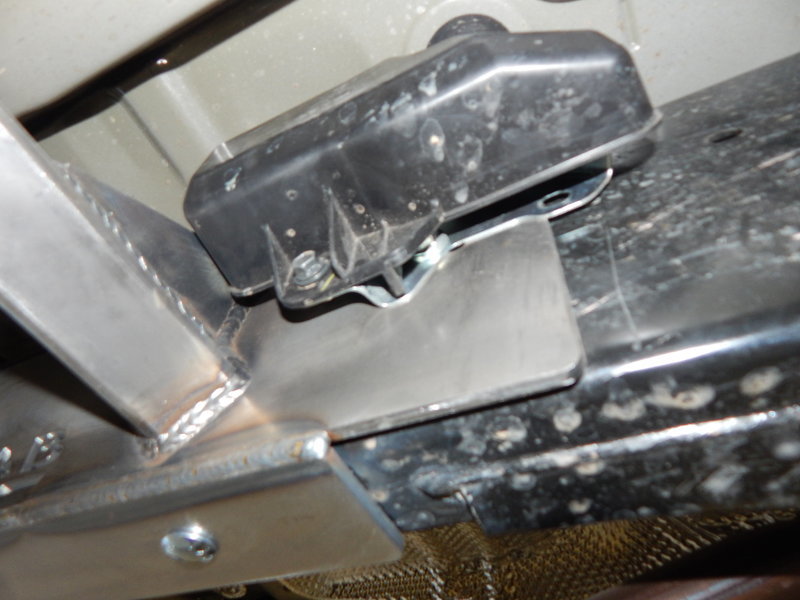

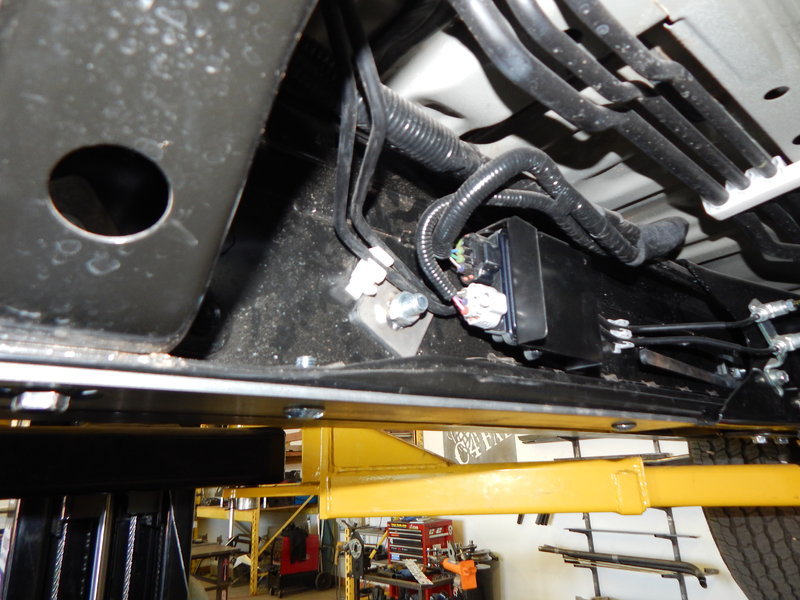

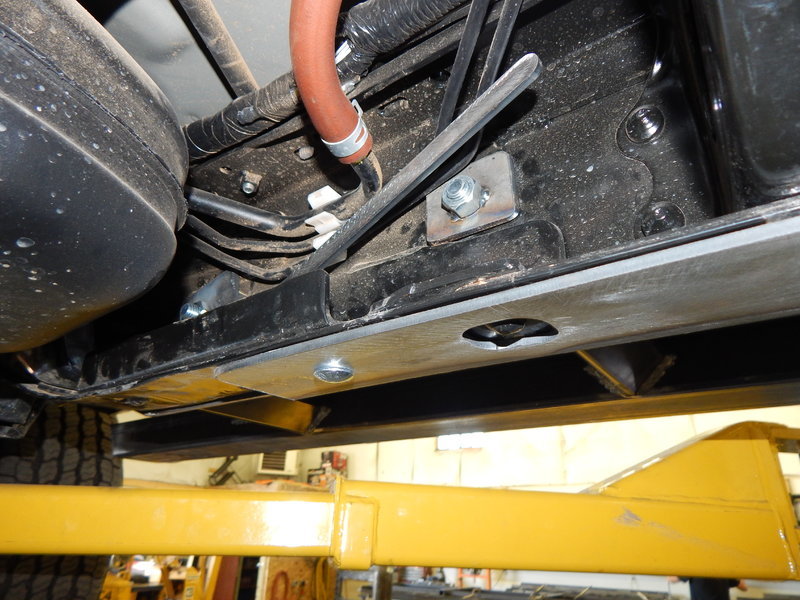

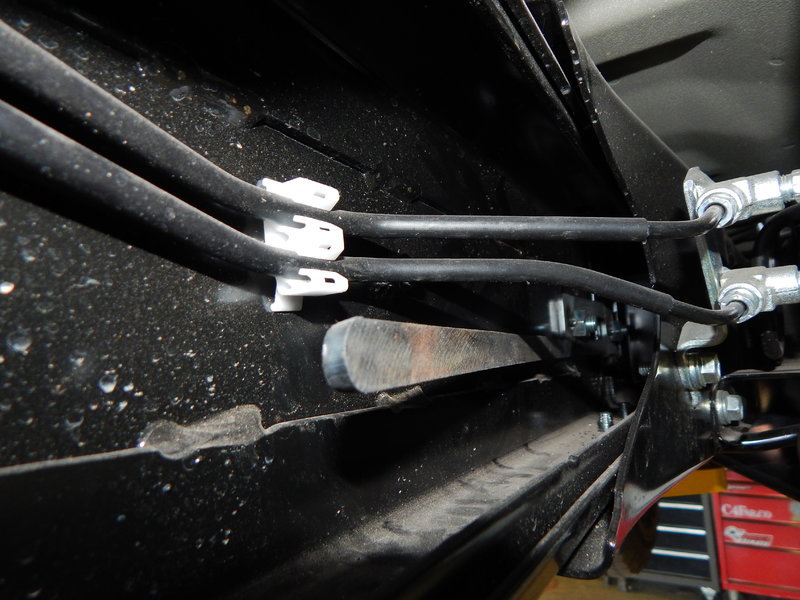

    Frame plates utilize existing holes to fit 1/2" bolts through with captured nuts on the back. Carriage head and self threading 3/8" bolts secure the frame plate to the bottom of the frame rail for the best strength possible.
    These sliders fit 05-current double cab short bed and access cab long bed.
    Slider main tube is 3x2 11 ga rectangle tube. Leg supports are 1 1/2" 11 ga square tube rotated at 45 degree angle. Outer tube is 2" OD 11 ga round tube. Outer tube supports are 1 3/4" OD 11 ga round tube. Step plates are 14 ga steel plate.


    Last edited: May 25, 2016
    Toynado and nismoz33 like this.
  4. May 25, 2016 at 8:23 AM
    #4
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Complete replacement front bumper. Requires no cutting except trimming off fender flare where it meets the bumper. made from CNC cut and press brake bent 3/16" pickled and oiled plate. Fits up to 12k non integrated winch. Made to fit Baja Designs 20" S8 light bar (light in the picture is a cheap light used for moch up). Factory fog lights can be used or we can build it to fit Baja Designs Squadron cube lights. Can be ordered with no tube, center hoop only, or full tubing. Center hoop is 1 3/4" OD 11 ga tube. Outer tubes are 1 1/2" 11 ga tube.


  5. May 25, 2016 at 8:59 AM
    #5
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.

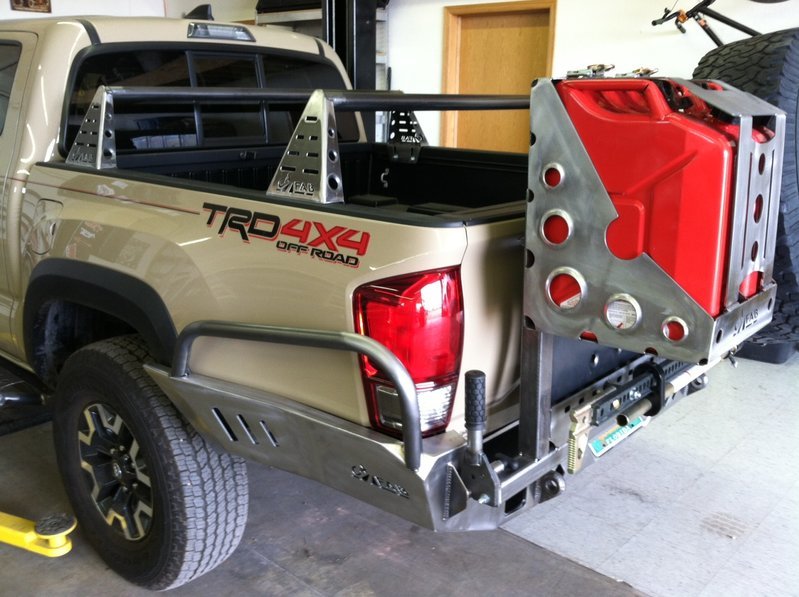

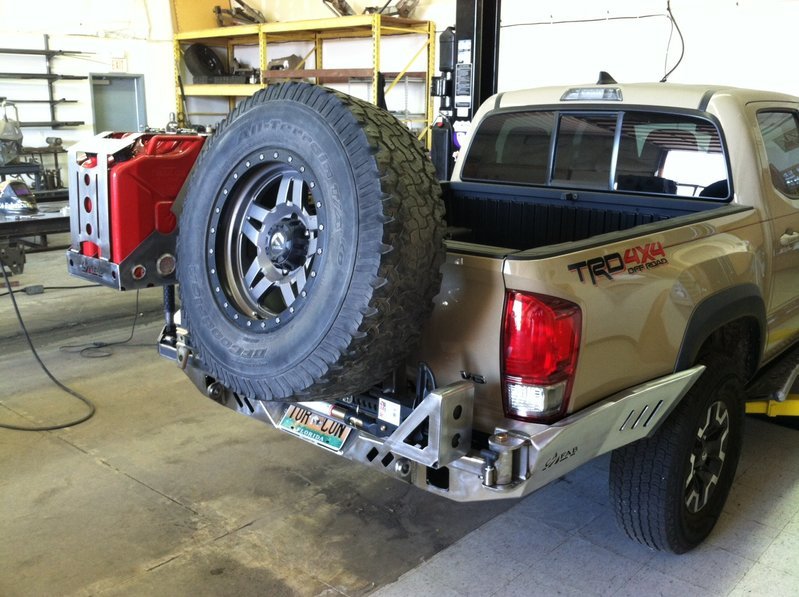

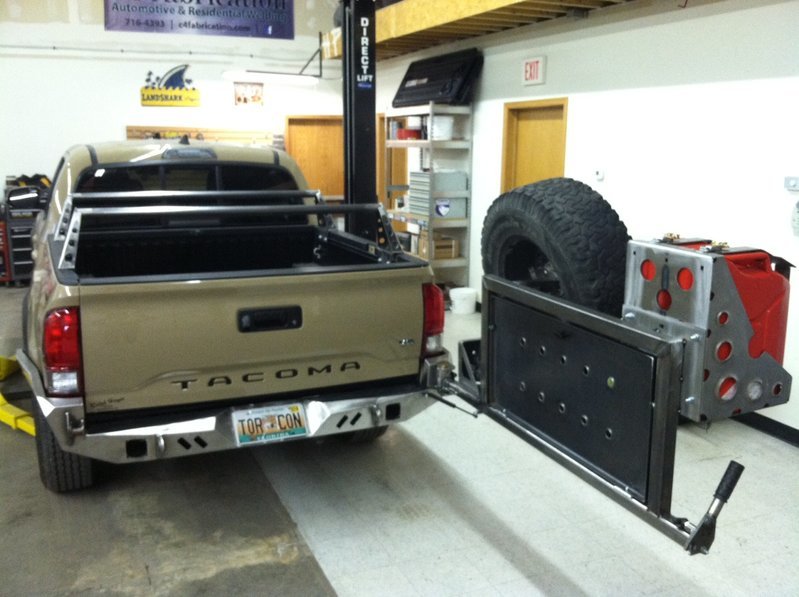

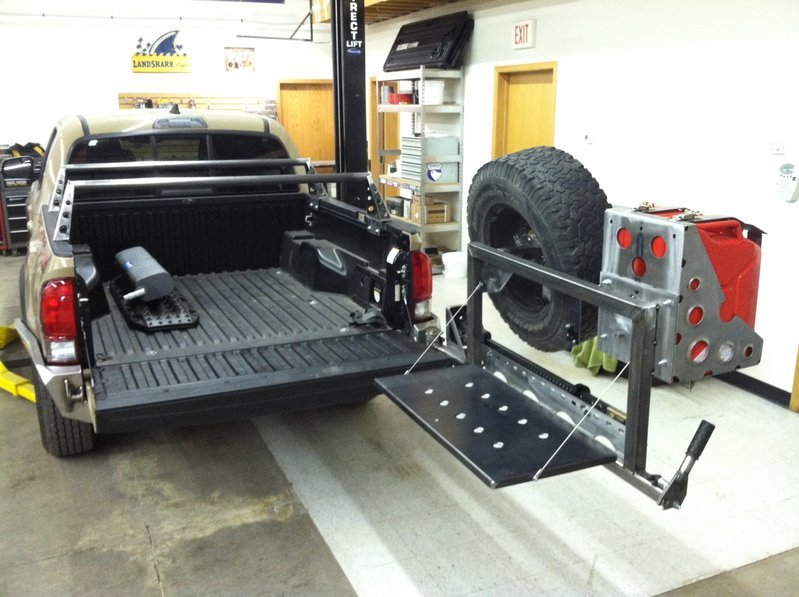

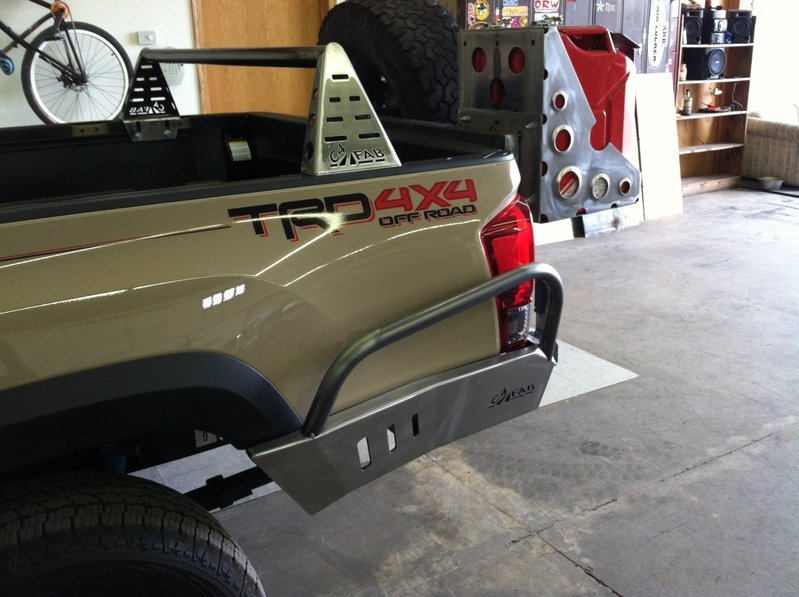

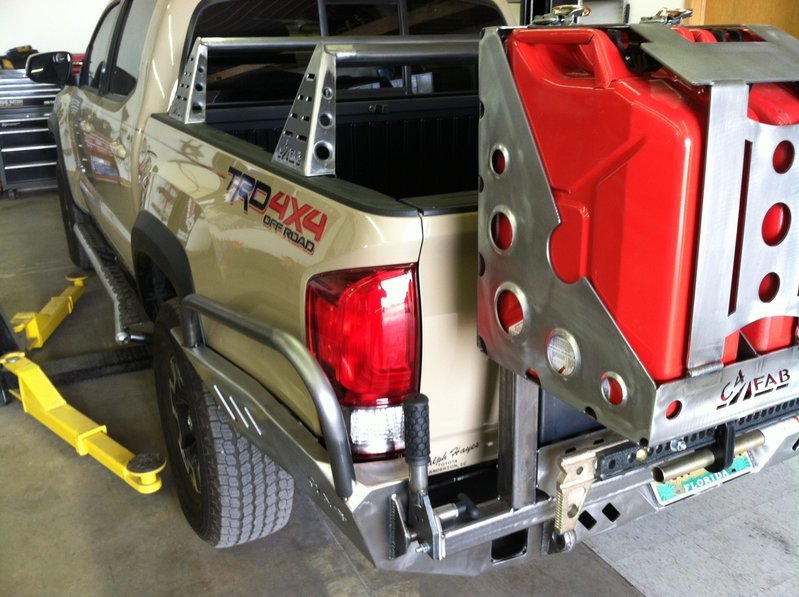

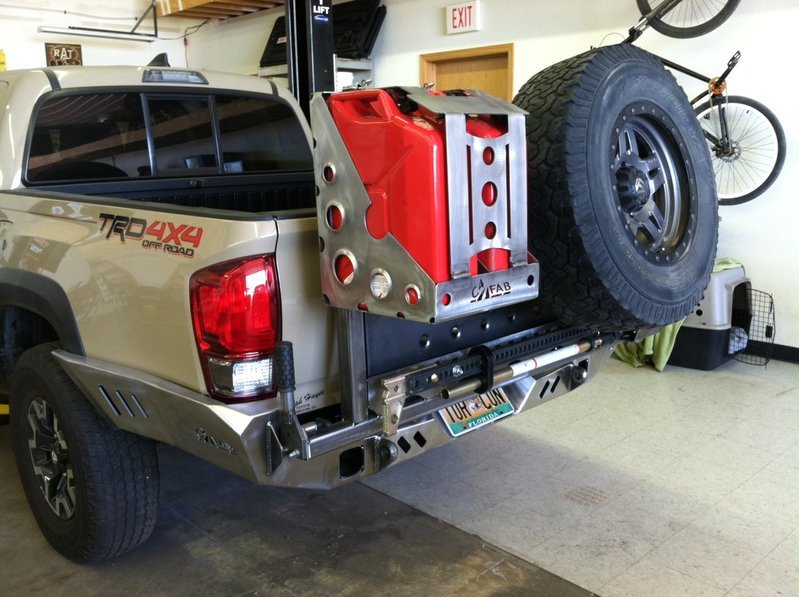

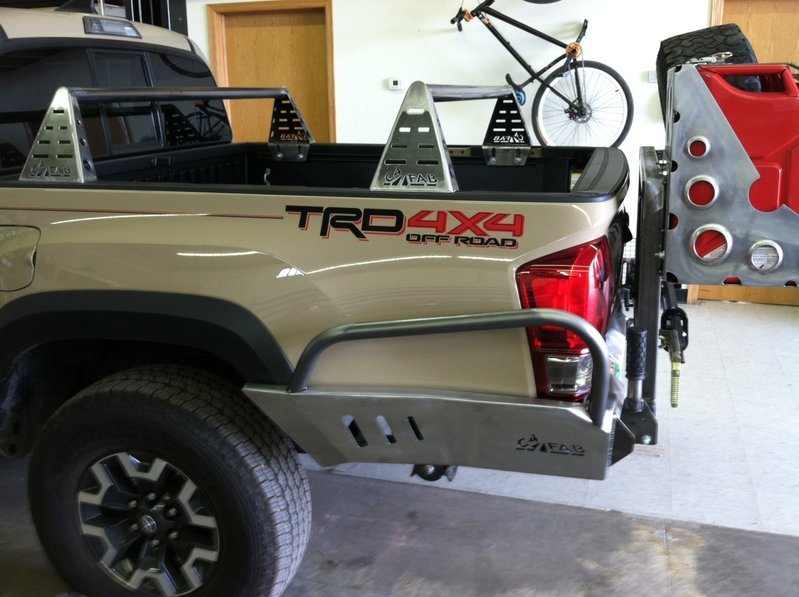

    High clearance rear bumper. Requires cutting off the bedside below tail light area. Can be ordered with or without side tube guards. Swing out can also be added with multiple accessories. Bumper comes standard with integrated hidden hitch. Hitch and trailer wiring plug are hidden behind flip up license plate. Cut outs for Baja Designs Squadron flush mount reverse lights are optional.
    Main portion of bumper is 3/16 pickled and oiled steel plate. frame mounting plates and hitch area are 1/4" plate. Tow points are 3/8" plate with weld washers on shackle pin area.

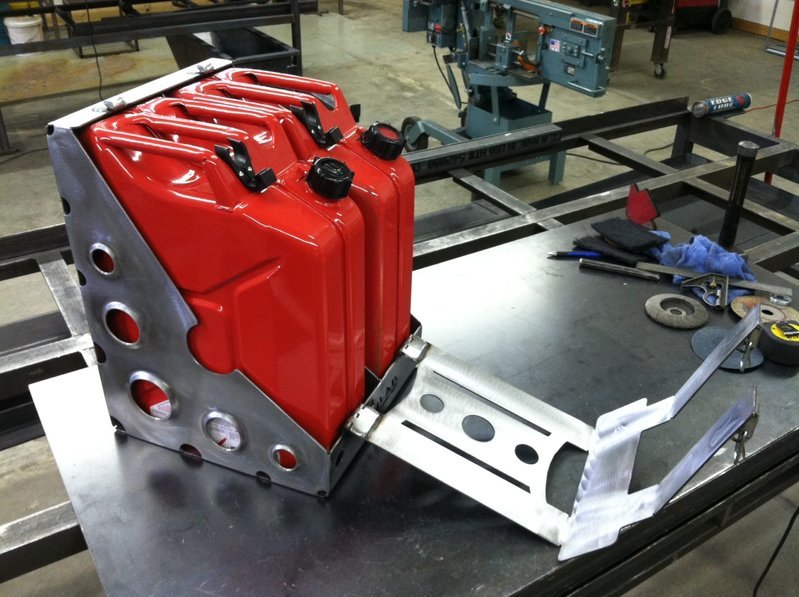

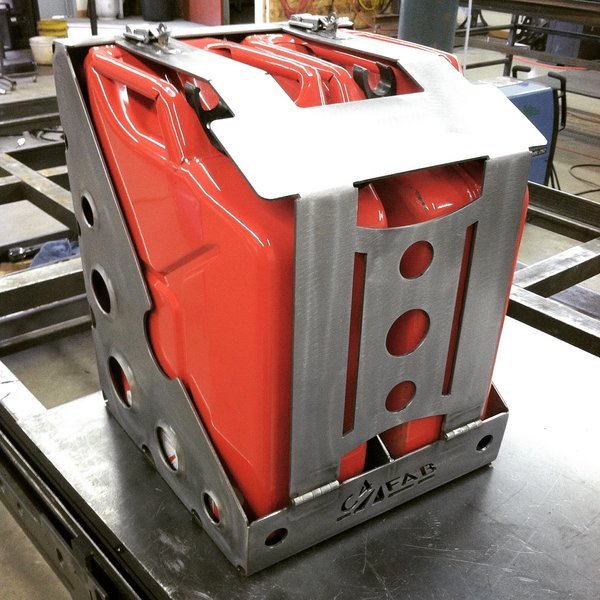

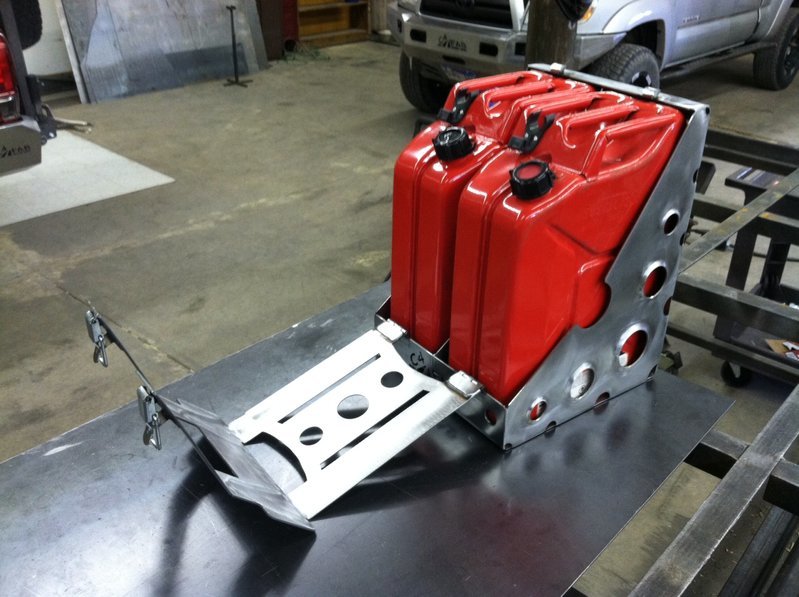

    Swing out is made using 4xInnovations Bearing pivot and latch system. Many options can be added to swing out- spare tire mount, jerry can mount, rotopax mount, maxtrax mount, Yeti cooler mount, fold down camp table and Hi-lift.
    Sorry for the not so great quality photos. I just realized that currently i only have phone pics of the rear bumper.

    photo 4.jpg
    photo 5.jpg
    photo 1.jpg
    photo 2.jpg
    photo 3.jpg

    Toynado, Mad T, nismoz33 and 3 others like this.
  6. May 25, 2016 at 4:14 PM
    #6
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
  7. May 25, 2016 at 4:49 PM
    #7
    3dBdown

    3dBdown Well-Known Member

    Joined:
    Sep 18, 2015
    Member:
    #164574
    Messages:
    692
    Gender:
    Male
    Vehicle:
    2016 DCLB BBP 4x4 Sport
    looking good. Can't wait to see some pics all finished/painted.

  8. May 25, 2016 at 6:31 PM
    #8
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Thanks! Everything is getting powder coated next week and will be installed the beginning of the following week. We are very excited to see it all complete!

  9. May 26, 2016 at 3:24 PM
    #9
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
  10. May 26, 2016 at 4:11 PM
    #10
    schmack b

    schmack b Well-Known Member

    Joined:
    Jan 16, 2016
    Member:
    #175139
    Messages:
    314
    Gender:
    Male
    Clarksdale, Mississippi
    Vehicle:
    2016 DCSB TRD OR M/T
    Your shit is sweet. All the sheet metal quality, and craftsmanship look top notch. I really like the way u did the mounting brackets on the sliders with the gusset going up to the top of the plate, and the mounting holes on the bottom.

  11. May 27, 2016 at 7:06 AM
    #11
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Thanks! We have put alot of thought and design time into our products! Our rock sliders for the 5th gen 4runners have been a big hit, and alot of customers wanted us to offer them for Tacoma's. The Tacoma in the photos will be an awesome looking rig here in a couple weeks. We will be posting up alot of professional photos and documents for all of the products soon!

  12. May 27, 2016 at 12:55 PM
    #12
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
  13. May 27, 2016 at 7:53 PM
    #13
    Threerun

    Threerun Well-Known Member

    Joined:
    Apr 27, 2016
    Member:
    #185426
    Messages:
    1,443
    Gender:
    Male
    Lost in Montana *recalculating*
    Vehicle:
    2016 Silverado LTZ
    6.2L 8spd stock
    I like the Lo-Pro winch bumper. Very nicely done. I also like the bed bars- It looks like with a tad of tweaking on the mounts and a tad higher bar they may actually work with a Bestop Topper (hint-hint :p )

  14. May 27, 2016 at 8:15 PM
    #14
    0uTkAsT

    0uTkAsT Gunslingin' Gearhead

    Joined:
    Mar 1, 2011
    Member:
    #52127
    Messages:
    11,374
    Gender:
    Male
    First Name:
    Josh
    Maricopa, AZ
    Vehicle:
    Rock Flinging Turd Gen
    Stuff that makes it easier to run over other stuff.
    Sub'd. Can't wait to see how the low pro front bumper looks powdercoated... I've been waiting for someone to come out with a solution like that.

  15. May 28, 2016 at 4:15 PM
    #15
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    Thanks! and are you talking about the Bestop canvas topper?
    Thank you! We are excited to get a few pics of it powdered and on the truck!

  16. May 28, 2016 at 5:49 PM
    #16
    Threerun

    Threerun Well-Known Member

    Joined:
    Apr 27, 2016
    Member:
    #185426
    Messages:
    1,443
    Gender:
    Male
    Lost in Montana *recalculating*
    Vehicle:
    2016 Silverado LTZ
    6.2L 8spd stock
    Yup- I have a canvas topper on order for my truck. Looks like if you extended the portion that sits atop the bed rail farther out, a truck cap could rest on top. With a Bestop I think the folding hardware sits in such a manner that would also work with that.

    I'm going to have to do something for my rig- I haul canoes and kayaks and other misc shit all the time.

  17. May 29, 2016 at 12:10 PM
    #17
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    yeah it would be great to be able to fit the Bestop around the bars, then be able to take the top off when needed to haul canoes and other stuff

  18. May 29, 2016 at 1:02 PM
    #18
    Threerun

    Threerun Well-Known Member

    Joined:
    Apr 27, 2016
    Member:
    #185426
    Messages:
    1,443
    Gender:
    Male
    Lost in Montana *recalculating*
    Vehicle:
    2016 Silverado LTZ
    6.2L 8spd stock
    Ya know all you have to do is give me an excuse to drive down there and hunt some birds.....:D

  19. May 29, 2016 at 5:11 PM
    #19
    C4 Fabrication

    C4 Fabrication [OP] Well-Known Member Vendor

    Joined:
    Apr 30, 2014
    Member:
    #128867
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Caleb
    South Dakota
    Vehicle:
    07 DCLB Sport
    2" lift, 285/70/17 BFG TA KO2's, baja bumper, bedrack with swing out, CVT RTT, Leather interior, heated seats, JBL, remote start, K&N intake, Hood Scoop LED lightbar mod.
    We've got plenty of open space and birds here thats for sure!

  20. May 30, 2016 at 11:36 AM
    #20
    breader3

    breader3 2016 TRD Off-Road 4x4

    Joined:
    Dec 28, 2015
    Member:
    #173380
    Messages:
    453
    Gender:
    Male
    First Name:
    Brad
    Las Vegas
    Any chance of variations of this? IE, no license plate cutout, or with those (vents?) removed?
