3rd Gen Traction Control Modes Explained

Discussion in '3rd Gen. Tacomas (2016+)' started by Doggman, Jan 25, 2018.

  1. Jan 25, 2018 at 4:58 PM
    #1
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT
    Tacoma's option 6 different traction aids. Toyota's definitions are very vague and create confusion but we are going to clear that up here.

    VSC (Vehicle Stability Control) is solely responsible for maintaining vehicle stability. It will accomplish this by cutting engine power as well as applying brakes to individual wheels as it sees fit. It is important to note the difference between stability and traction here. VSC is more concerned about the truck sliding out of control. It is not concerned with a wheel losing traction while crawling through a trail. VSC will kick in for things like swerving for a deer in the road or sliding from a patch of black ice. A yaw sensor and possibly other sensors are utilized to determine if the truck has lost stability.

    TRAC (Traction Control) is solely responsible for maintaining traction. Making sure that none of the wheels are needlessly spinning because they have lost traction. It accomplishes this by applying brakes to individual wheels as it sees fit. TRAC will kick in anytime it detects wheels rotating at significantly different speeds – such as starting in icy conditions, driving through mud or snow and lifting a tire while offroading.

    AUTO LSD (Automatic Limited Slip Differential) is a 2wd only mode that has TRAC turned on and VSC turned off. Meaning you get the brake simulated LSD functionality from TRAC while preventing VSC from intervening and cutting engine power. This is useful for powering out of situations where VSC is preventing you from getting out/started because it is constantly cutting engine power.

    A-TRAC (Active Traction Control) is a 4Lo only mode that does the same thing as TRAC but turned up a few notches. Also, A-TRAC will not cut engine power. A-TRAC provides near locker like performance in that it allows very little speed difference between wheels.

    MTS (Multi-Terrain Select) is a 4Lo only mode that does the same thing as A-TRAC but the amount of slip allowed can be adjusted via the various modes.

    Rear Locker mechanically locks the rear wheels together.

    All model’s get VSC, TRAC and AUTO LSD.
    TRD OR and TRD Pro models with manual transmissions get A-TRAC and the rear locker.
    TRD OR and TRD Pro models with automatic transmissions get MTS and the rear locker.

    So now that we know exactly what all those are the different drive modes are simple. If it’s on, it’s going to do the above. If it’s off, it’s not.

    All Models
    1. 2Hi TRAC ON and VSC ON
    2. 2Hi AUTO LSD. In this mode VSC is off from 0-30mph and on over 30mph.
    3. 2Hi TRAC OFF and VSC OFF

    4. 4Hi TRAC ON and VSC ON.
    5. 4Hi TRAC OFF and VSC ON. In this mode TRAC is off from 0-30mph and on over 30mph.
    6. 4Hi TRAC OFF and VSC OFF

    SR/SR5/TRD Sport/Limited
    7. 4Lo TRAC ON and VSC OFF.
    8. 4Lo TRAC OFF and VSC OFF

    TRD Offroad/TRD Pro with manual transmission
    7. 4Lo TRAC OFF and VSC OFF
    8. 4Lo TRAC OFF, VSC OFF and A-TRAC on
    9. 4Lo TRAC OFF, VSC OFF and rear locker engaged
    10. 4Lo TRAC OFF, VSC OFF, A-TRAC on and rear locker engaged. In this mode A-TRAC will turn off when speed exceeds 3mph.

    TRD Offroad/TRD Pro with automatic transmission
    7. 4Lo TRAC OFF and VSC OFF
    8. 4Lo TRAC OFF, VSC OFF and MTS on (Crawl Control optional)
    9. 4Lo TRAC OFF, VSC OFF and rear locker engaged
    10. 4Lo TRAC OFF, VSC OFF, MTS on and rear locker engaged (Crawl Control optional)

    Spreadsheets created by @BigWhiteTRD
    LSD Modes SummaryV109.jpg
    LSD Modes ObservationsV109.jpg


    Attached Files:

    Last edited: Sep 27, 2018
  2. Jan 25, 2018 at 4:58 PM
    #2
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT
    A lot of this was brought to light in this thread so take a look if you want to do some more reading.

    https://www.tacomaworld.com/threads/a-trac-in-4lo-on-all-2016-4x4-models-non-trd-offroad.437814/

    @BigWhiteTRD has an excel spreadsheet that documents these modes for the various models and maps which lights will come on when. Hopefully it will be brought to this thread.

    Some testing is still being done by the guys in that other thread. Hopefully the results will be brought here.

    This thread is intended to be 3rd gen only. There was a lot of discussion comparing 2nd gens and 3rd gens in the other thread but many requested a 3rd gen only thread so here it is.

  3. Jan 25, 2018 at 5:01 PM
    #3
    DesertTaco4x4

    DesertTaco4x4 Well-Known Member

    Joined:
    Mar 16, 2016
    Member:
    #181439
    Messages:
    3,839
    Gender:
    Male
    I have to say it was fun testing these out. Wish we could sticky this.

  4. Jan 25, 2018 at 5:12 PM
    #4
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,093
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    I would add...
    VSC will brake any of the 4 wheels, TRAC only brakes driven wheels.
    Crawl control is adjustable DAC(downhill assist control).

  5. Jan 25, 2018 at 5:59 PM
    #5
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,093
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM

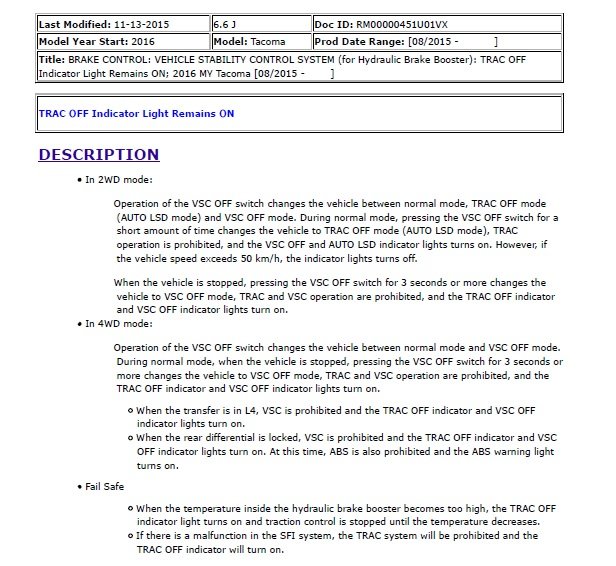

    Something I found in the service manual; I don't know if it applies to auto, manual or both.


  6. Jan 25, 2018 at 6:17 PM
    #6
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT

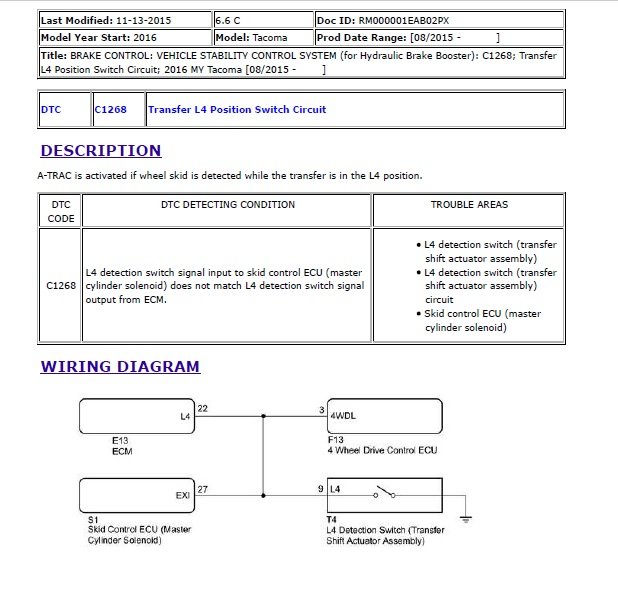

    Seems like an explanation for the C1268 error code. Sounds like if the ECM is saying the truck is in L4 and the skid control ECU is being told the truck is not in L4 this code will be thrown. Or vice versa. If they dont match this code is thrown.

  7. Jan 25, 2018 at 6:29 PM
    #7
    splitbolt

    splitbolt Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    4,093
    Gender:
    Male
    Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    You're right... I was reading it as 'AUTO' A-TRAC.


    #5 on your list doesn't seem to jive with this.


  8. Jan 25, 2018 at 6:37 PM
    #8
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT
    What they are describing in that 4wd paragraph is #6. They failed to mention #5. You get to #5 by simply pressing the VSC off button while in 4Hi. You can do it at any speed and you don't have to hold it down.


  9. Jan 25, 2018 at 6:38 PM
    #9
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    629
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod

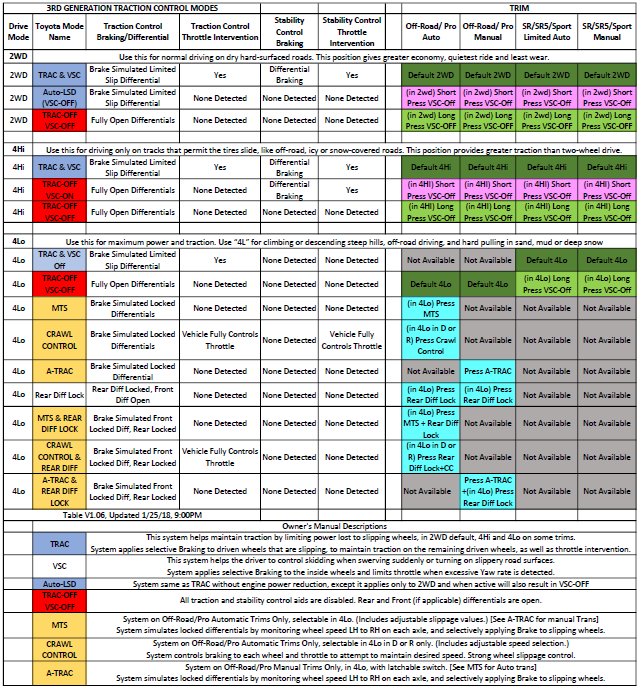

    Latest up-to-date documents to my knowledge
    [​IMG]


    Attached Files:

    Last edited: Jan 25, 2018
    navin r, tonered and DesertTaco4x4 like this.
  10. Jan 25, 2018 at 6:46 PM
    #10
    BigWhiteTRD

    BigWhiteTRD Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219848
    Messages:
    629
    Gender:
    Male
    First Name:
    Ted
    Treasure/Space Coast Florida
    Vehicle:
    2017 AC TRD OR Auto, 4wd w/2 whl Lo mod
    @Doggman I posted a bad (low res) pic, sorry, I edited my above post for a larger pic, although the pdfs are available too...

  11. Jan 25, 2018 at 6:50 PM
    #11
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT
    My bad, I'll swap them out and add the pdfs to the OP

  12. Jan 25, 2018 at 6:59 PM
    #12
    Tacowin1013

    Tacowin1013 Well-Known Member

    Joined:
    Dec 20, 2016
    Member:
    #205311
    Messages:
    1,096
    Gender:
    Male
    Vehicle:
    2017 OR DCSB 6MT MGM
    Thanks for converting this to a new thread. Hopefully someone here knows a Toyota engineer who can explain or make sense of #5 for us because I still can't make sense of it logically.

    tonered likes this.
  13. Jan 26, 2018 at 7:38 AM
    #13
    tonered

    tonered Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    5,212
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Vehicle:
    2017 BR ACLB Sport 6MT
    Debadge, Dechrome, 7r41lbr34k3r knob, MeSo switch panel and V4s, Functional Skewp
    Bump for sticky! :thumbsup: :cheers: :headbang: :mudding:

  14. Jan 26, 2018 at 7:56 AM
    #14
    Tacomavkk

    Tacomavkk Well-Known Member

    Joined:
    Jan 7, 2018
    Member:
    #240613
    Messages:
    236
    Gender:
    Male
    Woodinville, WA
    Vehicle:
    2018 TRD Off-road DCSB Quicksand
    So vsc can brake any 4 wheels, but modulate engine power only to driven wheels I assume? Why isn’t trac similar?

    Also despite some earlier observations in the other thread, there is no equivalent of auto lsd ( I.e no engine modulation ) in 4wd hi?

  15. Jan 26, 2018 at 8:16 AM
    #15
    Tacowin1013

    Tacowin1013 Well-Known Member

    Joined:
    Dec 20, 2016
    Member:
    #205311
    Messages:
    1,096
    Gender:
    Male
    Vehicle:
    2017 OR DCSB 6MT MGM
    Yes, that makes sense because you wouldn't need to cut engine power to non-driven wheels

    Based on testing it doesn't seem so but logistically it would only make sense to have a 4hi -auto LSD mode with a quick push of a button but that doesn't seem like its the case here.

  16. Jan 26, 2018 at 8:23 AM
    #16
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    11,271
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Opening post, #5 says Trac is off to 30 mph... Do you mean VSC is off to 30 mph, like in 2WD or the TRAC OFF light is on and it goes off at 30 mpg? Otherwise, good job!

  17. Jan 26, 2018 at 8:36 AM
    #17
    Tacowin1013

    Tacowin1013 Well-Known Member

    Joined:
    Dec 20, 2016
    Member:
    #205311
    Messages:
    1,096
    Gender:
    Male
    Vehicle:
    2017 OR DCSB 6MT MGM
    Thats where i'm having a hard time understanding still is 4hi with quick press of button

    David K likes this.
  18. Jan 26, 2018 at 8:38 AM
    #18
    02YotaGuy

    02YotaGuy Guy With A Red 80 Series

    Joined:
    May 18, 2010
    Member:
    #37347
    Messages:
    3,107
    Gender:
    Male
    First Name:
    Matthew
    Springfield, VA
    Vehicle:
    94 FZJ80
    Avid Off-road front bumper, Smittybilt 9.5k winch, Aurora LED cubes, Baja Designs standard rack, miscellaneous goodies.
    I don't even own a 3rd gen, but this is great :thumbsup:

    tonered likes this.
  19. Jan 26, 2018 at 8:41 AM
    #19
    Topanga Taco

    Topanga Taco Husky Hot Saws

    Joined:
    Jan 6, 2018
    Member:
    #240465
    Messages:
    535
    Gender:
    Male
    First Name:
    Rick
    Topanga Canyon, Southern California
    Vehicle:
    2018 SR5 4x4 DCSB
    ALSD, RCI Skidplate, TRD Recovery Hook, Alky Hot Saws
    Haven’t played with 4HI, but I’d like to find out what type of TRAC/ALSD (if any) is happening in default 4LO for non OR’s.

    If it’s TRAC, it’s highly advanced.

  20. Jan 26, 2018 at 10:34 AM
    #20
    Doggman

    Doggman [OP] Well-Known Member

    Joined:
    Sep 8, 2015
    Member:
    #163722
    Messages:
    2,265
    Gender:
    Male
    First Name:
    John
    Alabama
    Vehicle:
    2017 TRD OR 6MT 350Z 6MT
    Correct. All testing and documentation indicates there is no equivalent of auto LSD in 4Hi.

    TRAC could brake non-driven wheels if it wanted to but that's not it's intended use. Non-driven wheels are just rolling over terrain so their traction is negligible with respect to TRAC. TRAC is to help maintain traction of the driven wheels. If say you were in 2wd and you locked up the front non-driven wheels and they were sliding ABS would kick in for those front tires. Not TRAC. It's kind of semantics in that TRAC and ABS kind of do the same thing by using the brakes to help out but it's important to distinguish the systems and their exact purposes.

    And yes modulating the engine will only effect driven wheels because non-driven wheels are not receiving anything from the engine.

    No, I do not mean VSC is off to 30mph. It is not the same as 2WD ALSD. The TRAC OFF light is on until 30mph and then it turns off. VSC off light is never on.

    4Hi quick press of button is 4Hi TRAC OFF VSC ON. You have no traction control from 0-30mph and traction control is turned back on from 30+. You still have stability control at all times in this mode. Simple as that.

    Tacomavkk and David K like this.
