3rd Gen Traction Control Modes Explained

Discussion in '3rd Gen. Tacomas (2016+)' started by Doggman, Jan 25, 2018.

  1. Apr 7, 2021 at 7:05 PM
    #421
    Sierra Trail Pro

    Sierra Trail Pro The more I play with it, the Bigger it gets!

    Joined:
    Nov 1, 2019
    Member:
    #309582
    Messages:
    63
    Gender:
    Male
    First Name:
    Kelly
    Cameron Park, CA
    Vehicle:
    2020 TRD Pro, Magnetic Grey Metallic
    Dobinsons 2.5 MRA/MMR adjustable remote reservoir front coil overs w/732lb springs, 35x12.5 BFG KM3 MTA tires on Moto Metal 16" wheels, Bushmaster bolt on wheel well flares CaliLED DOM Steel Rock Sliders, Total Chaos welded spindle gussets, & LCA Cam Tab Gussets, C4 Fabrication front steel hybrid bumper incl. heavy duty steel bumper support add on's, C4 Fab Rear overland high rise steel bumper w/steel rear qtr panel wrap armor and side tube upgrades, 12k Smittybilt XRC Pro Comp Winch w/Factor 55 Flatlink Expert shackle mount assembly, Dobinsons heavy duty rear leaf spring pack, Timbren Off Road Racing bump stops (F&R), Fox 2.5 TRD Pro rear monotube shocks, Factory TRD Pro front aluminum skid with RCI Steel skid plates (tucked in to factory engine skid)@ transmission, transfer case, lower A arms, and rear diff; CBI steel gas tank skid, ARB Twin Compressor in an M.O.R.E. engine bay mount, Diode Dynamics 30" LED light bar @front bumper, RIGID front fog lights tied into factory wiring harness, Odyssey Group 31 AGM battery in a CBI Steel battery tray, Decked Bed Drawer System, Yaesu FTM-400XDR HAM Radio (c/s:K6TOY) & a ProComp switch panel control module, Valley Runner custom ECU tune... as of today. The more I play with it, the bigger it gets!
    If you want to truly understand what the purpose of the rear locker is, try taking your Taco on a real hard core off road trail. I regularly take my (now Highly modified) '20 TRD Pro on the Rubicon Trail, one of the most difficult and famous off road rock crawling trails in the U.S. When you are crawling slick rock, you will very much appreciate that mechanical locker and wish that Toyota offered a mechanical front locker option.

    I am saving my pennies for an ARB front air locker, but honestly the CC works surprisingly well in combination with the mechanical rear locker. My friends with the Jeeps always said that I wouldn't be able to do the trail with IFS, and would need a solid axle. They now admit that the Taco really articulates very well, close to if not equal to their solid axles. In fact the first time I took it out to Rubicon Springs from the Tahoe side, I actually made it out and back stock except for 33" tires and rock rails. (See my profile picture, taken on that trail) The only damage other than some pinstriping, was the rear plastic bumper corner that I caught coming down on a rock.

    After installing high rise front & rear steel bumpers with up-armor side protection, full steel skids nose to tail, rock rails, 35" BFG KM3's, Heavy duty leaf springs, Decked bed drawer system and multiple weld on upgrades it is a true beast off road. I personally love rock crawling now, it's the most fun you can have under 5 mph! The main difference between our Tacomas and Jeeps etc. is that our trucks just keep running, are reliable, and actually hold their value... Unlike ALL the others. If you are concerned about gas mileage though, these are Not the truck for you...

  2. Jun 7, 2021 at 12:58 AM
    #422
    503MIKE

    503MIKE Well-Known Member

    Joined:
    May 22, 2016
    Member:
    #187582
    Messages:
    502
    Gender:
    Male
    First Name:
    Mike
    Oregon
    Vehicle:
    2021 AG TRAIL
    This thread is priceless but I still can’t make my mind up if I want to put my air locker in the front or the rear of my truck.

  3. Jun 7, 2021 at 8:53 AM
    #423
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,044
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    I presume you don't have the Off Road TRD, so no factory rear locker?
    You add a locker to the rear, always, if you are doing just one axle. It would be a rare event to even need a front locker. When you climb a steep uneven or rocky grade, the condition that would most often need a locker, the center of gravity shifts back, putting more weight on the rear.

    503MIKE likes this.
  4. Jun 7, 2021 at 10:55 AM
    #424
    503MIKE

    503MIKE Well-Known Member

    Joined:
    May 22, 2016
    Member:
    #187582
    Messages:
    502
    Gender:
    Male
    First Name:
    Mike
    Oregon
    Vehicle:
    2021 AG TRAIL
    Correct I don’t have factory lockers and I agree with your post completely, stumbled on some YouTube videos debating the question and it seemed to be the consensus that if you have a lsd in the rear put the locker in the front (that’s how I found this thread, trying to figure out if my sr5 had lsd) but I’m going to do the rear. I am a huge fan of the stock 4x4 system, especially with the help of the control mapping in this thread. I may have been motivated to purchase the locker when it was announced that the 22 sr5 trail edition was getting a locker and that just didn’t sit well with me considering they left the e-locker out of the 21 trail model. But it will be a welcomed improvement to my rig.

  5. Jun 7, 2021 at 11:22 AM
    #425
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    24,970
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    You have an ABS activated Auto-LSD. Even if we had a mechanical LSD, you'd still want the locker in back with the LSD up front.

    That said, our vacuum boosted TRAC system does really well off road with wheels in the air. The only problem that I have encountered is in a technical area where our system takes more throttle and wheel speed to activate than A-TRAC / MTS does. In those cases, I adjust my line versus goosing it.


    About the 2022 Trail Edition, I'm curious what braking system is in there and if the diff is still 8.0in or if they tossed in the 8.75in diff.

    David K and 503MIKE like this.
  6. Jun 7, 2021 at 11:34 AM
    #426
    503MIKE

    503MIKE Well-Known Member

    Joined:
    May 22, 2016
    Member:
    #187582
    Messages:
    502
    Gender:
    Male
    First Name:
    Mike
    Oregon
    Vehicle:
    2021 AG TRAIL
    My understanding is the 8.75 is needed to fit the e locker, so wouldn’t the 22 trail have the 8.75 if it has the factory e-locker?

  7. Jun 7, 2021 at 11:42 AM
    #427
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    24,970
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Hard to say. That is why I am wondering.

    My best guess is that @Jeff Lange would know this, if anyone does. It is certainly a weird mix of parts already. If I were Toyota, it would have just been easier to make the 2022 TE out of an OR to start with.

    503MIKE likes this.
  8. Jun 7, 2021 at 2:28 PM
    #428
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,044
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    While TRAC and Auto LSD do help, and I am a fan, neither one can compare to a locked differential. Your biggest assist otherwise is lowering the air pressure and it can be a total rescue to most any stuck or steep obstacle.

  9. Jun 7, 2021 at 4:19 PM
    #429
    wilderness4wd

    wilderness4wd Well-Known Member

    Joined:
    May 11, 2021
    Member:
    #365435
    Messages:
    104
    Gender:
    Male
    Tennessee
    Vehicle:
    2021 Tacoma TRD Pro Super White
    [no mods yet]
    I just came across this thread and good lord....... it is a damn goldmine.
    I was planning on making a thread about this soon and asking all of the questions that this thread answers..... TW...... You are simply the best. :dancingbacon:

    BigWhiteTRD and tonered like this.
  10. Jun 7, 2021 at 4:39 PM
    #430
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    24,970
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    We've only been at it for five years or so. :D

    Last edited: Jun 7, 2021
    wilderness4wd and BigWhiteTRD like this.
  11. Jun 7, 2021 at 6:42 PM
    #431
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,706
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    I think it’s a safe bet to say the Trail will have the 8.75” diff if it’s getting a locker.

    Jeff

    MQQSE and tonered like this.
  12. Jun 7, 2021 at 9:33 PM
    #432
    wilderness4wd

    wilderness4wd Well-Known Member

    Joined:
    May 11, 2021
    Member:
    #365435
    Messages:
    104
    Gender:
    Male
    Tennessee
    Vehicle:
    2021 Tacoma TRD Pro Super White
    [no mods yet]
    Any web developers here? I started to throw all of this information into a little html file using Bootstrap and some tables and menus, but I'm a little rusty and don't have the bandwidth to learn and fiddle around with it.

    Sure all of the info is right here in this thread but it could be organized and formatted a little bit better on a dedicated web page.

    Some ideas:
    • Put all of this info into a very, very basic but cleaning looking webpage. Keep it simple
    • Give full credit to everyone here who contributed, especially OP. Make it obvious that the website owner is simply maintaining the site
    • Have links linking back to this thread and give props to TW
    • Provide examples, along with videos, as to when you would use certain modes
    • Let user choose their year, make, model, and trim and it'll show them the modes available to them
    • Add the button pictures, describe what the lights mean, etc.
    • Expand on basically everything
    • Etc.

    Meh I dunno.... Just a thought. It would take a pro web developer just a few hours to throw up a little site. It won't need anything fancy like user accounts, a database, forms, etc. Just basically display information and some menus and links and images.

    Maybe http://www.toyotatractioncontrolmodes.com :p

    P. S. Some info can also be scraped from here: https://www.tundras.com/threads/traction-control-everything-you-want-to-know.21697/

  13. Aug 16, 2021 at 5:08 PM
    #433
    Tocamo

    Tocamo Bug-out vehicle

    Joined:
    Jan 16, 2018
    Member:
    #241451
    Messages:
    2,965
    Ottawa
    Vehicle:
    2017 OFF-ROAD DCSB Taliban Tan
    A/T DURATRACS 265/75/16 (C Load) 2/1" 5100 Bilsteins
    Folks with the Pro & Off Road should be testing these functions out approx. once a month to keep things lubed. (rear locker, Crawl control, 4hi, etc..)

    Any Taco model with 4x4 should do the same. On a hard rainy day, is always a good time to throw it into 4hi.

  14. Aug 17, 2021 at 7:39 AM
    #434
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,044
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Excellent advice... Use the 4WD (Hi and Lo), even if briefly. The ADD (Automatic Disconnecting Differential) needs some love. The Rear Locker as well, just to keep things 'lubed'. A-TRAC, MTS, CRAWL are all electric devices that use the ABS brakes so they are not things that need to be 'lubed' like the transfer case, ADD, and locker motor.

    My 2010 Off Road 4x4 Tacoma with 131,000 miles, still functions in all modes. That is even when I forget to use the 4WD monthly, as advised!

    Tocamo likes this.
  15. Aug 25, 2021 at 11:51 AM
    #435
    xrider472

    xrider472 Active Member

    Joined:
    Jul 28, 2021
    Member:
    #372487
    Messages:
    42
    Gender:
    Male
    Vehicle:
    2021 TRD OR AT
    Stock

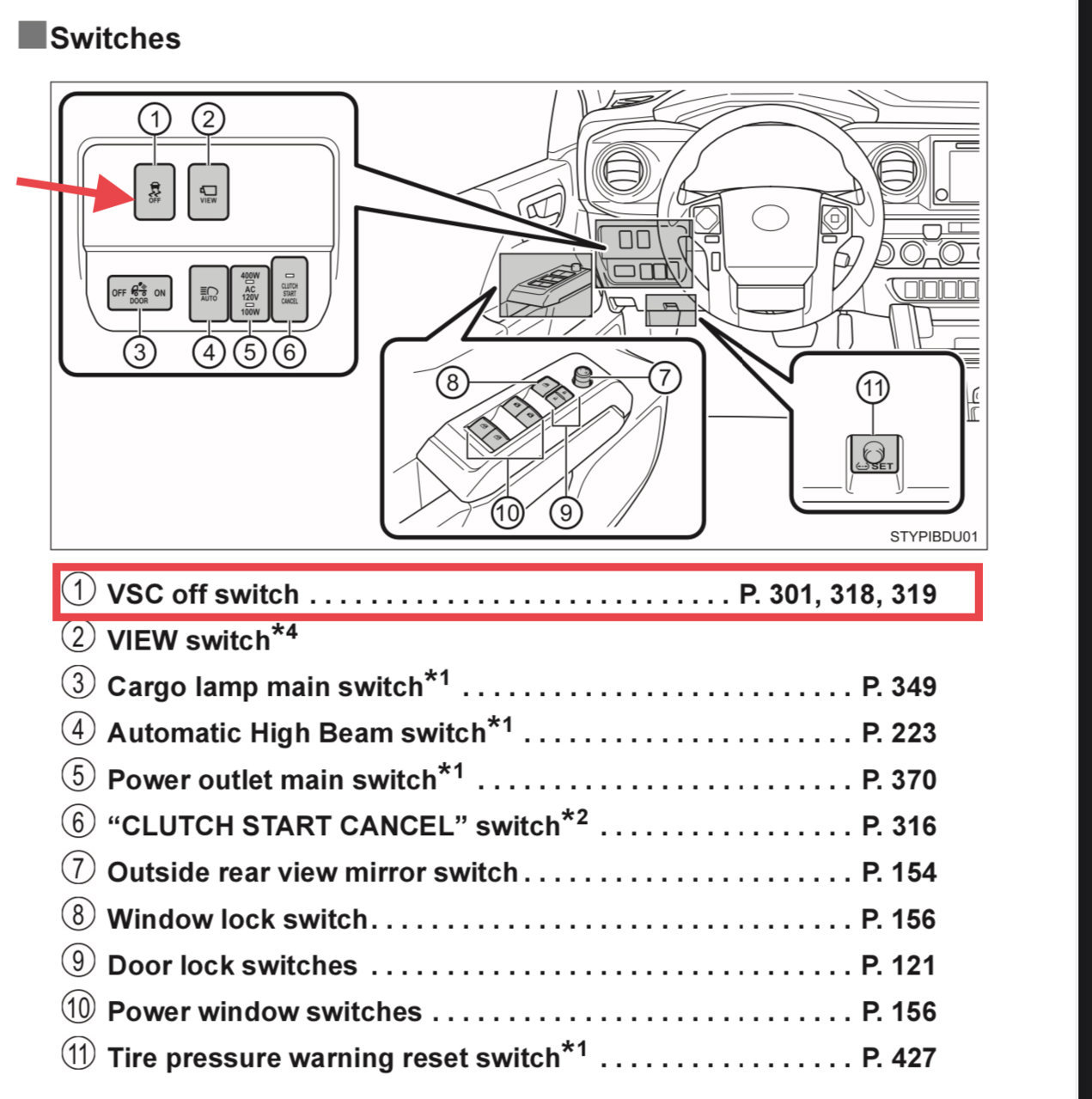

    Just got thru reading this excellent thread. Not sure if this pic changes or agrees with the findings? The PDF docs in the first post show VSC & TRAC to be off with MTS engaged. Took me a little while to read the whole thread. I may just be confused. Lol. The pic came from my 2021 owner's manual. I have the TRD Off Road AT. Thoughts?


  16. Aug 25, 2021 at 12:04 PM
    #436
    jasmits1

    jasmits1 Well-Known Member

    Joined:
    Feb 18, 2019
    Member:
    #283605
    Messages:
    242
    Gender:
    Male
    Vehicle:
    2018 DCSB Off Road 6MT
    Ironman FCP with SPC UCAs
    Technically what’s happening when MTS(or CRAWL or ATRAC on an MT) is engaged is the TRAC/VSC systems run a different program designed for off-road traction. It’s all the same set of sensors and computers using the ABS system to vector torque around and find traction, except instead of working to reduce wheel spin and prevent slides it’s working to find the most traction. So basically the torque vectoring is much more aggressive and it stops cutting throttle if there’s wheelspin

    So normal TRAC/VSC programs are still not engaged, but that system is doing something else. I guess that’s some weird quirky error message that happens if you try to press the traction control off button while using one of the off road traction modes.

  17. Aug 25, 2021 at 12:05 PM
    #437
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,044
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Hmmm, let me try to explain what Toyota means... Keep in mind, much of their written instructions have not translated well into English!

    MTS (like A-TRAC) is a Low Range feature to get you through, up, and over most anything. MTS is the new "active traction control" or A-TRAC (it is adjustable A-TRAC for different terrain conditions).

    So, if MTS is on, you can't turn A-TRAC off (otherwise MTS would be off, also). Now, in my truck, VSC goes off in low range... so since you can't turn it on, you couldn't turn it off! That's the only way I can explain the manual wording.

    What do you think?

  18. Aug 25, 2021 at 12:14 PM
    #438
    jasmits1

    jasmits1 Well-Known Member

    Joined:
    Feb 18, 2019
    Member:
    #283605
    Messages:
    242
    Gender:
    Male
    Vehicle:
    2018 DCSB Off Road 6MT
    Ironman FCP with SPC UCAs
    As a software engineer by trade I’m pretty positive what’s happening is the that you’re locked out of trying to defeat traction control and vsc if in MTS or ATRAC or whatever because all of the hardware that makes VSC work is very much active just with different programming. So whether you pressed the traction button in an attempt to turn it off or on it’s contradictory to what you’ve already told it to do.

  19. Aug 25, 2021 at 12:15 PM
    #439
    xrider472

    xrider472 Active Member

    Joined:
    Jul 28, 2021
    Member:
    #372487
    Messages:
    42
    Gender:
    Male
    Vehicle:
    2021 TRD OR AT
    Stock
    Both answers are helpful & make sense (unlike the manual). Thank you!!

  20. Aug 25, 2021 at 12:22 PM
    #440
    xrider472

    xrider472 Active Member

    Joined:
    Jul 28, 2021
    Member:
    #372487
    Messages:
    42
    Gender:
    Male
    Vehicle:
    2021 TRD OR AT
    Stock
    Yep, says it right here. Just found it. Thanks guys.
