3rd gen Transmission Cooler Upgrade

Discussion in '3rd Gen. Tacomas (2016+)' started by Lord Humongous, Mar 22, 2017.

  1. Mar 22, 2017 at 5:36 PM
    #1
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    I decided to upgrade my trucks cooling system with a larger tranmission cooler and electric fan. I haven't had any cooling problems with the OEM setup but considering I live in a desert and frequently use 4x4 and tow a travel trailer in 100+ degree temps I'll be a little happier knowing its there.

    Following the rule of "use the biggest cooler that will fit" I decided on Hayden 679 tranmsission cooler which is their largest model. It also uses Haydens bypass technology which should prevent over cooling.

    https://www.amazon.com/Hayden-Automotive-679-Rapid-Cool-Transmission/dp/B000C3BBKS

    I picked out a 10" Maradyne champion series fan since the flat sides fit the cooler almost perfectly and the 950 cfm rating is awesome for a fan this size.

    https://www.amazon.com/gp/aw/d/B005R52JKW/ref=yo_ii_img?ie=UTF8&psc=1

    My plan was to run the cooler inline with the OEM air heat exchanger. I figure it would not only give some extra cooling but provide some redundancy in case I need to make a repair on the road. Haydens universal mounting brackets were perfect for installing the cooler to the core support.
    I was able use the hood latch and radiator mount bolts to mount the top brackets. The bottom brackets lined up with a couple of holes in the core support so no drilling required!

    It's hard to see here but the transmission fluid flows through the the radiator, into the oem cooler and onto the larger hayden cooler then back to the transmission.

    *** I definatly recommend plumbing your lines when the truck is cool and transmission thermostat is closed. I only lost a couple of oz worth of fluid when disconnecting the cooler lines. Also wear some mechanics type glove when accessing the fill port. The exhaust heat shield is sharp and hot. Don't ask me why I know.... ***

    Now that the oil lines are connected it's time to top off the transmission to compensate for the increased volume of the longer trans oil lines and the volume of the cooler itself.

    Thanks very much too @gearcruncher for posting this thread.

    https://www.tacomaworld.com/threads...be-low-on-fluid-directly-from-factory.405642/

    I followed the instructions listed there and topping off fluid at home was no problem!!

    I will add that temporarily pinning the transmission thermostat open as I have done here is very important since you want fluid filling the added volume while waiting for proper check temp. Just depress the thermostat with a screwdriver and insert a 1mm pin or small drill bit like I did.

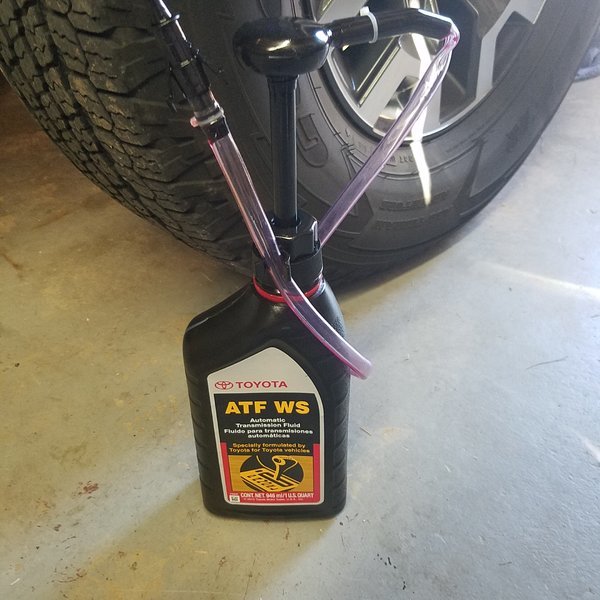

    Get the fluid pump made for gallon containers. The Toyota ATF WS quart containers have the larger mouth size.
    A scangauge makes the process easier since it easier to tell when you're at the proper check temp. Almost there!!
    I preloaded 1 quart of fluid before warming the tranmission and still had to add another half quart before fluid came out of the overflow. Either my volume maths were off or I too may have been a victim of the low ATF debacle :eek:....

    Last edited: Mar 24, 2017
  2. Mar 22, 2017 at 5:36 PM
    #2
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/

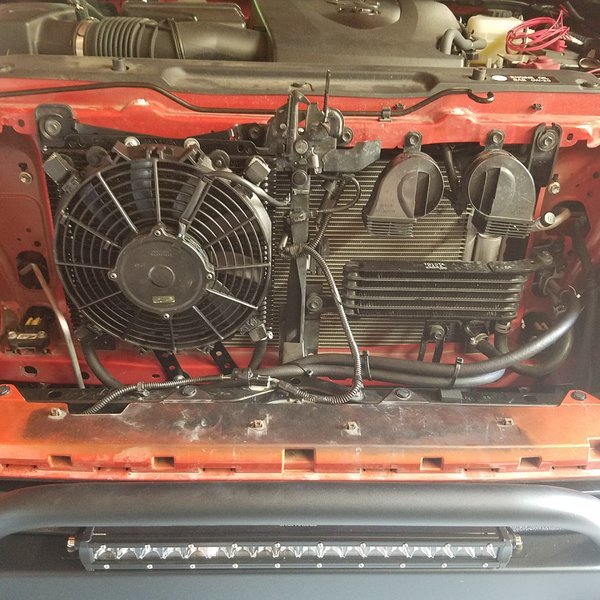

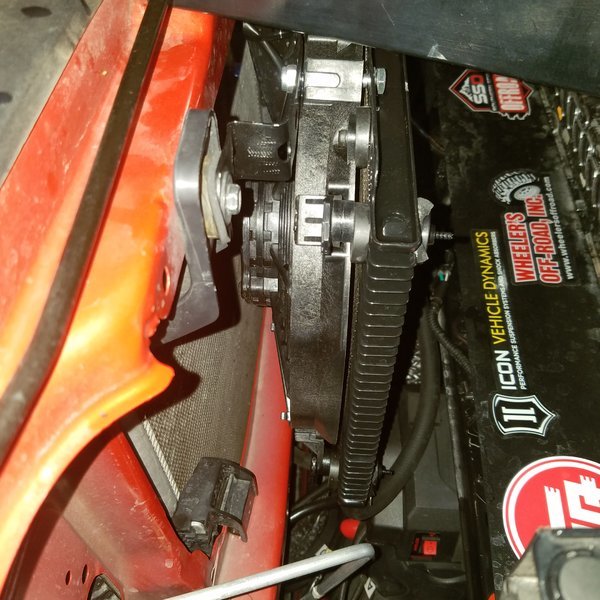

    Well it didn't last 24 hours before I came up with some spacers and mounted the fan behind the cooler in an air puller orientaion.
    Still plenty of room between the trans cooler and AC condenser/ Radiator.

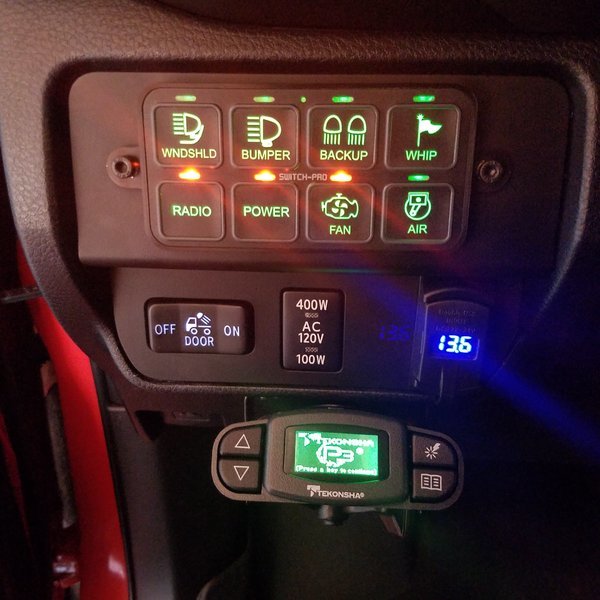

    Rewiring the fan was super easy and just a mater of switching the power and ground on the switch-pro terminal block to reverse the polarity. Gotta love switch-pro. There's a button for everything!

    Having the fan in the puller orientaion increases the cooling efficiency while driving since the face of the cooler is now exposed to direct airflow. Another positive side effect of the fan in the pulling orientation is that there is now ALLOT more airflow coming through the fan and into the radiator. This definatly won't hurt engine coolant temps at slow speed while the fan is running!!

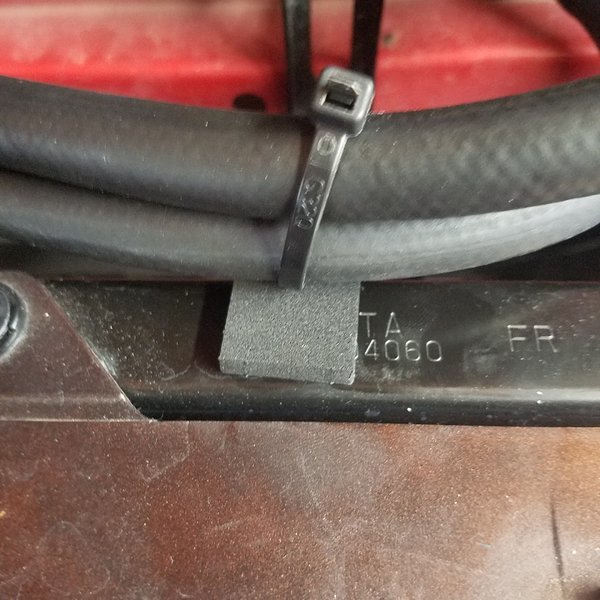

    I also added some foam tape anywhere the longer trans lines might chaff.
    A shot of the cooler through the grill.

    Last edited: Mar 22, 2017
    95GLH, BT17, Xx_Evilvirus_xX and 19 others like this.
  3. Mar 22, 2017 at 5:37 PM
    #3
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    RESULTS!!!
    This is gonna take me a few trips to compile some data.

    I can report that there has been no change in coolant temps. This is good news since there is now a rather large trans cooler blocking part of the radiator:thumbsup:. These findings were recorded with the fan off on a spring day in Phoenix with ambient temps of 96f.

    Initial scangauge trans temp readings after install are positive. TF1 readings are stable in the high 180s and and TF2 still spikes after hard driving but stabilizes very quickly to the low 190s. Before the new cooler TF1 would typically climb to TF2 readings and take longer to cool. These readings are fairly insignificant and the true test will come once I have an opportunity to tow a few times.
    Those temps sound high but this trans was designed with higher operating temps than previous models. Suposedly it reduces friction and improves mpgo_O I'm guessing the trans thermostat opens between 185 to 190f.

    Last edited: Mar 24, 2017
    AR15xAR10 and Street Taco like this.
  4. Mar 22, 2017 at 5:39 PM
    #4
    TashcomerTexas

    TashcomerTexas Bwaaahh Stutututu vs Weeeeeeee

    Joined:
    Apr 16, 2014
    Member:
    #127853
    Messages:
    10,070
    Vehicle:
    2003 TRD DC King Ranch Edition
    You can't just sub to your own thread lol.

  5. Mar 22, 2017 at 5:55 PM
    #5
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    [​IMG]
    I subd them so I can organize the thread and data as I collect it lol.

    Last edited: Mar 22, 2017
  6. Mar 22, 2017 at 6:26 PM
    #6
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,105
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    giddyup, Kilokato, harrycary and 11 others like this.
  7. Mar 22, 2017 at 6:34 PM
    #7
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    Not a problem! Thanks for adding me! I plan to keep updating post #3 with trans temps I obtain while towing.
    I really wish I had bought the scangauge last year so I had a better comparison. If anybody is towing with a 3rd gen and has a scangauge please post your stats i.e. trailer weight, terrain and trans temps. Thanks!!

    GPsevinSixx and gearcruncher like this.
  8. Mar 22, 2017 at 10:05 PM
    #8
    Z50king

    Z50king DCLBOR4X4FTW

    Joined:
    Jun 9, 2015
    Member:
    #157056
    Messages:
    8,448
    Gender:
    Male
    First Name:
    Eric
    Southern California
    Vehicle:
    2016 DCLB Off Road 4x4 Super White
    Stock and loving it
    Wow, this is awesome. That's a very large cooler.

    When do you plan to turn the fan on?

    Lord Humongous [OP] likes this.
  9. Mar 22, 2017 at 10:46 PM
    #9
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    I really wanted to run the extra fan for the sake of overkill. Last year during hunting season I was in 4lo pulling the trailer through mud for about a mile. That would've been an awesome time to run the fan (and have a bigger cooler). I'm sure the torque converter was spinning like crazy pulling the extra weight in 4x4 lo and mud mode engaged on the MTS system!!! I didn't have the scangauge yet but at least no dummy lights came on. I'm sure that was one of those ignorance is bliss situations:eek:
    It'll also be nice to get some extra air circulating when out wheeling during the summer months.

    BTW that cooler advertises 60 degree cooler temps!!! Considering this trans runs warm on the normal I might be in trouble if I ever need to work to its max potential :bananadead:

    Last edited: Mar 22, 2017
    Kooltaco likes this.
  10. Mar 22, 2017 at 11:40 PM
    #10
    Z50king

    Z50king DCLBOR4X4FTW

    Joined:
    Jun 9, 2015
    Member:
    #157056
    Messages:
    8,448
    Gender:
    Male
    First Name:
    Eric
    Southern California
    Vehicle:
    2016 DCLB Off Road 4x4 Super White
    Stock and loving it
    Interesting. I believe the warning comes on around 300F, so I hope it never got that hot.

    I'm interested to watch your Temps when you tow

    Wondering how well it will work. Why are you still running the small cooler?

  11. Mar 23, 2017 at 12:13 AM
    #11
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    The truck is still under warranty and my service advisor recommended leaving oem equipment in place. Basically in the event of a catastrophic failure it's very easy to return everything back to stock plumbing and drop it off at the dealer for work :spy:.
    Down the road I may bypass the radiator all together and just run a huge remote cooler under the tire carrier or something similar.

    SLO TRD and gearcruncher like this.
  12. Mar 24, 2017 at 7:15 PM
    #12
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    I've doing some research in the 3rd gen Tacoma service manual. This is what I've found for normal coolant temps and thermostat operation.

    Coolant thermostat opens 187-194°F
    Normal coolant temperature 167 to 212°F
    Max coolant temp is 284°F

    Im still looking for transmission temperature information but the manual is over 11000 pages. I also emailed toyota customer service inquiring about AC60 normal operating temperatures. I wonder if I'll even get a response lol.

    Z50king likes this.
  13. Mar 27, 2017 at 10:19 AM
    #13
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/

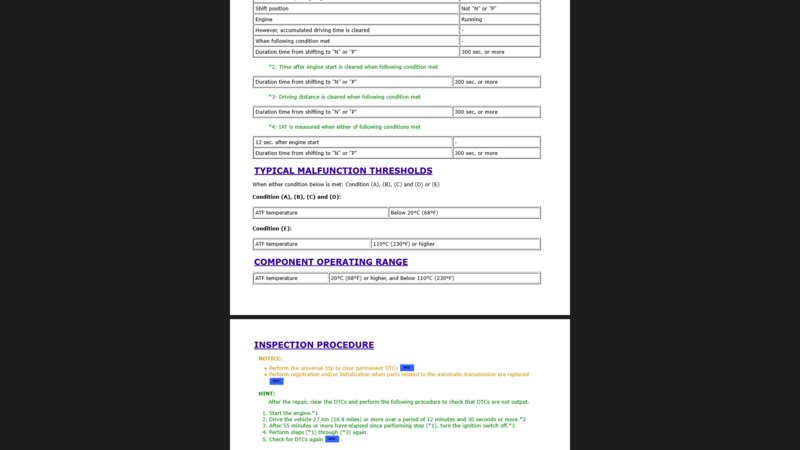

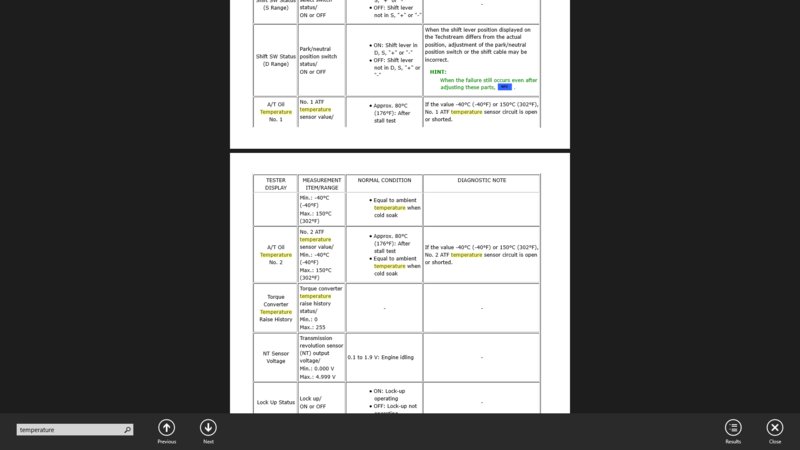

    All right I was able to find some info about normal ATF operating temperatures.
    image.jpg image-1.jpg

    Now that it's warmed up here in Phoenix I'm not too worried about over cooling. I'm gonna go pick up a 1.5mm roll pin from the hardware store and And pin the Trans thermostastat open for a couple of days of normal driving. Just curious what the temps will look like.
    BTW I've read this is a Tundra trick to lower trans temps under extreme duty so maybe it'll work well on the Taco too.


    *** I realized the pics are hard to read. It states normal ATF operating range is between 68F -230F. Still no info about when the trans Thermostat opens but guessing from my scangauge and normal coolant temps probably somewhere in the 190s ***

    Last edited: Mar 27, 2017
    kairojya likes this.
  14. Mar 27, 2017 at 10:22 AM
    #14
    IPNPULZ

    IPNPULZ Well-Known Member

    Joined:
    Jun 16, 2014
    Member:
    #132087
    Messages:
    9,420
    Gender:
    Male
    Behind Enemy Lines.....
    Vehicle:
    2019 TRD ORP 4 Runner
    going to be fun!
  15. Mar 27, 2017 at 2:37 PM
    #15
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/

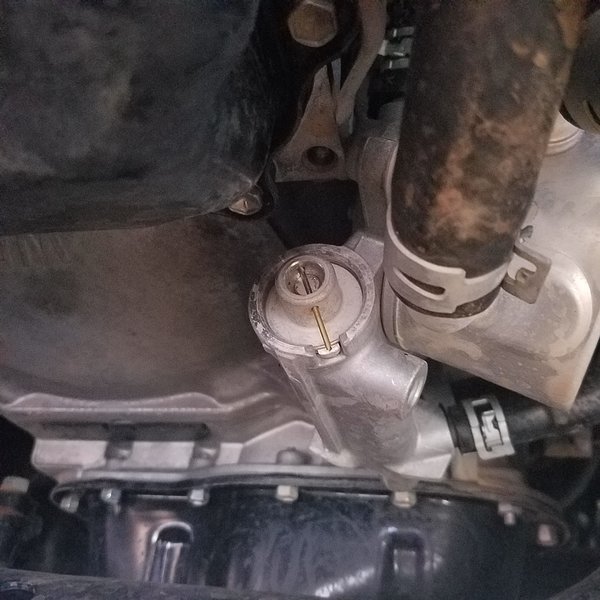

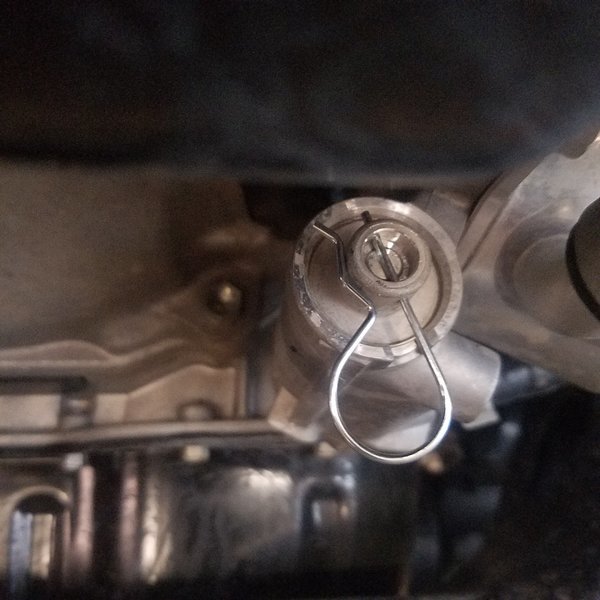

    A quick trip to my local hardware store and I was able to find a 3/32nd (I believe) hitch pin. Works perfect for pinning the transmission thermostat open.

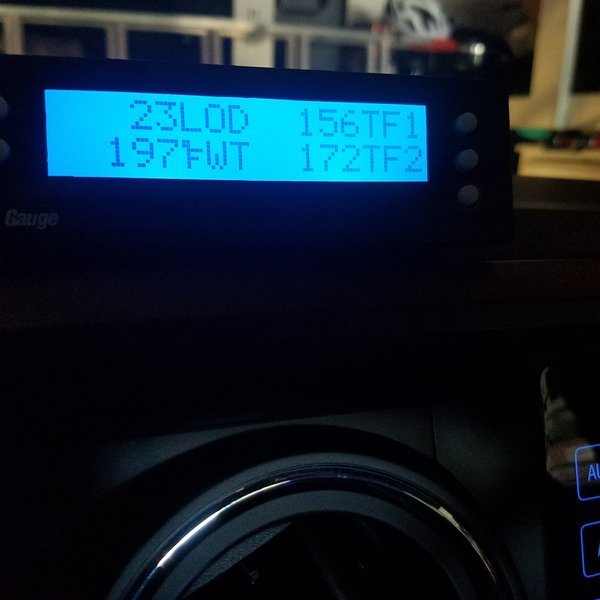

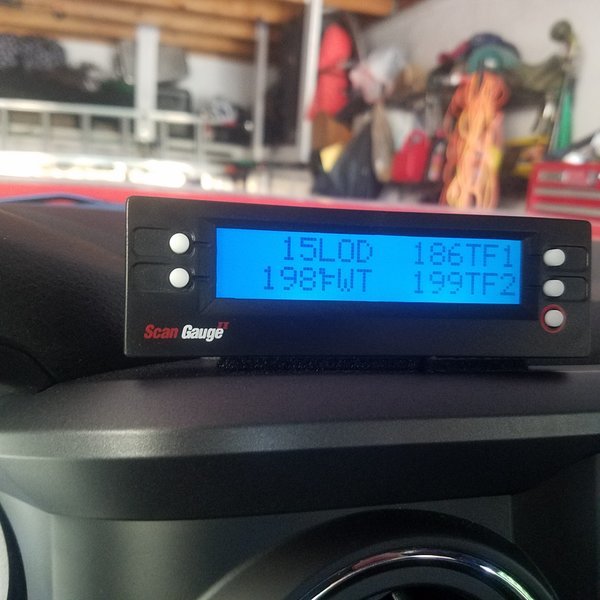

    OK so here's how my tranmsission temps usually look. This is about the same before and after the bigger cooler.20170327_122632.jpg
    Here's how they looked after pinning the the transmission cooler thermostat open. I did about 10 miles of hard driving on the freeway and surface streets and the pan temp never budged above 160°F yet surprisingly warmed up to that temp temp as quick as it normally warms to 190°F . The torque converter temp also stabilized much quicker to the pan temp!! It's about 86°F in phoenix today.

    I'll post tomorrow if takes excessively long to warm up from cooling over night.

    @gearcruncher what do you think of this? Obviously Toyota engineers wanted this trans to run between 188°F to 200°F since that where the thermostat has kept my trans temps. Running 45-50 degrees cooler would definatly extend fluid and component life and as I noted in post #13 is within normal operating temperatures.
    If I don't have any issues I think I'm going to leave the thermostat pined open (especially while towing) and run cooler. Can you foresee any issues or problems?
    I ask you because after reading your post I believe you're the authority on transmission info!

    Last edited: Mar 27, 2017
    kairojya, SLeeper512 and Omar RVA like this.
  16. Mar 27, 2017 at 5:03 PM
    #16
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    5,105
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Well, thats some great research rite there !!! Excellent info !!:thumbsup:

    I dont see leaving the thermostat pinned as being an issue and this of-course is a decision based on where you live( AZ in your case ) , however , you will achieve overdrive and converter lock up earlier as the trans and engine warm if you leave the stat in the factory unpinned position and only pin the stat when needed during towing or heavy stop and go traffic . You may sacrifice a little extra fuel leaving the stat pinned during engine and transmission warm up

    If one of our members from Alaska or North Dakota asked the same question , I would not recommend leaving the stat pinned .

  17. Mar 27, 2017 at 6:56 PM
    #17
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    Thanks for the advice! I think I'll leave it pinned through the weekend since were taking the trailer to the lake. I'll un-pin it on the way home to record the difference. After that I'll only pin it for towing and summer time trail runs:tumbleweed:.
    It's literally only a matter of seconds to pin or un-pin so definatley an effective , cheap and easy mod!

    SLO TRD and gearcruncher like this.
  18. Mar 28, 2017 at 5:52 PM
    #18
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    As the worlds most boring soap opera continues more results on the pinned trans thermostat.

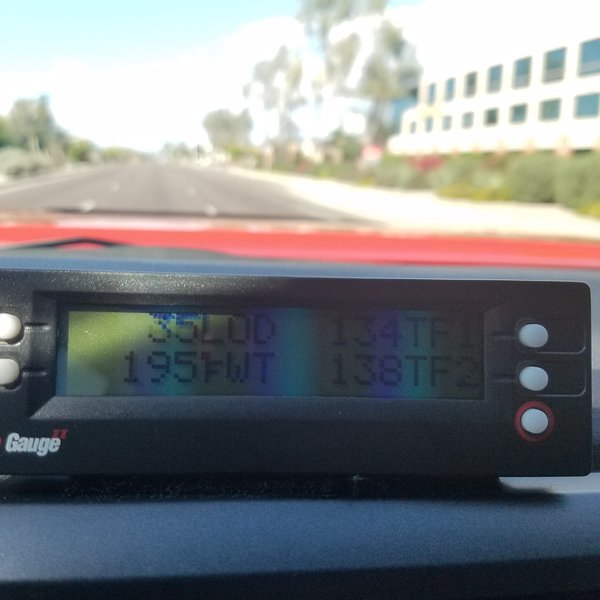

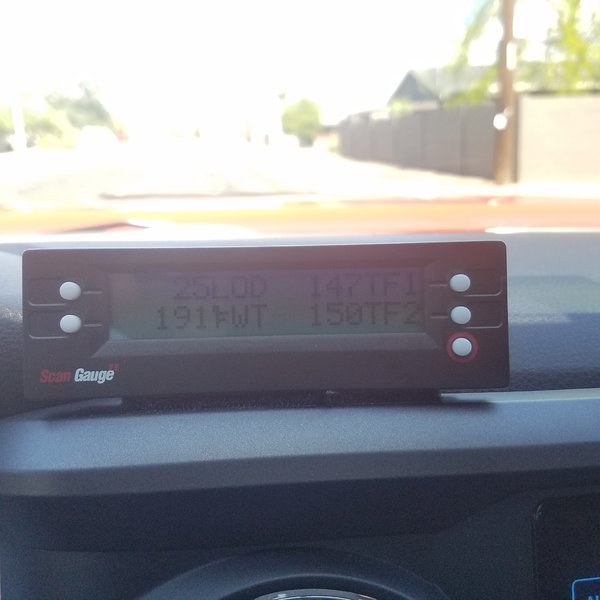

    I started the truck up from cooling over night and let her warm up for about 1 min. It was a beautiful 70 degrees out this morning. I hoped on the freeway and had no problem finding 6th gear fm with a cruising speed of 75mph. The trans heated up to about 120°F in what I would describe as a normal amount of time. It then took quite awhile to get to the mid 140s and never broke 150°F
    I ran the fan while cruising some stop and go on the regular streets. And the pan temp never broke the 130s:eek:

    It'll be interesting to see the pinned vs unpinned while towing but I have a feeling it'll have no issues maintaining its normal 190s with the T-stat unpinned.

  19. Mar 28, 2017 at 6:42 PM
    #19
    mthopton

    mthopton Well-Known Member

    Joined:
    Feb 17, 2016
    Member:
    #178440
    Messages:
    348
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    '16 TRD DCSB 4x4
    This is really great info - thanks for doing so much research. I too pull a travel trailer that's ~3500lbs and I'm always watching the radiator temp closely. I'm very interested in adding the scan gauge to monitor teams temps as well. I also really like the idea of pinning open the t stat when towing - that's a great idea. Hell, I might even give the extra cooling system a try - although I'm not sure the added fan is needed here in North GA. But maybe... our Summers are in he mid 90's with high humidity.


  20. Mar 28, 2017 at 7:43 PM
    #20
    Lord Humongous

    Lord Humongous [OP] The Ayatolah Of RockNRolla

    Joined:
    Jan 14, 2016
    Member:
    #174960
    Messages:
    2,287
    Gender:
    Male
    AZ
    Vehicle:
    Inferno 3rd gen trd offroad 4x4
    https://www.tacomaworld.com/threads/lord-humongous-gigahorse-build.436524/
    That trailer looks great! About the size I tow. It's a great size for a tacoma.
    The bigger cooler is a relatively inexpensive upgrade for the piece of mind and potentially longer lasting parts. I've never had problems with Toyota but have seen burning hot fluid pouring through the transmission pan seal on my old Ford. I learned an expensive lesson that day and have tried to purge heat at all cost since!!
    As far as pinning the transmission t stat I picked up a couple more of those hitch pins to keep in my tool bag. I figure Ill keep it pinned while towing and if I ever run into an overheating problem somewhere else that 40 cent pin just might save the day!

    bigbear1612 and Taco16LB like this.
To Top
