3RZ EGR valve gasket

Discussion in '1st Gen. Tacomas (1995-2004)' started by PELICANTACO, Jul 12, 2020.

  1. Jul 12, 2020 at 7:57 PM
    #1
    PELICANTACO

    PELICANTACO [OP] 1998 Taco 4x42.7L 5spd

    Joined:
    Jan 18, 2020
    Member:
    #316510
    Messages:
    24
    Gender:
    Male
    Louisiana
    Vehicle:
    1998 Red SR5 4x4 2.7L 5spd
    1998 Red SR5 4x4, Dobinsons front struts OME Dakar rear leafs 33x10.5 BFG KO2

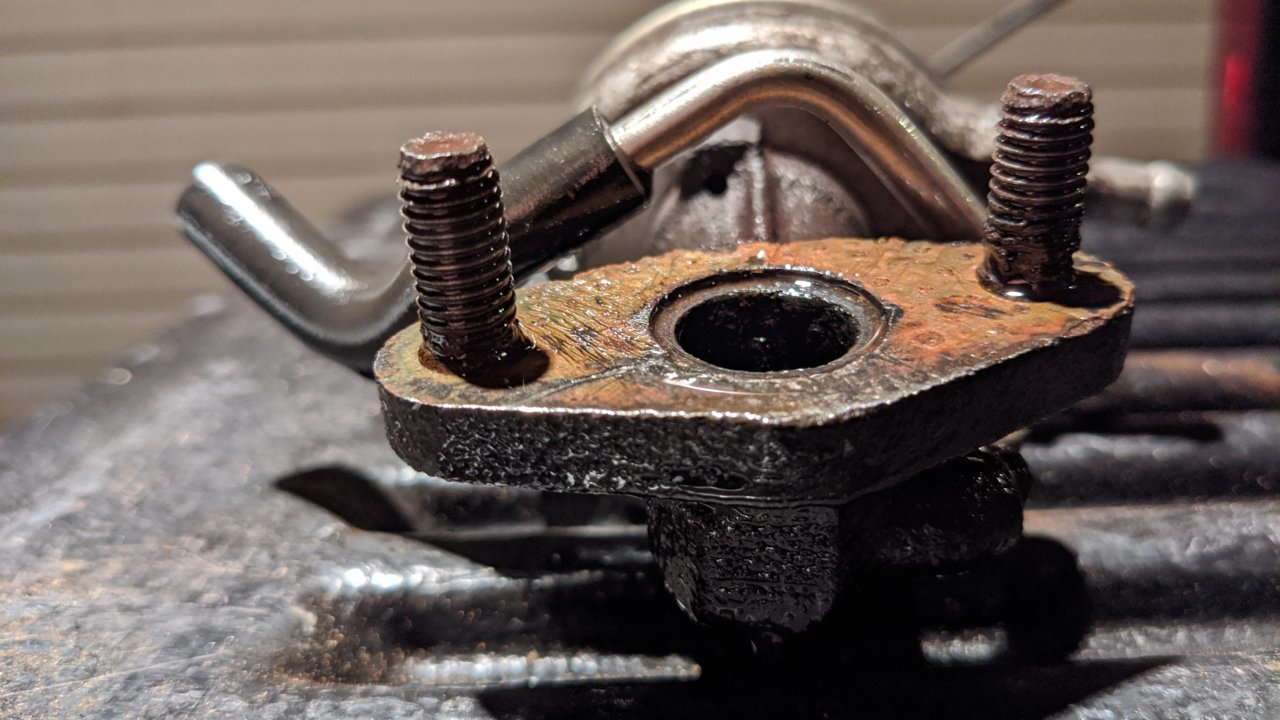

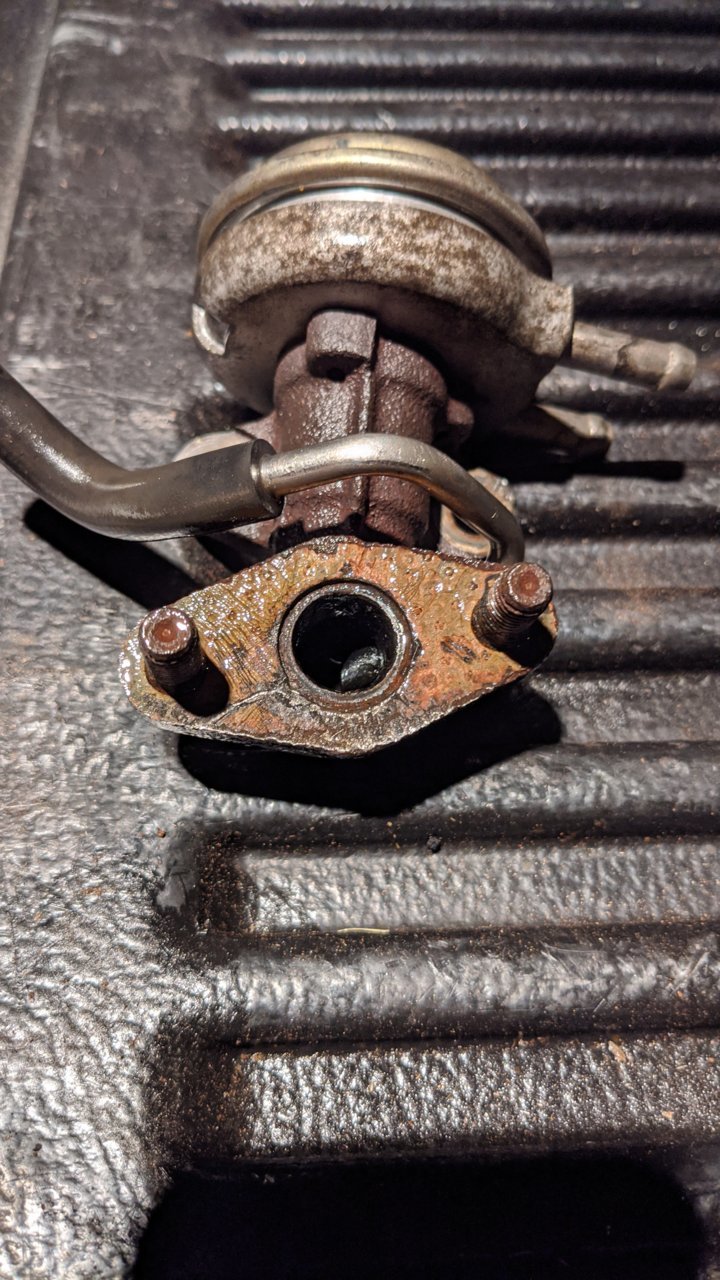

    I removed my EGR valve to clean it and the port into the throttle body because of a recurring P0401 code on the CEL.

    The gasket on the throttle body side came off after a while off prying and prodding, but the gasket on the egr tube side seems welded on.

    I'm soaking that portion in rust penetrant to see if that helps seperate the two.

    Anyone else encounter this issue??

    IMG_20200712_213048.jpg IMG_20200712_213034.jpg

  2. Jul 12, 2020 at 8:32 PM
    #2
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,214
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Wire brush and a razor blade got it for me.

  3. Jul 12, 2020 at 8:34 PM
    #3
    PELICANTACO

    PELICANTACO [OP] 1998 Taco 4x42.7L 5spd

    Joined:
    Jan 18, 2020
    Member:
    #316510
    Messages:
    24
    Gender:
    Male
    Louisiana
    Vehicle:
    1998 Red SR5 4x4 2.7L 5spd
    1998 Red SR5 4x4, Dobinsons front struts OME Dakar rear leafs 33x10.5 BFG KO2
    I used a wire brush on my drill around all sides, before i tried prying with a razor blade. Even tried a sharp chizel with a hammer and it would not budge.

  4. Jul 12, 2020 at 8:36 PM
    #4
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,214
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Hm. Maybe a utility knife under a corner? You're on the right track, but it might just take some persistence to get it.

    PELICANTACO [OP] likes this.
  5. Jul 12, 2020 at 8:41 PM
    #5
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    5,494
    Gender:
    Male
    For my dumb eye it looks like its just surface rust, and the gasket is gone.

    I would use a higher speed wire brush and clean it as best possible.

    Exhaust gaskets like that are pretty forgiving as long as they are new.

    cruiserguy and PELICANTACO [OP] like this.
  6. Jul 12, 2020 at 8:41 PM
    #6
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,438
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    I agree. A razor blade scraper.

    PELICANTACO [OP] likes this.
  7. Jul 12, 2020 at 8:46 PM
    #7
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,214
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.

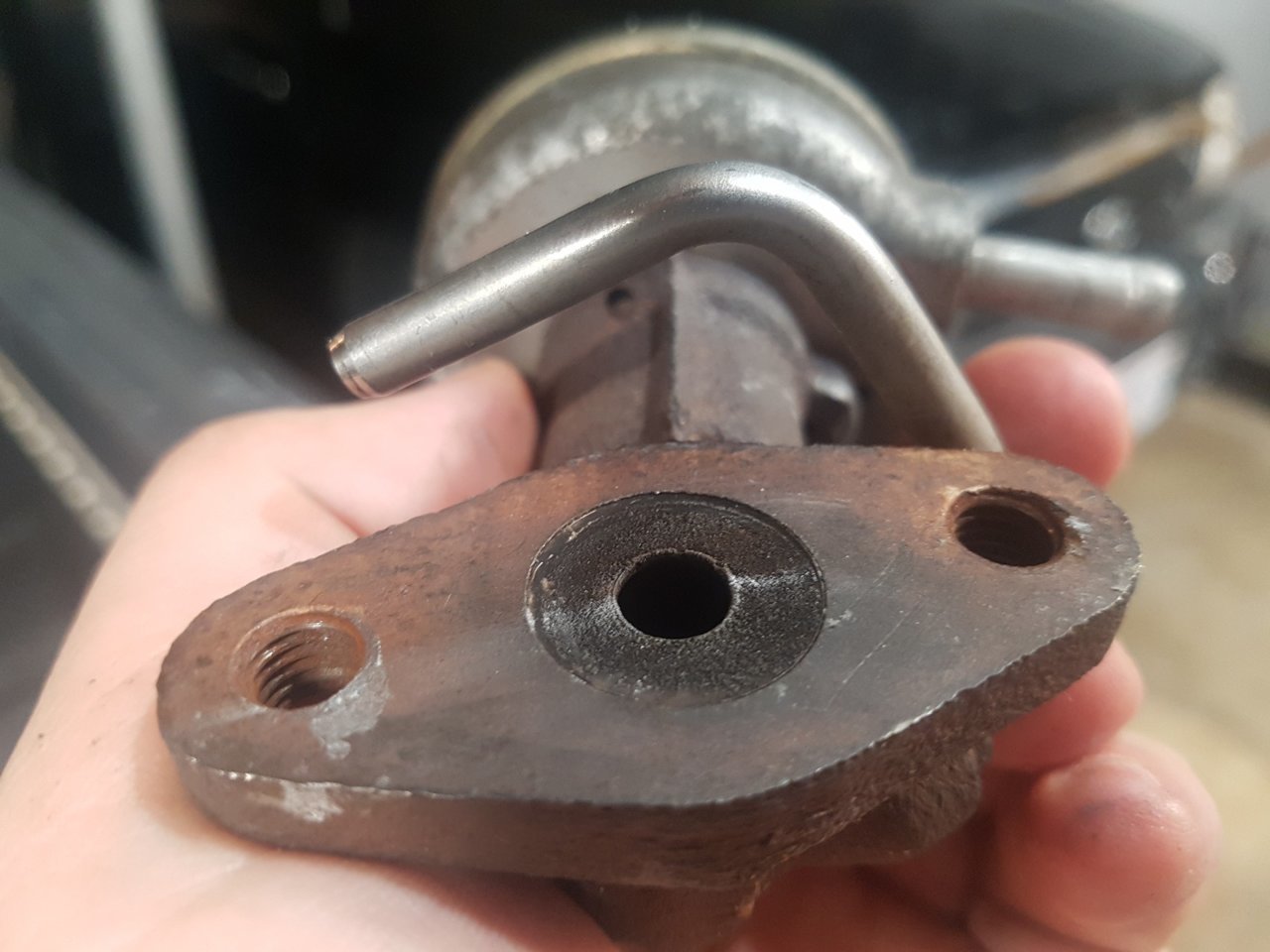

    Here's a cleanish one for reference.


    DrZ and PELICANTACO [OP] like this.
  8. Jul 12, 2020 at 8:50 PM
    #8
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    5,277
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    2004 4Runner
    Just delete the EGR system

    1997tacomav6 likes this.
  9. Jul 12, 2020 at 8:57 PM
    #9
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,214
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Why?

  10. Jul 12, 2020 at 9:01 PM
    #10
    boostedka

    boostedka Well-Known Member

    Joined:
    Sep 29, 2011
    Member:
    #64367
    Messages:
    5,277
    Gender:
    Male
    First Name:
    James
    NM
    Vehicle:
    2004 4Runner
    Keep from blowing hot exhaust and carbon back into your intake manifold
    Simplify the clutter in that area of the engine bay
    One less thing to maintenance as the OP is doing

    I've done that on 2 different 3rz motors and will do it again if I ever own another one.

    1997tacomav6 and 0xDEADBEEF like this.
  11. Jul 12, 2020 at 9:01 PM
    #11
    PELICANTACO

    PELICANTACO [OP] 1998 Taco 4x42.7L 5spd

    Joined:
    Jan 18, 2020
    Member:
    #316510
    Messages:
    24
    Gender:
    Male
    Louisiana
    Vehicle:
    1998 Red SR5 4x4 2.7L 5spd
    1998 Red SR5 4x4, Dobinsons front struts OME Dakar rear leafs 33x10.5 BFG KO2
    So I removedt that center button and it made me think the gasket was thicker. It's not, I just need to clean and put the button back.

    cruiserguy likes this.
  12. Jul 13, 2020 at 12:39 AM
    #12
    billybop90

    billybop90 Well-Known Member

    Joined:
    Jun 5, 2019
    Member:
    #295522
    Messages:
    267
    Gender:
    Male
    First Name:
    Bill
    Black Hills SD
    Vehicle:
    1996 Taco, 2.7, 4WD, 5 spd
    Sharpened up an old wide flat bladed screwdriver on a grinder and used that. Finished off with a wire wheel and it was all good.

  13. Jul 13, 2020 at 8:20 AM
    #13
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,069
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    P0401 is the insufficient EGR flow, right? I had that DTC going on when I first picked up my taco with 3RZ.
    Make sure vac lines associate with the EGR system are all clear, don't overlook this step!
    The modulator can be tested with a hand held vac pump, like a Mightyvac or similar. The VSV under the intake can also be tested by applying 12VDC and making sure each of the 2 outgoing ports hold vacuum(or just replace VSV with Aisin brand one(they make it for Toyota) and new vac lines and new modulator. Also clean the EGR temp sensor as that temp sensor is how the ECU reads how much EGR is coming back into the intake.
    The EGR valve themselves rarely fail and I've only seen one failed before on any Toyota and even that's because the previous owner attempted to 'fix' the diaphragm :rolleyes::D

    0xDEADBEEF and PELICANTACO [OP] like this.
  14. Jul 13, 2020 at 8:42 AM
    #14
    0xDEADBEEF

    0xDEADBEEF Well-Known Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    10,214
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Also, as far as the vac lines go, also check their ports on the throttle body. Mine were all plugged up, although that was giving me an 0402.

    You can also check the temp sensor with a multimeter. I think anything above 2.5kohms is OK.

    PELICANTACO [OP] and cruiserguy like this.
  15. Jul 13, 2020 at 8:47 AM
    #15
    PELICANTACO

    PELICANTACO [OP] 1998 Taco 4x42.7L 5spd

    Joined:
    Jan 18, 2020
    Member:
    #316510
    Messages:
    24
    Gender:
    Male
    Louisiana
    Vehicle:
    1998 Red SR5 4x4 2.7L 5spd
    1998 Red SR5 4x4, Dobinsons front struts OME Dakar rear leafs 33x10.5 BFG KO2

    I will check the sensor tonight and report back.

    I cleaned the TB thoroughly and had to a few clogged ports that I took care of.

  16. Jul 13, 2020 at 8:49 AM
    #16
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,069
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Yeah, good point, excessive EGR flow (P0402)can happen as well from carboned up ports or lines.
    I learned a lot more about these heaven forsaken EGR systems than I ever wanted to, from the 80 series Land Cruisers. Obviously glad I learned it now in hindsight but boy can it be frustrating :D
    Once the whole theory/premise of operation kinda clicks in my noggin, it made it MUCH easier to troubleshoot and diagnose issues with it.:cool:

    0xDEADBEEF likes this.
  17. Jul 13, 2020 at 1:27 PM
    #17
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,438
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    A test not given in the repair manual is to apply vacuum with a hand vacuum pump to the big bottom port on the modulator and check that it holds vacuum. The rubber diaphragm inside gets old and brittle over time and will develop a crack. If that diaphragm is leaking the modulator won't be opening the EGR valve correctly.

    Those modulators are very specific to each engine, so if it's broken you may have to go to Toyota to get a new one, but it should last a long time, probably the rest of the life of your truck.

    cruiserguy likes this.
  18. Aug 3, 2020 at 1:52 PM
    #18
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,616
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    The EGR Valve should have a metal gasket that comes off very easy unless someone used high temp
    exhaust gasket maker

  19. Aug 3, 2020 at 1:56 PM
    #19
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,616
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    Have you deleted the EGR from the 3.4?

    I just installed a temperature gauge in the supercharger on the hot side going into the engine
    and my intake temperature is a WHOPPING 140-150 degrees with zero boost.

    I didn’t even think my intake temperature would be this high until I installed my supercharger temperature gauge.

    I might have to delete my EGR system and get back to normal intake temperature of 100



    cruiserguy likes this.
  20. Aug 3, 2020 at 2:05 PM
    #20
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TRD Supercharger,2"pulley,meth, 660k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    8,616
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 660,001 plus miles, Original Owner
    V6 5sp,RegCab,TRD Supercharger, 2" pulley, methanol injected AC TRD supercharger,(MUST DO) TRD supercharger ported, rebuilt 3 times over 500,000 miles, every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 2” pulley,(300hp) (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, 4runner bucket seats, Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks chrome push bar, chrome nerf bars, add a leaf for rear springs trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Corbeau bucket seats Snow Methonal kit stage 2 Champion 3 core aluminum radiator Linex bed liner
    My valve is still working correctly 22 years later and 625k miles,
    They don’t fail very often
    I’m 99 percent the 3.4 valve is no longer available from Toyota, FYI
