3RZ PCV Return fitting size, oily spark plug well

Discussion in 'Technical Chat' started by sachou, Jun 23, 2012.

  1. Jun 23, 2012 at 11:43 AM
    #1
    sachou

    sachou [OP] Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    665
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    Hi all,

    My 99 2.7L Tacoma recently returned from a 600 mile trip to Montana with no faults, but a few days after my return, the engine began to stutter under load - more than 1/4 throttle at under 2000 rpm would cause it to stutter, and it even backfired on me. No engine codes were being thrown.

    I let my mechanic friend look at it, and he put a (timing light?) on all the cylinders, and found cylinder 4 to be misfiring like crazy. I pulled the Cyl 4 spark plug, and my socket came back oily as hell.

    Here's where it gets a little weird. When I bought the truck, the previous owner had installed a PCV breather - just a tiny air filter connected to the PCV valve, and a rubber block-off on the PCV return on the intake manifold. I decided to do away with this setup, and installed a ghetto inline PCV catch can using a Husky air compressor inline filter. Something weird I ran into was that the fitting on the intake manifold (return) was WAY larger than the PCV valve. I disregarded it and just got adapters to fit onto the filter at the time (more than a year ago).

    At this point, I'm thinking my ghetto modification has to go, and may be the cause of the spark plug well closest to the PCV valve being oily, and not the other plugs. I looked at a friend's 3RZ engine, and it looked like mine was ground and drilled out to fit the larger nipple.

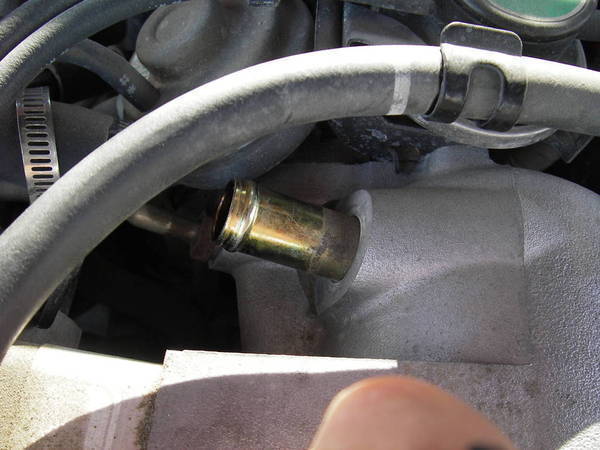

    [​IMG]


    [​IMG]

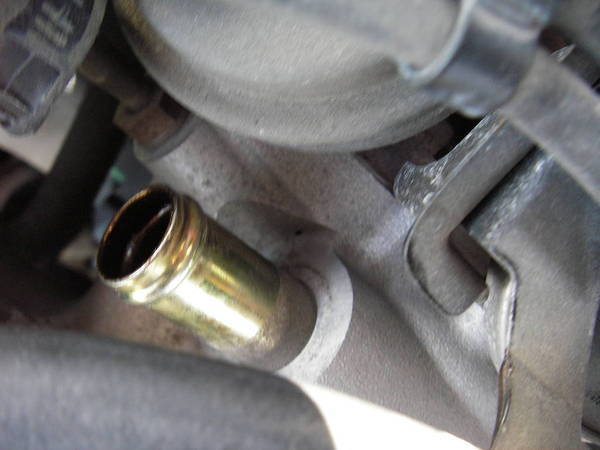

    It even looks like they ground out too much metal, and there's a tiny hole showing through...


    [​IMG]

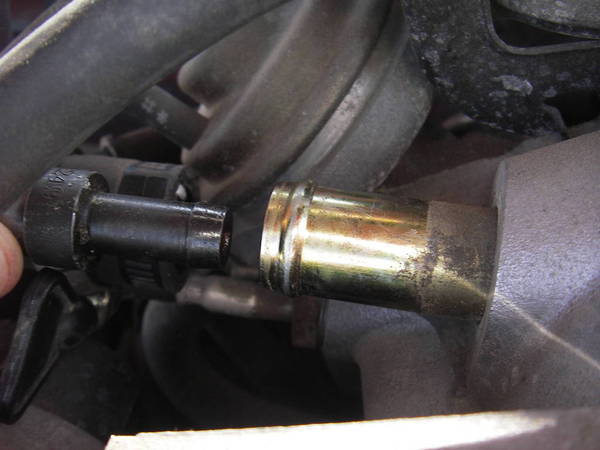

    Here is a comparison to the PCV valve. Much, much larger.

    My questions are: Why would somebody enlarge this? Do I need to replace my head gasket/rebuild my engine?

    Thanks all.

  2. Jun 23, 2012 at 12:16 PM
    #2
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,887
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    That's a hose fitting. It's stock and supposed to look like that.

  3. Jun 23, 2012 at 12:18 PM
    #3
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,887
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.

    The pcv should go directly into the the valve cover with a hose running from the pcv to the throttle body

  4. Jun 23, 2012 at 5:46 PM
    #4
    sachou

    sachou [OP] Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    665
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    The picture you posted (and also confirmed when I looked at my friend's 2.7) shows the hose fitting installed into the cast aluminum of the intake manifold/throttle body, however, mine looks like somebody machined part of it off, and installed a hose fitting many sizes larger. I would connect a hose between the two, but a single size hose would literally not fit - I removed the PCV valve and held it up next to the other fitting for a size comparison in the last picture.

  5. Jun 23, 2012 at 6:01 PM
    #5
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,887
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    That's because the end you're trying to stick in the hose is the end that goes in the cover. The fast end goes in the hose.

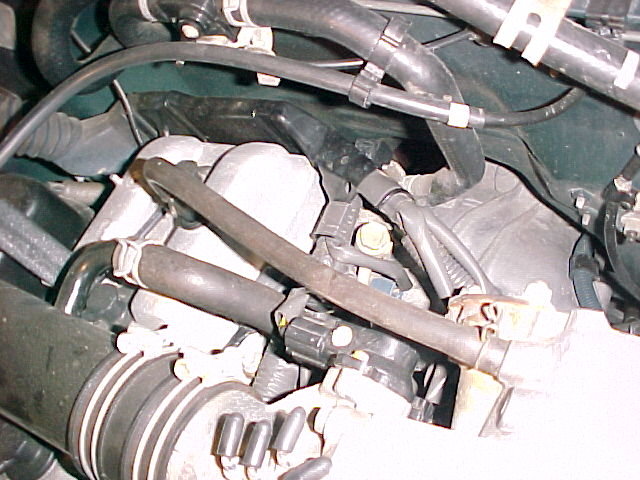

    [​IMG]

  6. Jun 24, 2012 at 12:50 PM
    #6
    ecoterragaia

    ecoterragaia Everyone lives downstream.

    Joined:
    Jan 23, 2011
    Member:
    #49786
    Messages:
    1,749
    Gender:
    Male
    Central Virginia
    Vehicle:
    '06 RC, 4X4, 5 speed
    Regardless of the PCV hose sizes, oil in the spark plug well usually points to a valve cover gasket leak. Replacing it should be fairly cheap and easy to do yourself.

  7. Jun 24, 2012 at 3:26 PM
    #7
    sachou

    sachou [OP] Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    665
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    Thanks! So most likely not a head gasket, then? The electrode seemed a bit oily, but that might be from the oil dripping down when I removed it. I was also under the impression that if a gasket were to leak, it would usually be evident on all 4 cylinders...


    I know which side of the PCV valve to place in the valve cover - the smaller end would just hang out loosely, the larger end is the one that has the tight fit. That being said, the large end is still much smaller than the return fitting on the intake manifold, and the small end is even MORE mismatched. The fitting on the manifold is for a 5/8" hose, and if I tried to put the small end into the valve cover, it would get blown off when I started the engine because it does not fit. Even with it in backwards, the PCV valve's fat end is still much smaller than the return hose, and also does not fit.

    I KNOW it has been modified and enlarged, I just want to know WHY.

  8. Jun 24, 2012 at 6:32 PM
    #8
    ecoterragaia

    ecoterragaia Everyone lives downstream.

    Joined:
    Jan 23, 2011
    Member:
    #49786
    Messages:
    1,749
    Gender:
    Male
    Central Virginia
    Vehicle:
    '06 RC, 4X4, 5 speed
    There doesnt have to be oil in all cylinders. In fact its typical for only one or two to have oil in them. The oil is highly conductive and shorts the spark to ground (the block).

  9. Jun 24, 2012 at 7:55 PM
    #9
    TherealScuba

    TherealScuba Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75781
    Messages:
    1,052
    Gender:
    Male
    First Name:
    Stephen
    Austin, Texas
    Vehicle:
    99 Single Cab 4x4
    There were 2 separate sizes of PCV fittings on the intake manifolds.
    No shit, my dad has a 99 4Runner 3rz with that huge fitting and my 99 Tacoma 3rz has a smaller one.
    I'm thinking there may have been a manifold swap at some point in time on your truck.

    Also, there are donut shaped gaskets for the spark plug tubes that seal on the valve cover to keep oil from the valve train from getting in there. Most overlook these when opening up the VC, but they need to be replaced every time you open her up.

  10. Jun 24, 2012 at 9:54 PM
    #10
    sachou

    sachou [OP] Well-Known Member

    Joined:
    Sep 30, 2009
    Member:
    #23554
    Messages:
    665
    Gender:
    Male
    First Name:
    Sam
    Richland, Washington
    Vehicle:
    2006 TRD Sport Acc Cab 4x4 V6 6spd
    Thank you! I'm sure something like this happened...the rest of the intake system is pretty ghetto modified...the previous owner even installed a "TRD" throttle body spacer. Snake oil, much?

    I did also notice a gap between the valve cover and the spark plug tubes, and it really seemed like there should have been something there to separate the two sections of the engine.

    Thanks for your help TW, you're awesome!

  11. Jun 25, 2012 at 4:50 AM
    #11
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,887
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    Is one a Cali emissions truck and the other a 49 state emissions truck? That might explain it.

  12. Jun 25, 2012 at 8:15 AM
    #12
    TherealScuba

    TherealScuba Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75781
    Messages:
    1,052
    Gender:
    Male
    First Name:
    Stephen
    Austin, Texas
    Vehicle:
    99 Single Cab 4x4
    Yes, actually.
    My dads 4Runner with the larger fitting is California emissions. My Tacoma with the smaller fitting is Federal emissions.

  13. Jun 25, 2012 at 8:19 AM
    #13
    98tacoma27

    98tacoma27 is going full "Ben" Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    57,887
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+295k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED), 2006 F350 King Ranch 6.0L
    Some stuff. Not a lot, just some.
    Are both valves the same size?

  14. Jun 25, 2012 at 8:56 AM
    #14
    TherealScuba

    TherealScuba Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75781
    Messages:
    1,052
    Gender:
    Male
    First Name:
    Stephen
    Austin, Texas
    Vehicle:
    99 Single Cab 4x4
    Didn't check that.
    I only pulled the hose off of the manifold fitting so I could get at the TPS.

  15. Jun 25, 2012 at 9:10 AM
    #15
    Speed Freek

    Speed Freek Tacoma Whisperer!

    Joined:
    Dec 17, 2008
    Member:
    #11676
    Messages:
    3,999
    Gender:
    Male
    First Name:
    Jason
    Vista, Ca, Lake Havasu, Az.
    Vehicle:
    98 Tacoma V8 (LS1) swap
    LS1-T56 swap, Z06 ported heads, cam, Titanium valves, Kevlar clutch. Currently under the knife for turbocharger..
    The oil leak is the round grommets in each plug hole leaking, you should change all 4 and the valve cover gasket at the same time, normally it all comes in a kit, but make sure they do..

    And yeah, your trying to put the PCV in the wrong side, it goes into the valve cover rear hole...
