45acp’s DIVORCED build!

Discussion in '1st Gen. Builds (1995-2004)' started by 45acp, Jan 15, 2012.

  1. Oct 16, 2013 at 4:44 PM
    #1261
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Happy now? :p

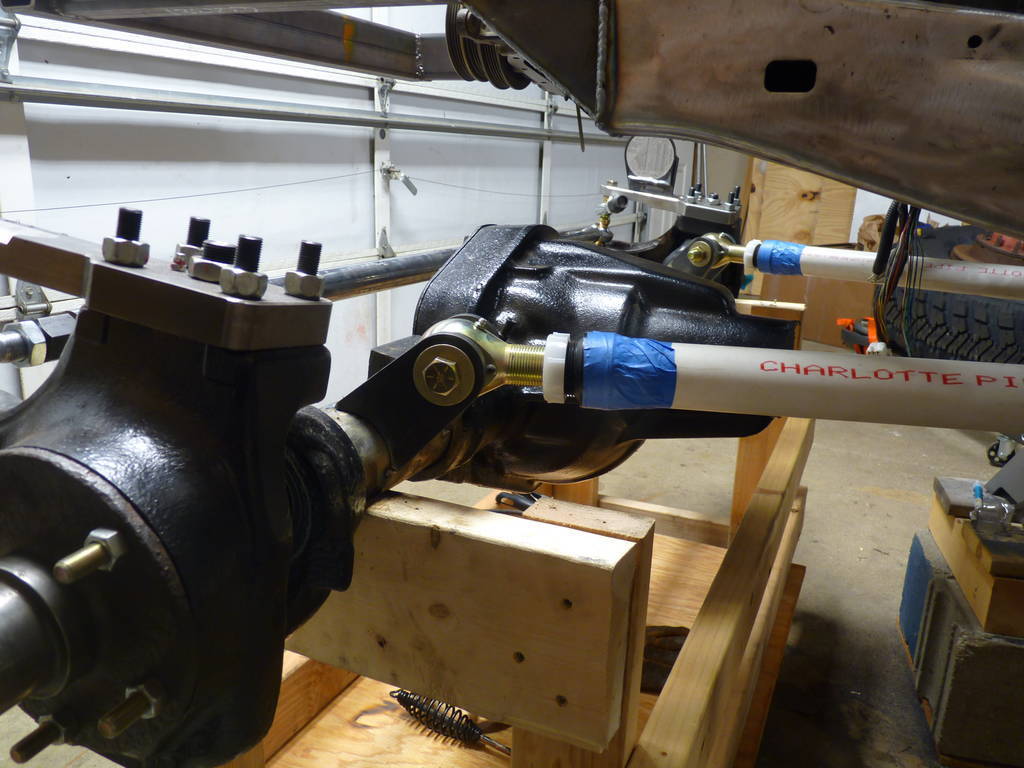

    Made the tie rod/drag link setup with double shear using some 1/4" plate. I may add more plate where it meets the knuckle just because.

    [​IMG]

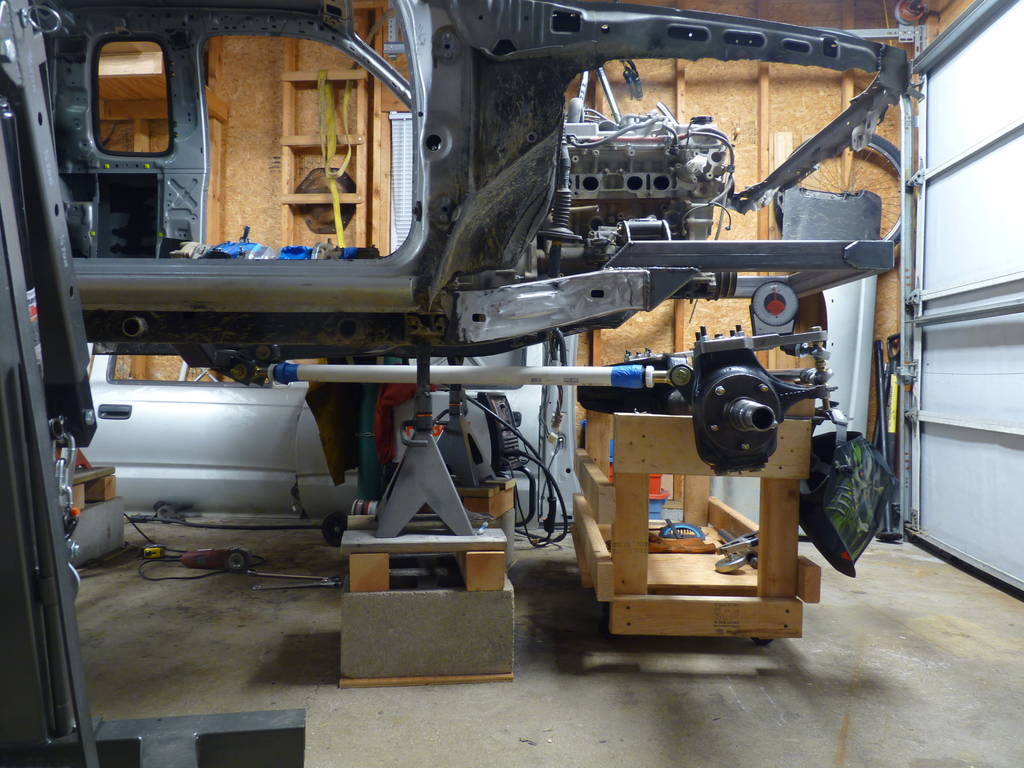

    Finally got around to building a rolling cart for the 60 at ride height.

    [​IMG]

    Waiting for some tabs to arrive so I can rebuild the link brackets and figure out where exactly I want the steering box and panhard.

  2. Oct 16, 2013 at 6:37 PM
    #1262
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,479
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    Was it 3 years ago that you've never even did an oil change?

  3. Oct 16, 2013 at 7:49 PM
    #1263
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Yeah 3 or 4. Something like that. :anonymous:

  4. Oct 17, 2013 at 5:53 AM
    #1264
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Definitely reinforce that double shear plate at the knuckle. 1/4" is kinda thin. I laminated and plug welded two pieces of 3/16" together for mine.

    That cart is a good idea. It looks like you have an angle finder on the axle to "set" caster...just FYI these axles (1978-79 Ford D60) like about 7° at ride height, but knuckles lean back not forward like yours is sitting.

  5. Oct 17, 2013 at 6:16 AM
    #1265
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Thought it was positive caster that they run with? Or is that just dodge/chevy axles?

    I was trying to get the pinion pointed at the tcase unless that only matters with the rear axle.

  6. Oct 17, 2013 at 6:42 AM
    #1266
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    Leaning back is positive caster. Only way that pinion is going to point at the case is if you rotate the C's.

    Think about it this way, when that axle was in the stock truck, imagine the suspension. With minimal travel, the pinion was basically designed to lay horizontal so the front driveshaft ran at a neutral angle, travelling both up and down, but at ride height was optimal (neutral).

    With the pinion horizontal, the knuckles are just about at 7°

  7. Oct 17, 2013 at 7:14 AM
    #1267
    Redneck92

    Redneck92 Well-Known Member

    Joined:
    Aug 9, 2012
    Member:
    #84398
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Chris
    Concord, NC
    Vehicle:
    02 Tacoma Limited TRD
    ARE Camper shell
    You can run the pinion horizontal if you use a two ujoint shaft rather than a double cardon joint.

  8. Oct 17, 2013 at 7:24 AM
    #1268
    NwiTACO

    NwiTACO Big tars, little/no bed.

    Joined:
    May 19, 2009
    Member:
    #17416
    Messages:
    3,927
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    05 TRD Sport
    Custom Everything, 1 Ton Axles F & R
    ^^^Ignore this. No he can't. The u-joints in the driveshaft don't have enough articulation.

    You can run the axle the way it is with the proper caster (pinion will be close to horizontal), but you need a double-cardan for the travel you are shooting for.

    Remember the front driveshaft isn't spinning unless you are in 4wd and the front hubs are locked in. The pinion does not have to point directly at the output flange in all circumstances. To have the best vibe free conditions it should, but you need the alignment numbers to be correct, since you will be driving in 2wd (at any speeds) ALOT more than 4wd at 70 mph with the front shaft spinning.

    In an ideal world, the C's would be rotated to the correct caster when the pinion is directly pointed at the tcase flange. But that's a TON of work that's not necessary, at all.

  9. Oct 17, 2013 at 7:26 AM
    #1269
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,415
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    X2 ^ that way that axle is setting you would be all over the road :eek:

    Double ended double cardon joint :cool:

  10. Oct 17, 2013 at 10:02 AM
    #1270
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    This guy knows whats up. If your outputs are parallel to each other, you run 2 u joints. If your pinion is pointing at the transfer case, you run a CV at the transfer case and a single u joint at the axle.

  11. Oct 17, 2013 at 12:45 PM
    #1271
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Yeah I guess I had the positive/negative caster thing backward in my head. :anonymous:

    From what I can tell, the Cs are rotated 10 degrees from the pinion angle so that leaves about 2-3 up on the pinion with the caster ~7. At ride height it doesn't seems too bad though. I'm hoping to have the drive train mount completed today so I can get a better idea of what's going on in regards to the drive shaft angles.

    I got the basic gist of the rules for single vs. double cardan. Would it just make life easier if I did a double cardan for both ends of the front drive shaft? Only thing I don't like about it is I'm sure it would be pretty pricey and reduce the flexibility/availability of spare parts.

  12. Oct 17, 2013 at 2:40 PM
    #1272
    thegame

    thegame WUT?

    Joined:
    Mar 11, 2011
    Member:
    #52855
    Messages:
    1,234
    Gender:
    Male
    First Name:
    Brian
    Bay area
    Vehicle:
    01 Prerunner -> 4wd IFS -> Dana 60 SAS
    I would throw a driveshaft in with a single u joint on either end and call it good. You're over complicating things and like someone else said, you won't ever be driving fast in 4wd.

  13. Oct 17, 2013 at 3:02 PM
    #1273
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,483
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,

    Ha...you...you don't know Jon well...haha

    he likes doing that..haha see how there is no floor :p haha

  14. Oct 18, 2013 at 4:48 PM
    #1274
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Finished the tranny crossmember. Kinda different... I hope it f*^%ing works. :anonymous:

    [​IMG]

    [​IMG]

    [​IMG]

  15. Oct 18, 2013 at 4:54 PM
    #1275
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    10,479
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    I bet your truck ends up weighing more than Frank.

  16. Oct 18, 2013 at 5:05 PM
    #1276
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Ha, I don't carry as much crap as Monte does. :D

  17. Oct 18, 2013 at 5:35 PM
    #1277
    Cykososhull

    Cykososhull Better not bring your kids

    Joined:
    Sep 29, 2013
    Member:
    #113508
    Messages:
    309
    Gender:
    Male
    First Name:
    Charles
    Coeur D' Alene
    Vehicle:
    03 Tacoma SR5 TRD
    uniden cb, Grey wire, Deck plate, OME 883 coils, Dakar w/D6XL, 4X innovations sliders, tinted windows, debadged, TG low profile bumper, Piaa lights, Allied soft 8s, Bighorn 285,75,16s
    Your build is bad ass. What is the brand of the tubing you have your hi lift mounted to? I didn't see it in your build. I'm interested in that style.

  18. Oct 18, 2013 at 6:36 PM
    #1278
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,748
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    82 Pickup
    The usual toyota parts..
    Interesting. Look forward to seeing how well that works. Hopefully you don't get a rattle or vibe since the rear of the mount rests on your link crossmember...

  19. Oct 19, 2013 at 12:44 AM
    #1279
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,483
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    When I save your ass again with tools you will respect the fatness :p


    Also...weird design..

  20. Oct 19, 2013 at 12:50 AM
    #1280
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,886
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Thanks man, it's a CBI over-the-rail tire carrier. Trail-Gear hi lift mount welded to it.

    It's hard to see from that angle, but there's actually at least a 1/4" gap. Only place anything contacts is the bushing.

    I corrected the angle of the inner Cs and started tacking on the link tabs. I'm gonna have to wait and see if I need to rotate the tabs down or clearance the frame if I don't have enough room, as there's only about 2.5" space between the frame and PVC.

    As it sits, the links are just about perfectly flat but I want to raise the tabs at the frame end.

    [​IMG]

    [​IMG]

    [​IMG]
