4banger Custom Wedge Build

Discussion in '2nd Gen. Builds (2005-2015)' started by ke4640d20, Jul 27, 2018.

  1. Jul 27, 2018 at 3:18 PM
    #1
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Follow the build on IG @https://www.instagram.com/s/aGlnaGxpZ2h0OjE3OTA2NzUxMTk2MjQ0NzI2/

    Truck
    2012 SR5, 2.7L 4x4

    Suspension
    Icon Stage 2
    SPC Upper Control Arms
    Dakar Heavy Leaf Pack (Not Installed)

    Wheels/Tires
    Relations Race Wheels, RR1 16x8
    285/75/16 Falken Wildpeak AT3W

    Misc
    Dometic CFX40W Fridge

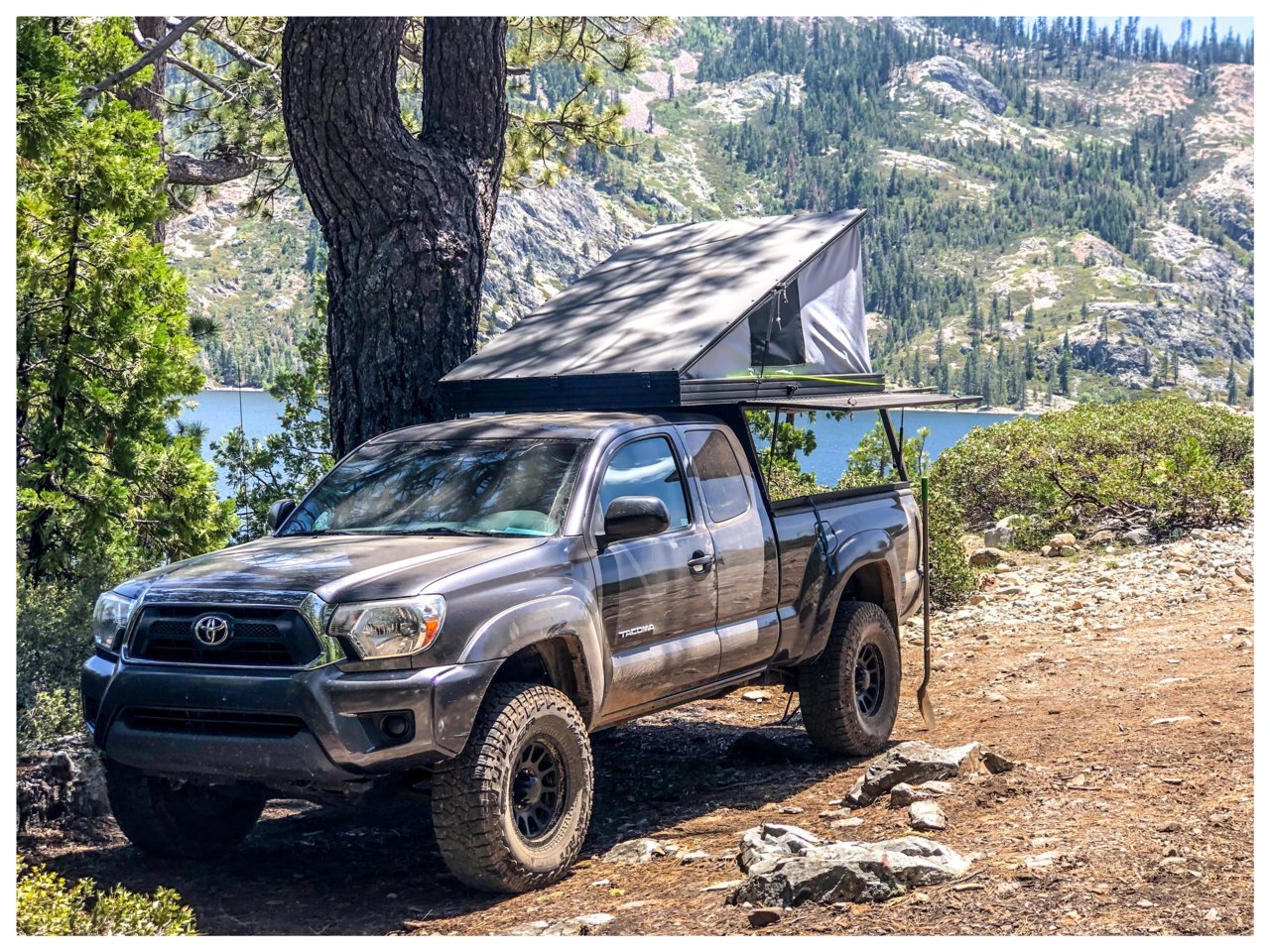

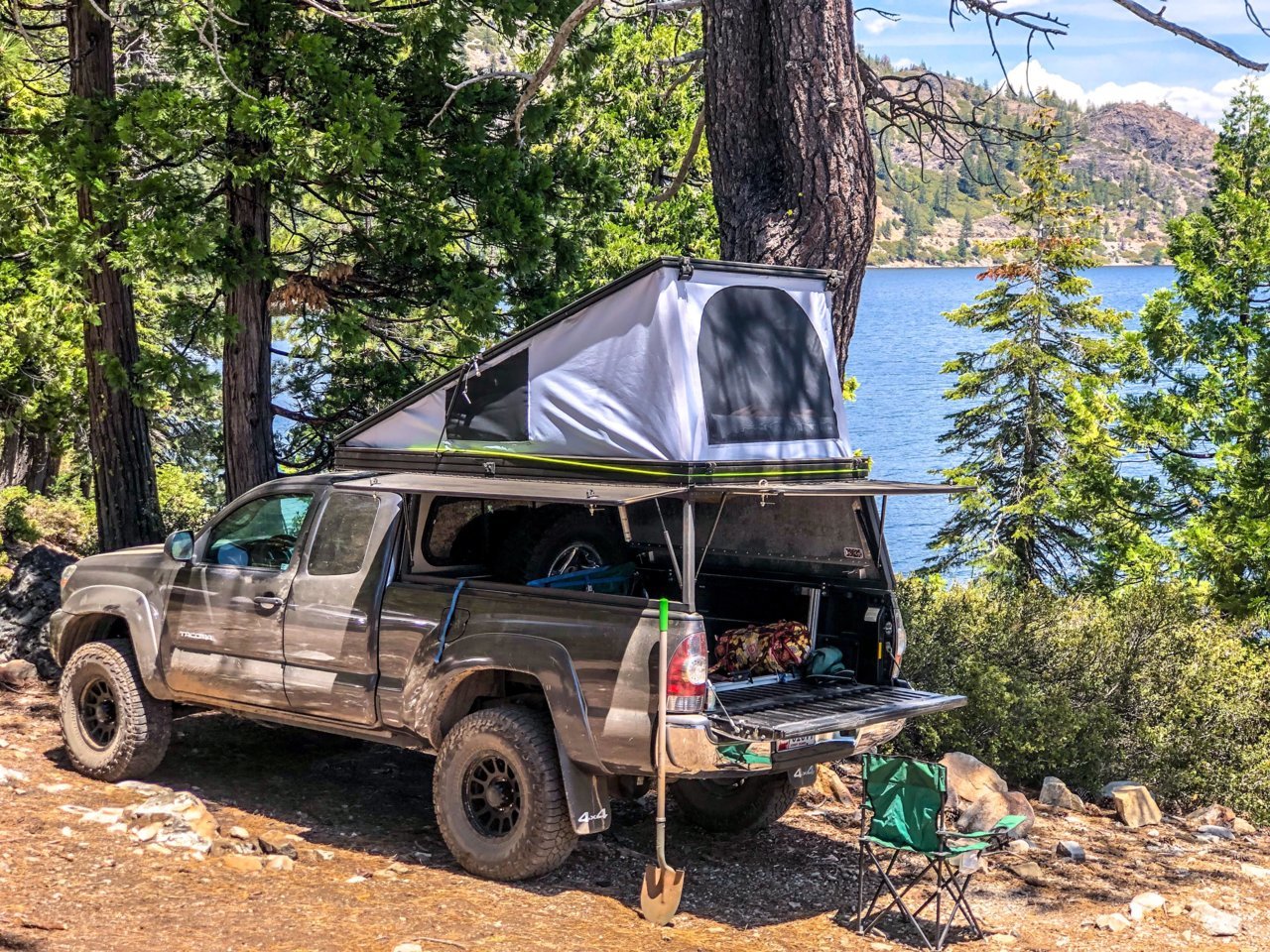

    Home Built Wedge Camper (Post #2)


    Truck Weight and Balance
    *Since this truck is a 4 cylinder, I am trying to keep it as light as possible. Here are my results after each major modification.


    Pre-Light Weight and Heights (3/4 Tank of Gas)
    Driver Front 1150lbs Passenger Front 1150lbs
    Driver Rear 880lbs Passenger Rear 850lbs
    Total 4030lbs.
    Front Ride Height: 34"
    Rear Rider Height: 36.25"


    Post-Lift, Wheels and Tires Weight and Heights (1/2 Tank of Gas)
    Driver Front 1210lbs Passenger Front 1150lbs
    Driver Rear 920lbs Passenger Rear 830lbs
    Total 4110lbs
    Front Ride Height: 37" (+3" per ICON)
    Rear Rider Height: 38" (+1.75")


    Attached Files:

    Last edited: Mar 2, 2019
  2. Jul 27, 2018 at 3:18 PM
    #2
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Wedge Camper Build

    I decided to document the build to the best of my ability in hopes that it could provide guidance for others to follow. As you may have noticed, it is similar to some of the production style wedge campers currently on the market. Personally I did not want to spend the money it cost to buy one, nor wait the time to have one made. I enjoy working with my hands, so I decided to emulate some of the feature of the commercial style campers, and make my own.

    I "designed" the camper via google Sketchup. I don't have any professional knowledge of CAD, but having used Sketchup for many years for other personal projects I figured it was a good platform to start in.

    Frame
    I found a local welder in the Sacramento area who made the frame based on the designs I gave him. After a little back and forth, this was the final product, and measurements.

    The entire frame is 1.5" Steel Square Tubing. (Measurements below)
    The angles on the back / and sides are all 10 degrees. The front is 3 degrees, to follow the rear of the cab. Depending on whether you have a 6' or 5.5' truck bed, the measurements will change. I have a 6' bed, so the measurements below are accurate for the long beds. You can use the same (top of the frame) width measurements which is 53.25", which will allow you to use the 80/20 measurements below for all configuration. Additionally you will want to add a 1/4" thick sheet that will sit on the top of the frame which is 3" wide and will work as the support structure for the interior portions of the 80/20.

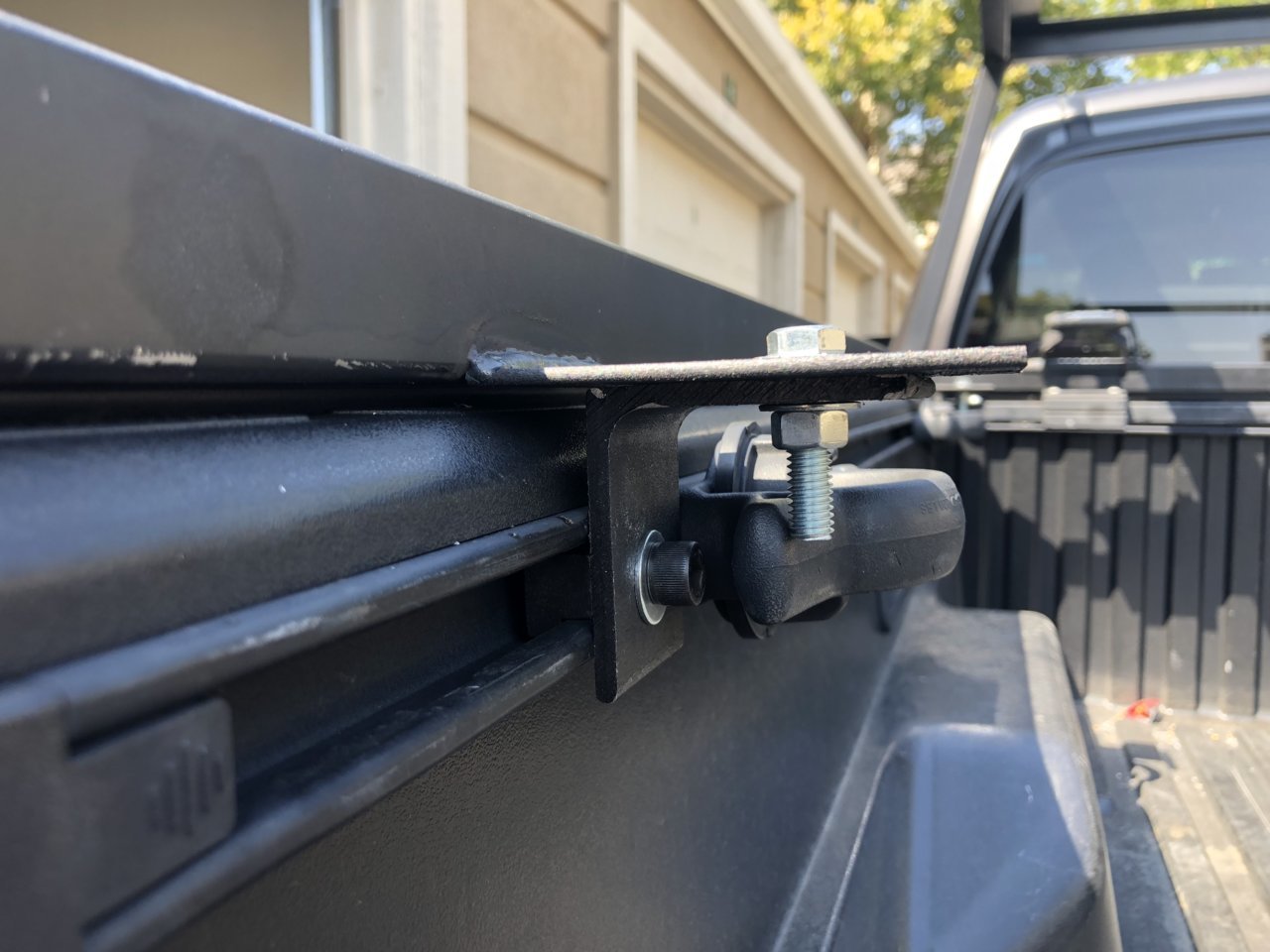

    In order to mount the frame to the bed of the truck I figured using the existing Toyota rail system would be the best option. We welded on some tabs to the frame and used 90 degree brackets to connect the frame and the truck. (See last image in this section). In order to attach the brackets to the Toyota rail system, I purchased these guys from Amazon. (https://www.amazon.com/gp/product/B07BWV49BF/ref=ppx_yo_dt_b_asin_title_o08__o00_s00?ie=UTF8&psc=1



    Cost: Updated 19JAN2019

    Welded frame: $480.00 (Built by a local welder)
    Ace Hardware Screw/Washer/Etc: $5.00
    Material Swatches: $10.00
    Rear Sliding Window: Free (Found of Craigslist)
    Tacoma Bed Rail Anchors: $18.99
    80/20 Framing: $1429.31 (https://8020.net/)

    Total Build so far: $1943.30



    Attached Files:

    Last edited: Jan 20, 2019
  3. Jul 27, 2018 at 3:18 PM
    #3
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Reserved 2

  4. Jul 27, 2018 at 3:34 PM
    #4
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    Super cool. Interested to see the wedge camper come together.

    BassAckwards and ke4640d20 [OP] like this.
  5. Aug 10, 2018 at 3:49 AM
    #5
    TYetti

    TYetti 4cylinders of awesomeness

    Joined:
    Mar 8, 2014
    Member:
    #124858
    Messages:
    2,086
    Gender:
    Male
    First Name:
    Mat
    Abbotsford, BC, Canada
    Vehicle:
    09 Tacoma AC 2.7L 5spd 4x4
    Interesting....

    the_tacocamper likes this.
  6. Aug 12, 2018 at 8:28 AM
    #6
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Update: Dropped off the deposit for the frame to get welded up. I was originally looking to do aluminum but the welder recommended doing a thinner steel for rigidity and longevity. We'll see how it turns out. Should have some pictures up end of next week. So the frame will be 1.5" Steel square tubing 1/8" thick. I am estimating the weight to be around 80lbs. Trying to make this camper as light as possible.

    Also ordered a RTIC 45 cooler this week for the build. They were having a 20% off sale on all order over $200. So I ended up getting the Cooler, Divider and 2 baskets for $190.00 shipped. Anyone have experience with the RTIC? We used a YETI on our cross-country and were pretty impressed with the ice retention, but not the $$$$.

    the_tacocamper and 69 Jim like this.
  7. Aug 14, 2018 at 8:43 AM
    #7
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock

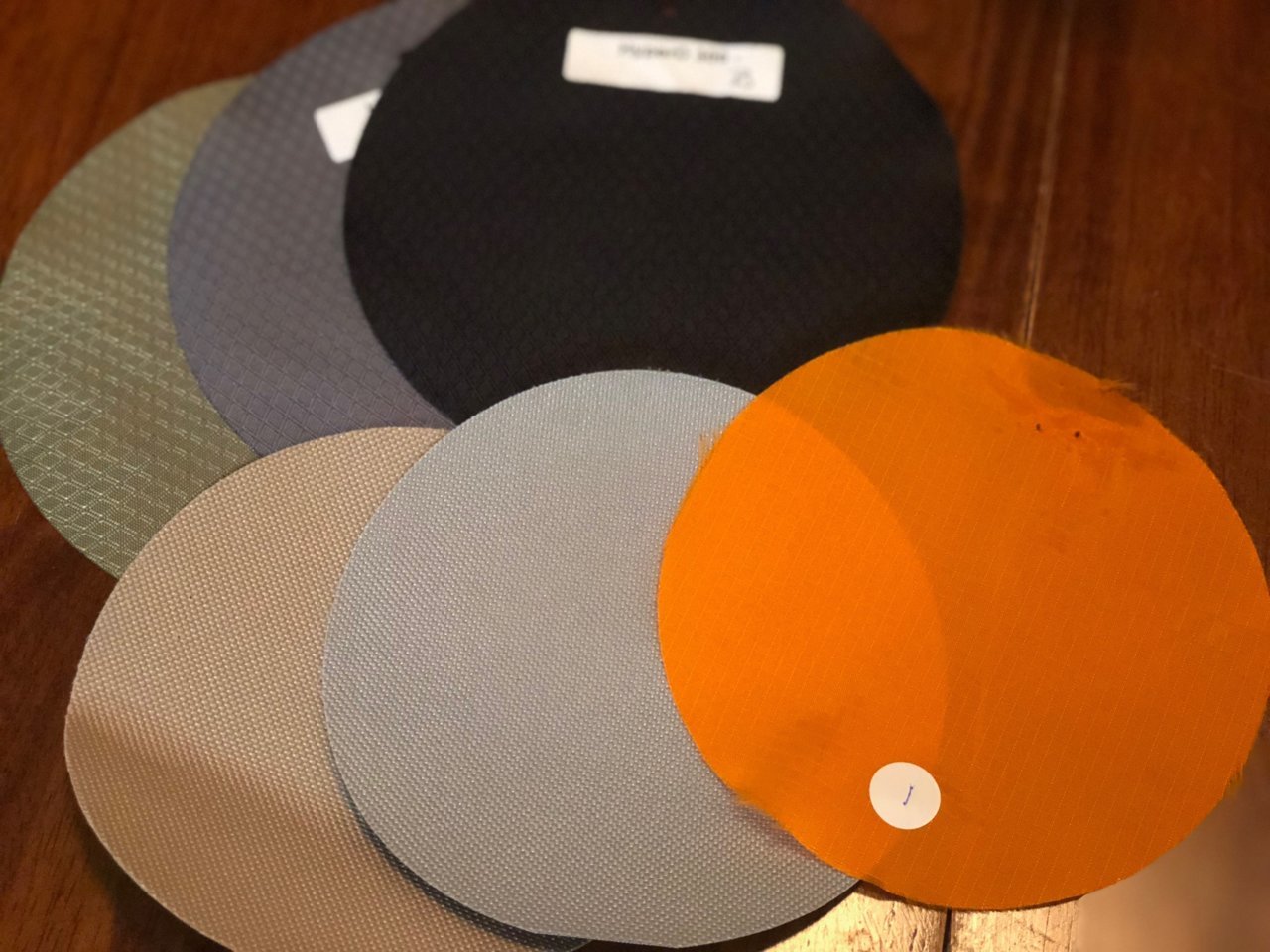

    Update: Ordered a few swatches from fabricwholesaledirect.com, and ripspotbytheroll.com. Ripspotbytheroll.com recommended I go with their HyperD 300, which they said would be good against UV, it would be waterproof but no breathable. I also spoke to @sportsmobile in IG, and they said they basically used convertible top material for their builds. So I ordered some waterproof canvas as well.

    My take on the material:
    HyperD 300 (BLACK, GREEN, GREY) Looks pretty durable, I tried to put a paid of scissors through it under tension and they did not go through with moderate force. I don't know how durable it will be overtime, and I don't really want to replace the tent over time. It is waterproof, but non breathable. Overall a decent material.
    Waterproof Canvas (TAN, GREY) This stuff is tough, but obviously its comes with the downfall, its non-breathable. When I owned my EZ-Topper Lift set up, the walls were made of this stuff, and it held up very well.
    1.6oz RipStop: (ORANGE) Don't think I am going to even entertain this idea, it is very light, and basically see through. It would be good for other applications such as a hammock, but not a wedge tent camper. On the Brightside. It is breathable.

    Let me know what ya'll think!


    the_tacocamper likes this.
  8. Aug 26, 2018 at 8:45 AM
    #8
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Well! The frame is almost done.....it was supposed to be done about two weeks ago, but the shop has been busy. And unfortunately when it comes to small jobs like this, they generally get pushed to the right.

    Stopped by the other day to see fitment and it was all off. To narrow and to tall, so it’s getting redone. Hopefully not to much more of a wait.

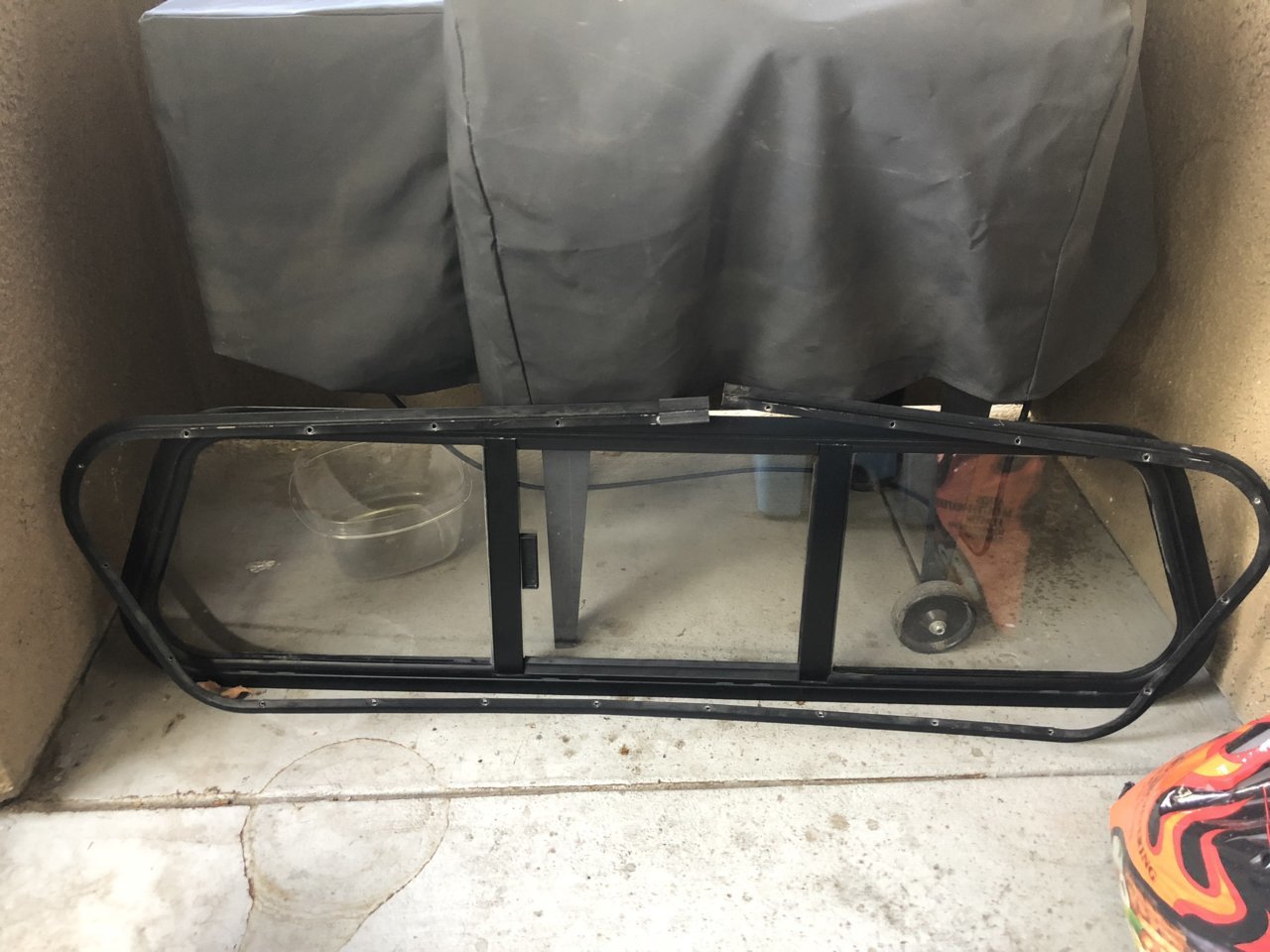

    In the mean time, I found a guy giving away a Leer topper from his 1998 taco, and lucky for me! It had an intact rear slider. So I ripper it out and scrapped the topper. Which was nice because that saved me about $350.00 in buying a new slider.

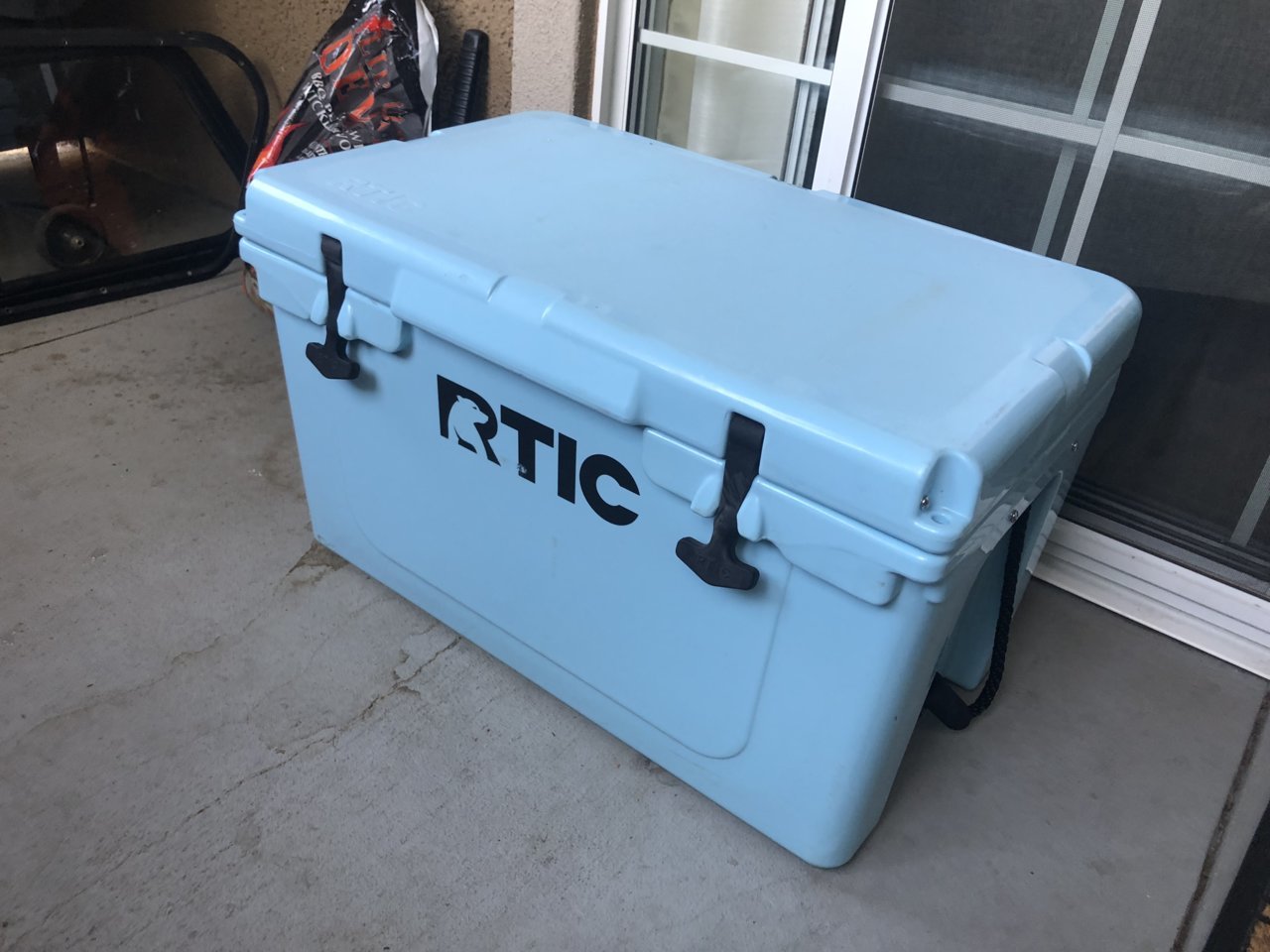

    Also! The cooler came in, and we took it for a weekend bike trip to Santa Cruz, performed as expect.

    Side note: if you own a rotomold cooler, always pre cool them (I use ice from the ice machine at work) and use blocker ice not store bought ice. Basically get a silicone or metal loaf pan, and freeze a block everyday until you have like 10 of them. I can fit 6 in mine perfectly at the bottom and it lasted all weekend. I was also able to salvage a few and refreeze then.


    the_tacocamper and henryrose like this.
  9. Aug 31, 2018 at 1:23 PM
    #9
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock

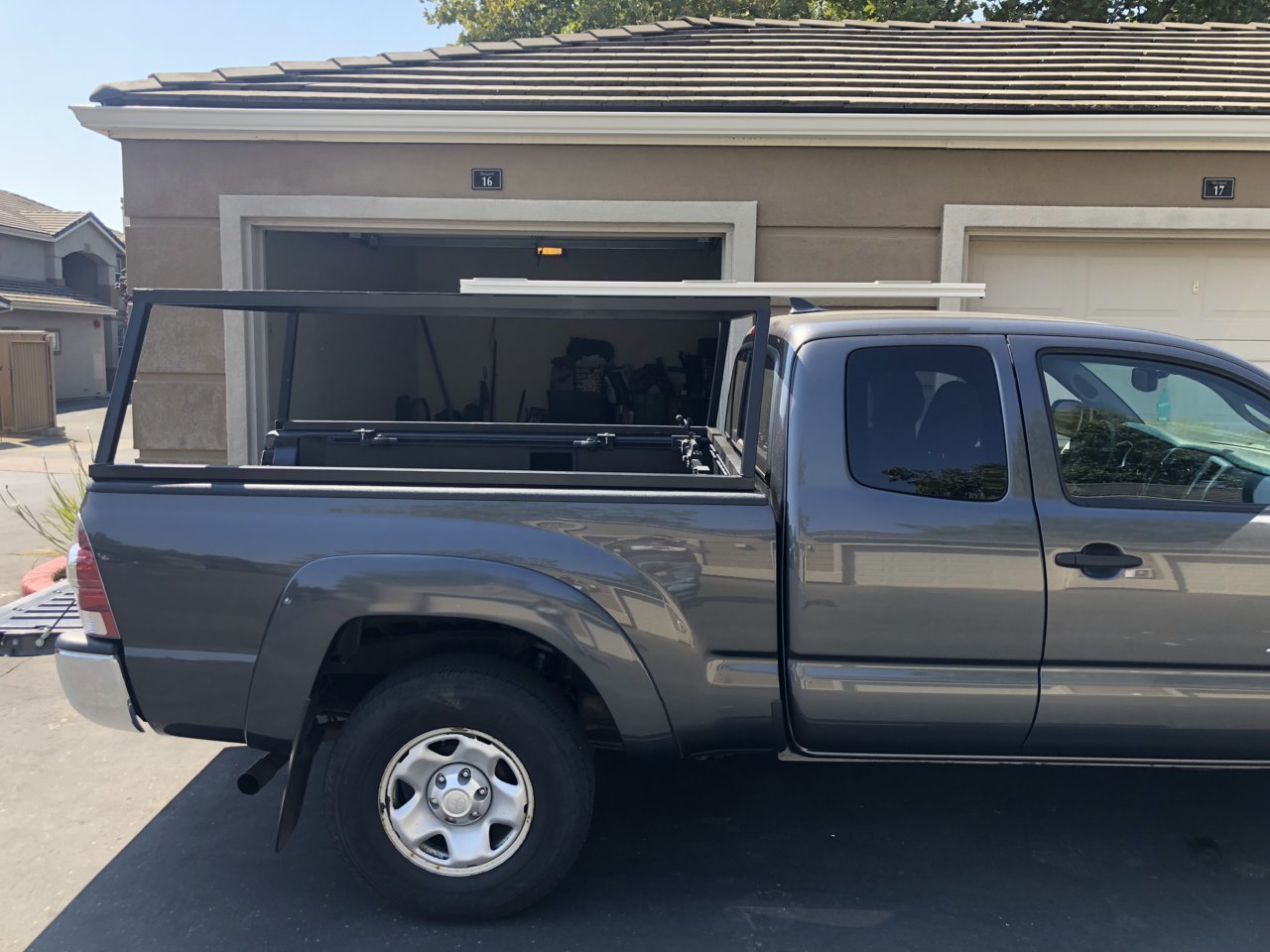

    Rack is done!


    magicgus323 likes this.
  10. Aug 31, 2018 at 1:30 PM
    #10
    Jerneyman

    Jerneyman I build things made of metal for fun.

    Joined:
    Nov 6, 2015
    Member:
    #168886
    Messages:
    2,474
    Gender:
    Male
    First Name:
    Wes
    Huntsville, AL
    Vehicle:
    2011 Tacoma TRD OffRoad 4x4
    **Armor** CBI Offroad Moab 2.0 Home Fabbed Rock Sliders Home Fabbed IFS Skid Plate Home Fabbed Mid Skid Plate Home Fabbed Transfer Case Skid Home Fabbed High Clearance Rear Bumper **Suspension** ADS Front Coilovers (Extended Travel, 700lb coils, Remote Resi) Total Chaos UCAs 1.5 inch AAL Rear Bilstein 5100s COMING SOON: Chevy 63 Swap **Wheels/ Tires** TRD Rock Warrior Wheels 255/85/16 Cooper STT MAXX **Electrical** Pelfreybilt Auxiliary Fuse/Relay Panel Blue Sea Fuse Box Bussman 100 AMP Breaker **Recovery** Smittybilt 9.5k Winch **Lights** 20 Inch Single Row LED Bar Rigid Side Shooters (Flood/Pair) w/ CBI Offroad Ditch Light Brackets Rigid Duallys, Amber for fog lights **Miscelaneous Mods** Rear Diff Breather Relocation RAM Mount A-Pillar Mod w/ Garmin Power Cable Ammo Can Bed Rail Tool Box Cab Mount Chop Pinch Weld Mod (Mini Sledge Special)
    This is awesome. Wouldn't mind building one of these one day myself. I'm sure you've thought about this, but some bed stiffeners might do you some good once this becomes a permanent setup for your truck. Hate to see the bed start to split on you.

  11. Aug 31, 2018 at 1:34 PM
    #11
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Thanks man! It been a month since I dropped off the deposit. Feels like forever lol.

    I’ve actually never heard of Bed stiffners, I am going to look into this.

  12. Aug 31, 2018 at 1:36 PM
    #12
    Jerneyman

    Jerneyman I build things made of metal for fun.

    Joined:
    Nov 6, 2015
    Member:
    #168886
    Messages:
    2,474
    Gender:
    Male
    First Name:
    Wes
    Huntsville, AL
    Vehicle:
    2011 Tacoma TRD OffRoad 4x4
    **Armor** CBI Offroad Moab 2.0 Home Fabbed Rock Sliders Home Fabbed IFS Skid Plate Home Fabbed Mid Skid Plate Home Fabbed Transfer Case Skid Home Fabbed High Clearance Rear Bumper **Suspension** ADS Front Coilovers (Extended Travel, 700lb coils, Remote Resi) Total Chaos UCAs 1.5 inch AAL Rear Bilstein 5100s COMING SOON: Chevy 63 Swap **Wheels/ Tires** TRD Rock Warrior Wheels 255/85/16 Cooper STT MAXX **Electrical** Pelfreybilt Auxiliary Fuse/Relay Panel Blue Sea Fuse Box Bussman 100 AMP Breaker **Recovery** Smittybilt 9.5k Winch **Lights** 20 Inch Single Row LED Bar Rigid Side Shooters (Flood/Pair) w/ CBI Offroad Ditch Light Brackets Rigid Duallys, Amber for fog lights **Miscelaneous Mods** Rear Diff Breather Relocation RAM Mount A-Pillar Mod w/ Garmin Power Cable Ammo Can Bed Rail Tool Box Cab Mount Chop Pinch Weld Mod (Mini Sledge Special)
    There's plenty of variations on them out there and plenty of info here on TW. You'll definitely find some that fit the bill.

  13. Sep 1, 2018 at 2:50 PM
    #13
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock

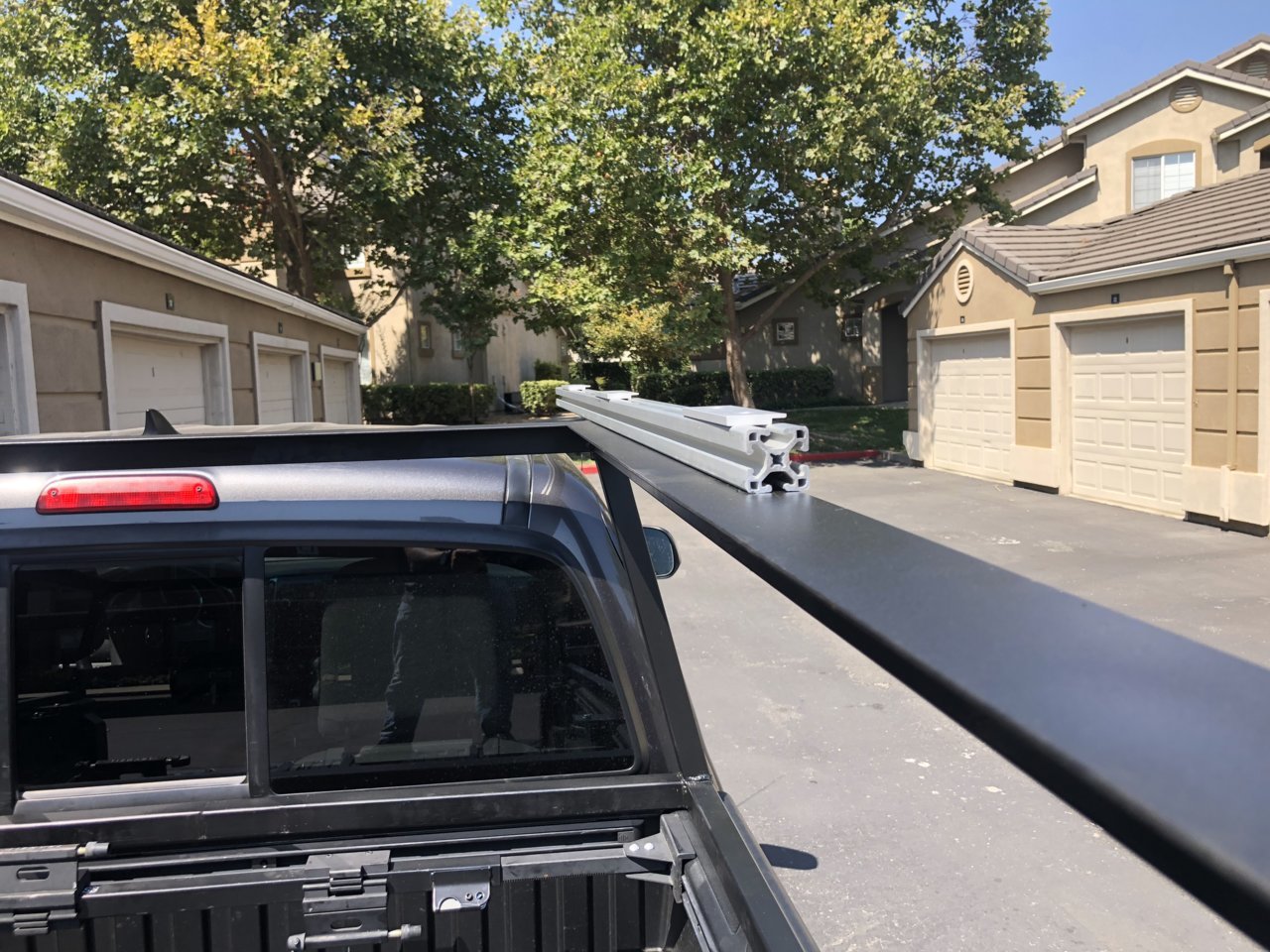

    Some better pictures of the 80/20 placement and how far it will extended past the bed, and over the cab. Total 8’ by 56” wide. It’s not pretty (yet) but still will need the corners for the mounts rounded and use of some better hardware, and finally powder coating.


    the_tacocamper and BassAckwards like this.
  14. Sep 1, 2018 at 2:51 PM
    #14
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock

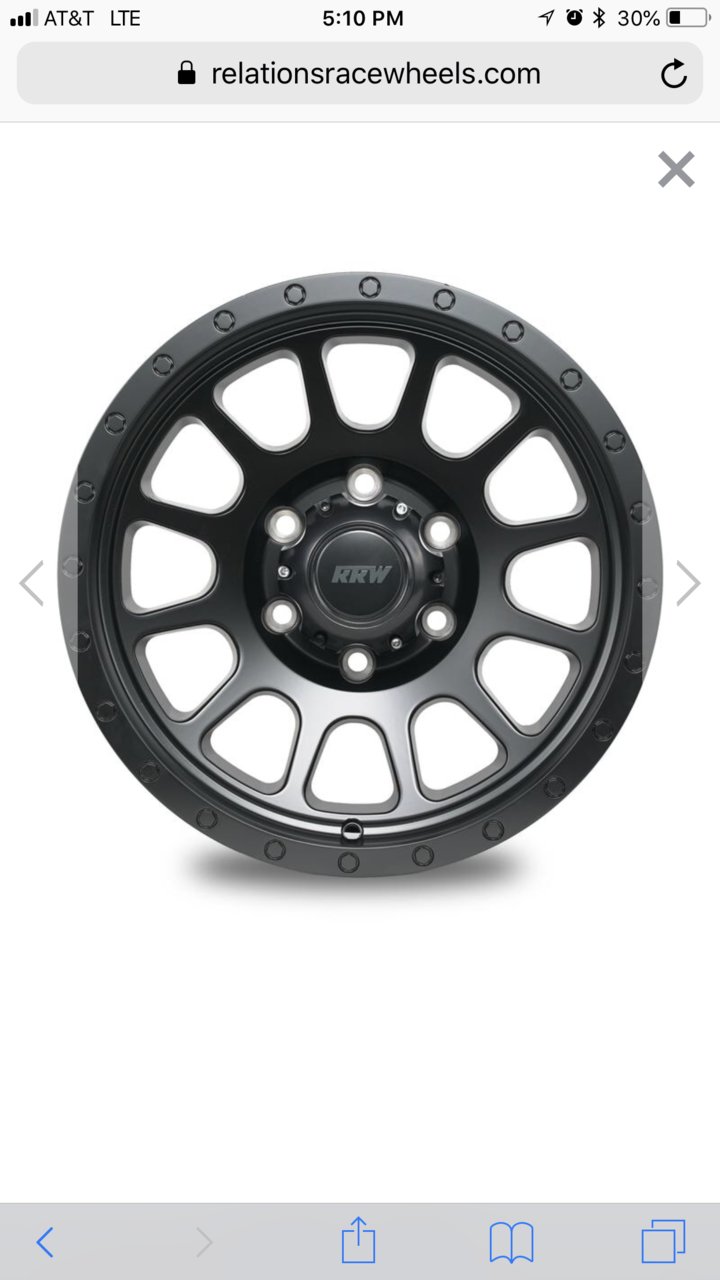

    Also ordered these last night cause it was a killer deal. 16x8 RR1 w/4.5” backspacing. Was a total of $500.00 shipped to the house. Now gotta find a good deal on wheels around Black Friday. And eventually a lift.


    BassAckwards likes this.
  15. Sep 9, 2018 at 5:15 PM
    #15
    whitundra

    whitundra Well-Known Member

    Joined:
    Apr 24, 2017
    Member:
    #217232
    Messages:
    123
    Gender:
    Male
    First Name:
    Cooper
    Bend, OR
    Vehicle:
    Modified 2001 Tundra W/ Flippac
    Suspension- Bilstein 5100's, OME 886, Airlift Bags, ICON AAL (Sold) Wheels/ Tires- 4Runner Trail Wheels (Sold), TRD Pro Sema Wheels, 285/70/17 Falken Wildpeak At3w Misc- Custom Bedrack (Sold), Tepui Auntana (Sold), FRP Flippac
    I just ordered a set of RR1's too! Do you have any pics of them mounted up?

  16. Sep 9, 2018 at 6:26 PM
    #16
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    I don’t man, I honestly only bought them cause it was a good deal. I realistically won’t mount them until the topper is built. Mainly because I want to run 285’s and I need a lift for that and I don’t know what lift I will be using until I have the camper weight on the back, to see the rear sag.

    whitundra likes this.
  17. Sep 30, 2018 at 6:24 PM
    #17
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Not to much progress in the last few weeks. My fiancé and I are moving into a home, so it’s taking some funds away from the build. On the bright side! Put the taco through some paces this weekend at Bowman Lake.


    BassAckwards likes this.
  18. Sep 30, 2018 at 6:34 PM
    #18
    magicgus323

    magicgus323 Well-Known Member

    Joined:
    Mar 2, 2018
    Member:
    #246115
    Messages:
    237
    Gender:
    Male
    First Name:
    Gustavo
    Vehicle:
    2016 Tacoma sr
    TRD rims and suspension, TRD grill, stereo iPhone mirroring stormtrooper decal backflip bed cover painted bumper and mirror caps
    Badass lol

    ke4640d20 [OP] likes this.
  19. Oct 10, 2018 at 12:25 PM
    #19
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Little update;

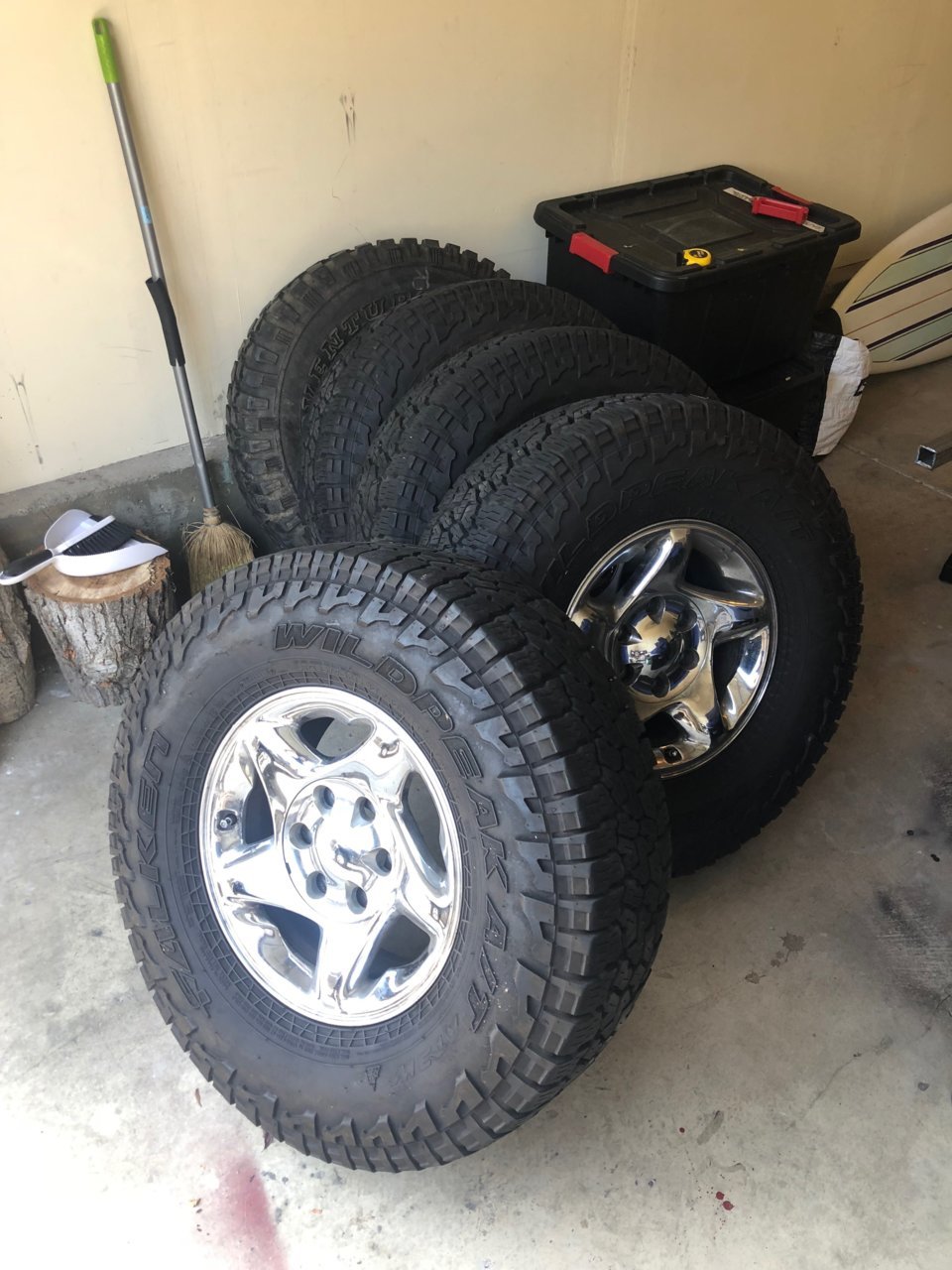

    Found a kick ass deal on a set of 5 wheels and tires. Purchased 04 Falken Wildpeak AT3W in a 285/75/16, 2 were brand new, 2 new slightly used. As well as a full size spare (off brand) all mounted on a early 2000's 4runner wheels for $350.00. The spare is some M/T wheel but it will be nice to have a full-size spare.

    Also! Had a buddy who works for a "company" who got me a deal on a CFX40 Dometic Fridge for $260.00, soooooo the RTIC 45 is getting sold. anyone want one?

    I will be ordering the lift probably from headstrong off road (they seem to have awesome reviews and prices) end of November. 3" OME with DAKAR springs. So that should be a fun project!

    Also totally going to nerd out and weight the truck before and after all the mods on some aircraft scales, to see the weight difference I will see before and after lift/wheel/tires. Keep ya'll update!


    BassAckwards likes this.
  20. Oct 10, 2018 at 12:32 PM
    #20
    jowybyo

    jowybyo Mobtown Offroad

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    42 Designs Catch Can Mobtown Offroad Ribbed Tailgate Skin Mobtown Offroad Tailgate Cap Mobtown Offroad Locking Storage Doors Mobtown Offroad Utility Bed Bars (Prototype)
    Is this the CFX-40W (with wifi)? That's more than a deal. Dealer pricing is way way way more than that.
