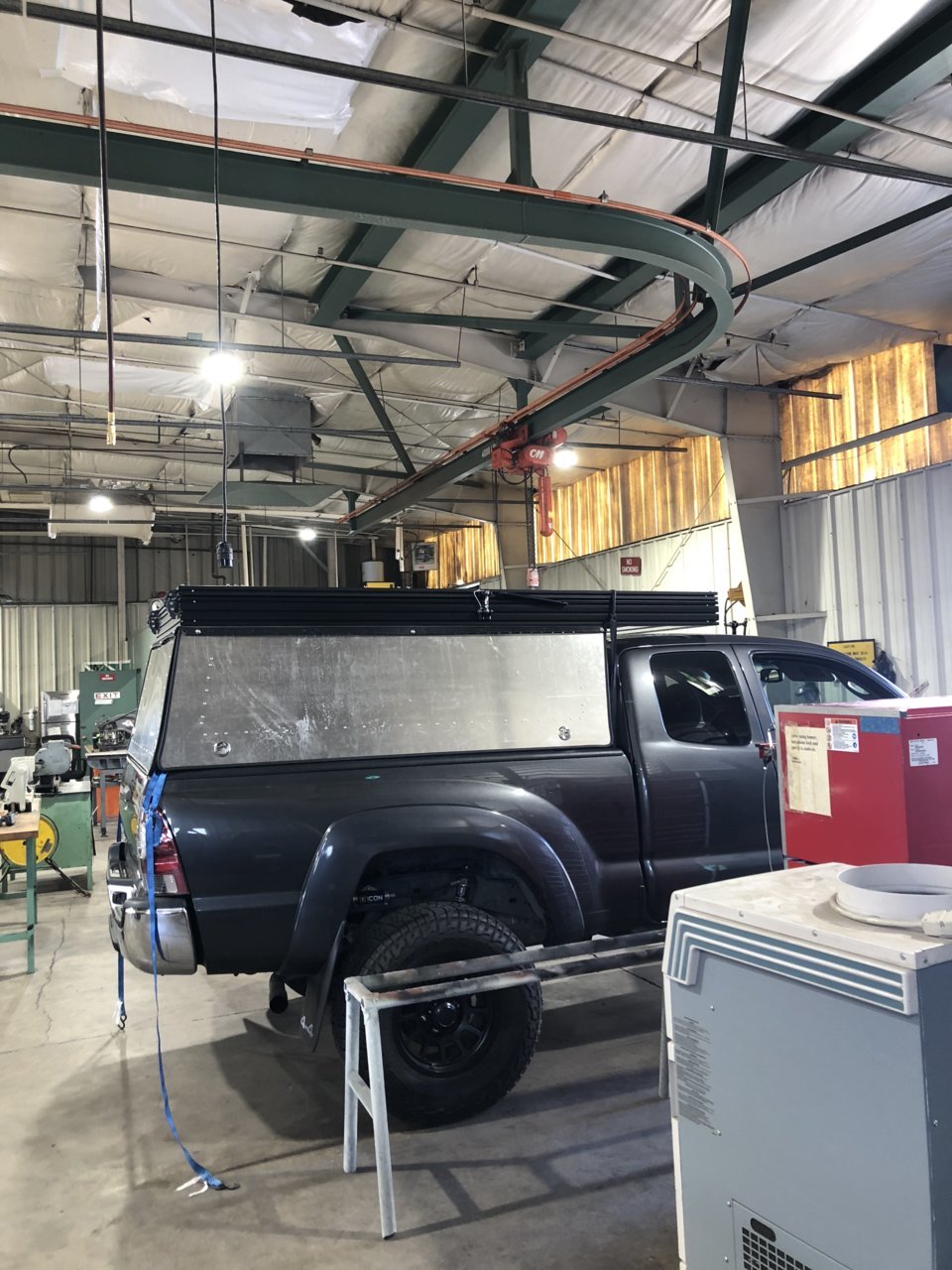

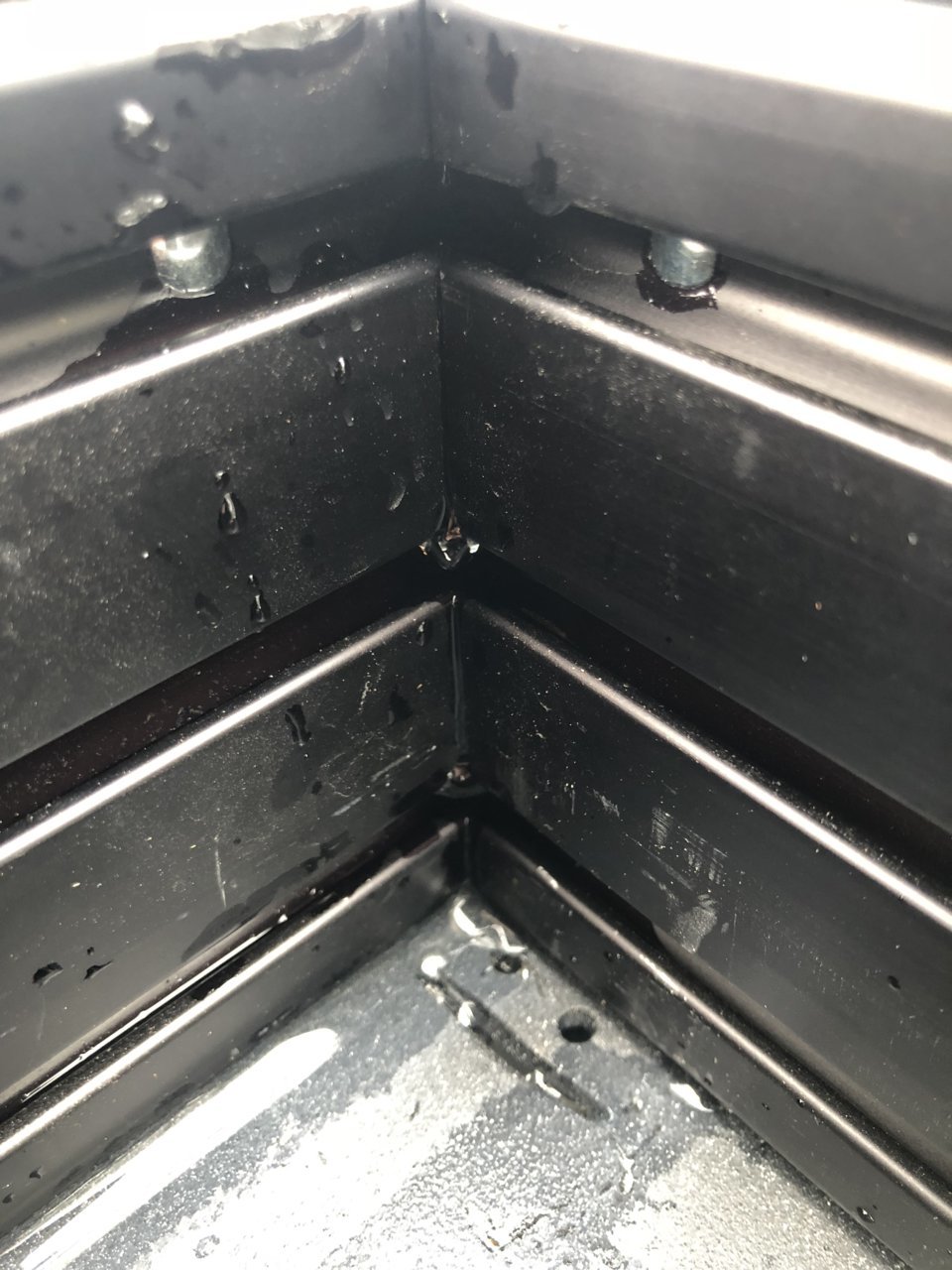

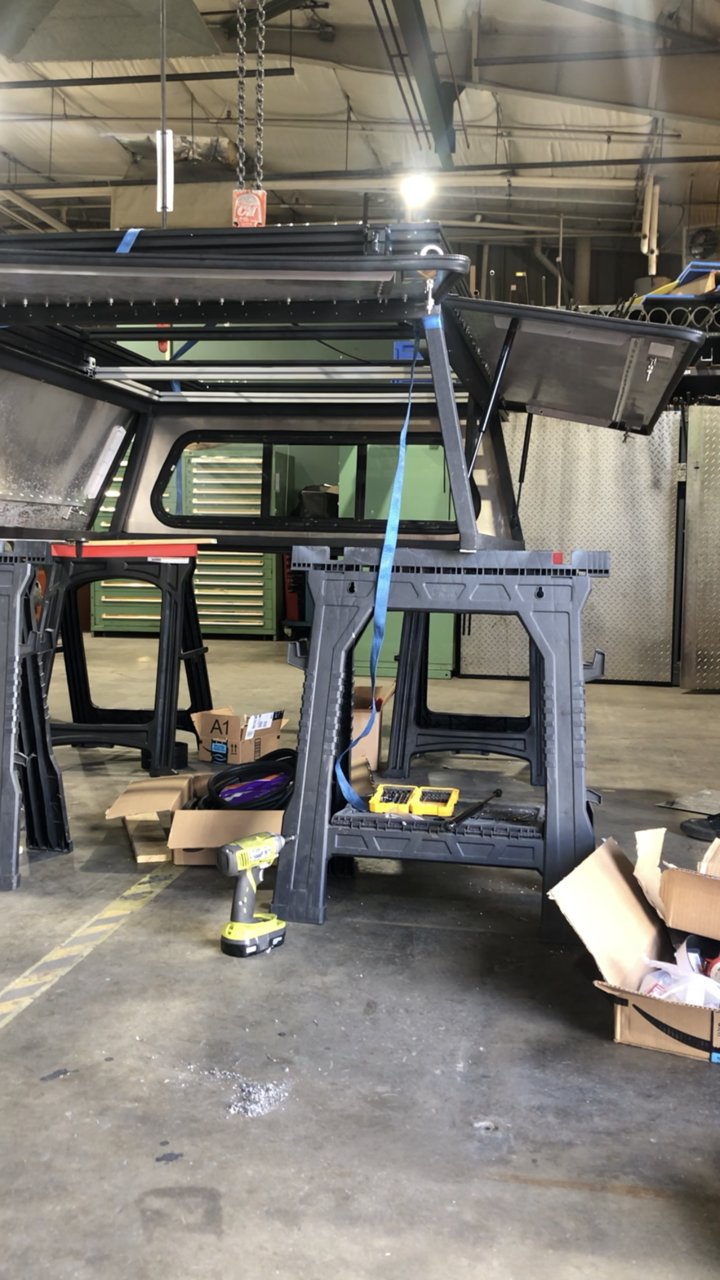

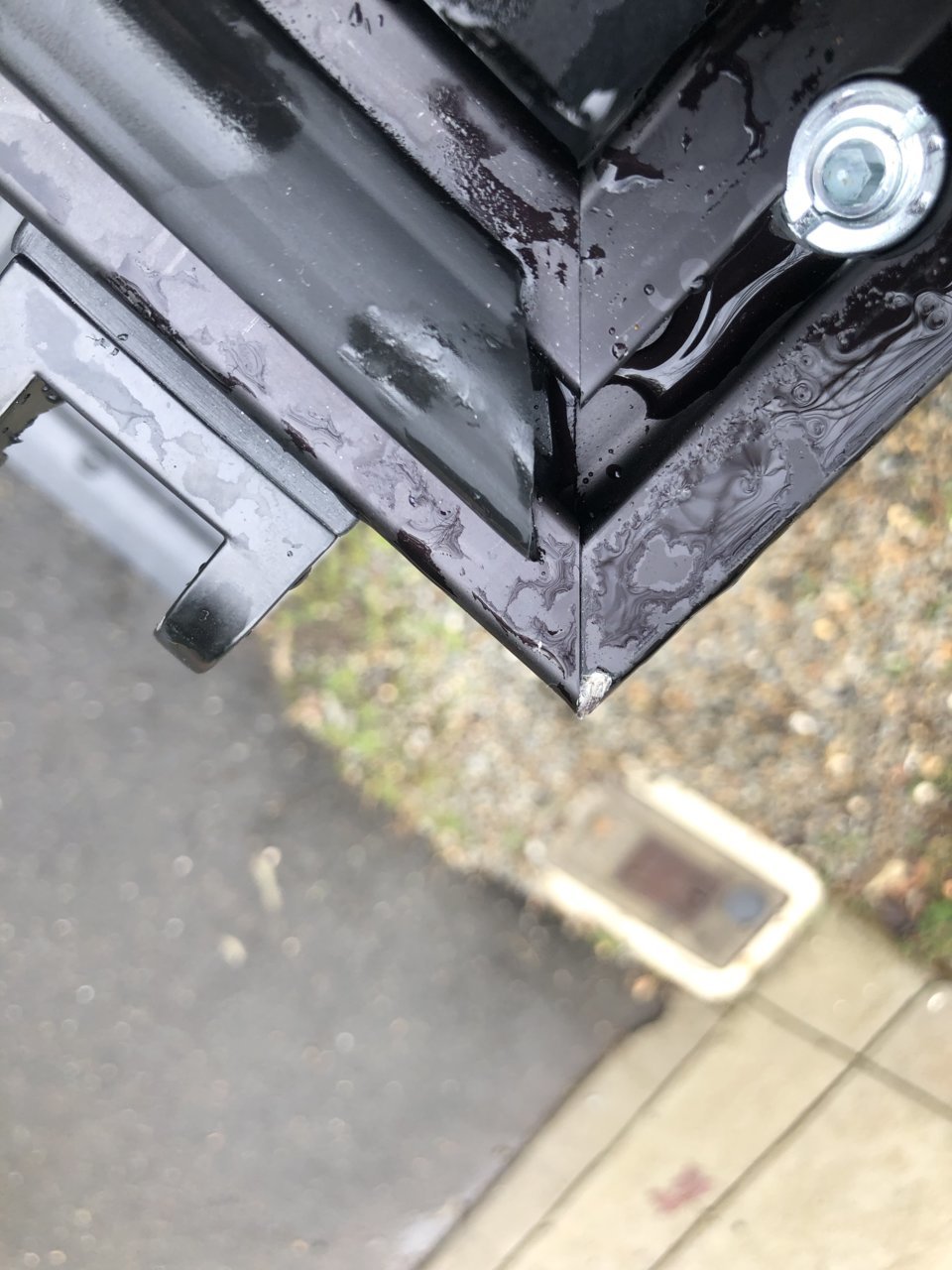

    Some more updates from this week. It’s been raining like crazy here in Sacramento area, so I’ve been able to identify some issues with the camper. First of 80/20 joints don’t keep water out lol. Meaning all the joints will be taken back apart and wet sealed. Also, the 80/20 gasket is nice to keep dust out, it doesn’t really work well as a water gasket, meaning. You guessed right! More RTV. Overall the camper didn’t leak terribly, but it did on all 4 corners.

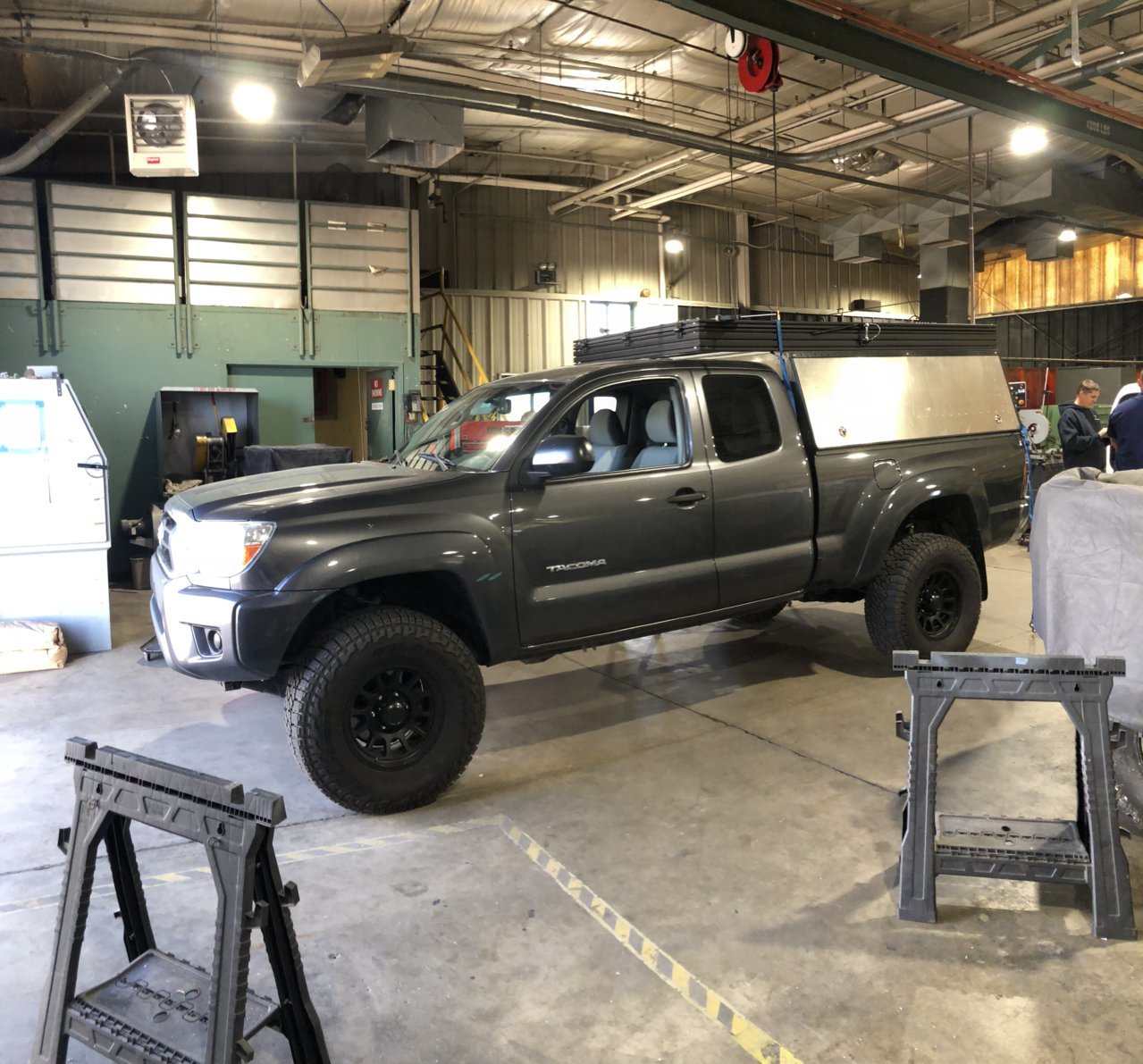

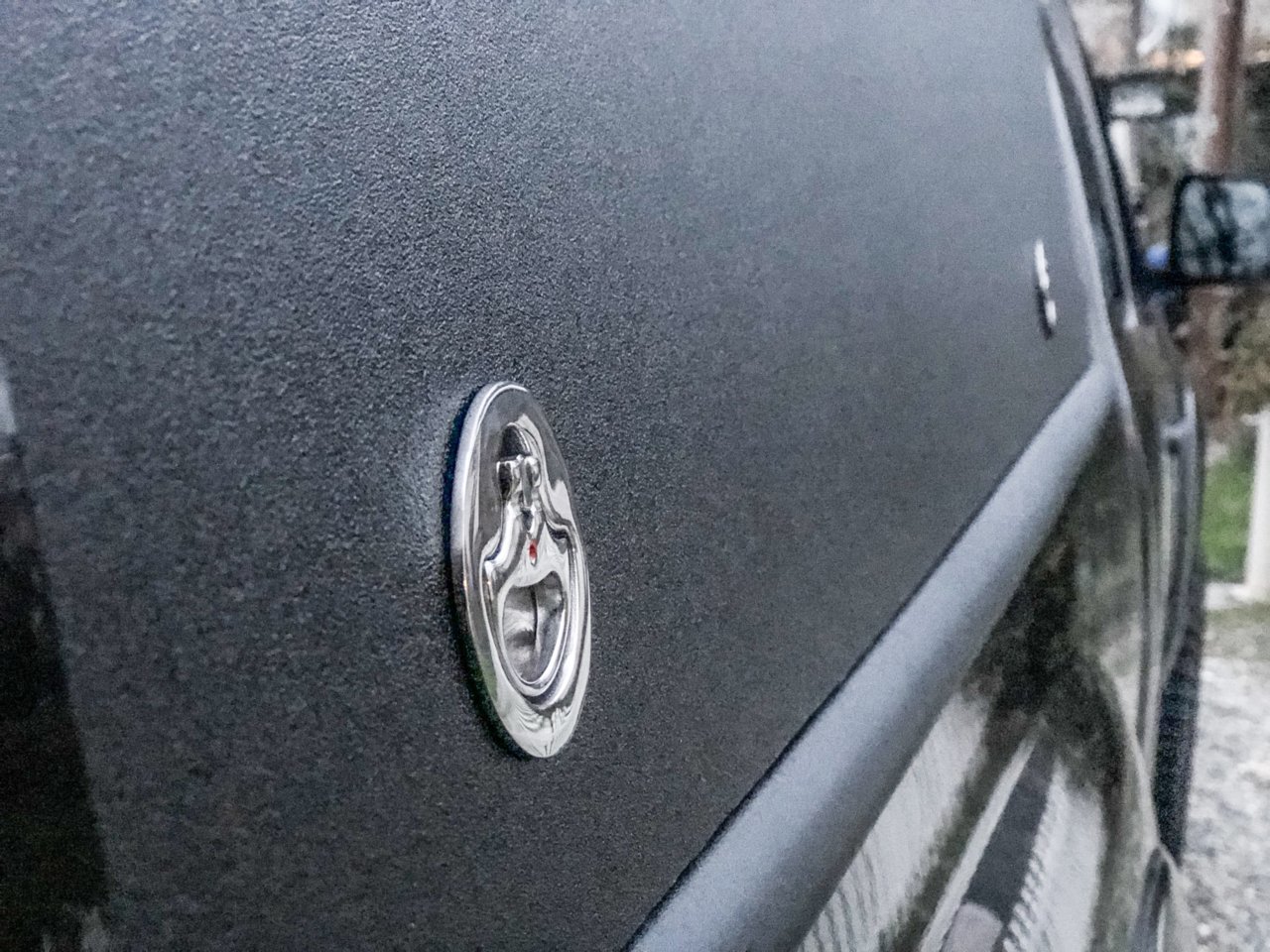

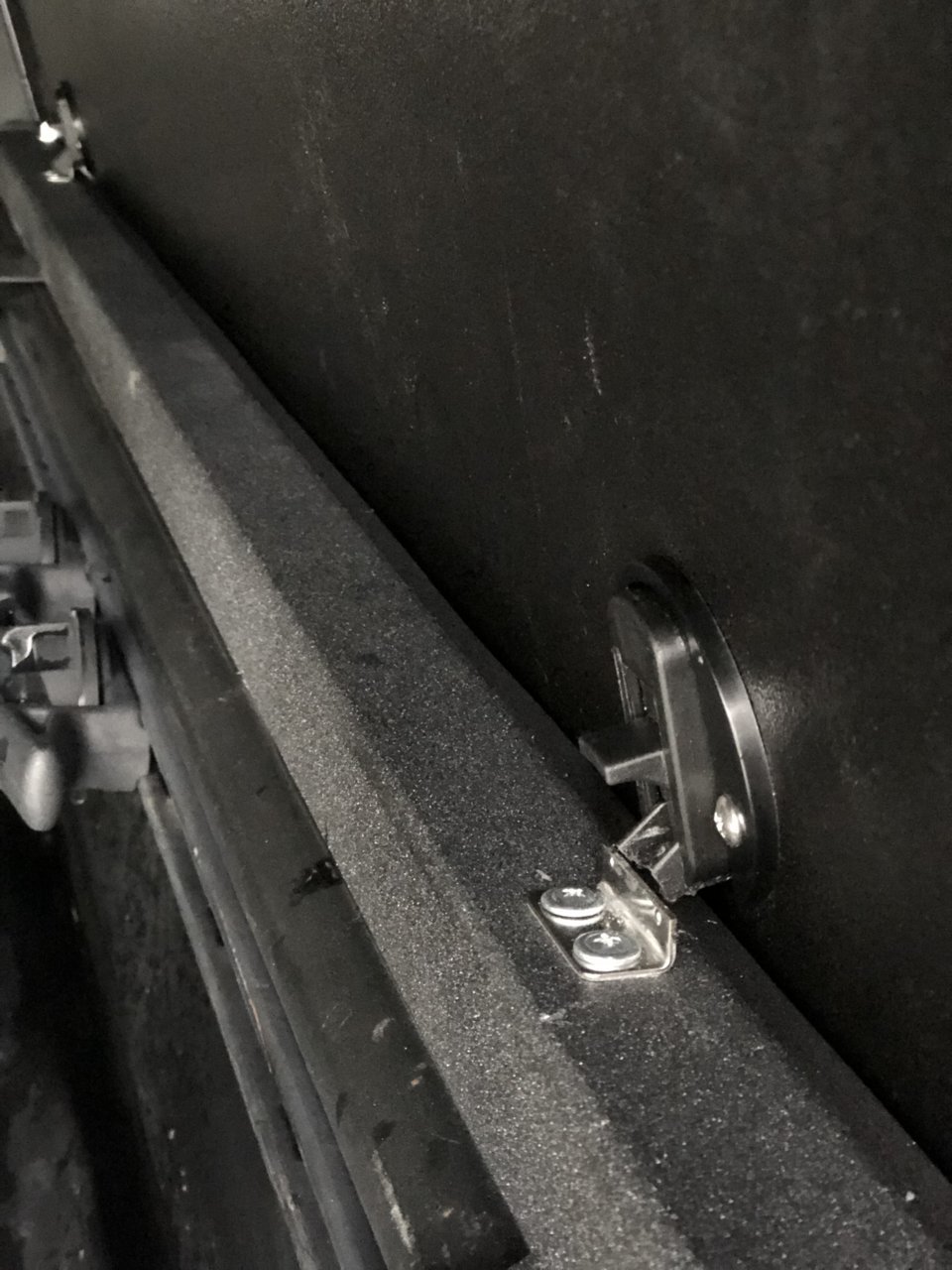

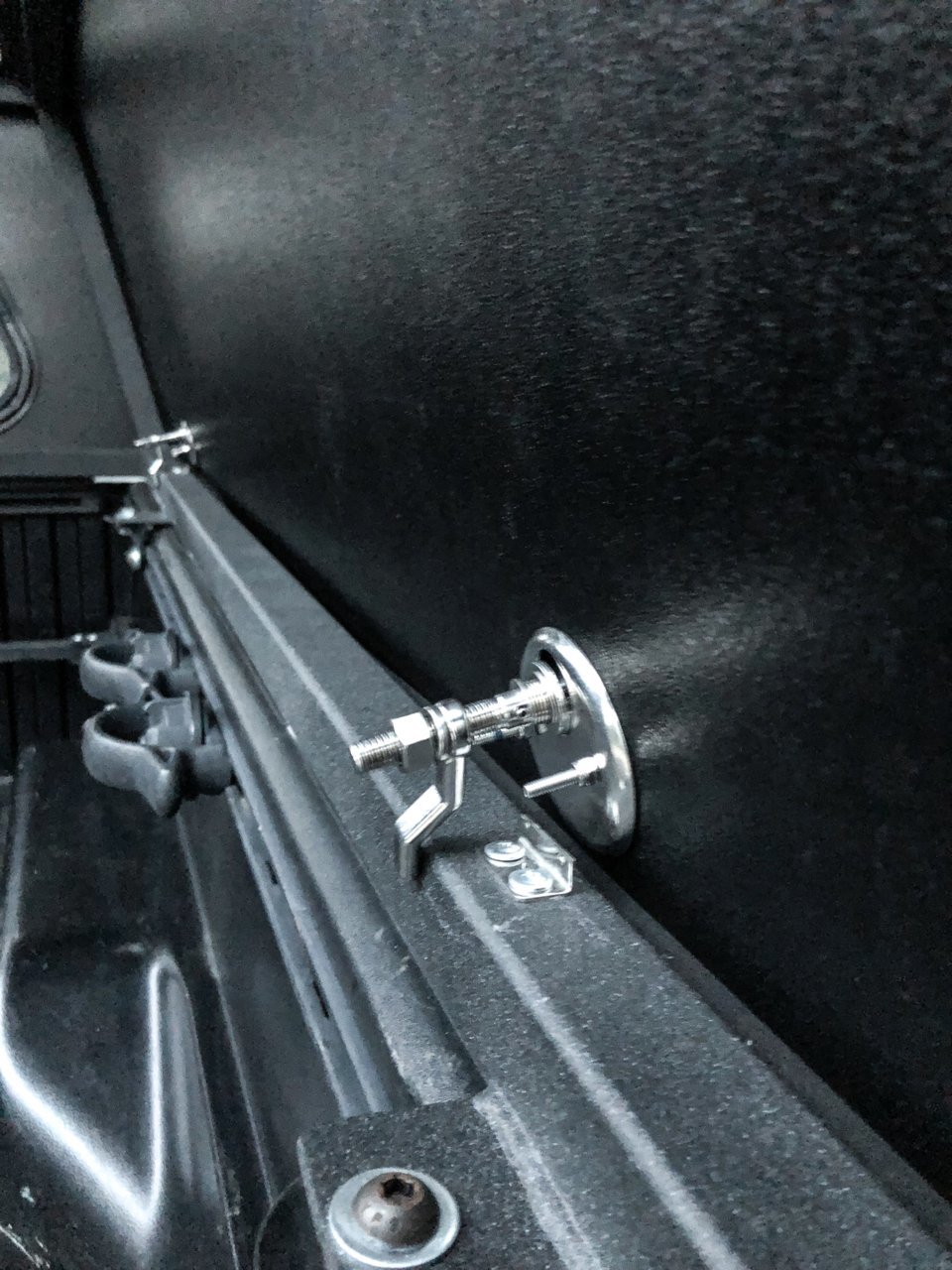

    Slam latches, not a fan, plastic that has already snapped after a little abuse. I decided to order these lever latches. They work fantastic! But aren’t black. So that will be Powdercoater more than likely.
    Replacement:
    These are not the lockable versions, I will be ordering the keyed ones. They are also metal, which is an added benefit.

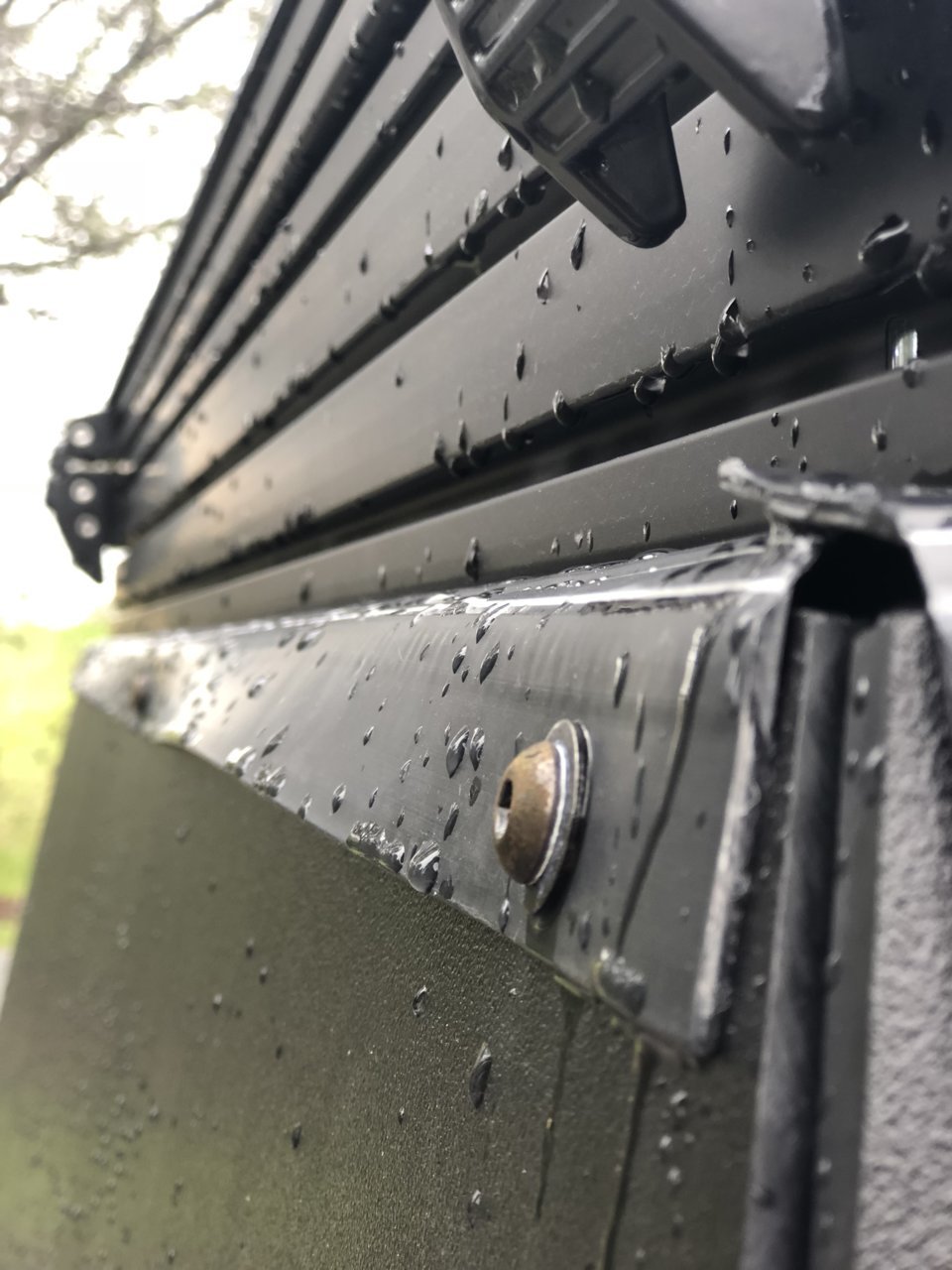

    Last but not least, don’t trust your local ace hardware sales person, not all treated steel is alike. ALL the hardware rusted within a day of it raining. Meaning, the camper is coming back off, getting completely taken back apart, and all stainless hardware is going on. I am debating the option of keep the stainless hardware look, or potentially getting it Powdercoated. What do y’all think? Know a good powder coating company?

    I also ordered a new Dakar Heavy Leaf pack, because, well. AAL can’t hold the weight of the camper and stay level. So for those of you
    Thinking of building one of these. Be ready to drop coin on a leaf pack. Thankfully BattleBorn Off Road, hooked it up with some good pricing.

  2. Mar 1, 2019 at 7:32 AM
    #102
    smelly621

    smelly621 Well-Known Member

    Joined:
    Feb 12, 2018
    Member:
    #244237
    Messages:
    377
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2011 AC TRDOR 6MT
    It's DLX son!
    If you're pulling the panels off to replace hardware, have you considered adding a few more bolts too each hinge? It looks like it would help tame the wave in the hinge.

  3. Mar 1, 2019 at 7:48 AM
    #103
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    Yes! I will actually be adding ALOT more lol. The wave is terrible, but I didn’t want to add any more shitty hardware so I just let it as is for now.

    smelly621 likes this.
  4. Mar 1, 2019 at 7:58 AM
    #104
    Ripcord

    Ripcord KM6PIM

    Joined:
    Mar 31, 2011
    Member:
    #54120
    Messages:
    1,160
    First Name:
    Jim
    Colorado
    Vehicle:
    Spruce Mica 13' DCSB OR
    Curious to see how you do your drains. My corners are a bit different than yours (no mitered joint) so I may or may not copy what you do there.

  5. Mar 1, 2019 at 8:17 AM
    #105
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    I am going to try and find a way for no water to be able to get into the 80/20 at the top, I don't know if that's just going to require a ton of wet seat hardware install (on the joints) or sealing up the top seal better. We will see, it coming off the truck this weekend.

  6. Mar 2, 2019 at 9:00 AM
    #106
    ke4640d20

    ke4640d20 [OP] Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258338
    Messages:
    103
    Gender:
    Male
    First Name:
    Kirill
    Vehicle:
    2012 Tacoma SR5, 2.7L, 4x4, Stock
    Stock
    This week, once again, I learned a huge lesson with this camper build. A lesson in thermal expansion and better research.

    When I started planning the build, I debated various options for the side paneling of the camper. I pretty much ruled out Aluminum immediately due to the price point. Online quotes for a sheets of 6'x8' was running nearly $1000.00 per sheet (I think this was part of my mistake, as I received quotes for like 1/4"-3/8" material). I knew that if I was going to spend that much I might as well just order a GFC or a Vagabond camper and save myself the trouble. Looking for other options to use, I came across TAP plastics which after quite a bit of research and conversation convinced me that Starboard would be a good option. I obviously understood that plastic expands and contracts with heat, but I never took the time to research how much it would expand and contract. The main reason being is that, starboard is used for various construction on boats. Cant expand that much right? I mean its installed on a hot boat that sits in the sun all day. Wrong. According to the interwebs, HDPE has a Temperature expansion coefficient of about .00006.

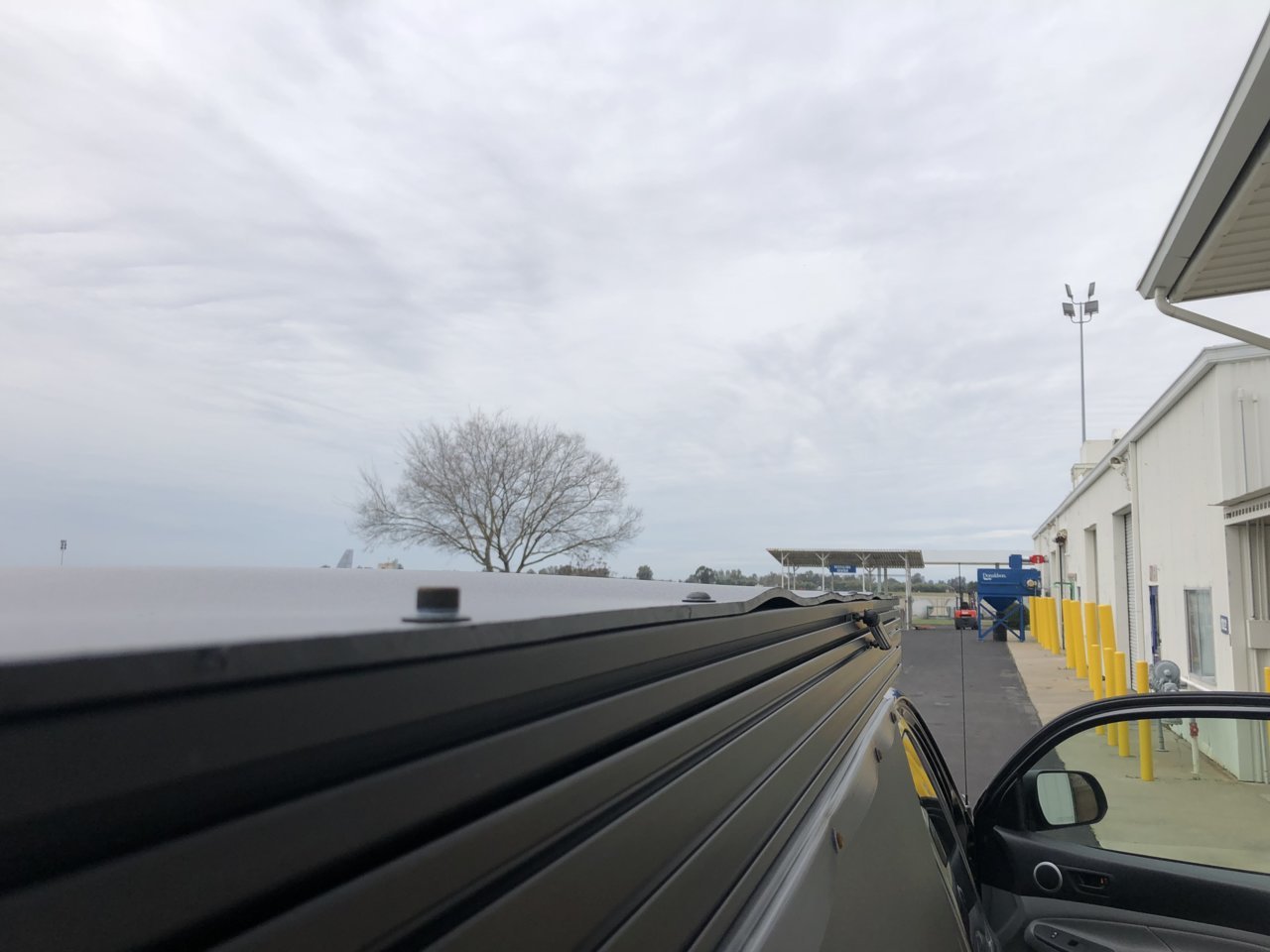

    Meaning my install temp was around 55*F, the highest expected air temp it would see would be around 110*F. 110*F- 55*F / 55*F x 96" (length of material) x .00006 = .3168" of expansion. Now this may not seem like a lot, but 1/3" of a inch will create a lot of distortion on the hard mounted panel like the roof. (See image below, this was about 20*F temp change)
