4WD conversion - Request for 4WD computer Part Number

Discussion in '1st Gen. Tacomas (1995-2004)' started by tacopyro, Mar 27, 2012.

  1. Mar 27, 2012 at 1:21 PM
    #1
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    Hi Gents,

    I'm collecting parts and information for my Prerunner 4WD conversion.
    i have a 01 Prerunner xtracab V6 AT with diff lock.

    parts list:

    from donor 98 4x4 Prerunner.
    - front diff
    - front spindles with drive axles
    - AT shifter base - the one that everyone cuts open.
    - shifter boots

    from 96 4runner 4x4
    - AT transmission with adapter.

    Still looking for:
    - Transfer case ADD or Jshift
    - front drive shaft
    - rear drive shaft

    I'm handy with basic electronics and wiring so i am wanting to make it as stock as possible using a 4WD computer as much as i can and am researching this. i have searched High an Low but i cant find and verify the part number for the 4WD computer. the one that sits behind the 2 cigg adapters behind the shifter.

    If anyone with a 96 to 2004 4x4 tacoma can kindly look for me please?
    doesnt matter what year as long as i get a part number. they are mostly the same anyway i think.

    i do have the FSMs but they only give you connector part numbers. I;ve seen sequoias, FJs, and 4runner part numbers but for some reason, Tacomas are hard to find.

    TOYDIY lists the parts for me as 89533-35130 which is what i have for the rear diff locker.

    it also lists 89533-35060 and 89533-35110. am wondering what these are for? the first one seems to be an alternate diff lock computer.

    i know this is harder to do but i want to give it a shot. worse case scenario is to use manual switches to control the ADD motors. am taking this slow anyway so i have time to do the research.

    hopefully i get enough info that someone else with the same line of thinking can use here.

    Thank You in advance!

    CK

  2. Mar 29, 2012 at 2:00 AM
    #2
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    After studying the electrical FSM for a few days. i decided to check and see if i have any of the wiring with my Taco and so far, i found that.

    - i cant find the connector for a 4WD computer (located above the SRS computer)
    because of this. plus the fact that no one seems to know or have the P/N for this. i am thinking i might have to give up the idea of wiring it.

    - i do have a Rear Locker Computer P/N 89533-35130
    - i have the connector for the Transfer Case Relay!!! (labeled Transmissions Relay) P/N 89531-35020
    This is my fallback, This one i can do!

    - still tracking down if i have the S11 short connector for ADD option
    - still tracking down if i have the harness for the relay to ADD motor.

    - i got the electric ADD actuator from a guy on *bay

    I also took some pics...

    pics of driver side kick panel with locker Computer
    pics of passenger side kick panel with the cruise control and the transfer case relay connector and the 2RZ connector for O/D.
    wonder why the prerunner has it...

    will wait till weekend. maybe everyones too busy...


  3. Apr 3, 2012 at 11:02 PM
    #3
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    I just stumbled onto what i was looking for.

    Apparently. for:

    1997.06-2000.09 the computer part number is 89533-35110 /
    2000.09- the computer part number is 89533-35160 / 363811-10360 AISIN

    I have been checking the wiring and what i found so far is it, i checked my truck but no additional wiring for ADD or TCase shift motor is apparent. For simplicity, I'll just re use whats mostly there which is to use the Transmissions (Tcase) Relay to shift the ADD and add wiring.

    Thanks to Gscott04 and SargeSlapnuts for their help!

    CK

    tacoma 4WD.jpg

  4. May 3, 2014 at 8:42 PM
    #4
    Stuck CAPS

    Stuck CAPS Member

    Joined:
    May 24, 2013
    Member:
    #104820
    Messages:
    5
    Gender:
    Male
    First Name:
    Alex
    Wildwood, MO
    Vehicle:
    '04 4Runner SR5 2WD
    Any sort of update or anything on this? Would like to see it all done.

  5. May 3, 2014 at 8:52 PM
    #5
    crushh87

    crushh87 Woo Pig

    Joined:
    Feb 2, 2014
    Member:
    #122141
    Messages:
    354
    Gender:
    Male
    First Name:
    Jack
    Texas
    Vehicle:
    2013 Prerunner Silver
    4in MaxTrac Lift Spindles, 2in Pro Comp AAL, MB 352 16x8.5 Wheels, 285/75/r16 General Grabber AT2s, 2.7L I4
    This is from 2 years ago...

  6. May 3, 2014 at 9:07 PM
    #6
    Stuck CAPS

    Stuck CAPS Member

    Joined:
    May 24, 2013
    Member:
    #104820
    Messages:
    5
    Gender:
    Male
    First Name:
    Alex
    Wildwood, MO
    Vehicle:
    '04 4Runner SR5 2WD
    I know this, why would I ask "any updates?" On a 4wd conversion post a day later?

  7. May 3, 2014 at 10:42 PM
    #7
    crushh87

    crushh87 Woo Pig

    Joined:
    Feb 2, 2014
    Member:
    #122141
    Messages:
    354
    Gender:
    Male
    First Name:
    Jack
    Texas
    Vehicle:
    2013 Prerunner Silver
    4in MaxTrac Lift Spindles, 2in Pro Comp AAL, MB 352 16x8.5 Wheels, 285/75/r16 General Grabber AT2s, 2.7L I4
    [​IMG]

    See "Last Activity"

  8. May 3, 2014 at 11:07 PM
    #8
    Stuck CAPS

    Stuck CAPS Member

    Joined:
    May 24, 2013
    Member:
    #104820
    Messages:
    5
    Gender:
    Male
    First Name:
    Alex
    Wildwood, MO
    Vehicle:
    '04 4Runner SR5 2WD
    You never know when someone could once again become active, or if he's got tapatalk and gets notifcations, but just has't gotten one in a year.

  9. May 4, 2014 at 1:02 PM
    #9
    SafetyDang

    SafetyDang get your facts straight

    Joined:
    Apr 9, 2009
    Member:
    #15759
    Messages:
    456
    Gender:
    Male
    First Name:
    Dang
    Anaheim, CA
    Vehicle:
    DC with 4x4 & MT Conversion
    Swapped to Manual Trans & 4x4
    You don't need a 4wd computer for the conversion... It just monitors your speed so you can't shift into 4wd at X speed or what ever.

  10. May 5, 2014 at 7:34 PM
    #10
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    Hey Folks,
    Wow. has it been 2yrs already?!
    Unfortunately, time and funding are pretty scarce at the moment
    so i havent gotten around to this ...
    hopefully before the year ends. coz i have to do both timing belt and head tuning too.
    altho as much as i'd like to do this like factory...
    it looks like that i will have to it with no computer and all manual due to above constraints.
    Good luck to you guys out there doing this too!
    CK

  11. Apr 23, 2016 at 11:04 PM
    #11
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    my first post in ages...

    took me a while to find this info. so i figure i put it here so i can search for it next time...

    1st gen tacoma exhaust to manifold flange stud and bolt part numbers.

    Be aware that there is another type but i didnt gather that info.
    below is only for "California" type Exhaust - make sure u have this type... not the other type...

    Bolt, stud 90116-10149
    Nut, Lock 90080-17187, old one was 90179-10070
    Gasket, exhaust pipe 90917-06086

    GASKET
    STUD and NUT
    flange stud nut.jpg

    opteron likes this.
  12. May 25, 2016 at 1:50 AM
    #12
    tacopyro

    tacopyro [OP] Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    76
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. 4WD VF3AM Transfer Case, ADD/Manual Hubs. 4wd conversion complete Future Mods. rear sway bar, box the rear frame. I Love my Taco!
    i'm sure this info is out there. but even with search, its hard to find, so i'm adding this for my future reference.

    Front CV Axle shafts for 1st gens. (both side same)
    - complete for manual hubs 43430-04010 per side
    - complete for ADD hubs 43430-04020 per side

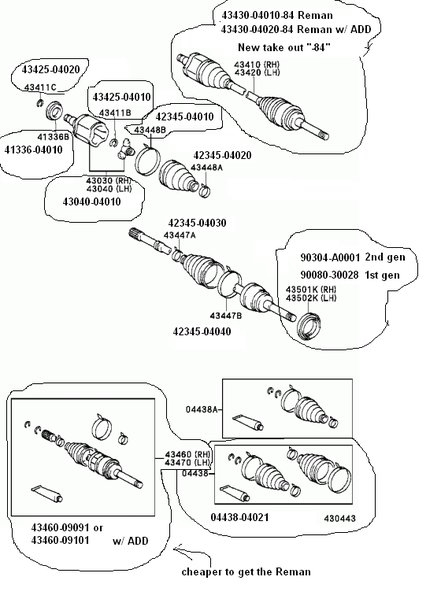

    Seals and other parts broken down please reference the following picture.
