4wd System Operation & Help Thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Dm93, Oct 27, 2021.

  1. Sep 23, 2024 at 4:38 PM
    #841
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,986
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    If you have 12v at the ECU on TL3 (Blue/Black)
    Then you have a bad path to ground.
    Do you have 12v at that wire on the plug for the ACTUATOR with it unplugged? (check it at the actuator on the transfer case)


    And if you have continuity through the actuator with it unplugged, and in 4LO position, then the issue would be wiring up to the ECU.
    Or from the actuator on the White/Black wire to body ground.

    Checking the Blue/Black wire at the actuator with it unplugged, will verify wiring from the ECU.
    If you see 12v. The wiring is good. If not, you have a break in the wire to the ECU.

  2. Sep 23, 2024 at 4:47 PM
    #842
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Yeah i just checked and I have 11.75v on the plug between blue/black and black/white at the actuator.

  3. Sep 23, 2024 at 4:54 PM
    #843
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Ground TL3 at the actuator connector and verify it goes to 0v at the 4wd ECU.

  4. Sep 23, 2024 at 5:07 PM
    #844
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Yeah it goes to 0v when I connect the lines and back to 12 when I disconnect them.

  5. Sep 23, 2024 at 5:10 PM
    #845
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    So it would seem the issue is with the contacts in the actuator, have to take it apart and have a look just take care that the gear stays in place so you don't lose the timing.

    TnShooter likes this.
  6. Sep 23, 2024 at 5:11 PM
    #846
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Ok. Yeah i'm currently looking for the post or video I ran across the other day about doing just that. Should have bookmarked it damn it.

  7. Sep 23, 2024 at 5:31 PM
    #847
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    10,912
    Gender:
    Female
    First Name:
    Rebecca
    Sw Denver Concrete Jungle
    Vehicle:
    2008 TRD AC 4th gen Rav4 Platinum
    ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall
  8. Sep 23, 2024 at 6:33 PM
    #848
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L

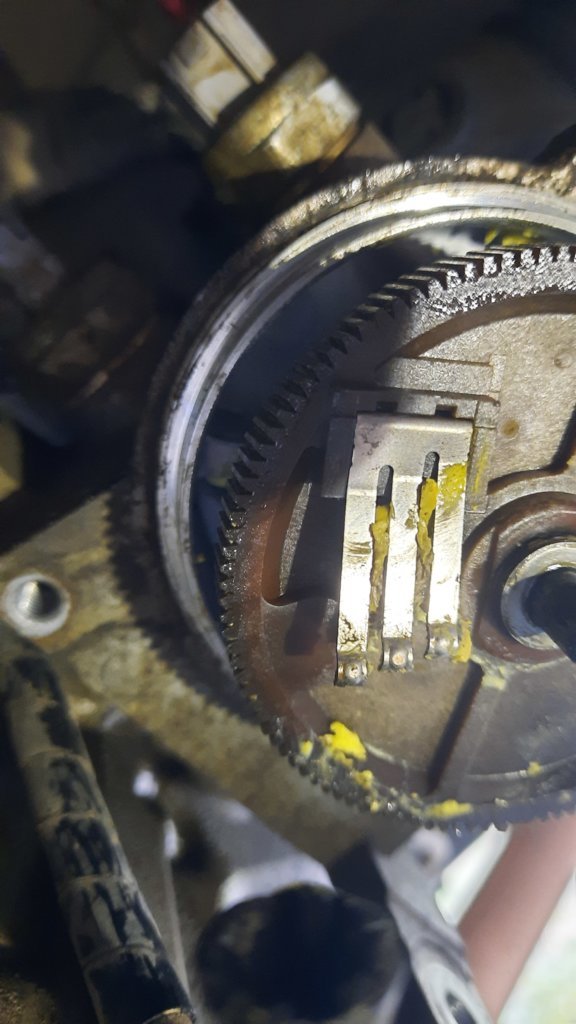

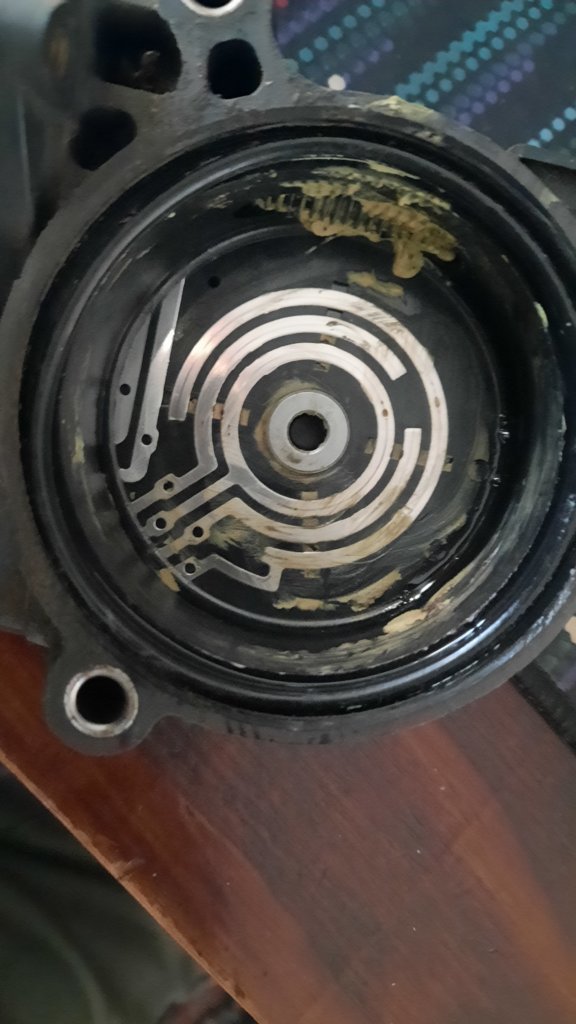

    Finally managed to get it off. It looks mostly decent but there are two grooves in the 4H position on the rails that it may be warn out or not be touching? Hmm


  9. Sep 23, 2024 at 6:43 PM
    #849
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Doesn't look too bad, clean it up, maybe tweak the contacts a bit so they are for sure contacting the plate, put it back together, and see what happens.

  10. Sep 23, 2024 at 6:48 PM
    #850
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Thats exactly what i did. wiped it down and spread a thin layer of the grease around. bent the pins down a bit further and then put it back together. She slipped back into 4h and then into 2H like there was never an issue. Thank you guys so much for the help, that was a fun problem to hunt down and i really appreciate the help.

  11. Sep 23, 2024 at 6:49 PM
    #851
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Does 4L work too now?

    TnShooter likes this.
  12. Sep 23, 2024 at 6:52 PM
    #852
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Yeah, I put it through each gear and back again a few times just to check and it has switched smoothly each time.

    winkel and TnShooter like this.
  13. Sep 23, 2024 at 6:54 PM
    #853
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Nice, glad it all worked out:thumbsup:
    I'm assuming since you had it off you checked/replaced the vent hose as well?

    TnShooter likes this.
  14. Sep 23, 2024 at 6:58 PM
    #854
    Thesteak

    Thesteak Member

    Joined:
    Sep 20, 2024
    Member:
    #457380
    Messages:
    13
    Vehicle:
    05 tacoma 4L
    Yeah I snipped the tip off and it fit back on much more securely. Might look at it some more and replace it if its an issue.

    Dm93[QUOTED][OP] likes this.
  15. Sep 23, 2024 at 7:11 PM
    #855
    GilbertOz

    GilbertOz Driver

    Joined:
    Oct 18, 2018
    Member:
    #269844
    Messages:
    1,786
    Gender:
    Male
    CA
    Vehicle:
    2014 AC V6 MT 4WD, 80K miles
    FOX 2.5, Deavers, ARB, 4xInnovations
    Has anyone tried / had success reconditioning the contact pads in the transfer actuator, maybe by cleaning out all the grease, then flowing a thin layer of solder onto them?

    No issues with my transfer actuator at-present but wondering if that's possible.

  16. Sep 23, 2024 at 7:12 PM
    #856
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Ok was just checking because the vent hoses cracking or coming off is a common cause of actuator failure. Wouldn't hurt to check the vent hose on the ADD Actuator as well although it's alot less common to break since it isn't as exposed but there is a spot where a hose clamp could potentially rub a hole in it.
    https://www.tacomaworld.com/threads/4wd-system-operation-help-thread.742420/page-17#post-28163684

  17. Sep 23, 2024 at 7:16 PM
    #857
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I don't think it would be worth the effort, if they got bad enough that the plating is flaking off I don't think there would be a way to make it reliable again. Typically that only happens when moisture gets in from a bad vent hose.

  18. Oct 15, 2024 at 4:58 PM
    #858
    Tacoma in Maine

    Tacoma in Maine Member

    Joined:
    Oct 15, 2024
    Member:
    #458828
    Messages:
    6
    Gender:
    Male
    First Name:
    Theo
    Vehicle:
    2015 Tacoma White TRD
    Ditch Lights & Cap
    I have been reading this post for the past few days enlightening myself to fix the blinking 4x4 light on my 15 Taco. This post has been very helpful. I have replaced the front ADD actuator & a Transfer Case Switch with no luck of getting it to stop blinking. The original witch I did Continuity test on and it had none when depressed.

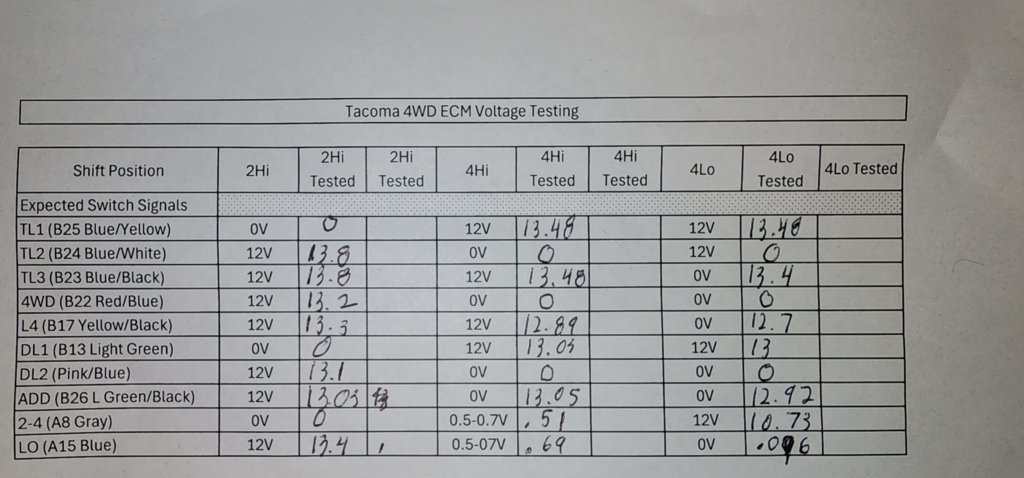

    I have taken the voltage measurements & I need guidance to fix this issue before the snow flys.

    Thanks in advance.


    303tacoma and GilbertOz like this.
  19. Oct 15, 2024 at 8:34 PM
    #859
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,986
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK

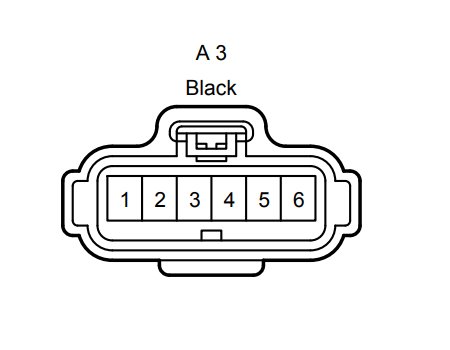

    Unplug the front ADD Actuator and see if you have 12v on the Light Green/ Black wire with the Key ON.

    It is pin #3.

    --- I don't suspect it to be the ground wire (White/Black). As DL2 is being pulled to 0v. It uses the same ground wire --- (For those that want to follow along)



  20. Oct 15, 2024 at 8:58 PM
    #860
    Dm93

    Dm93 [OP] Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    11,756
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    When you replaced the ADD did you make sure the shift fork engaged the collar in the differential correctly?
