4x Innovations Shackle Install Questions

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jtrue, Jul 29, 2017.

  1. Jul 29, 2017 at 3:46 PM
    #1
    jtrue

    jtrue [OP] Well-Known Member

    Joined:
    Jun 2, 2016
    Member:
    #188593
    Messages:
    170
    Gender:
    Male
    SLC, UT
    Vehicle:
    2014 Super White Tacoma TRD
    @traxman25

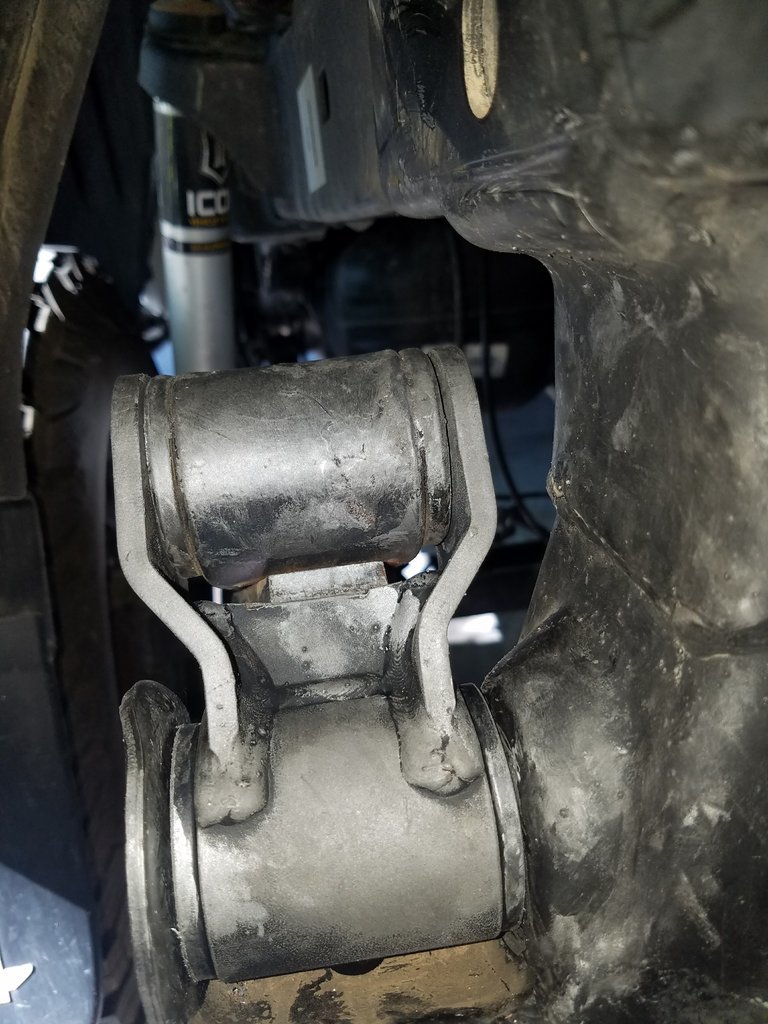

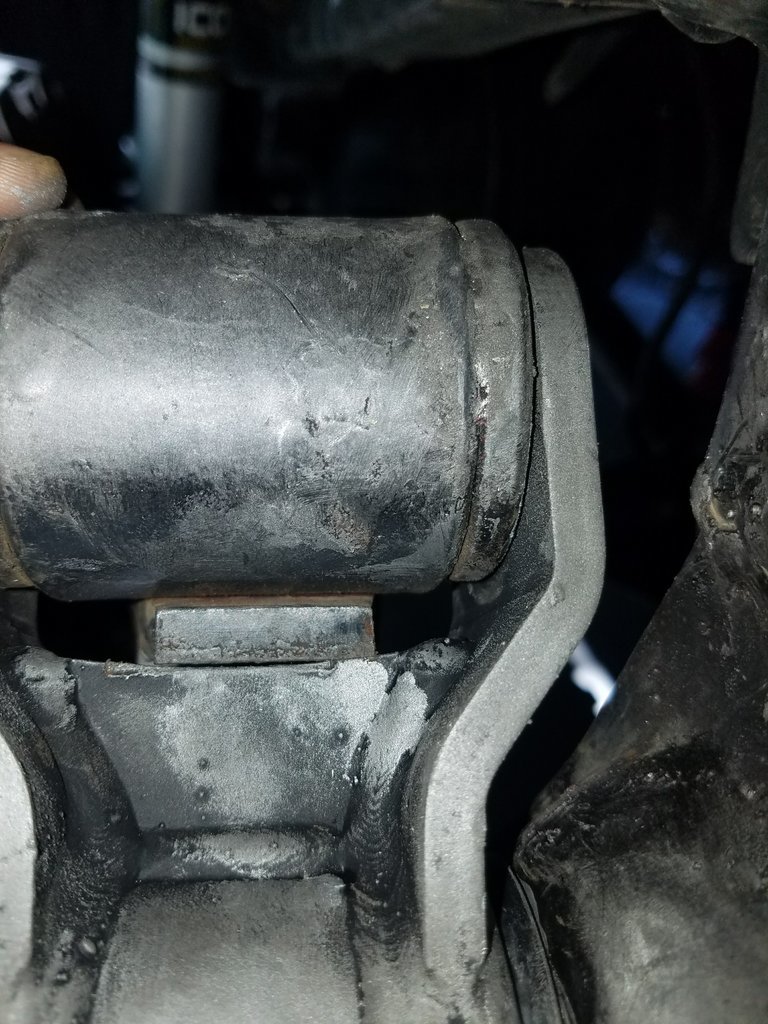

    It appears that the new shackles are going to scrape against the end of one leaf on my Dakar pack. With the new shackles oriented with the zerk facing the front I get slightly more clearance, however it still seems like it will scrape at full droop. Sent Adam at 4xinnovations and emai, but would like to get these installed. Grind that middle support for the shackle?

    20170729_161640.jpg 20170729_161534.jpg


    Attached Files:

    Last edited: Jul 29, 2017
    EDDO and scocar like this.
  2. Aug 1, 2017 at 4:49 PM
    #2
    jtrue

    jtrue [OP] Well-Known Member

    Joined:
    Jun 2, 2016
    Member:
    #188593
    Messages:
    170
    Gender:
    Male
    SLC, UT
    Vehicle:
    2014 Super White Tacoma TRD
    @deeezy, looks like you completed the install. Any issues other than having to pull off the u-bolts? Appears you have the zerks facing the rear. I actually get more interference with them positioned like that.

  3. Aug 1, 2017 at 4:55 PM
    #3
    deeezy

    deeezy Well-Known Member

    Joined:
    Sep 1, 2013
    Member:
    #111645
    Messages:
    5,164
    Gender:
    Male
    First Name:
    Dana
    Hawaii
    Vehicle:
    2013 4x4 DC, 6 spd, TRD Sport
    King ext travel coilovers, Icon tubular UCA's Rear-King "Tundra" 2.5's, Allpro Expos, TRD cat-back, Hurst/Core short shift kit, etc...

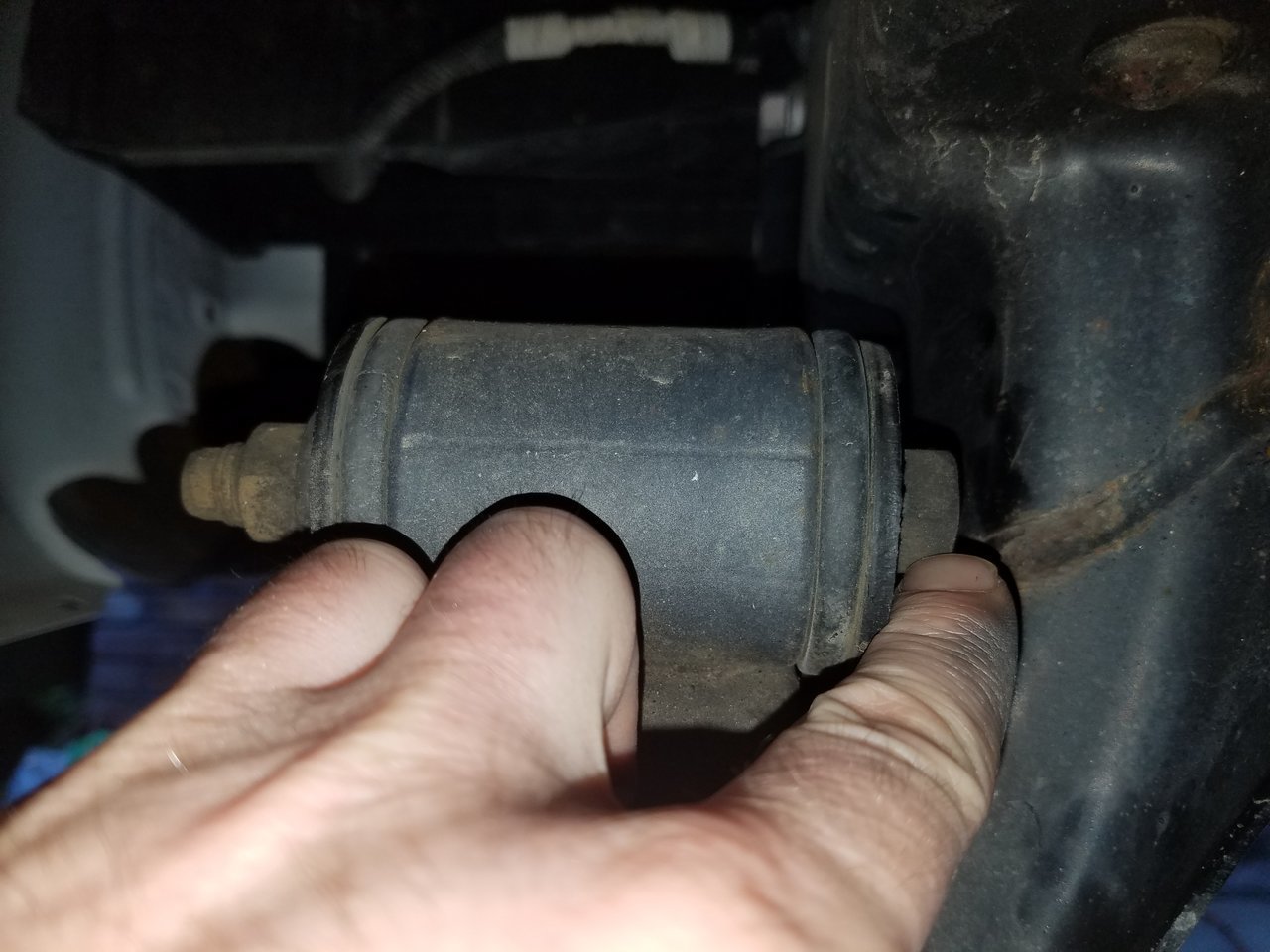

    I actually had to remove the shackles until I can get some large washer shims to take up some of the gap between the shackle and the shackle hangar mounts. The shackles are not wide enough and started to bend the hangars inward when torqued down. Same with the leafspring side of the shackle, it was too wide for my leaf spring bushing/sleeve and ended up bending the shackle inward when torqued down to the leafs.

    scocar likes this.
  4. Aug 1, 2017 at 4:57 PM
    #4
    Texoma

    Texoma IG: Triple C Chop Shop

    Joined:
    Feb 1, 2011
    Member:
    #50374
    Messages:
    16,148
    Gender:
    Male
    First Name:
    Chris(Topher)
    Lago Vista, TX
    Vehicle:
    10 Taco 4x4
    A bunch a cool stickers, a bada ass MetalMiller Tx Longhorns grill emblem painted Hemi Orange, JBA long tube headers with o2 sims, Diff breather mod, Red LED interior lights, Fancy head unit that plays ipod n movies, Also DIY install factory stuff like, factory cruise control, factory intermittent wipers, OME nitro struts with 886x springs and toy tec top plate, JBA high caster UCA's for better alignmnet and dey beefier too, Old Man Emu Dakar leaf springs in da rear with the gear, U bolt flipper, Ivan Stewart TRD rims with 33" K Bro 2's, some bad ass weather tech floor liners so I don't muck up my interior, an ATO shackle flipper for mo travel in da rear wit the gear, also super shiny Fox 2.0 shocks back there too, all sorts of steal armor for bouncing off of the rocks like demello sliders, AP front skid, trans skid, n transfer skid, demello gas tank skid, and a tough as nails ARB bumper with warn 8k winch, I'm sure there's more
    That shackle is definitely backwards.

    ChadsPride and t.hornstra like this.
  5. Aug 1, 2017 at 5:00 PM
    #5
    deeezy

    deeezy Well-Known Member

    Joined:
    Sep 1, 2013
    Member:
    #111645
    Messages:
    5,164
    Gender:
    Male
    First Name:
    Dana
    Hawaii
    Vehicle:
    2013 4x4 DC, 6 spd, TRD Sport
    King ext travel coilovers, Icon tubular UCA's Rear-King "Tundra" 2.5's, Allpro Expos, TRD cat-back, Hurst/Core short shift kit, etc...
    Here's how mine was installed:


  6. Aug 1, 2017 at 5:57 PM
    #6
    jtrue

    jtrue [OP] Well-Known Member

    Joined:
    Jun 2, 2016
    Member:
    #188593
    Messages:
    170
    Gender:
    Male
    SLC, UT
    Vehicle:
    2014 Super White Tacoma TRD
    Yeah, no matter how they are positioned I get interference with one of the ends of a leaf in the leaf pack when I'm at close to full droop. I tried installing both ways and same issue arises. Guess I'll need to wait for Adam to respond here or to my email.

  7. Aug 2, 2017 at 4:47 PM
    #7
    jtrue

    jtrue [OP] Well-Known Member

    Joined:
    Jun 2, 2016
    Member:
    #188593
    Messages:
    170
    Gender:
    Male
    SLC, UT
    Vehicle:
    2014 Super White Tacoma TRD
    @traxman25 any thoughts?

  8. Aug 14, 2017 at 7:54 AM
    #8
    traxman25

    traxman25 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    651
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Hey guys, I just saw this. I'm not on the forums very much anymore so email or phone is the best method to reach us with tech questions.

    Jtrue, sorry to see you're having an issue with the HD shackles. We haven't had this issue reported before. This is clearly a design issue with the shackle so I have sent you some info about how we can help (replacement or partial refund), please check your email. As for which direction to install the shackle, the gusset is centered in the shackle so it doesn't matter which way you install it. We recommend installing the zerk in the direction that makes it easiest for you to reach the zerk itself for greasing.

    mcharfauros likes this.
  9. Apr 25, 2018 at 12:35 PM
    #9
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    Well this is disappointing. I've had a set waiting in a box for a year until I can do my full lift. Using Dakars with an AAL (my plan) would increase interference.

    It is also troubling to hear about sloppy fit between the shackles and the hangers. Which bushings were you guys using?

    Last edited: May 10, 2018
    EDDO likes this.
  10. Apr 25, 2018 at 1:03 PM
    #10
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,911
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    scocar likes this.
  11. Apr 27, 2018 at 6:41 AM
    #11
    traxman25

    traxman25 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    651
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Are you using the stock shackle mount or a shackle flip? There is no loose fit once the bolt is tightened.

    Sorry for the trouble with your shackles. I have emailed you a USPS return label, please send those back and we will get you an updated version at no charge.

    TacoTRD78, scocar and EDDO like this.
  12. Apr 27, 2018 at 8:28 AM
    #12
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    OEM mount. From other users, I've heard that using correct tourque will end up deforming the ears of the mount because of the excessive space. He had to remove it and press it apart, then insert a very hard to source washer approximately 1/8 thick.

  13. Apr 27, 2018 at 8:59 AM
    #13
    traxman25

    traxman25 4x Innovations Vendor

    Joined:
    Oct 15, 2009
    Member:
    #24343
    Messages:
    651
    Gender:
    Male
    First Name:
    Adam
    Platteville Wi
    Vehicle:
    Too Many!
    Please send your shackles back and we will send you an updated version.

    Our shackles are 0.04" wider than the factory Toyota spring bushing inner sleeve. I just checked all of our current stock, which were assembled using the same fixture we've always used, and they all show this same gap to the OEM springs we have here. There's nowhere near a 1/8" gap to the OEM bushing sleeve. You can see this in EDDO's pictures above to the OEM springs as well. If there was a gap that big there would have been that same gap on the factory shackles with that particular spring.

    mcharfauros likes this.
  14. May 3, 2018 at 2:43 PM
    #14
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,911
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Thanks Adam. Really appreciate the quick turn on these.


    mcharfauros, traxman25 and scocar like this.
  15. May 3, 2018 at 3:27 PM
    #15
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    Please post pics fitted with Dakars and bushings. I'm assuming you have the yellow OME bushings. I'm interested in the clearance issue @deeezy pointed out (excessive space between bushing and shackle ear).

    Bruce988jl likes this.
  16. May 3, 2018 at 3:34 PM
    #16
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    Thanks Adam. To clarify, I believe @deeezy is running All-pro expos. I'll be installing the earlier Dakar CR047 using OME SB108 bushings. There may be a slight difference in width between the two different brands of leafpacks (and bushings), but seems this should be negligible. @EDDO these are the bushings I'm curious if you are using on your new Dakars.


  17. May 3, 2018 at 3:35 PM
    #17
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,911
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Hope to do the swap this weekend. But it won't be a direct comparison for you. I went with the . Width was perfect.


    scocar likes this.
  18. May 3, 2018 at 3:46 PM
    #18
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    Ok do me a favor and measure the with of the bushing flanges, then I can measure mine and compare :)

    @traxman25 I meant to ask: what is the difference with the "updated version" you mention, and when did it get updated? I bought mine in February 2017.

  19. May 3, 2018 at 3:57 PM
    #19
    EDDO

    EDDO                         

    Joined:
    Mar 12, 2014
    Member:
    #125165
    Messages:
    3,911
    Gender:
    Male
    First Name:
    Eric
    San Jose, CA
    Vehicle:
    13 DC TRD OR MG
                                                                                        CBI Moab 2.0 front bumper CBI Trail Rider 2.0 rear bumper B.A.M.F. sliders Exhaust crossover relocate Icon 2.5 front and 2.0 rear Camburg balljoint UCAs Welded stock alignment tabs Dakar Leaf Springs and 14" x 650 lb. coils Wheeler's SuperBumps (front) Icon Hydro Bumps with U-bolt flip Relentless Fab tailgate plate Total Chaos Bed Stiffeners 265/75R16 BFG T/A KO2 on black TRD faux beadlocks PTR18-35090 Custom Double Cardan Driveshaft from South Bay Driveline 2.5" dia .134" wall front, 3.0" dia .125" wall rear. Spicer 1310 joints, Spicer CB
    Gotcha.

    Appears to be all about the position of the gusset.
    If it is centered (like these), it won't work with Dakars + stock hangers.


    With the gusset at the back (like these) there won't be anything to make contact with the second leaf.


    scocar likes this.
  20. May 3, 2018 at 4:10 PM
    #20
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,973
    Ah! I'll have to go dig mine up and take a look. So it appears that the relocated zerks now will be rotating very close the the bottom cup in the shackle hanger under full compression. I suppose they may clear it (i.e., rotate inside) if spring deflection pushes them that far.
