On road it does amazing, I am very pleased with it. On the gravel backroads it did good. I want to try swapping the coils to see if I could fine tune the suspension. When I did the swap I was mainly going off of some of the other setup I read online.



Negative ghost rider lol

I've had good luck with my 3.4 so far. About the only left on my to-do list would be rock lights, CB, chromo all the way around and possible 4.88's w/ high pinion front



Ordered some Amsoil ATF today. I'm going to try to get the cooler installed this weekend. I'm going to have it flushed and swapped over sometime soon.

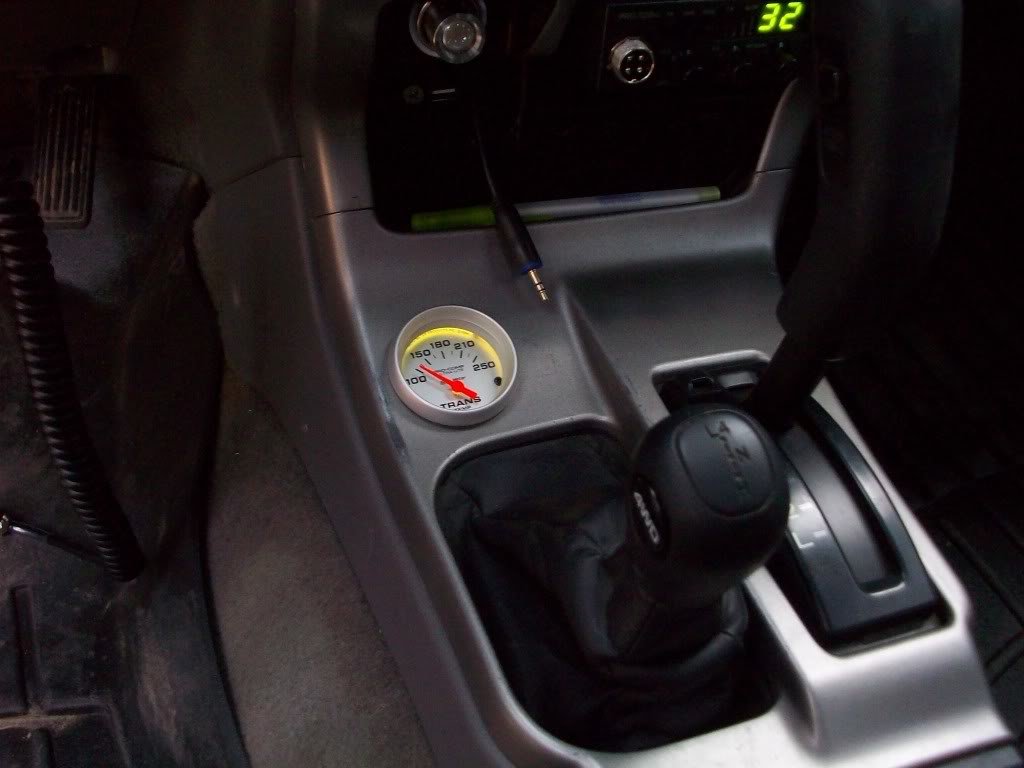

I also got around to mocking up the trans temp gauge plumbing today at work. I'm probably going to order an Auto Meter gauge and try to install it in my center console, just in front of my shifter (if possible)


http://www.summitracing.com/parts/ATM-6157/?rtype=10



This is a good mod to have!

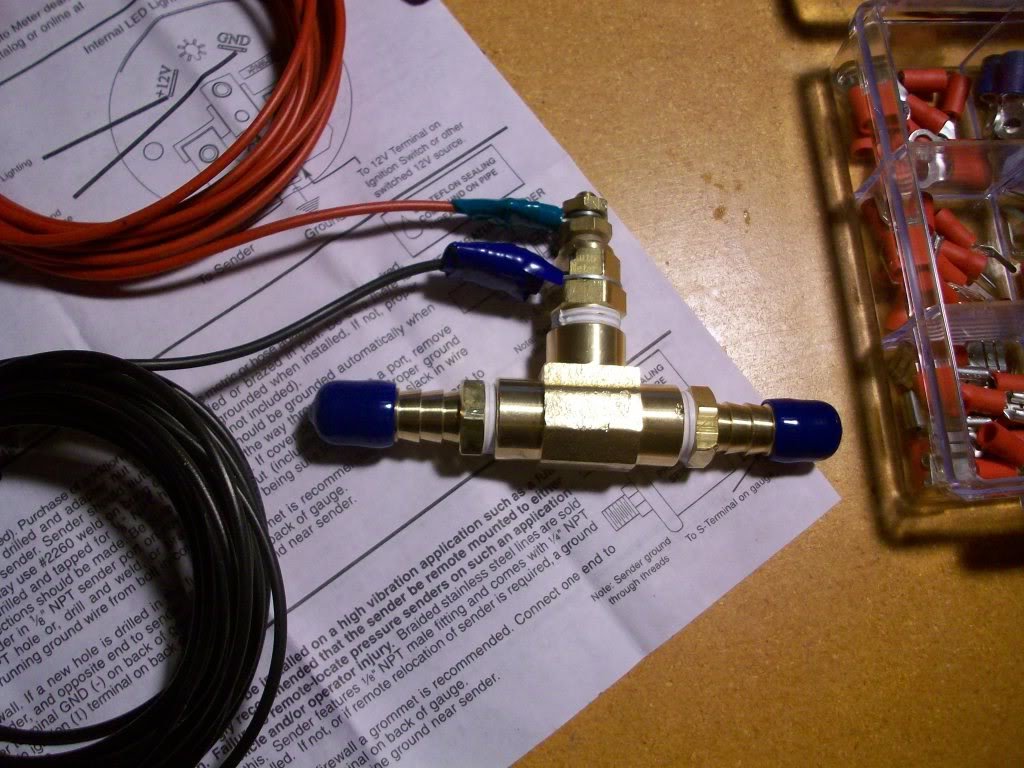

How were you planning to use the temp sensor? I recommend just using some brass plumbing and making your own T for it to go in the trans fluid line.. thats what I did.

I run the trans cooler in series with the radiator and my temps are always at or below 160. Even in moab..



That exactly how I was wanting to set mine up. I haven't seen it done, before now, and after seeing yours I really like that setup!

Yeah, I'm doing brass on the T.

What do you mean by in series with the radiator? Do you have any more pics of your setup?

I'm really glad to hear your having good luck with keeping it cooler. I was worried that it wouldn't even be worth the trouble.

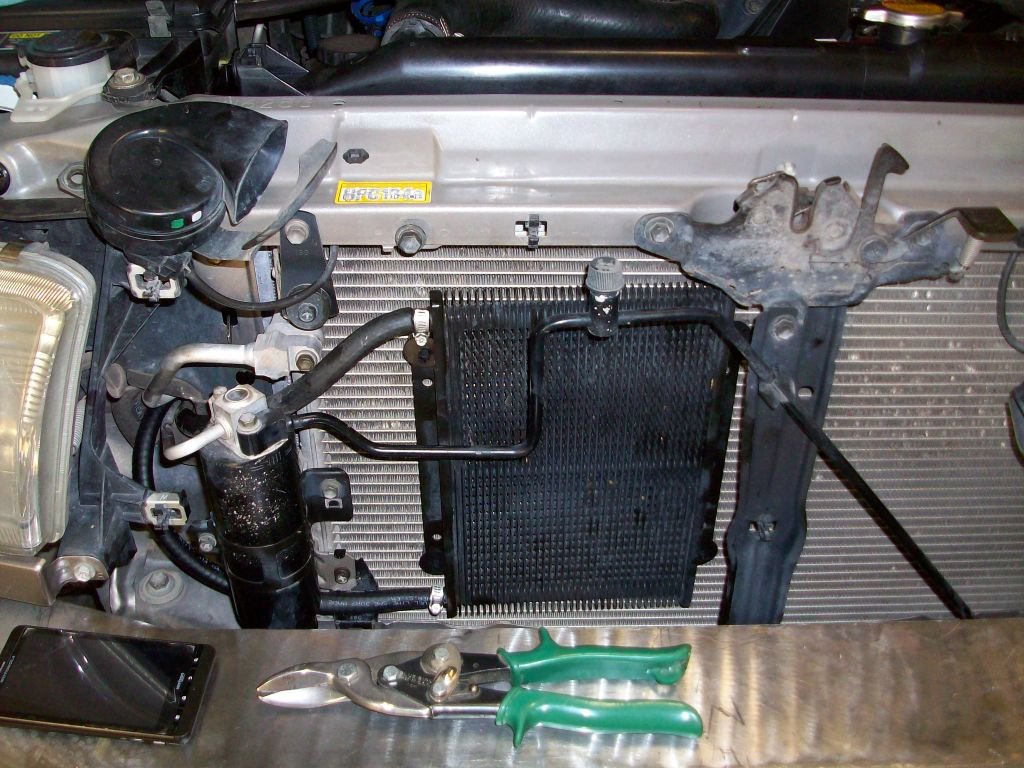

This is how the lines are run in my setup.

Hot from trans > in-line temp sensor for the gauge > radiator built in trans cooler > External trans cooler mounted in front of radiator > in line filter > Back to trans.

The external cooler I use is the B&M 70268, many other 4runner owners use the slightly larger 70264. But, if you are running with the radiator in series, its overkill. Most 4runner guys bypass the radiator trans cooler all together and just go with the external one due to problems with the 4runner radiators..

I have the fluid going to the external cooler 2nd becuase it is the one that receives the coolest air as it is in the front. so the fluid receives the majority of the cooling effects after it has already been cooled somewhat by the built in radiator part.

The in-line filter I used was a magnefine, I dont remember the part number, but I think they are universal as its just an in-line thing.


With the temps. I also am running a new radiator and a stant 170* thermostat as opposed to the stock 180* thermostat. The radiator is just a stock replacement, nothing fancy. the cooler thermostat is recommended for Supercharged rigs only. But, if you need help with engine temps in addition to trans temps, its worth a shot. My engine temps are now usually at 185* per my scangauge.

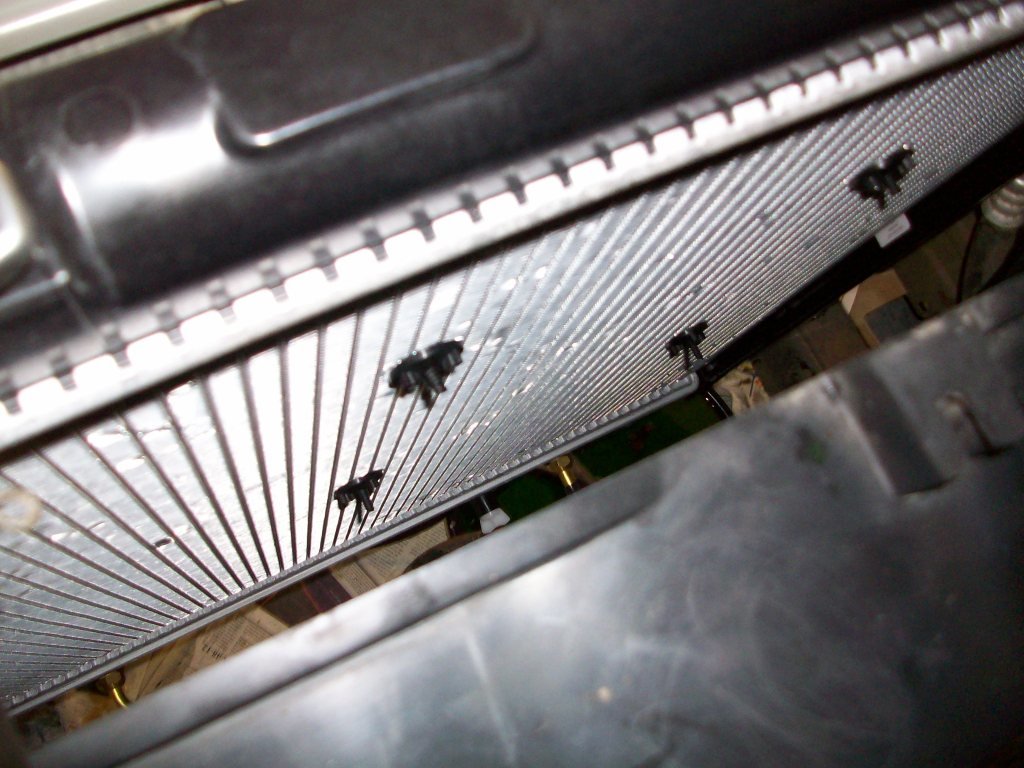

The B&M mounts using a set of 4 zip-ties that go through the radiator and the condenser..



Thanks for clearing that up for me and also thank you for the write up. It's good to have input and instructions from someone who's actually done it and not someone who "heard from one of his buddies"

I'm ready to knock this project out now



Good luck!



What tires are on this truck?



They look like Maxxis creepy crawlers



sub'd



x2



Still trying to find the time to hook up the transmission cooler/gauge.

I did a little 2,000 mile check up on the solid axle and everything is good, tight and greased. I've done everything from around town, interstate to wheeling it and I couldn't be more pleased.



I finally got around to finishing up my SAS price list, here's the final verdict.



3 Link SAS Price Sheet
Axle
79 Toyota; 8” 4cyl  $250.00
Sierra 8” 4cyl 4.56 gear set  $185.00 + 10% off  $166.50
Sierra 8” 4cyl master bearing kit  $135.00 + 10% off  $121.50
Spartan Locker 8” 4cyl  $284.26
Marlin front axle service kit  $179.00
Trail-Gear Chromolly Hub Gears  $100.00
Vented rotors (79 FJ40)  60.00?
Reman Calipers  Carquest #’s 19-1601 and 19-1600 (94 4Runner)  $79.42
Raybestos Brake Pads  Carquest # RCD 611 (94 4Runner)  $22.53
Low profile drain plug  $4.99
TOTAL  $1,268.20

Suspension
Fox Coilovers  12in Travel  $620.00
Upper Coils  10in with 250lbs  $130.00
Lower Coils  14in with 350lbs  $130.00
Fox Emulsion Shocks  12in Travel  $320.00
Toytec 2in Shackles w/ Bushings  $149.36
Brackets  $400.00
TOTAL  $1,749.36

Transfer Case
82 Toyota top shift case  $100.00
Tacoma Passenger Side Adapter  $399.00 + 10% off  $359.10
Speed Sensor Adapter  $100.00 + 10% off  $90.00
Creeper Gears 4.7:1 – 23 Spline  $492 + 10% off  $442.80
TOTAL  $991.90

Drive Shaft
HD Front Driveline Kit – Creeper Joint  $229.00 + 10% off  $206.10
Rear Tube Yoke  $39.68
Rear Flange Yoke  $58.53
Rear U Joint  $21.36
Steering Shaft Joint  $100 x 2  $200.00
TOTAL  $525.67

Misc Parts Needed
Oil Pan  12101-65030  $155.62
Strainer  15104-62060  $62.78
Oil Strainer Gasket  15147-62060  $2.05
Oil Pan Drain Plug and Gaskets  Dorman #’s 090-038 (plug) and 097-115 (gasket)  $2.50
Transmission Cooler  Carquest # 77421  $41.86
33x12.50 Goodyear MTR Kevlar  $900.00
TOTAL  $1,164.81


Fluids/Chemicals
Amsoil 75W90 Synthetic Gear Oil  $11.55 x 8  $92.40
Amsoil Synthetic ATF  $8.90 x 14  $124.60
Amsoil Synthetic Grease  $5.41 x 4  $21.64
TOTAL  $238.64

Shipping
Inchworm  $93.03
Marlin Crawler  $20.72
Trail-Gear  $43.98
Amsoil  $36.05
TOTAL  $193.78

Labor
SAS and Rear Shock Setup  $1,700.00
Rear Drive Shaft  $75.00
Gearing and Installing the Transfercase  $300.00
Differential Gear Setup  $75.00
TOTAL  $2,150.00

Parts Sold
Front Differential (geared and locked)  $800.00
Icon UCA’s  $630.00
Toytec/Bilstein Coilovers  $500.00
Remington Sendero 7mm Mag  $950.00
Nikon Monarch 8-32x50SF  $480.00
Sold Total  $3,360.00


Grand Total  $8,282.36

Out of Pocket  $4,922.36
