5 lug BS

Discussion in '5 Lug' started by 5 Lug Fury, Nov 6, 2017.

  1. Nov 6, 2017 at 8:03 PM
    #1
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    So there's a few of us that have been pondering on or have been doing some non bolt on mods. Here's a spot to shoot for shit.

    rjbiii likes this.
  2. Nov 6, 2017 at 8:03 PM
    #2
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    Reserved for quick links

  3. Nov 6, 2017 at 8:19 PM
    #3
    Kavik

    Kavik Kavik

    Joined:
    Jan 30, 2012
    Member:
    #71810
    Messages:
    3,349
    Gender:
    Male
    Texas, DFW
    Vehicle:
    Not your everday 5 lug
    Lowered: 3 inch drop blocks (Beefed Taco),Satoshi Grill, Morimoto bi-xenon H1 Retrofitted headlights, Flowmaster exhaust, Blue LED interior and exterior, blue LED dome light, Anzo black LED taillights, Hifonics Brutus 1100w Mono Block, Bazooka 300w Amp, LED license plate lights. Lifited: Fat Bob's rear shocks, Fat Bob's 3" spacer and rear AAL, Nitto Terragrapplers, weldertaco wrap around rear tube bumper, TrailWorx Fab tube front bumper
    Where can I weld my hope and dreams to my truck?

  4. Nov 6, 2017 at 9:16 PM
    #4
    SamGoingHam

    SamGoingHam IG: SamGoingHam

    Joined:
    Oct 8, 2016
    Member:
    #199212
    Messages:
    1,467
    Gender:
    Male
    First Name:
    Sam
    Phoenix, Arizona
    Vehicle:
    2014 TACO 5LUG LOCKED 2WD
  5. Nov 6, 2017 at 9:16 PM
    #5
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    On the front suspension lol

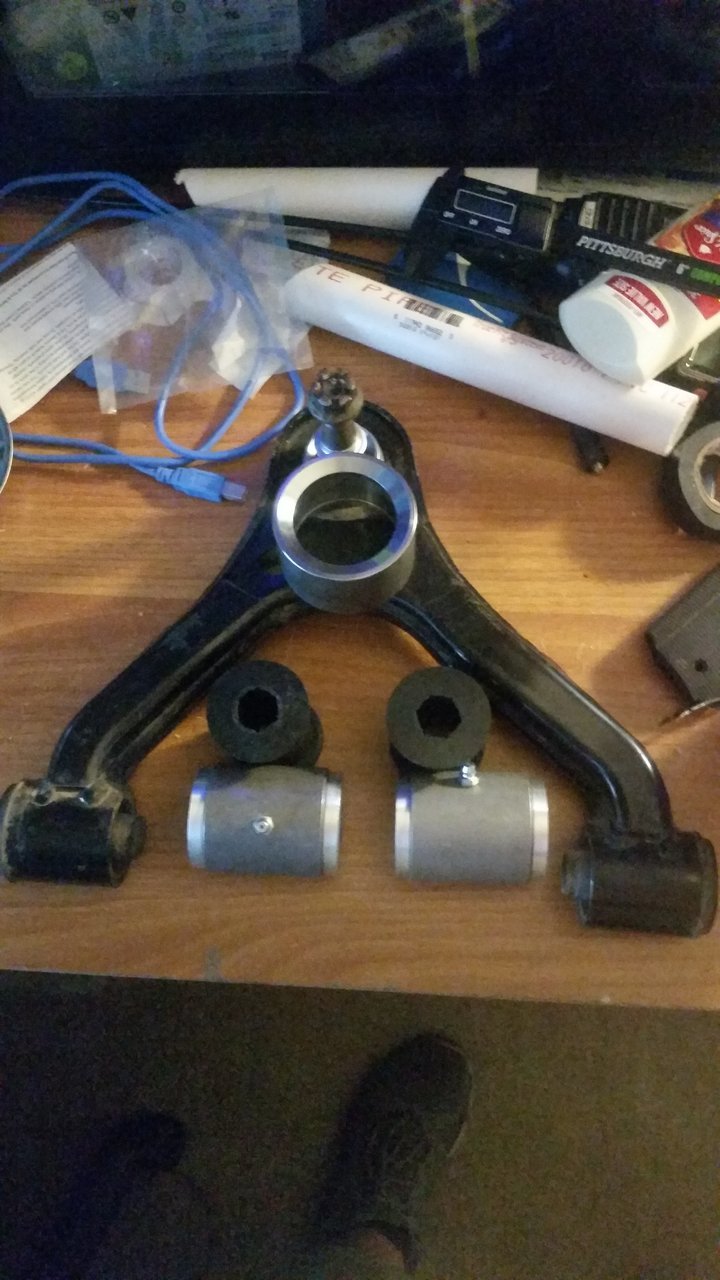

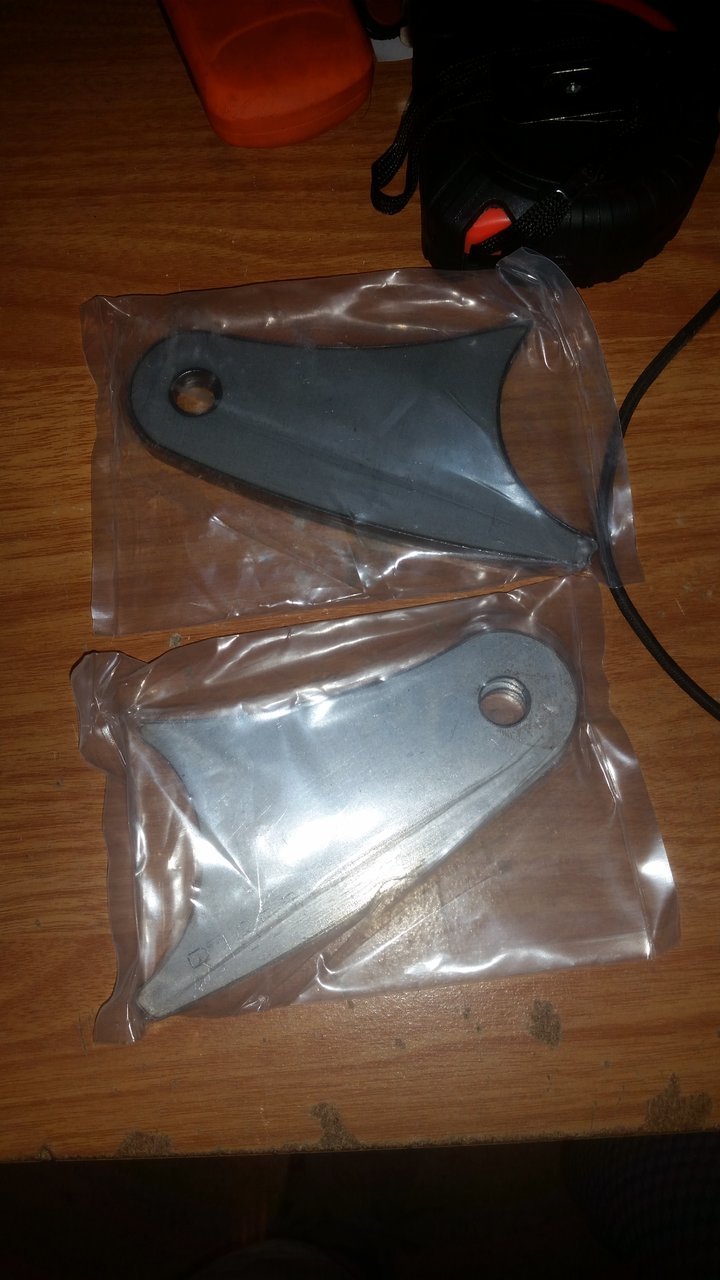

    So as some of you may know I've been working on making my own upper control arms and I've now collected enough parts to start my jig. The geometry is the same as oem but a 1" uniball is used instead of a ball joint.

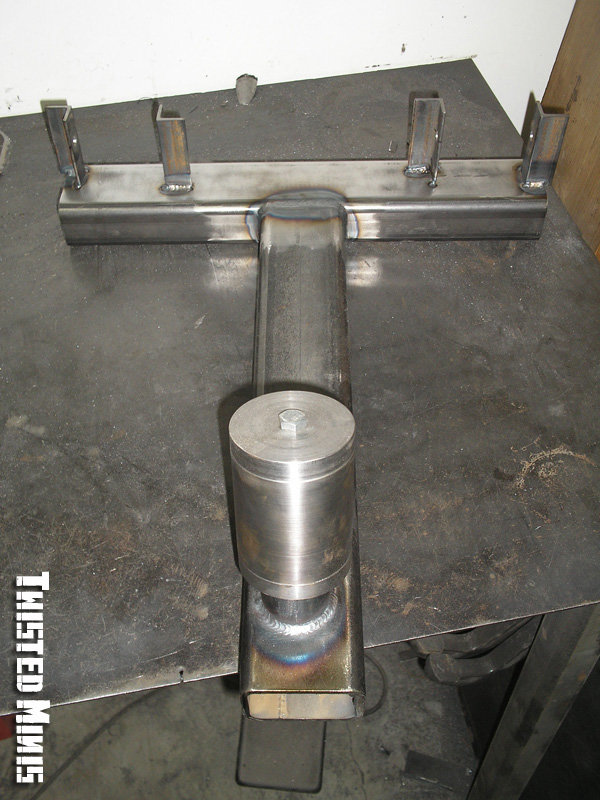

    Here's a picture of the style of jig Im going to make

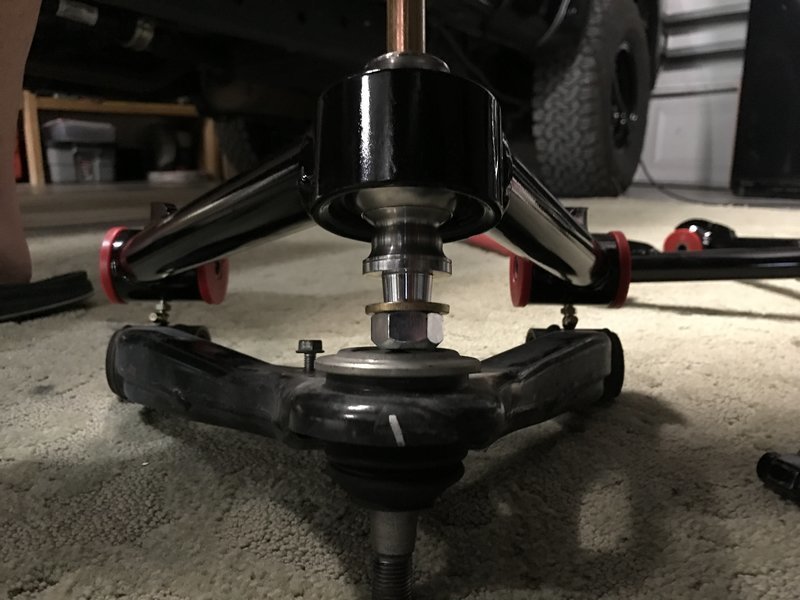

    And here some pictures of an "aftermarket" uca over an oem one. It shows how the geometry is the same.


    We're actually really lucky as our uca has no bend in it and we have 2 bolts. Now my uca wont be completely bolt on as I'm going with a standard bushing from Ruff Stuff which uses a 9/16 bolt. This means I'm going to remove the square nut and housing but replace it with 9/16 Grade 8 hardware which is much thicker/stronger. The bushing is 2 5/8" which is a snug fit but a fit none the less.

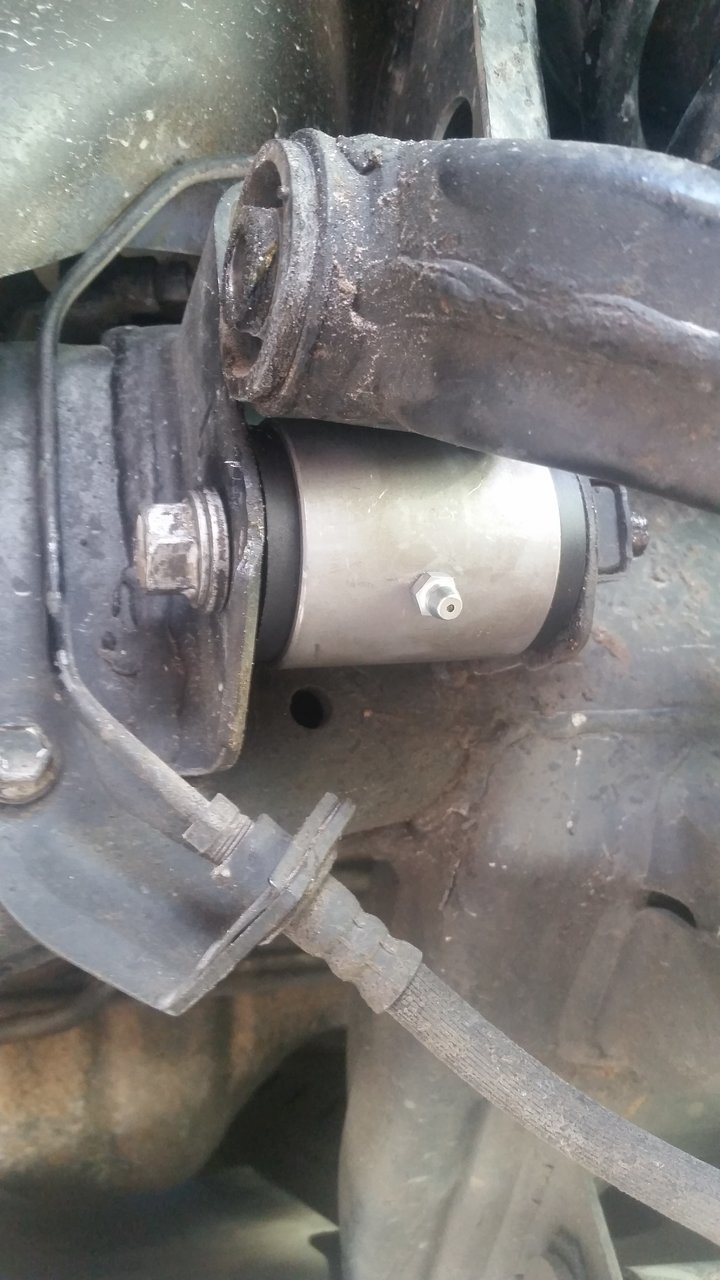

    Here's a test fit photo of the bushing (using stock bolt so its got some wiggle room)

    I basically need to built my jig, collect a few more parts, and take it to a fabricator.

    HackD and SamGoingHam like this.
  6. Nov 6, 2017 at 9:25 PM
    #6
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    Also in the next month or so I'm doing a ubolt flip. I've come to the conclusion it requires a oem 6 lug axle plate with square ubolts and a set of new lower shocks mounts. I've got the parts I just need to set a date to see someone to do it for me.

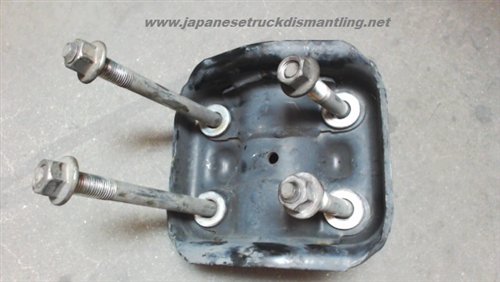

    These are the axle plates (I got mine for free)
    It should help with our ground clearance in the back. It's funny when a 6 lug does a u bolt flip their stock hardware helps us do ours.
    I'll post more on this once I get it done and have tested it.

    HackD and SamGoingHam like this.
  7. Nov 6, 2017 at 9:34 PM
    #7
    5luggertaco

    5luggertaco Active Member

    Joined:
    Jan 10, 2015
    Member:
    #146051
    Messages:
    35
    Gender:
    Male
    First Name:
    Gio
    California
    Vehicle:
    2015 Storm Trooper White Base
    2.5 Icon Coilovers Total Chaos Control Arms 265x75r16 All Terrain 16 Blk Method Wheels Limited Slip
    Its easy EVERYWHERE!

  8. Nov 6, 2017 at 9:48 PM
    #8
    stlntaco

    stlntaco Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153855
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Jake
    California
    ̿̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿
    If anyone needs stock u bolt plates like this I will give you mine for free.
    Just thought I would share that.

    SamGoingHam and 5 Lug Fury [OP] like this.
  9. Nov 6, 2017 at 10:09 PM
    #9
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    Thanks man I'm sure someone will follow you up on that. Love your rig I follow you on Instagram.

    stlntaco likes this.
  10. Nov 7, 2017 at 6:24 AM
    #10
    stlntaco

    stlntaco Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153855
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Jake
    California
    ̿̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿
    What’s your Ig

  11. Nov 7, 2017 at 7:04 AM
    #11
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    5_lug_fury

    ANTHONYK0928 and stlntaco like this.
  12. Nov 7, 2017 at 7:20 AM
    #12
    stlntaco

    stlntaco Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153855
    Messages:
    1,470
    Gender:
    Male
    First Name:
    Jake
    California
    ̿̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿
    I follow you too:D

    TacoTRD78 and 5 Lug Fury [OP] like this.
  13. Dec 18, 2017 at 4:39 PM
    #13
    McDangle

    McDangle Well-Known Member

    Joined:
    Aug 24, 2017
    Member:
    #227924
    Messages:
    132
    First Name:
    Mc Dangle
    Vehicle:
    Little Blue Beast
    All of Themz
    ummm dog - let me know how that UCA fab goes - if you ever make a LT upper and lower control arm - let me know....

    very disappointing that Total Chaos stopped making them

    Shapinoweno likes this.
  14. Jan 12, 2018 at 11:32 PM
    #14
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    My goal is to finish just uppers for now but Im leaving room on the jig for longer lengths. Luckily it looks like the shocks are the same for mid and long travel so only have to cry once in the shock department.

    Shapinoweno likes this.
  15. Jan 14, 2018 at 11:55 PM
    #15
    Shapinoweno

    Shapinoweno Member

    Joined:
    Dec 31, 2017
    Member:
    #239868
    Messages:
    10
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2015 Tacoma access cab, 5 lugger
    Been planning to do the same, need long travel bad. Do you think the movement in the upper bushing at 2 5/8 will be fine for long travel as well. I have been trying to find the upper bushing that total chaos used in there kit but can’t find the uppers only the lowers, seems like there a bit smaller then average

  16. Jan 15, 2018 at 12:12 AM
    #16
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    So they exist but they expensive as hell lol (bushings only) The thing is I don't know what the tubing used for their bushings so I went with a premade kit.
    https://bilsteinlifts.com/shop/toyo...4dXfFIj3yaEkZpxvJWqHyE-O_JBLheGgaAjc-EALw_wcB

    Also with the keep in mind with 2 5/8 bushing kit I'm will remove the square nut and its housing to fit a bigger bolt while total chaos uses the stock hardware.

  17. Jan 16, 2018 at 9:30 AM
    #17
    McDangle

    McDangle Well-Known Member

    Joined:
    Aug 24, 2017
    Member:
    #227924
    Messages:
    132
    First Name:
    Mc Dangle
    Vehicle:
    Little Blue Beast
    All of Themz
    I really am watching this with eyes wide open - I want to see how that long travel front build works out... I assume you are going to do the lower control arm as well? Also, not 1000% certain, but I believe the long travel shocks are different than the mid travel shocks.

  18. Jan 16, 2018 at 8:49 PM
    #18
    5 Lug Fury

    5 Lug Fury [OP] Well-Known Member

    Joined:
    Nov 21, 2014
    Member:
    #142831
    Messages:
    1,727
    Gender:
    Male
    First Name:
    Kenny
    West Palm Beach Florida
    Vehicle:
    Locked 07 RC 5 lug :D
    Got some stuff
    My plan is to do mid travel first which is just uppers with stock geometry and uniballs. Long travel is extended uppers and lowers with uniballs and a bunch of other things gusseted.

  19. Feb 1, 2018 at 11:55 AM
    #19
    deadbeat0321

    deadbeat0321 Member

    Joined:
    Jan 10, 2017
    Member:
    #207116
    Messages:
    17
    Gender:
    Male
    First Name:
    Matt
    So Cal
    Vehicle:
    2014 RC 4CYL
    rage
    Oh man. I can't wait to watch this pan out. I've been on the hunt for a set of used TC UCAs for a while.

    5 Lug Fury [OP] likes this.
  20. Mar 6, 2018 at 7:55 AM
    #20
    Kavik

    Kavik Kavik

    Joined:
    Jan 30, 2012
    Member:
    #71810
    Messages:
    3,349
    Gender:
    Male
    Texas, DFW
    Vehicle:
    Not your everday 5 lug
    Lowered: 3 inch drop blocks (Beefed Taco),Satoshi Grill, Morimoto bi-xenon H1 Retrofitted headlights, Flowmaster exhaust, Blue LED interior and exterior, blue LED dome light, Anzo black LED taillights, Hifonics Brutus 1100w Mono Block, Bazooka 300w Amp, LED license plate lights. Lifited: Fat Bob's rear shocks, Fat Bob's 3" spacer and rear AAL, Nitto Terragrapplers, weldertaco wrap around rear tube bumper, TrailWorx Fab tube front bumper
    If someone can get me some good measurements of there TC coil-over mounts ( Exact ones highlighted below) I will consider have a machine shop bang some out.
