5 Lug Budget Big Brake Kit (No Caliper Brackets)

Discussion in '1st Gen. Tacomas (1995-2004)' started by mjbtaco, Feb 21, 2017.

  1. Feb 21, 2017 at 6:02 PM
    #1
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    For years people have made big brake kits for the 5 lug first gen tacomas but no one has ever offered much info or has used all custom parts that cost an arm and a leg. My goal with this was to find stuff that can easily be obtained at a decent price and share all the information i gathered openly. By pure chance i found these calipers that line up perfectly with the stock spindles. Hope this can help some people out. Also this will require a minimum 17" wheel. It will also depend on width and offset as well. My 17x9 +35 enkei rpf1s cleared with no issues.

    Here are all the parts i used. I have yet to confirm that the brake lines will work for this application. So if buying these parts please wait until i confirm that they work properly.

    Disclaimer: the price of the calipers fluctuates regularly. The prices i have listed below are what i paid at the time i purchased them. You may have to wait for the price to drop to get the best deal.

    As stated in the title the calipers mount directly to the stock mounting location on the stock 95-04 tacoma spindle. BUT the holes will need to be drilled out with a 9/16 drill bit to accept the larger bolt (14x2.0 x 35mm) that the caliper uses and slightly shimmed out to align it with the rotor. (0.13in or 3.3mm) washer inside to shim the caliper and (0.11in or 2.7mm) washer on the outside to stop the bolt from hitting the rotor.

    Hardware list.

    (4) M14 x 2.0 x 35 mm bolts
    (4) M14 washers 2.5 mm thick (they go between the bolt head and knuckle)
    (8) 9/16 washers 2 mm thick(each) (they go between the knuckle and caliper)


    For the rotors (Evo 9 Front 12.6") those will need to be machined to fit the tacoma hub assembly. The center bore needs to be bored out to the same size as the stock rotors and the mounting holes drilled and tapped to accept the stock hardware used to mount the hubs. I have attached a picture showing the modifications made.


    With some creative routing the brake lines work perfectly.


    Summary of parts

    Cadillac ATS Brembo Calipers
    Cadillac CTS-V Brake Pads
    Mitsubishi Evolution 9 Front Rotors
    Subaru WRX STI Front Brake lines

    Brake Parts

    Driver Side Brembo Caliper

    PART #: 172-2777

    COST: $104.14

    https://www.amazon.com/ACDelco-172-..._rd_t=40701&psc=1&refRID=2A8Z2D8TQQZM95055CJ7



    Passenger Side Brembo Caliper

    PART# 172-2768

    COST: $113.71

    https://www.amazon.com/ACDelco-172-..._rd_t=40701&psc=1&refRID=0N6QX4HAAJYQ2R2DYKBN



    Caliper Hardware Kit

    PART #: 18K1971X

    COST: $18.58

    http://amzn.to/2kn8Zy0



    StopTech Steel Braided Brake Lines

    PART#: 950.47006

    COST: $52.02

    http://amzn.to/2jsw7qO



    StopTech Street Performance Brake Pads

    PART #: 309.10010

    COST: $54.18

    http://amzn.to/2jsyWYM



    StopTech Blank Rotors (Evo 9 Front 12.6")

    PART #: st121.46064

    COST: $103.79

    http://www.czeromedia.com/index.php/product/evo-89-stoptech-rotors/


    Total: $446.42

    Cost of rotor machining depends on what your machinist charges you.




    Last edited: May 24, 2018
  2. Feb 21, 2017 at 6:49 PM
    #2
    Siebler

    Siebler Duck Killing Machine

    Joined:
    May 9, 2009
    Member:
    #17019
    Messages:
    825
    Gender:
    Male
    First Name:
    CJ
    Portland, OR
    Vehicle:
    99 5 lug LT, 01 Tundra, 07 Sequoia
    TC LT Front, F67 on 12" shackle, LCE Underdrive Pulley, Flex-a-lite fan, DT headers, Super 44 muffler, 4:11's and Aussie Locker, 22 Gallon Fuel Cell, Beard seats, custom bumpers, sliders, bed cage
    Dude thanks for posting the findings, looking forward to hearing about finished product! Knew I could count on an OG Customtacoer :)

    Im about to garsge the truck for an extended periodand this was on my list but Jason doesnt sell his kit anymore. Huge help!

    mjbtaco [OP] likes this.
  3. Feb 21, 2017 at 7:00 PM
    #3
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Yoooo whats up CJ! Been a while lol yeah man big brakes are super hard to find information on and they're either no longer sold or super expensive. I wanted to get all the information out there to help out as many people as possible. Glad this has been useful for you!

    I also posted this on ct too haha but i figures there would be more traffic here.

  4. Feb 21, 2017 at 7:16 PM
    #4
    Siebler

    Siebler Duck Killing Machine

    Joined:
    May 9, 2009
    Member:
    #17019
    Messages:
    825
    Gender:
    Male
    First Name:
    CJ
    Portland, OR
    Vehicle:
    99 5 lug LT, 01 Tundra, 07 Sequoia
    TC LT Front, F67 on 12" shackle, LCE Underdrive Pulley, Flex-a-lite fan, DT headers, Super 44 muffler, 4:11's and Aussie Locker, 22 Gallon Fuel Cell, Beard seats, custom bumpers, sliders, bed cage
    Been a long while! Hell i left SD over 2 years ago for a job in Portland.

    Thats funny you posted on CT, i was wondering if it was dead completely. Been thinking a lot about some boost and that place was obviously the best resource for us 5luggers.

    Look forward to hearing how well it works. Any idea how much too long the brake likes are? I am sure not long enough for me but I can dream!

  5. Feb 21, 2017 at 7:19 PM
    #5
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    The lines are 22" long and looked like there was quite a lot of slack on jose's install but i actually need longer lines too. Mine looked a bit stretched at my ride height lol

  6. Feb 21, 2017 at 7:27 PM
    #6
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks

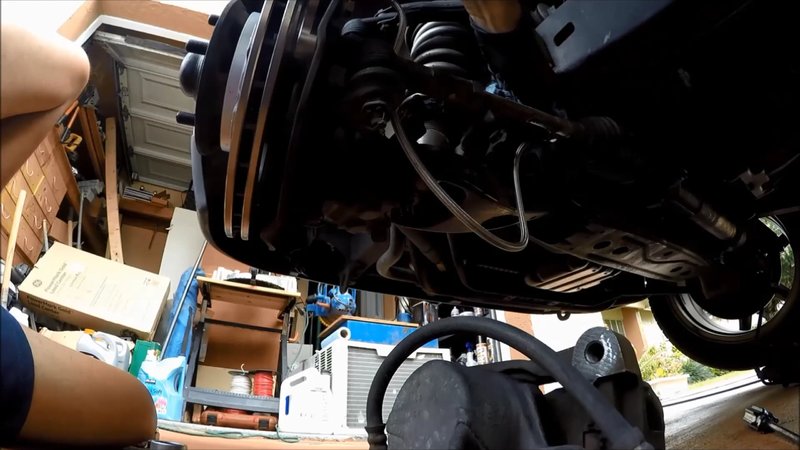

    @Siebler heres a screen shot at how much slack he had in his install.


  7. Feb 21, 2017 at 8:35 PM
    #7
    Siebler

    Siebler Duck Killing Machine

    Joined:
    May 9, 2009
    Member:
    #17019
    Messages:
    825
    Gender:
    Male
    First Name:
    CJ
    Portland, OR
    Vehicle:
    99 5 lug LT, 01 Tundra, 07 Sequoia
    TC LT Front, F67 on 12" shackle, LCE Underdrive Pulley, Flex-a-lite fan, DT headers, Super 44 muffler, 4:11's and Aussie Locker, 22 Gallon Fuel Cell, Beard seats, custom bumpers, sliders, bed cage
    Sweet, thanks! Ill have to measure mine and see what it looks like. Custom lines arnt a horrible worse case!

    mjbtaco [OP] likes this.
  8. Feb 21, 2017 at 9:00 PM
    #8
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Yeah if for any reason these dont work I'll have them modified locally

  9. Mar 5, 2017 at 7:21 AM
    #9
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Finally finished the Brembo install!

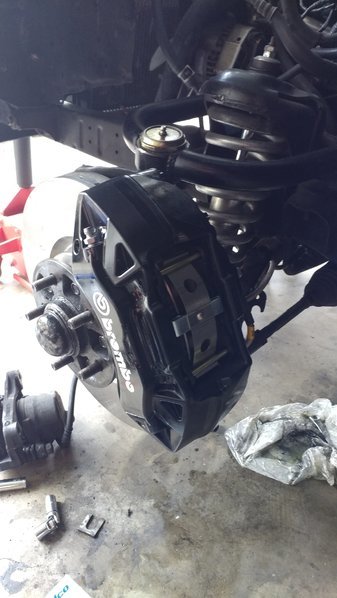

    The lines did work and everything feels fine. Here are some pictures of the completed install.

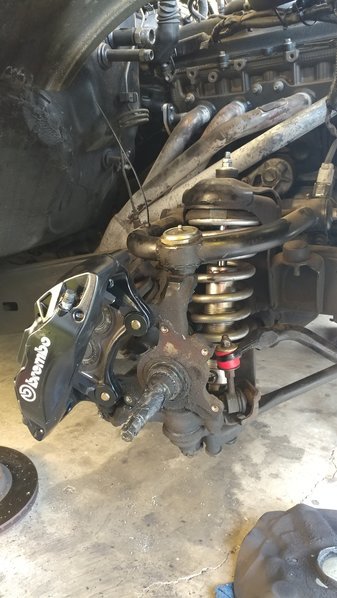

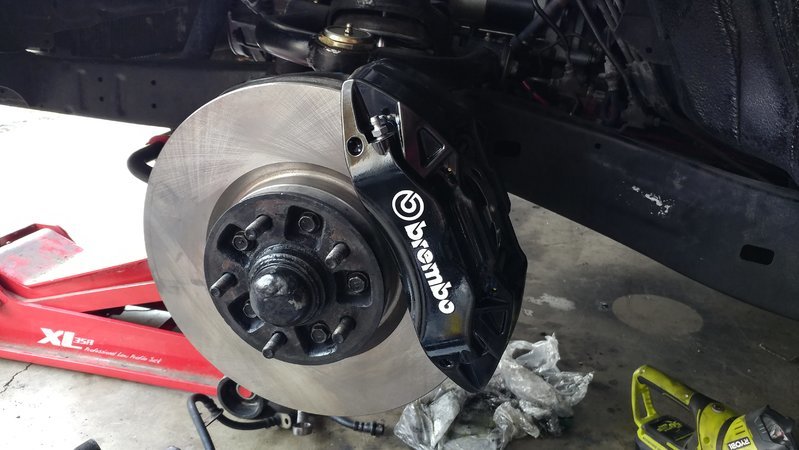

    Here is a picture of the caliper mounted to the spindle with no bracket. The holes on the spindle need to be drilled out to accept the larger bolt and the caliper is shimmed out a few mm to line it up with the rotor.

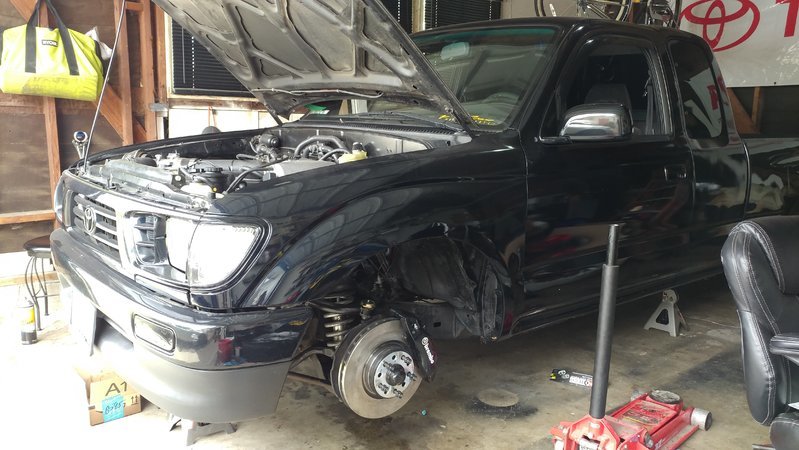

    Here are some pictures of the completed assembly.




    And a picture of the truck on the ground. Love the full look behind the wheels!


  10. Mar 5, 2017 at 7:39 AM
    #10
    weazleburger

    weazleburger Well-Known Member

    Joined:
    Dec 19, 2010
    Member:
    #47924
    Messages:
    199
    Gender:
    Male
    Baton Rouge, LA
    Vehicle:
    07 base reg cab 5-speed
    That's a sweet setup right there!

    mjbtaco [OP] likes this.
  11. Mar 5, 2017 at 7:42 AM
    #11
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Thanks!

  12. Mar 5, 2017 at 9:32 AM
    #12
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    19,072
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Sick ride homie. Great find and what luck on those caddy calipers!

  13. Mar 5, 2017 at 9:46 AM
    #13
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,372
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Looks good. Great job! Did you notice much pedal difference do to larger piston area and fluid need to move caliper pistons?

  14. Mar 5, 2017 at 9:49 AM
    #14
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Thanks! And yeah i sent them out to get a bracket made and the machinist told me one wasnt required. It was a huge surprise lol

    cruiserguy likes this.
  15. Mar 5, 2017 at 9:51 AM
    #15
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Pedal feels like stock under normal driving conditions. Really wont be able to tell a difference until more spirited driving

    mechanicjon likes this.
  16. Mar 5, 2017 at 11:02 AM
    #16
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,372
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

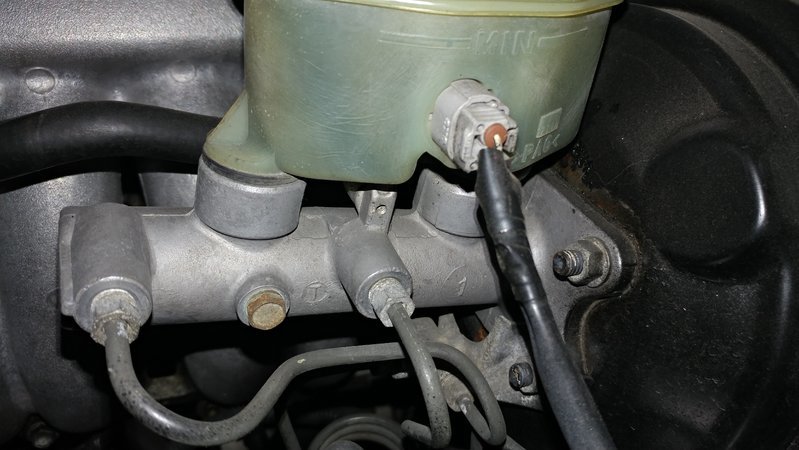

    Do you know the master cylinder bore size for the 5 lug? It should be casted on the master cylinder. Easy to see it.

  17. Mar 5, 2017 at 8:06 PM
    #17
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    Looks like its 1"

  18. Mar 5, 2017 at 8:16 PM
    #18
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,372
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    interesting the prerunner is 7/8"

  19. Mar 5, 2017 at 8:19 PM
    #19
    mjbtaco

    mjbtaco [OP] low and slow

    Joined:
    Mar 21, 2008
    Member:
    #5423
    Messages:
    4,131
    Gender:
    Male
    First Name:
    Michael
    Montclair , so cal
    Vehicle:
    Boosted 95.5 extra cab and 2013 Silver DCSB TRD Sport
    PERFORMANCE Custom GT3576 Turbo Setup FRONT SUSPENSION Lower Ball Joint flip 01-04 Swaybar Endlinks Energy Suspension Endlink Bushings Custom Upper Control arms by KANE QA1 coilovers with 8" spring Custom 4 pot Brembo BBK Modified lower control arms with Beefed Taco qa1 mounting plates REAR SUSPENSION Chasis Tech drop leafs QA1 adjustable shocks weld in drop notch Gas tank cross member bridge 3" angled blocks 2013 Double Cab Short Bed TRD Sport Eibach Pro Truck Shocks front and rear Lifted to the 3rd setting on the front shocks
    I was looking for a smaller fraction but i didnt see it. This is all i see on it.


  20. Mar 5, 2017 at 8:54 PM
    #20
    mechanicjon

    mechanicjon They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,372
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
    Mine is casted right on the top pretty large 7/8ths That may not be it on yours. But it could be.
