$50 Center Console Power Inverter Install

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jackrules, Jan 21, 2012.

  1. Jan 21, 2012 at 10:09 PM
    #1
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    Hi, so I got for my birthday the parts to install a power inverter in the cab of my truck. I mostly did this because I was going to get a cell phone, but that was going to be like 30 bucks, and for 50 I could get a 500 watt inverter with 2 120 volt outlets and a USB powered outlet to charge my iPhone. Heres the install.. I'll answer any Q's I can.. Sorry I didn't do a DIY. I wasn't completely sure of my plan to begin with. As I spend more time doing these things, I'll more confident in doing DIY's. ( I just turned 18 a few days ago ).

    Here it is. I used 3M double stick tape to secure it on the side of center console.

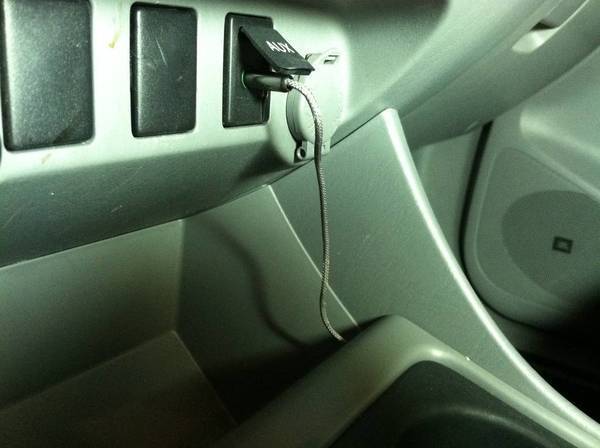

    I ran a male to male stereo wire from the dash board under the center console ( upholders, shift surround, etc ) and into the bottom of the center console, so I can leave my iPod or iPhone connected and charge and play music while it's hidden if I leave it in my truck charging.

    My original plan was to mount the inverter behind the rear seats and run extension cords around under the trim, but because the inverter has an on off button on it, I had to put it in an accessible place.

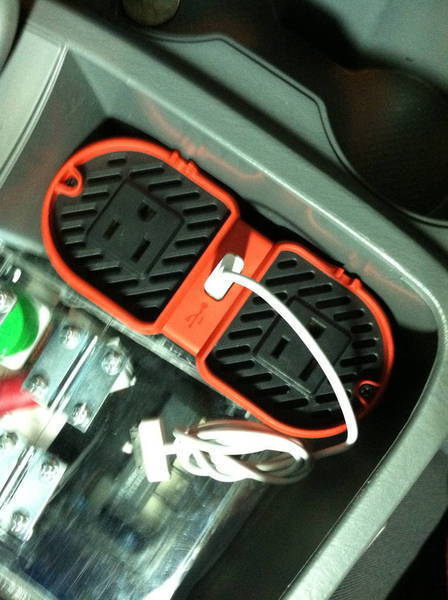

    The little power lights on the inverter kinda light up the center storage spot when it's dark.

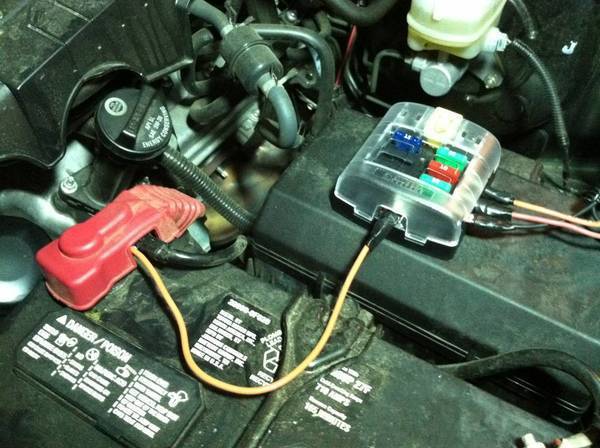

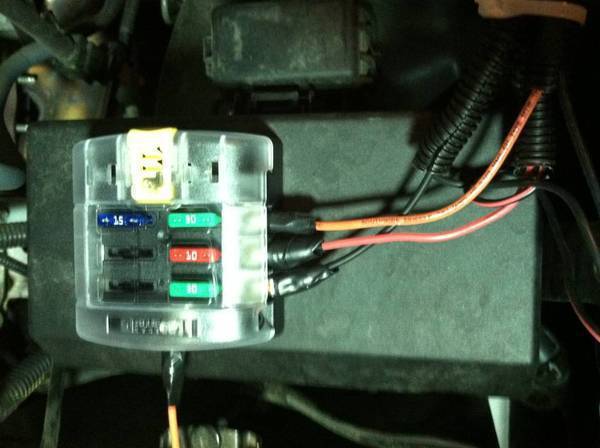

    I ran the power for the inverter through the bottom of the center console and to my fuse block by the battery.


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Jan 21, 2012 at 10:17 PM
    #2
    Tigahshark

    Tigahshark Senior NEWBIE

    Joined:
    Aug 14, 2011
    Member:
    #61688
    Messages:
    8,255
    Gender:
    Male
    First Name:
    Isaac
    On a volcano, literally!
    Vehicle:
    2011 DC TRD off road 4X4
    Tint Weathertech floor liner, weathertech window visor Roll n lock tonneau cover Rubber bed mat Smoked license plate covers
    Me likey this, where did you buy that outlet from?

  3. Jan 21, 2012 at 10:19 PM
    #3
    scottri

    scottri Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35187
    Messages:
    2,095
    Gender:
    Male
    First Name:
    Scott
    Tigard Oregon
    Vehicle:
    '10 Sport DC TRD Sport PreRunner
    Cover King Seat Covers, WeatherTech Liners, PopNLock, storage bin locks, N-Fab Step bars, and G4 Elite Tonneau cover.
    Looks good!

  4. Jan 21, 2012 at 10:21 PM
    #4
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,188
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    dont put that thing under any amount of load. the wire running to your fuse box looks sketching and is def not heavy enough to run that inverter at full load.

  5. Jan 21, 2012 at 10:46 PM
    #5
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    The outlets from home depot. It's a black and decker. 40 bucks.

    It's fused at 30 amps. So 30 amps x 12 volts = 360 watts.. so that's the most I would ever run it at. Still, I really only plan to use it for cell phone charging / computer charging so like 40 watts at most. I am going to get a better cable to go from the battery lead to the fuse block. I am using 12 gauge wire on whole job. It came with 12 gauge wire and alligator clips to connect it to the battery.

    All the electric tape between the wires and the fuse block is instead of heat shrinking where I soldered the wire to the O connectors that get strewed into the fuse block..



    What are your reasons that I shouldn't run it under any load?

  6. Jan 21, 2012 at 10:57 PM
    #6
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    The wires running to the battery won't be able to support the inverter at full load.
    Need bigger wires. Lots of guys run AWG 4 but thats a bit TOO big for this.

    Also, where did you get your extra fuse block?

  7. Jan 21, 2012 at 11:03 PM
    #7
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    It's a blue sea fuse block from amazon

    what awg would you recommend?

    like I said above, the wire it came with was 12 gauge. I used 12 gage. I talked to 2 people at home depot the separately recommended 12 gage.

    After talking to a few people and studying what it came with, I was pretty sure 12 was good. The wires I used are almost all wire, with not a ton of insulation. I ran them inside plastic tubing from the fuse block to the cab.

    I'd like to get correct gage wire to run 350 watts. What would this be.

  8. Jan 21, 2012 at 11:19 PM
    #8
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB

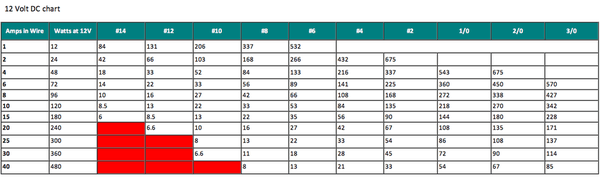

    [​IMG]

    so I should be able to use it at 240 watts. So maybe I'll go put it on a 20 amp fuse till I get bigger wire.

  9. Jan 21, 2012 at 11:22 PM
    #9
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Yeah you definitely don't need AWG 4, thats way to big for your needs haha. 12 gauge actually sounds okay for what your doing, but if you plan on running anything big off of it, I would upgrade the wire just several sizes bigger at least. I mean it wouldn't hurt.

  10. Jan 21, 2012 at 11:30 PM
    #10
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    yeah, I think I'll put a 20 amp fuse on it and leave it for now.. the most that'll be run of it are chargers of sorts... If I find I need more wattage and I blow out a fuse, I'll upgrade my wire. The only reason I won't upgrade it tomorrow is the time it would take. I wish I'd gone with bigger wire today... oh wellllllll :/

    I'm still happy with how it all came out.

  11. Jan 21, 2012 at 11:53 PM
    #11
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Yeah I like how you did it. I had a 2000W inverter on order but cancelled it because that were out of stock. I was gonna get that mounted and run an extension cord back to the bed, since my truck doesn't have the outlet back there.

  12. Jan 21, 2012 at 11:56 PM
    #12
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    I've got one in the back for 400 watt loads that came with the truck.

    I've never really had an instance where I wanted to run more than that.. it powers my air compressor which is the biggest power tool i'd really need. It'll power a dremel.. so yeah. And in cab, it's only going to be chargers for electronics.

    I've found myself on occasion running extension cords from the bed into the cab through the rear center window.. haha

  13. Jan 22, 2012 at 12:58 AM
    #13
    ouyin2000

    ouyin2000 Well-Known Member

    Joined:
    Oct 16, 2010
    Member:
    #44773
    Messages:
    4,500
    Gender:
    Male
    First Name:
    Ryan
    Arlington, Virginia
    Vehicle:
    '11 DCSB TRD Sport
    Leer 100XL Canopy, OEM Side steps, TRD Oil Cap, TRD License Plate Cover, WeatherTech Digital Fit Liners, Elite O/R Hitch Shackle, Katzkin Leather Interior, LED Interior Lighting, Foglight Anytime mod, Illuminated 4x4 switch, Grom Audio Aux adapter, Redline Goods leather shift boot console cover and door handle pulls, Sockmonkey bedside decals, Dynolock electric tailgate lock
    My stock inverter has powered my heat gun on low setting, and my soldering iron. Ran the cord through the window too, to get it up to the center console when I soldered in my illuminated 4x4 switch.

  14. Jan 22, 2012 at 1:42 AM
    #14
    SocalMan22

    SocalMan22 Founder Socaltacomas.com

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,136
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    Your inverter looks very ideal for your needs good job!

  15. Jan 22, 2012 at 2:03 AM
    #15
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Do you have an aux cable plugged into the stock jack and just ran under the center plastic to the console?

  16. Jan 22, 2012 at 9:35 PM
    #16
    jackrules

    jackrules [OP] Well-Known Member

    Joined:
    Jun 9, 2010
    Member:
    #38678
    Messages:
    641
    Gender:
    Male
    First Name:
    Jack
    San Diego
    Vehicle:
    10 PreRunner Double Cab SR5 TRD Sport LB
    yeah. I wish I could do it better. I'm thinking of taping into the stock aux jack behind the dash and doing it that way. Or maybe running the jack into the center console. My goal in doing this was to be able to have an iPod plugged into the inverter and the aux jack for the stereo and be able to leave it there covered without unplugging it and putting it in the glove box every time I leave the truck.

  17. Jan 23, 2012 at 10:09 AM
    #17
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,375
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Yeah the idea is good. I would have it run into the center console in that box you have. Then you can charge it, use it, and hide it. Mine is in my glove box and I can control it from my hu

  18. Jan 23, 2012 at 10:25 AM
    #18
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,036
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
  19. Jan 23, 2012 at 10:26 AM
    #19
    Ohbrian

    Ohbrian Taco Roja

    Joined:
    Nov 25, 2011
    Member:
    #67664
    Messages:
    209
    Gender:
    Male
    First Name:
    Brian
    Fremont, CA
    Vehicle:
    04 PreRunner
    Eclipse head unit,scratched paint,ripped seat, black chaos 6 rims, Bilstein 5100's, top plate spacers, AAL, Midget antenna, Bakflip G2 cover, 14" Magnaflow, 400W inverter, LR UCA's
    I have a 400w and it came with 12 awg, but like someone pointed out for a long run it won't cut it. I ran 8 awg instead. You could wire another switch to it of you want so you don't need the switch on the unit itself. Hope that thing can breathe in that little space.

  20. Jan 23, 2012 at 10:38 AM
    #20
    DEEVON911

    DEEVON911 Semi-Pro

    Joined:
    Apr 11, 2010
    Member:
    #35030
    Messages:
    14,932
    Gender:
    Male
    First Name:
    Dave
    Bethel Park, PA. Burb of da Burgh.
    Vehicle:
    2010 MGM Mostly Stock Off-Road 4x4
    TRD Cat-back Exhaust. Semi-Debadged. Trimmed down stock Antenna. Weathertech vent visors. TRD FJ Cruiser Center Cap Wheel Mod. 265/75/16 Firestone Destination A/T,s . Inverter tapped into for outlet in cab. Tacomaworld sticker which adds 5 hp.
    Nice job OP, and that is a well organized center consol! LOL, I have shit just kind of throw in there, I need something to get things strait. Did you make that organizer yourself?
