5100, front only/ with canopy. help!!!

Discussion in 'Suspension' started by skichiiwa, Sep 19, 2010.

  1. Sep 19, 2010 at 2:58 PM
    #1
    skichiiwa

    skichiiwa [OP] Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22873
    Messages:
    237
    Gender:
    Male
    canada
    weathertech floor liners, wet okole fronts, leer 100xq cap, trd exhaust
    i have a leer 100xq canopy on the 2010 trd sport. i want to put 5100 's on the front only for now.

    im wondering what hieght to set it at as the canopy will produce the back end to sag.

    any experience with this would be great help.

    any way to measure?

    i dont want to install and find out the front end is higher then the back.


    any info would be great...
    thanks

  2. Sep 19, 2010 at 5:51 PM
    #2
    Tim A

    Tim A Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28169
    Messages:
    448
    Gender:
    Male
    Montana
    Vehicle:
    2011 TRD Offroad 6 spd Double Cab
    Are you doing the install yourself? I'd recommend it that way you can get the look you want without paying someone for their time.

  3. Sep 19, 2010 at 5:56 PM
    #3
    SlurpeeBlueMetallic

    SlurpeeBlueMetallic FFFFFFUUUUUUUUUUUUUUU...

    Joined:
    Jun 23, 2009
    Member:
    #18825
    Messages:
    1,660
    Gender:
    Male
    On level ground, measure from the center of the hub directly up to the bottom of the fender. Compare measurements for front and back, keeping in mind the driver's side tends to be lower than the passenger's by 1/4"-1/2" due to the gas tank. Comparing measurements front-to-back on the same sides should give you a good estimate of what to aim for with 5100s in the front.

    Also, since you're in Canada, I assume you have 4 leaf springs in the rear already rather than the 3 leaf packs that come on US trucks? If yes, you should be set.

  4. Sep 19, 2010 at 6:01 PM
    #4
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
    x2^^^^^^^^^^^^^

  5. Sep 19, 2010 at 9:03 PM
    #5
    vermintrex

    vermintrex Well-Known Member

    Joined:
    Mar 28, 2010
    Member:
    #34153
    Messages:
    358
    Gender:
    Male
    Vancouver
    Vehicle:
    TRD SPORT Shorty
    BFG A/T KO 265/70/17, '11 FJ wheels, 5100's all four corners, Eibach springs, 1/4" Taco lean spacer, Leer 100XR, WeatherTech liners, trimmed mud flaps and I farted in it.
    Since most guys without canopy / toppers are setting up their 5100's at 1.75" to get the truck level, you might be wise to try the .85" setting to ensure you don't get nose high, especially if you ever plan to tow or carry a load. I've got a canopy and plan to go .85" first.

    Good luck, and post up pics whatever setup you decide on, I'd like to see how yours turn out.

  6. Sep 19, 2010 at 9:14 PM
    #6
    pudge151

    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    3,391
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    2015 Tundra Platinum
  7. Sep 19, 2010 at 9:29 PM
    #7
    skichiiwa

    skichiiwa [OP] Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22873
    Messages:
    237
    Gender:
    Male
    canada
    weathertech floor liners, wet okole fronts, leer 100xq cap, trd exhaust
    mm interesting?

    .85 you say. will you even notice that? i dont want to spend hours and 200 bucks to not notice anything.

    but also don't want to have my nose higher then my back end.

    tough choice ...

    vermintrex, if you choose to put them in pls post pictures.

    haha

    thanks

  8. Sep 20, 2010 at 3:34 AM
    #8
    JTDTacoma

    JTDTacoma Well-Known Member

    Joined:
    Jan 22, 2008
    Member:
    #4382
    Messages:
    282
    Vehicle:
    08 4X4 Double Cab TRD Sport
    I just did the install at .85 this weekend. I have no canopy and do have the 4 leaf pack. The money and time were well worth it. It gave me exactly an inch in the front and truck is level. The ride is amazing (I installed all 4 shocks).

    Park on level ground. Use your jack to raise the front an inch, then try raising it 1.75. It'll give you a quick estimate of how it'll look. On mine the rear fender is at 37, front 36 and truck is level. The rear fender is cut out about an inch higher than the front I'm thinking.

  9. Sep 20, 2010 at 3:37 AM
    #9
    JTDTacoma

    JTDTacoma Well-Known Member

    Joined:
    Jan 22, 2008
    Member:
    #4382
    Messages:
    282
    Vehicle:
    08 4X4 Double Cab TRD Sport
    Also, at .85 it is visually noticeable. More so than I thought it'd be.

  10. Sep 20, 2010 at 4:29 AM
    #10
    Cogge89

    Cogge89 Well-Known Member

    Joined:
    Sep 27, 2009
    Member:
    #23390
    Messages:
    426
    Gender:
    Male
    First Name:
    Justin
    Saint John, NB
    Vehicle:
    09 Tacoma TRD Sport
    Pioneer AVH-P4100DVD, Kicker ZX400.1 Amp, Kicker CVT 10" Sub. Light Racing UCAs, Front OME Shocks with 885x Coils, Rear OME Shocks with Dakar Leaf Pack, Engine Cover Paint Job, 265/70/17 Duratracs.
    I have the Canadian stock 4 leaf pack as well, and i could only go .85". At this setting it's almost level, however, i could never do 1.75" (Would be way nose high). At .85" it was more noticeable than i expected. If you want to go higher, you'll probably need to add some rear lift.

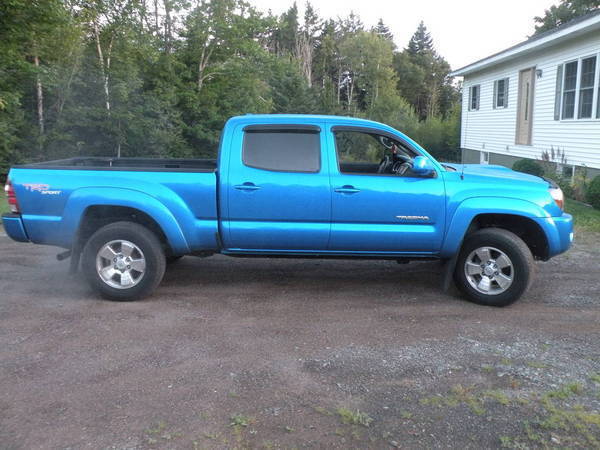

    Before
    [​IMG]

    After (.85")
    [​IMG]
