5100's Installed.

Discussion in 'Suspension' started by MI4x4Toy, Jun 23, 2012.

  1. MI4x4Toy

    MI4x4Toy [OP] The slowest build EVER!!

    Joined:
    Jun 20, 2011
    Member:
    #58586
    Messages:
    601
    Gender:
    Male
    First Name:
    Matt
    MI
    Vehicle:
    '13 BLK DCSB SR5 4x4
    Mud Flap Trim!

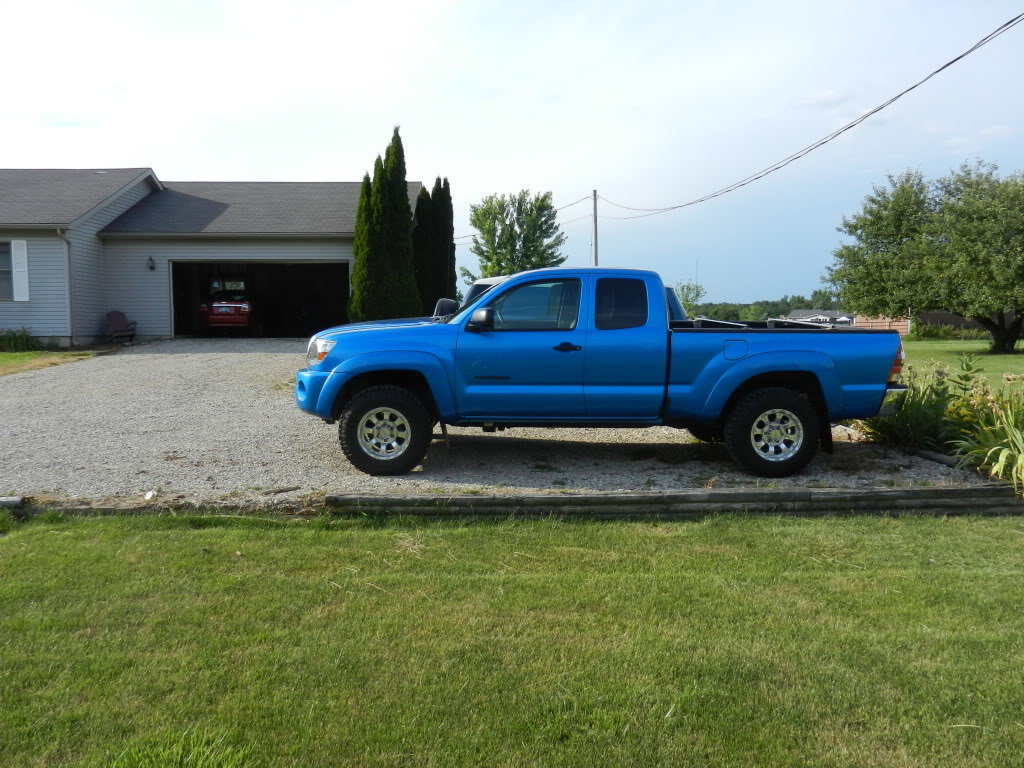

    Is this looking right? I've done shock and spring combo's on my previous cars and they settled fairly quick. These were so flippin stiff that my spring compressors pulled threads and started to crack! The picture is the next morning after install and have settled maybe half an inch.
    [​IMG]
    [​IMG]


    I set the clip at the lowest setting. Checked and double checked the paper that came with them to make sure we didn't have it backwards. The ride so far is absolutely amazing compared to the stockers.

  2. Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    If it is on the lowest setting, meaning zero lift, you have something wrong. If it's the stock springs, I am willing to bet the spring perch is up side down.
    Is the little retainer clip showing when all installed? It should not be showing when complete.
    Take a picture and post it.

  3. shweller

    shweller Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51456
    Messages:
    693
    Gender:
    Male
    Corona
    Vehicle:
    2010 Tacoma TRD Sport SB 4x4
    PoP 'N' Lock Satoshi Grill (Did it Myself) DSM UCA's (Desert Products) FXR 1.1 w/Gatling Gun Shrouds Phillips 85122 Method Racing Wheels HID Hella 500's behind Satoshi grill Fog Light Anytime Illuminated 4x4 Switch Ultragauge PIAA 510"s King Coilovers w/resi's Rear TSB Leaf Packs All Pro Sliders Bolt on sliders 255/75 R17 BF Goodrich Mudders Spidertrax wheel spacers Neoprene arm rests Weathertechs Wet Okoles w/TRD Allpro Ofrroad Apex bumper and IFS skid plate
    X2 Bro Lean to the max! :spy:

  4. MI4x4Toy

    MI4x4Toy [OP] The slowest build EVER!!

    Joined:
    Jun 20, 2011
    Member:
    #58586
    Messages:
    601
    Gender:
    Male
    First Name:
    Matt
    MI
    Vehicle:
    '13 BLK DCSB SR5 4x4
    Mud Flap Trim!
    [​IMG]

    I'm almost certain we put the springs on just how they came off the stock shocks.

    Part #

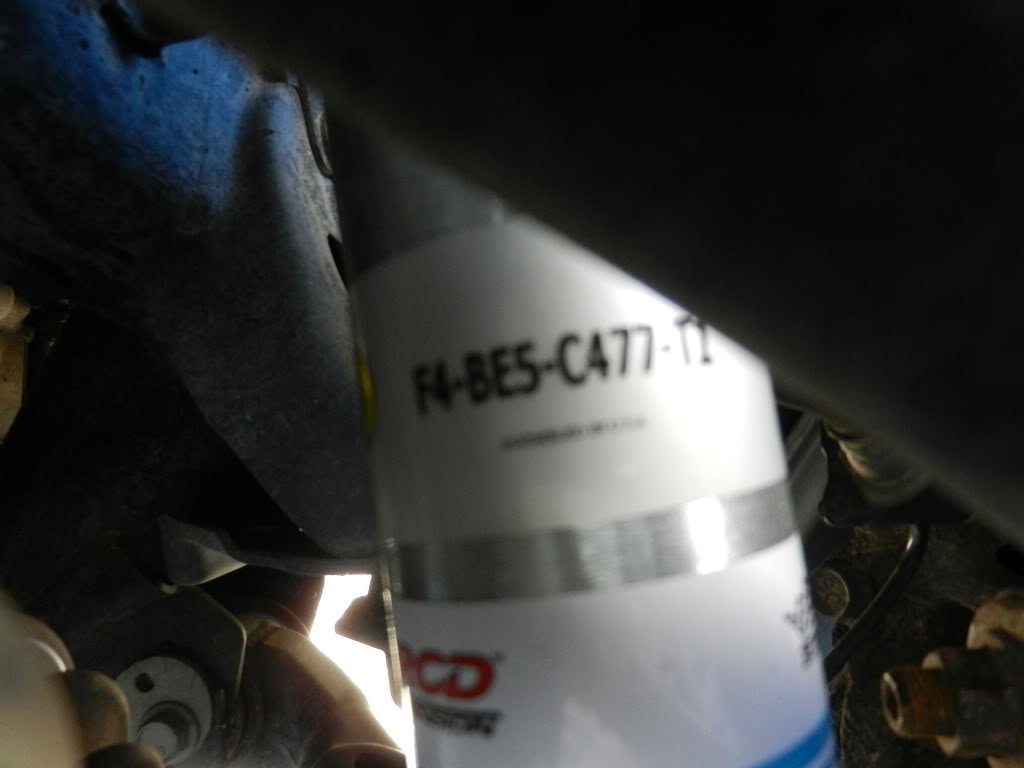

    [​IMG]


    Using stock springs right now. Wanted to do shocks and keep at stock level until I could afford to do control arms, full leaf pack in rear, and all the shim kits necessary.

  5. Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps

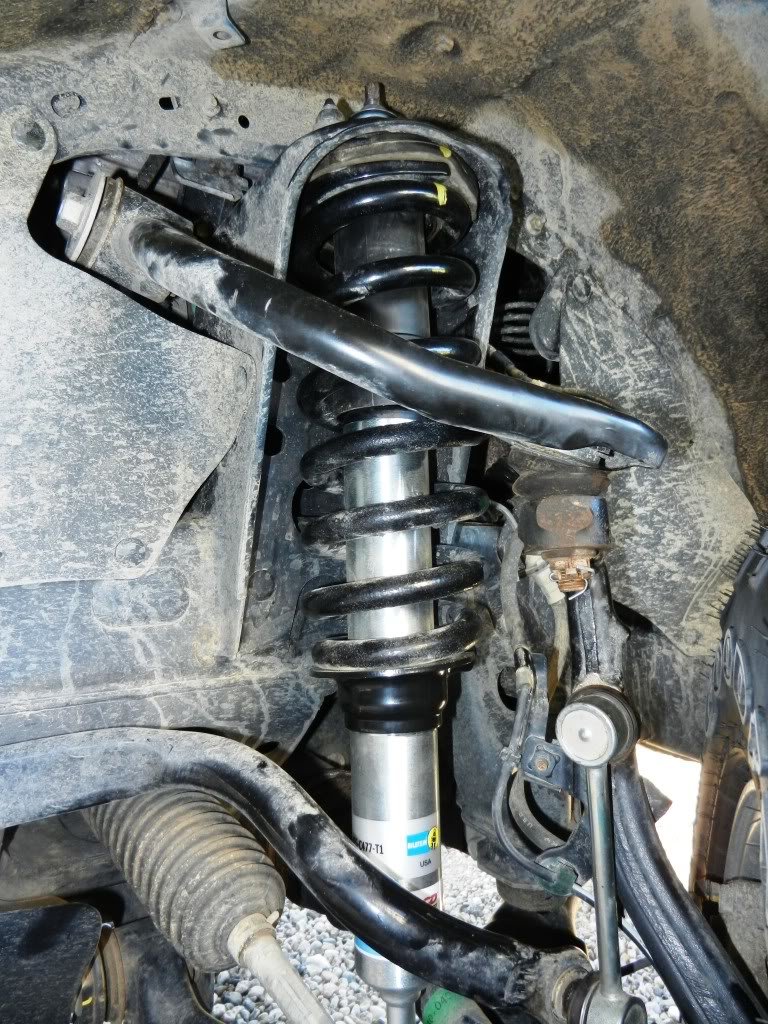

    The spring perches are upside down. See the 1st picture, you can see the small retainer clip showing. A hard bump and that thing is going to come undone. The retainer clip should be covered by the spring perch.

  6. 90YotaPU

    90YotaPU The Messiah

    Joined:
    May 15, 2010
    Member:
    #37191
    Messages:
    2,908
    Gender:
    Male
    First Name:
    Mike
    Union County, NJ
    Vehicle:
    1990 Toyota 4x4 (Pre-Taco)
    Aftermarket Stereo, 10 Disc CD Changer, Cap, Spidertrax Wheel Spacers, HF Air Horns, 3" Lift
    Yea, something ain't right. You should be able to to be one from the top setting and be sitting level. That's what my truck is set at in my avatar pic.

  7. Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    [​IMG]

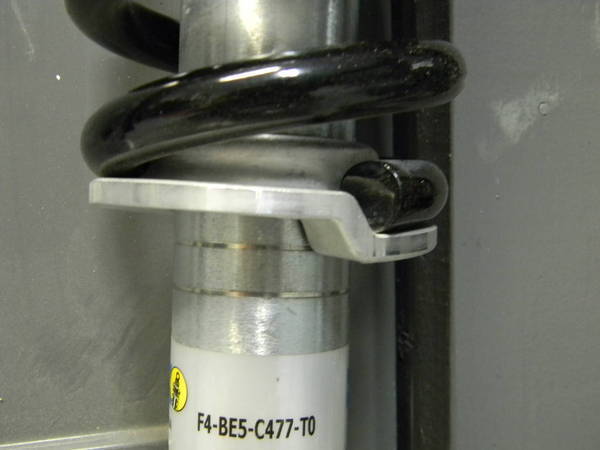

    This is the previous version of the 5100's with the aluminum spring perch but the same setup. The clip is set at 1.75, third from the bottom in the picture.

  8. Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    The coil springs are correct, the flat part of the spring at the top of the assembly. It is the spring perch that the bottom end of the coil spring sets on, that is upside down.

  9. Zac808

    Zac808 Custom User Title

    Joined:
    Aug 31, 2009
    Member:
    #22040
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Zac
    Viva Las Vegas
    Vehicle:
    08 TRD DC SB 4x4
    In my sig
    Yes, the black spring perch on bottom is upside down.

  10. 11TRD

    11TRD Soon to be west coast

    Joined:
    Aug 1, 2011
    Member:
    #60915
    Messages:
    2,908
    Gender:
    Male
    First Name:
    Jay
    Chesapeake, VA
    Vehicle:
    2011 TRD SPORT 4X4 DC
    RHLM (Red Headlight MOD), Cobra 29 WXNWBT, Devil Horns, ARB Bumper, Avid Stepbars, Homer Taco Satoshi thin lip grille, ICON UCA's, ICON EXT Travel up front with King 700# springs, Toytech 2 inch AAL with ICON VS 2.0 shocks in the rear, K&N Drop In, AVS Ventshades and Bugflector, Whelen SPS 660 emergency strobes, Redline Hood struts and tailgate EZdown, Illuminated 4X4 Switch, TRD Floor mats, Flyzeye LED lighting, Kragen 7" HID behind grille, Kragen 4" HID back up lights, Rigid SR Series 10" LEDx2 Elusive elements Lightbar, Firestik antenna, Rear Diff breather mod, Fogs anytime, Hitch Safe, OEM door sill strips, mryo mirror relocate bracket, Prinsu designs roof rack, Tepui Autana RTT, ARB Awning,Engo 10k winch synthetic, Blue seas fuse block and breaker,
    /\ This times 1000!! Unsafe!

    [​IMG]

    [​IMG]

  11. dYL0n

    dYL0n ระดับอาวุโส สมาชิกอาวุโส

    Joined:
    Jan 14, 2011
    Member:
    #49250
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Dyl0n
    New Orleans, LA
    Vehicle:
    2wd. Auto. Cool Suspension.
    Maxtrac Spindles Fox 2.0 Coilovers TC UCA's All Pro Expo Fox 2.0 rear
    [​IMG]

    We're here for you man, we're here for you. Flip it back right right way.

  12. Toyota Tech31

    Toyota Tech31 Sometimes when I close my eyes, I can't see.

    Joined:
    Sep 2, 2011
    Member:
    #62769
    Messages:
    10,024
    Gender:
    Male
    First Name:
    Jason
    Debary, Florida
    Vehicle:
    '08 SWB Bad ass SPORT
    Air Raid air intake, 40 Series Flowmaster Muffler, Front Turn Signals Now Turn And Park, KENWOOD HEAD UNIT W/ ALL KENWOOD SPEAKER UPGRADES AND 2-10" KENWOOD SUBS BEHIND BACK SEAT, Bilstein 5125'S In Rear W/ 1.5 AAL'S, Bilstein 5100 W/ Eibachs Up Front, LR Upper control arms, NFAB steps, Bruteforce Fab Hybrid front bumper, LP10000 SuperWinch, 2 Rigid Industries SRM-2's, OKLedlightbars 6 CREE LED lights as fogs, AVID RBG, 2 4" red ring HIDs mounted behind the grille.
    If only the clip was that easy to get to instead of having to compress and take apart the shock just to adjust the height. Good luck, post pics when you get it flipped back the way it should be.

  13. MI4x4Toy

    MI4x4Toy [OP] The slowest build EVER!!

    Joined:
    Jun 20, 2011
    Member:
    #58586
    Messages:
    601
    Gender:
    Male
    First Name:
    Matt
    MI
    Vehicle:
    '13 BLK DCSB SR5 4x4
    Mud Flap Trim!
    Well... That's kinda embarrassing lol. Thanks for the quick responses!! Have to buy new spring compressors. I destroyed the ones I had.

  14. Stockmonester

    Stockmonester Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42256
    Messages:
    341
    Gender:
    Male
    First Name:
    Nick
    Rome, Ny
    Vehicle:
    2010 reb reb black trim
    Satoshi chrome grill deep lip, 5100 set at .85, 2 hella 500 fog/2 hella 500 driving on n-fab light bar, k&n drop in
  15. dYL0n

    dYL0n ระดับอาวุโส สมาชิกอาวุโส

    Joined:
    Jan 14, 2011
    Member:
    #49250
    Messages:
    1,356
    Gender:
    Male
    First Name:
    Dyl0n
    New Orleans, LA
    Vehicle:
    2wd. Auto. Cool Suspension.
    Maxtrac Spindles Fox 2.0 Coilovers TC UCA's All Pro Expo Fox 2.0 rear

    I suggest bringing it somewhere. I think I paid $40 for 2 5100's. All I did was bring the strut/spring assy to a tire and suspension shop, ask them to swap the OEM's out for the 5100's. Youll pay more than $40 for a new pair of good compressors, and you can avoid possible injury to yourself.

  16. atvlifestyle

    atvlifestyle Well-Known Member

    Joined:
    Nov 3, 2010
    Member:
    #45647
    Messages:
    1,478
    Gender:
    Male
    First Name:
    Chris
    Michigan
    Vehicle:
    01 trd tacoma
    supercharged with lots of midtravel bling.
    Dont be embarrased we all have been here. The fact that you asked when you thought something wasn't right shows character. This is how we learn.

  17. 11TRD

    11TRD Soon to be west coast

    Joined:
    Aug 1, 2011
    Member:
    #60915
    Messages:
    2,908
    Gender:
    Male
    First Name:
    Jay
    Chesapeake, VA
    Vehicle:
    2011 TRD SPORT 4X4 DC
    RHLM (Red Headlight MOD), Cobra 29 WXNWBT, Devil Horns, ARB Bumper, Avid Stepbars, Homer Taco Satoshi thin lip grille, ICON UCA's, ICON EXT Travel up front with King 700# springs, Toytech 2 inch AAL with ICON VS 2.0 shocks in the rear, K&N Drop In, AVS Ventshades and Bugflector, Whelen SPS 660 emergency strobes, Redline Hood struts and tailgate EZdown, Illuminated 4X4 Switch, TRD Floor mats, Flyzeye LED lighting, Kragen 7" HID behind grille, Kragen 4" HID back up lights, Rigid SR Series 10" LEDx2 Elusive elements Lightbar, Firestik antenna, Rear Diff breather mod, Fogs anytime, Hitch Safe, OEM door sill strips, mryo mirror relocate bracket, Prinsu designs roof rack, Tepui Autana RTT, ARB Awning,Engo 10k winch synthetic, Blue seas fuse block and breaker,
    :thumbsup:

    And I dont recommend the non spring compressor method. Especially with your shocks already in a bind.

  18. MI4x4Toy

    MI4x4Toy [OP] The slowest build EVER!!

    Joined:
    Jun 20, 2011
    Member:
    #58586
    Messages:
    601
    Gender:
    Male
    First Name:
    Matt
    MI
    Vehicle:
    '13 BLK DCSB SR5 4x4
    Mud Flap Trim!

    Dude we ended up using the weight of another truck and the front tow hook to push down around the top spring plate just to make sure the compressors didn't break on us! Slight bit of hill billy mechanics...and never doing it again!

  19. Jones

    Jones Well-Known Member

    Joined:
    Aug 10, 2008
    Member:
    #8460
    Messages:
    239
    Gender:
    Male
    Texas DFW
    Vehicle:
    06 SSM Prerunner TRD-OFFROAD
    Front: 5100@1.75 with SR5 coils; Rear: 5100 and 1.5 Toytec aal; Tires: Hankook 265/75R16 RF08 ATM; Wheels: powdercoated off-road wheels with FJ TRD center caps
    Glad it all worked out for you in the end.

    Did you keep them at zero or go up any?

  20. MI4x4Toy

    MI4x4Toy [OP] The slowest build EVER!!

    Joined:
    Jun 20, 2011
    Member:
    #58586
    Messages:
    601
    Gender:
    Male
    First Name:
    Matt
    MI
    Vehicle:
    '13 BLK DCSB SR5 4x4
    Mud Flap Trim!

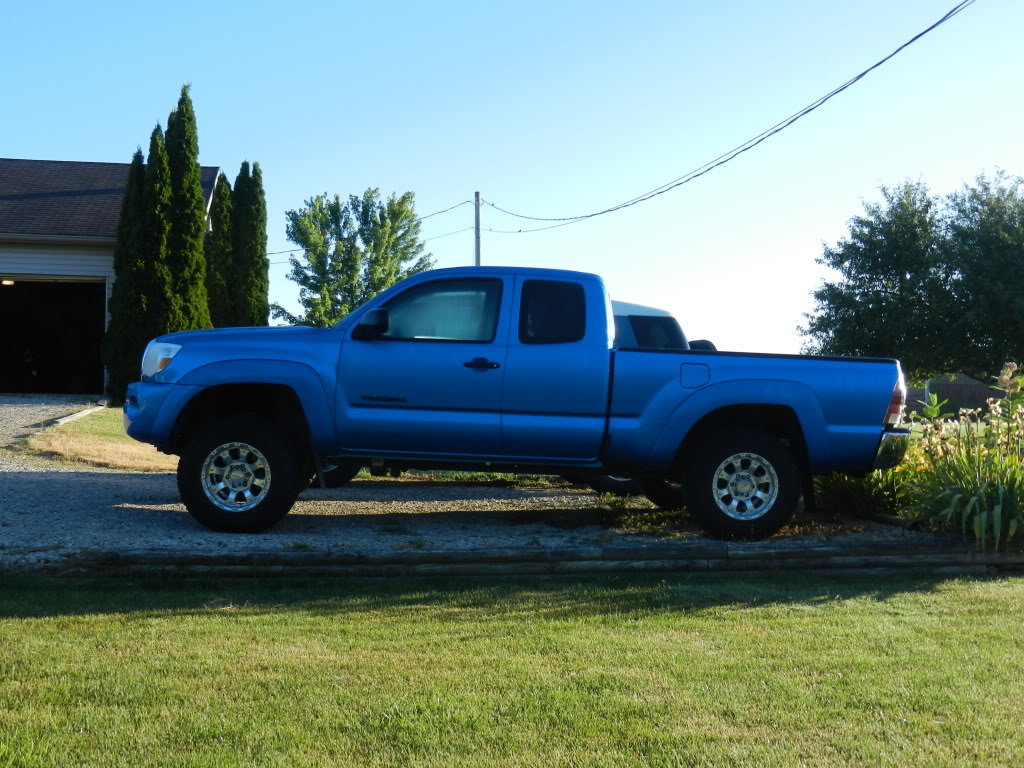

    Put them at .85 lift which ended up being a hair over an inch more than the stock shocks. Just about level. Very happy with them now.

    [​IMG]
    [​IMG]
