6 switch plate (under radio location)

Discussion in '1st Gen Tacoma Parts Marketplace (1995-2004)' started by paranoid56, Feb 9, 2014.

Page 16 of 39
  1. Aug 4, 2014 at 11:17 AM
    #301
    J88logue

    #301
    J88logue NorthWest Member

    Joined:
    Jan 3, 2012
    Member:
    #69877
    Messages:
    5,434
    First Name:
    Johnny
    HWY 30
    Vehicle:
    02 D.C. TRD
    Clicko BUILDo
    woohoo - not sure which one im going to order yet lol I know i want atleast one

    J88logue, Aug 4, 2014
    #301
  2. Aug 6, 2014 at 2:35 PM
    #302
    Wolfhunter910

    #302
    Wolfhunter910 Lawman

    Joined:
    Aug 3, 2014
    Member:
    #135331
    Messages:
    69
    Gender:
    Male
    First Name:
    Dusty
    North Carolina
    Vehicle:
    03 doublecab TRD SR5,
    5% tint, UWS. Black toolbox, black HL CL and TS.

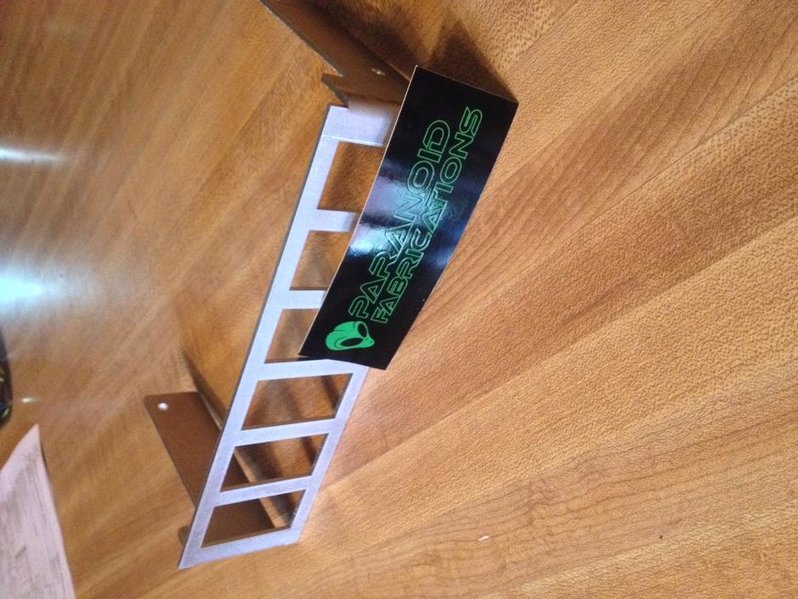

    Arrived today! Super excited! Can't wait to get it installed. Gotta find a radio first lol. Anyone thinking about getting one don't wait anymore! Pull the trigger excellent product! Super fast shipping. And a free gift which I'm saving for after the install lol


    Wolfhunter910, Aug 6, 2014
    #302
  3. Aug 6, 2014 at 6:29 PM
    #303
    Untouchable7m

    #303
    Untouchable7m Active Member

    Joined:
    May 14, 2013
    Member:
    #104161
    Messages:
    30
    Gender:
    Male
    First Name:
    tom
    wb, pa
    Got my plate today! Installed it and fits like a glove. Awesome quality and exceptional service!

    Untouchable7m, Aug 6, 2014
    #303
  4. Aug 7, 2014 at 12:39 PM
    #304
    paranoid56

    #304
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    gotta love quick shipping :D

    paranoid56, Aug 7, 2014
    #304
  5. Aug 8, 2014 at 10:59 AM
    #305
    Wolfhunter910

    #305
    Wolfhunter910 Lawman

    Joined:
    Aug 3, 2014
    Member:
    #135331
    Messages:
    69
    Gender:
    Male
    First Name:
    Dusty
    North Carolina
    Vehicle:
    03 doublecab TRD SR5,
    5% tint, UWS. Black toolbox, black HL CL and TS.
    Just picked up a Alpine head unit hopefully installing my panel this weekend even though I have no switches yet. Can't stand to see it sit on the table in the house any longer! Will upload pics

    Wolfhunter910, Aug 8, 2014
    #305
  6. Aug 8, 2014 at 11:40 AM
    #306
    Bobert14

    #306
    Bobert14 .

    Joined:
    Jan 14, 2011
    Member:
    #49266
    Messages:
    3,569
    Gender:
    Male
    Do you have some of the clock plates in stock?

    Bobert14, Aug 8, 2014
    #306
  7. Aug 8, 2014 at 6:43 PM
    #307
    paranoid56

    #307
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    paranoid56, Aug 8, 2014
    #307
  8. Aug 9, 2014 at 9:14 PM
    #308
    dud122

    #308
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!

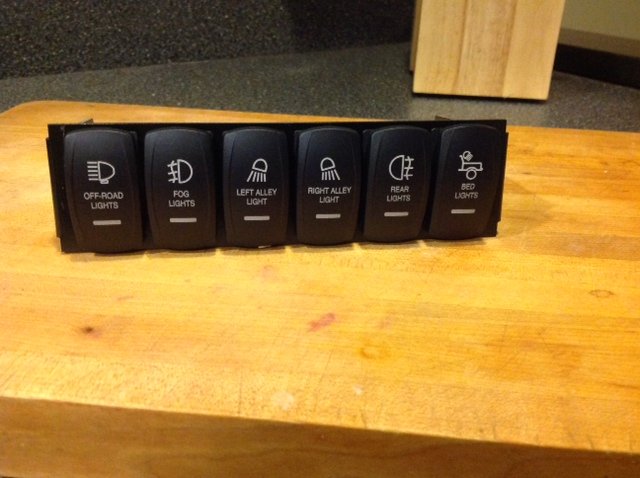

    So this is kinda for me and kinda for all the other electrical noobs that i'm sure have purchased this switch plate as well. i was hoping someone could give me a how-to regarding the wiring of the OTRATTW switches i just got. was looking to do something nice and clean like the harnesses PcBuilder14 did earlier in the thread. (I PM'd him but haven't heard back) I figured this thread could be an all around informative one stop spot for buying the switch plate, seeing the kinds of switches everyone is getting, and even getting some info on how to wire it all. Here is what I got... (upper dependant/lower independant) Can someone explain what tabs on the backs of the switches control what and can be wired to each other (in layman's terms please!)




    dud122, Aug 9, 2014
    #308
  9. Aug 9, 2014 at 9:57 PM
    #309
    paranoid56

    #309
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco

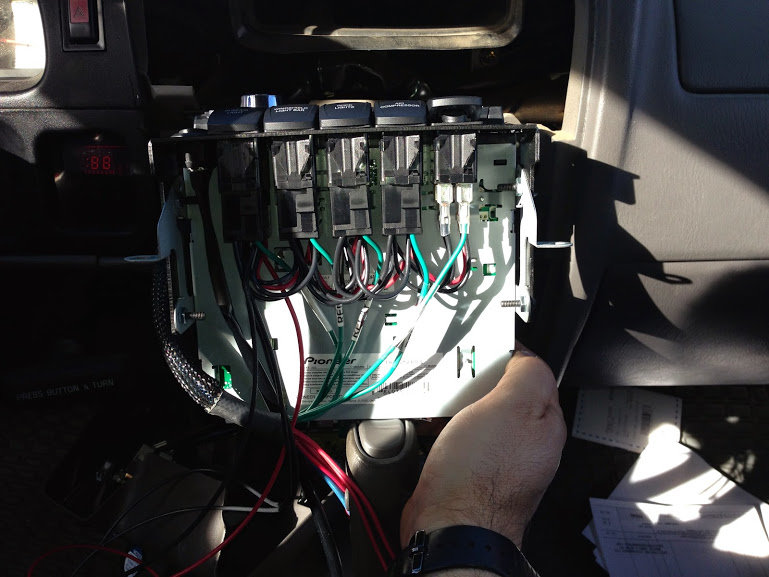

    i bought the matching plugs and did mine like this. they all share the same power for the lights, and each one just turns on a relay.

    paranoid56, Aug 9, 2014
    #309
  10. Aug 9, 2014 at 10:00 PM
    #310
    Bennett707

    #310
    Bennett707 Station707

    Joined:
    Apr 28, 2012
    Member:
    #77793
    Messages:
    33,228
    Oregon
    Vehicle:
    No more taco life for me
    Where did you get the plug in to back of the switches

    Bennett707, Aug 9, 2014
    #310
  11. Aug 9, 2014 at 10:54 PM
    #311
    dud122

    #311
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!
    Why did you choose to use the terminal housing/packard terminal setup vs. the female quick disconnect? seems like it does the same thing except the housing takes up more space. No?

    dud122, Aug 9, 2014
    #311
  12. Aug 10, 2014 at 8:45 AM
    #312
    paranoid56

    #312
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    i got them from otrattw web site.
    the only reason was that it was easier to prewire and if i need to change out a switch it makes it easy as i wont need to remember what wire goes where on these switches (as they have 5-6 terminals each)

    paranoid56, Aug 10, 2014
    #312
  13. Aug 10, 2014 at 8:57 AM
    #313
    dud122

    #313
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!
    can you give me a quick explanation of what each of the prongs go to on the back of the switches i have posted above? i've found a number of contradicting wiring schematics online...

    Last edited: Aug 10, 2014
    dud122, Aug 10, 2014
    #313
  14. Aug 10, 2014 at 11:04 AM
    #314
    dud122

    #314
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!
    dud122, Aug 10, 2014
    #314
  15. Aug 10, 2014 at 2:03 PM
    #315
    paranoid56

    #315
    paranoid56 [OP] Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    3,438
    Gender:
    Male
    San Diego
    Vehicle:
    14 double cab taco
    the diagram needs to match your switch. they dont make it easy either lol. what is the exact part number for your switch?

    paranoid56, Aug 10, 2014
    #315
  16. Aug 10, 2014 at 2:49 PM
    #316
    dud122

    #316
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!

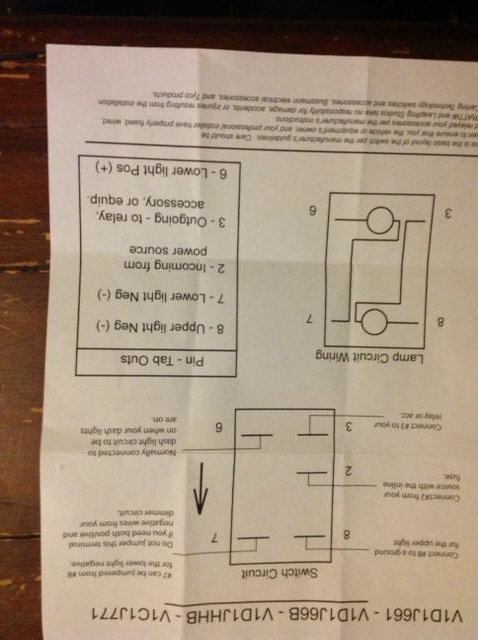

    mine is V1D1JHNB

    i haven't been able to find any diagrams that have that exact number on it. the diagram they sent me in the box says V1D1JHHB which is close I guess but I don't know what it means. LOL

    dud122, Aug 10, 2014
    #316
  17. Aug 10, 2014 at 4:17 PM
    #317
    Wolfhunter910

    #317
    Wolfhunter910 Lawman

    Joined:
    Aug 3, 2014
    Member:
    #135331
    Messages:
    69
    Gender:
    Male
    First Name:
    Dusty
    North Carolina
    Vehicle:
    03 doublecab TRD SR5,
    5% tint, UWS. Black toolbox, black HL CL and TS.

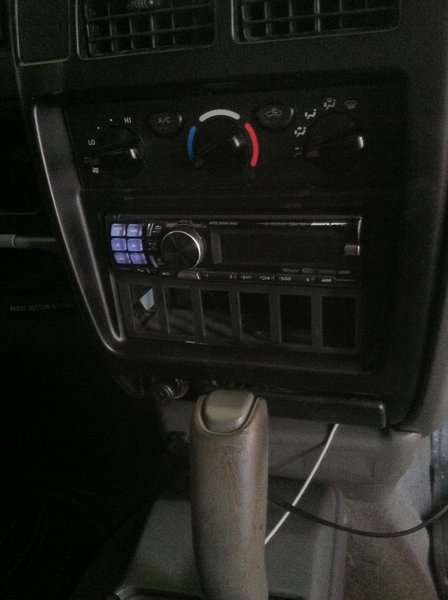

    Installed today, fits like a glove! No issues whatsoever! Except for my own lack of switches:mad: image.jpg

    Wolfhunter910, Aug 10, 2014
    #317
  18. Aug 10, 2014 at 5:32 PM
    #318
    Bobert14

    #318
    Bobert14 .

    Joined:
    Jan 14, 2011
    Member:
    #49266
    Messages:
    3,569
    Gender:
    Male
    Bobert14, Aug 10, 2014
    #318
  19. Aug 11, 2014 at 7:02 AM
    #319
    OTRATTW

    #319
    OTRATTW Well-Known Member

    Joined:
    Jan 5, 2013
    Member:
    #94489
    Messages:
    49
    Gender:
    Male
    First Name:
    Jim
    Cupertino
    The first five numbers or letters of the product codes determine which wiring diagram you use. The next set of letters is what color LEDs are installed in the swtches.

    On the V1D1J:

    Terminals 7 and 8 are grounds for the LEDs in the switches. Those can be all jumpered together and connected to a single grounding point.

    Terminal 6 is a positive connection for the second light in the switch. This one is normally connected to either a keyed power source to be on when you turn the ignition on or it could be connected into a dash light circuit to be on with the headlights.

    Terminal 2 is connected to a fused power source such as the battery, etc.

    Terminal 3 is connected to the accessory or to the relay for that accessory.

    The reason these switches have two grounds is that certain vehicles use both the positive and negative to dim the dash lights.

    OTRATTW, Aug 11, 2014
    #319
  20. Aug 11, 2014 at 6:43 PM
    #320
    dud122

    #320
    dud122 rabble rabble rabble

    Joined:
    Nov 7, 2008
    Member:
    #10566
    Messages:
    2,070
    Gender:
    Male
    First Name:
    Dan
    Riverdale Park, MD
    Vehicle:
    2004 Tacoma DC
    OME up front, Dakar in the back, Elite front bumper, Warn winch, Tactical rear bumper with tire swing/jerry cans/hi lift, Revenge Fab. sliders, Tundra brakes, Camburg UCA's, Safari Snorkle, FJ TRD wheels, Lights, CB, Switches, skids, LED's... OH MY!
    awesome.... thanks for the info.

    can all the 6's be jumpered together and connected to a single keyed power source?

    can all of the 2's be jumpered together as well?

    dud122, Aug 11, 2014
