6MT throwout bearing and clutch system shenanigans

Discussion in 'Technical Chat' started by BillDaCat8, Dec 12, 2020.

  1. Sep 30, 2021 at 7:12 AM
    #261
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    I ordered through Kirk.

    Honestly, I do not remember exactly what size I did those holes. I just measured the hose and selected a bit that was slightly larger. You can still work on making the moons fit in the hole and such. Just wait for your HRB to drill for the lines.

  2. Sep 30, 2021 at 8:00 AM
    #262
    garciav

    garciav Well-Known Member

    Joined:
    Apr 11, 2016
    Member:
    #184036
    Messages:
    581
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 Tacoma TRD Off-Road 6MT
    TRD SC,HPTuners
    did you already buy the half moon plugs? I have a pair I didn’t use and a set of new flywheel bolts if you’re interested.

  3. Sep 30, 2021 at 12:23 PM
    #263
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Thanks for the offer. I'm actually experimenting with some tapered silicon plugs used for lab test vials. Perfect dimensions, I'll just have to freeze them in order to make the holes or just punch a solder iron through them.

  4. Sep 30, 2021 at 9:12 PM
    #264
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    Cool idea. What about a hollow punch tool to make those holes? Harbor Freight has cheapies that should do the trick.

  5. Oct 1, 2021 at 2:37 AM
    #265
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.

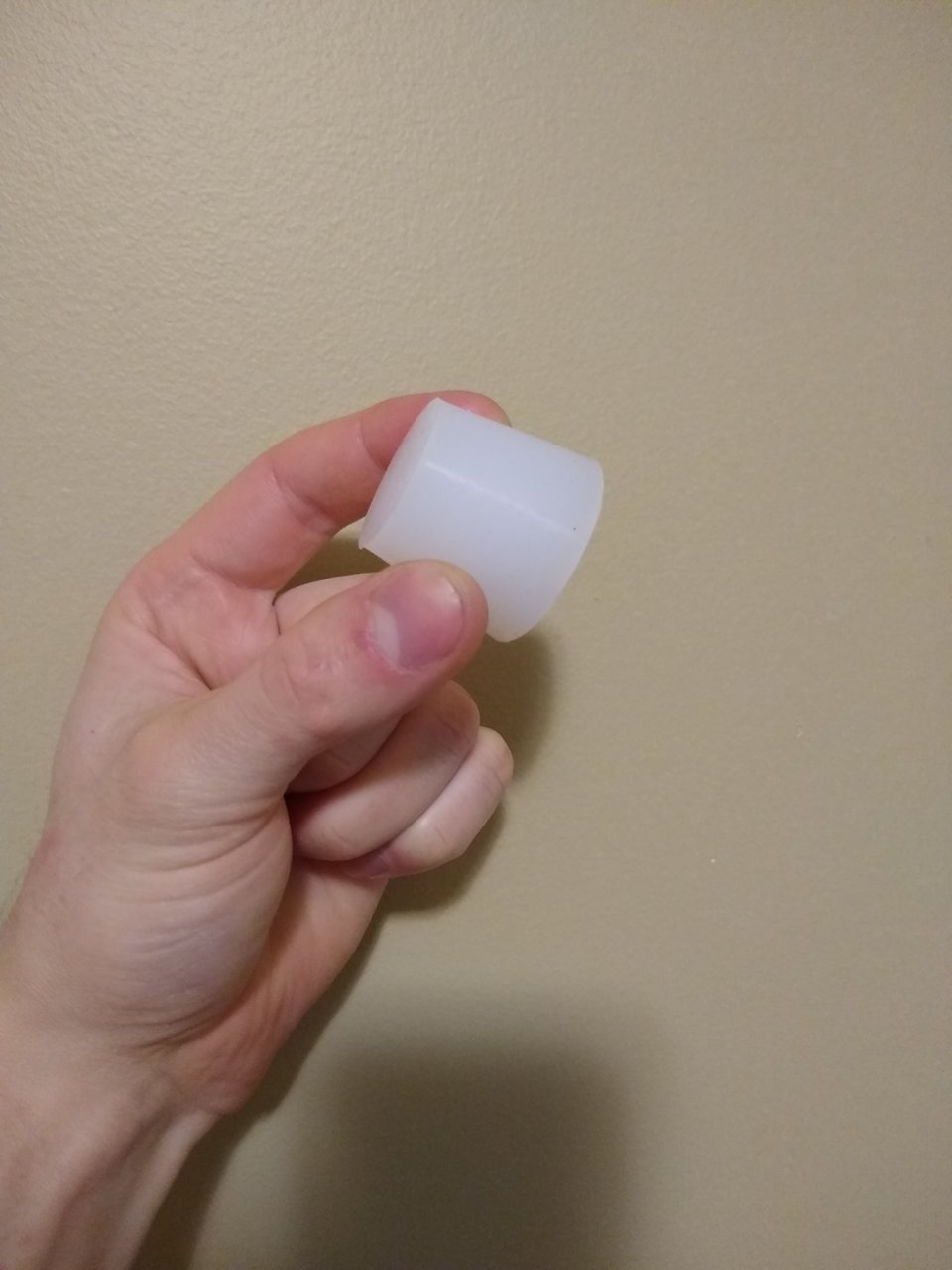

    Not likely, seeing how thick these are. I will report my findings if they end up working out.

    Tomorrow I'll email Kirk and source the bearing. Any perks of going with the Toyota branded bearing? I can likely source a Koyo, Timken, FAG, etc. easier through work.


  6. Oct 1, 2021 at 7:03 PM
    #266
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    Ah. Yes. Much thicker than I’d imagined (that’s what she said)

    As for the bearing, If you can source them stateside, please do share where.

    The OE number I ordered off of eBay was easy enough and arrived quite quickly considering where it shipped from.

    @garciav got his fast too. His is in and running btw. Hope he’s not mad that I leaked that tidbit.

    This site contains affiliate links for which the site may be compensated.
    Kasbien[QUOTED] likes this.
  7. Oct 1, 2021 at 8:41 PM
    #267
    garciav

    garciav Well-Known Member

    Joined:
    Apr 11, 2016
    Member:
    #184036
    Messages:
    581
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 Tacoma TRD Off-Road 6MT
    TRD SC,HPTuners

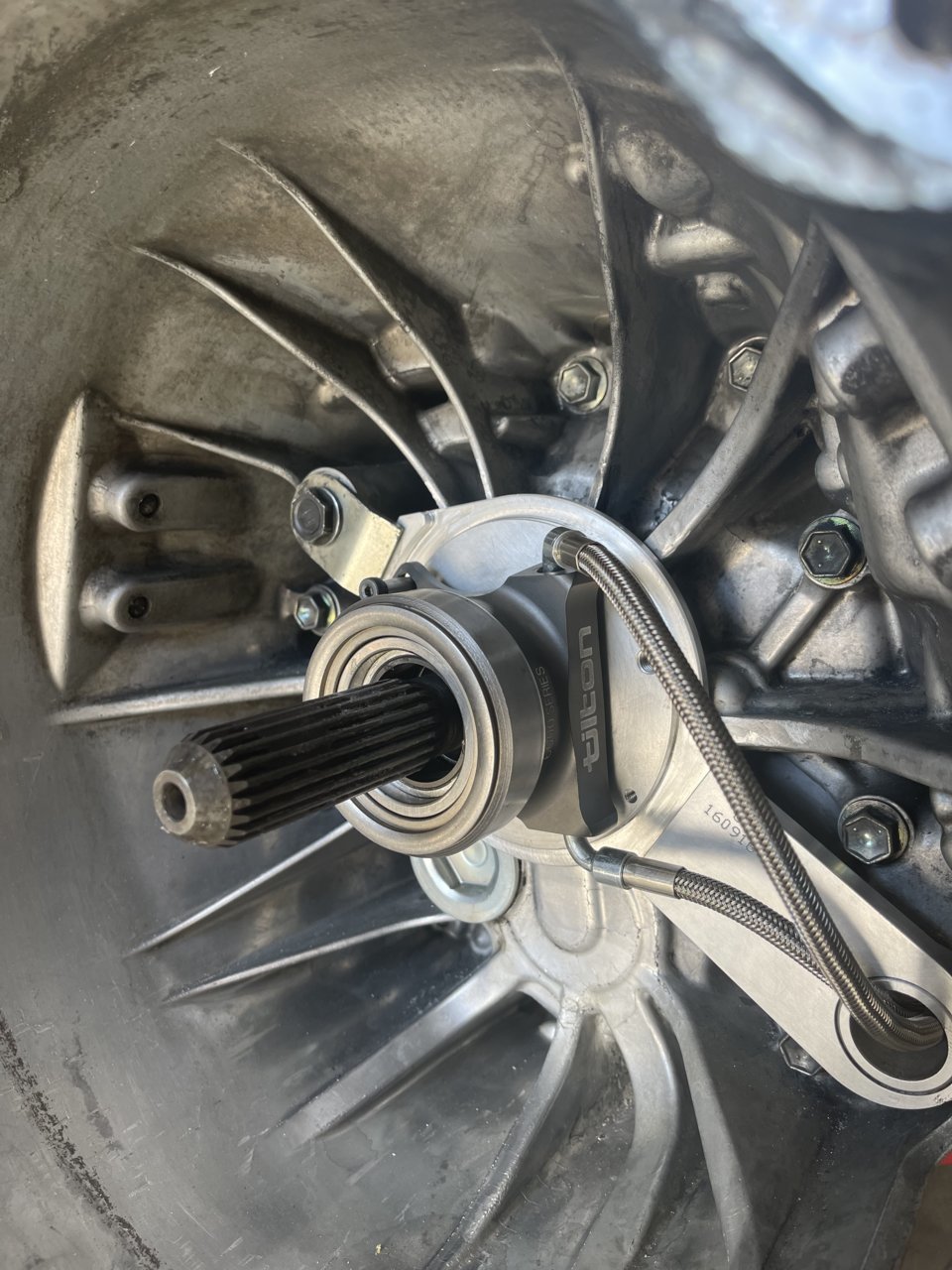

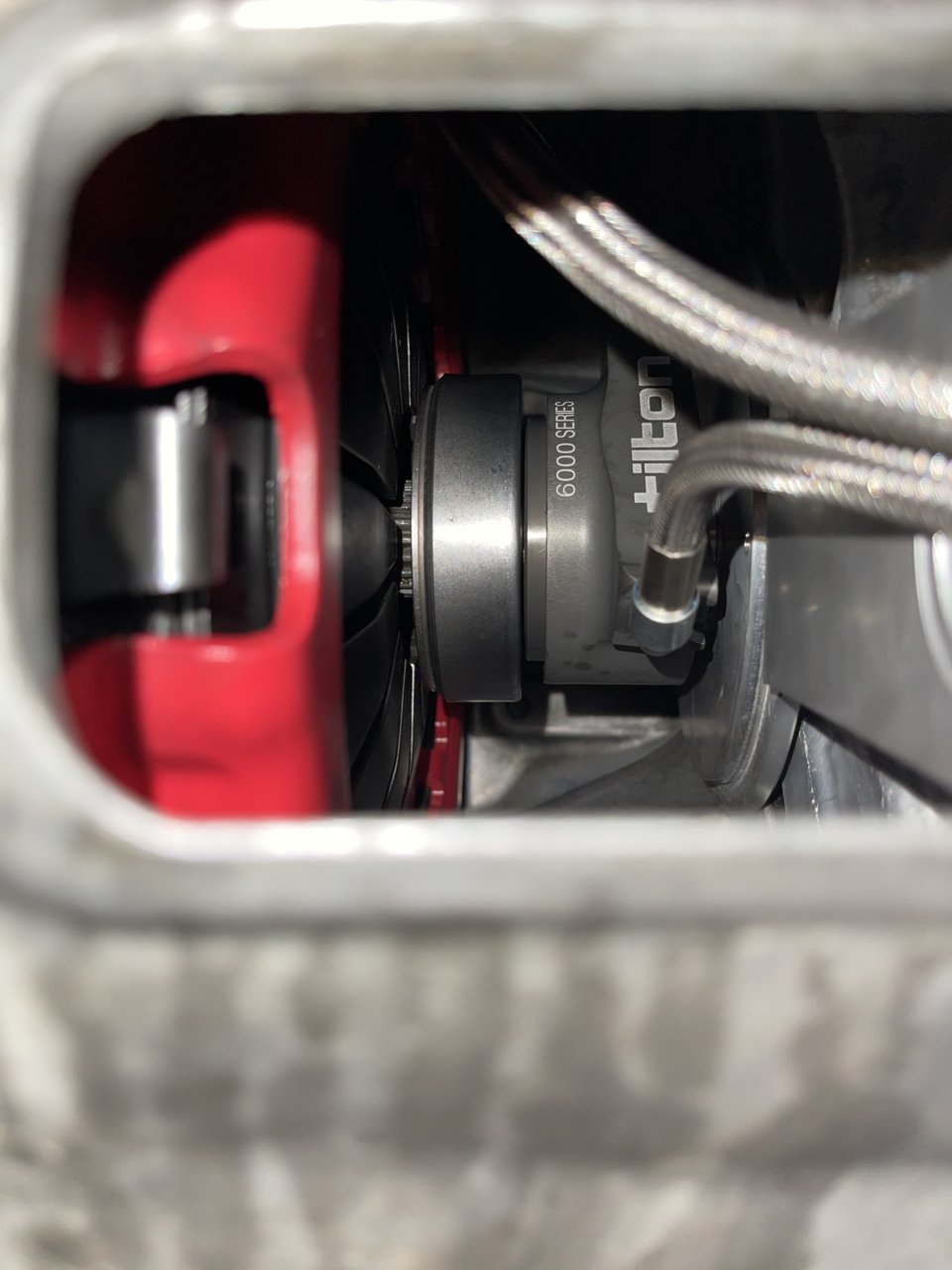

    +1 for Tilton over CM !

    Last edited: Oct 1, 2021
    This site contains affiliate links for which the site may be compensated.
    rheath08, Kasbien and TodayWasTHeDaY like this.
  8. Oct 1, 2021 at 11:59 PM
    #268
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Awesome! Are you enjoying it? Did your quill snap as well?

  9. Oct 2, 2021 at 8:38 AM
    #269
    garciav

    garciav Well-Known Member

    Joined:
    Apr 11, 2016
    Member:
    #184036
    Messages:
    581
    Gender:
    Male
    Houston, TX
    Vehicle:
    2013 Tacoma TRD Off-Road 6MT
    TRD SC,HPTuners

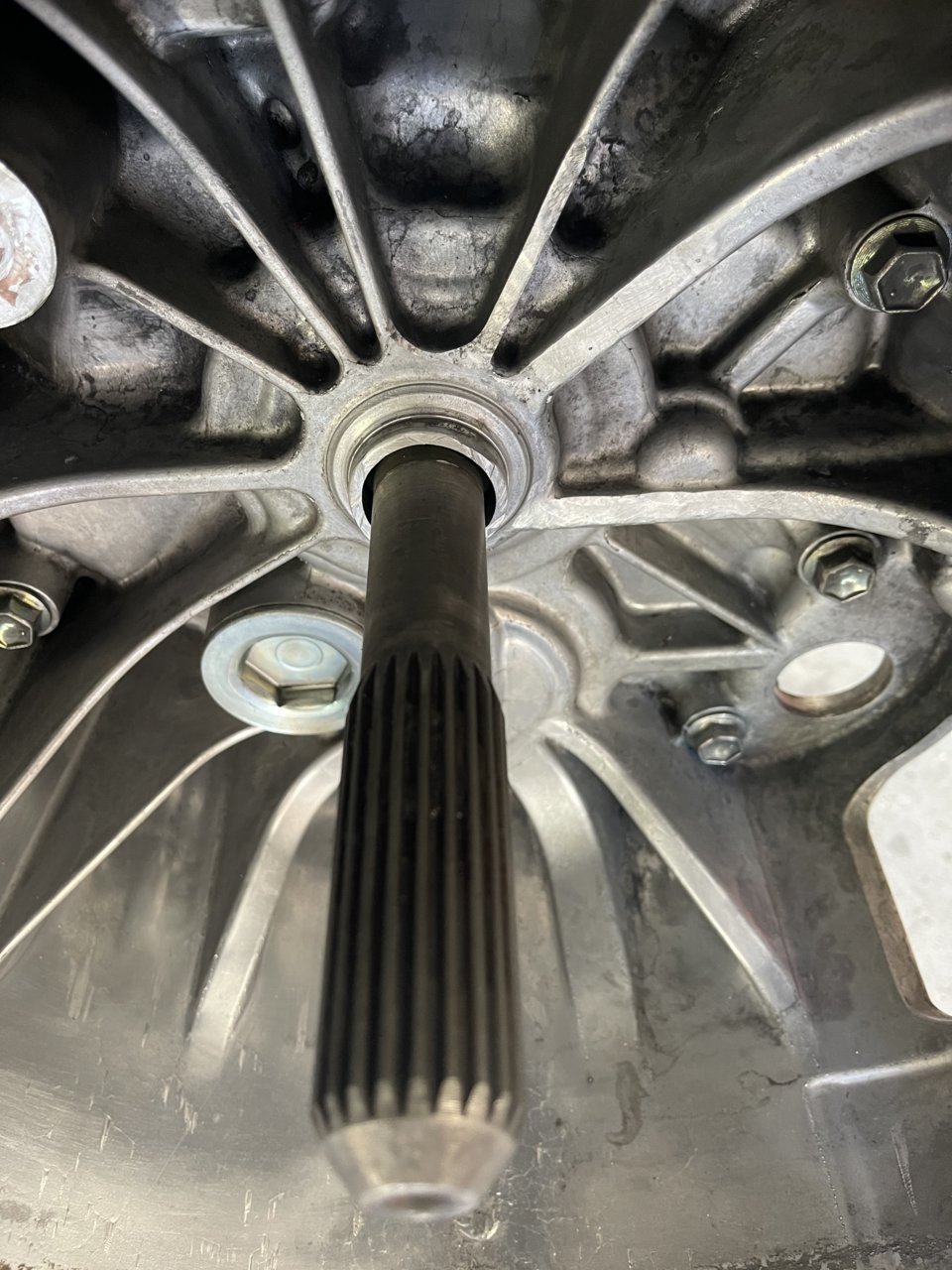

    Honestly too soon to tell, only have a couple hundred miles on it but just based on build quality of the unit and the name tilton carries I feel a lot better about having it in my truck.

    My quill didn’t snap. I cut that sucker off (regretfully so) to run the now obsolete URD fix-u hydrobearing a few years back. Obviously knowing what I know now I would’ve steered clear from that setup but back then I was naive enough to think that URD was the answer to everything Tacoma. Definitely learned the hard way that’s not the case.

    GilbertOz and TodayWasTHeDaY like this.
  10. Oct 3, 2021 at 3:23 PM
    #270
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Okay, that's fair. Did your OG URD hydro setup fail like the Clutch Masters unit? Or just impossible to get parts to service it now?

  11. Oct 4, 2021 at 10:51 AM
    #271
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Got the bearing ordered. I searched far and wide locally through auto part suppliers and bearing suppliers alike, but didn't have any luck. I ended up ordering it from https://partsouq.com/ in Dubai as it was cheaper and way faster than shipping to Canada from eBay. I placed the order last night and was notified this morning that it had been shipped. We'll see if this website delivers.

    If you're looking for more bearing manufacturer part number interchanges, here's a compiled list: https://www.yoyopart.com/oem/217493/toyota-9036345013.html

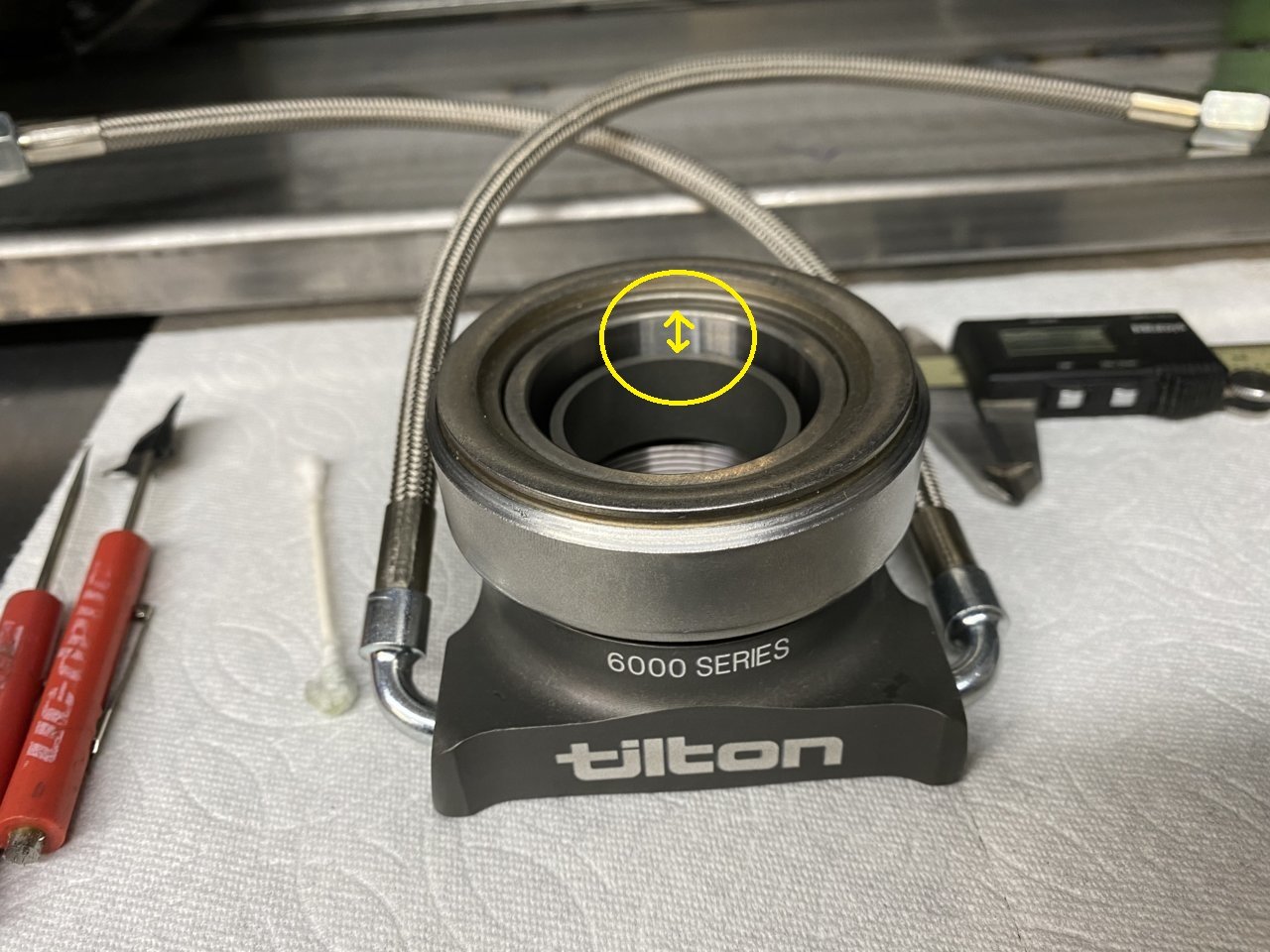

    @BillDaCat8 I just noticed from your photos that it looks like only half of the bearings inner race actually get's seated on the bushing/piston. I know that the force applied to the bearing is axial in this case (parallel with the piston), but ain't that still bad? Am I missing something?


    This site contains affiliate links for which the site may be compensated.
  12. Oct 5, 2021 at 8:53 PM
    #272
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.

    Same vendor on eBay that I used. You’ll be fine.

    There’s plenty of meat there to hold things together. Certainly the Tilton piston wasn’t designed for this exact bearing. But, it works fine with the collar to adapt it.

    This site contains affiliate links for which the site may be compensated.
  13. Oct 8, 2021 at 2:35 PM
    #273
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Gotcha. I might tweak my bushing design. We'll see when I get the parts in hand.

    EDIT 1: The bearing arrived. 5 days to get it from Dubai... Wow! That's awesome. Mine is a Nachi bearing in a Toyota box, so you may as well order the Nachi bearing off of the PartSouq website and save yourself a cool $5. :D

    EDIT 2: Kirk cleared up my part number confusion on the Tilton pieces and recommended I order through Summit. FYI, for the Canadians reading this, Summit Racing has free shipping over $99 right now and duties were around $30 to land it all in British Columbia.

    Last edited: Oct 14, 2021
    This site contains affiliate links for which the site may be compensated.
  14. Oct 28, 2021 at 10:42 PM
    #274
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.
    Where are we at with your project up there Kel?

  15. Oct 31, 2021 at 2:00 PM
    #275
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Ordered the FJ pedal shopping list a few weeks back through a friend of a friend who's a parts guy at a Lexus dealership to avoid the rediculous Canadian markup/closed border crossings. It was supposed to take up to a month to come in.

    So between the Tilton and Toyota orders I'm just sitting here patiently waiting for the parts to pour in by mooseback. :canada:

  16. Nov 27, 2021 at 10:26 AM
    #276
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Progress Update #1
    All parts have now arrived. Took my measurements for my bushing design and drew it up on the computer. Pretty much 1/3 of the bearing race is unsupported when seated on the piston, so I'm going to add a bit more support to my version just to be safe. I'll be going with 6061 aluminum now that I've got it hand because I realize that the piston itself is actually aluminum so we don't have to worry about future corrosion issues in this case.

    Next step is getting my drawing to my amigo with the CNC lathe to whip it up the bushing for me and I'll begin working on all the other bits.

    Last edited: Jul 19, 2022
    BillDaCat8[OP] likes this.
  17. Nov 27, 2021 at 12:45 PM
    #277
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.

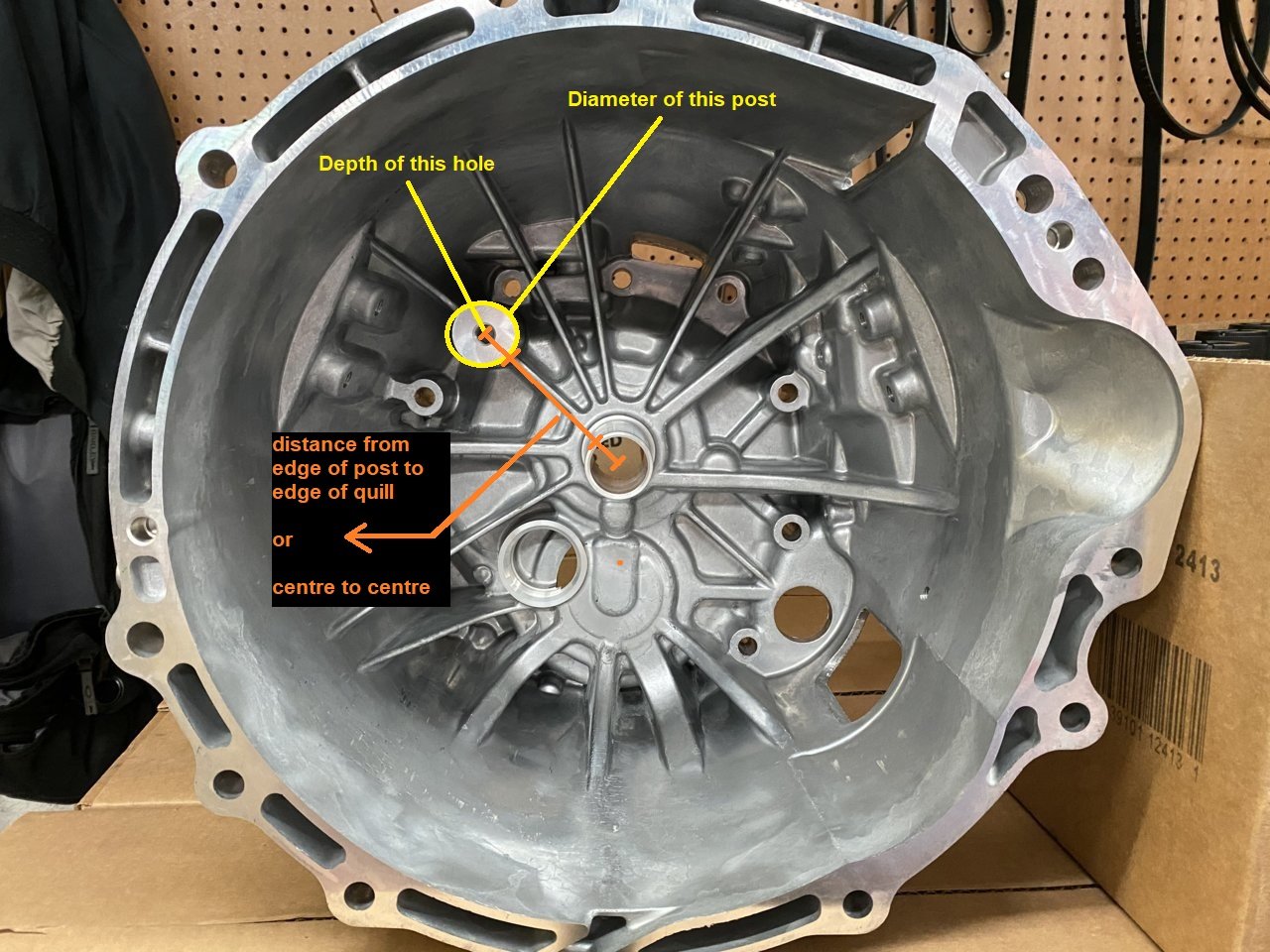

    @BillDaCat8 do you still have that RA60F bell housing kicking around? Would you be able to grab these measurements for me? If not I'll try hunting down a local taco guy with one kicking around.


  18. Nov 30, 2021 at 3:32 PM
    #278
    BillDaCat8

    BillDaCat8 [OP] Well-Known Member

    Joined:
    Jun 25, 2017
    Member:
    #222348
    Messages:
    1,915
    Gender:
    Male
    First Name:
    Jake
    PHX
    Vehicle:
    07 4x4 Access Cab M/T
    My shit is all stock.

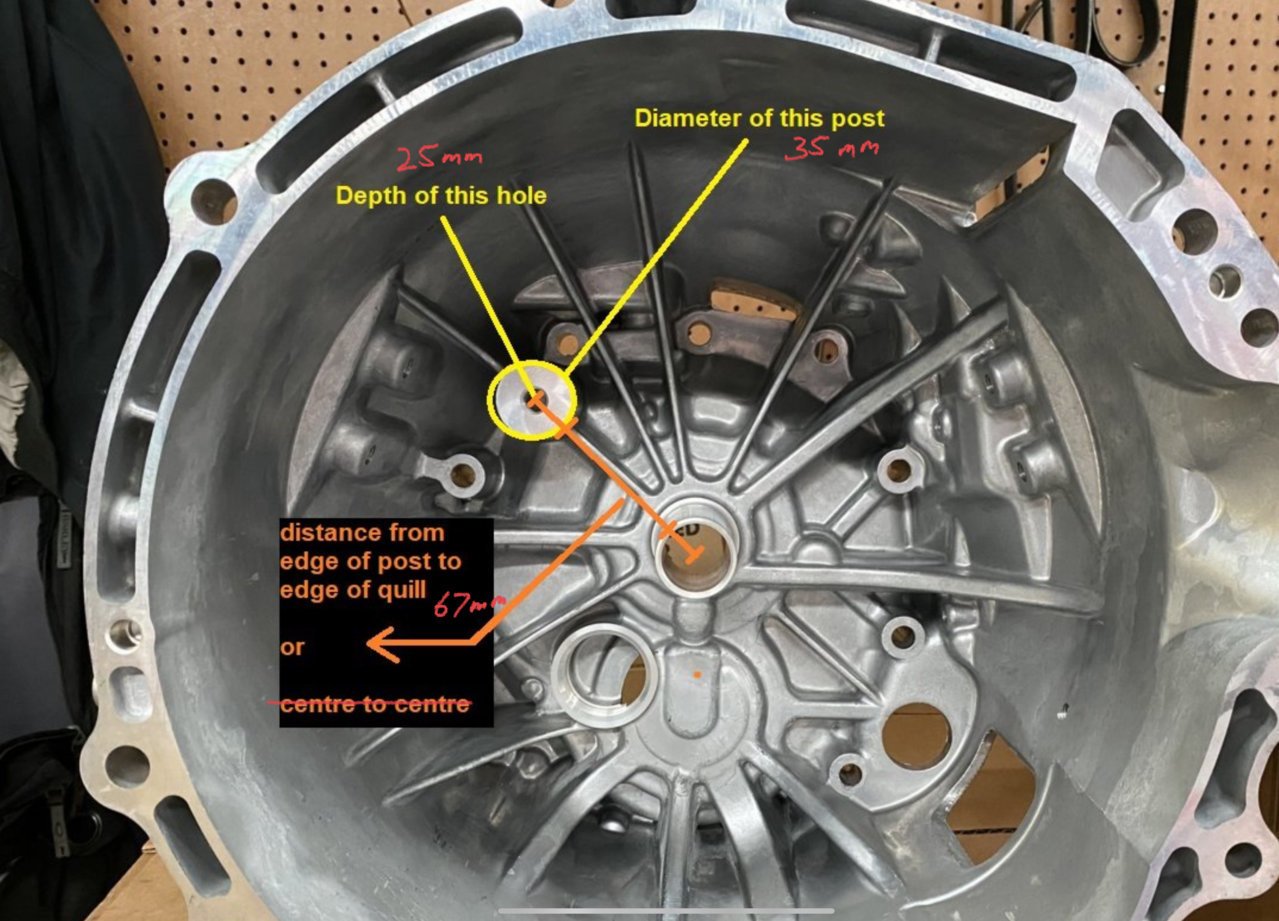

    Not super accurate. But here’s what I got.


    tinker_troy and Kasbien[QUOTED] like this.
  19. Dec 1, 2021 at 2:52 AM
    #279
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    Thanks a bunch. I can now make the bracket for the anti-rotation pin so that it's ready to go for the shop.

    Onward!

  20. Dec 5, 2021 at 11:50 PM
    #280
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    @BillDaCat8need a few more confirmations from ya... :rolleyes:

    1) Can you confirm that the 34mm hole for the slave cylinder is the diameter same on the RA60F bell housing? And approximately how thick those aluminum half-moons plugs are? Now that I've got all the Tilton parts in front of me, I've realized that idea of modifying the silicon taper plug is not going to work in the slightest. I'm going to 3D print some half-moons myself since we have extreme shipping delays due to flooding where I live right now.

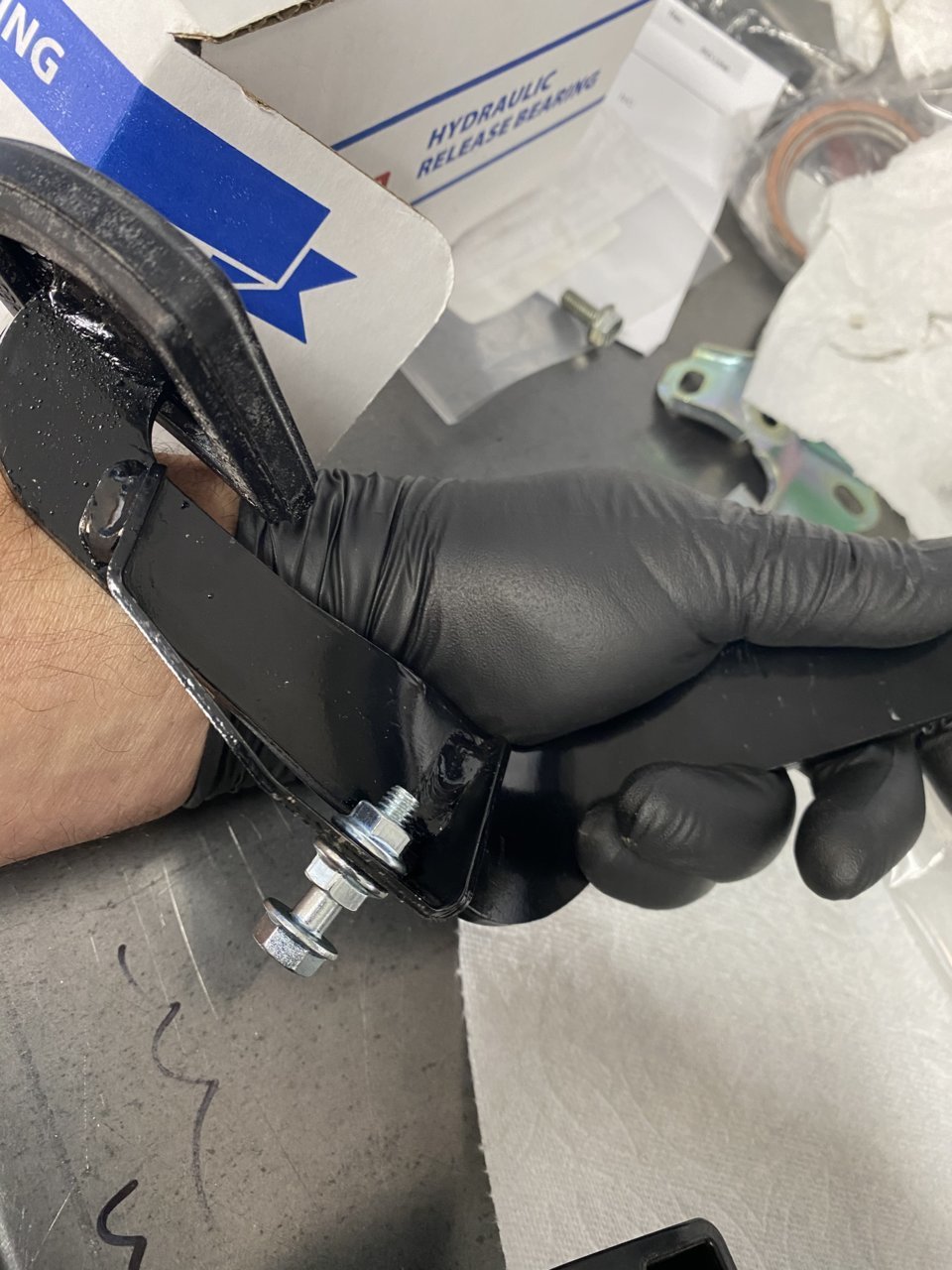

    2) Could you also confirm what length bolt you have in this picture and how much you have sticking out roughly? I'm browsing catalogues at my auto parts store for rubber/polyurethane bump stops on a stud but I think they're all going to be way too tall/wide to be useful.

    :bowdown:


    Attached Files:

    Last edited: Dec 6, 2021
