7 Pin Trailer Connector Wiring Diagram

Discussion in 'Towing' started by Arkie-Marty, Oct 10, 2016.

  1. Oct 10, 2016 at 9:48 PM
    #1
    Arkie-Marty

    Arkie-Marty [OP] I'm not a real DIY expert, I just play one on TW.

    Joined:
    Aug 21, 2015
    Member:
    #162345
    Messages:
    105
    Gender:
    Male
    First Name:
    Marty
    Searcy, Arkansas
    Vehicle:
    2017 4x4 Sport DCSB, Magnetic Gray
    MODS COMPLETED IN MY TACOMA CAREER (2015 & 2017): WeatherTech Floor Mats, Chrome Nerf Bars, Under Hood LED Lights, Glove Box LED Lights, Cup Holder LED Lights, Center Console LED Lights, LED Bed Lights, Dual USB Port Console Install, 12v Power Outlet in Bed, 12v Power Outlet Under Hood, Gentex 177 Rearview Mirror w/Temp & Compass, @ImMrYo's Rearview Mirror Relocation Bracket Mod, Disable Lock/Unlock Beeps Mod, Under Door Projector/Puddle Lights, Behind Rear Seat Storage LED Lights.
    I looked all over TW and Google trying to find out which colored wires performed which function.

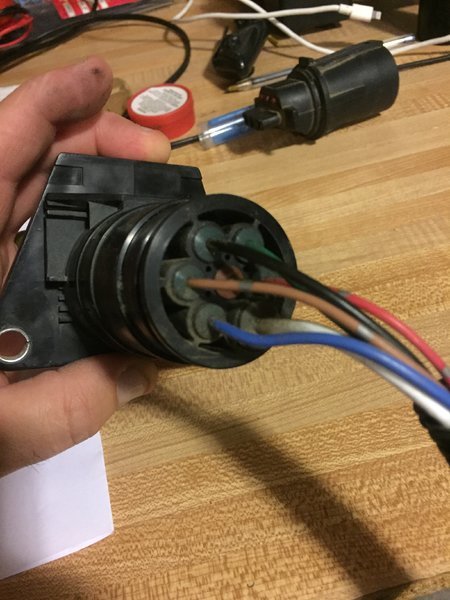

    I have a 2015 SR5 DC. I finally decided to dissect mine to find out. I was adding an extra 4 pin connector behind the back bumper, so I could plug in my aftermarket LED blinker/stop/tail light strip, and not have to unplug it when I plug in my 4 pin trailer harness.

    This is what you'll need to know if you ever want to tap into the wires that feed the 7 pin connector. I drew this crude diagram to help explain.


    I hope this helps some folks, because it's pretty tough finding this online. Don't try yellow to yellow and green to green because it ain't gonna work.


    Last edited: Oct 11, 2016
  2. Sep 7, 2018 at 9:37 AM
    #2
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,870
    So yeah, this has been sorta hard to find in any Toyota documentation. The FSM electrical documentaiton is only circuit diagrams, not connector illustrations.

    I just cross checked your work with other "standard 7-pin" connections on the web (and there are many variants), and was able to confirm that this is consistent with the following setup. Note that the pin assignments are consistent with yours, but not the wire colors.

    [​IMG]

    And here is the complementary mirror image with the trailer side connection:

    [​IMG]



    I'm looking because I currently have an issue I'm trying to sort out with my trailer battery apparently not charging while driving on our last trip, and I only know becaue my ARB fridge went into power save mode after 24 hours, which it has never done before. I suspect the trailer's charger/inverter has an issue, but I figures I better start all the way from the source. No fuses blow in the truck or the trailer, so now the fun begins...

    Last edited: Sep 7, 2018
  3. Sep 7, 2018 at 11:17 AM
    #3
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,870
    And here are the etrailer diagrams. Ours is the middle "RV STANDARD." The pin assigments and wire colors are all consistent with the 2015 Tacoma plug you show above.

    https://www.etrailer.com/faq-wiring.aspx


    [​IMG]

    remery829 likes this.
  4. Sep 7, 2018 at 12:47 PM
    #4
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,870
    And now that it is daylight, I found this pretty helpful too. Jesus fuck.

    [​IMG]

  5. Sep 12, 2018 at 5:28 PM
    #5
    cantjump

    cantjump Well-Known Member

    Joined:
    Mar 11, 2016
    Member:
    #180899
    Messages:
    52
    Gender:
    Male
    thanks for the write up!

  6. Sep 14, 2018 at 6:30 PM
    #6
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,578
    Gender:
    Male
    Trailer plug wiring is standardized across all vehicles, no point trying to find vehicle specific info.

  7. Nov 11, 2018 at 7:42 AM
    #7
    adk_tacoma

    adk_tacoma Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226289
    Messages:
    689
    Gender:
    Male
    First Name:
    Joe
    Waterford, NY
    Vehicle:
    2016 quicksand tacoma sr5
    Westin outdoors man winch brush guard, custom switch board, Custom machined tow hooks, 255/85/r16 tires, trd shocks and struts
    How big is the fuse for the charging pin, 20amp?

  8. Nov 12, 2018 at 4:14 AM
    #8
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    2,578
    Gender:
    Male
    12ga wire is rated to 20.

    adk_tacoma likes this.
  9. Nov 12, 2018 at 4:29 AM
    #9
    adk_tacoma

    adk_tacoma Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226289
    Messages:
    689
    Gender:
    Male
    First Name:
    Joe
    Waterford, NY
    Vehicle:
    2016 quicksand tacoma sr5
    Westin outdoors man winch brush guard, custom switch board, Custom machined tow hooks, 255/85/r16 tires, trd shocks and struts
    thank you

  10. Dec 19, 2018 at 7:21 PM
    #10
    remery829

    remery829 Well-Known Member

    Joined:
    Jun 9, 2014
    Member:
    #131606
    Messages:
    264
    Gender:
    Male
    First Name:
    Ryan
    Eastern NC
    Vehicle:
    '14 DCSB TRD Offroad
    Some stupid expensive stuff
    Damn this helps me out! Kind of ripped off my 7 pin plug and its lost somewhere in Uwharrie.. I have been trying to figure out which wire goes where for the new generic 7/4 pin combo plug.

  11. Feb 1, 2019 at 11:09 AM
    #11
    Redsyota

    Redsyota Well-Known Member

    Joined:
    Nov 6, 2014
    Member:
    #141820
    Messages:
    357
    Gender:
    Male
    Denver
    Vehicle:
    15' SPORT 6 SPEED ACLB MGM
    Some of the things...
    I was just digging around for some info on a project I've got and this killed me lol. I may have had a similar situation. Thanks for the laugh!

    scocar likes this.
  12. Mar 6, 2019 at 7:47 AM
    #12
    gsubioguy

    gsubioguy Well-Known Member

    Joined:
    May 22, 2018
    Member:
    #254259
    Messages:
    150
    Gender:
    Male
    First Name:
    Evan
    Maine
    Vehicle:
    2017 DCLB SR5 4wd
    For what it's worth: the blue is brake & right turn signal on the 2017--learned the hard way. Most of my electrical supplies were at work so I went off the diagram that came with the LEER harness for my LEER cap and tapped the designated line. Tested and worked only to notice next day that 3rd brake light now blinks with with right turn signal. Needless to say I brought my tester home and will confirm correct wire.

  13. Mar 15, 2019 at 11:39 AM
    #13
    KeystoneGoodie

    KeystoneGoodie Well-Known Member

    Joined:
    Mar 28, 2017
    Member:
    #214616
    Messages:
    106
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    '09 AxCab with meat shoes and axe handles
    Lots of dollars and no sense...
    @Arkie-Marty not even sure if you're still on TW but THANK YOU THANK YOU THANK YOU!! I knocked my whole plug and wiring off about 2 years ago wheeling and this just saved me 225$ the dealership wanted for the pigtail. Worked perfectly. Easy to read. I'm towing once again baby!! Cheers to the extremely valuable info on this site!!

  14. Mar 22, 2019 at 12:47 PM
    #14
    Rockin' D

    Rockin' D Not for the weak or faint hearted.

    Joined:
    Aug 29, 2017
    Member:
    #228461
    Messages:
    86
    Gender:
    Male
    College Station, TX
    Vehicle:
    13 TRD Sport DCSB
    I’m fixing to wire up a leer camper and just to be clear... if I tie into one of the brake lights it’ll also flash with the turn signal?

  15. Mar 22, 2019 at 12:57 PM
    #15
    Cudgel

    Cudgel “Tonka”

    Joined:
    Mar 28, 2017
    Member:
    #214640
    Messages:
    3,152
    Gender:
    Male
    Live in: An Ocean of Plastic Trash
    Vehicle:
    2017 OR DCLB
    ICON8 Lift -285s. upTOPoverland rack.
    Depends on the length.
    12 AWg for 10 feet or less but you should go up to 10 for 15’ and 8 for 20’ to maintain voltage. Most guys cheat or don’t care or don’t know.

  16. Mar 23, 2019 at 12:35 PM
    #16
    Stacysound

    Stacysound New Member

    Joined:
    May 3, 2016
    Member:
    #186024
    Messages:
    4
    Gender:
    Male
    Is that 12V always hot? I hope so. I want to install bed lights and would rather not run a wire to the front.

  17. Mar 23, 2019 at 9:57 PM
    #17
    scocar

    scocar Prebunking

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,870
    No no no. This is for the trailer only. Do not tap into the 7 pin harness for any cap lights. For a cap 3rd brake light, you run the cap light hot lead to your truck's taillight housing and tap into the brake lamp hot wire.

  18. Mar 24, 2019 at 3:05 PM
    #18
    Rockin' D

    Rockin' D Not for the weak or faint hearted.

    Joined:
    Aug 29, 2017
    Member:
    #228461
    Messages:
    86
    Gender:
    Male
    College Station, TX
    Vehicle:
    13 TRD Sport DCSB
    What should I tap into for the camper interior light?

  19. Apr 10, 2019 at 1:06 PM
    #19
    Scott ktm

    Scott ktm New Member

    Joined:
    Apr 10, 2019
    Member:
    #289716
    Messages:
    1
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    16 Tacoma trd sport
    New member and new to a 16 Tacoma trd sport. When I bought the truck I didn’t realize it didn’t have the tow package. I’m looking to get oem 7 pin and 4 way flat to work. The thing is I have to go to the tail lights to make attachments. The question is if I cut the wires at the hitch side will it work with the diagrams shown. Ty in advance.

  20. Dec 25, 2019 at 12:48 PM
    #20
    3JOH22A

    3JOH22A Large Member

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    2,829
    Gender:
    Male
    District 6ix
    Vehicle:
    3rd Gen TRD Off-Road
    Do you know if the "brake controller output" pin has any output on our trucks if there's no brake controller installed? I wired up an extra third brake light to the brown pin, but of course it also blinks when I have the RH turn signal on.
