7-Pin Trailer Harness/Plug Replacement Tip

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Lute, Jul 25, 2013.

  1. Jul 25, 2013 at 1:53 PM
    #1
    Lute

    Lute [OP] Member

    Joined:
    Sep 24, 2009
    Member:
    #23259
    Messages:
    9
    Gender:
    Male
    First Name:
    Lute
    Oakland, CA
    Vehicle:
    05 4x4 V6 TRD DBL Silver 6SP
    Hi All,

    If you break your factory Tacoma 7-Pin trailer plug / harness, you will be sorry to find out it costs about $200 from Toyota for a replacement. Apparently Toyota only sells it as a kit, you cannot get the plug and harness separately.

    I can't take full credit for the following tip; the original post by 'Jake The Wolf' (thanks Jake!) on this website tipped me to the core of the solution, but I thought I'd add my experience to offer a better overview.

    Honda has the identical plug available as a plug w/harness by itself, sold for the Ridgeline. The Honda part # is 32113-SJC-A00 and lists for $49.62. HOWEVER, the connector that plugs into the OEM harness on your truck is different.

    Rather than cut and splice wires, what I did was I disassembled the plug, then swapped the individual pins. To do this, insert a small screwdriver into each of the four slots on the side of the plug body and push the clips out of the slots. Next, use a pair of needle-nose pliers to grab a male blade terminal in the socket, and pull the center plug socket out of the plug body. You will then see a white plastic retainer plate which covers the female blade terminals. Remove the plate by pulling it up with a small hook. At this point, you will see that each female blade terminal is retained into the plug body with a small clip; using a very small flathead screwdriver, gently pull the clip away from the blade terminal while pulling the corresponding wire out the back end of the plug body. One by one, swap each wire w/ terminal from the old plug to the new, and voila- you have an OEM plug with your OEM harness, no need to hack the wiring up!

    ptc075, MotoMoose68, Slashaar and 8 others like this.
  2. Sep 23, 2013 at 7:54 PM
    #2
    colbyrainey

    colbyrainey Well-Known Member

    Joined:
    Sep 22, 2013
    Member:
    #113049
    Messages:
    324
    Gender:
    Male
    First Name:
    Colby
    KC
    Vehicle:
    '11 Dbl TRD Sport
    TSB Leafs, Bilstein 5100's @ 1.75", K&N Filter, Kenwood DNX 6180, BFG Rugged Terrain T/A's, ImMrYo Rearview Mirror Bracket, Extra D-Rings, Gloss Black Stock Wheels, Grillcraft Grille
    Do you have the part number for this kit? Mine is missing both the plug and harness and I'm looking for the best way to find one.

    Scooter WCT likes this.
  3. Sep 24, 2013 at 2:52 PM
    #3
    Lute

    Lute [OP] Member

    Joined:
    Sep 24, 2009
    Member:
    #23259
    Messages:
    9
    Gender:
    Male
    First Name:
    Lute
    Oakland, CA
    Vehicle:
    05 4x4 V6 TRD DBL Silver 6SP
    I referenced the part number for the Honda part which can only be used in the manner I described- as a repair for the existing Toyota 7-Pin trailer harness. If your harness is 'missing', I would wonder if it ever had the trailer kit installed in the first place. Toyota sells two different kits which come with the wiring harness, the wiring converter, the bracket and the harness plug- one is the 4-pin style, one the 7-pin style. If you don't already have the hardware in place, I believe you will need to get one of the kits from Toyota, rather than just the plug I referenced above.

  4. Sep 25, 2013 at 4:30 PM
    #4
    colbyrainey

    colbyrainey Well-Known Member

    Joined:
    Sep 22, 2013
    Member:
    #113049
    Messages:
    324
    Gender:
    Male
    First Name:
    Colby
    KC
    Vehicle:
    '11 Dbl TRD Sport
    TSB Leafs, Bilstein 5100's @ 1.75", K&N Filter, Kenwood DNX 6180, BFG Rugged Terrain T/A's, ImMrYo Rearview Mirror Bracket, Extra D-Rings, Gloss Black Stock Wheels, Grillcraft Grille
    Thanks for the info - I'll look to Toyota for this.

  5. Sep 25, 2013 at 6:19 PM
    #5
    stump jumper

    stump jumper Well-Known Member

    Joined:
    Aug 23, 2010
    Member:
    #42106
    Messages:
    2,480
    Gender:
    Male
    First Name:
    Bill
    Texas
    Vehicle:
    2017 Tundra 4x4 CM TSS
    I bought a plug for like $15 at Wally World cut the wires and put some flat spade connectors. I drew a wiring diagram before cutting. I wish Toyota would mount these things in the bumper. I guess that would be too difficult because they would have 2 bumpers. I found that if I leave my hitch in it offers some protection.

    koditten likes this.
  6. Jul 23, 2015 at 10:41 AM
    #6
    WhiteWalkerTaco

    WhiteWalkerTaco Well-Known Member

    Joined:
    Jun 28, 2015
    Member:
    #158361
    Messages:
    136
    Gender:
    Male
    First Name:
    Justin
    Denver, CO
    Vehicle:
    2015 White Tacoma TRD Off-road
    This is by far the best way to repair the broken trailer connector I have found on TW! Thank you Lute for the directions on swapping the connector! Was a little confused at first but once I realized you were swapping the actual trailer connector and not the connector that connects to the truck's wiring harness (pictures would have helped) it was easy! Still waiting for the Honda harness to come in, but when it does I will already be halfway there! Much better route than splicing in an aftermarket connector!

  7. Jul 24, 2015 at 9:19 AM
    #7
    ranger098

    ranger098 Well-Known Member

    Joined:
    May 22, 2014
    Member:
    #130377
    Messages:
    754
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    http://www.napaonline.com/Catalog/C...Adapter-Tow-Vehicle/_/R-NDP7552145_0373950438

    This is literally the exact same part that comes on the truck from the factory, right at Napa. (the second image on napa's site isnt the same as what i got, might be a slightly different product in store). Heres a step by step:

    take the harness out of the mount on the truck (8mm bolts i think), and disconnect the harness up behind the bumper so you can go to your workbench with it.
    use a flathead screwdriver to remove the one screw holding the outside housing on the harness, and push on the wires to pop the housing loose from the plug.
    Cut the exposed wires as short as possible, leaving a little of the colored jacket to reference the wire locations
    strip the ends of the wire and put them into the new harness, following using the old harness to see where to connect each wire (you could use a spade connector or something if you like)
    install back into the trucks mount, and use elecrical tape to seal up the hole where the wires enter the housing so water doesnt get in there.

    I was shocked and sooo happy to see this harness at my local napa store. My old harness had salt and water getting in there and corroded the wiring so bad that certain wires were totally disconnected. This is a direct replacement and costs like 10 bucks!

  8. Feb 3, 2016 at 10:54 PM
    #8
    iJDub

    iJDub Well-Known Member

    Joined:
    Dec 26, 2010
    Member:
    #48225
    Messages:
    1,055
    Gender:
    Male
    Anyone have the wiring diagram for this? I had taken the wiring out before tagging it and I don't think the colors align with the standard colors cause one of them was switched around when I was using a 4 pin setup.

  9. Apr 28, 2016 at 7:37 PM
    #9
    Whiplash777

    Whiplash777 Well-Known Member

    Joined:
    Nov 23, 2010
    Member:
    #46594
    Messages:
    51
    Gender:
    Male
    Upstate NY
    Vehicle:
    '09 Blue Double Cab Off Road
    Side steps, DRLs, DynoLock
    I just completed this swap out today using Lute's instructions in the first post.

    Here is the new Honda harness:
    1 - Harness.jpg

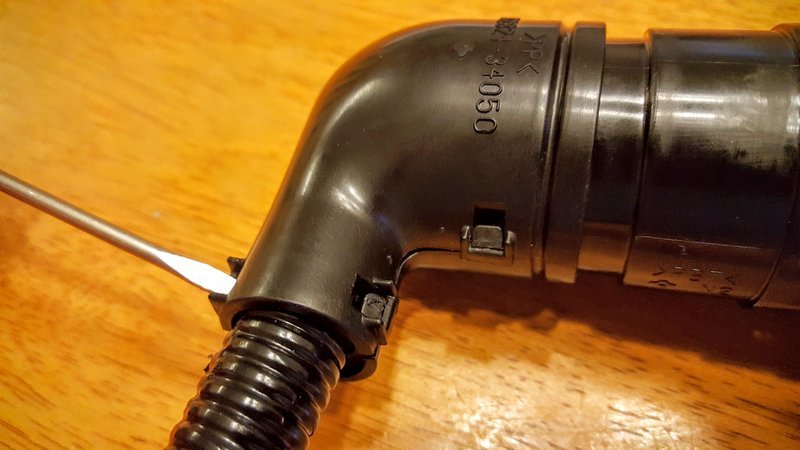

    There is a nice L-cover over the rear of the plug (the one on my truck was missing):
    2 - L-Cover.jpg

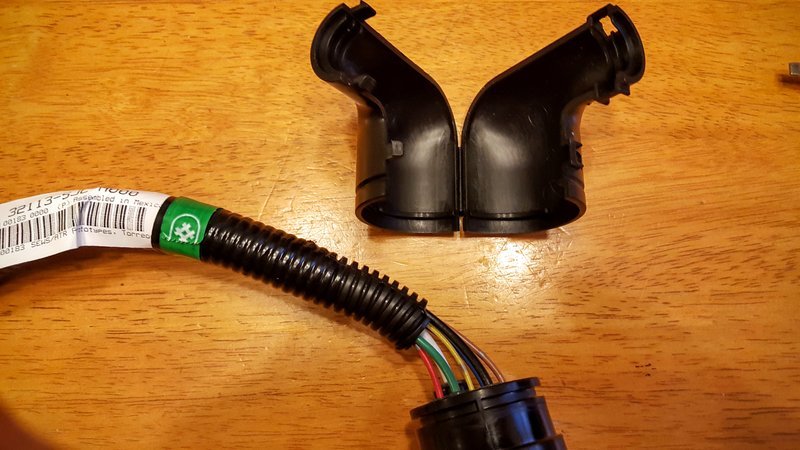

    Pop the clips and you get this:
    3 - L-Cover removed.jpg

    The four clips to hold the core of the plug:
    4 - Plug clips.jpg

    Removing the core of the plug:
    5 - removing plug.jpg

    Here is the removed plug and the O-ring that seals it:

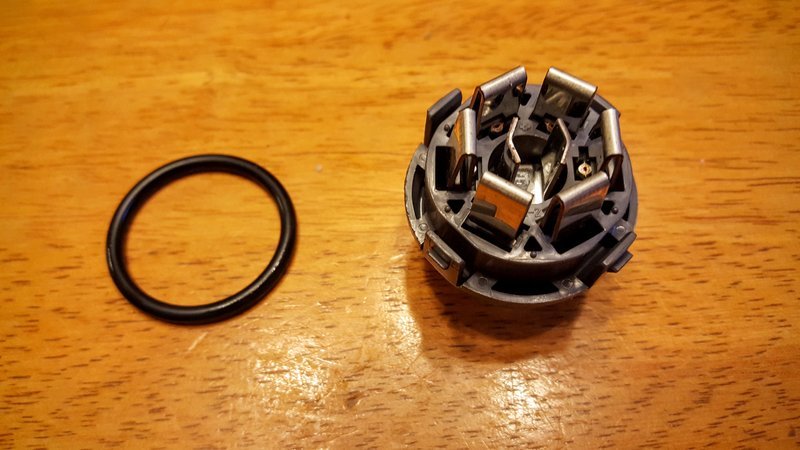

    6 - Plug and O Ring.jpg

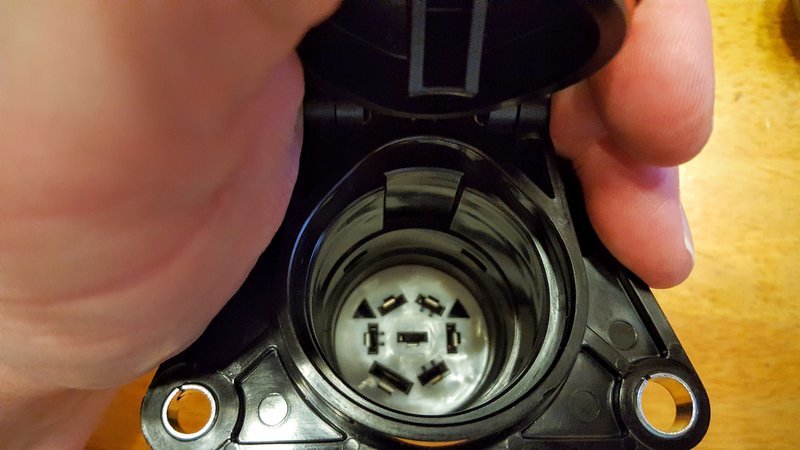

    Here is the socket with the plug core removed:
    7 - Socket with plug removed.jpg

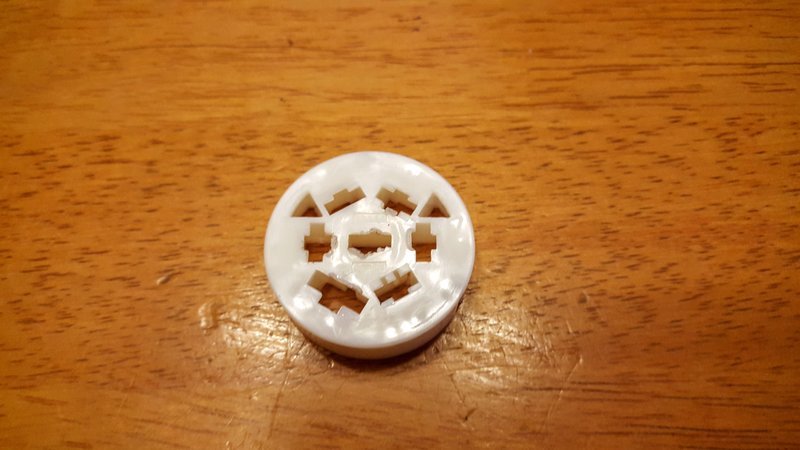

    I carefully used a pair of needlenose pliers to remove the white internal cap (the tolerances are tight and it is a little tough to get out):
    8 - White cap.jpg

    Internal base with white cap removed:
    9 - Base of plug.jpg

    I got tired of holding the door open and trying to work in the plug so I carefully put a pair of locking pliers on it:
    10 - Using pliers to hold open the door.jpg

    The back of the plug:
    11 - Back of plug.jpg

    Using a small screwdriver to release the clips on the base connectors:
    12 - Clips for connectors.jpg

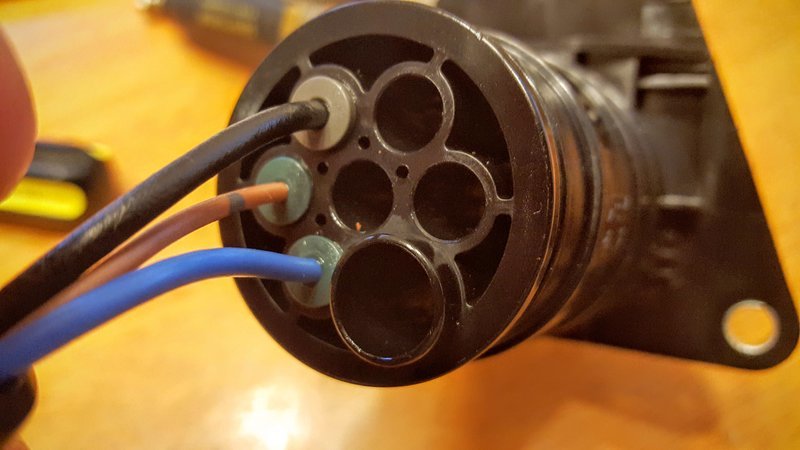

    Some of the wires removed:
    13 - Some of the wires removed.jpg

    All wires removed:
    14 - All connectors removed.jpg

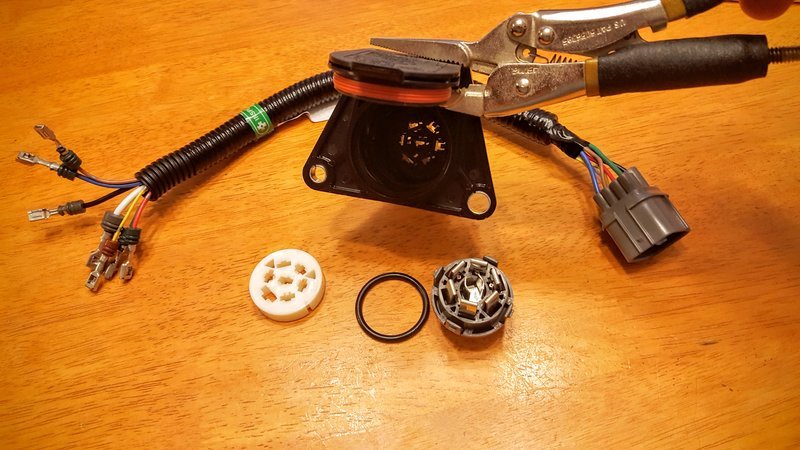

    Completely disassembled:
    15 - Disassembly complete.jpg

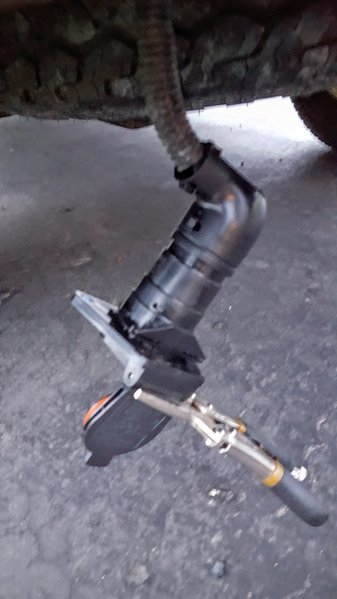

    Reassembled on the truck:
    16 - Reassembled.jpg

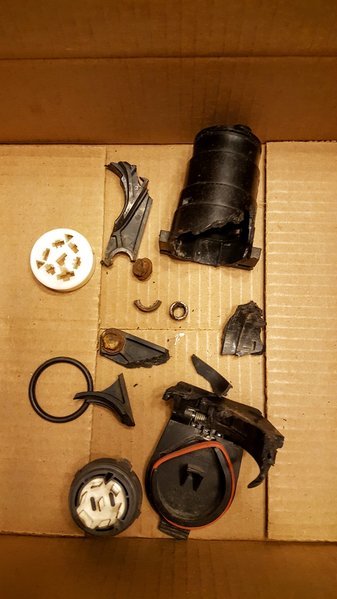

    And here is why I needed to replace it (what's left of the old one):
    17 - What's left of the old plug.jpg

    The old retaining bolts sheared off, but the new plug is such a tight fit (I actually needed to use a rubber mallet to get it fully back in place) that I knew it wasn't going anywhere.

    I hope the photos help.

    Last edited: Apr 29, 2016
  10. Apr 28, 2016 at 7:43 PM
    #10
    TACOVRD

    TACOVRD I Identify As A Prius

    Joined:
    Jul 11, 2015
    Member:
    #159264
    Messages:
    6,415
    Gender:
    Male
    First Name:
    TW Addict
    AZ/WA
    Vehicle:
    2013 DCSB OR Spruce Mica
    Workin' on it....
    Tagged for future reference if needed... :thumbsup:

  11. Apr 28, 2016 at 11:19 PM
    #11
    IronPeak

    IronPeak PermaLurker

    Joined:
    Mar 9, 2016
    Member:
    #180799
    Messages:
    3,235
    Gender:
    Male
    First Name:
    AuggieX
    Back to Back
    Vehicle:
    2007 sr5 4x4 DCLB/2015 TRD sport 4x4 DCLB sold
    Bigger Taller Slower
    I like the OP solution, nice and cheap and keeps it factory..most important for most folks no wire cutting stripping....

    this is the route i went

    Destroyed mine on a rock, found this replacement for 22$, it upgrades the factory 7 round to 7 round and 4 flat, that overs 95%of towing ,then moved it. Where toyota hung these off the rear bumper is a known flaw, and as the OP noted, they want 200$ to replace it, nonsense. This mod does require cutting the wires at the old plug, the replacement plug below has screws to seat the wires, or use round ends, or round ends and solder, which is what I did .... kookoo I know.
    http://www.amazon.com/Hopkins-48470...psc=1&redirect=true&ref_=od_aui_detailpages02

    Also requires hole saw or dremel if you want to do this step --Then I cut a hole in my bumper between my plate and plate light, mounted it there out of harms way.


    HM48470_5_500 (1).jpg HM48470_3_500 (1).jpg

    Last edited: Apr 28, 2016
    MotoMoose68 and scocar like this.
  12. Sep 13, 2016 at 10:36 PM
    #12
    tamer

    tamer hamerworx.com

    Joined:
    Aug 21, 2008
    Member:
    #8674
    Messages:
    523
    Gender:
    Male
    SoCal
    Vehicle:
    2015 TRD OR AC, MGM, 4x4, 6spd MT
    Thanks for this, super helpful, just a question, do the wires only fit into one slot? So when you reinstall the Tacoma wires you can't mess it up?

  13. Sep 13, 2016 at 10:48 PM
    #13
    WhiteWalkerTaco

    WhiteWalkerTaco Well-Known Member

    Joined:
    Jun 28, 2015
    Member:
    #158361
    Messages:
    136
    Gender:
    Male
    First Name:
    Justin
    Denver, CO
    Vehicle:
    2015 White Tacoma TRD Off-road
    No, they can fit in different slots, but the wire colors are virtually the same and they are pinned the same so just match the pin assignment from the Toyota one to the Honda one and use wire colors as a guide. You should be golden!

    TRDSport10 and tamer like this.
  14. Sep 14, 2016 at 7:33 PM
    #14
    Kerrigan911

    Kerrigan911 Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197291
    Messages:
    280
    Gender:
    Male
    First Name:
    Dan
    Vehicle:
    05 TRD OR, AC, 4x4, V6
    I went on Amazon and bought tow ready 20119 for $25. Cut the one plug and cut my busted toyota plug off. Then i used a multimeter to verify what wire goes to each pin. Finally solder wires and good to go. I also now have a 4 pin as well as the 7 pin

  15. Jan 14, 2017 at 7:39 PM
    #15
    NiteTaco

    NiteTaco Well-Known Member

    Joined:
    Jan 17, 2015
    Member:
    #146601
    Messages:
    159
    Gender:
    Male
    North Alabama
    Vehicle:
    09 TRD DCSB
    Finally got around to doing this swap using the Honda part number today...great write-up! I would add that the only real challenge I had was getting the white insert out without chewing it up too badly. I found that if you take a thin metal coat hanger and bend a very small hook into the end of it with some pliers, you can use the hanger like a puller. You can fit it into little triangle holes and hook it from behind...hopefully this helps some else too.

    BTW, I'm also working on relocating it into the DS license plate light hole...hopefully tomorrow.

    Taco*Sauce06 and motormike like this.
  16. Mar 30, 2017 at 3:43 PM
    #16
    Bunio26

    Bunio26 Member

    Joined:
    Feb 22, 2017
    Member:
    #211338
    Messages:
    19
    Gender:
    Male
    First Name:
    Anthony
    Vehicle:
    2015 silver tacoma trd off road
    Light bar (more on the way)
    I am doing this replacement now, but having trouble getting mine disconnected so that I can do the switch! Please help! Thank you

  17. Mar 30, 2017 at 3:50 PM
    #17
    Sand Shark

    Sand Shark I dont pub crawl.when I do,I use pub crawl control

    Joined:
    Feb 27, 2017
    Member:
    #211794
    Messages:
    546
    Gender:
    Male
    First Name:
    Erich
    Phoenix, AZ
    Vehicle:
    2017 Blazing Blue DCSB Off-Road (yes I get dirty)
    REI VIP Parking Pass,Pavement Avoidance System
    Badass write up...

  18. Mar 30, 2017 at 4:12 PM
    #18
    03f5sp

    03f5sp Well-Known Member

    Joined:
    May 5, 2012
    Member:
    #78254
    Messages:
    993
    Gender:
    Male
    First Name:
    Bill
    Wisconsin
    Vehicle:
    2011 TRD Off Road dcsb
    Front 5100s @ 2.5, 1.5 AAL, 265/75-16 all terrains
    I bought a replacement plastic housing at Napa for $5 and mounted it in place of the license plate light. It looks factory and eliminates the possibility of smashing it again.

    TRDSport10 likes this.
  19. Apr 1, 2017 at 8:57 AM
    #19
    rjaneway34

    rjaneway34 Member

    Joined:
    Jan 18, 2015
    Member:
    #146664
    Messages:
    102
    Gender:
    Male
    South Florida, USA
    Vehicle:
    15 Blue Ribbon TRD Sport DCSB
    SCS Stealth 6 Wheels 265/70 R17 Duratracs Bilstein 5100's @1.75 Fold-A-Cover G4 Elite WeatherTech Floor Mats Rough Country Step Bars WeatherTech Window Deflectors
    Thank you, OP. I completed this fix this morning and couldn't be happier!

  20. Jun 2, 2017 at 1:39 PM
    #20
    cbannister83

    cbannister83 I'm a d**che

    Joined:
    Jun 27, 2014
    Member:
    #132794
    Messages:
    440
    Gender:
    Male
    43S GT 59500 92000 ish
    Vehicle:
    DCSB
    Loading...
    Quick question for anyone that might know off hand. What color wire gives power to the reverse lights on the trailer? I have a 2014 if that makes a difference..
    Thanks
