8 Gang Switch Panel - Auxbeam/Amazon

Discussion in 'Lighting' started by dpele, Dec 4, 2019.

  1. Apr 17, 2020 at 9:37 PM
    #21
    thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    1,887
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    Upgraded to a 3rd gen
    Never ending......$$$
    Thinking about trying one of these in the rear bed cubby for my rear accessories.

    dpele [OP] likes this.
  2. Apr 17, 2020 at 9:38 PM
    #22
    Gruber1922

    Gruber1922 Well-Known Member

    Joined:
    Mar 31, 2019
    Member:
    #288634
    Messages:
    715
    Gender:
    Male
    First Name:
    Alex
    Tacoma, WA
    Vehicle:
    2015 Tacoma Sport
    Happy with mine so far, been a few months.

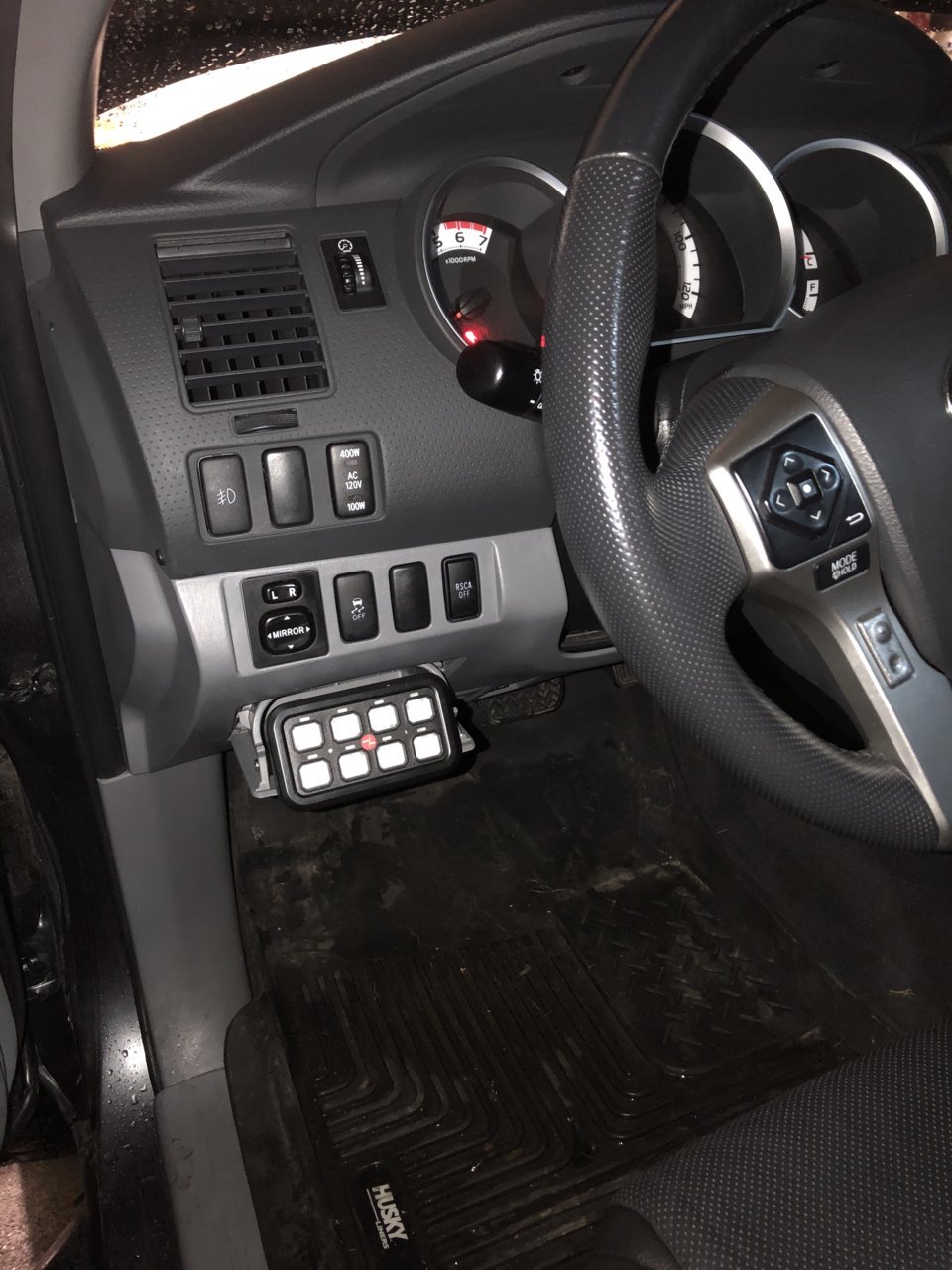

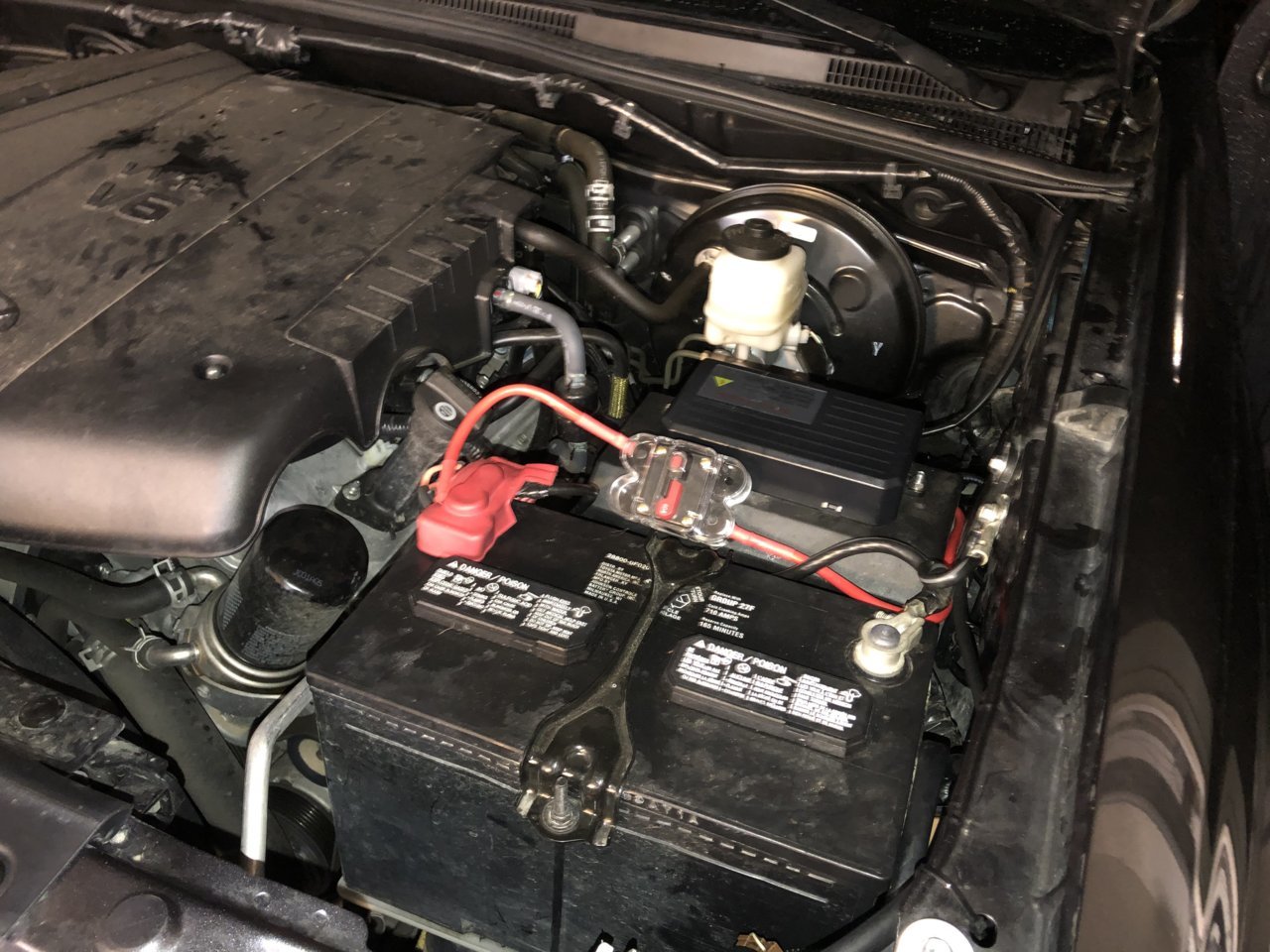

    CF016D76-B0C8-4E65-A3F2-17B42F4FCB55.jpg 87CC798B-10CF-4A2E-9330-94E28E2B64DC.jpg

  3. Apr 18, 2020 at 3:47 AM
    #23
    Brownie_Man

    Brownie_Man Well-Known Member

    Joined:
    Sep 21, 2019
    Member:
    #305897
    Messages:
    338
    Gender:
    Male
    Maine
    Vehicle:
    2019 Off Road
    Did you go with an independent momentary switch for the panel brightness? I am trying to figure out if I want to be able to adjust the brightness on mine.

  4. Apr 18, 2020 at 5:18 AM
    #24
    Gruber1922

    Gruber1922 Well-Known Member

    Joined:
    Mar 31, 2019
    Member:
    #288634
    Messages:
    715
    Gender:
    Male
    First Name:
    Alex
    Tacoma, WA
    Vehicle:
    2015 Tacoma Sport
    I did, just bought one off of Amazon

    dpele [OP] and Brownie_Man like this.
  5. Apr 20, 2020 at 9:05 AM
    #25
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps

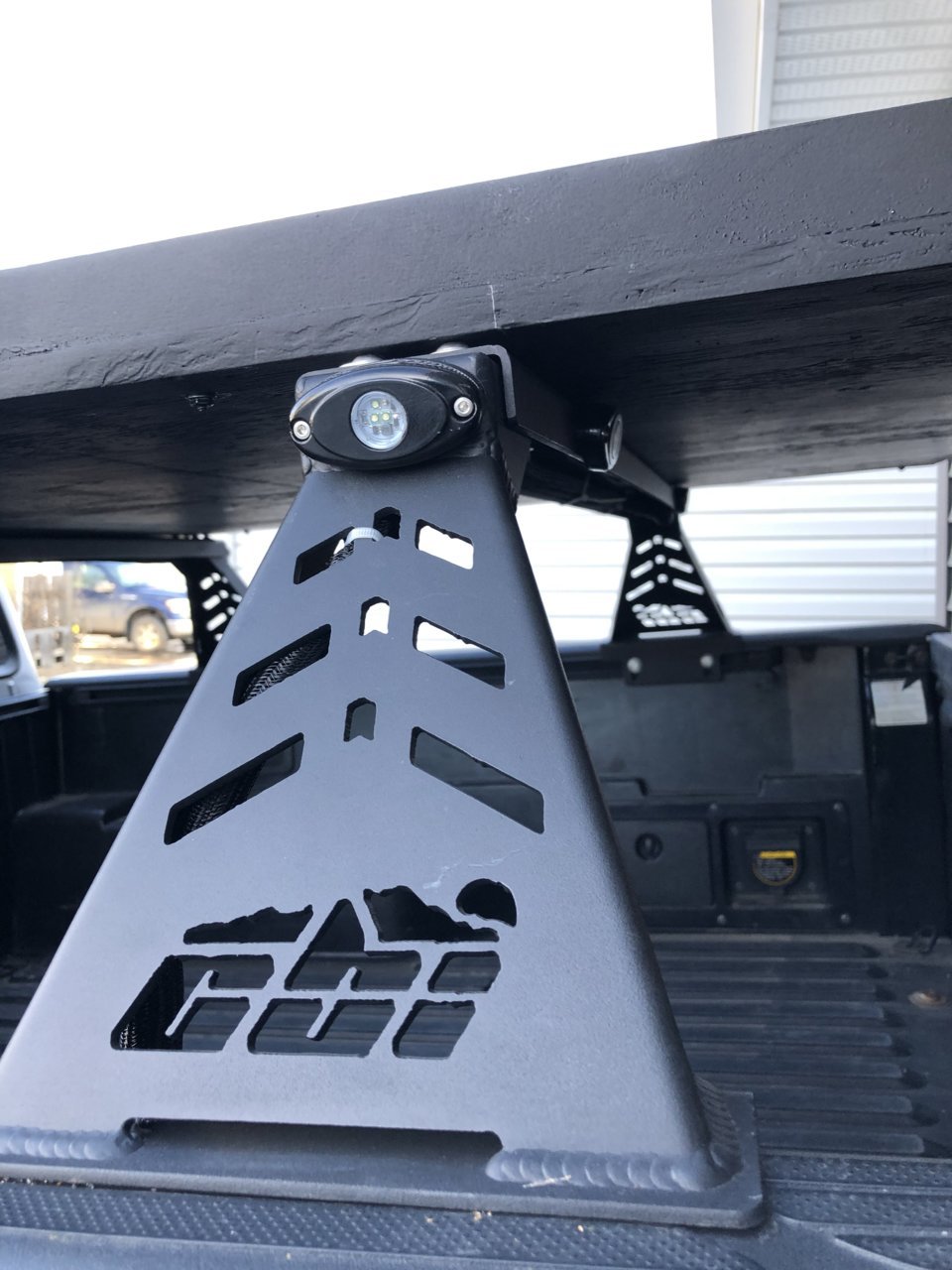

    Finally hooked up some lights to the switch! It works flawlessly. Love it.

    All three sides are hooked up to 3 different switches so I can control the lighting zones. I still haven't put any stickers on the switch board yet. Waiting for the nicer weather to show up!

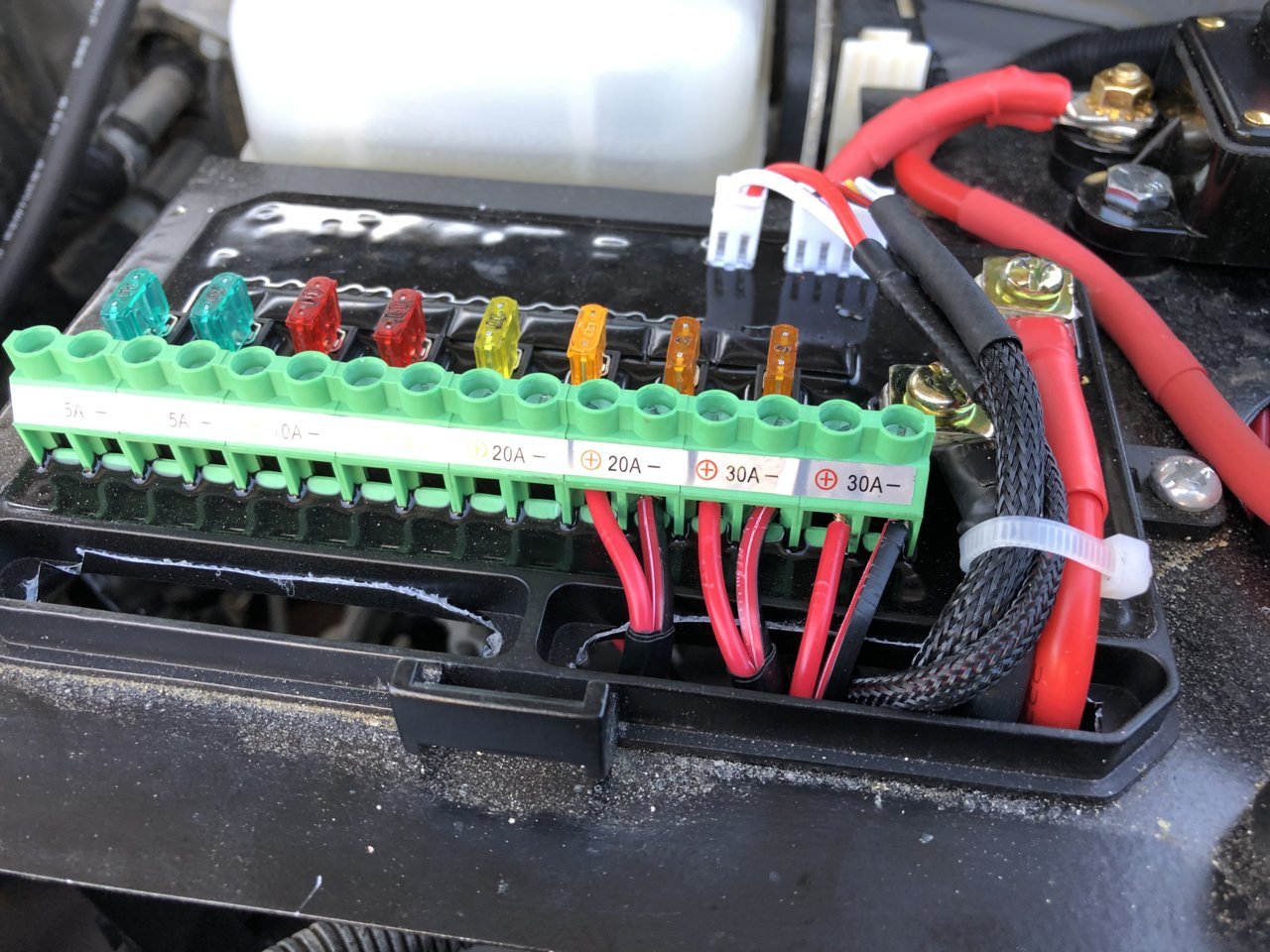

    I put the 5A fuses in different locations. This won't harm anything but the 30A and 20A labels throw me off. I will probable put tape over the amperage writing to not confuse anyone.

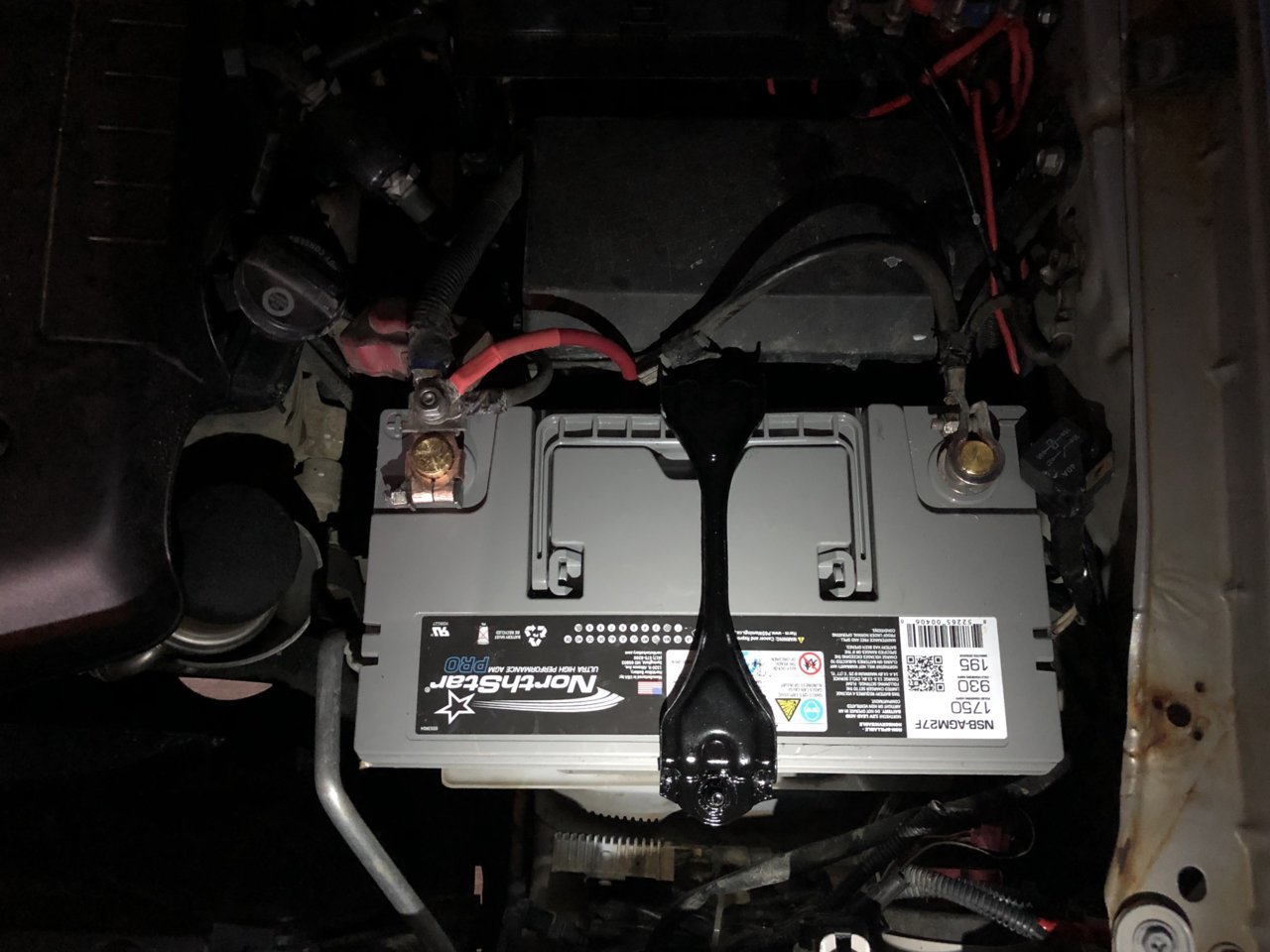

    I also upgraded my battery.

  6. May 14, 2020 at 10:56 AM
    #26
    12taco12

    12taco12 Well-Known Member

    Joined:
    May 24, 2017
    Member:
    #219836
    Messages:
    565
    Gender:
    Male
    rochester NY
    Vehicle:
    2012 TX Pro
    Billy 5100s OME 886 Billy remote resi 5125 rear General hd packs TImbren superbumps/flipkit Pelfrey steel full hoop front SOS bolt on sliders Baja squadron amber fogs Baja 20" bar Aux fuse panel and switches custom 10 sub box double din
    i know this is a little late but, so i know they are all prelabeleed with fuse 5a-30a. can you move those arounf and not worry? say i want them all to be 15a fuses or 30a etc can i just pop in a higher or lower fuse and be good to go?

    shane100700 and dpele [OP] like this.
  7. May 14, 2020 at 11:00 AM
    #27
    Lumberjackcoma

    Lumberjackcoma Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212540
    Messages:
    227
    Gender:
    Male
    First Name:
    Scott
    Ontario Canada
    Vehicle:
    mmm taco
    stock
    I read that you can't do that, due to the rating on each wire in the control box.

    12taco12 likes this.
  8. May 14, 2020 at 11:00 AM
    #28
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps
    I did... but I went down in size.
    I din't see why you couldn't. It's simply a fuse holder. Nothing electronically programmed. Very similar to a Blue-sea fuse panel.

  9. May 14, 2020 at 11:01 AM
    #29
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps
    Can you show me where it says this? Curious!!

  10. May 14, 2020 at 11:03 AM
    #30
    Lumberjackcoma

    Lumberjackcoma Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212540
    Messages:
    227
    Gender:
    Male
    First Name:
    Scott
    Ontario Canada
    Vehicle:
    mmm taco
    stock
    I read it on the Auxbeam facebook page, they wrote it as someone asked the same question. If I can find it easily I'll share it on here.

    dpele [OP] likes this.
  11. May 14, 2020 at 11:16 AM
    #31
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,052
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Interesting... although I would really doubt they used different gauge wires. There might be a couple that are bigger than the others but I would bet they are all pretty consistent in size otherwise.

    IF there is varied sizes, I would just pull out a micrometer and size each wire. Considering the coating may not accurately show the true gauge, you can judge what amp they can handle based off the largest and smallest measurements and fuse size to those wires.

  12. May 14, 2020 at 11:54 AM
    #32
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps
    I put a smaller fuse in the larger placeholder. 2.5A in the 30A spot. That is safe.
    But I wouldn't recommend doing the opposite lol

    Lumberjackcoma and shane100700 like this.
  13. May 14, 2020 at 11:59 AM
    #33
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,052
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    I built my own box and went with more traditional switches. Just speculating though, it just wouldn't seem feasible to use multiple sized wires unless it was a couple one offs to go up in size. That said, without measuring or confirming, its always better safe than sorry. I'd be interested in seeing someone open their box and spec it out though.

    The good news is, most of the amp ratings shouldn't be that big of an issue if you're using led lights and light bars. If you map and plan out your lighting accordingly, the fuses should spec just fine.

    12taco12 and dpele [OP] like this.
  14. May 18, 2020 at 6:07 AM
    #34
    ohcjam

    ohcjam Member

    Joined:
    Aug 24, 2018
    Member:
    #263981
    Messages:
    15
    Gender:
    Male
    Firestone, CO
    Vehicle:
    2018 TRDOR DCSB
    I dont have any thing hooked up to it yet so can't tell you how it actually is. I paid $140 for it from Auxbeam because I didn't want to pay >$500 for a controller. I figure if it breaks after few years, I'll just buy another one and it will still be a cheaper option.

    The thing that bothers me the most with this product is the breaker current rating. The breaker they provide is rated for 60A, but if you do the math [(30A*2)+(20A*2)+(10A*2)+(5A*2)] all the fuses combine exceed 60A. For now, I plan on just adding bunch lights to it so I probably won't exceed that 60A. I will also probably be changing the 30A's and 20A's fuses for lower amp fuses as a extra precaution so that they don't exceed total of 50~55A's.

    Last edited: May 19, 2020
  15. May 25, 2020 at 11:52 AM
    #35
    gmanrider9

    gmanrider9 Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210154
    Messages:
    65
    Gender:
    Male
    First Name:
    Garrett
    Longmont, CO
    Vehicle:
    2009 Blue Toyota Tacoma TRD DBC
    3" Toytec Lift, Rigid Industries Grill, 10" SR2 Light Bar, Auxbeam Front Spot Rear Flood, All Pro Bumpers, Projector Retrofit Lights, 33" Tires, Smittybuilt Winch, Raised K&N Air Intake
    So which one has the blue backlight and which one has the green?

  16. May 25, 2020 at 1:33 PM
    #36
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps
    Some companies sell them in both colours. You would have to read the description of them.
    Found lots of green ones on Amazon. Green and Blue on Auxbeam.

  17. May 25, 2020 at 2:13 PM
    #37
    gmanrider9

    gmanrider9 Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210154
    Messages:
    65
    Gender:
    Male
    First Name:
    Garrett
    Longmont, CO
    Vehicle:
    2009 Blue Toyota Tacoma TRD DBC
    3" Toytec Lift, Rigid Industries Grill, 10" SR2 Light Bar, Auxbeam Front Spot Rear Flood, All Pro Bumpers, Projector Retrofit Lights, 33" Tires, Smittybuilt Winch, Raised K&N Air Intake
    Gotcha. Definitely dont want green.

    dpele [OP] likes this.
  18. May 25, 2020 at 2:34 PM
    #38
    dpele

    dpele [OP] Eh.

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    174
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta, Canada
    Vehicle:
    2010 Tacoma DCSB
    2010 Silver Toyota Tacoma Manual TRD Off-Road Double Cab Short Box Front and back Ready Lift leveling kit 285/70/R17 Goodyear Wrangler DuraTracs 17" Method Standards AutoConnect remote and phone starter Stereo: JL Sub Stealth Box with 2-10s Focal Access spealers 2 Amps
    I agree with you... even though I got green lol.
    It was really my only option. When it's on the lowest brightness, the green is not very distracting.

    I will try to swap the SMDs one day. I'll go amber to match the 2nd gen interior.
    I already looked into it. Just need to change the 16 SMDs.

    Lumberjackcoma likes this.
  19. May 25, 2020 at 3:24 PM
    #39
    2013XSPX

    2013XSPX Well-Known Member

    Joined:
    Nov 29, 2015
    Member:
    #170975
    Messages:
    909
    Gender:
    Male
    First Name:
    Matt
    GA/FL Border
    Vehicle:
    2013 XSP-X
    Perfectly stock?
    The green is nice. I'd prefer Amber but I got the kit for $50. 15904429526457655893951909591553.jpg

    dpele [OP] likes this.
  20. May 25, 2020 at 4:29 PM
    #40
    Brownie_Man

    Brownie_Man Well-Known Member

    Joined:
    Sep 21, 2019
    Member:
    #305897
    Messages:
    338
    Gender:
    Male
    Maine
    Vehicle:
    2019 Off Road
    I installed my Auxbeam switch panel this weekend. I can't get the switch light to dim. I thought you touched the white wire to ground to dim. Am I wrong about this?
