96-04 4wd LT

Discussion in 'Long Travel Suspension' started by dirt designs, Feb 8, 2013.

  1. Feb 8, 2013 at 7:00 PM
    #1
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

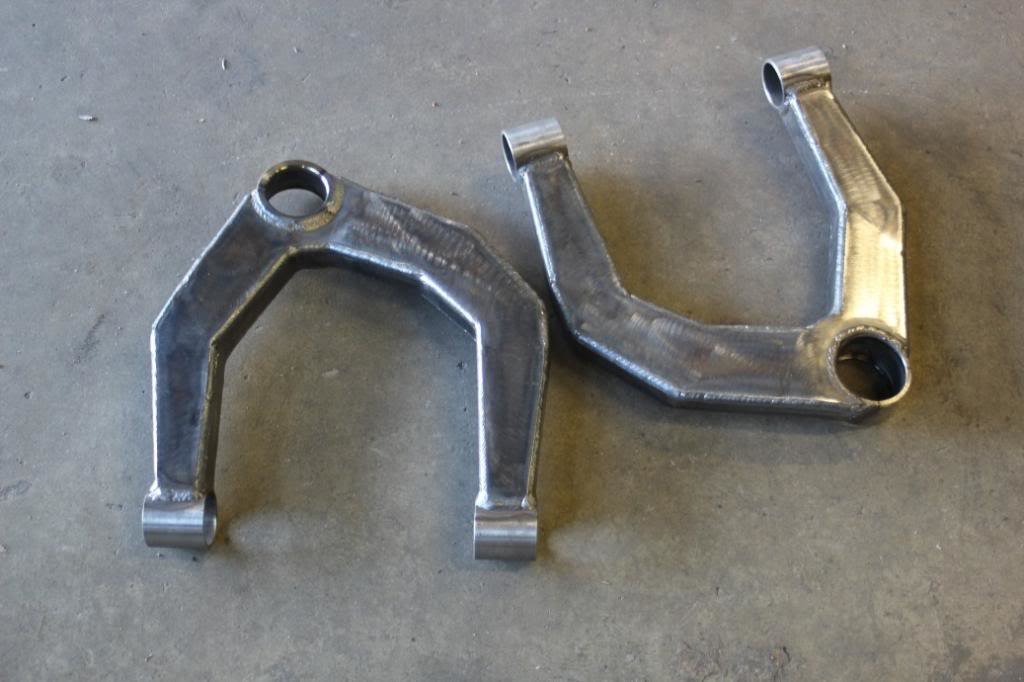

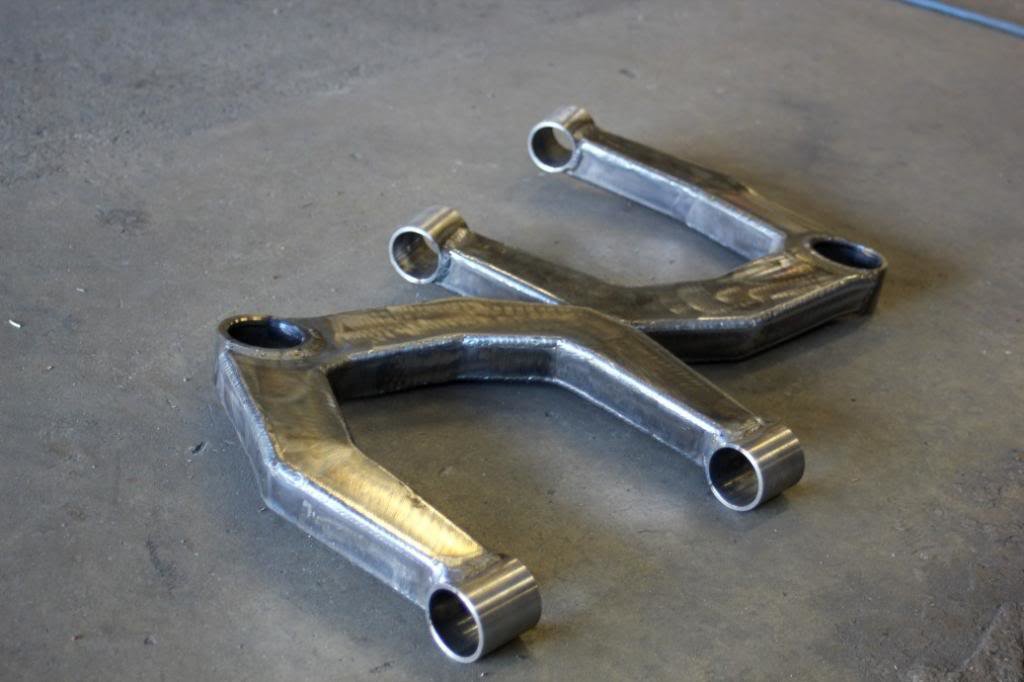

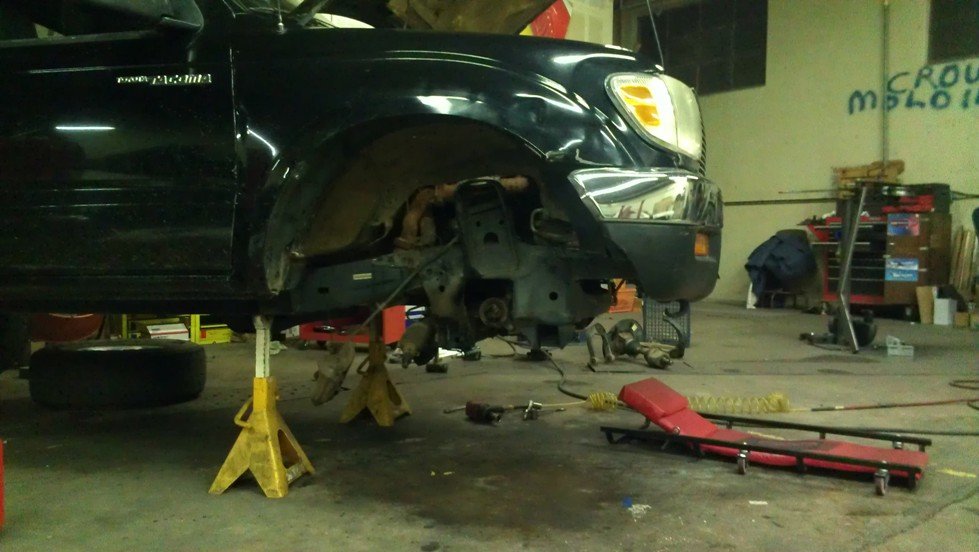

    Started the tear down and design for a 96-04 kit. No real pics but it should be pretty nice and maybe have some replacement parts for the tc/camburg kits. Its hush hush till next week

    [​IMG]

    [​IMG]

  2. Feb 8, 2013 at 10:41 PM
    #2
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,099
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    Based of all your previous work its gonna be badass forsure.

  3. Feb 8, 2013 at 10:42 PM
    #3
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,823
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    sub'd fo sho

  4. Feb 12, 2013 at 8:41 AM
    #4
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    I did a quick cycle on the kit yesterday and it does pull 14" clean with only 1/4" of cv plunge, no bumpsteer, and off the shelf napa tundra cvs. With a diff spacer 15" is very possible but cv plunge will be around 5/8-3/4". Stock cv allows 1 1/2" of plunge.

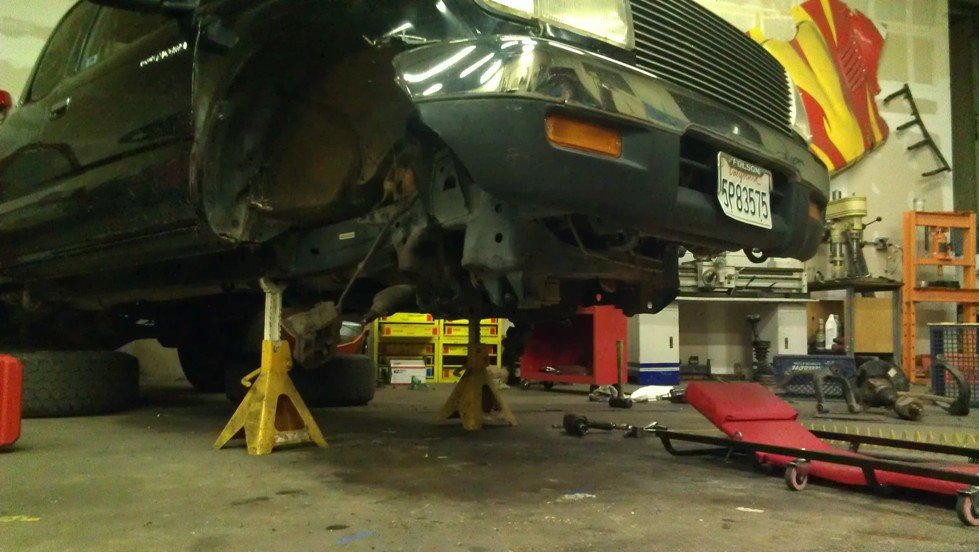

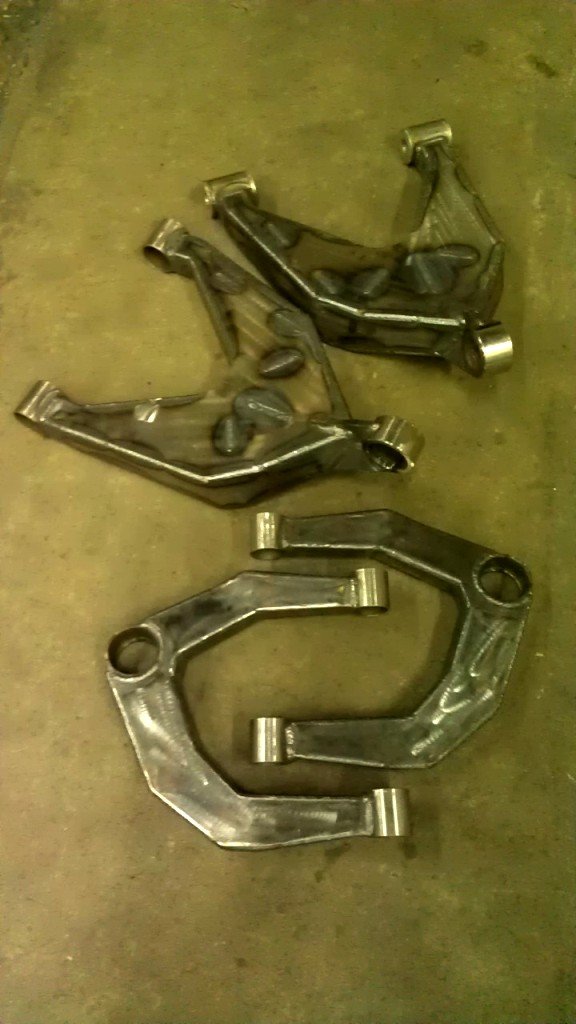

    More teaser pics. I just welded up the uppers yesterday and im hoping to have at least one lower welded today...and then the cat will be out of the bag
    [​IMG]

    [​IMG]

  5. Feb 12, 2013 at 9:10 AM
    #5
    DTFtacoma

    DTFtacoma Dezert Toy Fabrication

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,722
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    x2

  6. Feb 12, 2013 at 9:13 AM
    #6
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,276
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
  7. Feb 12, 2013 at 9:17 AM
    #7
    IDtrucks

    IDtrucks Just out for a rip are ya bud?

    Joined:
    Jun 2, 2010
    Member:
    #38254
    Messages:
    20,039
    Gender:
    Male
    First Name:
    Mark
    Boise ID
    Vehicle:
    96' X-Cab 4x4 TRD Off Road Clusterfuck
    JVC Deck, 10" sub mountd in rear seat cubby, 2 LED off road lights mounted in grille, amber raptor style grille lights, LED rock lights, square led bed light, custom made fuse block tray, 12 blade Blue Sea fuse block, 100a marine circuit breaker, black plasti dipped full grille, tinted tail lights + third, Uniden 520 with 4' firestik, Bilstein 5100s with 620lb Eibach coils, Diff drop, Chevy 63 leaf swap, TG creeper joints, 14" triangulated biletein 5125s, 8" extended steel braided brake line, TG Rock Sliders, CBI Moab 1.0 front bumper, custom fabbed bed rack, full TRD E-Locker axle swap and matching re-gear with custom stand alone wiring circuit, 29 spline pinion flange from an 06 wishbone runner, tubbed for 35x12.5" general grabbers on Ultra type 181 wheels, crush sleeve eliminator, Mini ARB compressor, front ARB locker, garage fab aluminum front skid plate, custom built high clearence rear bumper, removable mothafuckin doors
    I like where this is going!

  8. Feb 12, 2013 at 11:59 PM
    #8
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

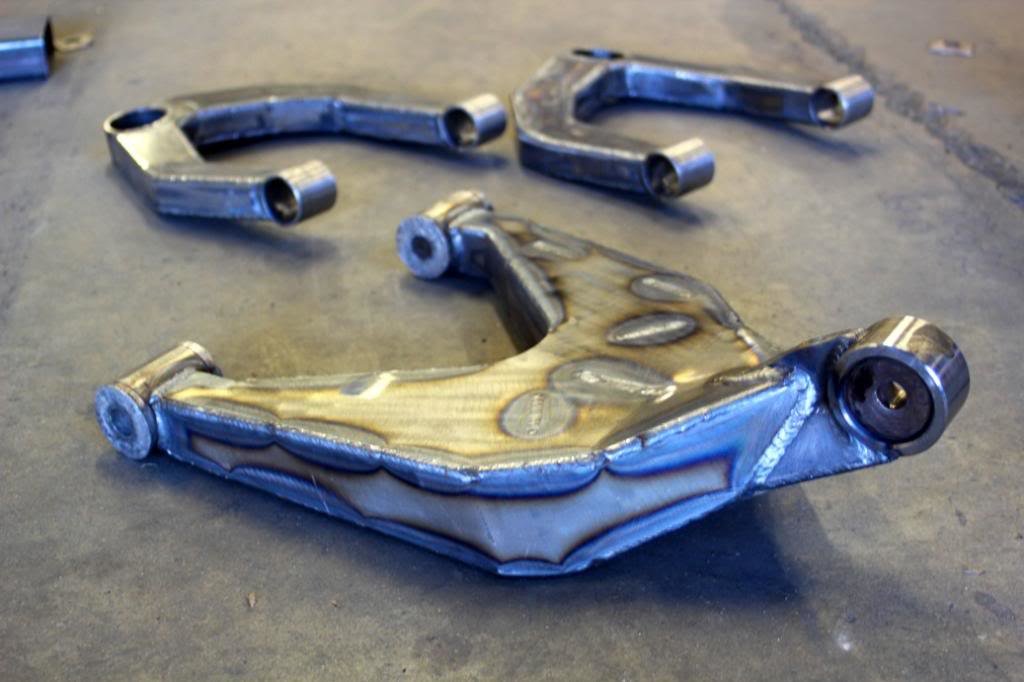

    And a little more looky looky. This is all bolt on with a stock spindle and i can start taking orders on these guys. Making an extremely strong replacement spindle for these should be an easy upgrade with this setup. Double shear lower uniball!!

    [​IMG]

  9. Feb 13, 2013 at 12:00 AM
    #9
    CayucosTacoma

    CayucosTacoma Just think outside the Yota

    Joined:
    Mar 9, 2012
    Member:
    #74580
    Messages:
    4,764
    Gender:
    Male
    First Name:
    Chris
    San Luis Obispo/Santa Barbara CA
    Vehicle:
    1998 Tacoma, 4x4 5 Speed, V6
    Specs in the Build Thread
  10. Feb 13, 2013 at 12:03 AM
    #10
    DTFtacoma

    DTFtacoma Dezert Toy Fabrication

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,722
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    Damn Steve! horizontal uppers and verical lowers? Seams ass backwards but I'm sure it's to cut scrub or some genius idea lol

  11. Feb 13, 2013 at 12:03 AM
    #11
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,099
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    Hows the outer end on the lower going to connect to the stock spindle?

  12. Feb 13, 2013 at 12:13 AM
    #12
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Hahaha its actually the best loading for the unis. I like using the vertical lower and upper unis most of the time because it keeps the dirt out of the liners and keeps the unis alive longer. Most of the force on the lower uniball is actually vertical force from the springs/shocks pushing down and when you bottom out. A lot of the backwards force hitting the tire gets transferred into vertical force. And a taller tire means more of that force gets put into vertical force which is why "bigger tire = smaller holes"

    Antoher good thing with the vertical lower is now it has a steering stop that wont grind the shit out of the lower arms. All the bj lower arms ive seen are pretty gashed in if they pull more then 11" of travel.


    Thats the magic

  13. Feb 13, 2013 at 12:48 AM
    #13
    Spagget13

    Spagget13 Well-Known Member

    Joined:
    Oct 24, 2011
    Member:
    #65759
    Messages:
    550
    Gender:
    Male
    First Name:
    Drew
    Yorba Linda
    Vehicle:
    01 TRD off road ext cab
    All-Pro ucas, 2.5 Racerunner SAW's with taller king coils,Deaver F67 Leafs, 2.5x16 king double bypasse, 7 inch kragen hid lights, Blitzpro dust light, flowmaster super 40 exhaust, tube bumper with skid, Spidertrax 1.5 wheel spacers, cb radio, Glassworks Fiberglass front and rear, soon to be installed Fox 2.0x4 bump stops.
    subbed.

  14. Feb 13, 2013 at 8:05 PM
    #14
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    14,121
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    :popcorn: for sure.
    Can't wait to see how this comes out.

  15. Feb 13, 2013 at 8:32 PM
    #15
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,276
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Do it :cool:

  16. Feb 13, 2013 at 8:53 PM
    #16
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    14,121
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    I have several possibilities I'm considering at this point in time....all of which require significant rework.

  17. Feb 13, 2013 at 8:59 PM
    #17
    kbauman92

    kbauman92 Well-Known Member

    Joined:
    Jun 5, 2012
    Member:
    #80132
    Messages:
    710
    Gender:
    Male
    First Name:
    Kyle
    North Bend
    Vehicle:
    98 tacoma ext cab
    King 2.5x6 RR coilovers eibach coils Light Racing UCA Spidertrax spacers Fiberwerx fenders
    Looks awesome! :popcorn:

  18. Feb 13, 2013 at 9:09 PM
    #18
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Only one more day to go and i should have pics of the suspension together on the truck. Had to take half a day to build some parts for other customers ive been holding off, but i did get the other lower welded today. AND i just had a great idea for the engine crossover for these trucks. We'll see if it works out.
    [​IMG]

  19. Feb 14, 2013 at 6:24 PM
    #19
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

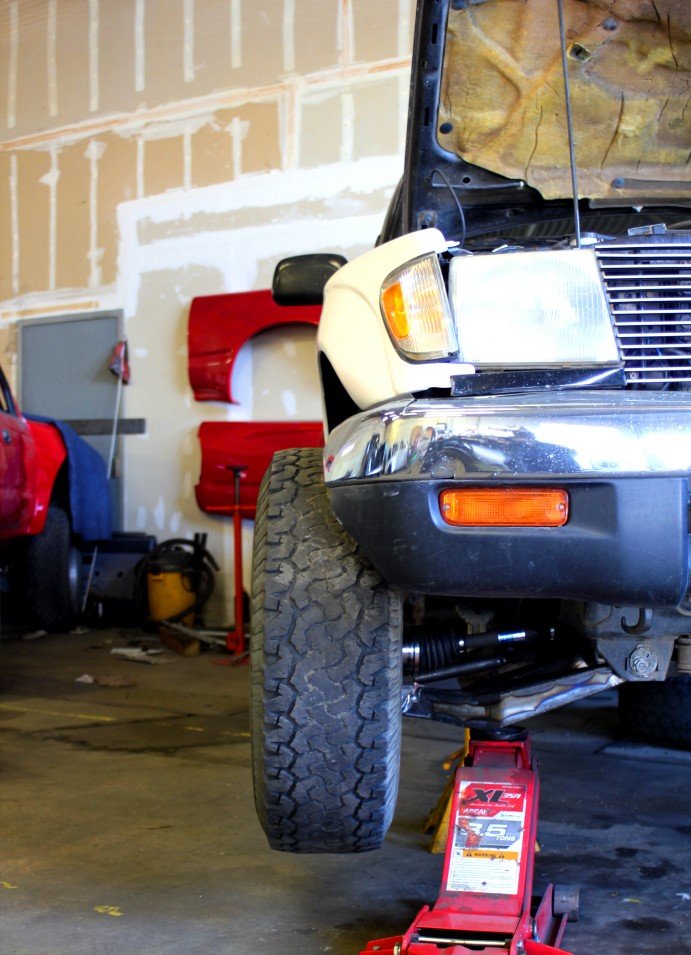

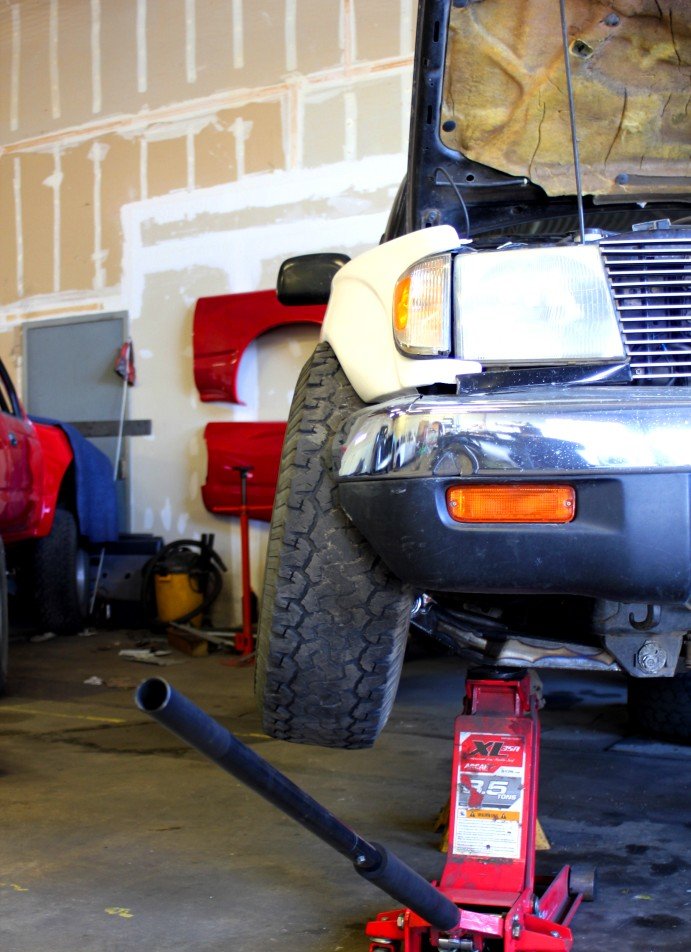

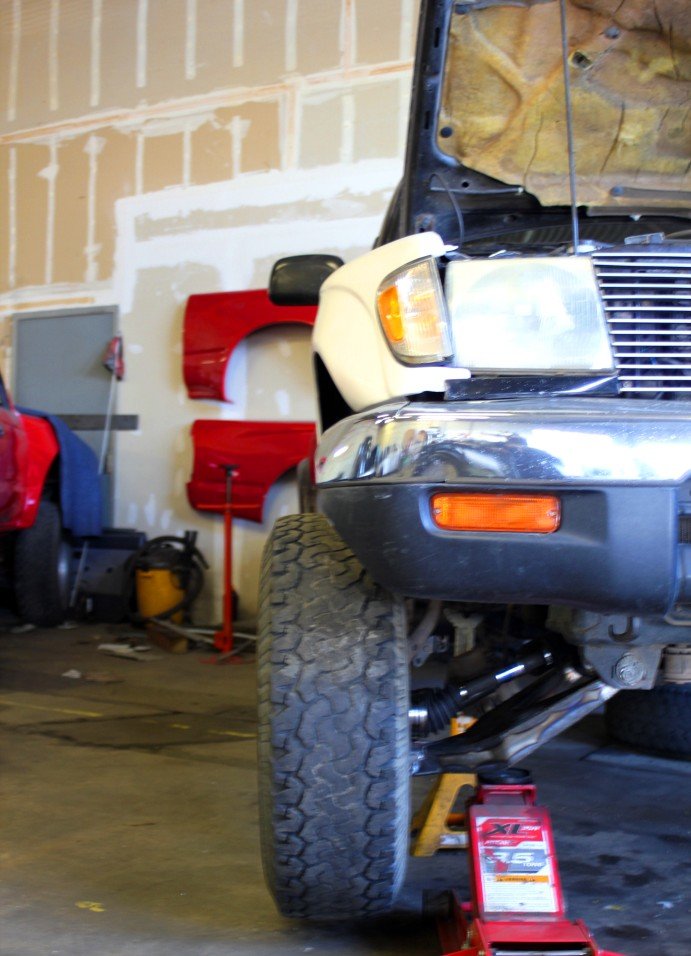

    FINALLY some cycling pics!! (jeez about time) And looky looky NO bumpsteer! These arms have over an inch more ground clearance then the other kits on the market right now. The camburg kit in the shop hangs down almost 1.5" lower with the EXACT same tire!

    [​IMG]

    [​IMG]

    [​IMG]

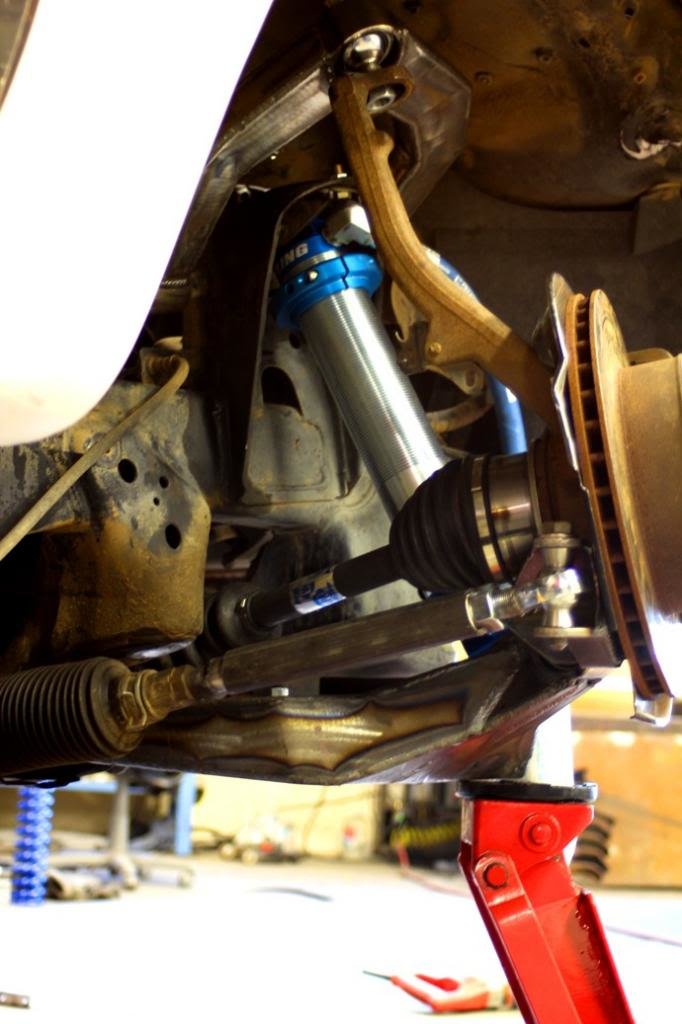

    No bumpsteer is due to the new heim steering setup with double shear tabs in the correct location. Cmon, how awesome is that?
    [​IMG]

  20. Feb 14, 2013 at 6:27 PM
    #20
    kbauman92

    kbauman92 Well-Known Member

    Joined:
    Jun 5, 2012
    Member:
    #80132
    Messages:
    710
    Gender:
    Male
    First Name:
    Kyle
    North Bend
    Vehicle:
    98 tacoma ext cab
    King 2.5x6 RR coilovers eibach coils Light Racing UCA Spidertrax spacers Fiberwerx fenders
    :bowdown: so much want, i wish i had more monies
