98-00 satoshi grill mod write-up with pics

Discussion in '1st Gen. Tacomas (1995-2004)' started by AK Taco, May 27, 2012.

  1. May 27, 2012 at 8:56 PM
    #1
    AK Taco

    AK Taco [OP] Your opinion? Fuck it.

    Joined:
    Apr 14, 2012
    Member:
    #76924
    Messages:
    3,187
    Gender:
    Male
    First Name:
    matt
    Anchorage, Ak/ Corvallis, Or
    Vehicle:
    chrome-free '99 sr5
    20% tint on all windows, Deckplate mod, satoshi-ish grille, blacked out and/or body matched emblems, rattle canned rims, red l.e.d. interior lights, bilstein 5100's and OME 881 coils , deaver 8 leaf pack, 1.5" lift shackle, alpine sound system, 55w HID lightforce 140 and 170 fogs, 6k hid's
    When I decided to do a satoshi style grill on my '99 I looked all over the online forums in search of a solid write-up. I didn't find one. So, using a write-up for the 05+ i went at it, all the while taking pictures whenever I remembered. I still have yet to see a write-up for the first gens so I figured I would do one myself. Here it goes:

    Tools used:
    flathead screwdriver
    dremel tool with a cutoff wheel and sanding wheel
    Fiberglass repair kit
    Bondo
    Sanding block
    60, 120, 240, 400, 600 grit sandpaper
    Duplicolor primer
    Rustoleum semi-gloss black high performance enamel spray paint
    Grill mesh of your choosing( i used expanded metal)
    zip ties
    zip tie mounts or 1"x1" angle aluminum

    The first thing to do is remove the grill from the truck. There are five retaining tabs along the top of the grill surround and three along the bottom. I used a long flathead screwdriver push down on the tab and then gently pulled forward to separate it from the body of the truck. once all the tabs have been separated the grill should pop right off. Heres a pic of the mounting tabs:

    [​IMG]


    The next step is to gut the grill. Using the dremel tool and cutoff wheel I started at the top of the grill and cut each piece of the grill that was attatched to the surround. There are the two main crossbars as well as well as two thin crossbars and five thin vertical crossbars. I wasnt able to cut everything out suoer close to the surround which meant i had to use the sanding bit on the dremel tool to grind these down flush. Once this is done my grill looked like this:

    [​IMG]

    The next step is the hardest step. The two big holes on either side of the grill need to be filled in. This is where the fiberglass kit comes in to play. Each kit is different but take the fiberglass and cut it into 4"x8" strips. You will need two or three for each side so 4-6 in total. Then following te directions on your kit apply the resin to the fiberglass and lay the strips across the holes in the surround. Do this one strip at a time and make sure you are putting the fiberglass on the inside portion of the grill surround. After allowing the fiberglass to dry cut the exess fiberglass off in a straight line with the surround like so:

    [​IMG]

    Sorry no pics of this part but now that the large holes are covered you need to smooth everything out. Follow the mixing instructions on the Bondo container and apply the bondo to any spot that is uneven or rough. Dont be afraid to use alot, it sands down quickly.

    Now the sanding begins, using the sanding block and the 60 grit paper, sand down all the high spots in the bondo until they are almost even. Then move up to the 120 grit and bring the high spots dwn a bit further. Then increase to the 250, and then the 400. If there are and holes in the bondo or low spots go back and Refill them with more bondo. YOU CANNOT SAND TOO MUCH. A good paint job is 90% preparation so dont skimp out on the sanding. After you are satisfied with the bondo work go over everything with the 600 grit paper.

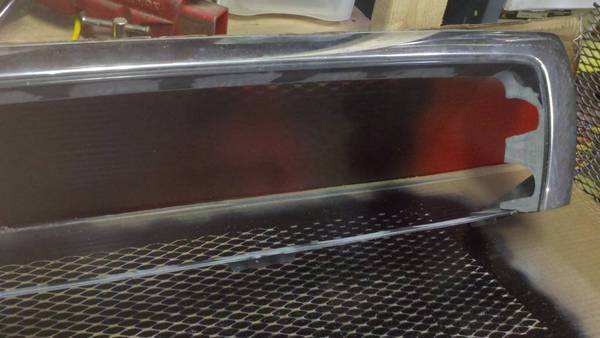

    Once I was done sanding I taped everyting i didnt want to paint and layed down a couple coats of primer:

    [​IMG]

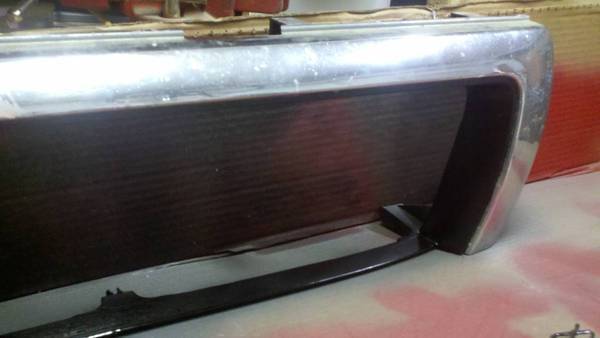

    and then painted:

    [​IMG]

    The next step is to cut out the grill material. i took some measurements and cut the expanded metal out with about a 1" overlap on the top and two sides to help with mounting. After cutting the metal out I primed and painted it to match the grill surround.

    [​IMG]

    There are two options for mountaing the mesh: zipties and zip tie mounts for a recessed grill or aluminum brackets and zipties/bolts and washers to mount the grill flush with the surround.

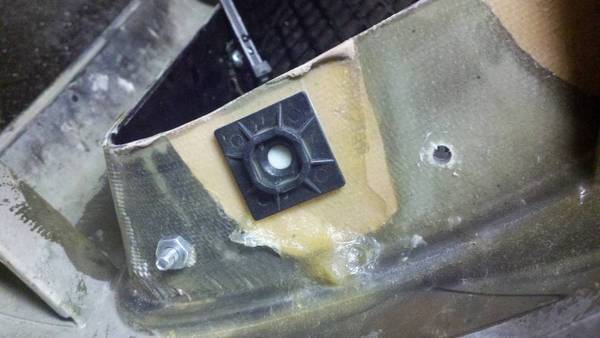

    To mount the grill recessed I took the adhesive ziptie mounts and placed them around the perimeter of the grill surround.

    [​IMG]

    Then i set the grill on the surround and ran zipties through the mounts and around a piece of the grill to fasten it. This held firmly all winter with no broken zipties or mounts. Comes to a finished product that looks like this:

    [​IMG]

    I liked the look of this but I wanted to mount the gril flush to see how it looked. I first had to make some L brackets to mount the grill. i cut small sections of 1"X1" aluminum and then drilled a hole on each end. Then I painted them to match the grill. they look like this:

    [​IMG]

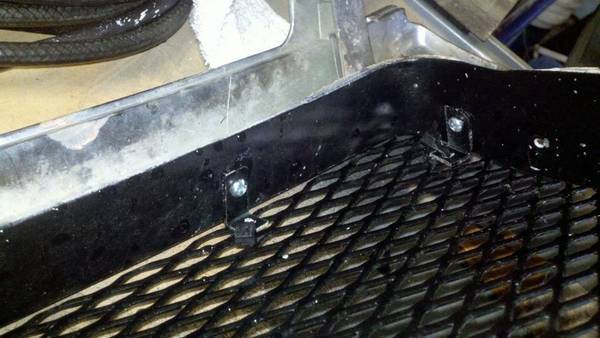

    Then i drilled holes through the grill surround and attatched the mounts to the surround with small bolts like this:

    [​IMG]

    I cut out a new piece of metal and used the edge of the work bench to form the curve to match the grill surround. Once this was done i primed and painted it. Then i set the grill on the surround and attatched it to the brackets with some zipties. I will proabaly upgrade to some bolts with a washer but i couldnt find the rights ones around the house. I also painted the rest of the chrome surround black and added a body matched emblem for a finished product that looks like this:

    [​IMG]

    Once everything is attatched securely I put the new grill back on the truck and I was finished!

  2. May 28, 2012 at 7:09 AM
    #2
    Fiolo

    Fiolo Senior member

    Joined:
    Sep 10, 2011
    Member:
    #63227
    Messages:
    4,262
    Gender:
    Male
    Vehicle:
    98 Regular cab lifted 4wd
    Lost track many mods ago
    Nice right up man, i seen a few right ups on second gen grilles but not many on the 98-00 grille

  3. May 28, 2012 at 7:31 PM
    #3
    RMAN808

    RMAN808 S)(AKALO)(AWAII

    Joined:
    Feb 14, 2012
    Member:
    #72797
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Reid
    Pearl City, Hawaii
    Vehicle:
    '99 PreRunner
    OME 883' w/5100s, Toytec AAL, 265/75R16 Treadwright Guard Dog's, 16x8.5" Level 8 Strike 6 wheels, 14" Magnaflow, 4" Deck Plate Mod w/Screen, Grillcraft, etc. Check build thread in sig for more info...
    Great write up OP! I'm thinking about doing my own soon also. Just waiting to find the right pattern of mesh.

  4. May 28, 2012 at 9:50 PM
    #4
    AK Taco

    AK Taco [OP] Your opinion? Fuck it.

    Joined:
    Apr 14, 2012
    Member:
    #76924
    Messages:
    3,187
    Gender:
    Male
    First Name:
    matt
    Anchorage, Ak/ Corvallis, Or
    Vehicle:
    chrome-free '99 sr5
    20% tint on all windows, Deckplate mod, satoshi-ish grille, blacked out and/or body matched emblems, rattle canned rims, red l.e.d. interior lights, bilstein 5100's and OME 881 coils , deaver 8 leaf pack, 1.5" lift shackle, alpine sound system, 55w HID lightforce 140 and 170 fogs, 6k hid's
    Thanks guys. Ive had the pictures sittin around for a few months now and finally got around to getting the write-up done :rolleyes:

  5. May 28, 2012 at 10:06 PM
    #5
    RMAN808

    RMAN808 S)(AKALO)(AWAII

    Joined:
    Feb 14, 2012
    Member:
    #72797
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Reid
    Pearl City, Hawaii
    Vehicle:
    '99 PreRunner
    OME 883' w/5100s, Toytec AAL, 265/75R16 Treadwright Guard Dog's, 16x8.5" Level 8 Strike 6 wheels, 14" Magnaflow, 4" Deck Plate Mod w/Screen, Grillcraft, etc. Check build thread in sig for more info...
    I've got a couple questions for you, OP. Where'd you get your mesh from? ...and how did you take measurements for the mesh? (did you trace and overlap 1" all around or did you just cut out a rectangle so that all sides are at least overlapped 1")???

    Haha sorry, but hoping you can give me some pointers.

  6. May 28, 2012 at 10:23 PM
    #6
    AK Taco

    AK Taco [OP] Your opinion? Fuck it.

    Joined:
    Apr 14, 2012
    Member:
    #76924
    Messages:
    3,187
    Gender:
    Male
    First Name:
    matt
    Anchorage, Ak/ Corvallis, Or
    Vehicle:
    chrome-free '99 sr5
    20% tint on all windows, Deckplate mod, satoshi-ish grille, blacked out and/or body matched emblems, rattle canned rims, red l.e.d. interior lights, bilstein 5100's and OME 881 coils , deaver 8 leaf pack, 1.5" lift shackle, alpine sound system, 55w HID lightforce 140 and 170 fogs, 6k hid's
    I got my mesh from home depot. It was a big sheet. Like 4'x8' i think. For the measurements i traced the inner part of the grill surround and then added an inch for overlap. Hope that helps. Feel free to ask more questions hopefully i can help.

  7. May 28, 2012 at 10:24 PM
    #7
    AK Taco

    AK Taco [OP] Your opinion? Fuck it.

    Joined:
    Apr 14, 2012
    Member:
    #76924
    Messages:
    3,187
    Gender:
    Male
    First Name:
    matt
    Anchorage, Ak/ Corvallis, Or
    Vehicle:
    chrome-free '99 sr5
    20% tint on all windows, Deckplate mod, satoshi-ish grille, blacked out and/or body matched emblems, rattle canned rims, red l.e.d. interior lights, bilstein 5100's and OME 881 coils , deaver 8 leaf pack, 1.5" lift shackle, alpine sound system, 55w HID lightforce 140 and 170 fogs, 6k hid's
    Heres a pic:

    [​IMG]

  8. May 28, 2012 at 10:30 PM
    #8
    RMAN808

    RMAN808 S)(AKALO)(AWAII

    Joined:
    Feb 14, 2012
    Member:
    #72797
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Reid
    Pearl City, Hawaii
    Vehicle:
    '99 PreRunner
    OME 883' w/5100s, Toytec AAL, 265/75R16 Treadwright Guard Dog's, 16x8.5" Level 8 Strike 6 wheels, 14" Magnaflow, 4" Deck Plate Mod w/Screen, Grillcraft, etc. Check build thread in sig for more info...
    Awesome! Thanks man. You said you used a dremel tool with a cutting wheel, right? I might buy one from Harbor Freight. Hopefully it's quality is good enough for the job. Is that tool what you used to gut the grill AND cut the mesh?

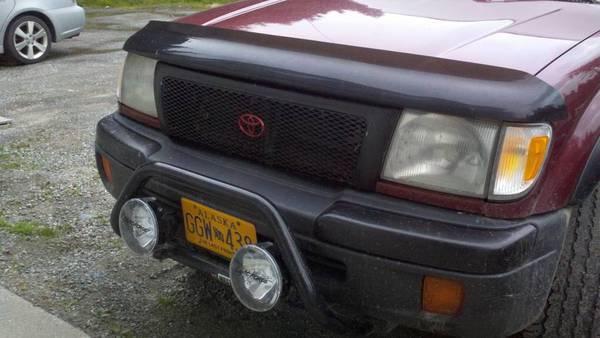

    Oh! And do you have pics of it on your truck? :D
