a better crimper for non-insulated terminals?

Discussion in 'Lighting' started by HAVOC, Mar 29, 2020.

  1. Mar 29, 2020 at 4:15 AM
    #1
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,763
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    I have an OLS relay/fuse box and I started to install the wires but the crimper I have isn't strong enough. It just folds the tabs over instead of a proper crimp. The metal used for the terminals of the OLS is thicker and you can't get a good crimp.

    This is the crimper I have:
    https://www.amazon.com/Delphi-Packa...coding=UTF8&psc=1&refRID=4MSKKASY55KS8V8F7GTA

    I've seen this on Amazon and I wonder if it would be better:
    https://www.amazon.com/Klein-Tools-...coding=UTF8&psc=1&refRID=MAG4X15PDCM88ESFY8SA

  2. Mar 29, 2020 at 4:31 AM
    #2
    NukedTaco

    NukedTaco Well-Known Member

    Joined:
    Jan 17, 2018
    Member:
    #241559
    Messages:
    949
    Gender:
    Male
    First Name:
    Wyatt
    Saratoga Springs, NY
    What kind of connectors are you using, un-insulated open barrel?

  3. Mar 29, 2020 at 4:51 AM
    #3
    BrownBear80

    BrownBear80 Active Member

    Joined:
    Oct 2, 2019
    Member:
    #306930
    Messages:
    37
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    Tacoma
    None
    Klein is really good. I’ve used a lot of there tools while doing electrical and it’s precise finish.

    Fire Chicken likes this.
  4. Mar 29, 2020 at 6:02 AM
    #4
    DES2009

    DES2009 Unknown Member

    Joined:
    Jul 22, 2014
    Member:
    #134426
    Messages:
    1,676
    Gender:
    Male
    Southeast Louisiana
    Vehicle:
    2017 MGM Limited
    OVT 2.0-Final 91 Stk Garmin DashCam 56 RFCC/Natika F-Cam Toyota PK3B6-35JS0 Power Tailgate Lock
    I bought this crimping tool just about two weeks ago. The crimper I already had was not going to work for the tiny terminals I needed to crimp.
    So far this one has worked well. Seems to be pretty well made, and certainly comes with a lot of useful extras.

    https://www.amazon.com/dp/B07R2MFCQ...9Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

  5. Mar 29, 2020 at 6:14 AM
    #5
    0xDEADBEEF

    0xDEADBEEF Greasy Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,772
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    This. Using the right crimper for the terminal makes a huge difference.

    TXpro4X4, Lunchmeat79 and paranoid56 like this.
  6. Mar 29, 2020 at 6:19 AM
    #6
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,763
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
  7. Mar 29, 2020 at 6:28 AM
    #7
    0xDEADBEEF

    0xDEADBEEF Greasy Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,772
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
  8. Mar 29, 2020 at 6:47 AM
    #8
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,763
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    That's very similar to the crimper I have now. I don't think it's the style of crimper but the thickness of the material the terminal is made of.

    DES2009 likes this.
  9. Mar 29, 2020 at 6:56 AM
    #9
    0xDEADBEEF

    0xDEADBEEF Greasy Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,772
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    That could be. They tend to be really sensitive to small differences. Something that ratchets might help for sure.

  10. Mar 29, 2020 at 11:24 AM
    #10
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    20,348
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    You need one with off sets on the dies. Then it crimps the terminal over wire and terminal over insulated wire. The ratchet style is the best and doesn't over/under crimp. Plus removable dies make it easy to change over to other crimp styles.

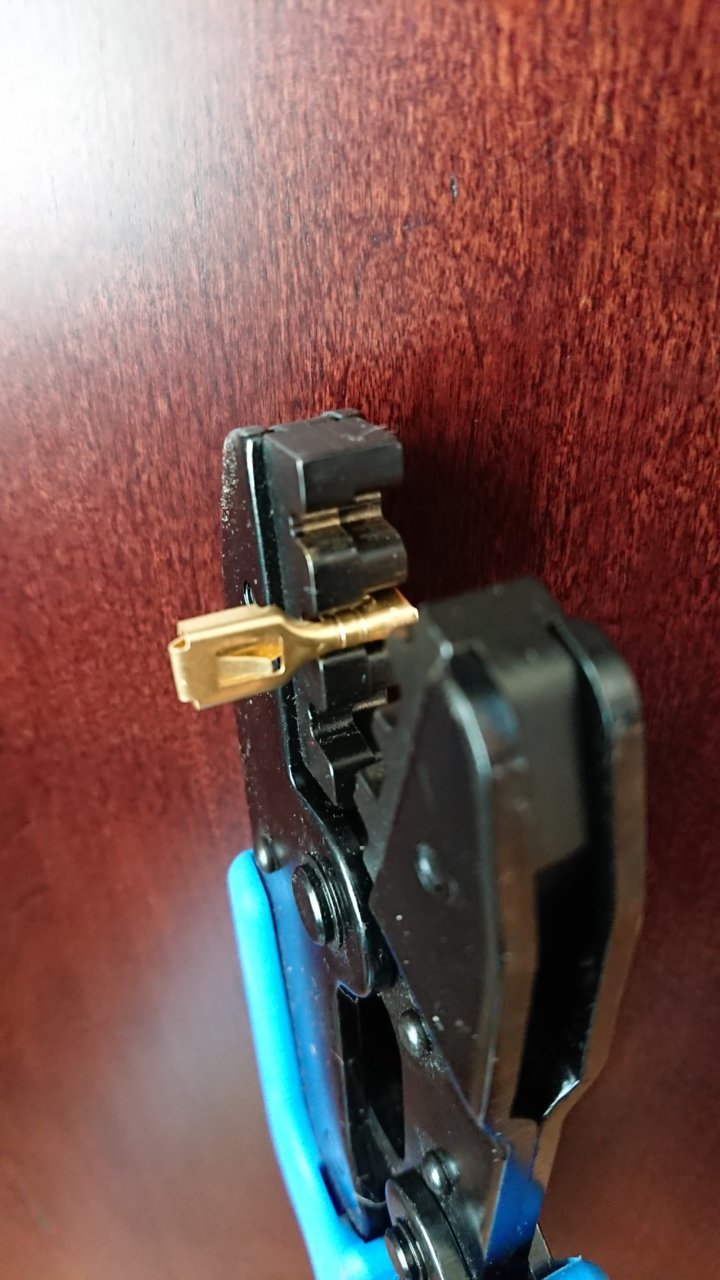

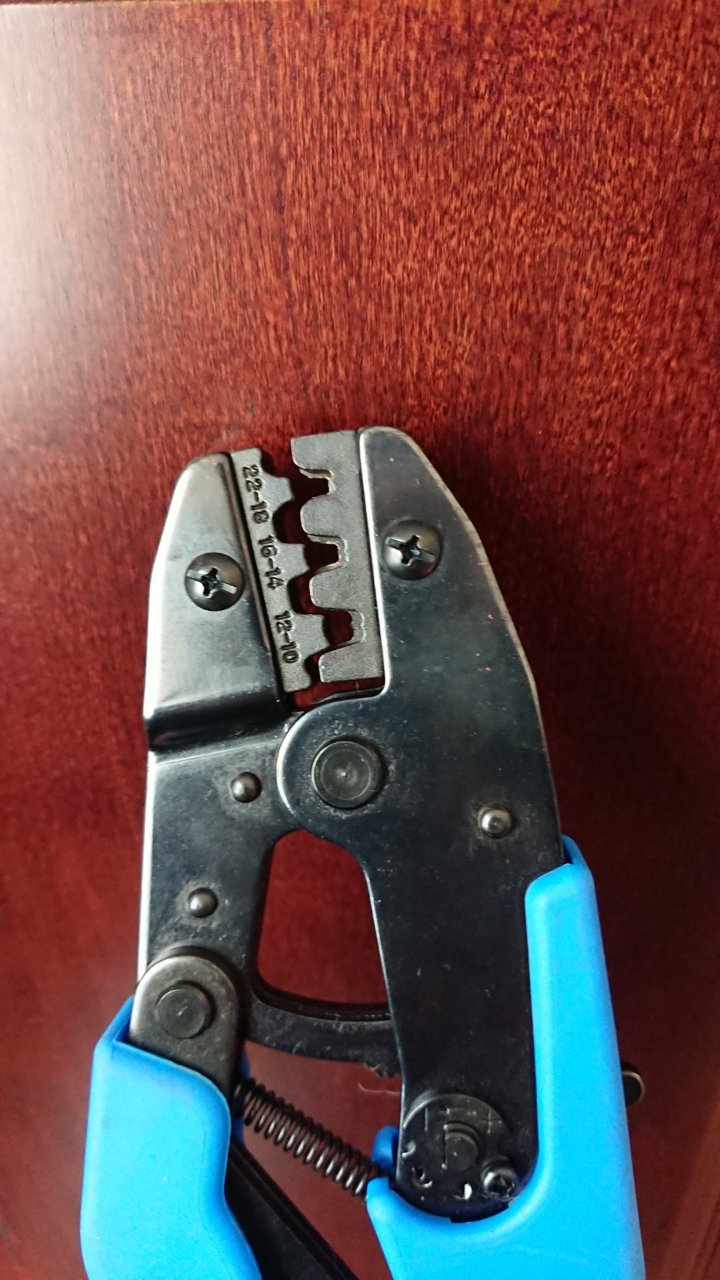

    DSC_0256.jpg DSC_0255.jpg

    TXpro4X4 and HAVOC [OP] like this.
  11. Mar 29, 2020 at 3:13 PM
    #11
    NukedTaco

    NukedTaco Well-Known Member

    Joined:
    Jan 17, 2018
    Member:
    #241559
    Messages:
    949
    Gender:
    Male
    First Name:
    Wyatt
    Saratoga Springs, NY
    The middle die for the klein tool you linked should work for those connectors. The crimper you have is for metri-pack and weather-pack terminals which use cable seals.

  12. Apr 3, 2020 at 5:03 PM
    #12
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,763
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    My Klein VDV200-010 crimp tool arrived today. I had to change the "tension knob" to the lightest setting because where it was I couldn't get the tool open. Yes, I know about the small lever.
    I crimped one terminal for a fuse and the crimp came out good but it's crimping the terminal too much. I'd have to crimp and count the clicks so I don't over do it.

    I'd like to practice but the fuse block did not come with extra terminals :(
    Like I said before, it's like the metal the terminal is made from is too thick.

    Maybe I could try crimping a terminal in the next slot. 18ga. in the 16-14 slot?

  13. Apr 3, 2020 at 5:05 PM
    #13
    0xDEADBEEF

    0xDEADBEEF Greasy Member

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,772
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    Could the terminals be intended for soldering?

  14. Apr 3, 2020 at 5:06 PM
    #14
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,763
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Yes, but after you crimp them. They won't fit in the housing otherwise.

    0xDEADBEEF likes this.
  15. Jul 11, 2020 at 4:54 PM
    #15
    Aau80

    Aau80 Well-Known Member

    Joined:
    Jul 10, 2020
    Member:
    #334054
    Messages:
    163
    Gender:
    Male
    First Name:
    Alan
    Alexandria Va
    Vehicle:
    2020 cement taco off-road
    Meso ultimate turn signals, Meso pod lights, bestop soft topper Nothing major... yet...
    Channellock 909 9.5-Inch Wire Crimping Tool | Electrician's Terminal Crimp Pliers with Cutter are Designed for Insulated and Non-Insulated Connections | Forged from High Carbon Steel | Laser Heat-Treated Edges Last Longer | Made in the USA https://www.amazon.com/dp/B00004SBDI/ref=cm_sw_r_cp_api_i_VbLcFbPF0BMP3

    When i use to work at a shop installing TVs and alarms in cars i used these, crimps really well and very durable... sometimes i used them to crimp 4ga wire terminals for grounding amp wires

    Steves104x4 and 0xDEADBEEF like this.
