A/C Electrical Helppppp!!!! Tried it all already

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JGon, May 20, 2020.

  1. May 20, 2020 at 11:19 AM
    #1
    JGon

    JGon [OP] New Member

    Joined:
    Feb 1, 2020
    Member:
    #317916
    Messages:
    2
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    07 Black Tacoma
    Hey Guys and Gals, I hope you're having a kickass day so far!!

    I am looking for help and maybe I overlooked something. I want to say I have tested and replaced it all.

    I have a 2007 Toyota Tacoma 150K. One day the A/C stopped blowing, just went out while driving. Now prior to all this happening, I did have the typical A/C issues with the Blower motor resistor going out and the connector showing signs of burnt pins. I replaced both connector and resistor, Worked fine for another couple of months.

    Now the fan does not blow, on any setting. I took it to the dealer and the have misdiagnosed the problem twice. I was told it was the relays and fuses and need a new fan motor. I replaced them and still not working. I was then told It was a bad control panel unit so I replace that also and It is still not working. I was looking over the electrical schematic and everything works with the A/C amplifier, So I replaced that too and still nothing. I don't know what else to check. It is an electrical problem. When I turn the A/C on you can hear the engine side components engage and the engine RPM goes up a bit. So I know It is, not the Compressor or engine components that are Bad.

    Parts Replaced:
    A/C - Fuses and Relays under Hood
    Blower Motor
    A/C Control Panel
    A/C amplifier

  2. May 20, 2020 at 11:25 AM
    #2
    MR5X5

    MR5X5 Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309141
    Messages:
    139
    Gender:
    Male
    Get a multi meter and a circuit diagram and start working backwards from the fan until you find where the voltage is not being passed.

  3. May 20, 2020 at 11:31 AM
    #3
    IL Capo

    IL Capo Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310211
    Messages:
    308
    Gender:
    Male
    Sidney BC Canada
    Sorry to hear about your AC problems.....I would have to agree. You will need to work backwards from the fan unit. I'm assuming someone check the fan unit to ensure it still works....good luck & keep us posted.

  4. May 20, 2020 at 11:37 AM
    #4
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,139
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Did you look at the two wire connector that plugs into the motor itself? It is also subject to burning.

    Here are the prints for the Blower and AC Circuit.

    If you look you can see that the Blower motor should have AC power (12 VDC) on the Black wire with a Yellow Stripe when the blower is turned on any speed when the heater relay is energized.

    Where I would start is start the truck and turn on the blower ( any speed ) and check for voltage at the Black wire with a Yellow Stripe. If you have 12 VDC at that wire then you know everything is working up to that point.

    If you don't then you could have a blown IG1 NO2 Fuse. Check it with a meter don't depend on your eyes. You can't always tell a blown fuse. Also the ground wire for the heater Relay Coil is the yellow wire # 2 that goes through the AC Controller for a ground connection.

    If you are getting 12 VDC and the blower still isn't running, then what you can do is to connect the white wire with a lavender stripe with a temporary wire to a good ground. If the blower runs (warning it will be full speed as the resistor will be bypassed). If the blower runs then you know the blower is working.

    Now we are down to either the resistor or the ground wiring... All I can say here is to go through the circuit with a meter to check for broken or loose connections.



    Last edited: May 20, 2020
  5. May 20, 2020 at 12:03 PM
    #5
    JGon

    JGon [OP] New Member

    Joined:
    Feb 1, 2020
    Member:
    #317916
    Messages:
    2
    Gender:
    Male
    First Name:
    Jay
    Vehicle:
    07 Black Tacoma
    This is awesome and great info brother, Thank you. I have put a meter all over the place, but I will recheck these circuit and connectors. Also I don't know if this can be a clue of some kind. When the A/C went out so did the headlights. They only worked on Highbeams, The dealer replaced the relays and that started working again. I am going to use these prints and recheck it all. Thank you

  6. May 20, 2020 at 12:17 PM
    #6
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    If it's low on refrigerant, it won't turn on either. There's a pressure switch on one of the lines. Unplug it and check ohms on the switch. It should be closed, 0 ohms. If not, it's either a bad switch or no chilly juice in the system.

    You can also jump out the connector and see if it turns on. I wouldn't leave it running though until pressures are checked in the system. You just want to see the compressor spin.

    MrKatanga and 12TRDTacoma like this.
  7. May 20, 2020 at 12:20 PM
    #7
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,139
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    From the original post:

    "When I turn the A/C on you can hear the engine side components engage and the engine RPM goes up a bit."

    From his post I understood that the blower isn't working.

    Philrab likes this.
  8. May 20, 2020 at 1:02 PM
    #8
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Ummmmmmmm, ya.

    I got nothing.

    I'll see myself out now....

    :anonymous:

    Jimmyh likes this.
  9. May 21, 2020 at 6:55 PM
    #9
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,139
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    No need to wear a bag! LOL

    It's all good.

    Accipiter13 and Larzzzz like this.
  10. May 23, 2020 at 8:52 AM
    #10
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,139
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

    Any updates?

  11. May 23, 2020 at 9:55 AM
    #11
    Philrab

    Philrab Curator of useless knowledge

    Joined:
    Apr 7, 2019
    Member:
    #289392
    Messages:
    640
    Gender:
    Male
    First Name:
    Phil
    New Orleans, Louisiana
    Vehicle:
    2015 Pyrite Mica Quad Cab Prerunner
    Bunch of Basic Taco mods.
    No easy answers with an electrical fault. Grab the multimeter, check every connection for power and ground, take nothing for granted, don’t assume even a brand new part is properly functioning.

    I’d even considering running a jumper wire to the blower motor to make good and sure it works installed, just so you aren’t chasing your own tail.

    MrKatanga likes this.
  12. May 23, 2020 at 11:15 AM
    #12
    Zersko

    Zersko Well-Known Member

    Joined:
    Feb 1, 2020
    Member:
    #317905
    Messages:
    70
    Mountain Man
    Vehicle:
    2008 Tacoma V6 4x4
    What happens if you slam the glove box with the setting on high?

    MrKatanga likes this.
  13. Mar 2, 2021 at 3:54 PM
    #13
    7Jojay

    7Jojay Member

    Joined:
    Aug 14, 2020
    Member:
    #337616
    Messages:
    10
    Gender:
    Female
    First Name:
    JoAnne
    Vehicle:
    06 Tacoma TRD Prerunner 4.0 V6

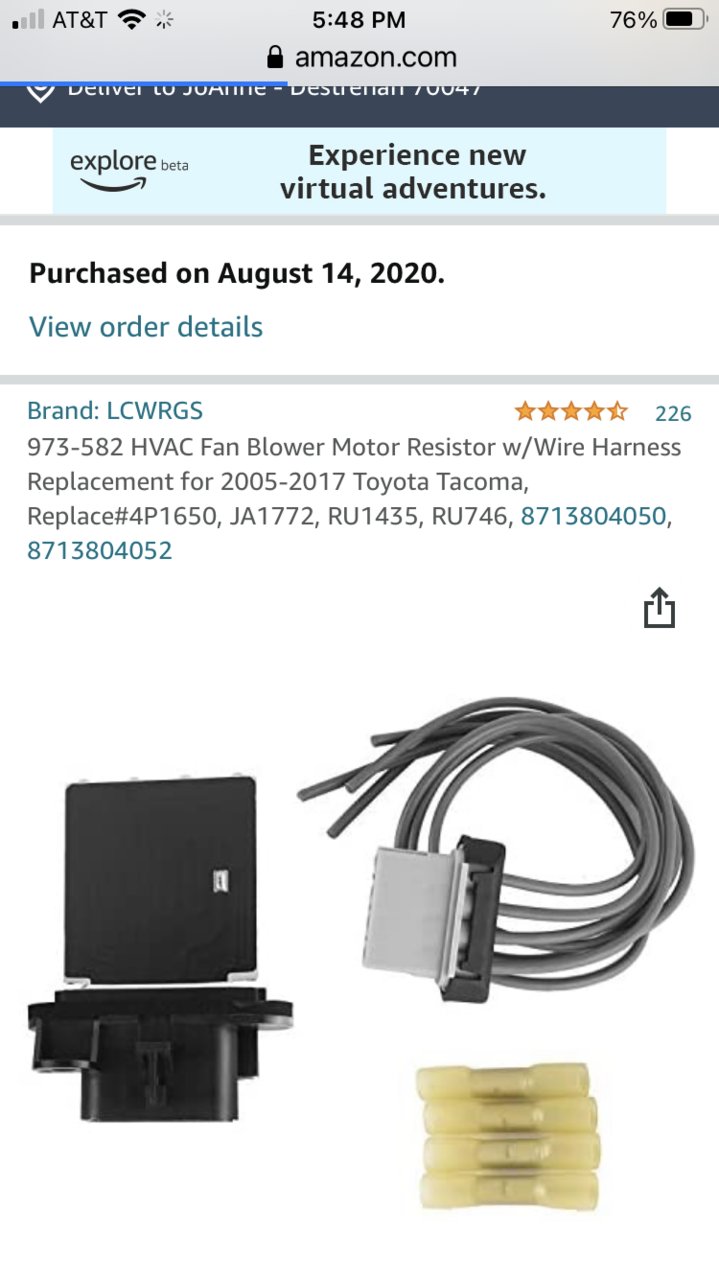

    Hi! 2006 Tacoma a/c working only on high. I am so confused by everything I have read. Can anyone tell me exactly what to buy (brand and parts) to fix this permanently? Some people think it is fixed then it breaks a year later!

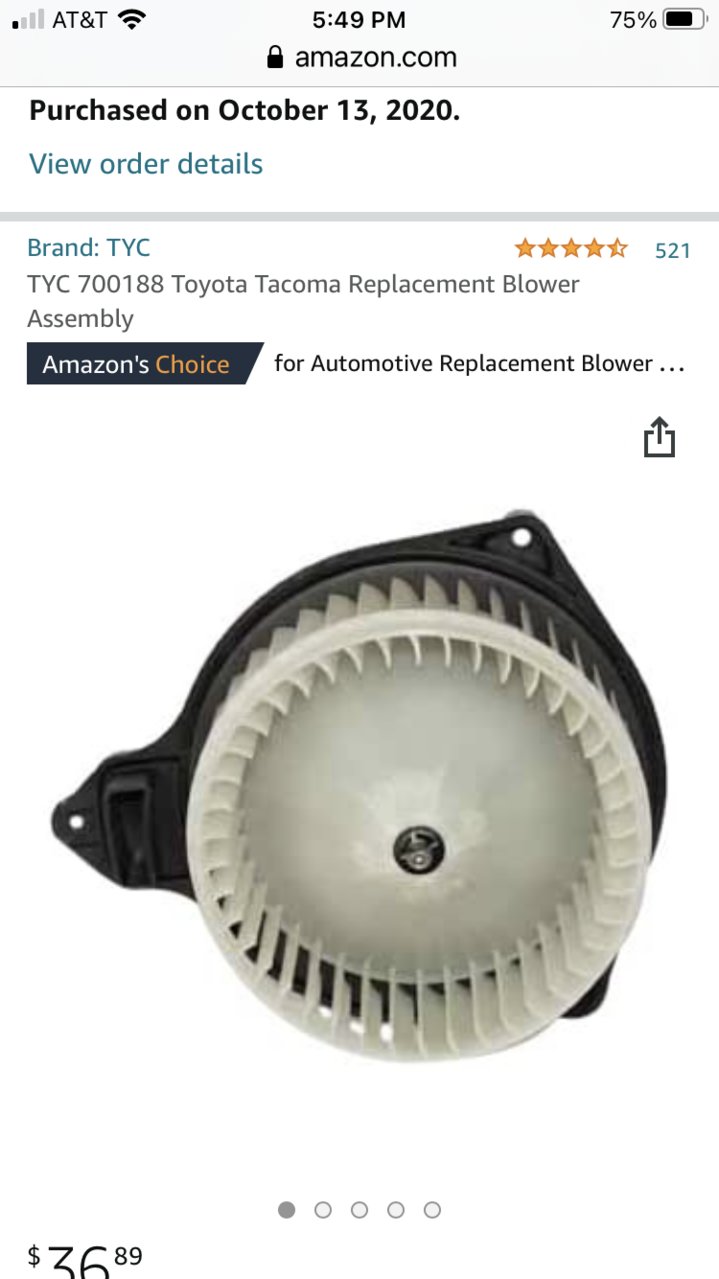

    I bought a new blower fan and resistor with wire harness. Are these correct/enough for fixing the problem? See photos below. If not, please send me exactly what I need to buy!! Single mom trying to help son. Thanks!!


    MrKatanga likes this.
  14. Mar 2, 2021 at 4:44 PM
    #14
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    They look to be right in the picture. Look at the connector for the blower. Is one discolored? If so, then replace it as well. Look at the connector for the resistor as well.

    Also, pull the HVAC controls out as there's a known issue there as well with burned connectors.

    Accipiter13 and Jimmyh like this.
  15. Mar 3, 2021 at 7:26 AM
    #15
    7Jojay

    7Jojay Member

    Joined:
    Aug 14, 2020
    Member:
    #337616
    Messages:
    10
    Gender:
    Female
    First Name:
    JoAnne
    Vehicle:
    06 Tacoma TRD Prerunner 4.0 V6
    What is meant by ‘connector?’ It seems you are speaking of 2 different kinds.

  16. Mar 3, 2021 at 7:49 AM
    #16
    MrKatanga

    MrKatanga jive turkey

    Joined:
    Jun 24, 2017
    Member:
    #222263
    Messages:
    13
    Gender:
    Male
    First Name:
    Tim
    Clearwater, FL
    Vehicle:
    2007 SR5 DoubleCab ShortBed White (4.0L V6 [1GR-FE])
    •Leveling kit •Best friend's crackhead brother hit it with a tree •Oxidation •Yellowpage-quality tint job •Catalytic converter slow delete/Mariachi conversion •Rare genuine Weathertec Floormats
    I think he just means to check the resistor housing that is next to the blower plug for damage while you are down there.

    Whenever you are bug hunting like this there is no such thing as being too thorough, IMO.

    But I am completely daft and make tons of mundane errors that bite me later on down the process. I always get the big stuff right and then miss some "minor" detail that ends up biting me in the ass.

    I have an 07 with 320k that I need to do this fix. Got the A/C only on high issue. Bought that same kit you got with the resistor from eBay/Amazon but just haven't put it in yet.

    Good luck, this stuff can be maddening. At least you'll learn a ton about your truck's wiring scheme for any future issues.

  17. Mar 3, 2021 at 8:19 AM
    #17
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    The connector(s) I am referring to are what plugs into the blower motor, the fan speed resistor, and the HVAC controls. Unplug and look at the pins and sleeves on each end. If it's bad, one pin, or sleeve, will look darker and appear to have dust on it. If that's the case, replace both.

    The HVAC controller will be brown/burnt up, on one of the connectors if the issue is there.

  18. Mar 3, 2021 at 10:22 AM
    #18
    7Jojay

    7Jojay Member

    Joined:
    Aug 14, 2020
    Member:
    #337616
    Messages:
    10
    Gender:
    Female
    First Name:
    JoAnne
    Vehicle:
    06 Tacoma TRD Prerunner 4.0 V6
    I was pretty sure that my connectors were burned up prior to writing this post. I just don’t know where to order the part from let alone what the proper name is for the connectors. I ordered a connector last week and it came in and said stereo. I don’t think that’s the right one! Lol Also, I read that the wire is burning out because something is too small and not large enough to hold the amount of amps coming through. If True, how do I buy a larger one so it won’t burn up again? I don’t know what size I have now or which part needs to be larger to handle the amp output. Thank you for your feedback!!

  19. Mar 3, 2021 at 12:25 PM
    #19
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,557
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 300+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    Break out your cell phone and zoom in... Look over that connector with a fine tooth comb and you will find a number on it. Five digits I believe. Bring that number to the dealership and they can give you the correct plug body and repair wires as needed

    7Jojay likes this.
  20. Mar 3, 2021 at 1:50 PM
    #20
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    12,139
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    It isn't the size of the wires.
    The loose fitting connections have a high resistance.
    The High resistance expends energy.
    The Expended energy takes the form of heat.
    Heat burns the connector.

    Replace the loose connector and pigtail wires.

    CurtB, 7Jojay and TnShooter like this.
