A/C on with Defrost

Discussion in '2nd Gen. Tacomas (2005-2015)' started by CtryBoyInMT, Mar 26, 2008.

  1. Dec 10, 2011 at 3:58 PM
    #221
    CtryBoyInMT

    CtryBoyInMT [OP] Lifetime Member

    Joined:
    Nov 27, 2007
    Member:
    #3632
    Messages:
    488
    Gender:
    Male
    United States of America
    Vehicle:
    2008 4WD V6 Access Manual TRD Off-Road
    Tinted windows, Rear locker anytime, Secondary filter delete, Parking light activated Fog lights, USA▪Spec Ipod adapter, Map light mod, Relocated 7-Blade, Warn Trans4mer Brushguard & winch, Tire chains, Homelink© installed in headliner, LED lighted 4x4 Switch, Defrost w/o A/C, Heated mirrors, Bilstein 5100's (1.75") & Rear TSB, 50w Reverse lights, Pratt & Whitney PT6A-68, Will this list ever end???
    Done... Now quit your whining!! LoL :D

  2. Jan 1, 2012 at 12:05 PM
    #222
    Thunder Fish

    Thunder Fish Member

    Joined:
    Sep 6, 2011
    Member:
    #63023
    Messages:
    5
    Gender:
    Male
    Maple Ridge BC Can
    Vehicle:
    05 blue SR5
    This mod should really have sticky on it.Easy,smart mod for those that do not need A/C running in defrost,I live on the west coast and it rarely gets below freezing and when it does it rarely gets to -5C.
    I did not like coming out to the truck after work and having to deal with a fogged windshield inside from the A/C running,due to the fact I forgot to shut my defrost a few minutes before parking it:notsure:
    Some people have mentioned that this might damage the A/C compressor as it is designed to run full time as on most Toyota products,but the Tacoma's still have a electric clutch vs swash plates so no worries there either.......thank you so much for this simple,quick mod :yay:

  3. Jan 1, 2012 at 7:26 PM
    #223
    GregLee98

    GregLee98 Well-Known Member

    Joined:
    Dec 7, 2011
    Member:
    #68318
    Messages:
    384
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    08 Tacoma TRD Sport
    TRD Cold Air Intake TRD Cat-back Exhaust URD MAF Calibrator 3 inch Top Gunz Customz Lift Spidertrax 1.25" Wheel Spacers Goodyear Wrangler MT/R w/Kevlar (275/75R/17) Tires Power Tailgate Lock linked to power door locks Back-up Sensors Bakflip F1 DIY Auto-dim Rearview Mirror Power Sliding Rear Window Mod by BenWA 4x4 Switch Light Mod 400W Inverter Anytime Mod 110V In Cab Mod with 25' Extension Cord Rear Differential Breather Relocation Mod Chirp on Lock Mod A/C Off with Defrost Mod Brighter Reverse Lights Mod Tailgate Theft Deterrence (Clamp) TRD Seat Covers Extra D-Rings in front of bed
    Just did this. I like having control. Being military, I am all over in different climates. So control is essential. I think I can manage to keep my AC running to protect its seals and bearings.

  4. Feb 17, 2012 at 5:42 PM
    #224
    RBaptist

    RBaptist Well-Known Member

    Joined:
    Jul 26, 2008
    Member:
    #8150
    Messages:
    75
    Newnan, Ga
    Vehicle:
    07 Prerunner 4cyl SR5
    PERFECT Write up! :cheers:
    Just did it on my 2007 Access Cab 2.7 Prerunner SR5.

    I hated having the AC on if I didn't need it. Sometimes I'd rather just have the fresh air on and not blowing in my face. This did the trick! Thanks for putting this here (even though I am a late comer to the thread)

  5. Feb 20, 2012 at 8:59 AM
    #225
    CSCHOL

    CSCHOL Well-Known Member

    Joined:
    Dec 17, 2011
    Member:
    #68922
    Messages:
    60
    Gender:
    Male
    First Name:
    Chad
    W. Michigan
    Vehicle:
    Reg Cab 4x4
    Second air filter delete AFE Pro dry Mobile One Synthetic, F/R diffs, Trans and transfer. OEM Cruise Control ADDED. "Compressor on with AC" wire removed. Cupholder LED's added.
    Way to easy...3 min start to finish

  6. Feb 20, 2012 at 9:12 AM
    #226
    TastyHuman

    TastyHuman Oh. Bummer.

    Joined:
    Dec 17, 2011
    Member:
    #68905
    Messages:
    105
    Said like a man from the dry American Southwest. In humid and wet areas heat alone is almost useless in clearing fog, only dehumidification works and that's what the A/C provides. Sometimes I'd like to be able to turn the A/C off when running defrost but 90% of the time it is needed here.

  7. Feb 20, 2012 at 12:20 PM
    #227
    worthywads

    worthywads Well-Known Member

    Joined:
    Jun 25, 2011
    Member:
    #58841
    Messages:
    3,439
    Gender:
    Male
    Peoples Republic of Boulder
    Vehicle:
    05 5-lug access I4 Stick, 70 Challenger Vert
    You're talking about fog, 98% of this conversation is about removing frost in sub freezing temperature.

    But you are right for your situation.

  8. Mar 8, 2012 at 4:14 AM
    #228
    Inverno4

    Inverno4 Well-Known Member

    Joined:
    Mar 7, 2012
    Member:
    #74388
    Messages:
    248
    Gender:
    Male
    Baltimore, MD
    Vehicle:
    04 SR5 4x4 TRD Xtra Cab
    Anyone know if this mod works with 1st gens? I'd like to do this to my truck this weekend.

  9. Mar 10, 2012 at 12:03 PM
    #229
    Volt

    Volt Member

    Joined:
    Aug 16, 2010
    Member:
    #41770
    Messages:
    7
    Gender:
    Male
    Overland Park, Kansas
    Vehicle:
    2010 SR5 4x4 Double Cab V6
    Yellow Wire cut, Six Hummer D Rings, Seat Belt Buzzer deactivated
    I "THINK" as a general rule with most makes, the air conditioner compressior will not come on with the defrost if the outside temp is below a certain temp.

  10. Mar 28, 2012 at 10:42 AM
    #230
    funnyodd

    funnyodd New Member

    Joined:
    Nov 16, 2009
    Member:
    #26018
    Messages:
    4
    Gender:
    Male
    First Name:
    Ken
    Portland
    Vehicle:
    2008 SR5
    Thanks gobs for such a great mod. I give you multiple GOLD stars, thanks again

  11. Sep 8, 2012 at 9:06 PM
    #231
    BaLLZaCH

    BaLLZaCH Active Member

    Joined:
    Sep 8, 2012
    Member:
    #86515
    Messages:
    40
    Gender:
    Male


    Hello everyone,

    (This is my first post here but I'm not new to forums or 2005+Tacoma.)

    I also realize I am bumping an old thread - Time to resurrect this thread for 2012 models!



    *** This mod currently does NOT work on 2012 Tacoma ***

    I just tried this mod on my new 2012 2Wheel SR5 Prerunner6lug v6 4liter Automatic (If any of that matters). Toyota has changed a few things on this truck from the 05-08 / 09-11 models, like the fog-light relay location and also apparently this wiring for defrost/AC compressor/switch. (I also had an 05' but never tried this mod...)



    Based on fohlkmann's tinkering and the OP, I first removed the green wire (next to red). As stated in a previous post, it"magically" released after about 15 minutes of trying - I used 2 very small "jewelers" flat head (slotted) screw drivers, first pop off the white "cap", then inserted 1 blade into "T-slot" wiggled and used 2nd blade to push out pin from behind. Just keep at it and DO NOT use too much force.

    Once removed, I tried as-is, and got predicted results - (Recirculation not working and AC always on).

    So then I soldered-up a fused jumper to connect the red and green wires (towards the harness side, not the plug side) as per fohlkmann's write up. (Instead of just splicing it in, I did not want to cut anything and wanted extra protection in case "I" f'd up...) - If you CLEANLY solder the stripped end (maybe 1/4") of (maybe 18-to-22awgwire) it will neatly plug into the socket behind the red wire and into the removed pin of the green wire.


    I thought I was good to go. But,
    It didn't work. (2012model)... :(

    Same results as having it simply unplugged or just 1 green removed. Nothing changed... LUCKILY I didnt short anything or screw anything up, it all went back to factory operating condition ...





    SO, I started tinkering. (But no results),,,

    Fohlkmann stated that the green wire had variable voltage based on selector knob. Well, based on my findings on the 2012, this is true if it is plugged in [that's why he said that wire was still being 'driven a voltage'], but I ALSO FOUND the the Green/Black wire is being 'driven at voltages' on the HARNESS side, not the plug side.... ; Here is what I found:



    (Vehicle on)

    A: PLUG UNPLUGGED.

    1a: Pink (Red) wire has 12v+

    2a: Green wire has 0.02 v+

    3a: Green/Black stripe has 0.01 v+

    4a: White has 0v+.



    B: Selector knob turned with plug unplugged:

    1b: Pink stays 12+v

    2b: Green stays 0 <****

    3b: Green / black stripe CHANGES, 14v, 12v, 6v, 3v, 2v, 0v....From foot to defrost. Last two defrost settings (Mix and windshield) are 2 then 0, respective.

    4b: No change.



    **** NOTE that the green/black changed ****

    *** BUT ***



    C: Plug plugged back in, vehicle on, selector switch beingchanged: (I measured this by sticking the meter prong into the back of theconnector WHILE it was connected as OEM factory working condition).

    1c: Pink/red, still 12v+

    2c: Green CHANGES, just as listed above for green/black, the SOLID GREEN now changes with selector switch. So I guess this tell me that it is being fed ('driven') from either the red(pink) or green/black wire once plugged in ??? ....





    ---------------

    So, if anyone can check, pull the plug on your 2009-2011(NOT 2012) and check the green/black wire (while unplugged) while cycling through the selector. See if it stays 12+v or changes like it does on mine...



    Something tells me that it has something to do with BOTHgreen wires now....
    (Crap, I tried posting a pic but maybe later)....

    ANY IDEAS ???



    Thanks all !

  12. Sep 9, 2012 at 6:28 AM
    #232
    bjboucher

    bjboucher Mama says Tacoma World is da devil!

    Joined:
    Aug 8, 2012
    Member:
    #84371
    Messages:
    2,245
    Gender:
    Male
    First Name:
    Brad
    San Antonio, Texas
    Vehicle:
    Former 2012 DCLB 4x4 SR5 Texas Edition
    OME complete kit w/ 885s on Nitrocharger Sports, 1/4" spacers, Dakars w/ Nitrocharger Sports, LR UCAs, 265/70-17, Duratracs, G4 Elite tonneau, Weathertech Window Deflectors, Weathertech digital floor liners, factory JBL/Entune, rear differential breather relocate.
    Damn, I was going to run out this morning and do this on my truck. Good thing I jumped to the end of the thread first.

  13. Oct 7, 2012 at 11:08 AM
    #233
    AeroCooper

    AeroCooper Half the strength of ten (microscopic men)

    Joined:
    Apr 16, 2010
    Member:
    #35400
    Messages:
    2,019
    Gender:
    Male
    VT
    Vehicle:
    2014 Barcelona Sport Access Cab 4x4
    Leveled with 5100s @ 1.75", Hankook Dynapro AT/m, Ultra Maverick wheels, N-Fab side steps, WeatherTech floor liners, EGR in-channel rain guards, TRD shift knob for 10 extra mpg, Gentex 177 auto dim rear view mirror with compass and temp, CompuStar remote start, Muth heated signal mirrors, disable AC with defrost mod
    I have a 2013, and based on BaLLZaCH's post, it seemed to me that tying the green wire to the pink wire would have to work, even though he said it wouldn't. So I went out and tried it, and it works perfectly on my truck.

    I cut the green wire (the one right beside the pink wire) and spliced the end that goes under the black plastic casing to the pink wire.
    The pink wire is still connected on both ends as it always was.
    The end of the green wire that is coming out of the plug end is just hanging, taped off, and no longer connected.

    The A/C no longer comes on automatically when the defrost or defrost/floor is selected. The A/C and recirculate both work as normal in all other selections, and it can also be turned on when the defroster is on by pushing the button.

    I had done this on my '10 Tacoma when I still had that one, and it also worked fine.


  14. Oct 7, 2012 at 4:27 PM
    #234
    2010prerunner

    2010prerunner Member

    Joined:
    Jan 7, 2010
    Member:
    #28937
    Messages:
    9
    Gender:
    Male
    First Name:
    Paul
    New York
    Vehicle:
    2010 PreRunner 5spd. SR5
    Does disconnecting that green wire ALSO prevent the A/C from coming on when you set the tempature selector to coolest (fully counterclockwise)? I hate the way Toyota tweaked the HVAC controls!

  15. Oct 7, 2012 at 4:40 PM
    #235
    AeroCooper

    AeroCooper Half the strength of ten (microscopic men)

    Joined:
    Apr 16, 2010
    Member:
    #35400
    Messages:
    2,019
    Gender:
    Male
    VT
    Vehicle:
    2014 Barcelona Sport Access Cab 4x4
    Leveled with 5100s @ 1.75", Hankook Dynapro AT/m, Ultra Maverick wheels, N-Fab side steps, WeatherTech floor liners, EGR in-channel rain guards, TRD shift knob for 10 extra mpg, Gentex 177 auto dim rear view mirror with compass and temp, CompuStar remote start, Muth heated signal mirrors, disable AC with defrost mod
    No, but I hate that too. I tried once to find a way to disable that, but I couldn't do it.

  16. Mar 5, 2013 at 9:35 AM
    #236
    paulismydog

    paulismydog Member

    Joined:
    Dec 21, 2012
    Member:
    #93501
    Messages:
    9
    Gender:
    Male
    2012 Double cab. Splicing green to pink wire worked perfect on my truck.

  17. Jun 8, 2013 at 5:06 PM
    #237
    DJB1

    DJB1 Well-Known Member

    Joined:
    Jun 8, 2013
    Member:
    #105835
    Messages:
    546
    Gender:
    Male
    First Name:
    Dave
    SLC, UT
    Vehicle:
    2003 Regular Cab 4X4 5MT
    Why not just pull out the A/C fuse instead? In 99.9% of autos with A/C, there is a 10A fuse for the compressor clutch. Why perform surgery on a perfectly good wiring harness?

  18. Jun 8, 2013 at 7:48 PM
    #238
    raskal

    raskal Well-Known Member

    Joined:
    Oct 28, 2008
    Member:
    #10341
    Messages:
    184
    Gender:
    Male
    ummmm cause then when we wanted A/C we wouldn't get our cold air

    this mod is just to prevent the A/C from cycling when we want defrost on, but not cold air.

  19. Dec 14, 2013 at 1:31 PM
    #239
    EdinAthens

    EdinAthens Well-Known Member

    Joined:
    Mar 11, 2013
    Member:
    #99457
    Messages:
    285
    Gender:
    Male
    First Name:
    Ed
    Athens, Georgia
    Vehicle:
    2014 4x4 TRD OR SuperWhite
    too many to list

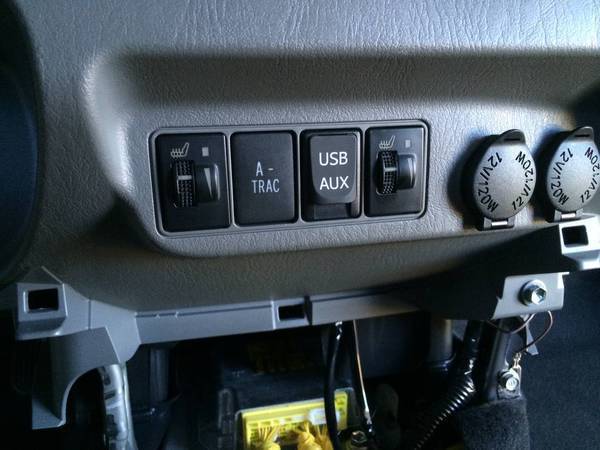

    I wonder if I did this mod on my 2014 that then I could use the disconnected defrost A/C trigger wire to activate a Heated Mirror timer since I have no switch blanks....I really want some heated mirrors.

    [​IMG]

    Last edited: Dec 14, 2013
  20. Jan 23, 2014 at 8:09 PM
    #240
    07terry

    07terry Active Member

    Joined:
    Jun 6, 2013
    Member:
    #105714
    Messages:
    35
    Gender:
    Male
    north carolina
    Vehicle:
    07 4x4 trd
    how do you get the vents to stop blowing when the floor only is selected my 07 still has some air passing through
