Discussion in 'Suspension' started by chris4x4, Sep 28, 2009.

Page 23 of 33
  1. Apr 19, 2015 at 3:16 PM
    #441
    TacoJosh82

    #441
    TacoJosh82 Well-Known Member

    Joined:
    Feb 17, 2015
    Member:
    #148911
    Messages:
    86
    Gender:
    Male
    First Name:
    Josh
    Wisconsin
    Vehicle:
    12 Access Cab 2.7
    OME dakar lift, MB TKO's, bfg KO2's, tinted, blacked out everything, cap.
    10-4

    TacoJosh82, Apr 19, 2015
    #441
  2. Apr 19, 2015 at 3:28 PM
    #442
    MTopp

    #442
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Yea, I'd never recommend Toyota leafs over like anything else

    MTopp, Apr 19, 2015
    #442
  3. May 8, 2015 at 8:52 PM
    #443
    oh crap its him

    #443
    oh crap its him Well-Known Member

    Joined:
    Nov 2, 2012
    Member:
    #90342
    Messages:
    344
    Gender:
    Male
    First Name:
    Shannon
    OH->SLC,UT->SA,TX
    Vehicle:
    09 TRD OR
    Lift, Wheels, Lights
    Hey guys, I'm installing the Wheeler's 3 leaf AAL on my TSB springs this weekend, along with 5100's. For reference, the front bracket on the factory overload is the one that needs to be cut off correct?
    [​IMG]

    oh crap its him, May 8, 2015
    #443
  4. May 9, 2015 at 4:33 AM
    #444
    ThatguyJZ

    #444
    ThatguyJZ Instagram: thatguyjz

    Joined:
    Apr 30, 2013
    Member:
    #103173
    Messages:
    795
    Gender:
    Male
    First Name:
    Jim
    TRIAD, NC
    Vehicle:
    2014 MGM DCSB 4x4 TRD Off Road
    A TRD OR built into a Baja/PRO hybrid
    [​IMG]


    See the area I circled in this photo from ICON's installation instructions? You can see the bare grey primer. That's the location of the clamp you have to remove from the stock leaf pack.

    Based on the photo you posted above, if you are also running your stock overloads with the AAL and stock pack, then from the look of thing you very well may have to cut the clamp off the overload too.

    Icon's instructions are here... http://www.iconvehicledynamics.com/wp-content/uploads/2015/01/I51100_NR.pdf

    ThatguyJZ, May 9, 2015
    #444
    Dr. Jekyll likes this.
  5. May 9, 2015 at 5:31 PM
    #445
    oh crap its him

    #445
    oh crap its him Well-Known Member

    Joined:
    Nov 2, 2012
    Member:
    #90342
    Messages:
    344
    Gender:
    Male
    First Name:
    Shannon
    OH->SLC,UT->SA,TX
    Vehicle:
    09 TRD OR
    Lift, Wheels, Lights
    Thanks again! Got it installed, and just had to remove the front bracket from the overload.

    oh crap its him, May 9, 2015
    #445
  6. May 12, 2015 at 10:19 PM
    #446
    fourpointTRD

    #446
    fourpointTRD Well-Known Member

    Joined:
    Mar 22, 2014
    Member:
    #125886
    Messages:
    152
    Gender:
    Male
    First Name:
    Mike
    Humboldt, CA
    Vehicle:
    14 DCSB TRD OR 4WD
    Bilstein 5100s x4, OME 883 with 1/4 inch spacer on driver's side, OME TP04 leaf spring trim packer, Wheeler's Superbumps rear, black FJ Trail team wheels, Gorilla Wheel Locks (73631T), Huskyliners xact contour, Rockymounts Clutch SD and Driveshaft, Toyota OEM Bedmat, Plasti-dipped badges and front emblem
    Good info! Thanks!

    fourpointTRD, May 12, 2015
    #446
  7. Sep 1, 2015 at 9:53 PM
    #447
    Voodoo Actual

    #447
    Voodoo Actual Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160729
    Messages:
    128
    Gender:
    Male
    Vehicle:
    2015 TRD Pro
    I like the stupid little aero flaps. I had to take mine off though. Long days in high heat and at high speed seemed to have remold them so every time I turned the wheel they'd catch on the tires. Made for a great noise when you are backing out.

    Voodoo Actual, Sep 1, 2015
    #447
  8. Sep 1, 2015 at 9:54 PM
    #448
    MTopp

    #448
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Haha yea, it's never nice hearing that noise

    MTopp, Sep 1, 2015
    #448
  9. Sep 2, 2015 at 8:49 AM
    #449
    Voodoo Actual

    #449
    Voodoo Actual Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160729
    Messages:
    128
    Gender:
    Male
    Vehicle:
    2015 TRD Pro
    Great way to draw attention to your nice truck lol.

    Voodoo Actual, Sep 2, 2015
    #449
  10. Sep 2, 2015 at 9:29 AM
    #450
    MTopp

    #450
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Exactly, then your truck looks all jankety

    MTopp, Sep 2, 2015
    #450
  11. Sep 13, 2015 at 8:26 AM
    #451
    Tectonic

    #451
    Tectonic Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151695
    Messages:
    277
    Gender:
    Male
    First Name:
    James
    Tucson, AZ
    Vehicle:
    12 TRD Sport DCSB 4wd
    Bilstein 5100 all around OME 884 Wheelers 1.5" 3 leaf progressive aal 255/75r17 Hankook Dynapro ATM ARE camper shell Hella Sharptones (4)
    Great write up! Would like to add something I experienced. I see that you swapped blocks for AAL (i.e. No real difference in lift height), so when you swapped for AAL on one side and raised the axle to the leafs, it was still about the same height as the other side. I went from stock to AAL and tried this method of completing one side before doing the other. The issue I was having is that once I got the AAL set on the drivers side, and went to jack up the axle to the leafs, it wouldn't line up because the difference between the AAL drivers side and the stock passenger side. What I had to do was take appart the passengers side as well so that the axle fell freely (supported by jack!). Then I got both AAL's set up, jacked up the axle from the differential, and lined up the axle on both sides simultaneously.

    Not sure if anyone else experienced this, but I was surprised I had never read anything about it

    Tectonic, Sep 13, 2015
    #451
  12. Sep 13, 2015 at 5:50 PM
    #452
    MTopp

    #452
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Yeah, that's how I usually do it, wrestling or sometimes kicking the axle or leafs to line up haha.

    MTopp, Sep 13, 2015
    #452
  13. Sep 14, 2015 at 7:10 AM
    #453
    Tectonic

    #453
    Tectonic Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151695
    Messages:
    277
    Gender:
    Male
    First Name:
    James
    Tucson, AZ
    Vehicle:
    12 TRD Sport DCSB 4wd
    Bilstein 5100 all around OME 884 Wheelers 1.5" 3 leaf progressive aal 255/75r17 Hankook Dynapro ATM ARE camper shell Hella Sharptones (4)
    Ha! I definitely did a lot of kicking before deciding to just take apart the passengers side. Glad I wasn't the only one

    Tectonic, Sep 14, 2015
    #453
    MTopp[QUOTED] likes this.
  14. Sep 17, 2015 at 10:58 AM
    #454
    Voodoo Actual

    #454
    Voodoo Actual Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160729
    Messages:
    128
    Gender:
    Male
    Vehicle:
    2015 TRD Pro

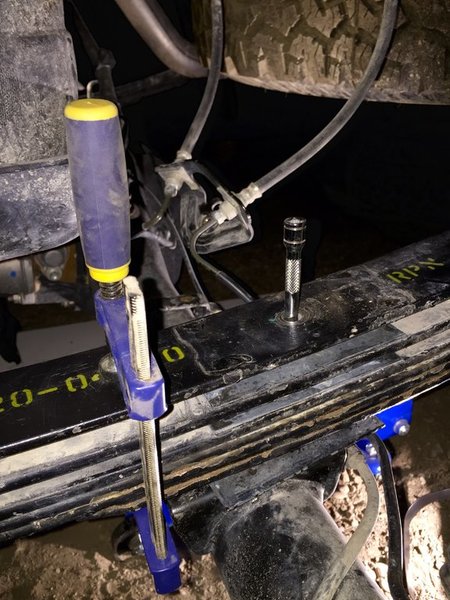

    If you unbolt these:

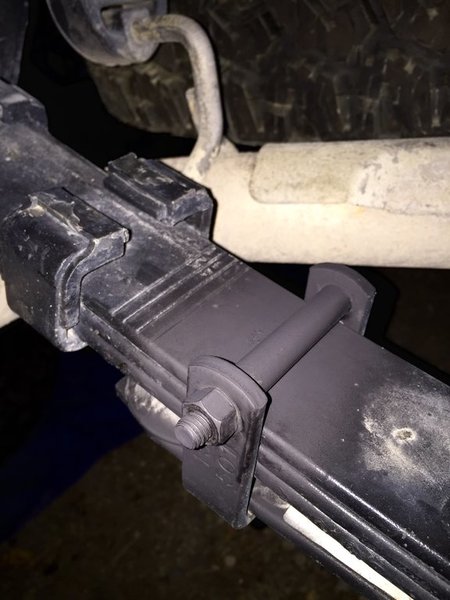

    The springs will droop and not have tension, like this:

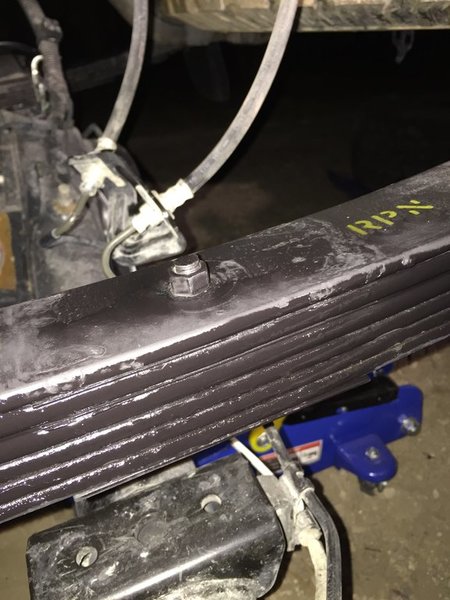

    They are easy to line up without tension. This reduces the amount of kicking and screaming, which is good:


    Voodoo Actual, Sep 17, 2015
    #454
    Tectonic[QUOTED] likes this.
  15. Sep 17, 2015 at 1:53 PM
    #455
    Tectonic

    #455
    Tectonic Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151695
    Messages:
    277
    Gender:
    Male
    First Name:
    James
    Tucson, AZ
    Vehicle:
    12 TRD Sport DCSB 4wd
    Bilstein 5100 all around OME 884 Wheelers 1.5" 3 leaf progressive aal 255/75r17 Hankook Dynapro ATM ARE camper shell Hella Sharptones (4)
    Nice! Always an easy and a hard way. I like to challenge myself - push the limits of my patience :bananadead:


    Tectonic, Sep 17, 2015
    #455
  16. Sep 17, 2015 at 4:18 PM
    #456
    Voodoo Actual

    #456
    Voodoo Actual Well-Known Member

    Joined:
    Jul 31, 2015
    Member:
    #160729
    Messages:
    128
    Gender:
    Male
    Vehicle:
    2015 TRD Pro
    lol How are your knuckles doing?

    Voodoo Actual, Sep 17, 2015
    #456
  17. Oct 5, 2015 at 7:03 PM
    #457
    CJauster24

    #457
    CJauster24 Member

    Joined:
    Sep 13, 2015
    Member:
    #164125
    Messages:
    12
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2015 White Tacoma Double Cab
    Wheels, tires, and nerf bar
    Hey Guys, Im relatively new to the suspension game. I just had 5100s installed on all sides with a rear block. I am now wanting to ditch the block in favor of a AAL. If I install this myself, will the truck need to be re-aligned?

    Thanks for all the great content!

    CJauster24, Oct 5, 2015
    #457
  18. Oct 6, 2015 at 6:22 AM
    #458
    MTopp

    #458
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    No aal will only affect the rear end, no alignment needed

    MTopp, Oct 6, 2015
    #458
  19. Oct 7, 2015 at 10:25 PM
    #459
    4WD

    #459
    4WD cRaZy oLdmAn

    Joined:
    Jul 2, 2009
    Member:
    #19185
    Messages:
    23,530
    Gender:
    Male
    First Name:
    Doug
    Lakeside, Ca / Gardnerville, Nevada
    Vehicle:
    2004 DC TRD 4x
    Grey wire MOD, deck plate, diff breather MOD, 2nd gen. OME 883# on Tundra 5100's, OMD custom 3" leafsprings, rear shock relocation, Ivan Stewart TRD rims w/285/75/16's, '02 bumper MOD, Famous Fabrications sliders , LED interior/exterior lights, bed bar, Custom tube bumper, Old school KC day lighters,Red Ring 8" HID flood, Kenwood vhf 2M.. umm some other shit I'm forgetting right now


    if you've done everything right this is what you'll expect...

    https://youtu.be/ElN739YTd94?t=2

    4WD, Oct 7, 2015
    #459
  20. Oct 8, 2015 at 6:25 AM
    #460
    MTopp

    #460
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    MTopp, Oct 8, 2015
    #460
