ABS disable mod for 05+ Tacomas w/o VSC & locking diff write up *pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rodstone, Feb 26, 2010.

  1. Feb 26, 2010 at 3:30 PM
    #1
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    Here it is.....
    Materials used:
    -switch (of your choice) (I chose to use a covered race toggle switch)
    -20ga wire (around 10ft.)
    -conduit
    -heat shrink
    -solder
    -solder pencil
    -electrical connectors (I used small circle connectors to connect to switch)
    -electrical tape
    -zip ties

    This mod opens the circuit from the brake light switch to the ABS ECU so that the ABS ECU doesn't know that you are stepping on the brakes and tries to compensate the difference in wheel spin and lock up by activating the ABS pump. With out the signal from the brake switch the ABS will not activate.

    First off, I recommend disconnecting the battery when doing any kind of electrical modification.

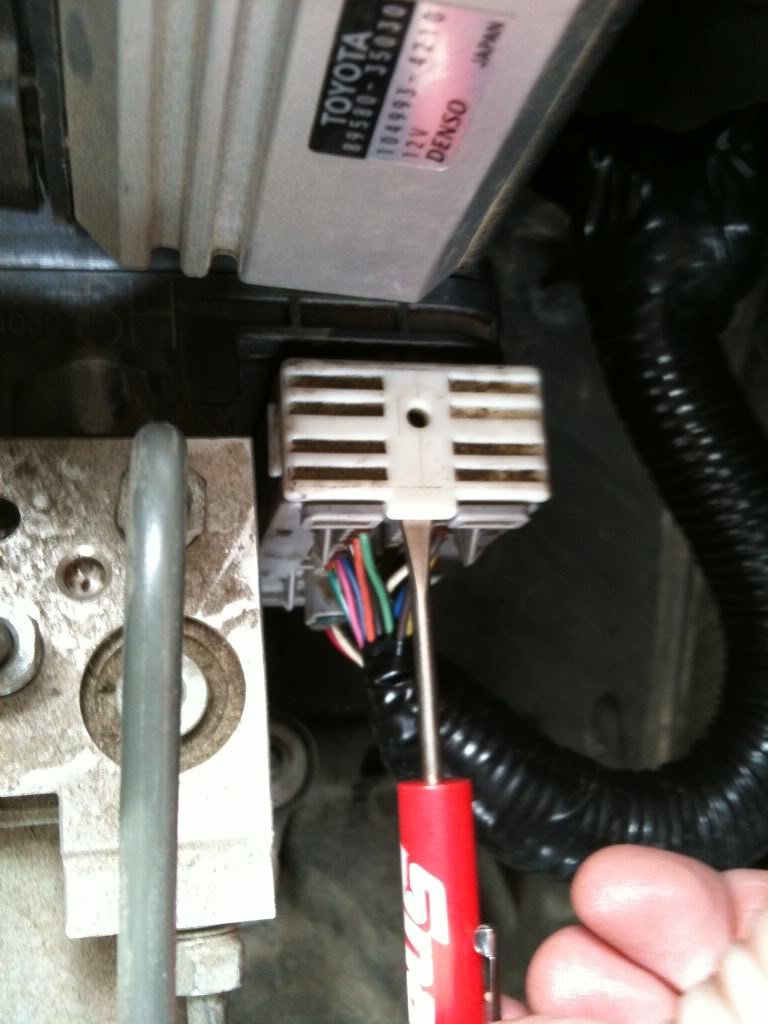

    Disconnect the ABS harness from the ABS ECU. To do so, use a small flat head screwdriver and gently pry up the white harness lock. As you pull the lock up the harness will pretty much disconnect itself from the ECU.
    [​IMG]

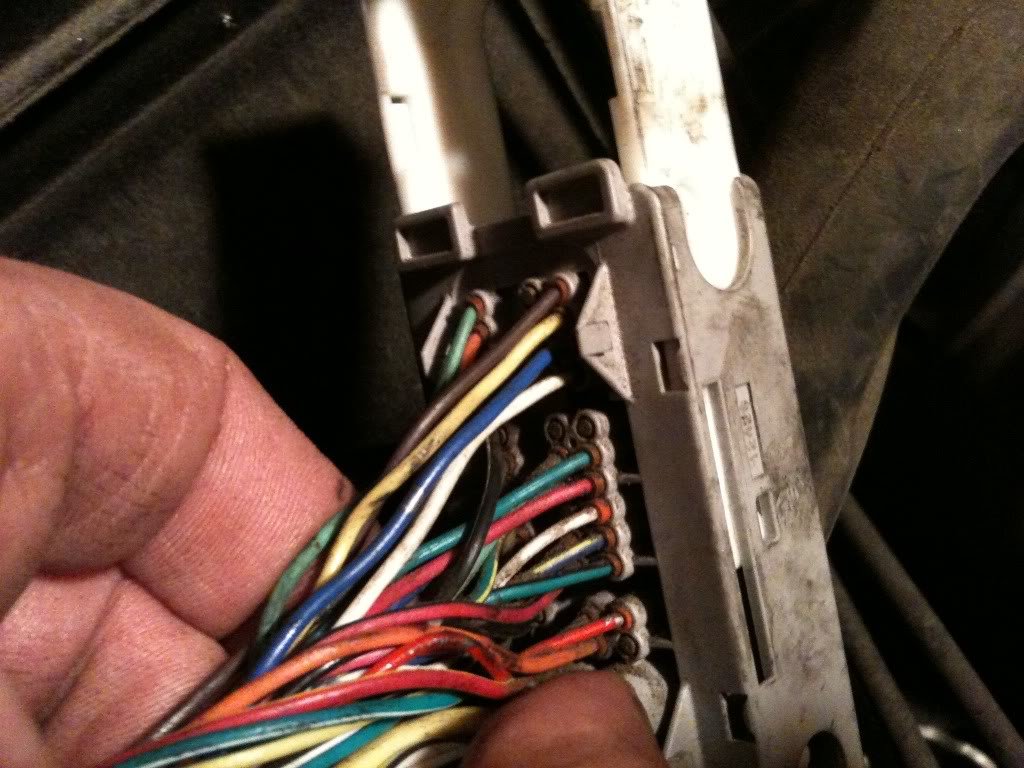

    Remove the factory conduit and electrical tape around the wires to the harness. Next locate the blue signal wire from the brake switch, fyi there are 2 blue wires going the harness, the correct one goes to terminal 14, it will be between a white wire and yellow wire.
    [​IMG]

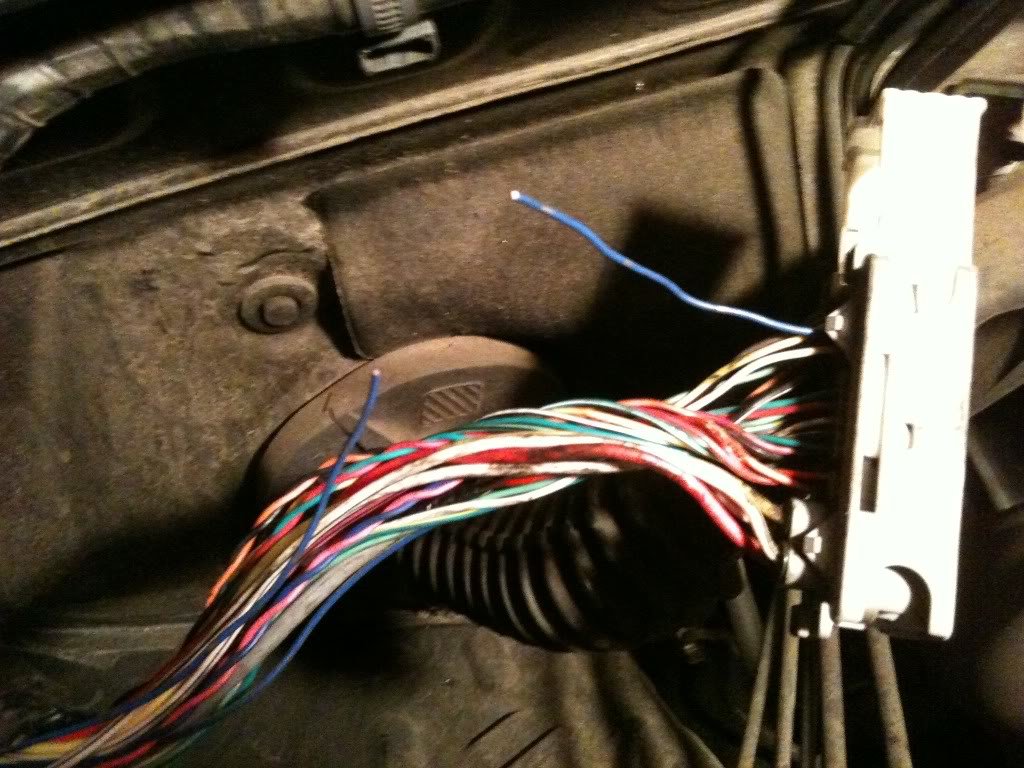

    Fish that wire out towards away from the harness connector.
    [​IMG]

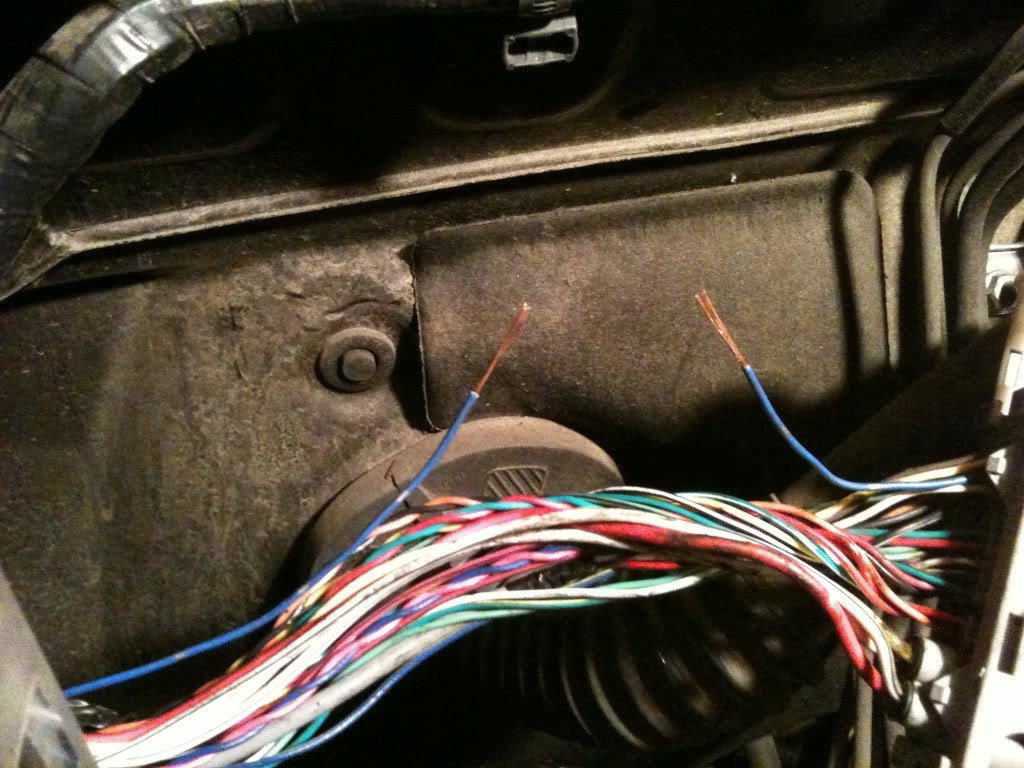

    Cut the wire and strip the ends.
    [​IMG]
    [​IMG]

    Solder/splice 20ga wire to each end of the blue wire you just cut and run them along the firewall, above the brake booster and down through the rubber grommet into the cab.
    *Remember to heat shrink wrap the soldered joints*
    (I forgot to take pictures for this part but I don't think you guys need them)

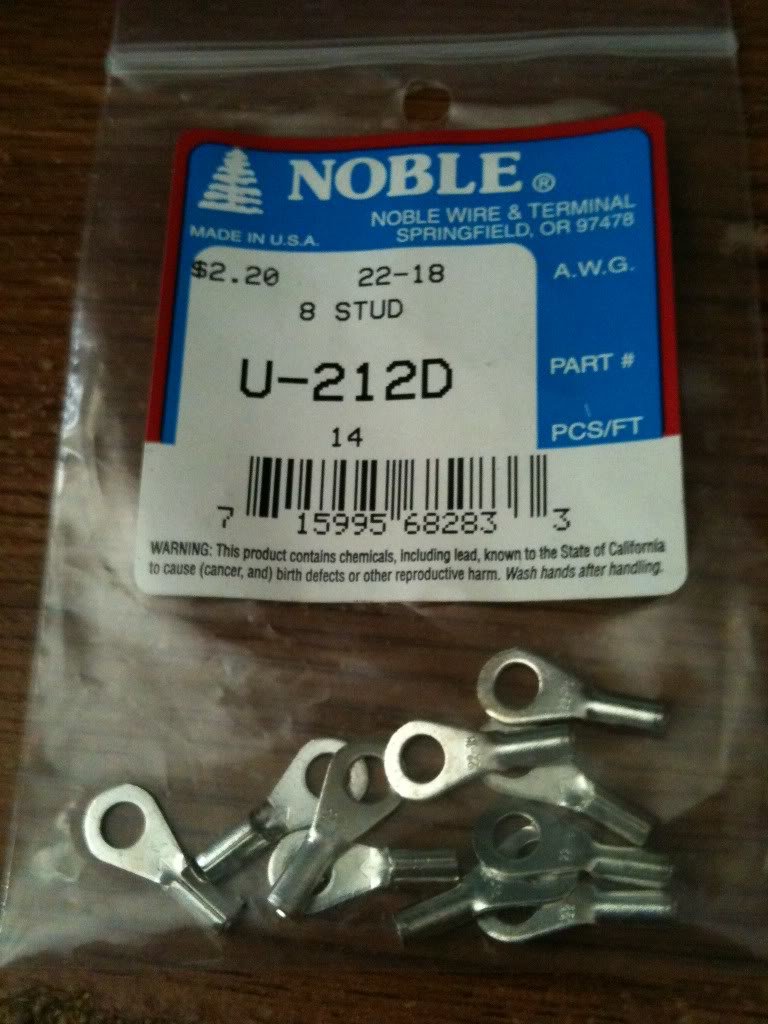

    These are the connectors I used to connect wires to switch (I like these because they can be soldered and crimped). I also heat shrinked those as well (not the whole thing of course)
    [​IMG]

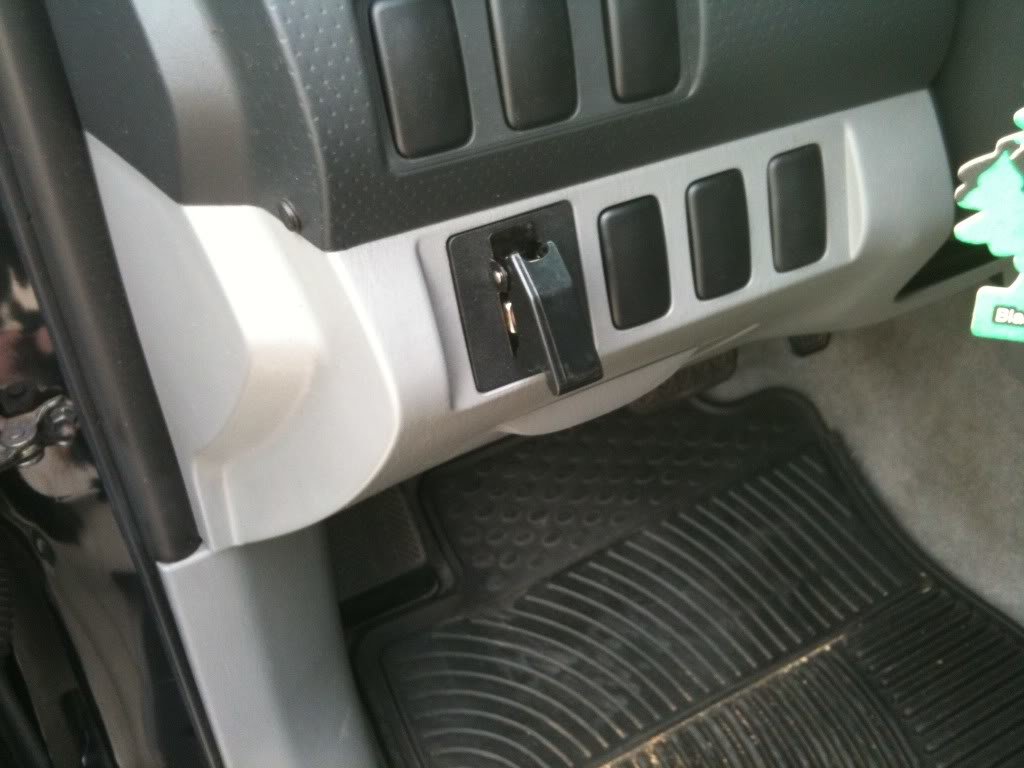

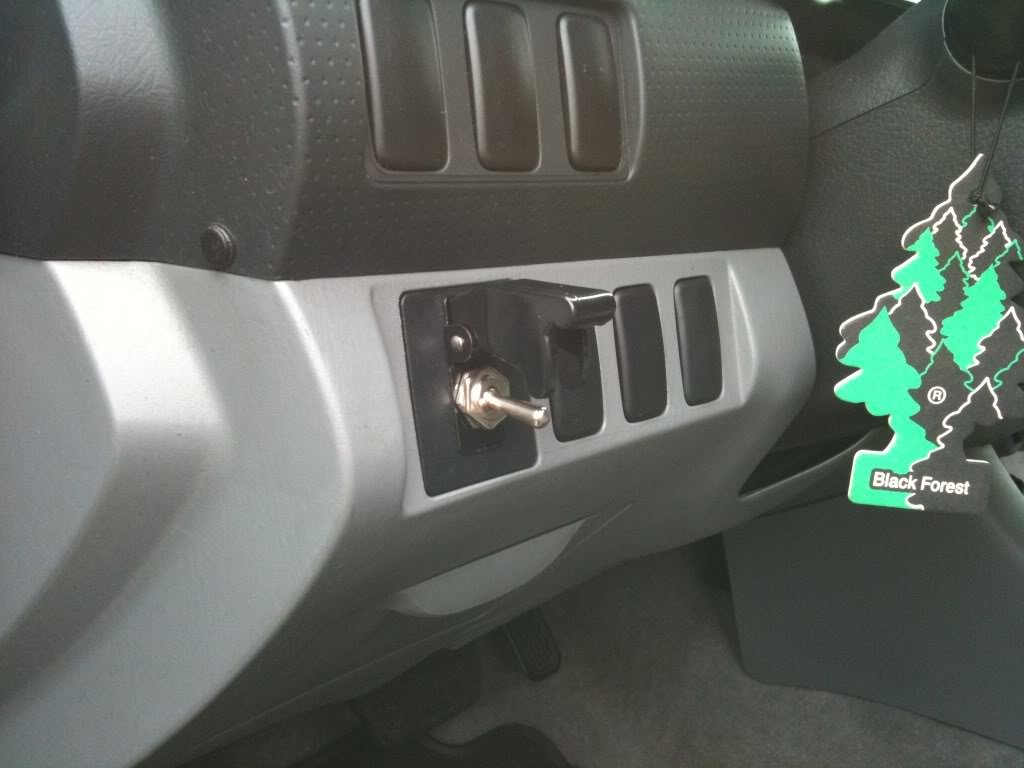

    Here is the switch and location. I had to cut a notch in the threads so that I could flip the switch over since off is on(ABS disabled) and on is off(ABS enabled. Or you can think of it this way off-ABS off and on-ABS on
    [​IMG]

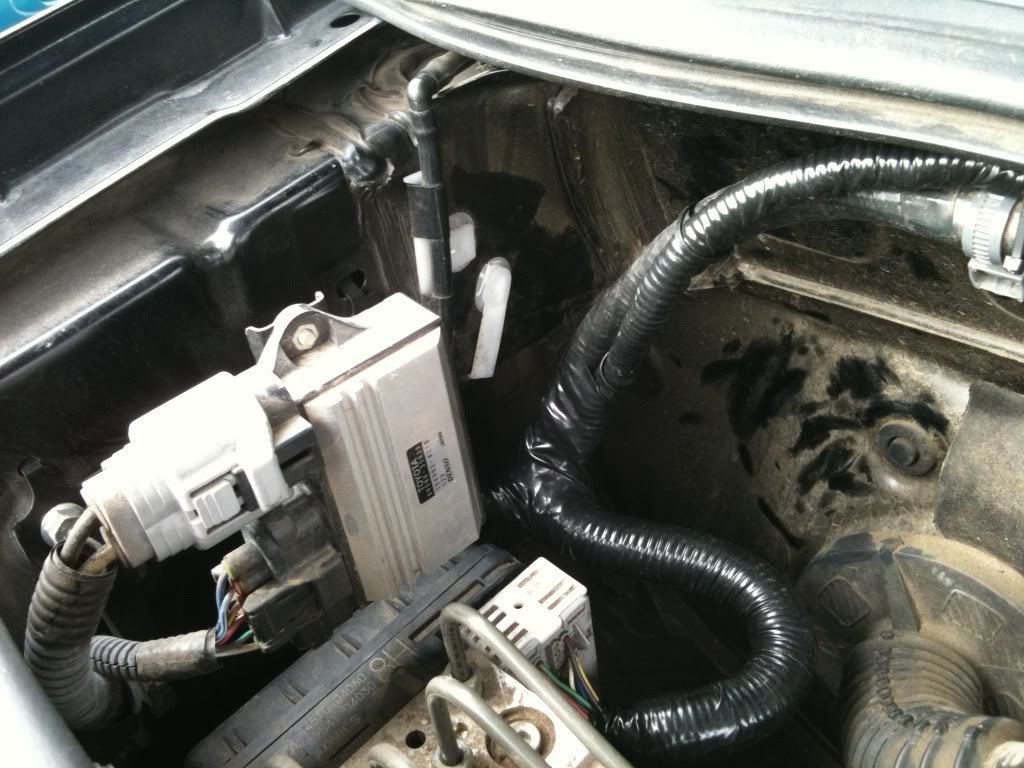

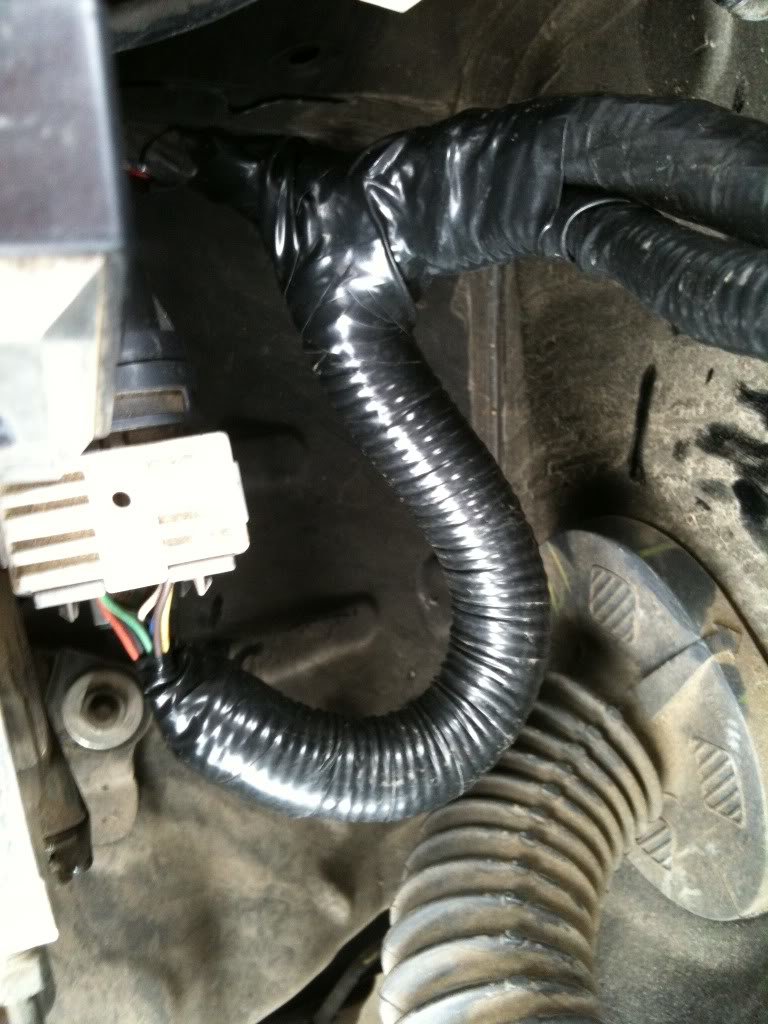

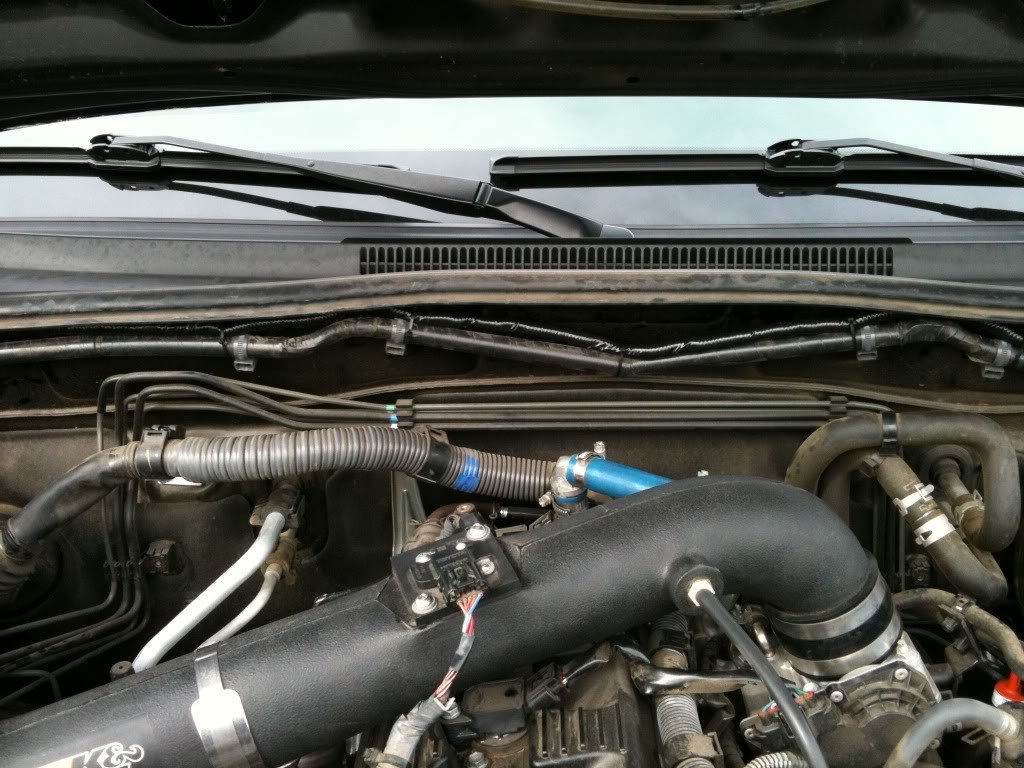

    Connect the wires to the switch and that's pretty much it. I recommend covering the wires from the ABS ECU to the cab with conduit and wrap it with electrical tape. Here are some pics of the finished and cleaned up job.
    [​IMG]
    [​IMG]
    [​IMG]

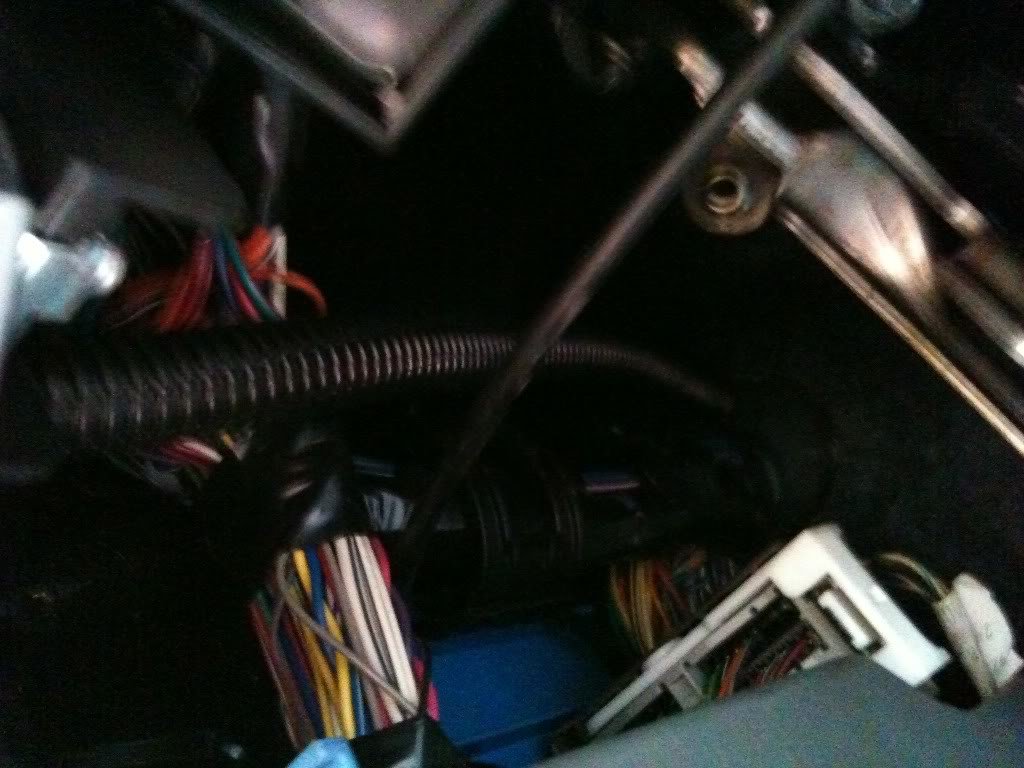

    This one is under the dash (conduit covers wires coming from engine bay)
    [​IMG]
    [​IMG]

    If done correctly you will not blow any fuses or melt any wires. I don't mind this part, but the ABS light will come on on the dash when you open the circuit with the switch (off), it's like a reminder that I flipped the switch. It will stay on til you turn your truck off but next time you start your truck with the switch closed the ABS light will be off.

    I hope this help you guys that have been looking forward to doing this to your trucks. And I hope I was clear on everything and didn't confuse anyone (to me this is a very simple method and I am really surprised it hasn't been done yet) Feel free to ask me any questions you may have.

    This method is everything I was looking for for this mod (no blown fuses, no melted wires, no pulling a fuse everytime I want to disable, just flip a switch when I get on the dirt/snow:D.

    Sorry again about forgetting to take more pics during the install.

  2. Feb 26, 2010 at 3:34 PM
    #2
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,978
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    nice right up, I will be doing this soon, the abs sucks offroading +1 Rep for you

  3. Feb 26, 2010 at 3:48 PM
    #3
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    Thank you! Yes, ABS is horrible on the dirt (I always felt like it was doing more harm than actually helping).

    Sticky material?

  4. Feb 26, 2010 at 3:52 PM
    #4
    ktmrider

    ktmrider Senior Member

    Joined:
    Jul 20, 2009
    Member:
    #19933
    Messages:
    4,978
    Gender:
    Male
    Vehicle:
    07 DCLB 4x4 Sport S/C
    Junk
    Yea this should definitly be added to cheap/diy mods. I was going to look at some property and i was under control of the truck but it locked up and i could not stop the truck for like 4 feet, there was nothing if front of me but like its pretty bad.

  5. Feb 26, 2010 at 3:54 PM
    #5
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    Forgot the mention that I wrapped the entire conduit from the ABS ECU to the engine harness grommet in electrical tape and zip tied it to the harness that runs along the firewall (you can see in the picture)

  6. Feb 26, 2010 at 4:04 PM
    #6
    Bryan07sport

    Bryan07sport Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax
    howdy. rodstone and I have been brainstorming this idea for awhile (though its all his idea). i tried it tonight as well and works great. the abs light comes on once you hit the brakes but is reset once you turn the car on and off. (you cannot turn the abs back on on the fly without shutting the car off.) i tried the same snowy part of my street with and without abs and it was amazing without! the only difference is where i tied my wire in. i did it right above the grommet through the firewall where the wire bundle bends down from near the windshield wiper and down. (i'll take a pic of this. Thanks Travis!

  7. Feb 26, 2010 at 4:09 PM
    #7
    crittergitter

    crittergitter Proud to be Canadian Navy

    Joined:
    Nov 24, 2009
    Member:
    #26454
    Messages:
    195
    Gender:
    Male
    First Name:
    Stu
    Shearwater, NS
    Vehicle:
    '06 Tacoma 4WD Double Cab
    Bugger, skid plate, colour coded cap, bed mat, AFE Air Filter, Rear diff breather mod, Chirp on door lock;unlock, ABS mod, Weathertechs front and rear, 60" Hi-lift jack, LED light mod in rear bed, 12V accessory in bed, n more stuff.
    Great write-up. Hey Rod, do you know if this will work on the 4.0l?

  8. Feb 26, 2010 at 5:00 PM
    #8
    Mr_Torque

    Mr_Torque Buy the Ticket take the Ride.....

    Joined:
    Aug 30, 2008
    Member:
    #8877
    Messages:
    172
    Gender:
    Male
    Perkasie,PA
    Vehicle:
    '07 Tacoma SR5 4WD V-6 6 Spd
    MBRP Exhaust, 17" FJ Steelies w/Firestone AT's, Truxedo Lopro ,Timbren SES, Pioneer FH-P4200MP HU & TS-C720PRS Component Speakers, Leaf Spring TSB, TRD Quickshifter
    Great solution. I can't wait to do this after sliding an extra 10 feet everytime a had to brake on a downhill slope in the snow today. Thanks!

  9. Feb 26, 2010 at 5:33 PM
    #9
    Klipp11

    Klipp11 s3

    Joined:
    Oct 10, 2009
    Member:
    #24059
    Messages:
    532
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    '06 DC 4x4 LB
    OME 885 coils, Bilstein 5100 shocks, 1.5" AAL, TC uca's, cab mount chop, 5000k HID heads and fogs, LED tails, satoshi GC w/ Hella 500's mounted behind it with 5000k HID upgrade, Extang solid tri-fold tonneau cover, Yakima roof rack, fog light anytime mod, disable a/c defrost mod
    good job! i just pulled the abs fuse, but i'll have to do it properly like you :thumbsup:

  10. Feb 26, 2010 at 5:36 PM
    #10
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    Wow that was quick Bryan! Like he said, only down fall is the abs light stays on even when you flip the switch the enable the abs back on on the fly, but resets when you turn the truck off and restart it. (to me it's not much of a downfall at all, kind of a reminder and its pretty much what I was expecting to happen).
    The only problem I can tell by the wiring diagram is that if you tie into the circuit there you could be losing your brake lights as well(as long as you get the wire going to the ABS ECU you're fine), that's why I opted to do it where I did. I'm glad it you were able to do it too:thumbsup: and before the weather got bad.

    As long as you don't have VSC or a locking diff, this method will work just fine for the 4.0l. There is another way of doing this mod if you do have VSC/locking diff.
    My name is Travis by the way;), Rod is cool just as well.

    I'm glad that this will be of service to you!:thumbsup: It is definitely needed in cases like yours.

    User beware tho, use at your own risk and be experienced without ABS. Disabling ABS will cause your wheels to lock up and you could potentially slide even more. For experienced drivers this can help you keep control of the braking.

  11. Feb 26, 2010 at 5:56 PM
    #11
    Dutch'nComa13

    Dutch'nComa13 Well-Known Member

    Joined:
    Nov 19, 2008
    Member:
    #10885
    Messages:
    158
    Gender:
    Male
    First Name:
    Joshua
    Rocky Gap VA
    Vehicle:
    08 TRD sport 4X4
    Black FJ steelies with 285/70/17 Michelin ATs, black tacoma steelies with 255/85/16 Dunlop Rover MT, Blacked out fender flares, Custom built RPM Offroad front bumper, weathertech digifit floor mats, Toyota Prado snorkel, secondary air filter removed, AFE pro dry replacement filter, seat belt mod, 3" lift (OME 885 with spacers front, all pro expo leafs rear), Home made custom rear high clearance bumper. Custom made scratches all over!
    Awesome write up! Two thumbs for you!! :thumbsup::thumbsup:

  12. Feb 26, 2010 at 6:35 PM
    #12
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    Yah, That's what everyone would tell me to do but I didn't want to have to do that every time I hit the dirt. Plus I finally got to make use of one of the empty switch pods.:D I'm saving the rest for some hellas, a whole lot of them too:devil:

    Thank you, thank you!

  13. Feb 26, 2010 at 6:36 PM
    #13
    BH15001

    BH15001 Well-Known Member

    Joined:
    Sep 7, 2009
    Member:
    #22375
    Messages:
    59
    Gender:
    Male
    SW PA
    Vehicle:
    09 Tacoma DC LB SR5
    Great write up. Does this affect the track system or LSD in 2WD?

  14. Feb 26, 2010 at 6:48 PM
    #14
    rodstone

    rodstone [OP] Well-Known Member

    Joined:
    Feb 6, 2010
    Member:
    #30865
    Messages:
    46
    Gender:
    Male
    First Name:
    Travis
    California
    Vehicle:
    08 2.7l 2wd
    I'm not sure. I know that there is a different method of bypassing the 4lo signal to ABS ecu for the trucks with VSC or locking diff (4wd) (ABS is disabled in 4lo naturally). So the other method would just make the ABS ECU think the truck is in 4lo when actually you are in any gear or wheel drive you want to be. A little more tech for those trucks. A big part of me thinks that this method would work for those truck as well....just need to look at the wire diagram some more. Don't quote me if I'm wrong tho.

  15. Feb 27, 2010 at 3:28 PM
    #15
    Bryan07sport

    Bryan07sport Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax

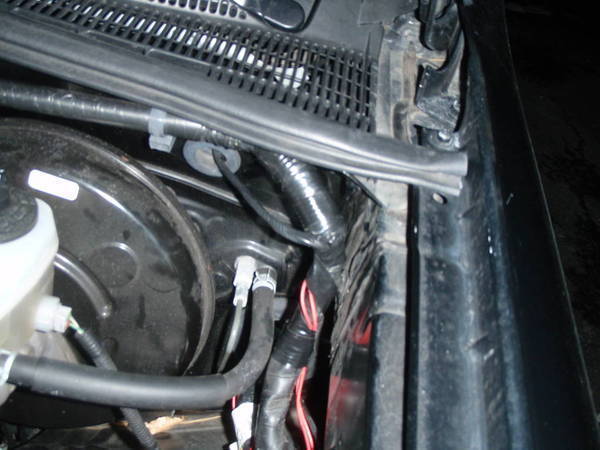

    Hey this is where I tied into the blue wire. right at the bend. I have wrapped black tape all the way now to hide the red wires. Same mod as above, just tied in earlier. Don't have to run wires across the engine this way. Same functions, brake lights still work. Thanks again rodstone (travis) for coming up with such a simple idea that had obviously been overlooked.
    [​IMG]

  16. Feb 27, 2010 at 3:36 PM
    #16
    Bryan07sport

    Bryan07sport Well-Known Member

    Joined:
    Sep 26, 2009
    Member:
    #23363
    Messages:
    360
    Gender:
    Male
    First Name:
    Bryan
    Newark, Delaware
    Vehicle:
    07 TRD Sport Access 6spd
    Hardwire GPS, 110v power outlet in cab, foglights anytime, mudflaps removed, pa-15 ipod interface, rear leaf tsb, URD short shift, integrated third brake/cargo light, ABS disable switch, BHLM, Dynomax super turbo muffler, Nitto Terra Grapplers 265/70/17, Front Bilstein 5100's at 1.75, Weathertech floormats, sockmonkey bedsides, bestop supertop, spidertrax
    I had a 4.0 4runner Limited before this and it had ABS/TRAC/VSC and I think in that when the abs was disabled, the other stuff was as well. So the only thing that may happen is when you flip this switch you lose all that stuff until you reset the ignition. But if i was in a situation where i wanted to disable ABS, id want to disable the other stuff as well.

    in lamans (sp?) terms this blue wire comes off your brake pedal and tells the abs to turn on and start checking stuff once you apply the brakes. opening this circuit makes it so the abs never recieves the signal from the brakes to activate.

  17. May 25, 2010 at 5:18 PM
    #17
    NicP

    NicP Well-Known Member

    Joined:
    Apr 15, 2010
    Member:
    #35351
    Messages:
    162
    Gender:
    Male
    First Name:
    Nic
    colorado
    Vehicle:
    05 DC LB
    3" Icon CO Icon Rez and AAL ProComp 7089 BFG 285 AT KO
    About the ABS disable MOD??
    In this write up you split the line and put in on the switch and according to Travis no blown fuse or alarger amp needed.
    In other write ups they say splice in and ground the line with a switch.
    Is this the way (splice) that causes the popped fuse?
    Is it better to seperate the line and just put it on the switch? And is there any problem doing this with the Sports sinsce they have LSD (but still ABS)? I found the wire in the harness but just want to make sure it will work on my 05 sport.
    So Splice or cut and put switch in line? Which way is correct?

  18. May 25, 2010 at 5:38 PM
    #18
    jacob_wood

    jacob_wood Screw your MPG's

    Joined:
    Jun 8, 2009
    Member:
    #18191
    Messages:
    3,804
    Gender:
    Male
    First Name:
    Jacob
    Campbell, CA (Nor-Cal)
    Vehicle:
    4Runner
    BHLM, SAW coilovers, Overland Warehouse springs and rear shocks, and Demello front bumper.
  19. May 25, 2010 at 6:16 PM
    #19
    RainDodger

    RainDodger YGWYPF

    Joined:
    Nov 23, 2009
    Member:
    #26412
    Messages:
    363
    Gender:
    Male
    Great Northwest
    Vehicle:
    '09 Black, TRD Sport
    None yet! It's new!
    I'm sure that bunches of us would also like to know if this mod is working on newer trucks, like '09+. I'd suspect it will.

    I've been pulling the ABS fuse, which also kills the VSC. I'd bet this mod would do the same.

    Does anyone know for sure?

  20. May 26, 2010 at 7:15 AM
    #20
    NicP

    NicP Well-Known Member

    Joined:
    Apr 15, 2010
    Member:
    #35351
    Messages:
    162
    Gender:
    Male
    First Name:
    Nic
    colorado
    Vehicle:
    05 DC LB
    3" Icon CO Icon Rez and AAL ProComp 7089 BFG 285 AT KO
    BUMP
    Any one know?
    Splice the ground OR inline switch?
    Both TacoGrande and Travis have no problems with both techniques but somone had multiple fuse popps with the ground technique.
    I don't want to cut if I can just tap in to the line
