ABS disable mod for 05+ Tacomas w/o VSC & locking diff write up *pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rodstone, Feb 26, 2010.

  1. Feb 16, 2017 at 7:59 AM
    #221
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,911
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Yup, that will do it. If you look back at my photos, the bottom terminal of the switch is ground.(white).
    The connector side of the green wire (blue in my case) goes to the centre terminal.
    The other end of the green wire (yellow in my case) goes to the top terminal.
    Look at post 141 of this thread for the pics. The blue wire coming out of the connector body will green in your case, cut, and spliced to whatever wire you are using.

  2. Feb 16, 2017 at 8:47 AM
    #222
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    I see now. So is the green wire mod is under the dash and yhe op is under the hood. Right?
    So my ? Is ,how many have done this with issuses?

  3. Feb 16, 2017 at 9:00 AM
    #223
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    So i see ehat he did wrong after reading your version through. He grounded the wrong side of the wire coming ftom the fuse. The light green wire or blue in pic.
    Like you said it comes from the fuse so that side should not go to ground.
    That said you should check your switch with a meter to insure that side of the green wire dosnt go to ground. If your not sure about what i said ask someone to help you with electronic / electrical background. I could draw a pic but it probably wont help.

    FishingInSand likes this.
  4. Feb 16, 2017 at 9:06 AM
    #224
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    536
    Gender:
    Male
    First Name:
    CJ
    San Diego
    Vehicle:
    06 Access Cab Prerunner
    Some stuff here and there
    So what I did was put the ground in the middle, that explains everything, I think you just gave me inspiration to try it again

  5. Feb 16, 2017 at 9:57 AM
    #225
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    exactly

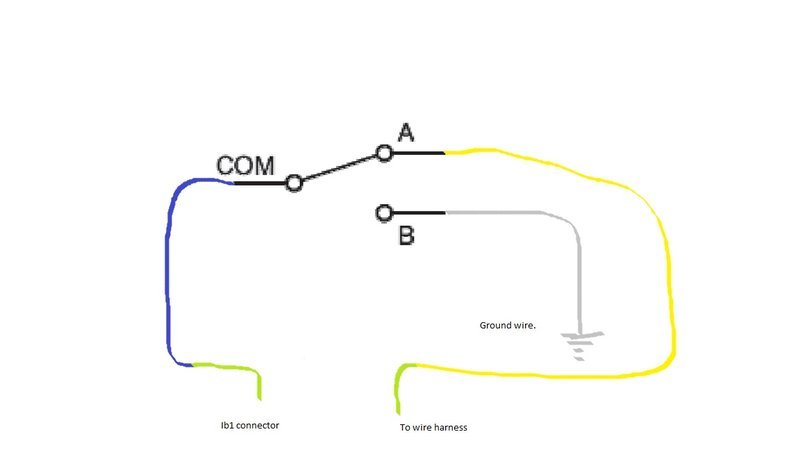

    here is apic to help you
    This isn't my mod and I haven't done this yet just drew this up reading through the post. so if im wrong please correct me. I plan on doing this soon.

    landphil and FishingInSand like this.
  6. Feb 16, 2017 at 12:10 PM
    #226
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    536
    Gender:
    Male
    First Name:
    CJ
    San Diego
    Vehicle:
    06 Access Cab Prerunner
    Some stuff here and there
    Awesome thanks man I'm still learning this stuff as I go, with it being used for work is a slight occupational hazard heh..

    And it's good to see what's in my mind layer out on "paper".

  7. Feb 16, 2017 at 1:09 PM
    #227
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,911
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Eggzackery! Nice diagram, I shoulda, coulda done that myself in my post originally, thanks for adding it.

  8. Feb 16, 2017 at 1:12 PM
    #228
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,911
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Yup, mixing those up = shorting +12V straight to ground, which is why the fuse blew. Follow jqueener's diagram and you should have it.

  9. Feb 16, 2017 at 2:46 PM
    #229
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    I find it helps to draw it out, as a simple drawing. a lot easier to follow when your working on it then to try and keep reading words on a cell phone under the dash.

    FishingInSand likes this.
  10. Feb 16, 2017 at 3:06 PM
    #230
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    536
    Gender:
    Male
    First Name:
    CJ
    San Diego
    Vehicle:
    06 Access Cab Prerunner
    Some stuff here and there
    This times 1000 lmao

  11. Feb 16, 2017 at 6:26 PM
    #231
    Beerline123

    Beerline123 Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126719
    Messages:
    290
    Gender:
    Male
    Vehicle:
    07 Tacoma access 4x4
    So common to a terminal abs is on / common to b (ground) abs disabled

  12. Feb 16, 2017 at 9:52 PM
    #232
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    Yes.

  13. Feb 16, 2017 at 9:56 PM
    #233
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    not all switches are the same so check the switch before install.

  14. Feb 18, 2017 at 1:11 PM
    #234
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    I just finished this mod. Works perfectly.

    landphil likes this.
  15. Feb 20, 2017 at 9:39 AM
    #235
    Speedo

    Speedo Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103540
    Messages:
    8,091
    Gender:
    Male
    First Name:
    Jason
    Sacramento, CA
    Vehicle:
    2006 dcsb 4x4
    Wrecked!
    tested it out yesterday in snow,ice, and mud. i will say in the mud it was a huge improvement.

  16. Feb 21, 2017 at 9:53 PM
    #236
    FishingInSand

    FishingInSand Well-Known Member

    Joined:
    Nov 28, 2016
    Member:
    #203531
    Messages:
    536
    Gender:
    Male
    First Name:
    CJ
    San Diego
    Vehicle:
    06 Access Cab Prerunner
    Some stuff here and there
    Success!


    landphil likes this.
  17. Feb 10, 2018 at 5:41 PM
    #237
    The Smith

    The Smith Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200435
    Messages:
    86
    Gender:
    Male
    Trinity Alps
    Vehicle:
    '17 4x4 V6 SR5
    Can anyone post a link (if one exists) to a similar mod for a 3rd gen (2017) SR5?

  18. Aug 6, 2018 at 4:13 PM
    #238
    acrossawire

    acrossawire Well-Known Member

    Joined:
    Jan 29, 2012
    Member:
    #71715
    Messages:
    208
    Gender:
    Male
    Fresno, CA
    Vehicle:
    2010 DCSB 4x4 Sport
    Icon Coilovers & AAL
    landphil likes this.
  19. Aug 6, 2018 at 5:13 PM
    #239
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,911
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    A SPDT on-on switch must be used, but that could be a 5pin relay controlled by a SPST switch like you want to use. Pin 30 of the relay is then equivalent to the center terminal of my switch, pin 87a on relay is the top terminal of my switch, and pin 87 is the bottom terminal of my switch.

    Pins 85 and 86 are the control coil, one ground, one power, and switched by your SPST push button switch.

    hx989 likes this.
  20. Aug 6, 2018 at 5:18 PM
    #240
    hx989

    hx989 Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    6,088
    Olympic Peninsula
    Yep but that's a lot of work just to not use a double throw switch
