ABS disable mod for 05+ Tacomas w/o VSC & locking diff write up *pics*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rodstone, Feb 26, 2010.

  1. Feb 18, 2012 at 10:02 AM
    #81
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,272
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Awesome .

    I wondered if the wire actually comes up to the location where the switch would be similar to other situations where the wiring is there behind blanks for switches that don't apply to the particular truck configuration .

  2. Feb 18, 2012 at 11:02 AM
    #82
    george3

    george3 Well-Known Member

    Joined:
    Jun 8, 2008
    Member:
    #7173
    Messages:
    4,156
    new jersey
    Vehicle:
    tacoma
    Seat belt beeper, Cabelas (Weathertech) floor liner gray, Covercraft Seat Savers in Taupe, Protecta Heavy Duty Rubber Truck Bed Mat, Pop n Lock PL5200, Pace Edwards Full Metal JackRabbit, Wolverine oil pan heater, Scangauge2, afe pro dry s filter, Remote Underbody 4 Piece LED Light Kit (White) used as Bed light, DIY Washable Cabin Air Filter, PA15-TOY, 4x4 Illuminated Switch, full synthetic, Redline Tuning Hood Support, Smittybilt Nerf Steps black powder-coated
    Dear Awesome. Waiting til I can just buy a switch - plug and play.:woot::woot:

  3. Feb 18, 2012 at 7:49 PM
    #83
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    That is one heck of a good thought, I'm eagerly awaiting this info as well, and am glad I've procrastinated long enough to not do the rodstone mod yet, as good as it is.

    Oh, to have the circuit diagrams.

  4. Feb 19, 2012 at 4:09 PM
    #84
    fritzthecat

    fritzthecat Well-Known Member

    Joined:
    Jun 10, 2008
    Member:
    #7217
    Messages:
    175
    Gender:
    Male
    Virginia Beach
    Vehicle:
    07 PreRunner Auto AccCab Indigo

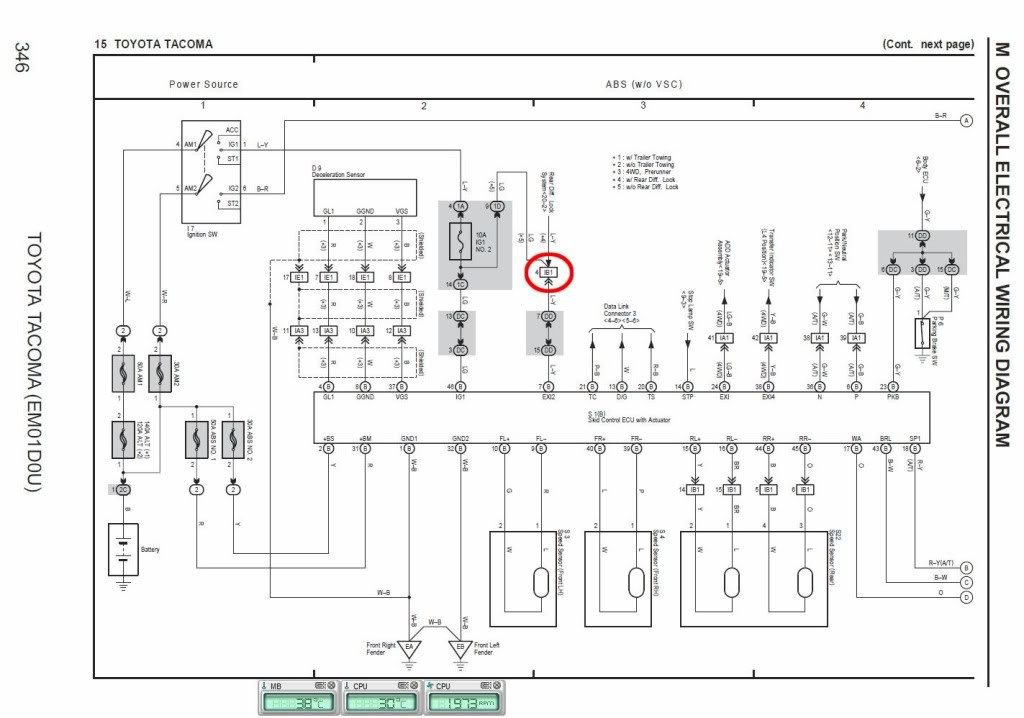

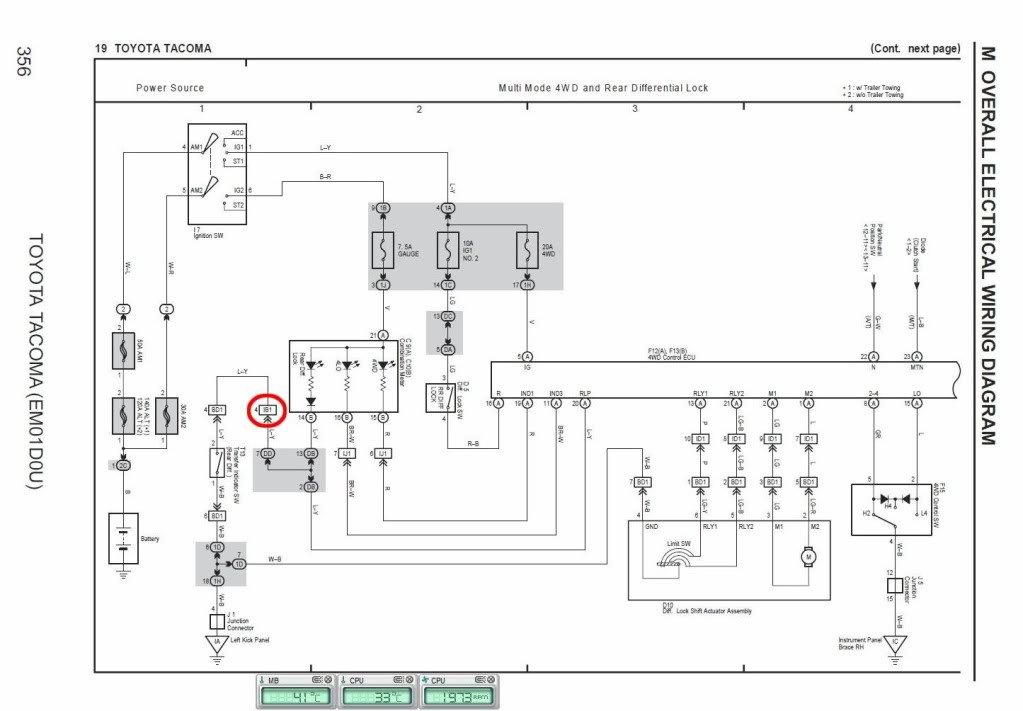

    Looking at the wiring diagram and the not shown *2 Note (*1 is with Locker, *2 is without Locker), the Blue/yellow L-Y wire is only there if a locker is installed. The LiteGreen LG wire is on the plug if no locker wiring is installed. So on my Sport Prerunner, I would cut the LG wire and run it through a switch to disable the ABS. Essentially, I could install the switch anywhere between 1D(9) and EXI3 on the ABS ECU.
    As long as the volts from IG1 #2 are stopped from going to the ABS ECU, the ABS is disabled.
    Right?

    Fritz

  5. Feb 19, 2012 at 4:21 PM
    #85
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    I think you might be onto something, I assume you have the diagram with the notes? If so, I would think you are correct. The diagram shown here makes much more sense with that additional info.

  6. Feb 19, 2012 at 4:45 PM
    #86
    KenpachiZaraki

    KenpachiZaraki Its Wicked Flow BITCHES!!

    Joined:
    May 24, 2009
    Member:
    #17581
    Messages:
    4,159
    Gender:
    Male
    First Name:
    Alex •﹏•
    Lubbock
    Vehicle:
    05 TRD. 325/275/365 SBD
    ALL POSER- Afe Pro Dry S drop in filter, 3" AP leaf pack, Eibach w/5100's up front, 5100's rear, Fog Light Mod, ABS off mod, Dash Light MOD, Doug Thorley Long Tube Headers, Wicked Flow Bitches MAX Muffler, 4" floods, 20", 43" light bars, 265/75/16 Hankook Dynapro ATm, oil catch can, rear diff breather relocate, Custome Sliders, SOS concepts Front bumper, Demon Eye Mod, backlit TRD emblem on bumper, Morimoto D2S projectors,
    I freaking Derp'd when you starting talking aboot teh wires exi3 1d9 to the ecu flux capacitor at ig1.21 jigga wuts!! :eek:

  7. Feb 20, 2012 at 8:55 PM
    #87
    fritzthecat

    fritzthecat Well-Known Member

    Joined:
    Jun 10, 2008
    Member:
    #7217
    Messages:
    175
    Gender:
    Male
    Virginia Beach
    Vehicle:
    07 PreRunner Auto AccCab Indigo
    Hey, there is a pic on post #83.

    Note that my 2006 wiring diagram has different pin numbers in the plugs following IB1 for this wire. Also on the ABS ECU it goes into pin 7 (EXI2) if you only have ABS without the TRAC/VSC stuff. It still goes into pin 28 (EXI3) with all the TRAC/VSC installed.

    Fritz

  8. Feb 20, 2012 at 10:41 PM
    #88
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I've looked over the wiring diagrams and will check it out in my truck tomorrow. I don't want to run 10 ft of wire and splice things if i don't need to.

  9. Feb 20, 2012 at 10:42 PM
    #89
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,272
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Cool , thanks

  10. Feb 21, 2012 at 6:40 AM
    #90
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I need a paperclip.

    Edit: wrong thread ....

  11. Feb 21, 2012 at 8:52 AM
    #91
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Just installing/wiring up a factory swith will not work.. :mad: the factory switch runs has a lt green wire and a red/black wire.

  12. Feb 21, 2012 at 9:00 AM
    #92
    OZ-T

    OZ-T You chose ... wisely

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    48,272
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Where is the closest location to run a jumper from ?

  13. Feb 21, 2012 at 10:39 AM
    #93
    BRYLONATOR

    BRYLONATOR Building 06 Suburban K2500 with LBZ D-max and ZF6!

    Joined:
    Mar 9, 2011
    Member:
    #52680
    Messages:
    1,309
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    Chillin in a 120!
    My switch is in.....I will have it installed within 2 hours and I will update with my phone as I really would love to have this figured out! Regardless of how it will work, I wanted the switch to use for the original mod. This switch as well as the fog switch are the only 2 factory switches that work like a toggle so I am still going to disable the ABS it is just a matter of how it gets accomplished. Just noticed I wrote switch a bunch of times!

  14. Feb 21, 2012 at 1:06 PM
    #94
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    IB1, driverside kick panel. If i recall without rereading things.

  15. Feb 21, 2012 at 1:08 PM
    #95
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Switchey switch. :D
    Yea im gonna use a carling switch with a diff locker cover for mine. Kinda make it less obvious for insurance purposes. :spy:

  16. Feb 21, 2012 at 3:30 PM
    #96
    BRYLONATOR

    BRYLONATOR Building 06 Suburban K2500 with LBZ D-max and ZF6!

    Joined:
    Mar 9, 2011
    Member:
    #52680
    Messages:
    1,309
    Gender:
    Male
    Denver, Colorado
    Vehicle:
    Chillin in a 120!
    Well.... I kind of got hosed. Kind of! I ordered the correct switch but the wrong one came in. What does an auto LSD switch do? What taco did these come on? Anyways the new switch will be here Thursday. Now on a more positive note....I scored a brand new pair of OEM smoked headlights for only $200!!!

  17. Feb 22, 2012 at 2:10 PM
    #97
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    To elaborate further now that my internet is back.

    Just putting in a factory Diff switch or wiring up an aftermarket switch to the factory wiring behind the dash did not work for me.
    The thought was that if the 4wd and skid ecus thought you were turning on the diff the ABS would be disabled, the diff lock indicator on the dash would light up. Well I guess the 4wd ecu is smart enough to know that the diff lock is not present.

    IB1 on the driver kick panel is where people are tying in to the wiring.

    This wire is between the 4wd and the skid ecu.

  18. Feb 22, 2012 at 5:46 PM
    #98
    landphil

    landphil Wishin' I was Fishin'

    Joined:
    Mar 3, 2011
    Member:
    #52290
    Messages:
    2,913
    Gender:
    Male
    BC, Canada
    Vehicle:
    RIP 2006 Tacoma DCSB
    Tundra 5.7 mod
    Nice! Seeing both diagrams makes it easy peasy in theory, now any tips for locating IB1 in the drivers kick panel?

    The dash switch does not provide the diff locked signal to the ecu alone, its the "transfer indicator" switch T13 (if i'm reading it right, its a bit blurry) just to the lower left of IB1 in the last diagram. It grounds out the 12V signal from the 4wd ecu to disable the ABS and illuminate ths diff lock indicator led in the dash. On non-diff lock trucks, this 12V signal comes from the IG1 10A fuse, so the circuit must be opened with a switch, rather than grounding it.

  19. Feb 22, 2012 at 10:17 PM
    #99
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,762
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

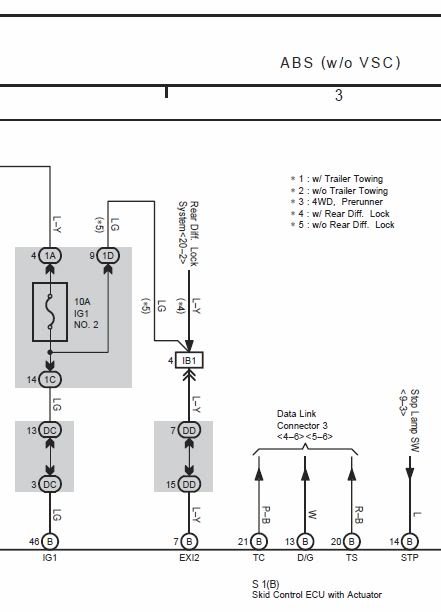

    Here you go.

  20. Feb 23, 2012 at 6:35 AM
    #100
    T-Rex266

    T-Rex266 Moderator Moderator

    Joined:
    Mar 21, 2011
    Member:
    #53447
    Messages:
    26,994
    Gender:
    Male
